A Syncro-Range transmission that drops out of gear under load will not fix itself on a Saturday afternoon. The John Deere 2520 technical manual PDF, factory document TM1004, runs 312 pages on this tractor, from predelivery and tune-up through final drive teardown. Wiring diagrams map the charging, starting, ignition, and lighting circuits back to the battery, so a dead accessory gets traced instead of replaced on a hunch. Hydraulics claim the largest run of the book, covering the main reservoir, filters, pumps, power brakes, rockshaft, 3-point hitch, and the selective control valves feeding your remote cylinders. Set alternator belt tension to 20 lbs. at 3/4 in. deflection, and confirm 3-1/2 to 4-1/2 psi at the fuel pump before you blame the injection pump. Guessing bills you twice: wrong part, second teardown. Bookmarked and text searchable, it downloads once and stays yours for as long as the 2520 works your ground.
What's Inside This John Deere 2520 Manual
| System | Pages | Key Topics |
|---|---|---|

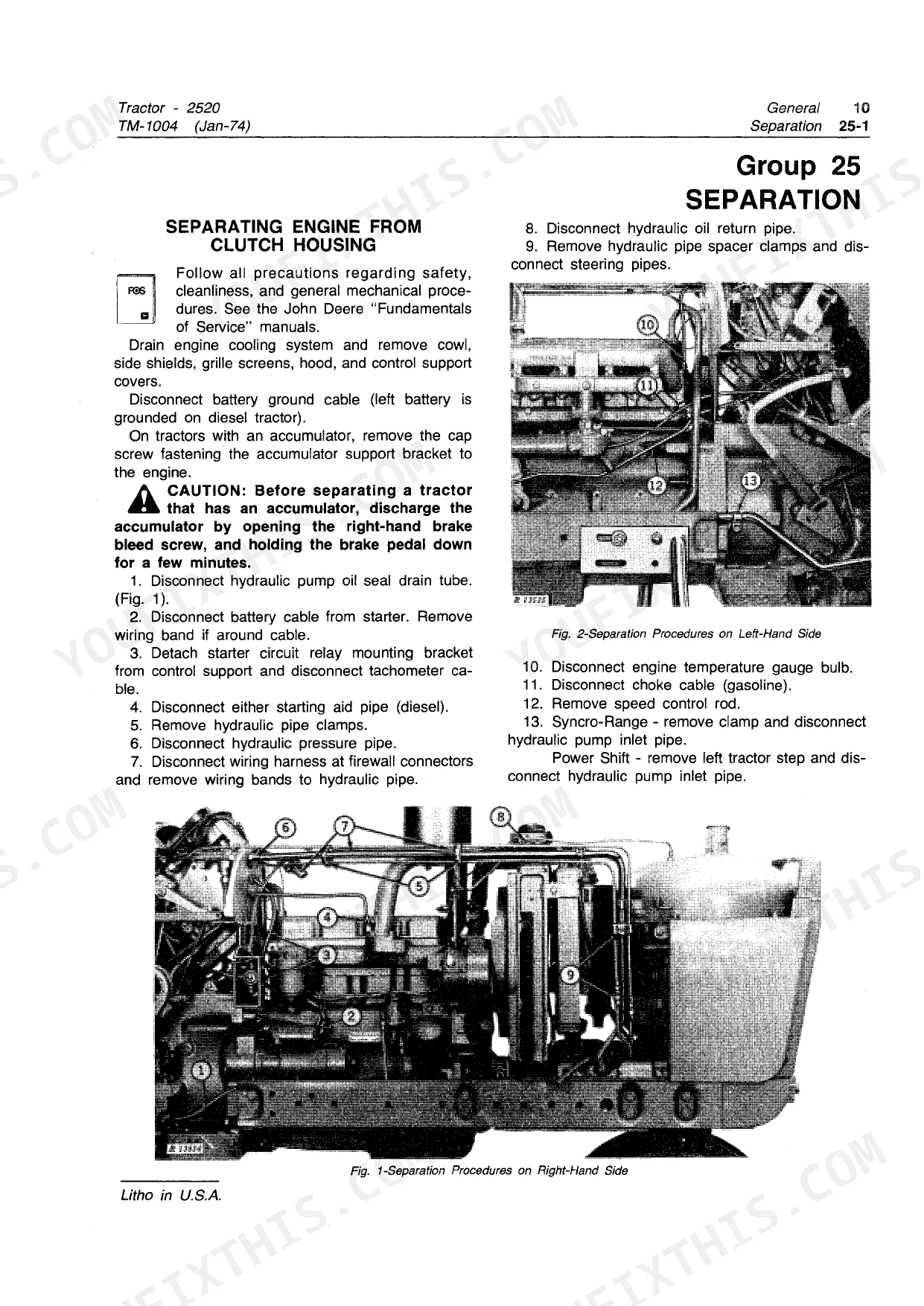

| General | 3-28 | Specifications, Predelivery, Delivery, And After-Sale Services, Tune-Up, Lubrication, Separation |

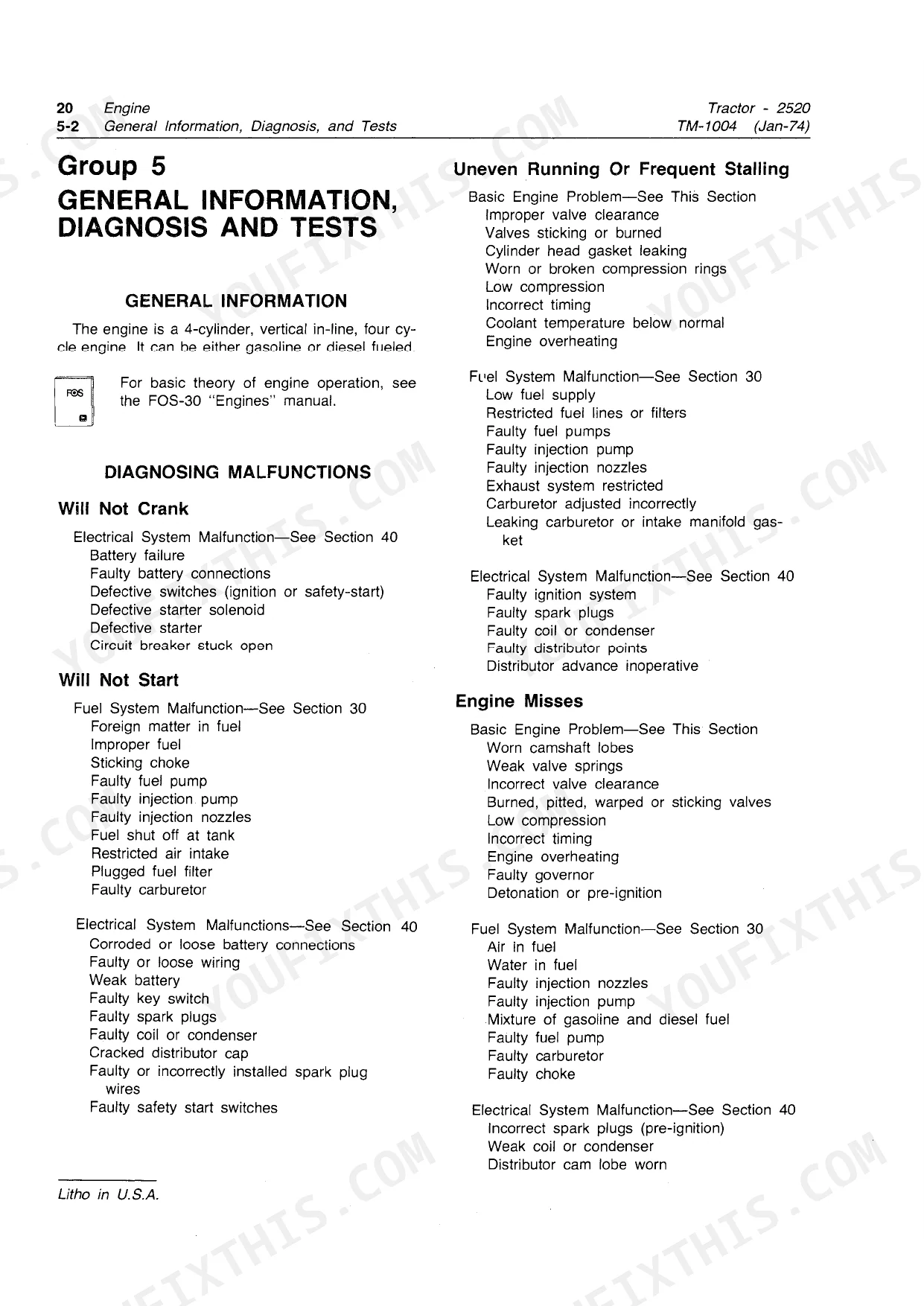

| Engine | 29-72 | General Information, Diagnosis, And Tests, Cylinder Head and Camshaft, Cylinder Block, Liners, Pistons, And Rods |
| Fuel Systems | 73-96 | Diagnosing Malfunctions, Diesel Fuel System, Gasoline Fuel System |

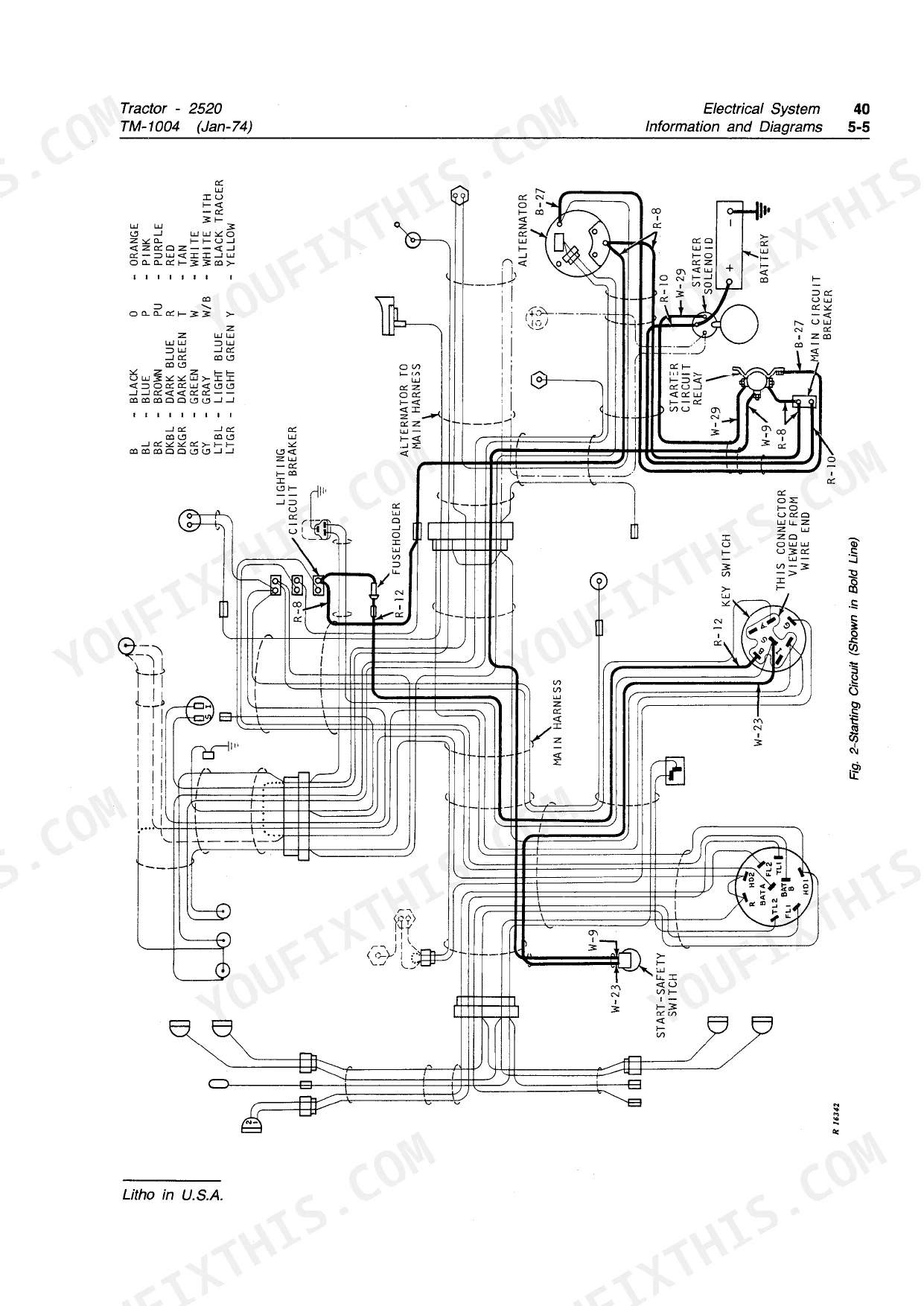

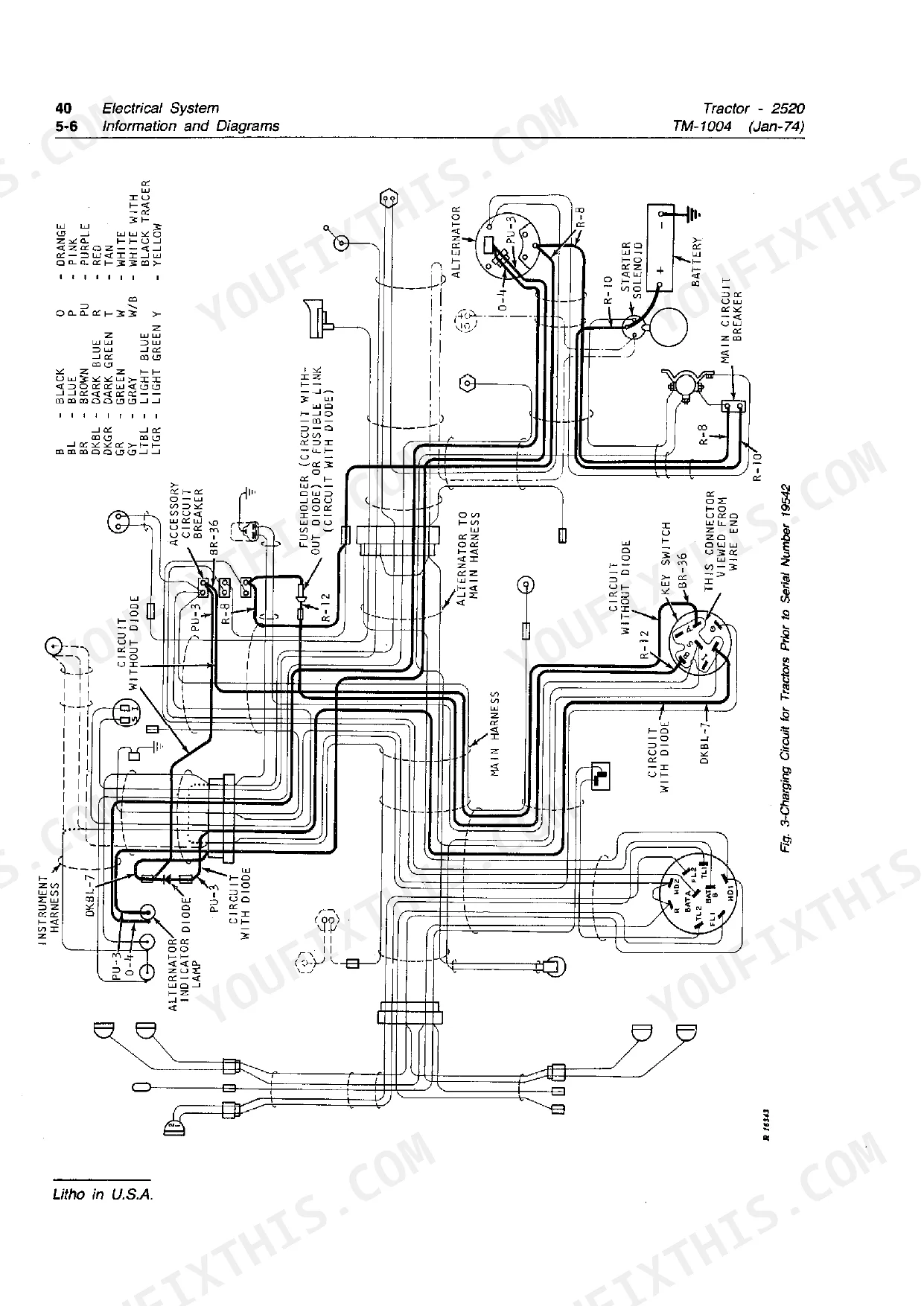

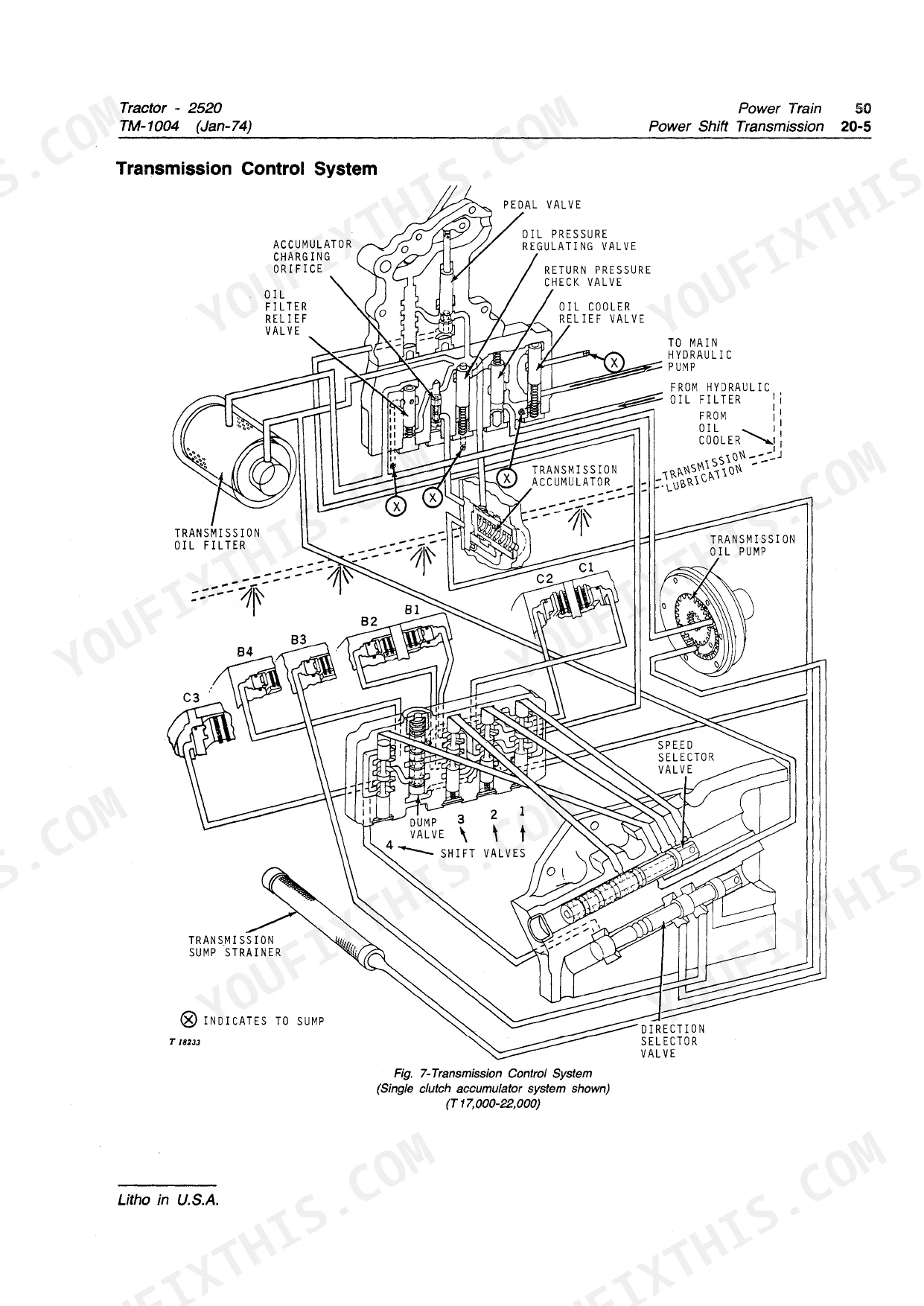

| Electrical System | 97-144 | Information and Diagrams, Charging Circuit, Starting Circuit, Ignition System, Lighting and Accessory Circuits |
| Power Train | 145-222 | Syncro-Range Transmission and PTO Clutches, Syncro-Range Transmission, Engine Disconnect Clutch, Power Shift Transmission, Differential, Final Drive, Hi-Crop Final Drive |
| Steering and Brakes | 223-224 | Steering Valve, Steering Motor, Power Brakes, Brake Accumulator, Operating Valve, Cylinder |
| Hydraulic System | 225-308 | General Information, Diagnosis, And Tests, Main Reservoir, Filter, Valves, Oil Cooler, And Oil Reservoir |
| Miscellaneous | 309-312 | Front Axle |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Check alternator belt tension | 20 lbs. at 3/4 in. belt deflection | p. 17 |
| Fuel pump pressure | 3-1/2 to 4-1/2 psi | p. 77 |
| Battery Cold Cranking Amps (0°F) | 430 Amps | p. 98 |
| Battery Cold Cranking Amps (-20°F) | 330 Amps | p. 98 |
| Start-safety switch voltage drop | 0.1 volt Max. | p. 132 |
| Oil Cooler Relief Valve pressure (warm) | 80 to 100 psi | p. 234 |
| Oil Cooler Relief Valve pressure (cold) | 140 to 160 psi | p. 234 |

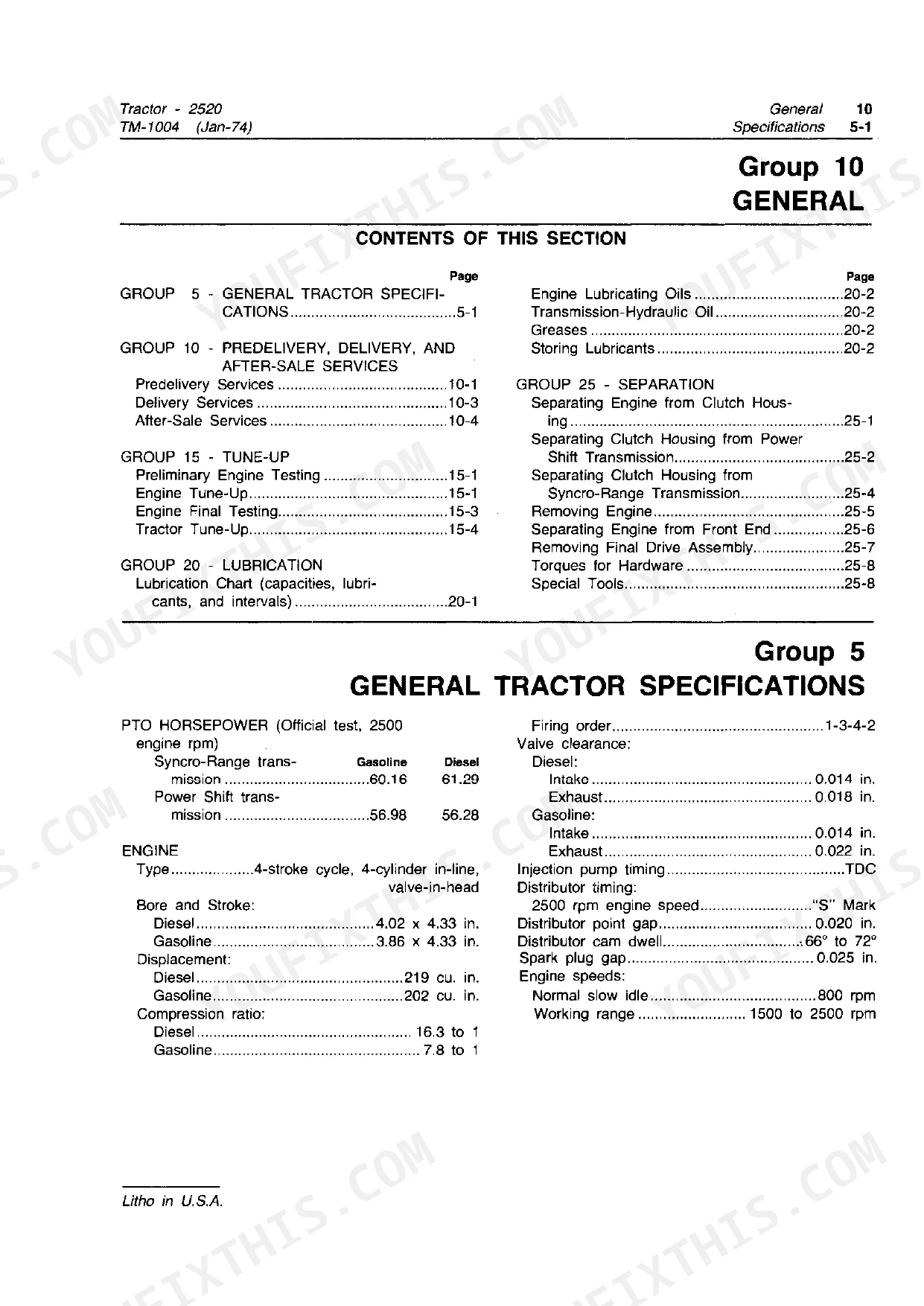

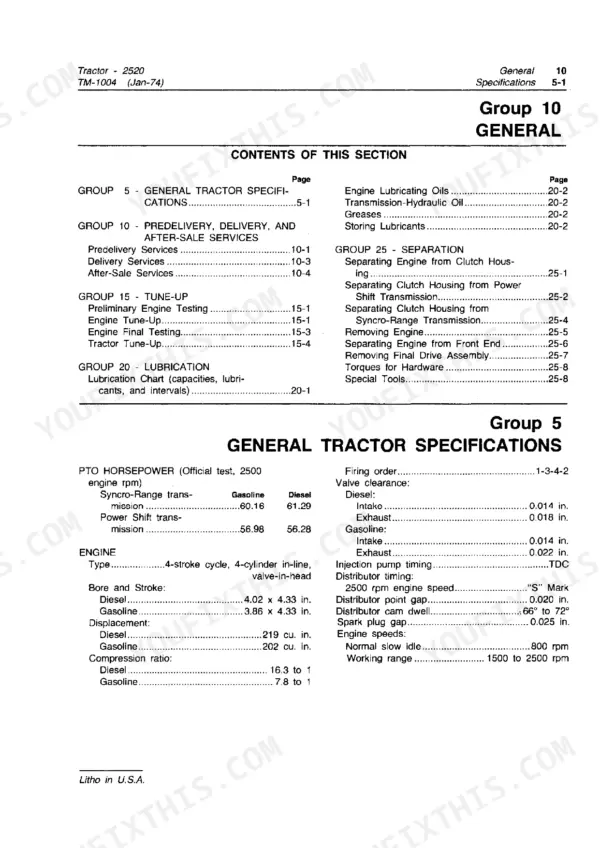

| Diesel Valve Clearance (Intake) | 0.014 in. | p. 5 |
| Diesel Valve Clearance (Exhaust) | 0.018 in. | p. 5 |
| Gasoline Valve Clearance (Intake) | 0.014 in. | p. 5 |
| Gasoline Valve Clearance (Exhaust) | 0.022 in. | p. 16 |
| Hydraulic System Standby Pressure | 2250 psi | p. 7 |
John Deere 2520 Common Problems This Manual Covers
John Deere 2520 three-point hitch won't lift or lifts intermittently, rockshaft drops under load
Pull the rockshaft cover and verify the cam lever sits on the correct side of the arm before blaming the pump. Set the load and depth levers per the rockshaft diagnosis , then confirm standby pressure holds 2250 psi as listed on page 7. Low pressure means pump or relief valve, not linkage.
Manual Section: Rockshaft and Implement Hitches Diagnosing MalfunctionsFront axle leaking oil down the spindle, steering feels loose with wheel wobble
Jack the front end, grab the tire at 12 and 6, and check spindle play before you buy seals. Worn bushings chew a new seal in a season. Pull the spindle, measure bushing and bearing wear against the front axle specs starting on page 309, and replace both sides together so the fix holds through fall work.
Manual Section: Miscellaneous p. 309Cranks but won't start, or starter just clicks when the key turns
Test the start-safety switch first. Put a meter across it in neutral: anything over the 0.1 volt maximum on page 132 means burned contacts, replace it. If the switch passes, load test the battery against the 430 amp cold cranking rating on page 98 and clean both ground straps to bare metal.
Manual Section: Starting Circuit Diagnosing Malfunctions p. 132PTO won't engage, or drops out under load with an implement running
Check transmission oil level first, since low oil starves the PTO clutch pack. Then work through the PTO clutch diagnosis in the Syncro-Range Transmission and PTO Clutches section starting on page 145 before pulling any clutch apart.
Manual Section: Syncro-Range Transmission and PTO Clutches p. 145Hydraulics slow, oil running hot, loader and remotes crawl after an hour of work
Drain and change the transmission hydraulic oil filter first, then verify the oil filter relief valve differential falls in the 40 to 50 psi range given on page 234. Check the cooler relief at 80 to 100 psi warm. Foaming oil usually means a sucked air leak at the suction line, so retorque those fittings.
Manual Section: Hydraulic System Diagnosing Malfunctions p. 234Engine loses power under load, smokes, and runs rough at PTO speed
Measure fuel pump pressure at the inlet and confirm it reaches 3-1/2 to 4-1/2 psi as specified on page 77. Replace the fuel filter if it falls short. Then check valve clearance cold: 0.014 in. intake and 0.018 in. exhaust on diesels per page 5. Tight valves rob power and burn seats.
Manual Section: Fuel System Diagnosing Malfunctions p. 77Frequently Asked Questions

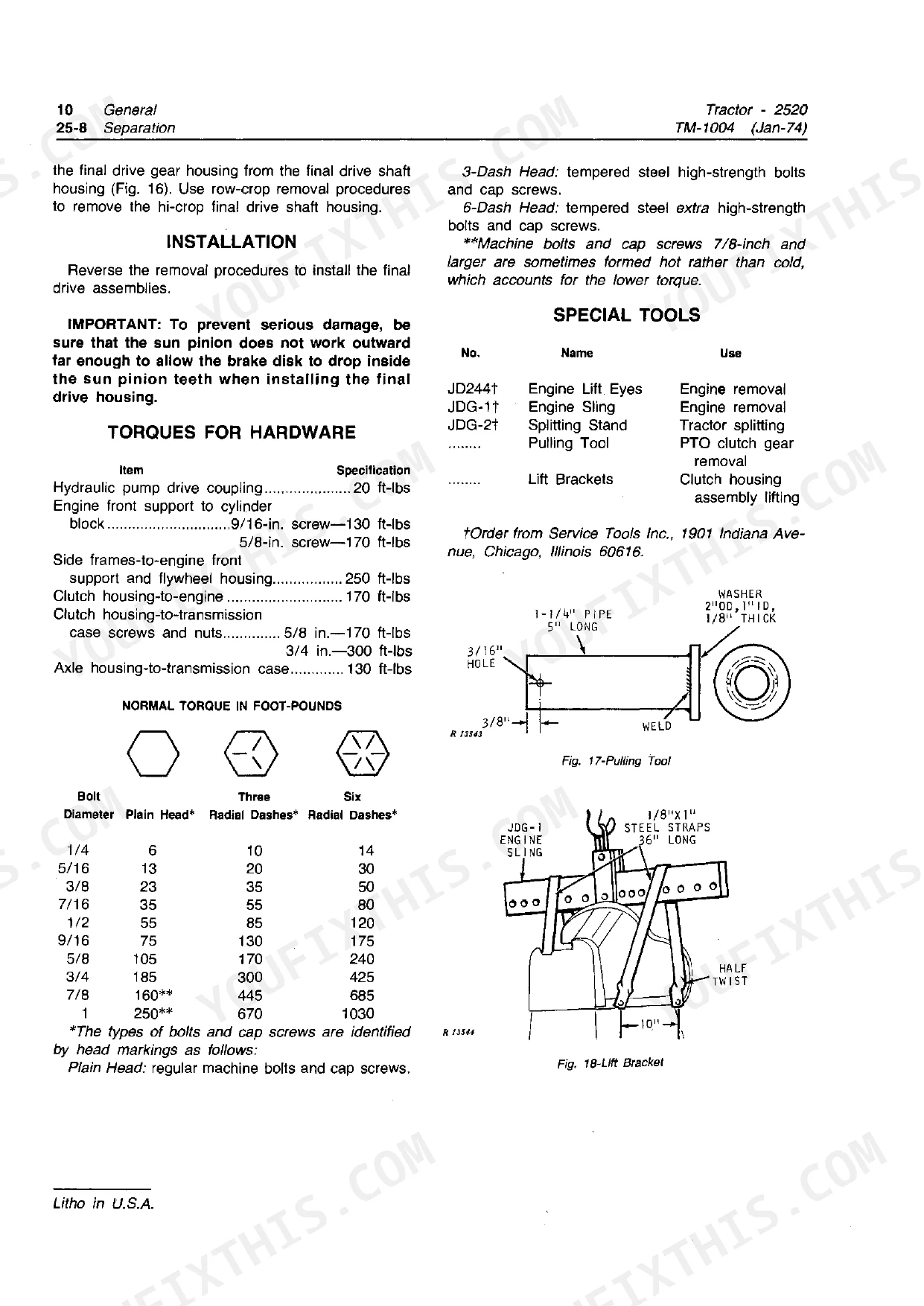

What are the torque specs for the front axle housing cap screws on a John Deere 2520 tractor with adjustable tread?
The torque specification for the front axle housing cap screws on a tractor with adjustable tread is 250 ft-lbs. p. 312
What are the replacement specifications for the engine air filter on a John Deere 2520 tractor?
The air intake vacuum at 2500 engine rpm with a clean filter element should be 8 inches of water for diesel engines with precleaner and extension, and 3.5 inches of water without. For gasoline engines, it is 8 inches of water with precleaner and extension, and 2 inches of water without. p. 86
What is the correct valve clearance for the John Deere 2520 diesel engine?
For the diesel engine, the intake valve clearance is 0.014 inch and the exhaust valve clearance is 0.018 inch. p. 40
What is the capacity of the crankcase for the John Deere 2520?
The crankcase capacity for the John Deere 2520 is 7 U.S. quarts for dry measurement, and 6 U.S. quarts for a refill that includes a filter change. p. 6
What is the hydraulic system standby pressure on a John Deere 2520 tractor?
The standby pressure for the hydraulic system is 2250 psi. p. 7
Is this John Deere 2520 manual a download or a disc?
You get a 312-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this John Deere 2520 manual print-friendly?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
