All 790 pages of this John Deere 4510, 4610, and 4710 Technical Manual (OEM #TM1986) are factory-built around three compact utility tractors: engine, drivetrain, hydraulics, and full electrical coverage in one document. You get wiring diagrams for both standard and European electrical systems, hydraulic schematics tracing fluid through the gear pump, rockshaft control valve, PTO clutch valve, and selective control valve, plus a loaded troubleshooting section, error code tables, and calibration procedures pulled from actual factory test measurements. Open the torque chapter and you'll find metric and inch fastener tables, clearance specs, and O-ring boss fitting torques ranging from 8 to 217 N•m by thread size. Fill the engine with 4.81 L (5.08 qt) before startup; set slow idle at 950 ± 25 rpm and you know it's right. No more guessing at specs from forum posts. Bookmarked by section: search any keyword, land on the exact value, get back to work.
What's Inside This John Deere 4510, 4610, 4710 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Manual Description, Table of Contents, Specifications and Information, Identification Numbers, Tools and Materials, Component Location |
| Safety | 5-10 | Recognize Safety Information, Handle Fluids Safely, Prevent Battery Explosions, Prevent Acid Burns, Use Care in Handling and Servicing Batteries |

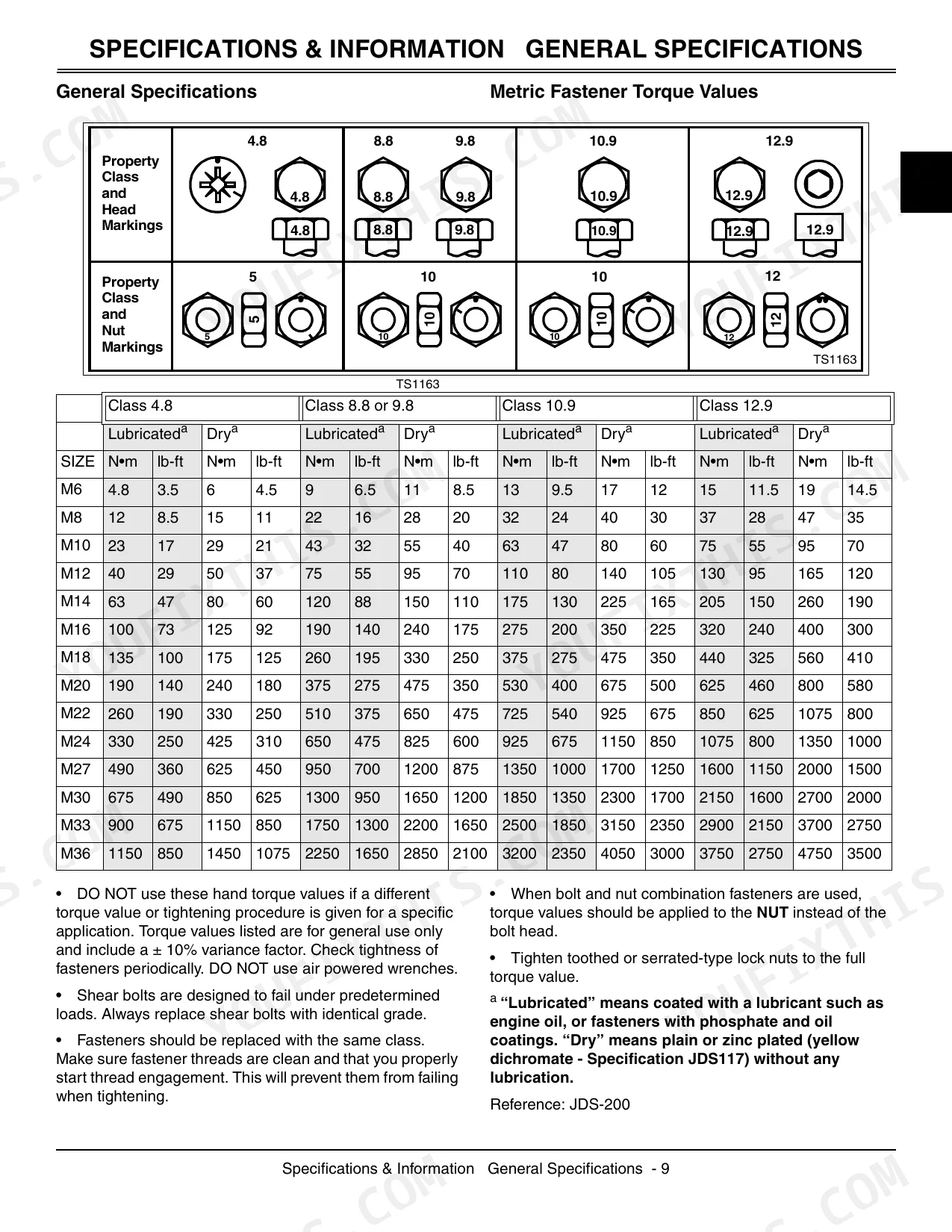

| Specifications & Information | 11-24 | General Specifications, Metric Fastener Torque Values, Inch Fastener Torque Values, O-Ring Seal Service Recommendations, General Information, Serial Number Locations |

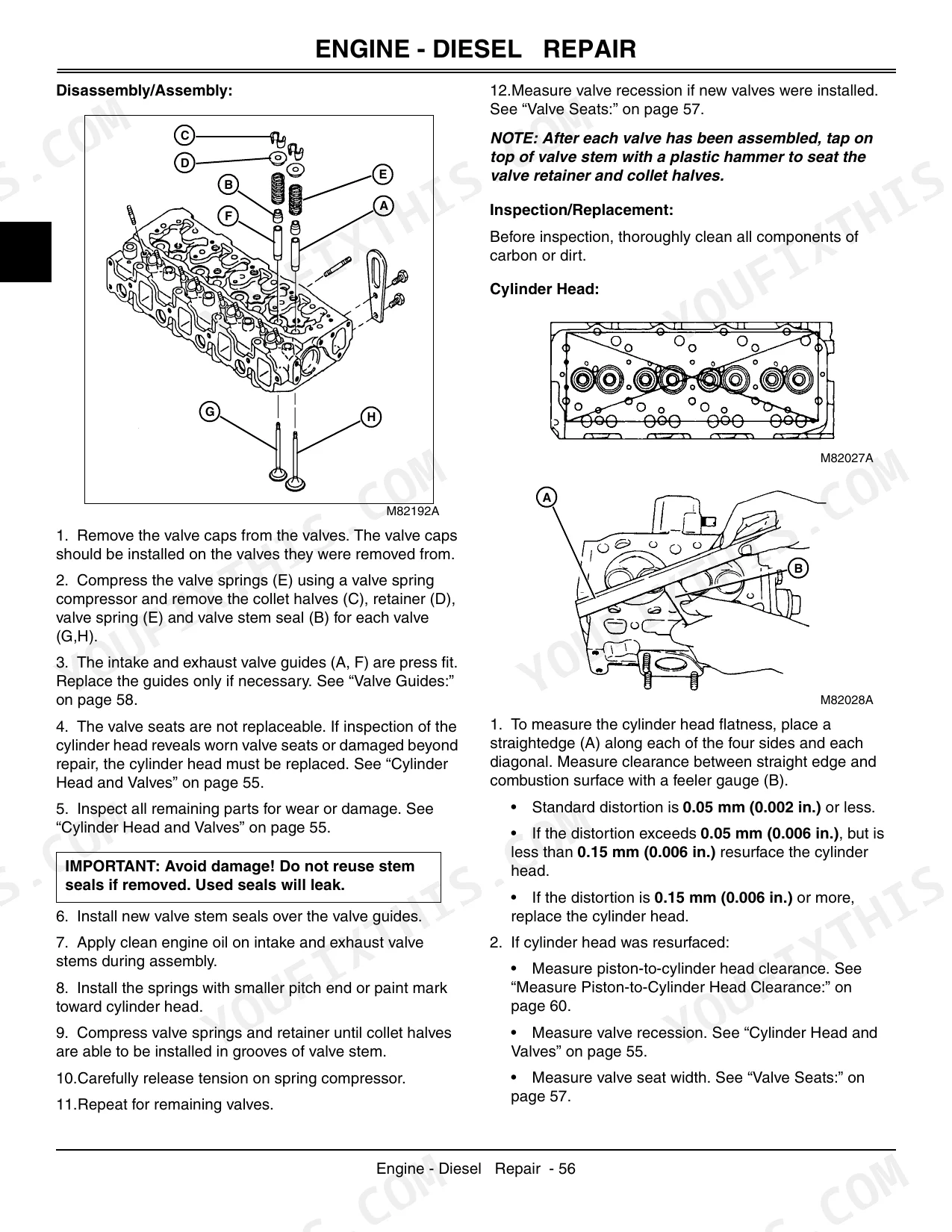

| Engine - Diesel | 25-102 | Specifications, Theory of Operation, Diagnostics, Tests and Adjustments, Repair, Component Location |

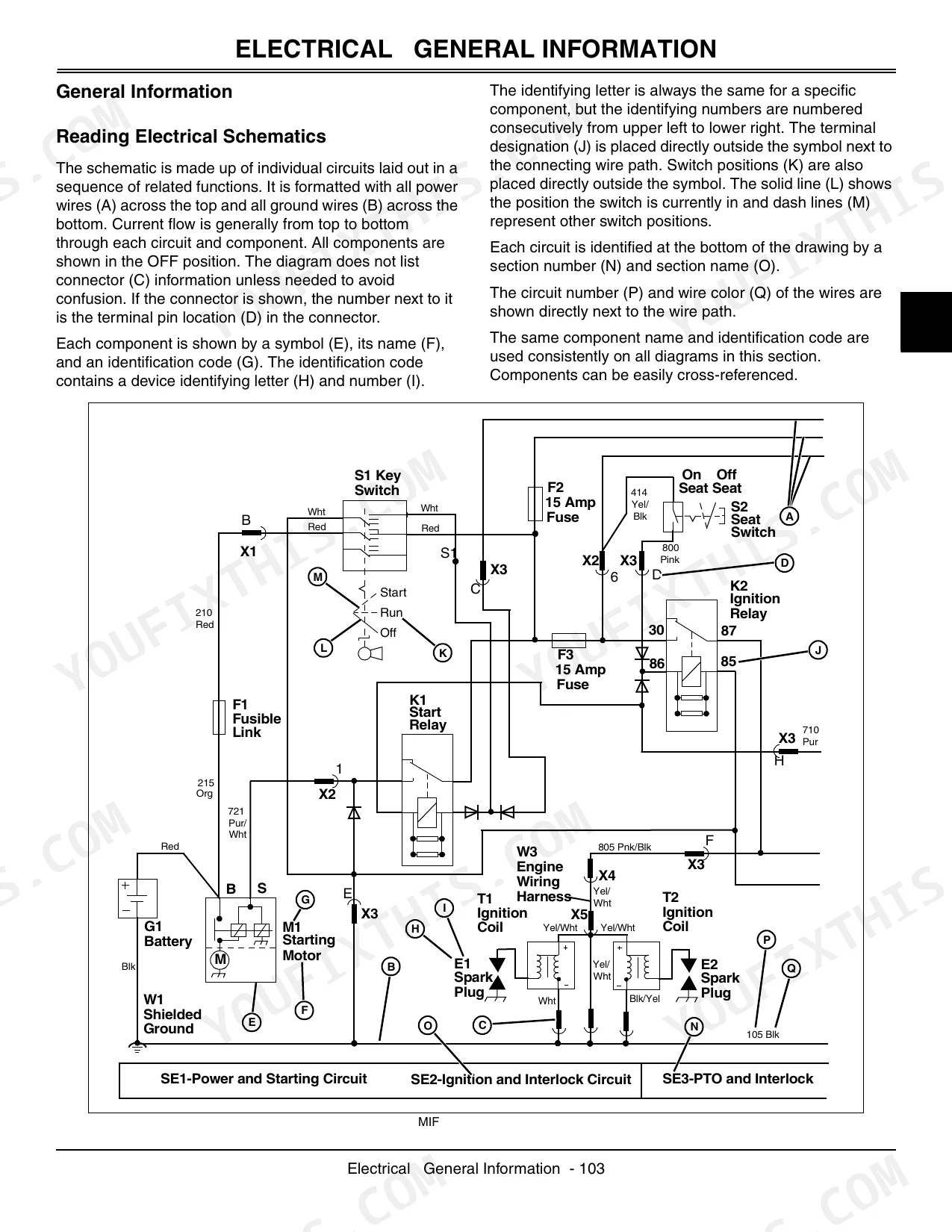

| Electrical | 103-274 | General Information, Specifications, Component Location, System Schematics |
| Electrical European | 275-420 | - |
| Power Train - Gear | 421-454 | - |
| Power Train - Hydrostatic | 455-488 | - |
| Power Train - Prt | 489-546 | PowrReverser Clutch, Main Shaft, Driven and Reduction Shaft, Prt Valve, Prt Shift Lever and Linkage, 4-Speed Transmission |
| Power Train - Final Drive | 547-652 | Differential Pinion Shaft, Differential Gear, Differential Lock, PTO Clutch/Brake Assembly, 4-Wd Front Axle Housing, Pinion Depth Setup and Adjustment |
| Hydraulics | 653-728 | Hydraulic Gear Pump, Rockshaft Control Valve, PTO Clutch Valve, Selective Control Valve (SCV), Diverter Valve, Hydraulic Cylinder |
| Steering | 729-744 | Steering Control Unit (Scu), Steering Cylinder, Tie Rod, Steering Wheel, Toe-In Adjustment, Steering Pressure Check |
| Brakes | 745-766 | Brake Housing, Park Brake, Brake Pedals and Linkage, Brake Disassembly and Inspection, Brake Pedal Adjustment, Parking Brake Adjustment |
| Miscellaneous | 767-778 | Three Point Hitch, Roll Over Protection System (ROPS), Operator’s Platform, Control Panel, Fuel Tank, Center Link Bracket |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| O-Ring Boss Fittings Torque | 8 - 217 N•m (6 - 160 lb-ft) | p. 18 |

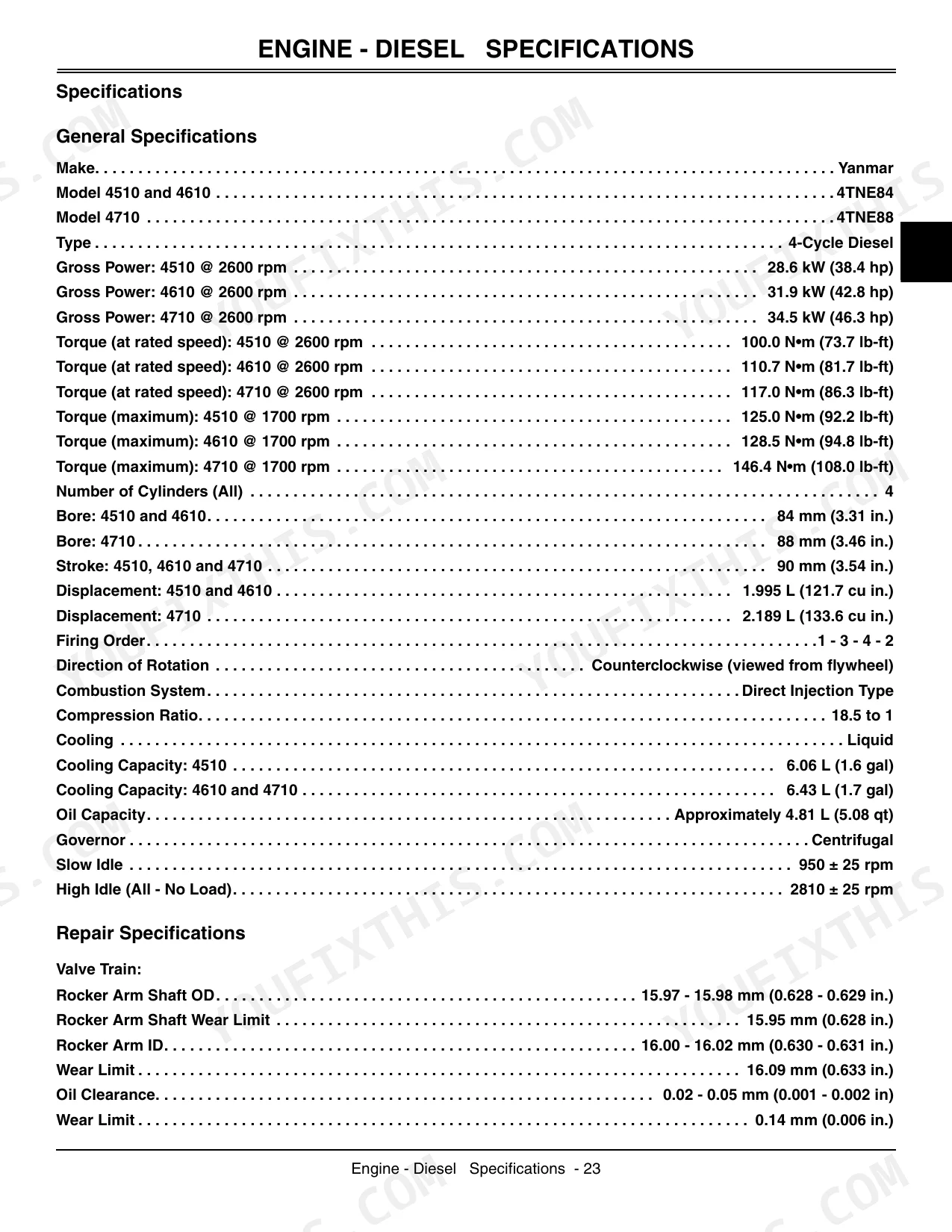

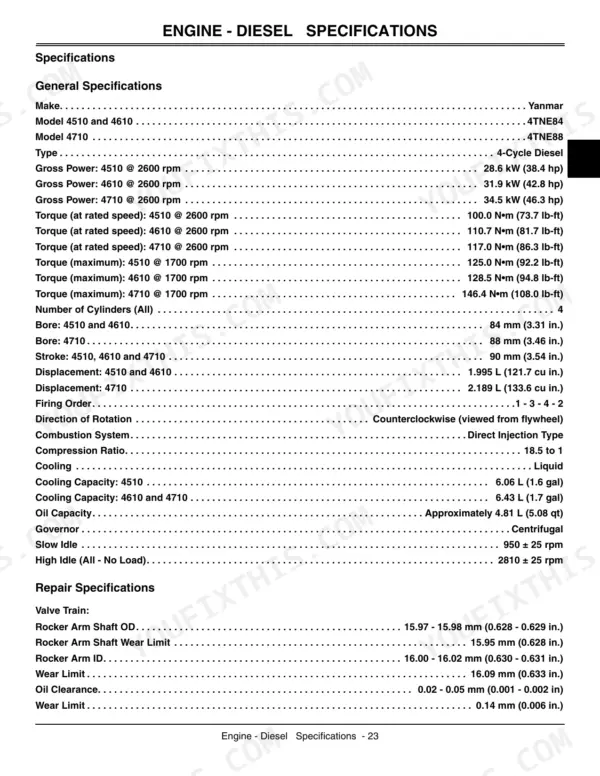

| Engine Oil Capacity | 4.81 L (5.08 qt) | p. 27 |
| Engine Slow Idle Speed | 950 ± 25 rpm | p. 27 |
| Engine Oil Pressure | 338 ± 50 kPa (49 ± 7.2 psi) | p. 31 |
| Cylinder Head Bolts Torque (Lubricating Oil Applied) | 85 - 91 N•m (62 - 67 lb-ft) | p. 31 |
| Battery Voltage | 12VDC | p. 110 |
| 4510 | ||
| Cooling Capacity | 6.06 L (1.6 gal) | p. 27 |
| 4610, 4710 | ||
| Cooling Capacity | 6.43 L (1.7 gal) | p. 27 |
John Deere 4510, 4610, 4710 Common Problems This Manual Covers
John Deere 4510, 4610, or 4710 PTO not engaging, implement won't spin
Check the PTO clutch valve solenoid for 12VDC at the harness connector with the PTO switch engaged (page 110). Remove the valve body and clean the solenoid if contaminated. Inspect all O-ring seals on the valve housing; torque replacement fittings per the O-ring boss table on page 18. Drain and refill hydraulic fluid if discolored.
Manual Section: HydraulicsClutch pedal won't return to top position, stays depressed, sticks against pivot p. 745
Remove the clutch return spring and inspect for incorrect seating or fatigue deformation; a collapsed spring won't generate enough force to reset the pedal. Verify the pedal stem does not contact the brake pivot head at any point through the full stroke. Reference linkage procedures at page 745 and confirm engine slow idle is stable at 950 ± 25 rpm.
Manual Section: BrakesEngine cranks normally in cold weather but won't fire, no start condition

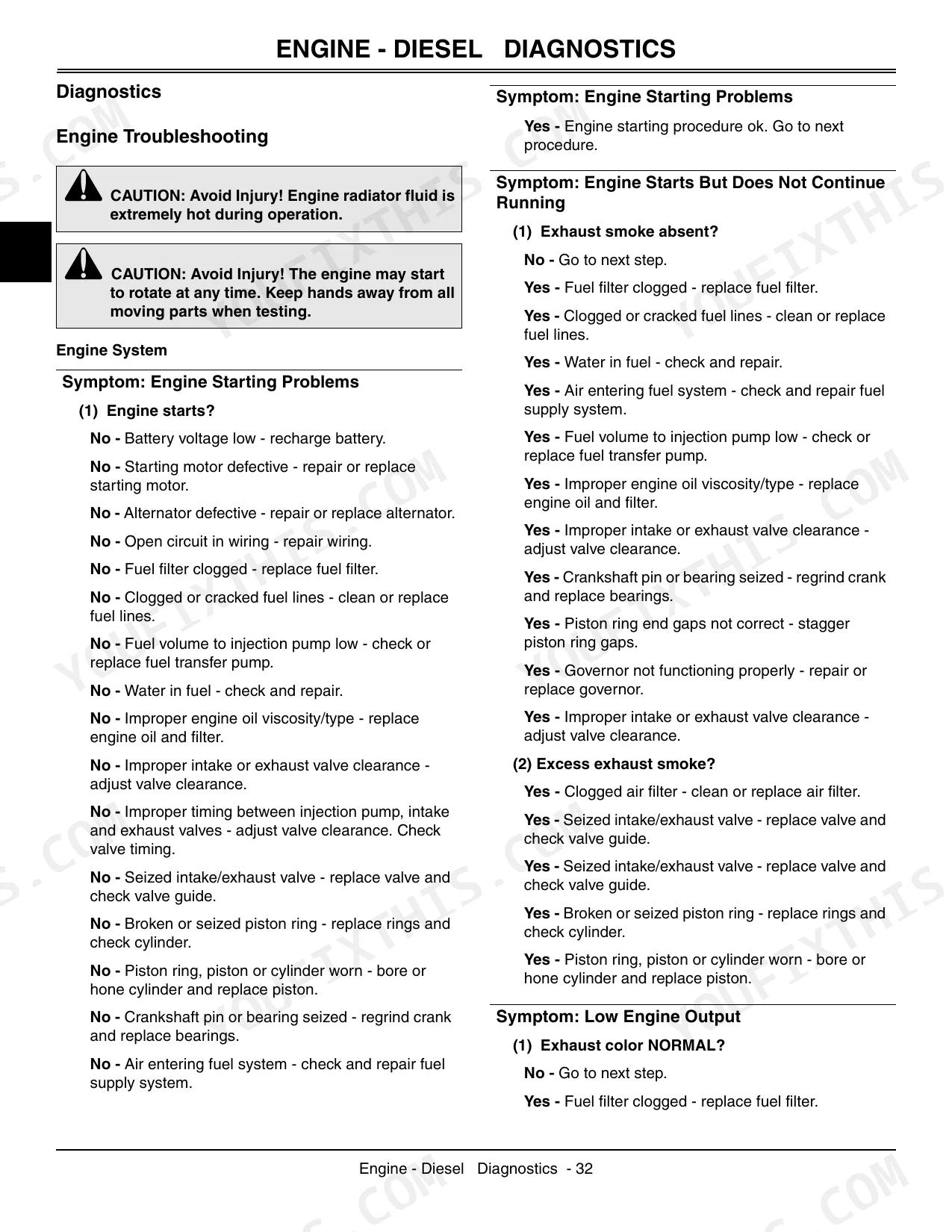

Verify battery delivers full 12VDC at the terminals (page 110) and inspect connections for corrosion. Test the fuel shutoff solenoid per the wiring schematic. Review the engine no-start troubleshooting flowchart. Test glow plug circuit continuity; all plugs should show low resistance when cold, open-circuit readings indicate failure.
Manual Section: Engine - DieselEngine temperature gauge climbs above normal, coolant visible at overflow tank, overheating

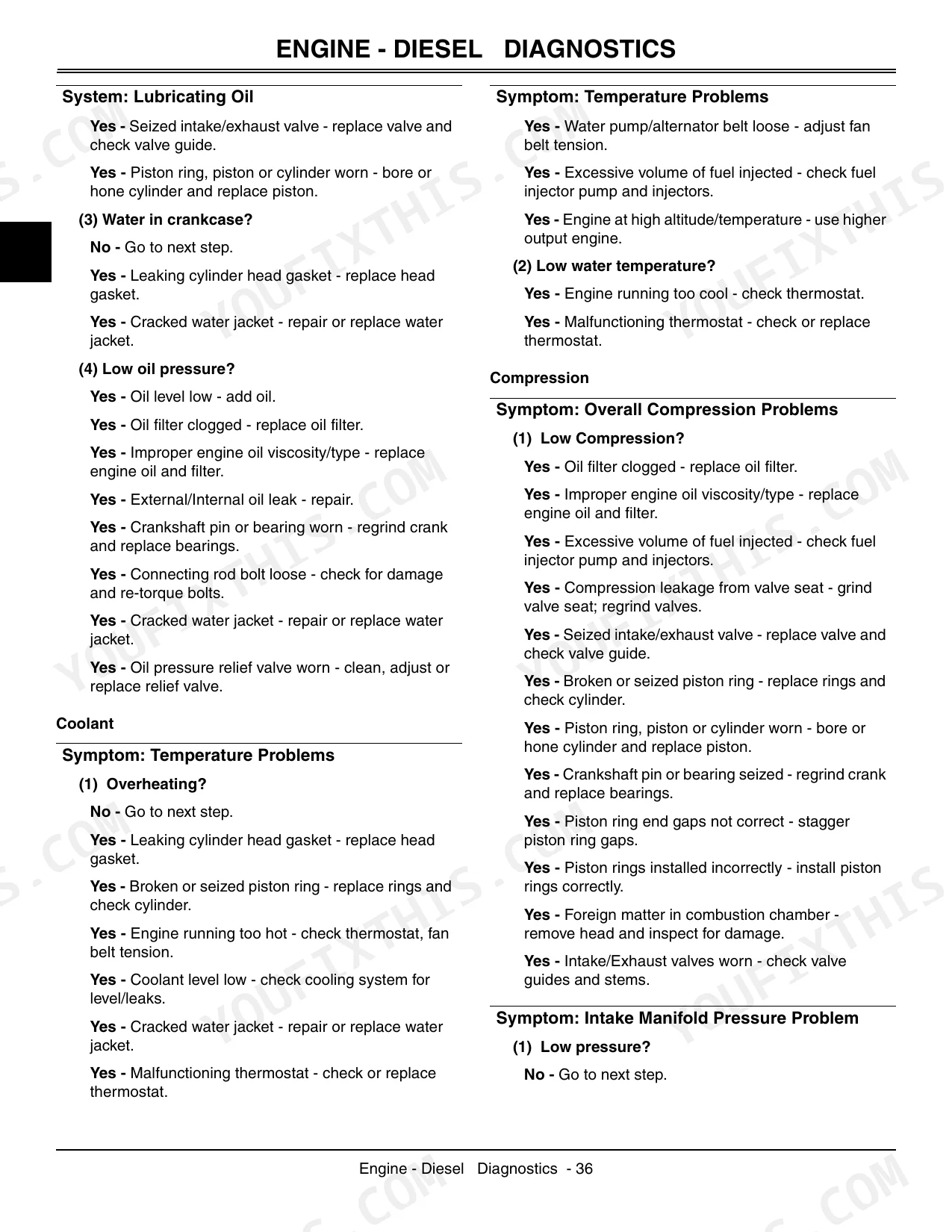

Check coolant level against capacity: 6.06 L (1.6 gal) for the 4510, or 6.43 L (1.7 gal) for the 4610 and 4710 (page 27). Clean radiator fins of debris. Verify engine oil pressure reads within 338 ± 50 kPa (49 ± 7.2 psi) per diagnostic values on page 31; low oil pressure accelerates heat buildup.
Manual Section: Engine - DieselHydraulic lift and three-point hitch raise slowly, transmission running noticeably hotter than usual
Replace the transmission oil filter if past the service interval: first change at 50 hours, then every 400 hours. Drain hydraulic fluid and inspect for metallic particles or milky discoloration from water intrusion. Torque all O-ring boss fittings on the filter housing per the specification table on page 18, ranging 8 to 217 N•m (6 to 160 lb-ft).
Manual Section: HydraulicsFrequently Asked Questions
How to reset John Deere 4510/4610/4710 error codes?
To reset error codes, power should be recycled through off to clear the error status. If the fault is related to a sensor, the sensor may need to be recalibrated. The electronic operating system will reset once the first fault has been cleared.
Torque specs for John Deere 4510/4610/4710 wheel bolts and engine components?
Rear and Front Wheel Bolts should be tightened to 88 - 108 N•m (65 - 80 lb-ft). For engine components, Cylinder Head Bolts (Lubricating Oil Applied) require 85 - 91 N•m (62 - 67 lb-ft), and Connecting Rod Bolts (Lubricating Oil Applied) require 44 - 54 N•m (33 - 40 lb-ft).
How to reset 4WD engagement error on John Deere 4510?
If an MFWD Speed Sensor fault (Fault Code 5) occurs, indicating an output current issue or missing MFWD speed signal, the system can be reset by recycling power through off to clear the error status. Calibration of the MFWD signal may also be required.
Why won't 4WD engage on John Deere 4510 and how to reset the system?
4WD may not engage due to issues such as a clogged F5 fuse, a faulty key switch, or problems with the MFWD solenoid or its wiring (e.g., 555 Wht wire, 010AC and 010D Blk wires). If an MFWD Speed Sensor fault (Fault Code 5) is detected, the system can be reset by recycling power through off, and calibration may be repeated.
How will I receive this John Deere 4510, 4610, 4710 Technical Manual?
Immediate download of the complete 790-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

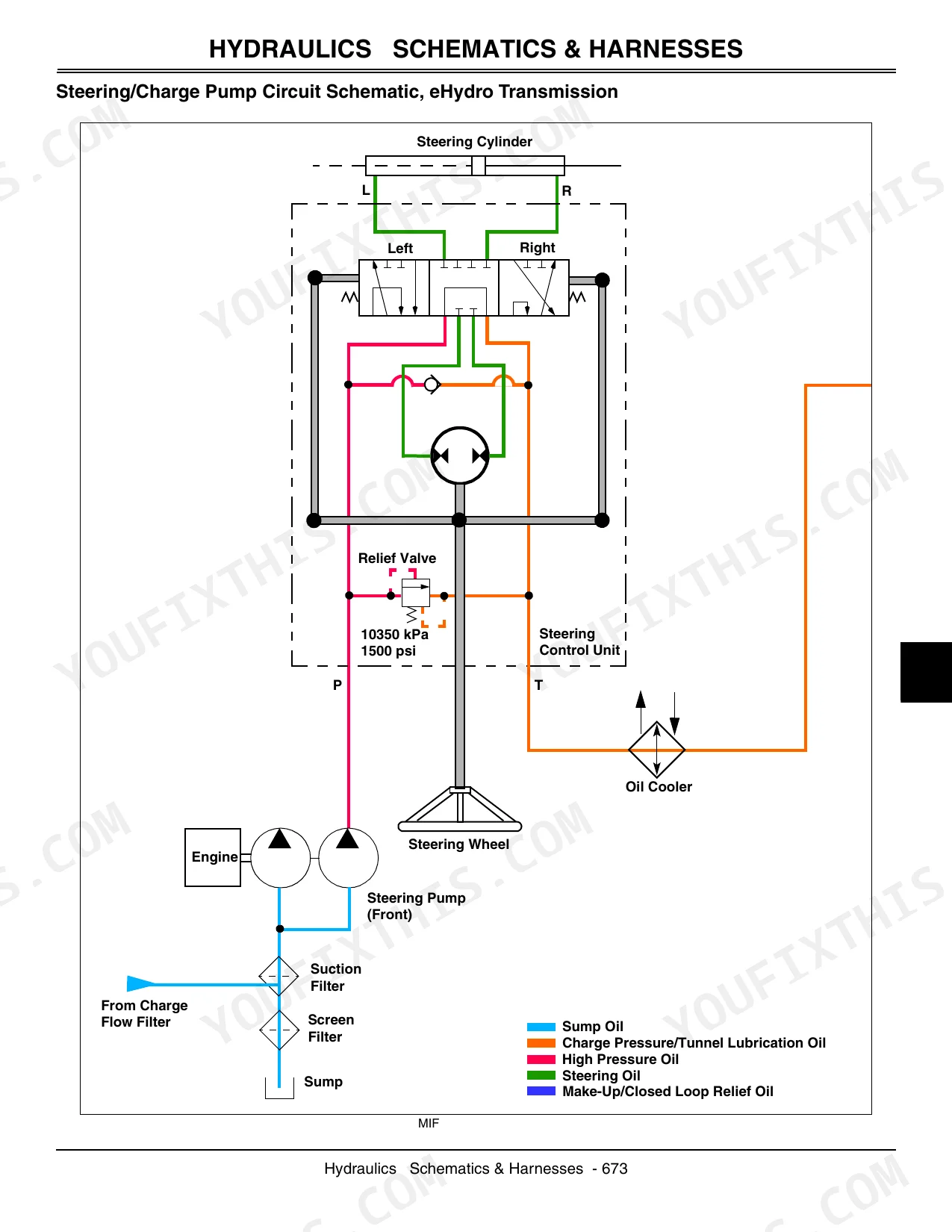

Does this John Deere 4510, 4610, 4710 manual include hydraulic schematics?
Yes, this John Deere 4510, 4610, 4710 Technical Manual includes a hydraulic system diagram.
