All 986 pages of this John Deere 3325, 3365 technical manual PDF (OEM TM1427) go after one job: keeping your Professional Turf Mower cutting clean and running strong. You get factory wiring schematics for the full harness, hydraulic, hydrostatic and steering schematics, and repair procedures for the hydrostatic transmission, transaxle, final drives, steering, brakes, hydraulic pumps and valves, rockshaft, and cutting units. A dedicated operational checkout section lets you verify every repair before the machine leaves the shop, and troubleshooting charts walk you through diagnosis system by system. Set fan belt tension to 13 mm of deflection at 95 N (20 lb) of applied force, and test the rockshaft relief valve against 14617 kPa (2120 psi). Deere sends internal Yanmar engine, injection pump, starter and alternator overhaul to CTM3 and reel cutting unit rebuild to TM1528, so this book covers engine removal, cooling and diagnosis rather than a bottom-end teardown. The 3365 Rear Wheel Assist supplement (TM1427S) is bound in at the back. Your mower is down and the fairways will not wait. Get the factory answer, not forum guesses. Bookmarked and keyword-searchable; pull it up on your phone beside the machine and get back to work.
What's Inside This John Deere 3325, 3365 Manual

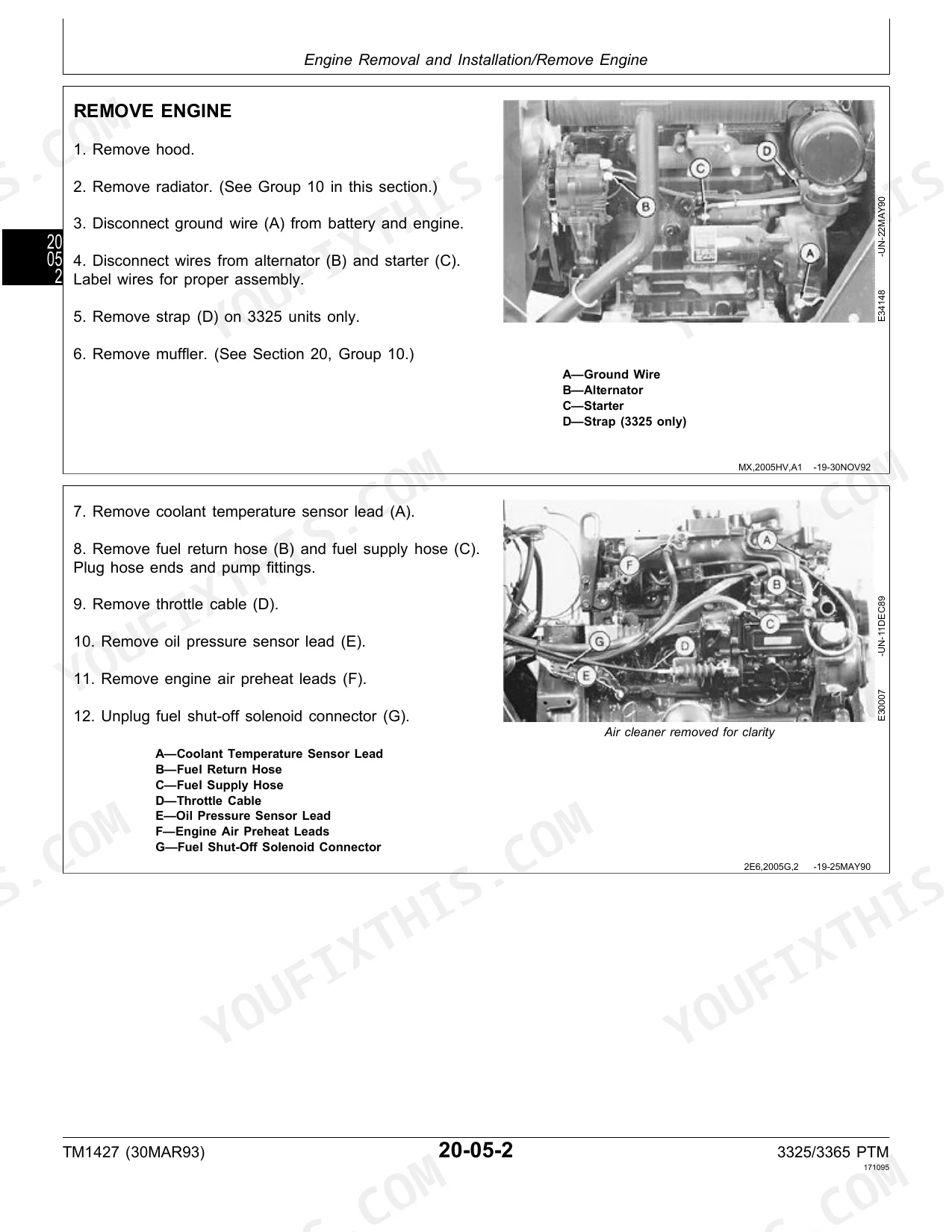

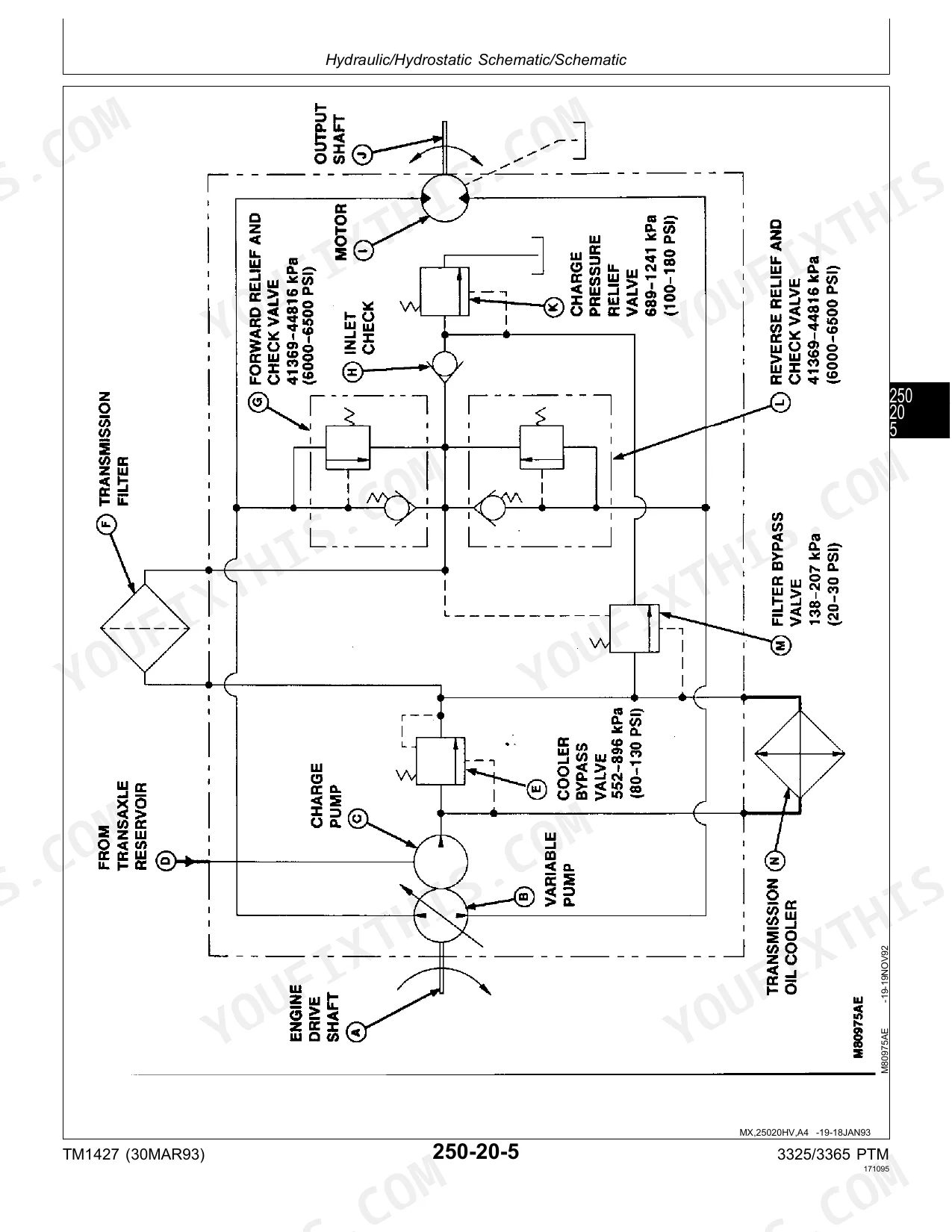

| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-40 | Safety, General Specifications, Repair Information, Fuel and Lubricants, Serial Numbers |
| Engine Repair | 41-54 | Engine Removal and Installation, Muffler, Cooling System |
| Fuel and Air Repair | 55-68 | Fuel System, Air System |
| Electrical Repair | 69-104 | Batteries and Cables, Electrical System Components, Wiring Harness |
| Power Train Repair | 105-212 | Hydrostatic Transmission, Transaxle, Final Drives, Control Linkage |
| Steering and Brake Repair | 213-260 | Steering System Repair, Brake Repair, Rear Axle |
| Hydraulic Repair | 261-336 | Hydraulic Pumps, Hydraulic Control Valves, Weight Transfer System, Hydraulic Cylinders, Rockshaft Assembly, Hydraulic System |
| Miscellaneous Repair | 337-354 | Cutting Units, Operator Seat Assembly |
| Operational Checkout Procedure | 355-384 | Operational Checkout Procedures |
| Engine Operation, Tests and Adjustments | 385-450 | Component Location, Theory of Operation, Diagnosis, Tests, And Adjustments |
| Fuel/Air Operation, Tests and Adjustments | 451-472 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Electrical Operation, Tests and Adjustments | 473-684 | Component Location, Theory of Operation, Diagnosis Tests and Adjustments, Wiring Schematics |
| Power Train Operation, Tests and Adjustments | 685-750 | Component Locations, Theory of Operation, Diagnosis, Tests and Adjustments, Hydraulic/Hydrostatic Schematic |
| Steering/Brakes Operation, Tests, & Adjustments | 751-798 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments, Steering Schematic |
| Hydraulic System Operation, Tests and Adjustments | 799-920 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments, Hydraulic Schematics, Index |
| 3365 Rear Wheel Assist Supplement (TM1427S) | 921-986 | RWA Electrical Components, RWA Axle Assembly, Component Location, Theory of Operation, Diagnosis, Tests and Adjustments, RWA Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil and filter interval, fuel over 0.5% sulfur | 100 hours | p. 33 |
| Harness split conduit slack | 13 mm (0.5 in.) | p. 78 |
| Fan Belt Applied Force | 95 N (20 lb force) | p. 357 |
| Fan Belt Deflection | 13 mm (1/2 in.) | p. 357 |
| Engine oil filter bypass valve opening pressure | 96 kPa (14 psi) | p. 400 |
| Minimum battery voltage | 12.4 volts | p. 630 |
| Minimum battery voltage under load | 9.6 volts | p. 632 |
| Engine Horsepower at 2700 rpm | 28 kW (38 hp) | p. 19 |
| Fuel Tank Capacity | 75 L (20 gal) | p. 20 |
| Engine Crankcase Oil Capacity | 5.7 L (6.0 qt) | p. 20 |
| Hydraulic System Oil Capacity | 26.5 L (7 gal) | p. 20 |
| Hydraulic filter bypass relief valve | 138-207 kPa (20-30 psi) | p. 20 |
| Reel relief valve | 20684 kPa (3000 psi) | p. 20 |
| Wing lift and rockshaft relief valves | 14617 kPa (2120 psi) | p. 20 |
John Deere 3325, 3365 Common Problems This Manual Covers

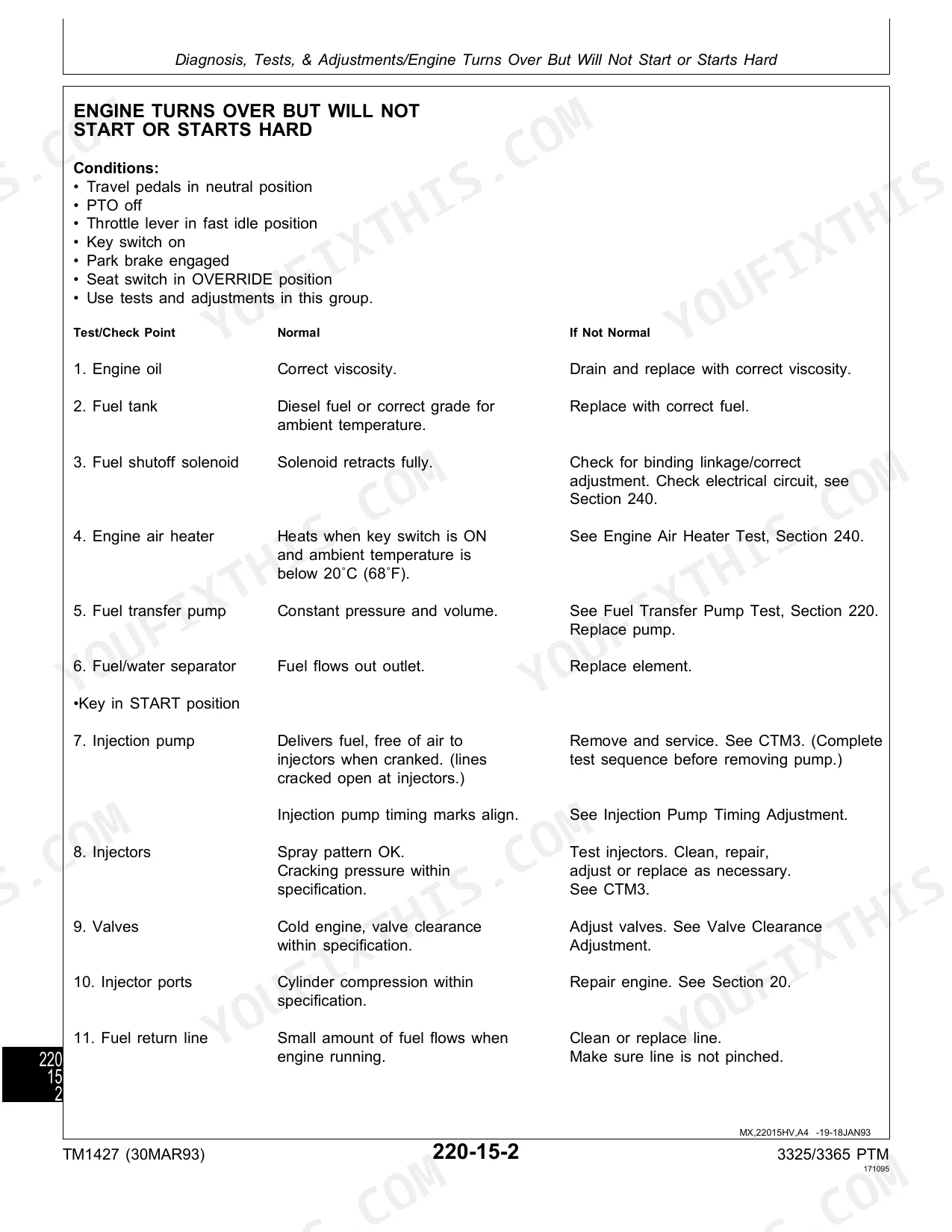

John Deere 3325 engine cranks but won't start, runs rough and misses after sitting over winter
Drain stale fuel and refill the 75 L (20 gal) tank with fresh fuel, then replace the fuel filter. Work through the hard start procedures beginning, checking fuel delivery before chasing compression. Verify the engine pulls its 2800 rpm fast idle spec once it runs clean.

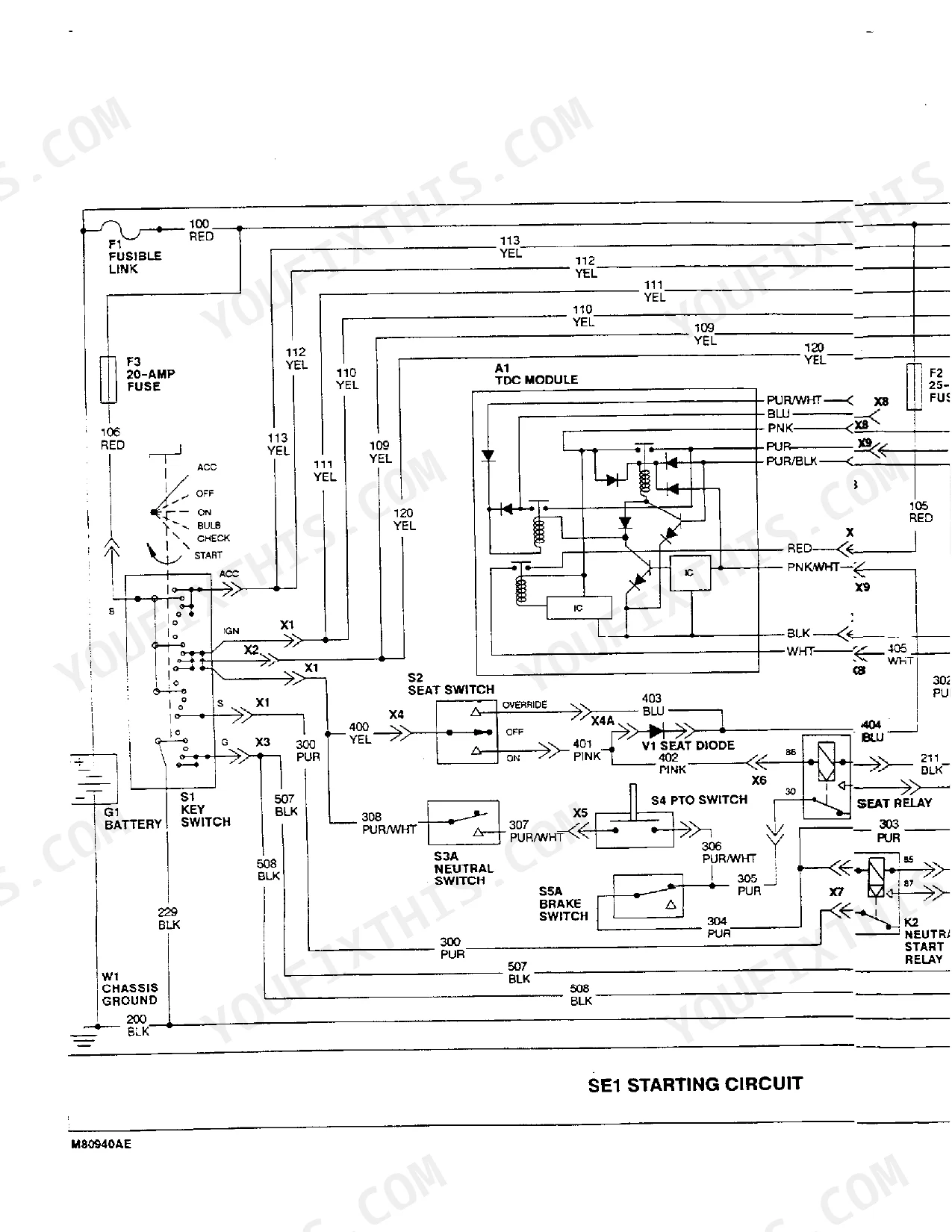

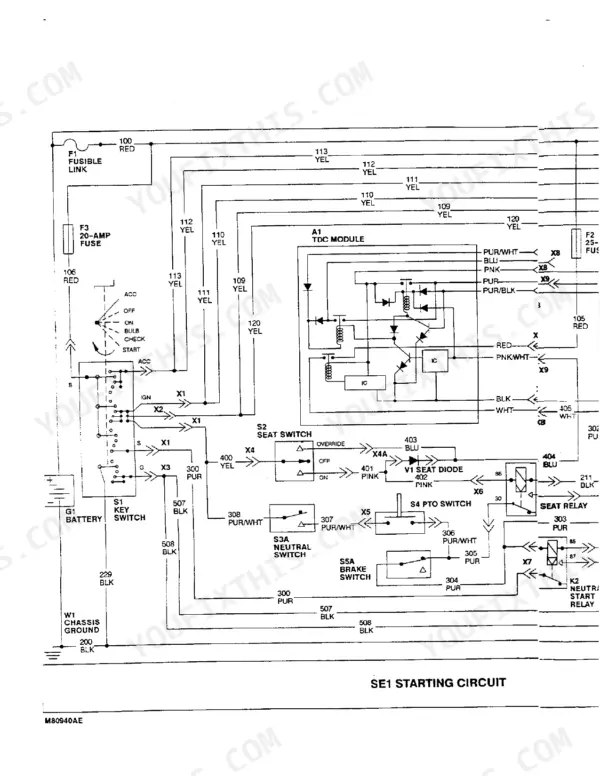

Manual Section: Engine Diagnosis, Tests, & AdjustmentsStarter won't crank, clicks once then nothing, battery seems fine on the charger
Load test the battery before anything else: open circuit voltage must read 12.4 volts minimum per page 630, and it must hold above 9.6 volts under load, page 632. Replace it if it fails either number. Clean and tighten both cable ends, then run the cranking circuit tests in the electrical section.
Manual Section: Electrical Operation, Tests and Adjustments p. 630Cutting units won't raise or lower, lift lever does nothing, hydraulic pump whines under load
Check hydraulic oil level first; the system holds 26.5 L (7 gal), and a whining pump usually means it is sucking air. Fill and inspect for leaks. Test rockshaft relief pressure against the 14617 kPa (2120 psi) spec on page 876. If pressure won't build, run the lift system diagnosis starting on page 799 before condemning the pump.
Manual Section: Hydraulic System Operation, Tests and Adjustments p. 799Reels turn slow and bog down in heavy grass, speed drops after machine warms up
Verify hydraulic oil level; low oil aerates, overheats, and kills reel speed once the machine gets hot. Change the hydraulic oil filter, then confirm reel circuit pressure: a clogged element opens the hydraulic filter bypass relief valve at 138-207 kPa (20-30 psi), page 20, and starves the reel motors. Check the reel relief valve against its 20684 kPa (3000 psi) setting before condemning a motor, then run the cutting unit motor tests.
Manual Section: Hydraulic System Operation, Tests and Adjustments p. 799Fan belt squeals at full throttle, engine runs hot mowing in summer heat
Check fan belt tension: deflection should be 13 mm (1/2 in.) with 95 N (20 lb) of force applied midway between pulleys, per the checkout procedure on page 357. Adjust or replace a glazed belt. Blow chaff out of the radiator fins and screen; a clean core cools better than any new part.
Manual Section: Operational Checkout Procedure p. 357Frequently Asked Questions
How do I check the starter battery voltage on a John Deere 3325?
To check the battery voltage, set a voltmeter to the DC volts position. Connect the positive (red) lead to the battery positive post and the negative (black) lead to ground. The minimum voltage should be 12.4 volts. p. 536
What are the replacement specifications for the battery on a John Deere 3325/3365?

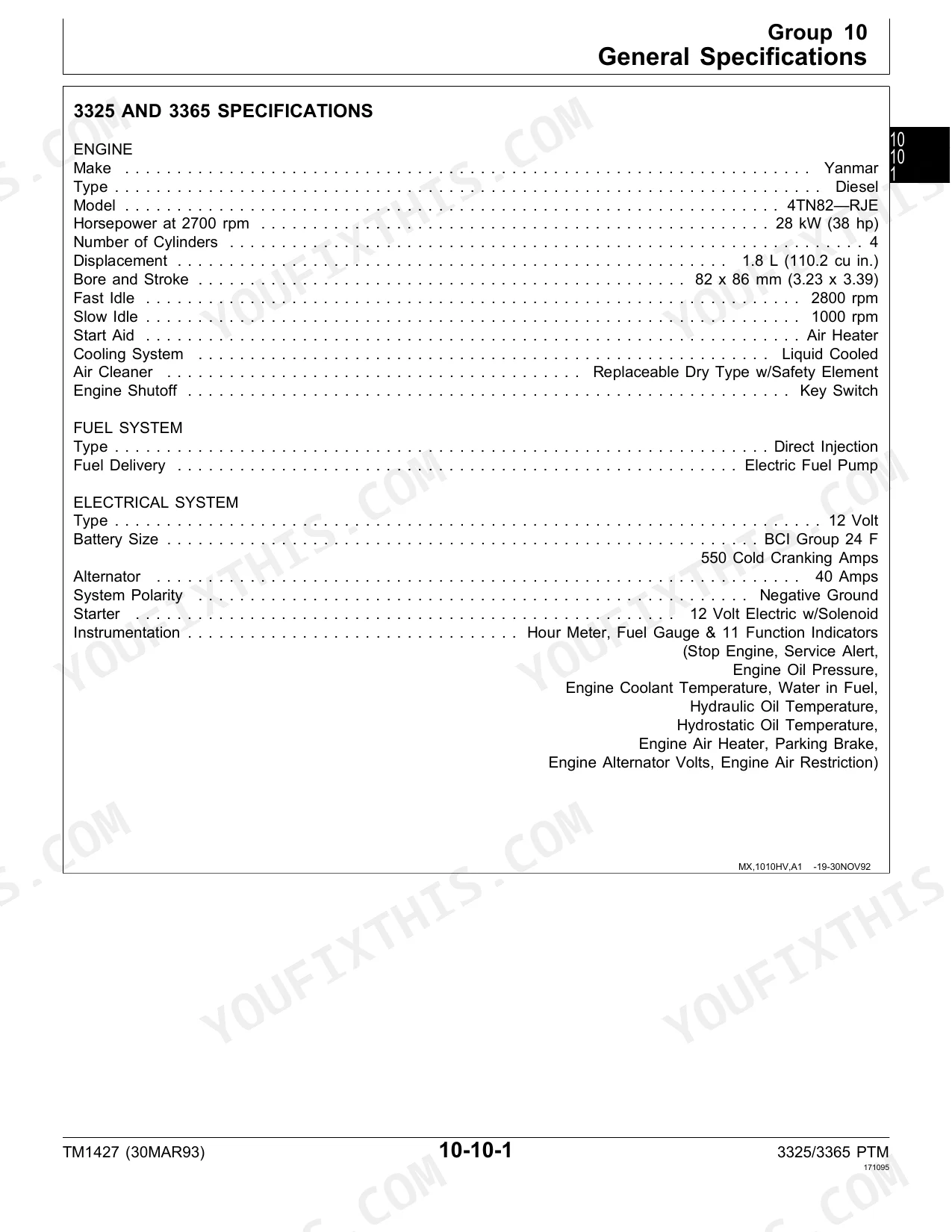

The battery size for the 3325 and 3365 is a BCI Group 24 F, with a minimum of 550 Cold Cranking Amps. p. 19
What is the correct torque for the engine mounting bracket-to-frame cap screws?
The engine mounting bracket-to-frame cap screws and nuts should be torqued to 44–54 N·m (33–40 lb-ft). p. 23
What is the procedure for checking the engine oil pressure on a John Deere 3325/3365?
To test the engine oil pressure, remove the oil pressure sender and install a JT03349 connector. Connect a JT05577 Pressure Gauge Assembly and JT03017 Hose Assembly. Start the engine and run for approximately 5 minutes to heat the oil. The engine oil pressure should be 294–440 kPa (2.9–4.4 bar) (43–64 psi). p. 439
What is the specified valve clearance for the engine?
The valve clearance for both intake and exhaust valves is 0.20 mm (0.008 in.) when the engine is cold. p. 357
Is this John Deere 3325 manual a PDF I download?
One searchable PDF covering 986 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Can I print a copy of this John Deere 3325 Technical Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
