Part of the John Deere Repair Manuals.
Rebuilding the 4045T PowerTech engine or chasing electrical gremlins requires this 855-page John Deere 6403 service manual PDF (OEM #TM6021), which also covers the 6103, 6203, and 6603 tractor variants. Inside, you get high-quality wiring diagrams for the cab components, full hydraulic schematics for the rockshaft system, and complete step-by-step diagnostic tests. Open to the mechanical front wheel drive (MFWD) section to find detailed teardown procedures and fault isolation charts. Bring your hydraulic oil temperature up to 43° C (110° F) before testing system pressures, and confirm your PTO is pushing 67 kW (90 hp) at 2100 rpm after the rebuild. Guessing at diagnostic procedures just burns expensive shop time. Download this bookmarked file, pull it up on your shop tablet, and get to wrenching.
What's Inside This John Deere 6103, 6203, 6403, 6603 Manual
| System | Pages | Key Topics |
|---|---|---|

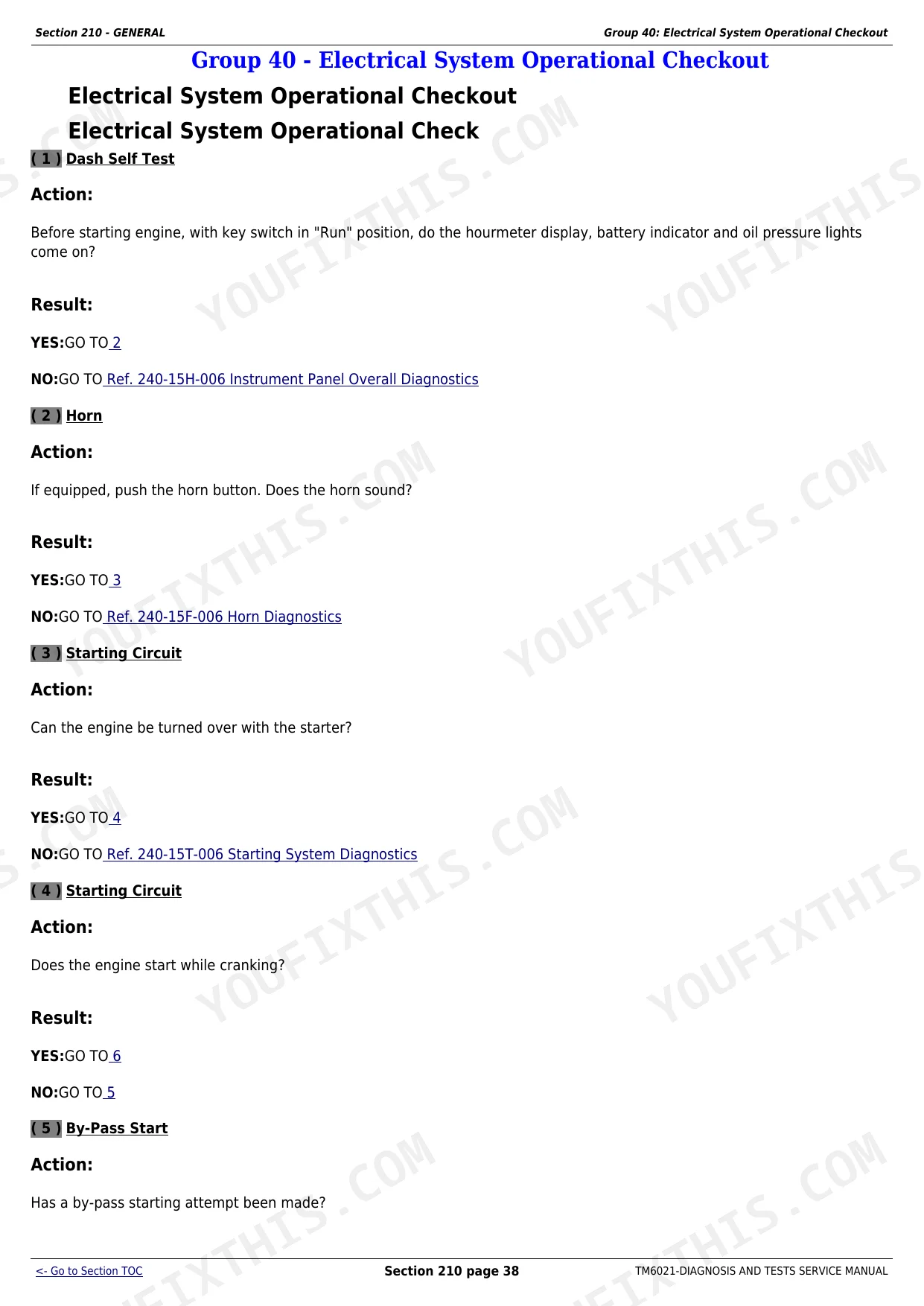

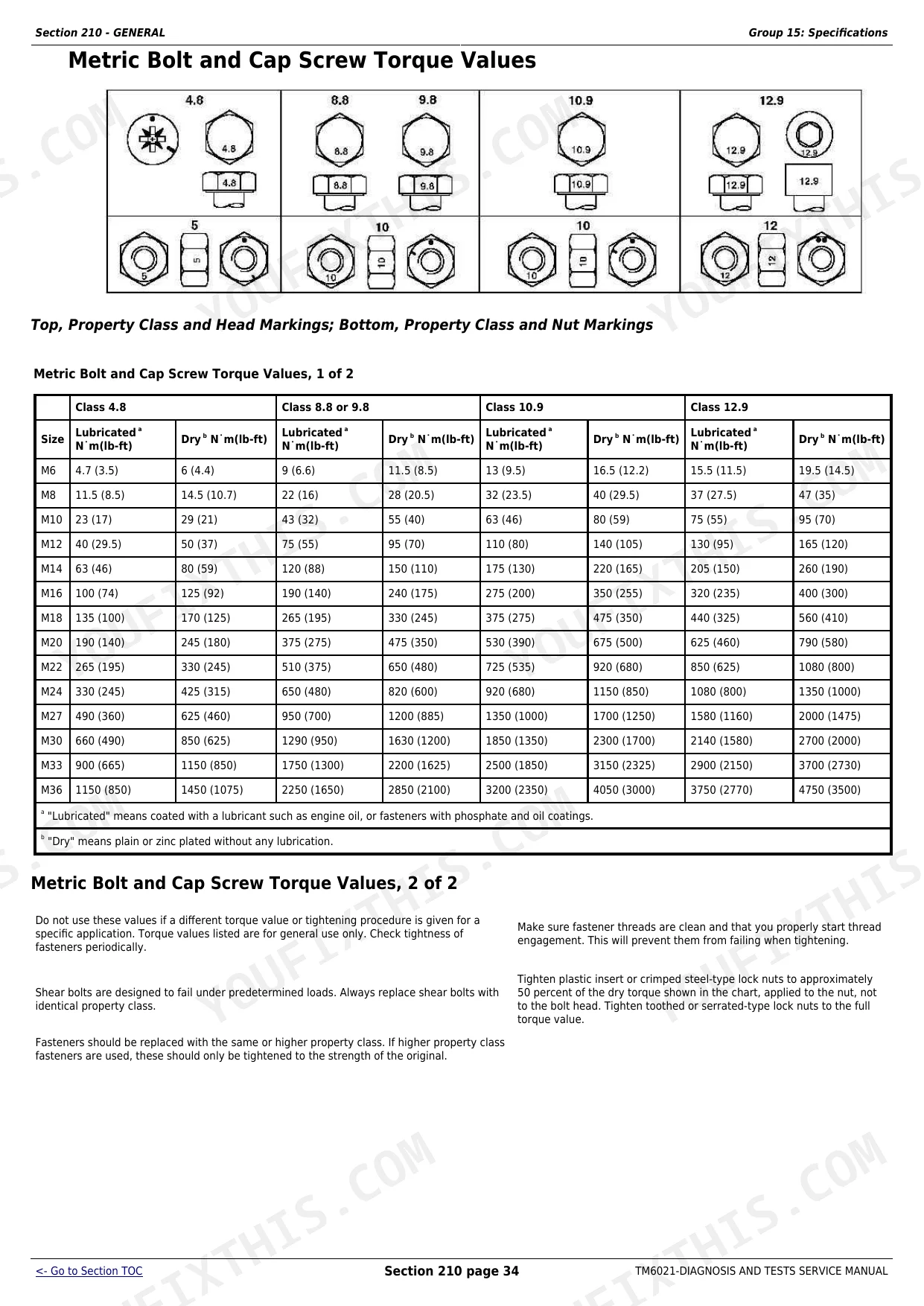

| General | 9-57 | Group 05 - Safety, Group 10 - Tractor Component Identification, Group 15 - Specifications, Group 20 - Diagnostic and Testing Procedures |
| Observable Symptoms | 58-74 | Group 220 - Engine Operation and Tests, Group 230 - Fuel/Air Operation and Test, Group 240 - Electrical System Diagnosis and Tests, Group 250 - Power Train Operation and Tests |
| Engine Operation and Tests | 75-84 | Group 05 - Engine Diagnostics General Information, Group 10 - Test Procedures and Adjustments, Group 15 - Cooling System, Group 15A - 4045 Engine Operation |
| Fuel/Air Operation and Tests | 85-96 | Group 05 - General Information, Group 10 - Test Procedures and Adjustments, Group 15A - Air Intake System Diagnostics, Group 15B - Fuel System Diagnosis 4045 |
| Electrical System Diagnosis and Tests | 97-381 | Group 5 - General Information, Group 15A - Air Filter Restrictor Indicator Diagnostics, Group 15B - Alternator and Battery Diagnostics, Group 15C - Engine Oil Pressure Diagnostics |

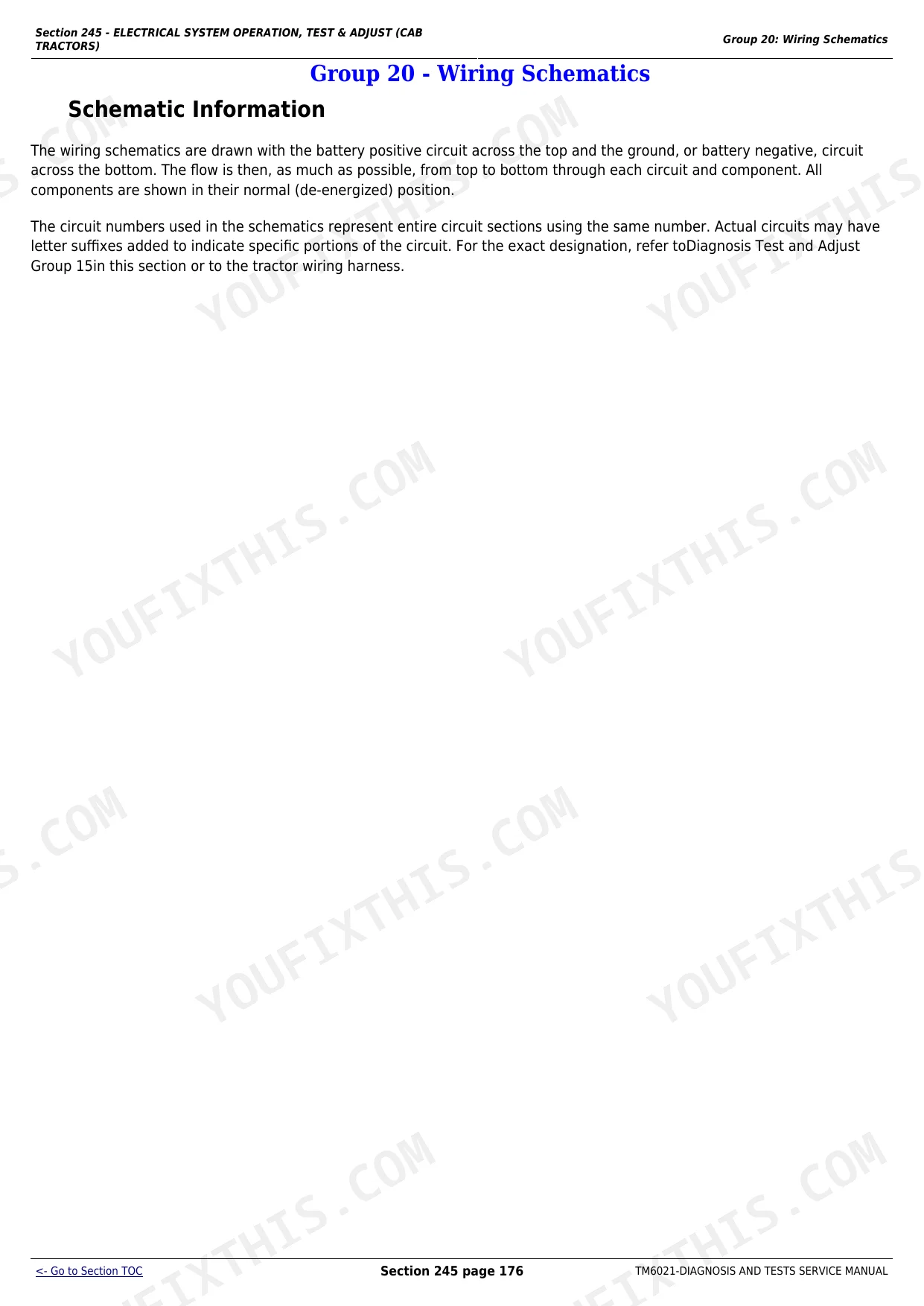

| Electrical System Operation, Test & Adjust (Cab Tractors) | 382-592 | Group 05 - Component Location, Group 10 - Theory of Operation, Group 15 - Diagnosis, Test and Adjust, Group 20 - Wiring Schematics |

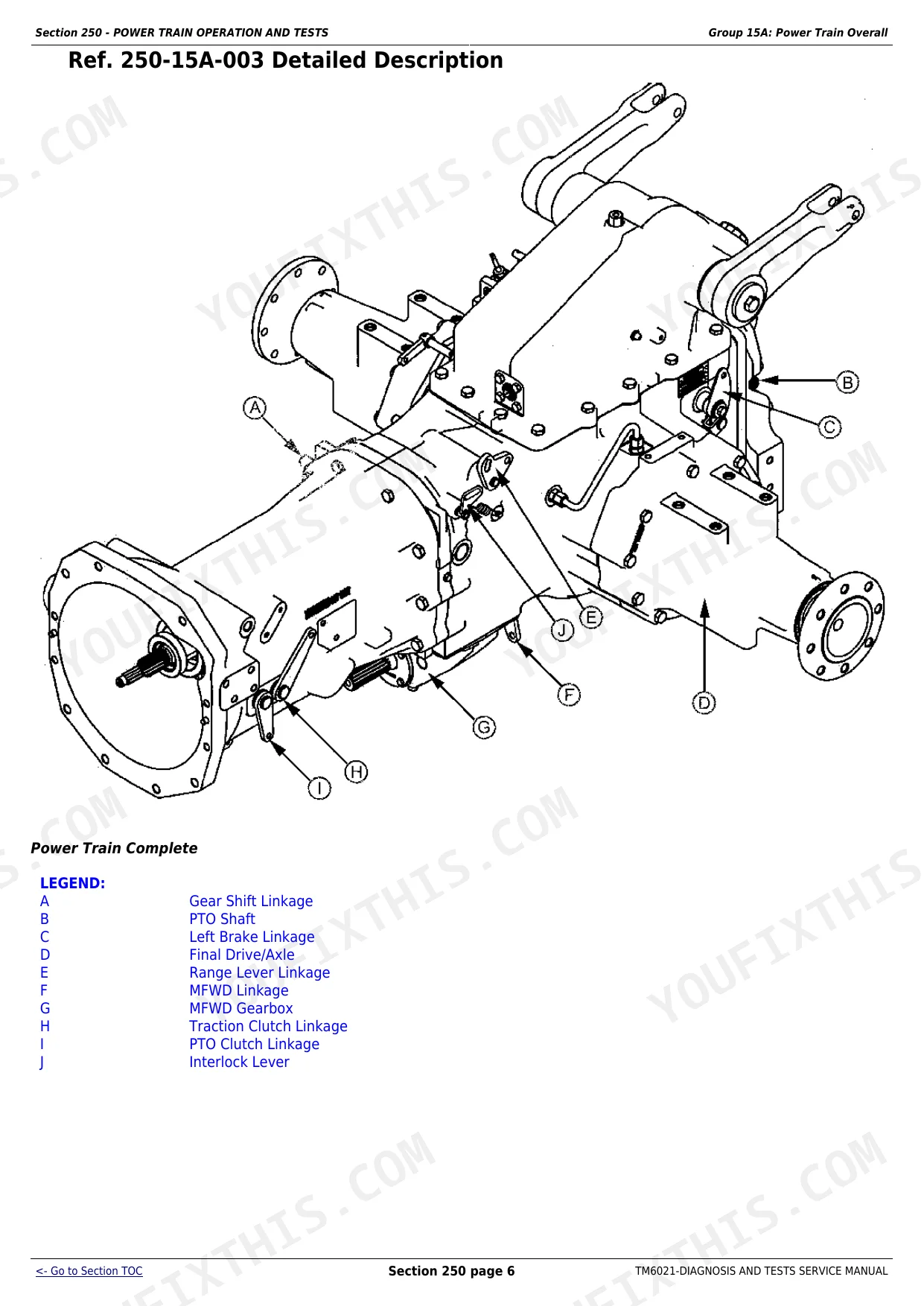

| Power Train Operation and Tests | 593-696 | Group 5 - General Information, Group 10 - Test Procedures and Adjustments, Group 15A - Power Train Overall, Group 15B - Clutch Diagnostics, Group 15C - Differential Diagnostics |
| Mechanical Front Wheel Drive System Diagnosis and Tests | 697-714 | Group 05 - General Information, Group 10 - MFWD Adjustments, Group 15A - MFWD Overall Diagnostics, Group 15B - Mechanical Front Wheel Drive Front Axle Diagnostics |
| Brakes System Diagnosis and Test | 715-725 | Group 05 - General Information, Group 10 - Test Procedures and Adjustments, Group 15 - Brake System Diagnostics, Group 20 - Component Location |

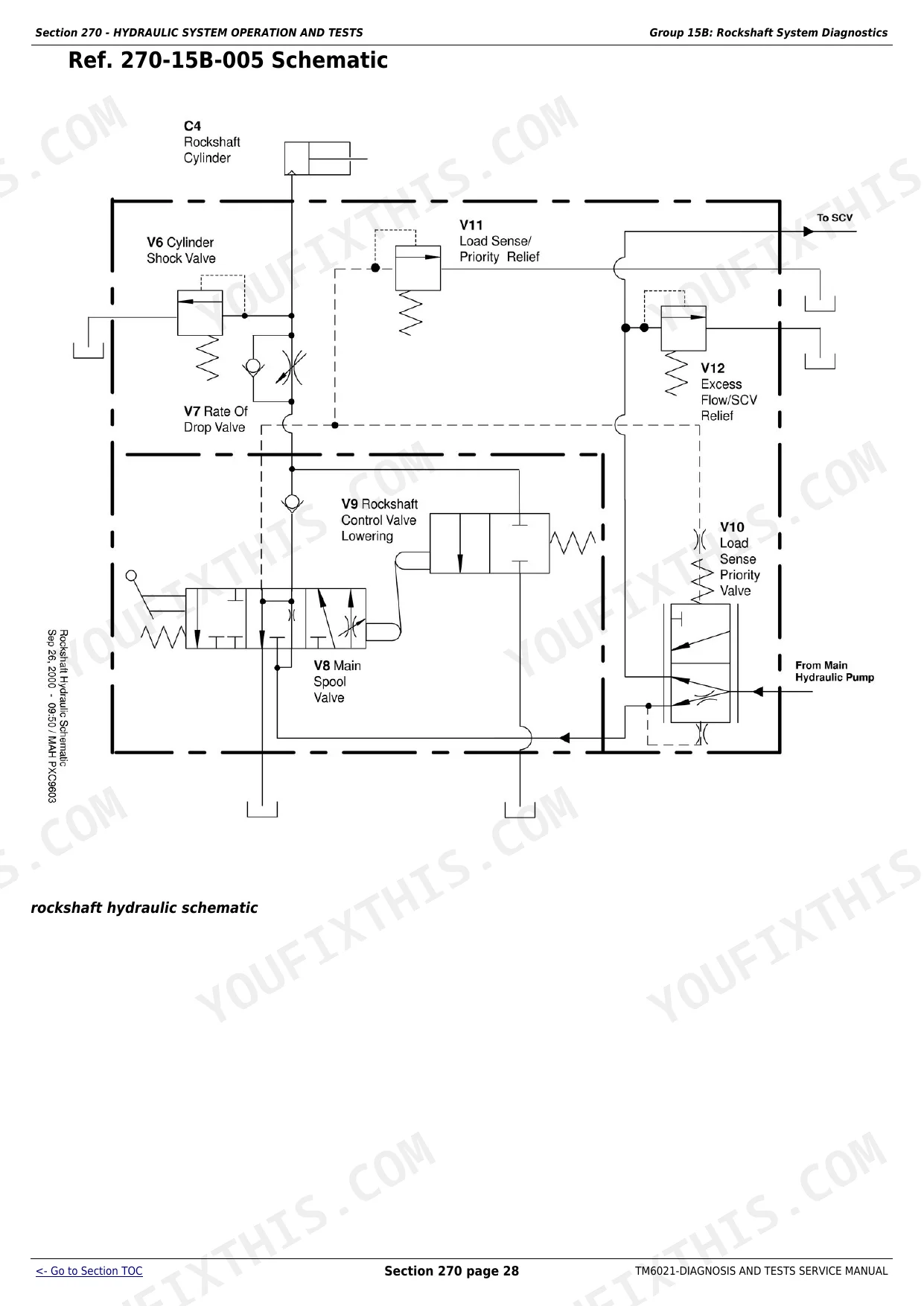

| Hydraulic System Operation and Tests | 726-782 | Group 05 - General Information, Group 10 - Test Procedures and Adjustments, Group 15A - Basic Hydraulic System, Group 15B - Rockshaft System Diagnostics |
| Steering System Diagnosis and Tests | 783-806 | Group 05 - General Information, Group 10 - Test Procedures and Adjustments, Group 15 - Steering System Diagnostics, Group 20 - Component Location |
| Operator's Cab | 807-855 | Group 10 - Operational Tests, Group 15 - Tests and Adjustments, Group 20 - Operation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine Model | 4045T PowerTech® | p. 34 |
| MFWD Axle Housing Capacity | 5.0 L (5.3 qts) | p. 35 |
| Brake Pedal Free Travel | 70 ± 3 mm (2.75 ± 0.12 in.) | p. 715 |
| Fuel tank capacity | 152 L (40 gal) | p. 35 |
| Transmission case capacity | 58 L (15.3 gal) | p. 35 |
| Alternator output | 65 A | p. 34 |
| Main hydraulic pump flow (25.4 cc) | 45.4 L/min (12 gpm) | p. 729 |
| Steering relief pressure | 13000 kPa (1880 psi) | p. 729 |
| A/C compressor clutch coil resistance | 3.5 – 4.0 ohms | p. 818 |
| 6403 | ||
| Factory Observed PTO Power @ 2100 rpm | 67 kW (90 hp) | p. 34 |
| Maximum Rated Torque | 449 Nm (331 lb-ft) | p. 34 |
| Cooling System Capacity | 13.5 L (14.3 qt) | p. 35 |
| Crankcase capacity (incl. filter) | 12 L (13 qt) | p. 35 |
| 6603 | ||
| Factory Observed PTO Power @ 2100 rpm | 77kW (103 hp) | p. 34 |
| Maximum Rated Torque | 495 Nm (365 lb-ft) | p. 34 |
| Cooling System Capacity | 18.5 L (19.5 qt) | p. 35 |
| Crankcase capacity (incl. filter) | 19 L (20 qt) | p. 35 |
John Deere 6103, 6203, 6403, 6603 Common Problems This Manual Covers
John Deere 6403 engine failure to start or intermittent starting after warm up
Check the general diagnostic procedures on page 44. Inspect the secondary fuel filter (RE62419) on the 4045T PowerTech engine. Replace the filter immediately if it exceeds the 500-hour service interval. Verify fuel shutoff solenoid power if the tractor runs while cranking but fails to stay running.
Manual Section: General Diagnostic and Testing Procedures p. 44Hydraulic system loss of power or sluggish MFWD engagement during heavy load operation
Test the main hydraulic pump flow rate. Verify the pump delivers 45.4 L/min (12 gpm) as specified on page 729. Change the primary hydraulic filter (RE172178) if the system relief pressure drops below 19000 kPa (2750 psi) during the load sensing test.
Manual Section: Hydraulic System Operation and Tests p. 729Spongy brake pedal feel or tractor pulling to one side during field braking
Measure the brake pedal free travel. Adjust the linkage to achieve exactly 70 ± 3 mm (2.75 ± 0.12 in.) as directed on page 715. Inspect the right and left brake assemblies for uneven wear or fluid leaks if the free pedal adjustment fails to resolve the spongy feel.
Manual Section: Brakes System Diagnosis and Test p. 715Heavy steering or slow response when turning at low engine operating speeds
Measure the steering pump flow rate. Confirm the flow reaches 26.4 L/min. (6.9/gpm) as outlined on page 785. Inspect the steering spindle and tie rods for binding. Check the steering valve leakage if the pump meets specifications but the system remains slow.
Manual Section: Steering System Diagnosis and Tests p. 785Cab air conditioning blows warm air or compressor fails to cycle on
Test the compressor clutch coil resistance. Verify the multimeter reads between 3.5-4.0 ohms as specified on page 818. Inspect the fan fuses and blower motors if the resistance falls within the acceptable range but the cab air flow remains restricted.
Manual Section: Air-Conditioning System and Heater Test Sequence p. 818Frequently Asked Questions

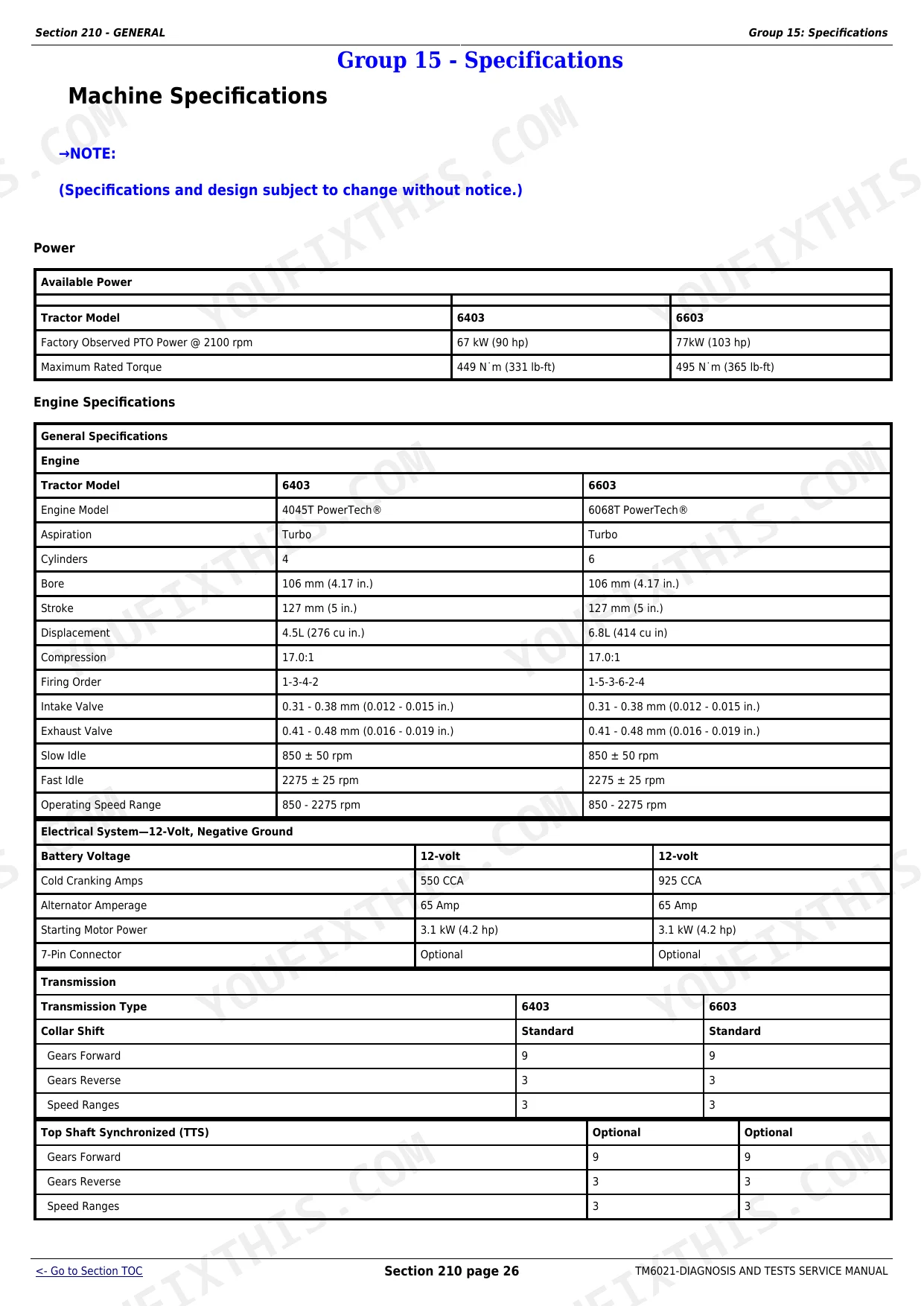

What are the engine specifications for the John Deere 6403 and 6603 tractors, including bore, stroke, and displacement?
For the 6403 tractor, the engine model is 4045T PowerTech® with 4 cylinders, a bore of 106 mm (4.17 in.), a stroke of 127 mm (5 in.), and a displacement of 4.5L (276 cu in.). The 6603 tractor uses a 6068T PowerTech® engine with 6 cylinders, the same bore and stroke, but a displacement of 6.8L (414 cu in.). Both models have a compression ratio of 17.0:1. p. 34
What are the electrical system specifications for the John Deere 6403 and 6603 tractors, including battery voltage, cold cranking amps, and alternator amperage?
Both the John Deere 6403 and 6603 tractors feature a 12-volt, negative ground electrical system. The 6403 has a cold cranking amperage of 550 CCA, while the 6603 has 925 CCA. Both models are equipped with a 65 Amp alternator and a 3.1 kW (4.2 hp) starting motor. p. 34
What are the fluid capacities for the John Deere 6403 and 6603 tractors, including fuel tank, cooling system, crankcase, and transmission case?
The fuel tank capacity for both 6403 and 6603 tractors is 152 L (40 gal). The 6403 has a cooling system capacity of 13.5 L (14.3 qt) and a crankcase capacity of 12 L (13 qt), while the 6603 has a cooling system capacity of 18.5 L (19.5 qt) and a crankcase capacity of 19 L (20 qt). Both models share a transmission case capacity of 58 L (15.3 gal). p. 35
What is the specified pedal free travel for the brakes on John Deere 6403 and 6603 tractors?
The specified pedal free travel for the brakes on both John Deere 6403 and 6603 tractors is 70 ± 3 mm (2.75 ± 0.12 in.). p. 715
What are the flow rate specifications for the main hydraulic pump and steering pump on John Deere tractors?
The main hydraulic pump (25.4cc) has a flow rate of 45.4 L/min (12 gpm), and the (31.8cc) pump has a flow rate of 57 L/min (15 gpm). The steering pump has a flow rate of 26.4 L/min (6.9 gpm) at 2000 rpm, with a steering relief pressure of 13000 kPa (1880 psi). p. 729
How will I receive this John Deere 6103, 6203, 6403, 6603 Service Manual?
Instant PDF download. You get the full 855-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this John Deere 6103, 6203, 6403, 6603 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
