This is the Operation and Tests (Diagnosis) manual for John Deere 6200, 6300, 6400 and 6500 tractors, including the low-profile L versions, built 1994 to 2000. It is the diagnostic half of the factory library: pressure test specs, operational checks and full wiring diagrams for cab and ROPS machines. You get dynamometer and preliminary engine tests, fuel transfer pump checks (15 kPa pressure, 110 litres per hour flow), cooling system pressure testing at 50 to 70 kPa, SyncroPlus and PowrQuad transmission tests, hydraulic pump and SCV diagnostics, hydrostatic steering and brake tests, plus the diagnostic trouble codes and calibration steps for the electronic hitch control units (HCU/RCU). Component teardown lives in the separate Repair manual - this book tells you what is actually wrong first.
What's Inside This John Deere 6200-6500 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-26 | Safety Precautions, Machine Runaway Prevention, Fire Hazards |

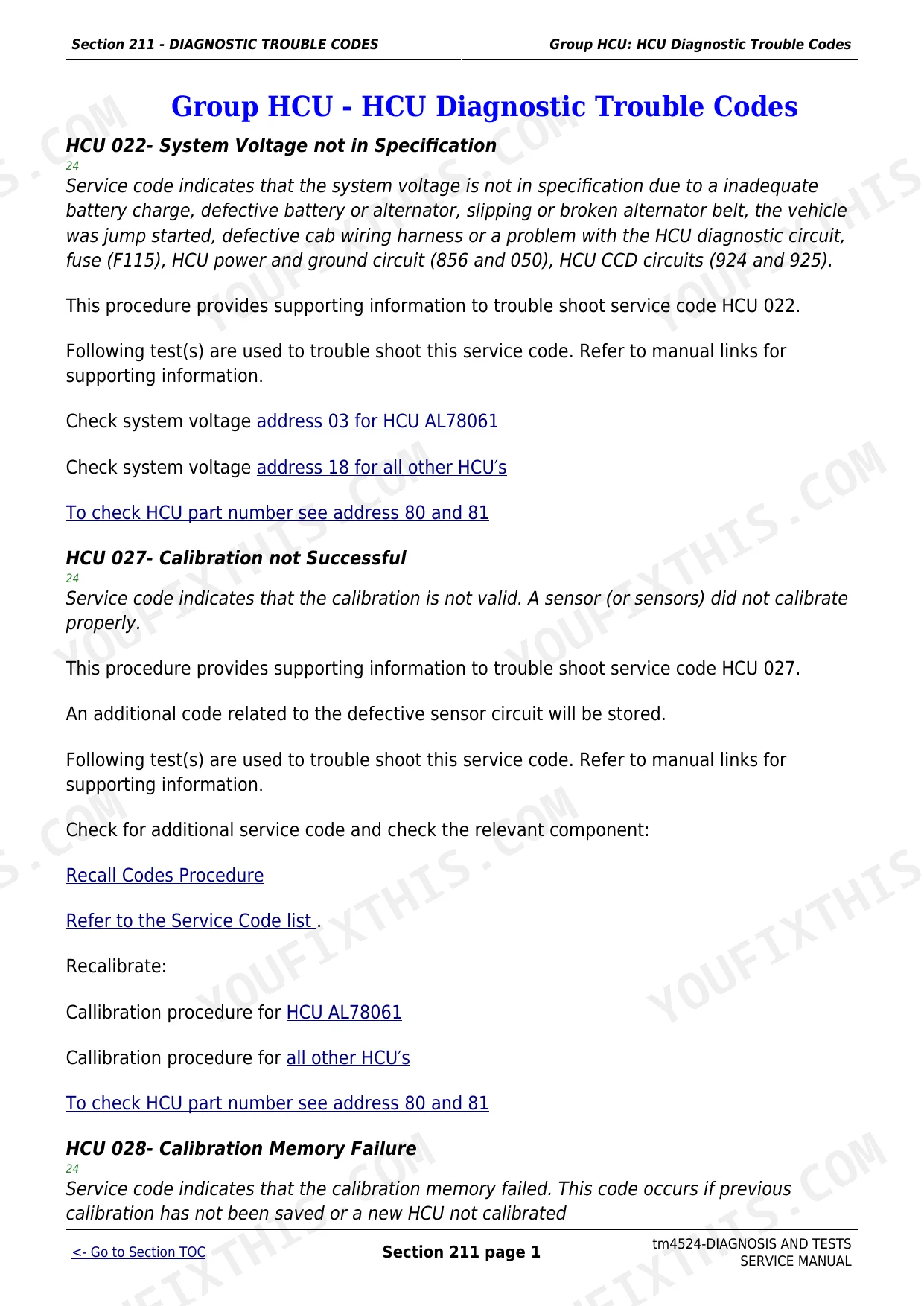

| Diagnostic Trouble Codes | 27-47 | Hcu Hitch Control Diagnostic Codes, Rcu Diagnostic Codes, Calibration Procedures |

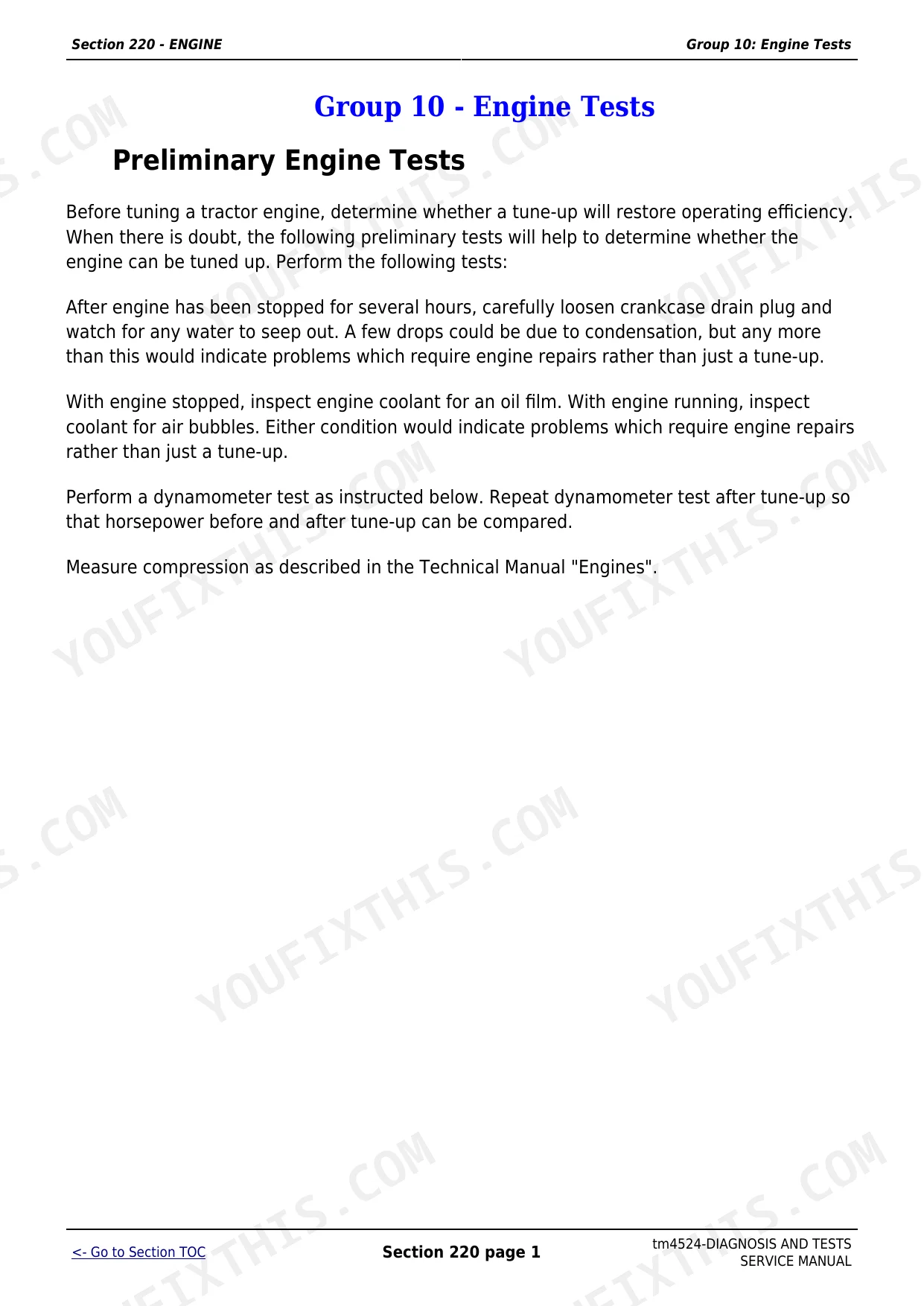

| Engine Tests | 48-50 | Preliminary Engine Tests, Dynamometer Testing, Engine Performance Diagnosis |

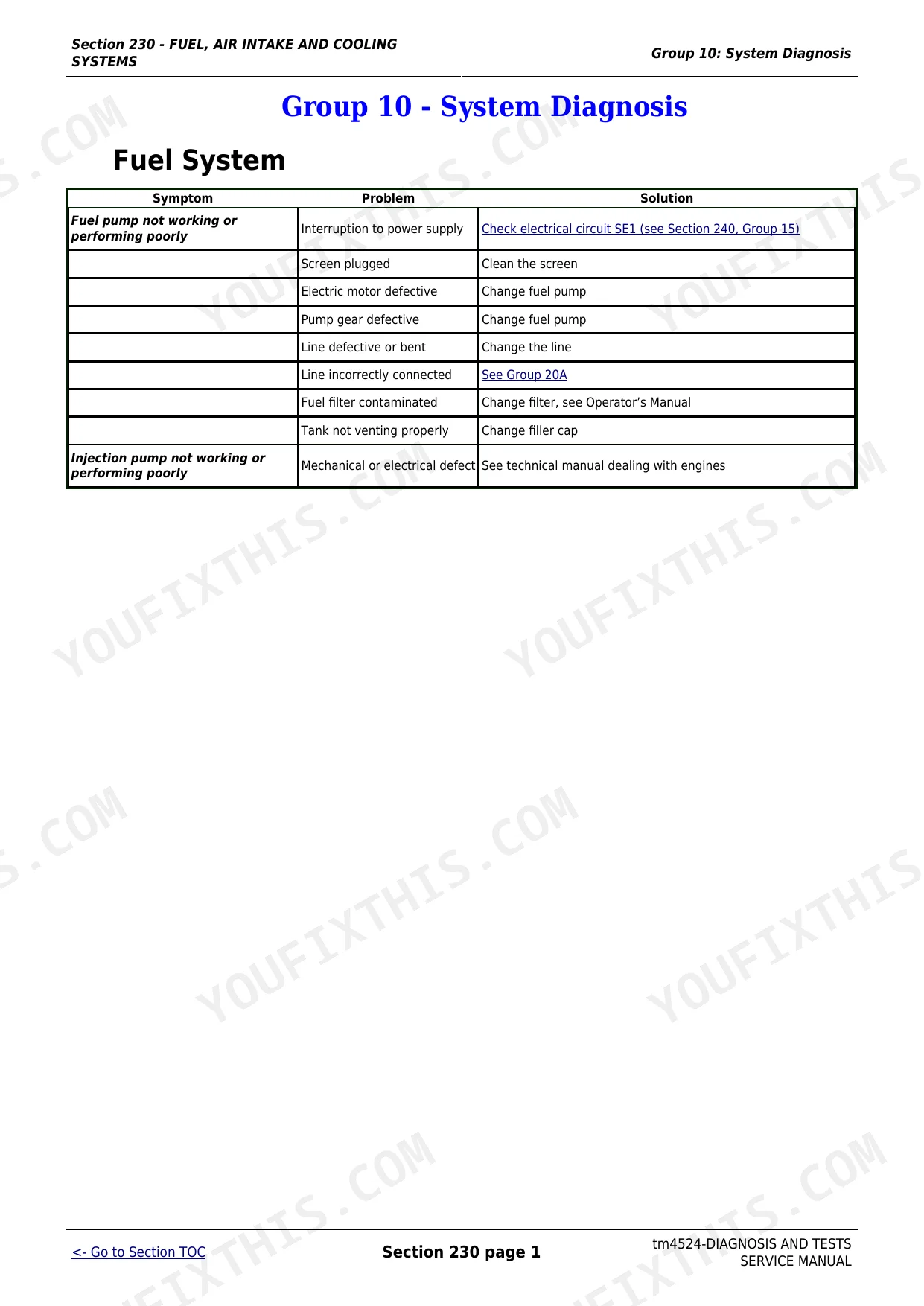

| Fuel, Air Intake and Cooling Tests | 51-80 | Fuel Transfer Pump Pressure and Flow, Air Cleaner Restriction, Cooling System Pressure Tests |

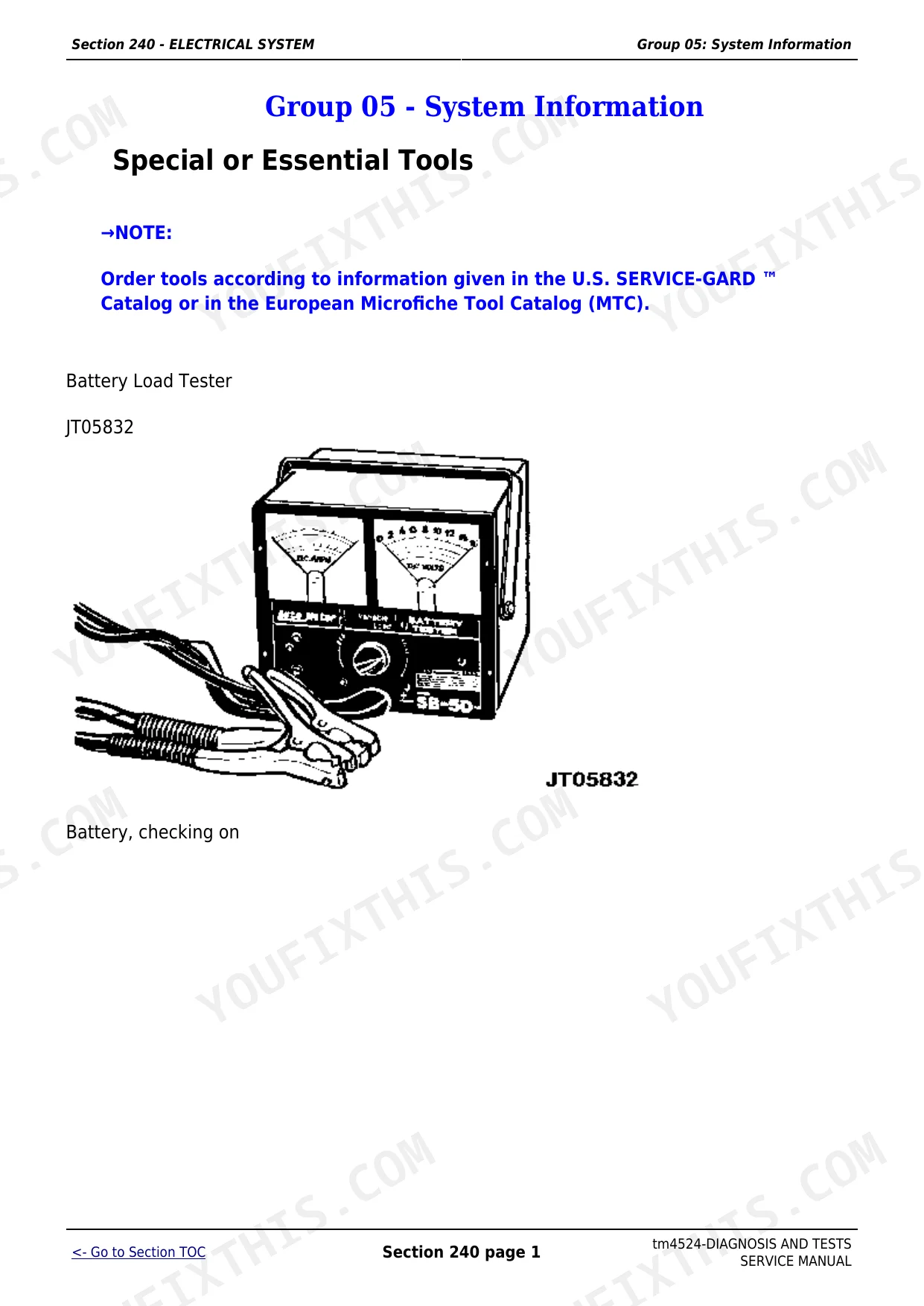

| Electrical System Diagrams | 81-398 | Cab Wiring and Functional Schematics, 2-Post ROPS System Diagrams, Harness Diagrams |
| Electrical Sub-System Diagnostics | 399-770 | Cab Sub-System Diagnostics, ROPS Sub-System Diagnostics, Component Test References |
| SyncroPlus and PowrQuad Transmission Tests | 771-1087 | SyncroPlus Operational Checks, PowrQuad Pressure Tests, Transmission Adjustments |

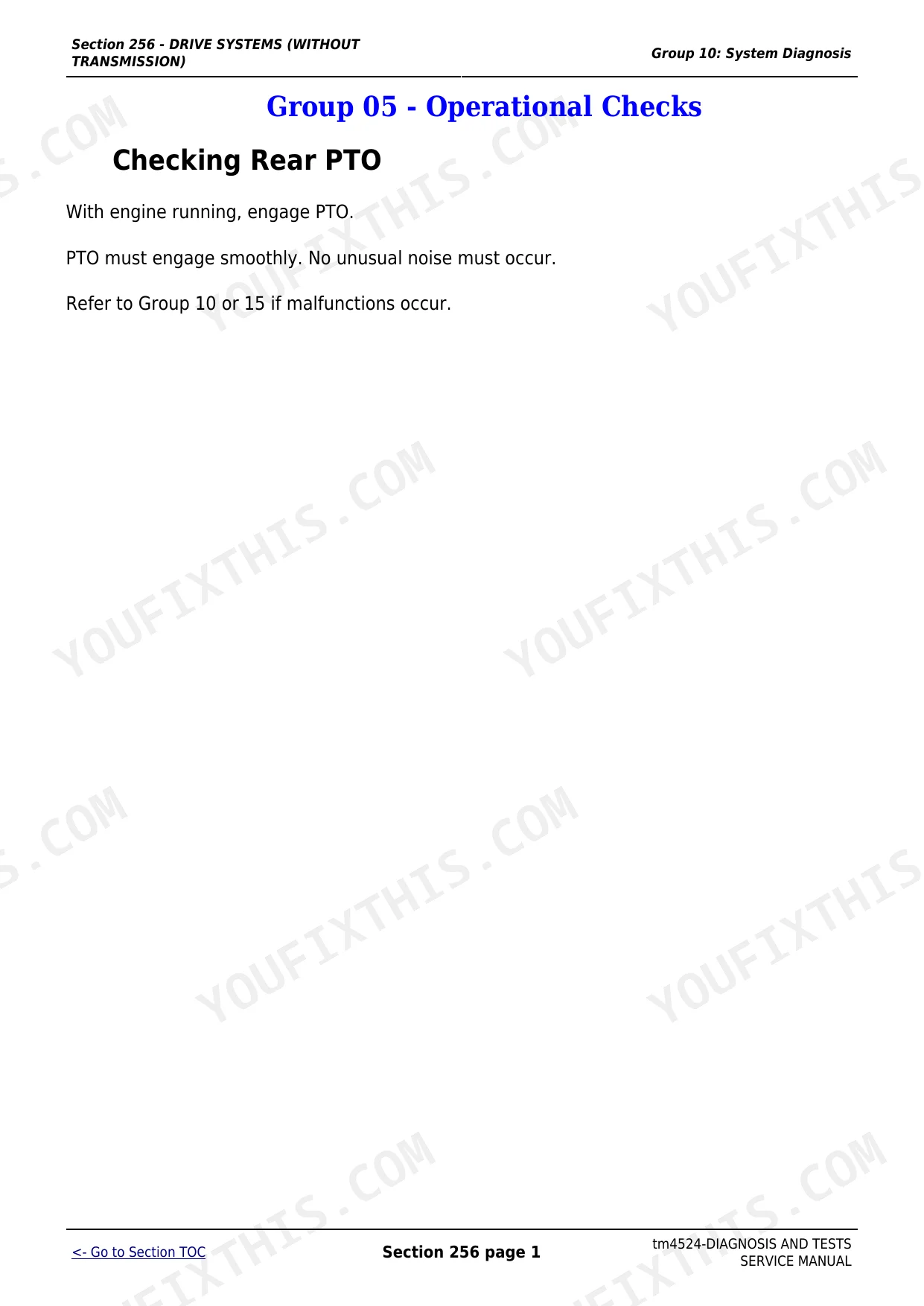

| Drive Systems | 1088-1140 | Front-Wheel Drive Clutch, Differential and Final Drives, Rear PTO |
| Steering and Brakes Tests | 1141-1190 | Hydrostatic Steering Checks, Brake Operational Checks, System Pressure Diagnosis |

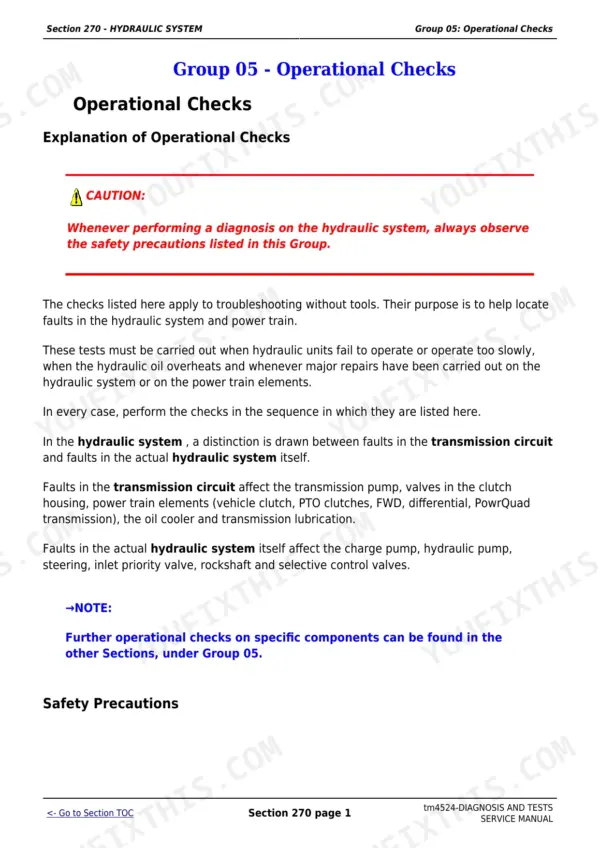

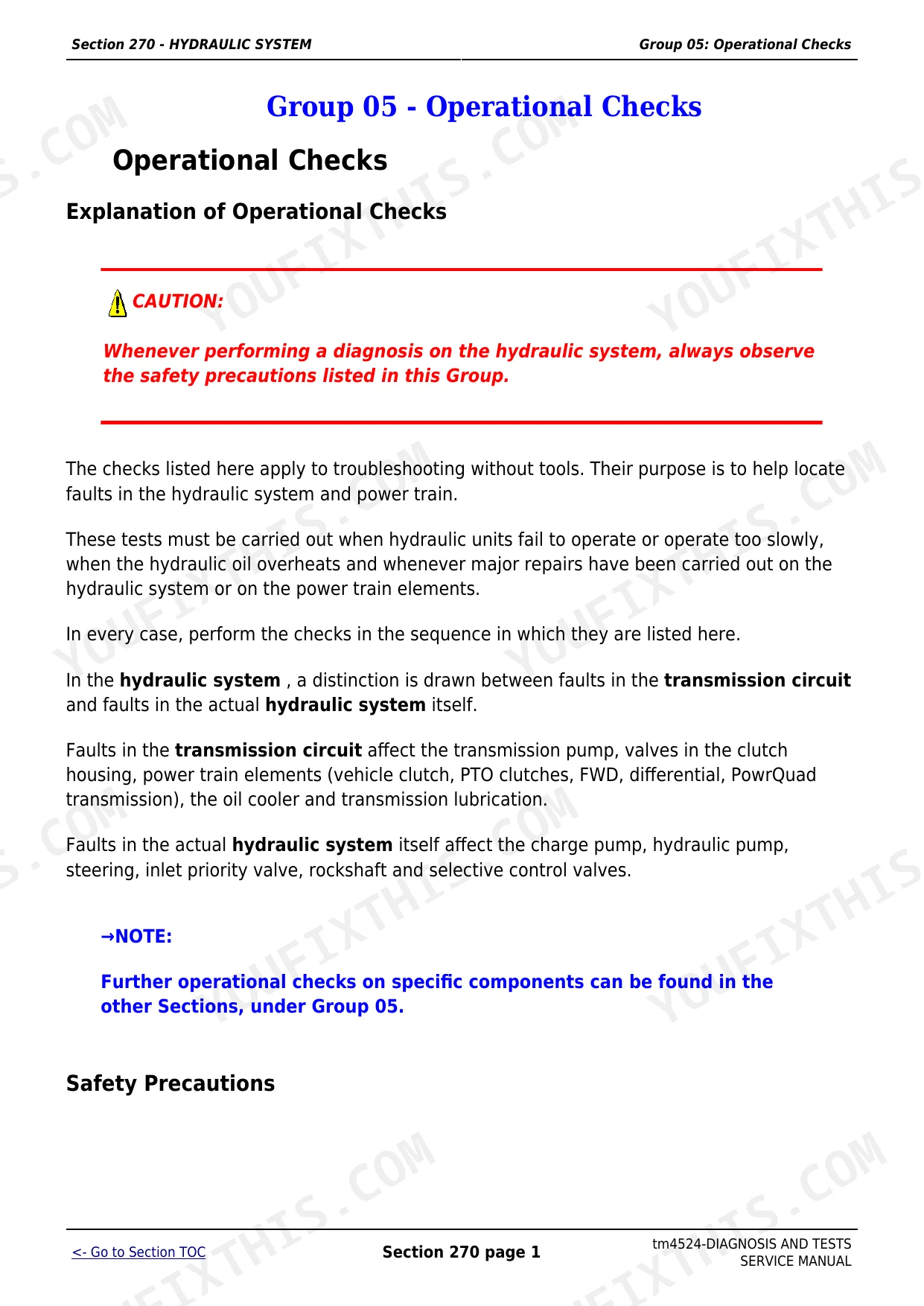

| Hydraulic System Tests | 1191-1447 | Charge Pump and Hydraulic Pump Pressure Tests, SCV Diagnostics, Rockshaft and Lift Diagnostics |

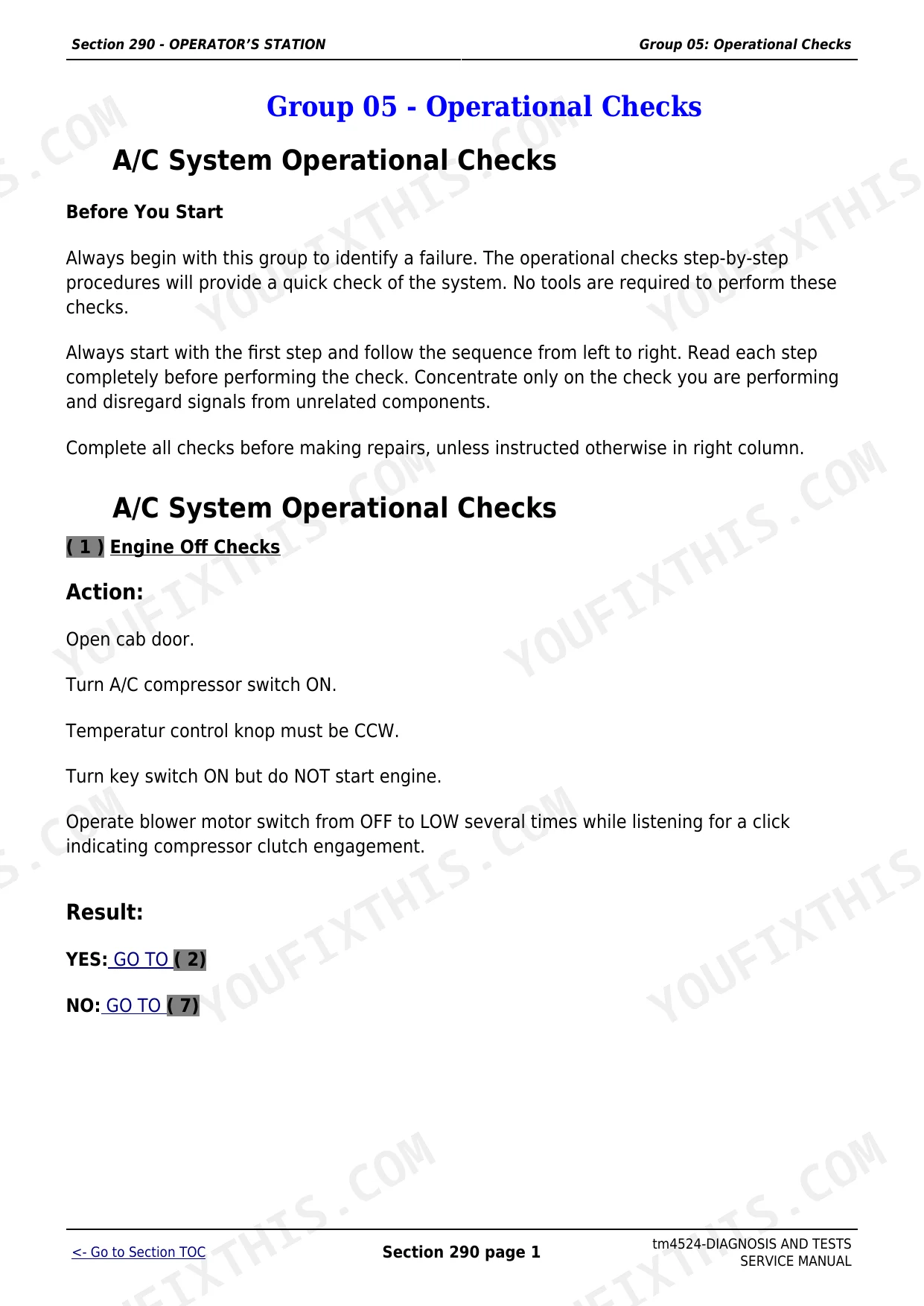

| Operator's Station and Special Tools | 1448-1532 | Air Conditioning Heating and Ventilation, Operator's Seat, Dealer-Fabricated Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 6200-6500 | ||
| Cooling System Test Pressure | 50 to 70 kPa (7 to 10 psi) | p. 54 |
| Expansion Tank Cap High-Pressure Valve | 70 to 90 kPa (10 to 13 psi) | p. 54 |
| Air Intake System Test Pressure | 1.5 kPa (0.22 psi) | p. 54 |
| Air Intake Low-Pressure Switch | 5.6 to 6.4 kPa | p. 54 |
| Fuel Transfer Pump Operating Pressure | 15 kPa (2.18 psi) | p. 54 |
| Fuel Transfer Pump Flow Rate | 110 litres per hour (29 US gal/hr) | p. 54 |
| PowrQuad | ||
| Transmission Oil Preheater Output | 200 W at 110 V | p. 76 |
John Deere 6200-6500 Common Problems This Manual Covers
Hydraulics dead or losing power under load, often right after a Power Beyond block install
Run the charge pump and main hydraulic pump pressure tests in the Hydraulic System Tests section to isolate the fault. Low standby pressure with a healthy pump points to the SCV circuit - check for a missing or shifted flow restrictor disc and verify load sense operation per the SCV diagnostic procedures.
Manual Section: Hydraulic System TestsHydraulic flow weak even though the filter is new
The cleanable suction screen ahead of the pump blocks up independently of the spin-on filter and starves the system. The Hydraulic System Tests section gives the pressure and flow checks that reveal inlet restriction, so you test for it instead of throwing another filter at the problem.
Manual Section: Hydraulic System TestsSpongy clutch pedal, gears hard to engage or slipping out of gear
Use the SyncroPlus and PowrQuad operational checks and pressure tests in the Transmission Tests section to separate hydraulic clutch problems (air in the circuit, weak pressure) from mechanical wear in synchronizers or a misadjusted control linkage. The linkage adjustment procedures alone fix a fair share of shifting complaints.
Manual Section: Transmission TestsEngine down on power or running hot with no obvious cause
Start with the preliminary engine tests and dynamometer procedure in the Engine Tests section, then verify fuel transfer pump output against the 15 kPa / 110 litres per hour spec, check air cleaner restriction at 1.5 kPa, and pressure test the cooling system at 50 to 70 kPa per the Fuel, Air Intake and Cooling Tests section.
Manual Section: Engine Tests / Fuel, Air Intake and Cooling TestsFrequently Asked Questions
My hydraulics quit completely after installing a Power Beyond block. Does this manual help?
Yes, this is the book for it. The usual culprit on these tractors is the small flow restrictor disc (the dime disc) that gets missed or shifts during installation, or a load sense problem. The Hydraulic System Tests section walks you through charge pump and main pump pressure tests plus SCV diagnostics, so you can prove whether it is a pressure problem, a load sense problem or a blocked screen before you tear anything apart.
Does the 6200/6300/6400 have engine fault codes I can read?
No. The diesel on these tractors is fully mechanical with an inline injection pump - there is no engine ECU and no engine codes to read or reset. The only diagnostic trouble codes on this machine come from the electronic hitch and implement control units (HCU and RCU), and the manual has a dedicated section for reading those codes and running the calibration procedures.
Are the full wiring diagrams included?
Yes, both cab and open station (ROPS) wiring diagrams are in the Electrical System section, along with functional schematics that show each circuit isolated - starting, charging, lights, hitch control - plus component test procedures. This is the part of the factory library that has the electrical diagrams; the Repair manual does not duplicate them.
Will this manual show me how to fix a spongy clutch or hard shifting?
It gets you to the diagnosis. The Transmission Tests section covers SyncroPlus and PowrQuad operational checks, pressure tests and linkage adjustments, so you can tell air in the hydraulic clutch circuit from a worn synchronizer or a linkage that just needs adjusting. Actual teardown and part replacement is in the companion Repair manual - this book tells you which component is at fault so you do not split the tractor guessing.
Is this the same as the Repair manual, and does it cover the L models?
It is the companion volume, not the same book. Operation and Tests covers diagnosis: pressure specs, operational checks, adjustments and wiring diagrams. The Repair manual covers disassembly and rebuild. It covers all eight variants - 6200, 6200L, 6300, 6300L, 6400, 6400L, 6500 and 6500L - since they share the same systems.
