Part of the John Deere Repair Manuals.
This is the complete John Deere factory technical repair manual for the 7720, 7820 and 7920 Twenty Series tractors. Across 1,100 pages it covers every major system: pulling and rebuilding the 6.8L and 8.1L PowerTech diesel engines, tearing down and reassembling the PowrQuad-Plus and AutoPowr/IVT transmissions, servicing MFWD and rear final drives, tracing the full hydraulic circuit from pump to selective control valves and 3-point hitch, and diagnosing the electrical system with wiring harness routings and fault codes. It is the same manual a John Deere dealer technician works from, with the torque values and test pressures printed throughout. The download bundle additionally includes the companion PowerTech engine CTM shop manuals (CTM104, CTM385, CTM Level-14 EFI covering the 4045 and 6068 engines) and axle component technical manuals (CTM4687, CTM4820), giving you the full set of referenced service documentation in one package.
What's Inside This John Deere 7720-7920 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, Identification, General Specifications | |
| Engine | Component Removal and Installation, Engine Repair (6.8L and 8.1L PowerTech) | |
| Fuel, Air Intake and Cooling | Diesel Fuel System, Air Intake System, Engine Cooling System, Coolers, Exhaust System | |

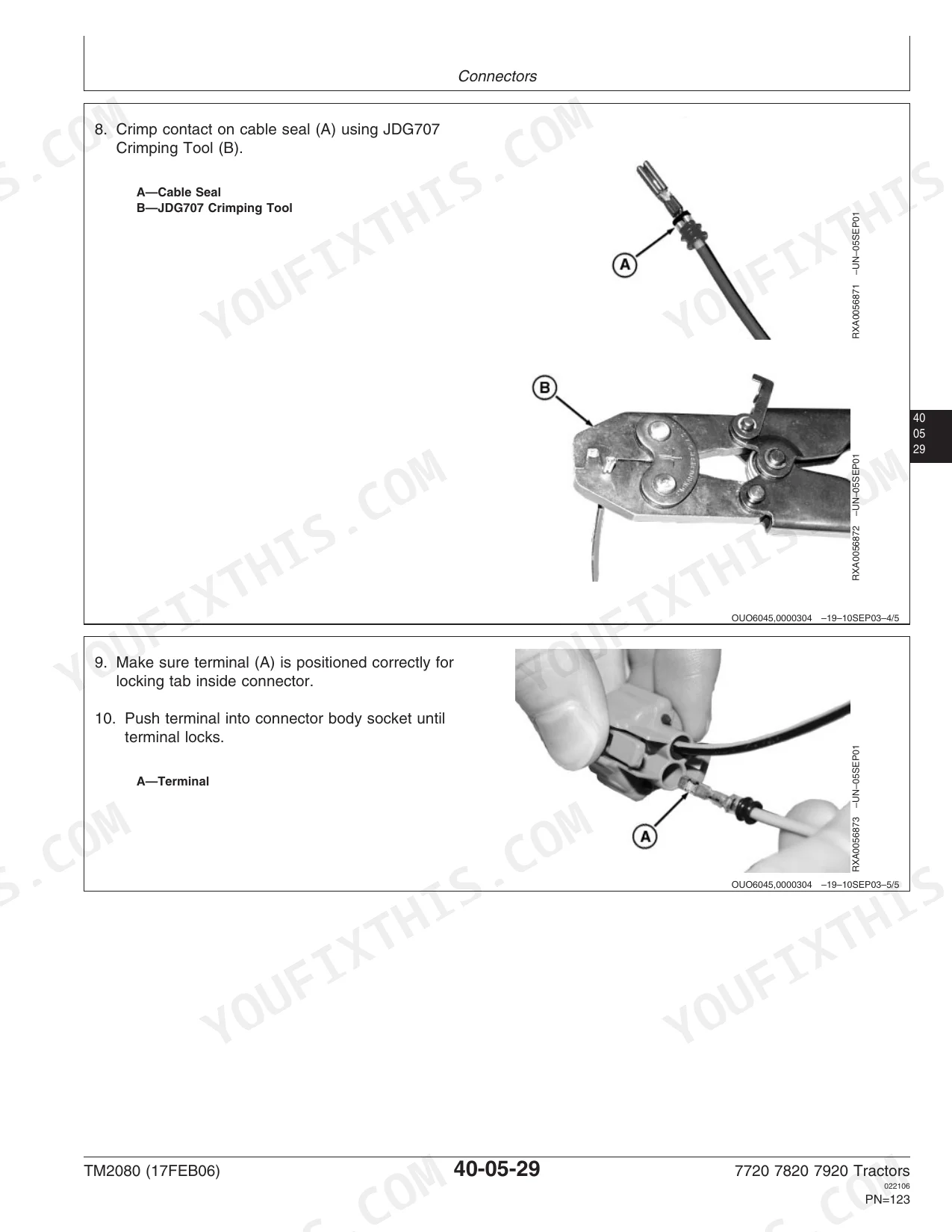

| Electrical System | Connectors, Wiring Harness Routings, Charging Circuit, Starting Circuit, Solenoids and Switches, Monitoring System, Auxiliary Lighting, Convenience and Accessory Components | |
| PowrQuad-Plus Transmission | Component Removal and Installation, Shifting Mechanisms, PowrQuad-Plus Module, Range Box | |

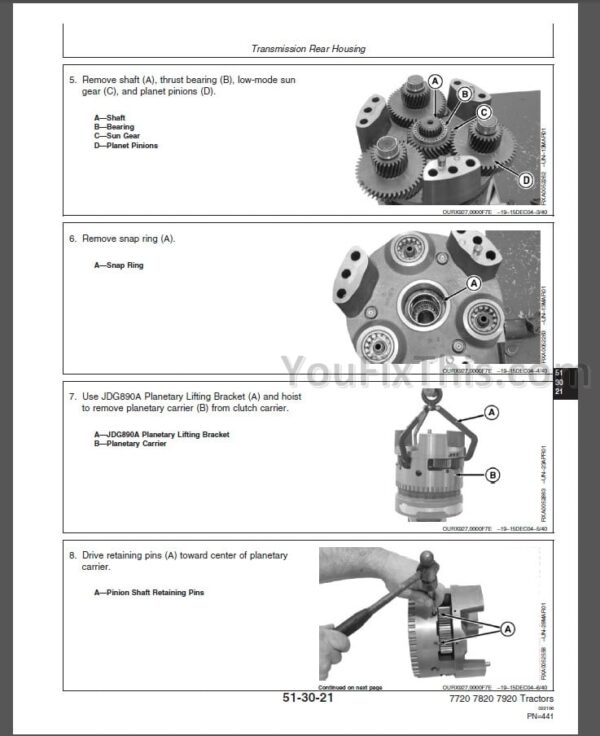

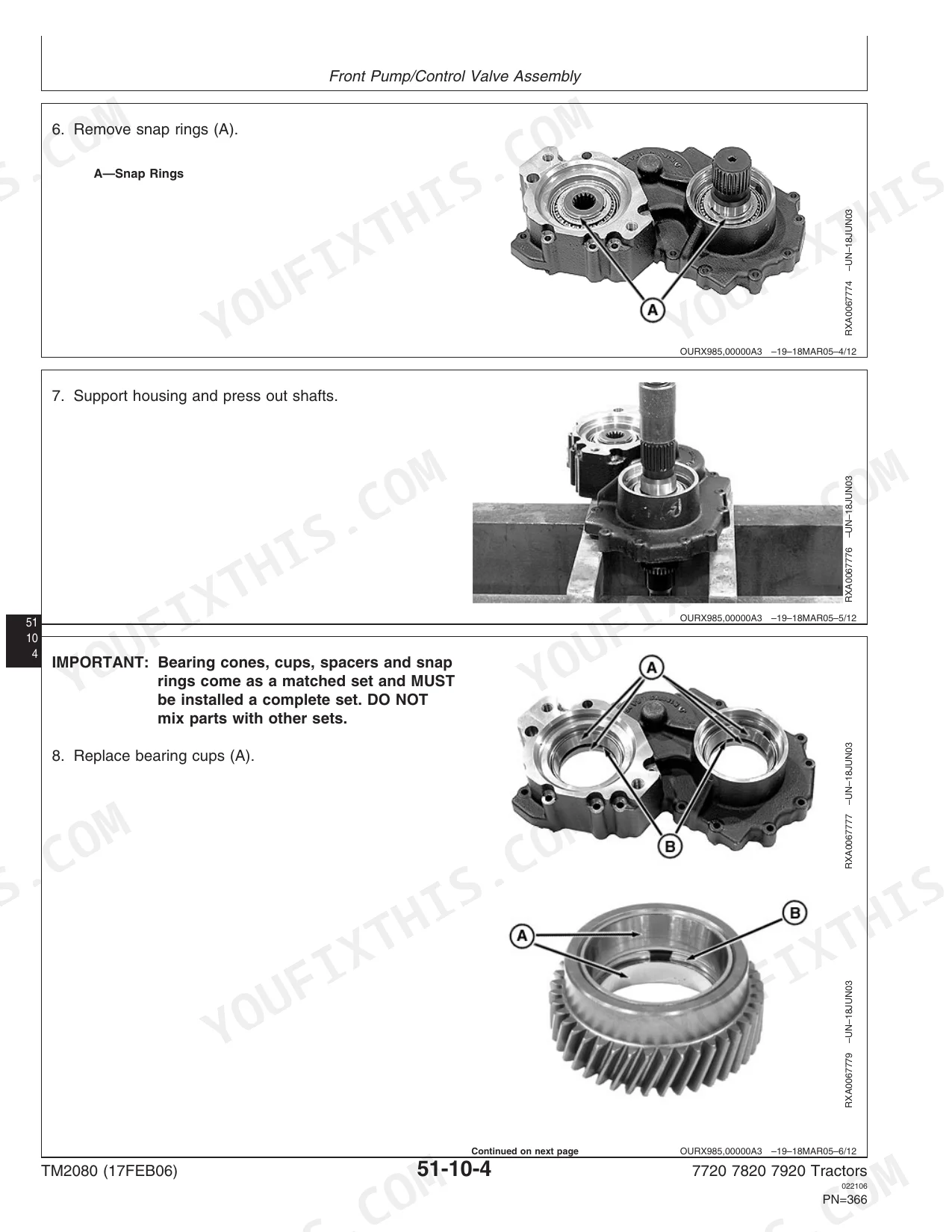

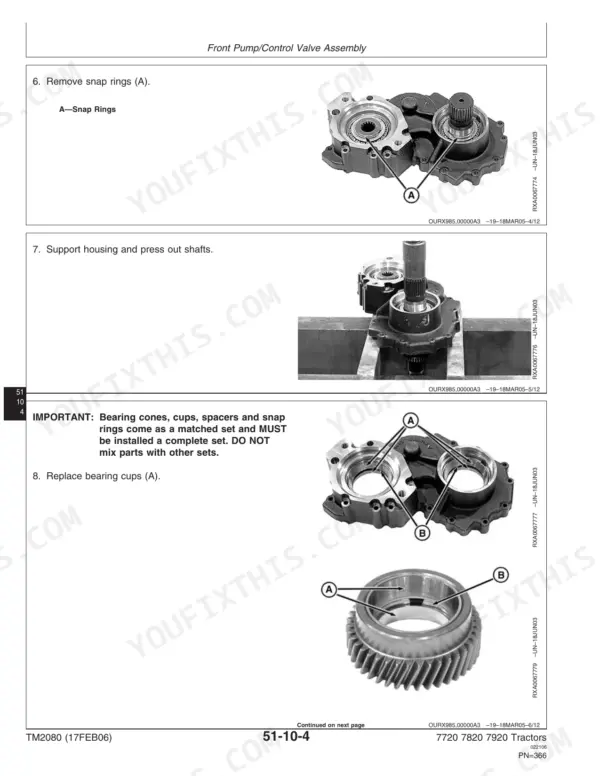

| AutoPowr/IVT Transmission | Component Removal, Controls, Front Pump/Control Valve Assembly, Hydrostatic Module, Shift Valve Assembly, Transmission Housings, Differential Input Assembly | |
| MFWD Drive Systems | Component Removal and Installation, Controls, MFWD Clutch, MFWD Axle, Suspended MFWD Axle Components | |
| Drive Systems | Rear Differential, Final Drive, Rear PTO, Front PTO Repairs, Primary Brakes | |
| Steering and Brakes | Steering Column, Hydrostatic Steering, Service Brakes, Trailer Brakes | |
| Hydraulic System | Component Removal and Installation, Hydraulic System Repair, Hydraulic Pump and Charge Pump, Hydraulic System Valves, Selective Control Valves and Couplers, Rear 3-Point Hitch, Front 3-Point Hitch, Bleed Hydraulic System | |
| Miscellaneous | Hood, Front Axle (Two-Wheel Drive), Steering Cylinders (Two-Wheel Drive), Rear Wheels, Wagon and Pick-Up Hitch | |
| Operator Station | Component Removal and Installation, Heating, Ventilating and Air Conditioning (HVAC), Air Conditioning System, Air Suspension Seat, ACTIVE SEAT, Armrest, Cab Door and Windshield | |
| Dealer Fabricated Tools | DFRW special tools list |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Rear Engine Mount | ||
| Rear Engine Mount-to-Frame Cap Screws - Torque | 125 N.m (92 lb-ft) | |
| Drive Shaft Yoke | ||

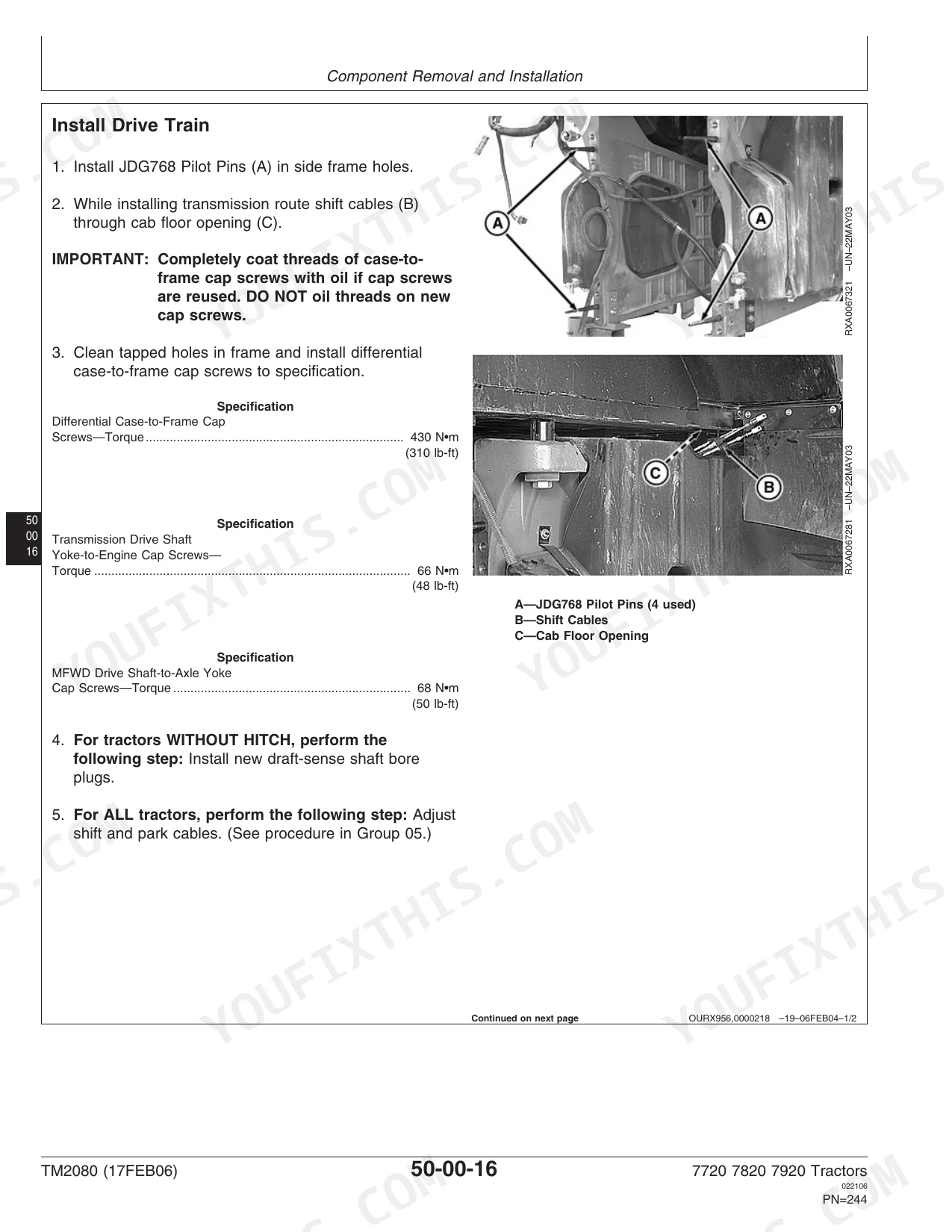

| Drive Shaft Yoke-to-Engine Cap Screws - Torque | 70 N.m (52 lb-ft) | |
| Viscous/Vistronic Fan Drive | ||
| Viscous/Vistronic Fan Drive-to-Pulley Cap Screws - Torque | 42 N.m (31 lb-ft) | |
| 8.1L PowerTech Engine | ||
| 8.1L Alternator Mount-to-Engine Cap Screws - Torque | 37 N.m (27 lb-ft) | |
| Accessory Drive Housing | ||
| Accessory Drive Housing-to-Engine - Torque | 73 N.m (54 lb-ft) | |
John Deere 7720-7920 Common Problems This Manual Covers
Tractor stops moving forward or backward while engine runs normally - PowrQuad-Plus failure
Pull the diagnostic codes first with the CommandCenter display and check for transmission hydraulic pressure faults before dropping the transmission. The PowrQuad-Plus Transmission section covers removing the unit from the tractor, pressure-testing the hydraulic control circuit, and inspecting the clutch packs inside the module so you can confirm the exact failure - a stuck valve body, a failed clutch pack, or a worn range box - and order only the parts you actually need.
Manual Section: PowrQuad-Plus TransmissionStarter cranks slowly or is completely inoperative
Start by checking the fusible link under the seat and the battery terminal connections before condemning the starter. The Electrical System section covers the starting circuit including the starter safety switch, solenoid, and battery diagnostics, giving you the test voltages and resistance limits to distinguish a bad battery, a corroded connection, or a failed starter solenoid without a dealer scan tool.
Manual Section: Electrical SystemService alert indicator flashing with low charging voltage while engine is running
Inspect the alternator belt tension and condition first - a slipping belt is the most common cause and takes five minutes to fix. If the belt is tight, the Electrical System charging circuit section covers testing alternator output voltage and current so you can confirm whether the alternator itself is failing or whether an accessory load is pulling the system below the alert threshold before you order a replacement alternator.
Manual Section: Electrical SystemCab blower motor operates only in PURGE (full speed) mode - no low/medium speeds
The blower resistance assembly has failed, which is a common wear item on these cabs. The Operator Station HVAC section covers accessing and replacing the resistance assembly so you can restore all fan speed selections. It also covers the full air conditioning system and refrigerant handling if the failed resistor cooked additional HVAC components during the fault period.
Manual Section: Operator StationFrequently Asked Questions
Why does my John Deere 7820 stop moving while the engine keeps running?
That is the classic PowrQuad-Plus transmission symptom - a stuck range-shift valve or failed hydraulic clutch pack in the transmission. The PowrQuad-Plus Transmission section covers removing the transmission, testing the hydraulic control valve, and inspecting the module so you can confirm whether you need a valve-body clean, a clutch-pack rebuild, or a full transmission overhaul before ordering parts.
What does the ACU 523664.02 speed band fault code mean on a 7720 or 7820?
That code points to a voltage problem in the hand throttle or speed band sensor circuit in the operator controls. Check the sensor wiring for chafing or corrosion first. The Electrical System section covers the monitoring system, solenoids and switches, and the wiring harness routings so you can trace the circuit and confirm whether it is a bad sensor, a connector fault, or a control unit issue.
What causes a service alert for low charging voltage on the John Deere 7920?
Low charging voltage while the engine is running usually means a slipping or broken alternator belt, a failing alternator, or an excessive accessory load. The Electrical System section covers charging circuit testing and alternator service so you can measure output voltage and belt tension, isolate the cause, and fix it without throwing parts at it.
Why does the cab blower on a 7720 only work in PURGE mode?
That is a failed blower resistance assembly - the resistor pack burns out and leaves only the unregulated high-speed (purge) circuit intact. The Operator Station HVAC section covers removing the resistance assembly and the blower motor so you can replace the resistor pack and restore all fan speeds without pulling the whole dash apart.
Does this manual cover the AutoPowr/IVT transmission on the 7820 and 7920?
Yes. The AutoPowr/IVT Transmission section covers complete component removal, the front pump and control valve assembly, the hydrostatic module, shift valve assembly, and both transmission housings. It also covers the differential input assembly and controls so you can service the full CVT drivetrain whether you are dealing with a slipping hydrostatic module or a control valve leak.
