Part of the John Deere Repair Manuals.

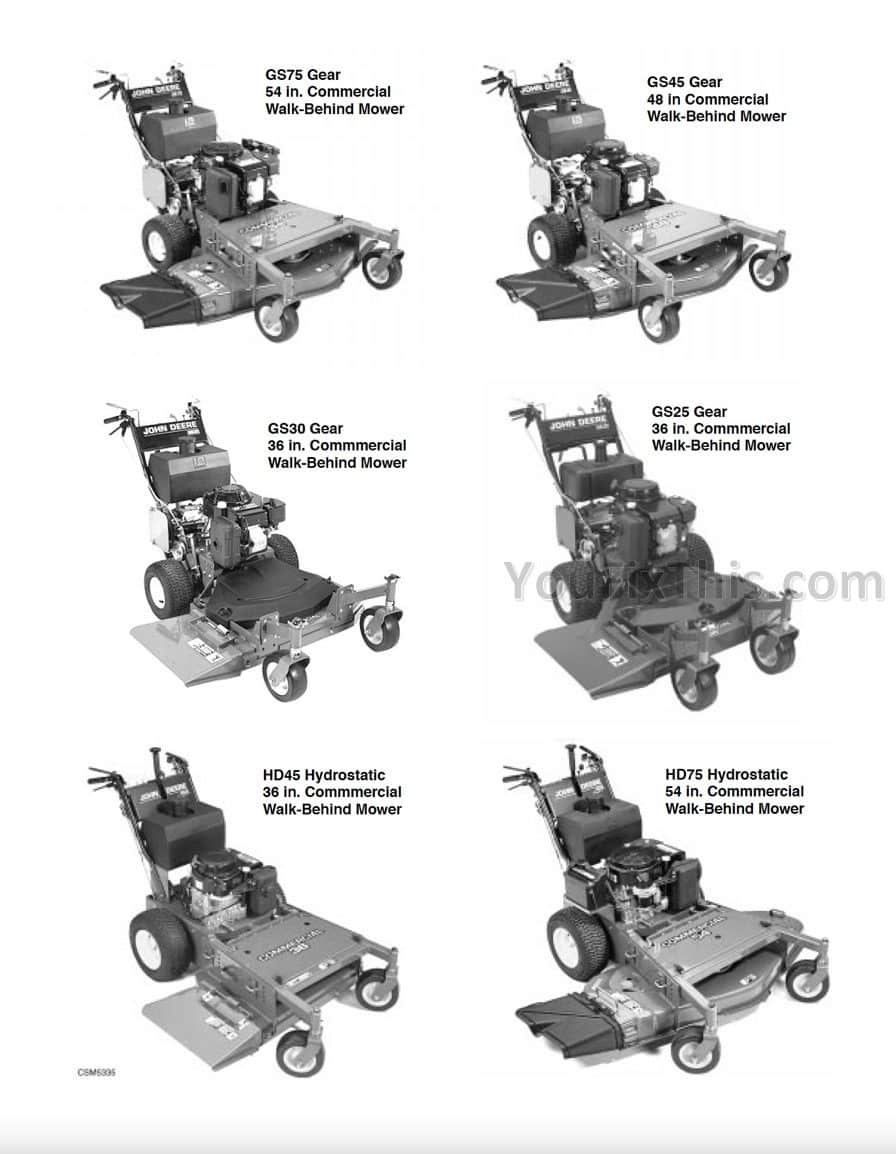

Looking for the factory diagnostic procedures for your John Deere Commercial Walk-Behind Mowers? This 344-page John Deere HD45 technical manual pdf (OEM #TM1598) breaks down the complete Kawasaki and Kohler engines, hydrostatic transaxles, and mower decks across the GS25, GS30, GS45, GS75, HD45, and HD75 variants. Inside, you get complete electrical wiring diagrams detailing exact conductor sizes and wire colors, plus full hydraulic schematics for the hydrostatic drive. Open the power train chapters to find step-by-step diagnostic tests and troubleshooting charts for both gear and hydrostatic systems. Set your PTO clutch air gap to precisely 0.51 mm and lock down the cap screw to 56 N-m before firing up the engine. Stop wasting hours chasing ghost electrical issues. Download this bookmarked file straight to your tablet, click directly to the spec you need, and get your mower back on the turf.
What's Inside This John Deere GS25-GS75, HD45-HD75 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | General Diagnostic Information, Specifications, Electrical Wiring Harness Legend, Component Location, System Schematic, Electrical Wiring Harness |
| Safety | 4-9 | Handle Chemical Products Safely, Live with Safety |

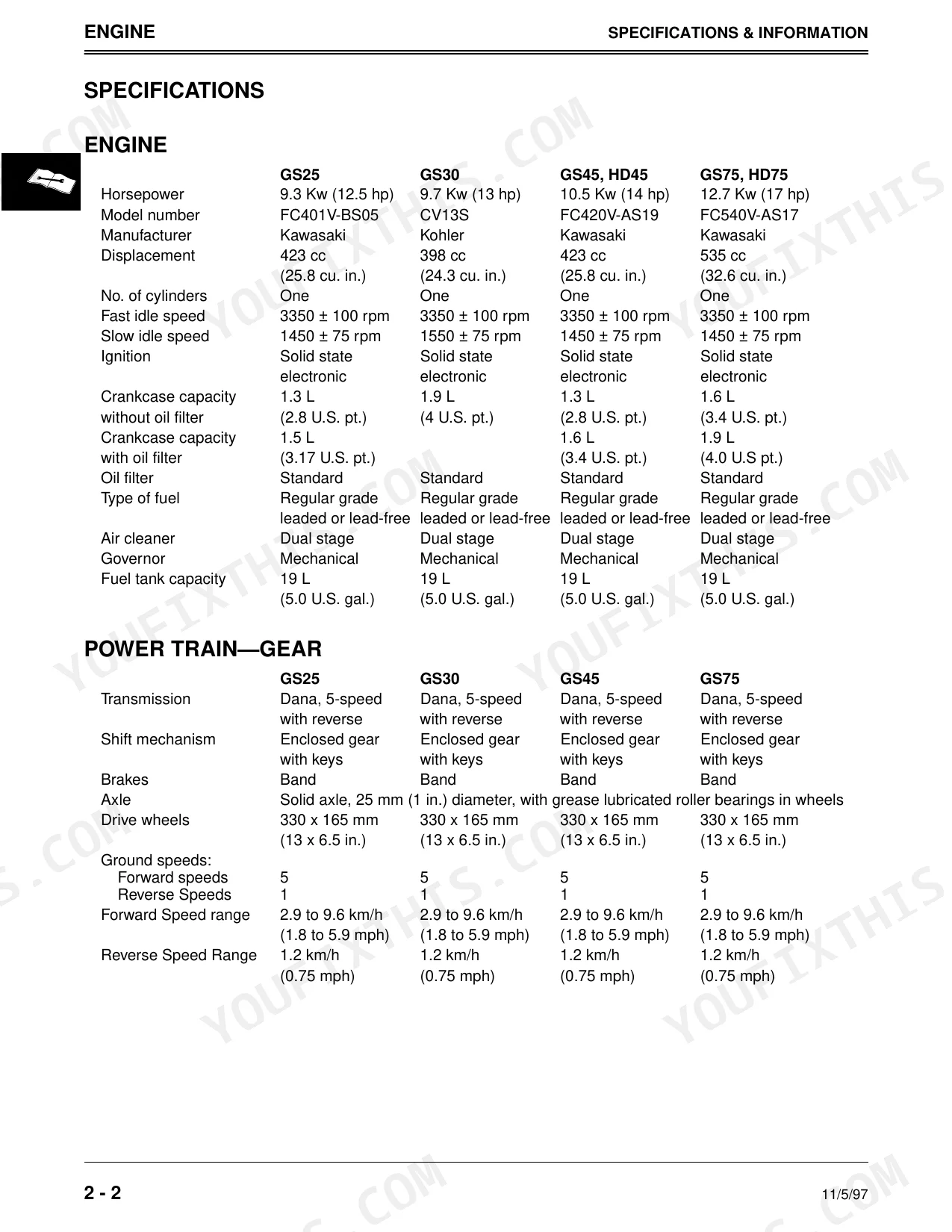

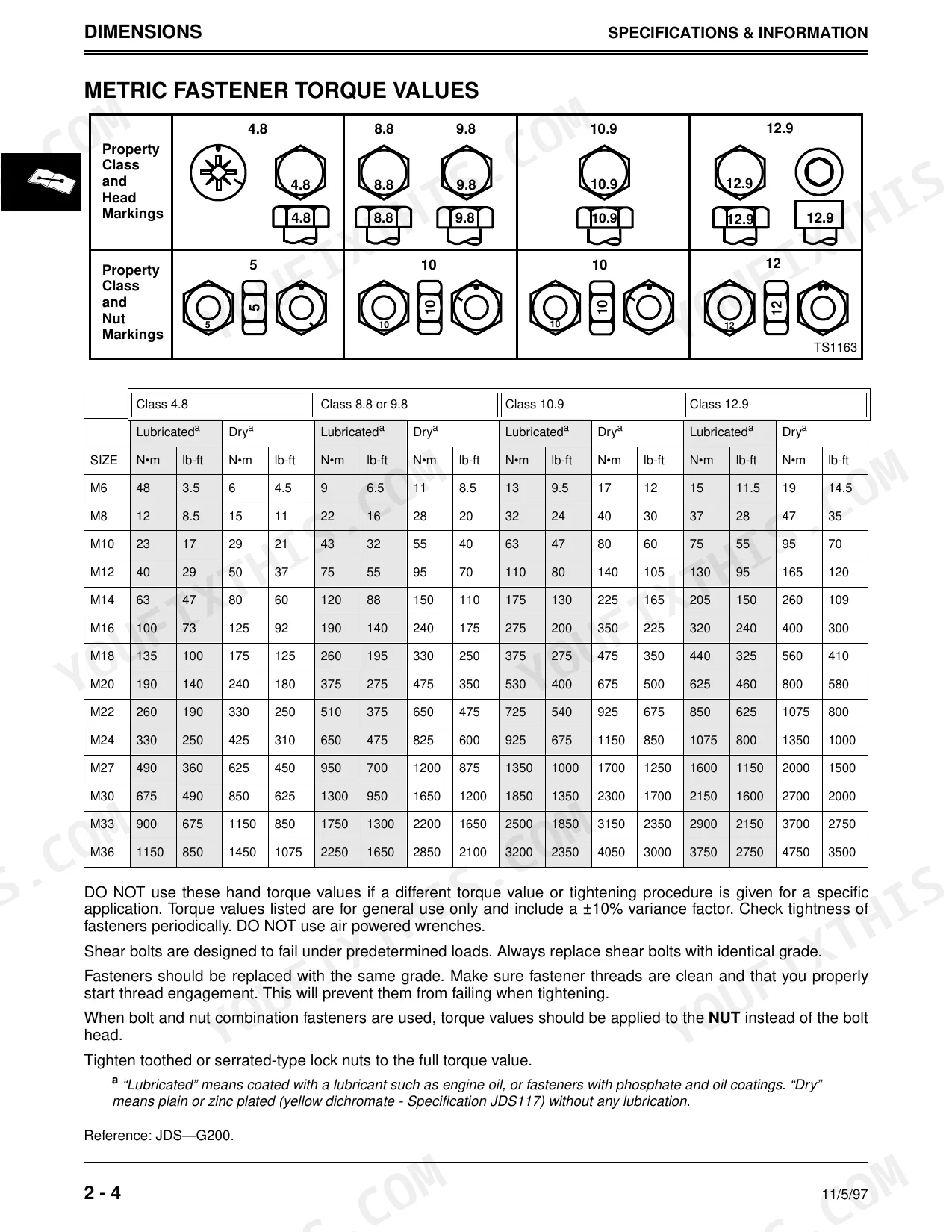

| Specifications | 10-22 | Engine, Power Train, Gear, Hydrostatic, Mower Decks, General, Dimensions |

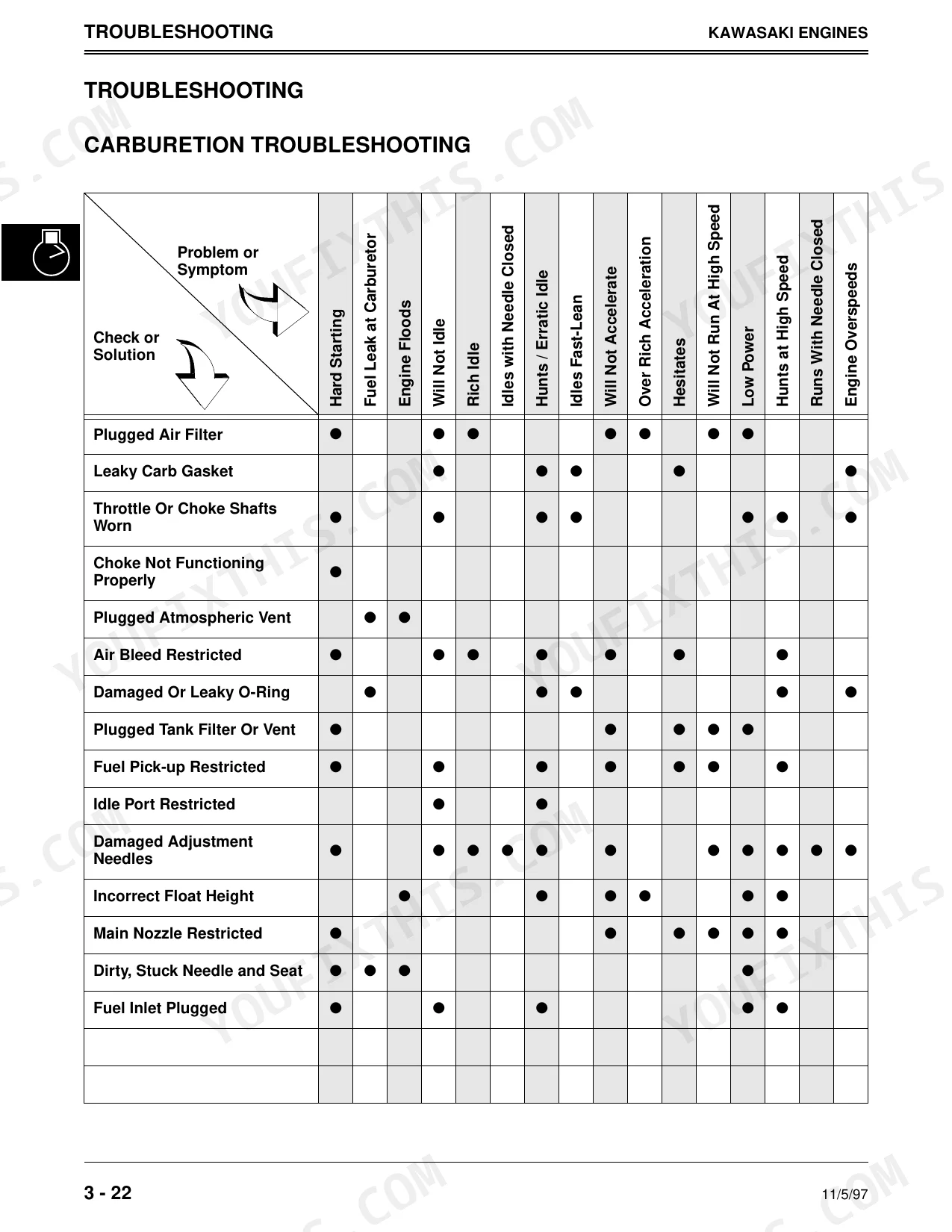

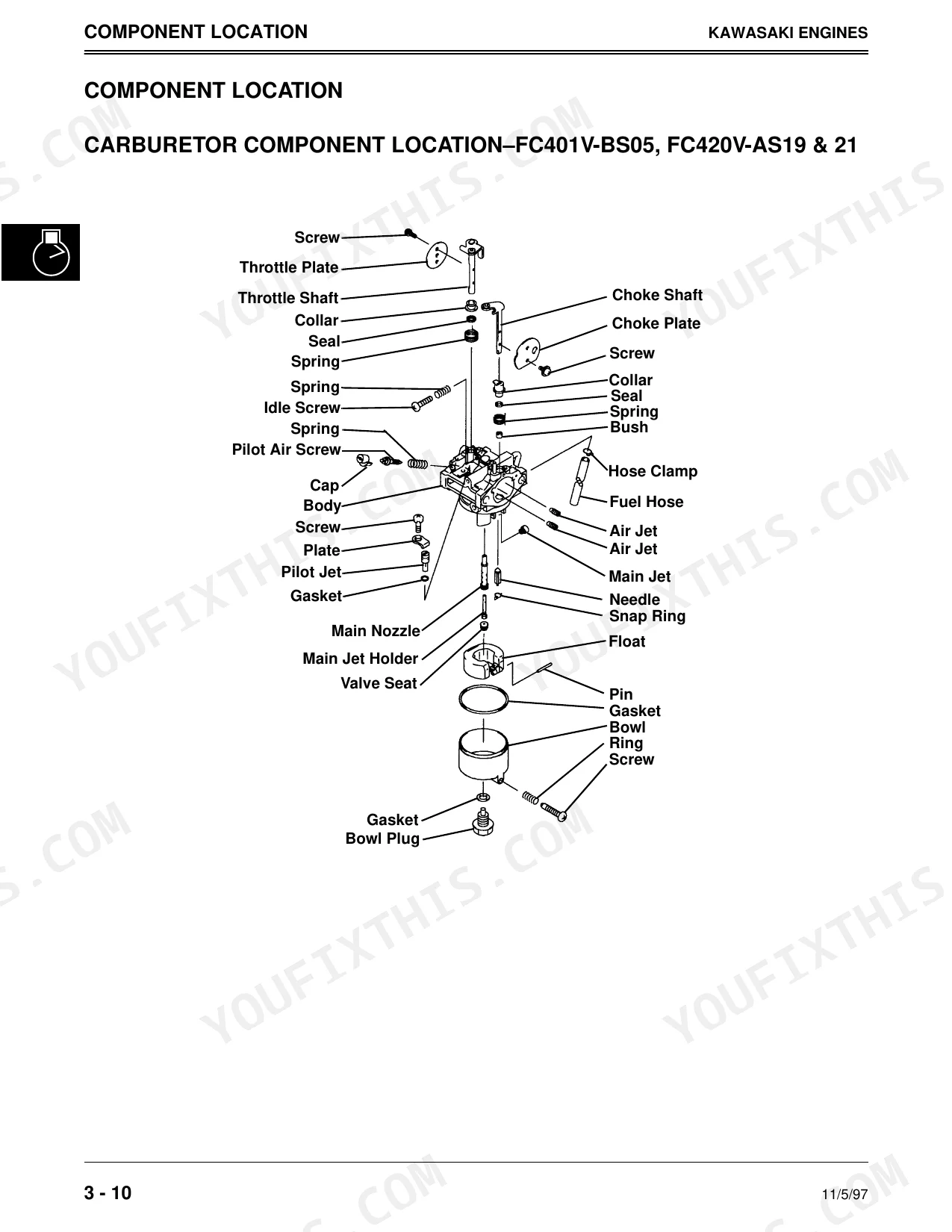

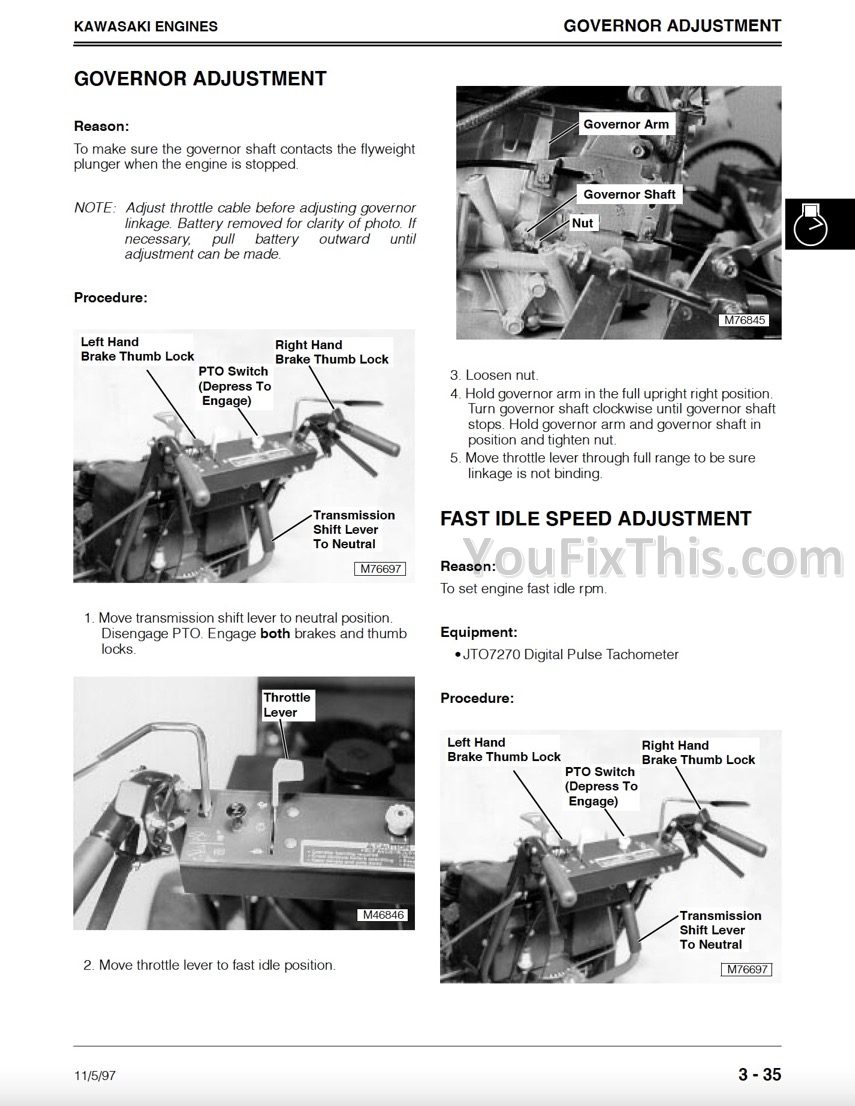

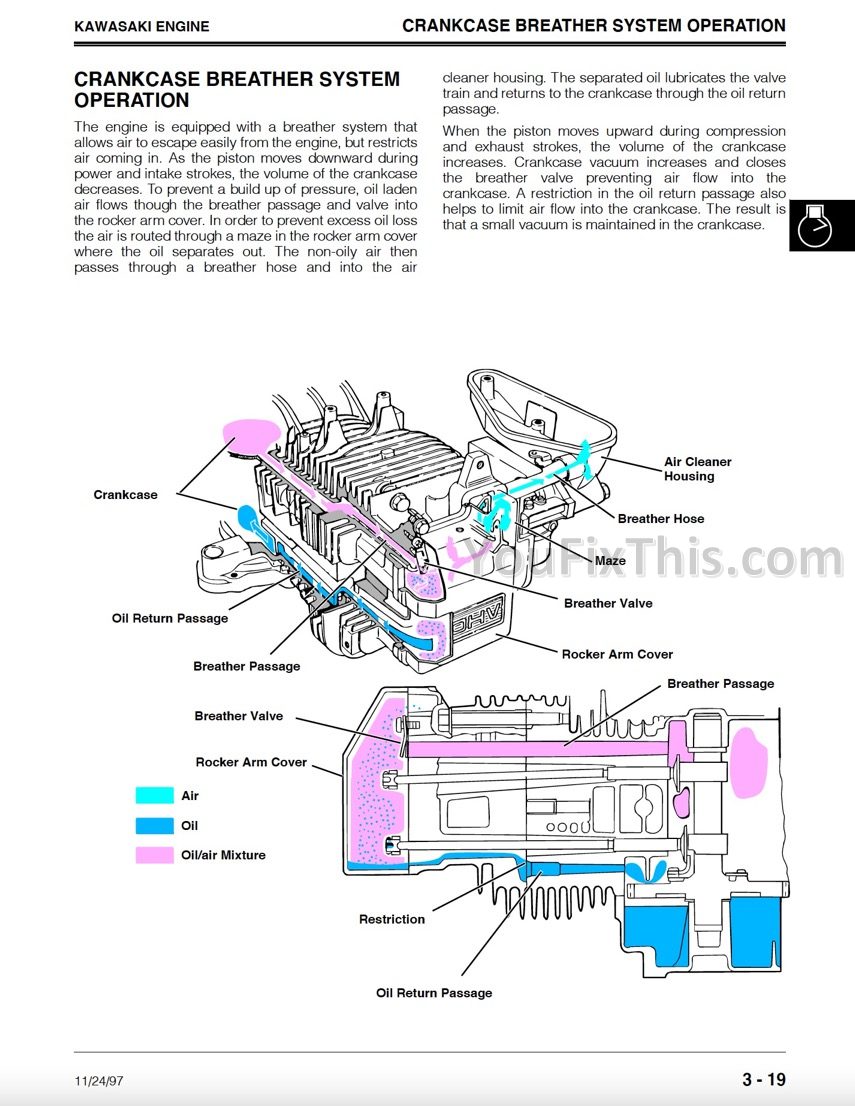

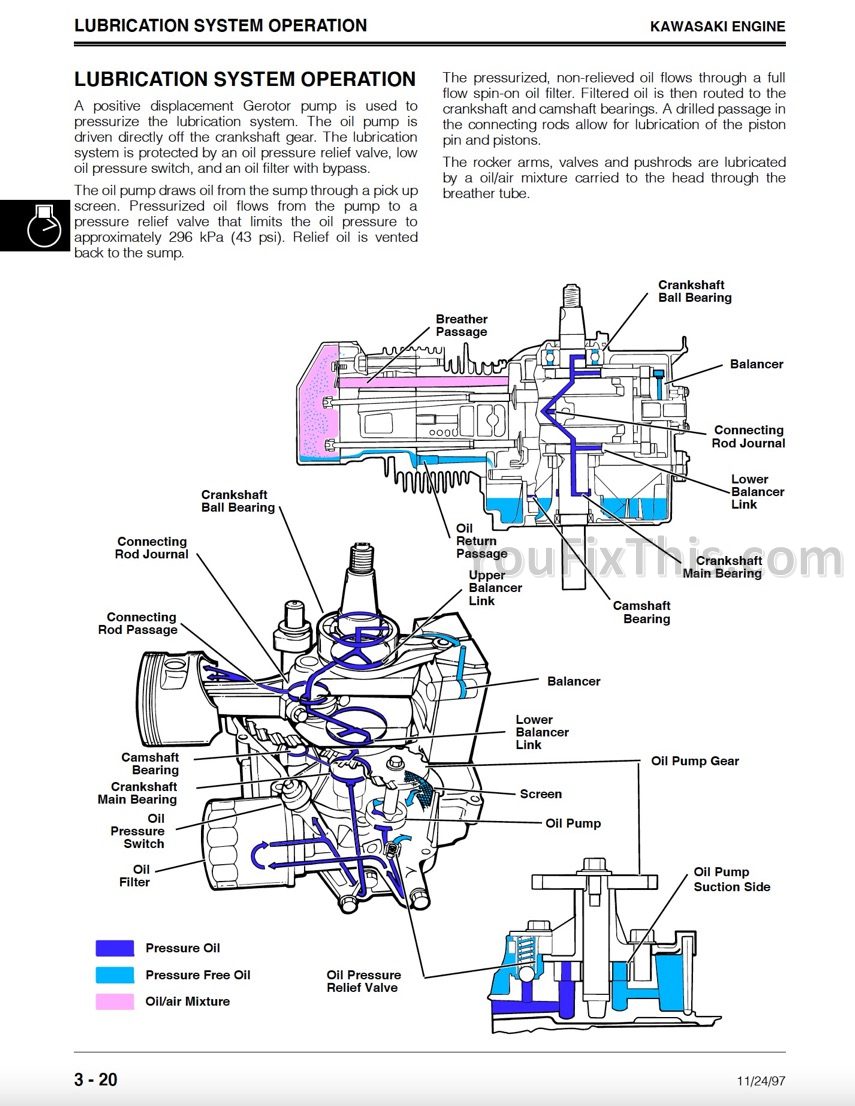

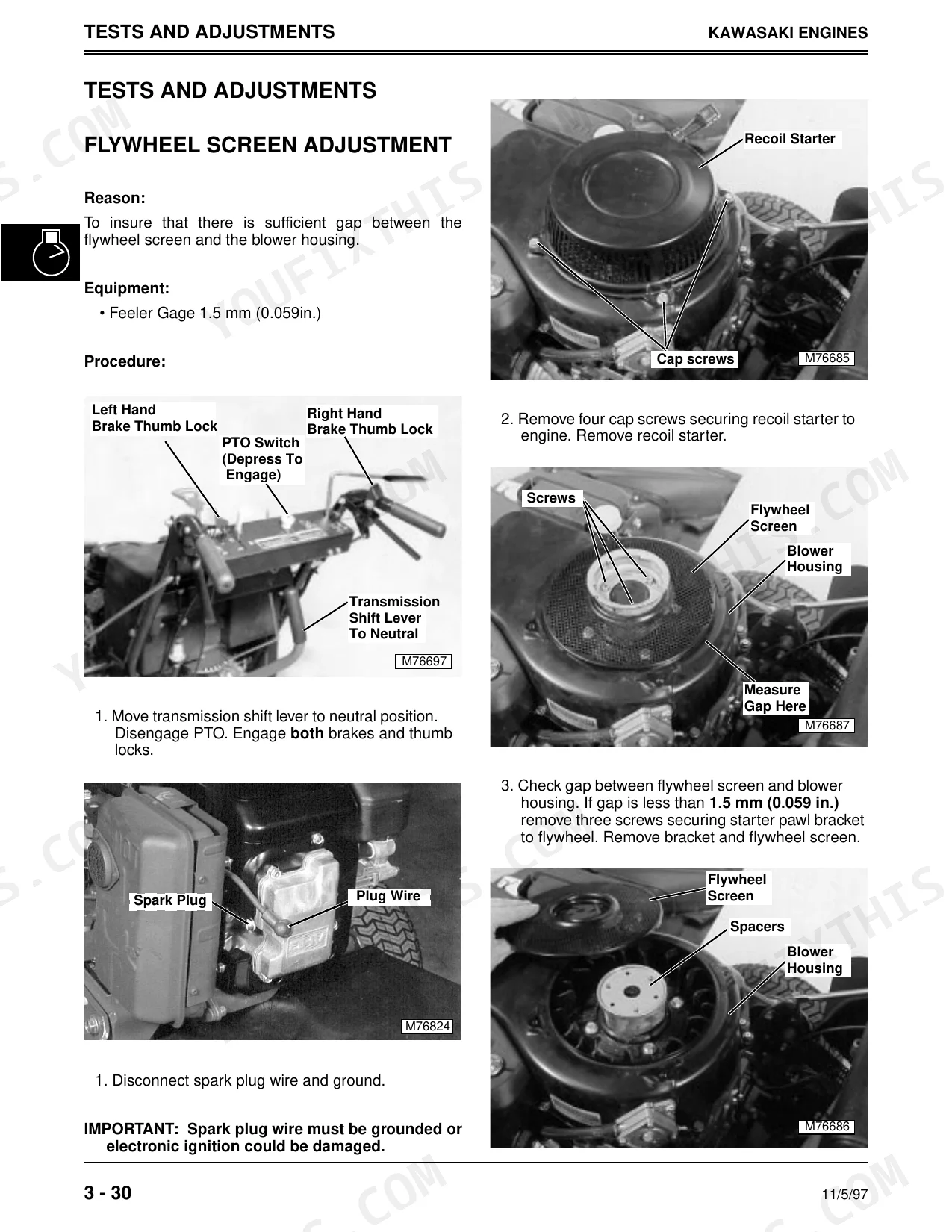

| Kawasaki Engines | 23-104 | Specifications, Component Location, Theory of Operation, Troubleshooting, Tests & Adjustments, Repair |
| Kohler Engine | 105-174 | Component Location, Specifications, Torque, Theory of Operation, Troubleshooting, Tests & Adjustments, Repair |

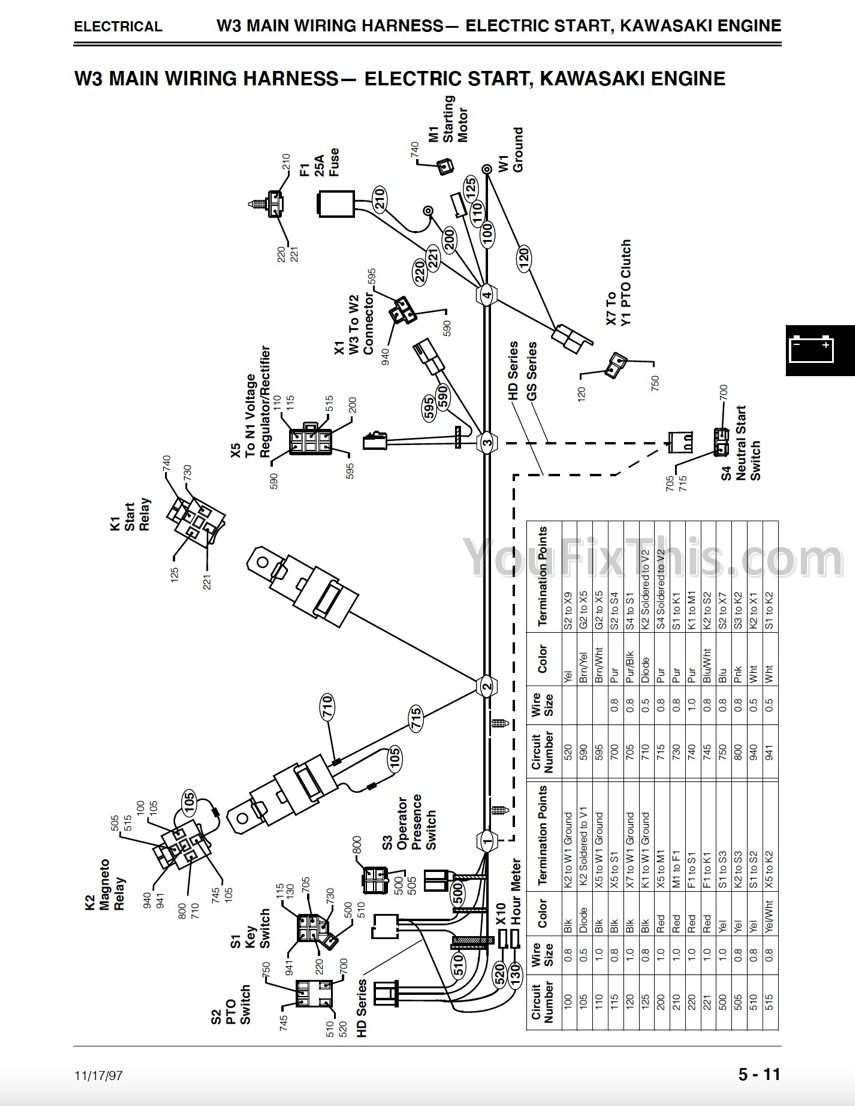

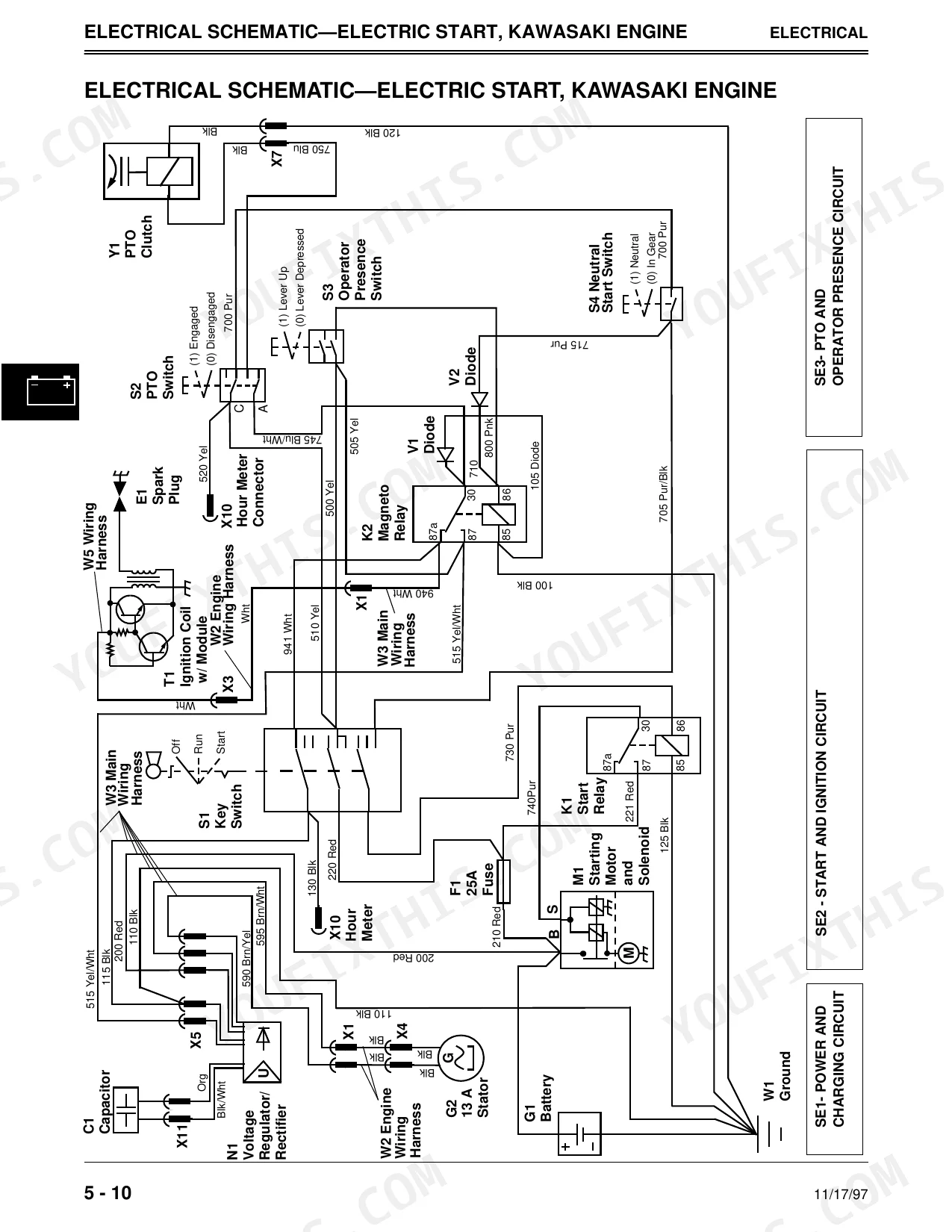

| Electrical | 175-238 | Specifications, Reading Schematics, Operation & Diagnosis, Theory of Operation, Wire Color, Conductor Sizes, Legend-Schematic & Harness, Component Location |
| Power Train-Gear | 239-276 | Specifications, Component Location, Theory of Operation, Troubleshooting, Diagnosis-Drive Train, Repair, Adjustments |

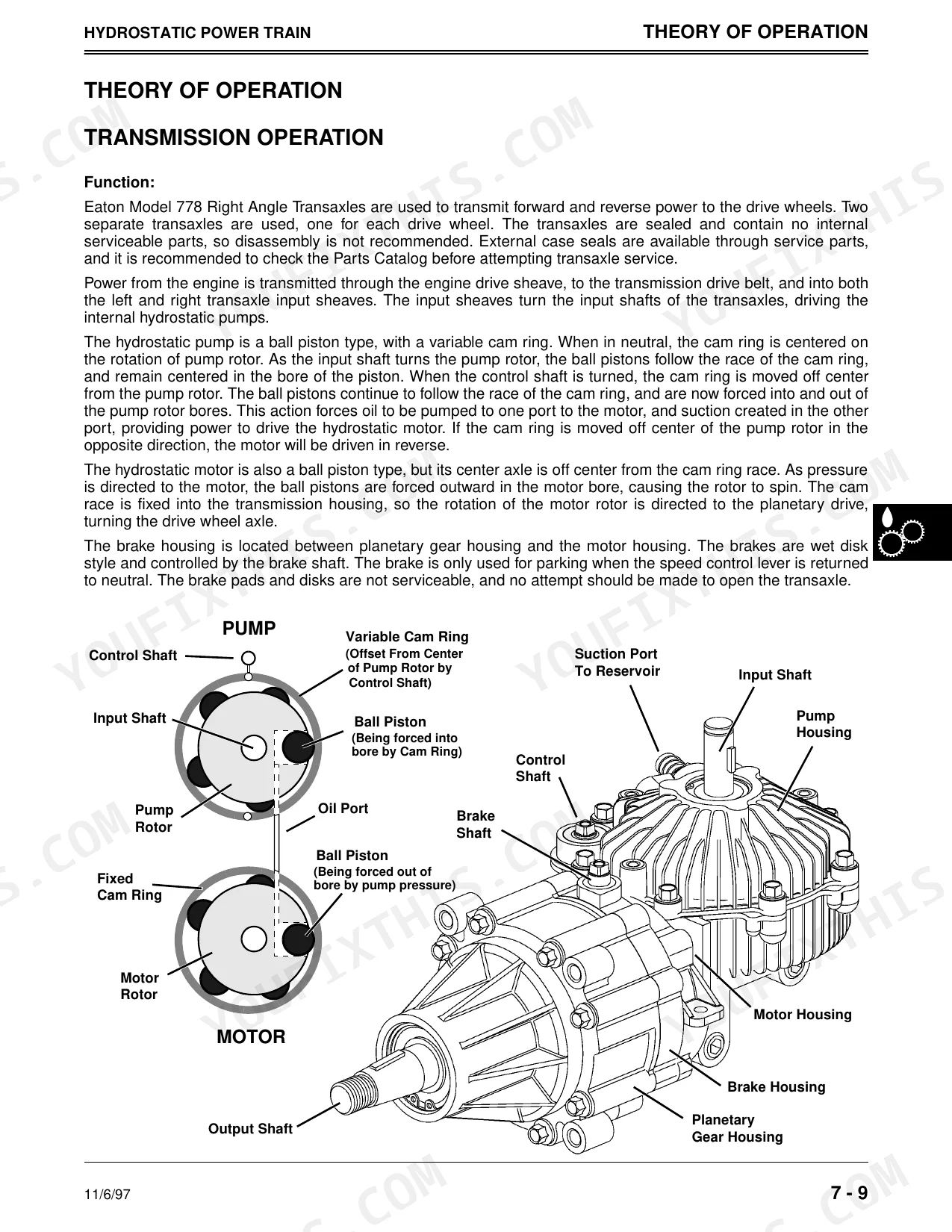

| Power Train-Hydrostatic | 277-296 | Specifications, Component Location, Troubleshooting, Theory of Operation, Diagnosis, Test & Adjustments, Repair |
| Attachments | 297-332 | Specifications, Component Location, Repair |
| Miscellaneous | 333-336 | Component Location-Operator Presence, Theory of Operation/Tests & Adjustments, Component Location-Fuel Tank |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery charge temperature | 16°C (60°F) | p. 5 |
| PTO Clutch Air Gap | 0.51 mm (0.020 in.) | p. 177 |
| PTO Clutch Cap Screw | 56 N•m (45 lb-ft.) | p. 177 |
| Battery positive terminal voltage | 11.8-13.2 volts | p. 212 |
| Minimum Stator Output Voltage (AC) | 26 VAC | p. 229 |
| Minimum PTO clutch current draw | 4 amps | p. 233 |
| Engine to Transmission Drive Belt Length | 1168.4 mm (46 in.) | p. 241 |
| Engine to Transmission Drive Belt Deflection | 13.1 mm (0.52 in.) | p. 241 |
| Maximum Distance Blade Tips To Balancer Track | 1.5 mm (0.059-in.) | p. 298 |
| Blade to Spindle Shaft Cap Screw Torque (GS/HD 48-in. deck) | 122 N•m (90 lb-ft) | p. 298 |
| Blade to Spindle Shaft Cap Screw Torque (36/48-in. deck) | 68 N•m (50 lb-ft) | p. 298 |
John Deere GS25-GS75, HD45-HD75 Common Problems This Manual Covers
John Deere commercial walk-behind mower cranks slowly or engine will not start in the morning
Inspect the charging system and battery connections. Measure the battery positive terminal voltage on page 212, verifying it reads between 11.8-13.2 volts. Test the stator output to ensure a minimum of 26 VAC. Adjust Kawasaki engine valve clearance to 0.15 mm (0.006 in.) if starting issues persist.
Manual Section: Electrical p. 212Excessive deck vibration when engaging blades or mower mows unevenly across normal turf
Inspect blades for damage and verify balance. Measure the maximum distance from blade tips to the balancer track on page 298, ensuring it stays within 1.5 mm (0.059-in.). Torque the 36-inch deck blade to spindle shaft cap screws to 122 N•m (90 lb-ft) to stop vibration.
Manual Section: Attachments p. 298Electric PTO clutch fails to disengage and blade stop time exceeds six seconds after shutoff
Adjust the PTO clutch air gap to exactly 0.51 mm (0.020 in.) as shown on page 177. Test the electrical circuit if the gap is correct. Verify the minimum PTO clutch current draw reaches 4 amps. Replace the clutch assembly if the resistance falls outside acceptable ranges.
Manual Section: Electrical p. 177Mower will not move forward or reverse when the traction control lever is fully engaged
Inspect the transmission drive belt for wear or severe stretching. Replace the belt if it exceeds the new effective length of 1168.4 mm (46 in.) specified on page 241. Torque the belt idler assembly cap screw and lock nut to 11-24 N•m (8-18 lb-ft) during reassembly.
Manual Section: Power Train-Gear p. 241Frequently Asked Questions
How do I reset the John Deere GS45 PTO clutch?
To break-in a new PTO clutch, start the engine and push the throttle lever to full throttle position. With no load on the mower, engage the PTO for 10 seconds, then disengage and wait 10 seconds. Repeat this procedure for 12 to 15 cycles to ensure proper break-in. p. 233
What are the torque specifications for the John Deere GS25 blade bolt?
The blade to spindle shaft cap screw for a 36 Inch Deck, such as on the GS25, should be torqued to 122 N•m (90 lb-ft). This ensures the blade is securely fastened to the spindle shaft. p. 298
What are the replacement specifications for the PTO Clutch?
The repair specification for the PTO Clutch is its air gap, which should be 0.51 mm (0.020 in.). This measurement is crucial for proper clutch operation. p. 177
What are the replacement specifications for Blades?
A key replacement specification for blades is the maximum distance from blade tips to the balancer track, which should be 1.5 mm (0.059-in.). If this difference is exceeded, a new blade should be installed. p. 298
What is the valve clearance adjustment for Kawasaki Engines?
For Kawasaki Engines, the specified valve clearance is 0.15 mm (0.006 in.). This adjustment should be performed when the engine is cold to ensure proper operation. p. 27
What do I get after purchasing this John Deere GS25 & variants manual?
Immediate download of the complete 344-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this John Deere GS25 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
