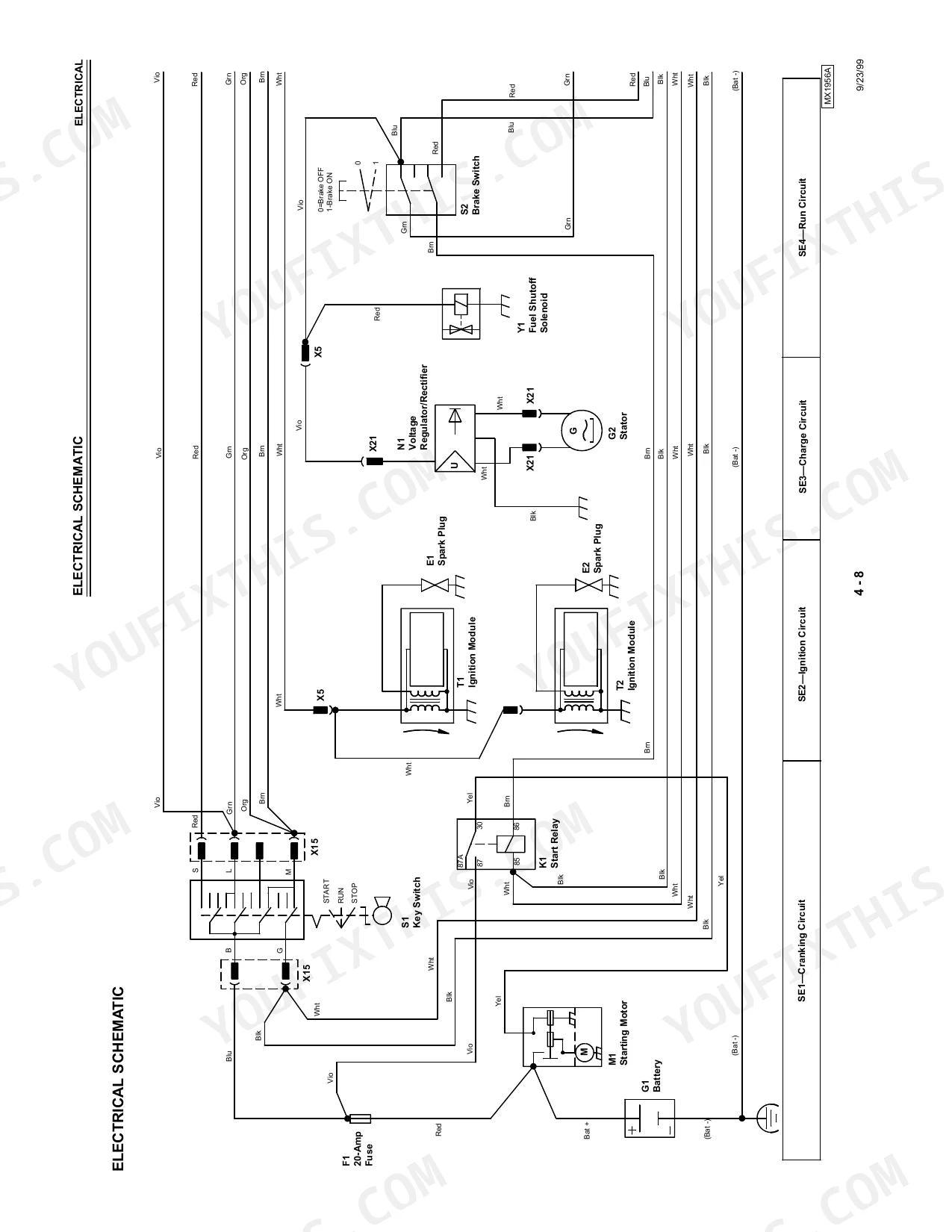

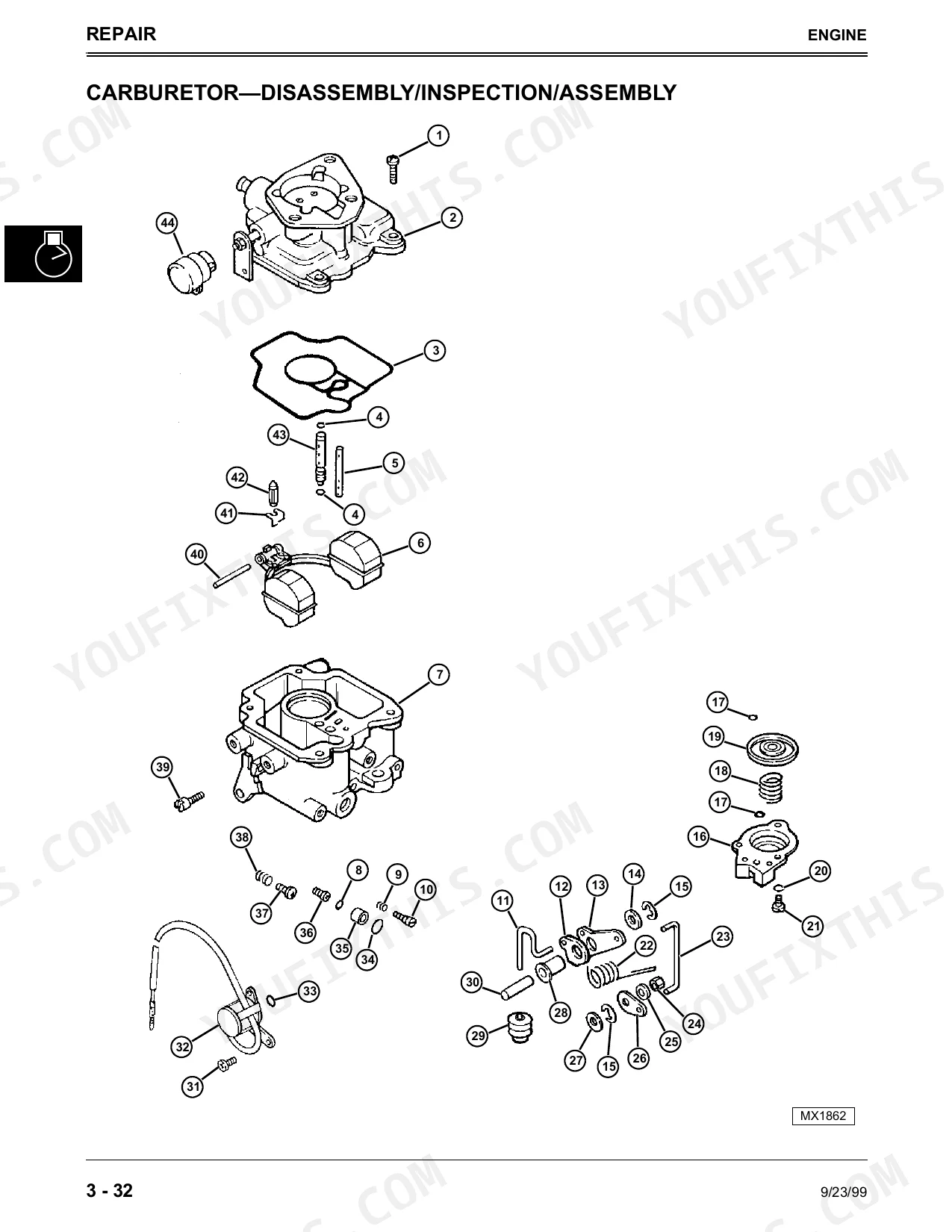

Need the factory specs for your John Deere M653? This 246-page Technical Manual (OEM #TM1778) covers Mid-Mount ZTrak service from hydrostatic transmission diagnostics to mower deck procedures. Inside: full wiring diagrams with circuit routing, hydraulic schematics tracing every pressure line in the hydrostatic drive, a complete troubleshooting section, and exploded views throughout for precise component identification. You also get torque tables for metric and inch fasteners, O-ring seal specs, and fluid capacity data covering the 4-cycle engine, hydraulic system, and chassis lubrication points. Set the park brake lever so the trunnion pin sits 6-8 mm (0.125-0.25 in.) from the collar bottom, and torque M12x1.5 O-ring face seal fittings to 21 N•m (15.5 lb-ft). Your ZTrak is down. Bookmarked by section and keyword-searchable: pull it up on your tablet, walk to the machine, and get back to work.
What's Inside This John Deere M653–M665 Manual
| System | Pages | Key Topics |
|---|---|---|

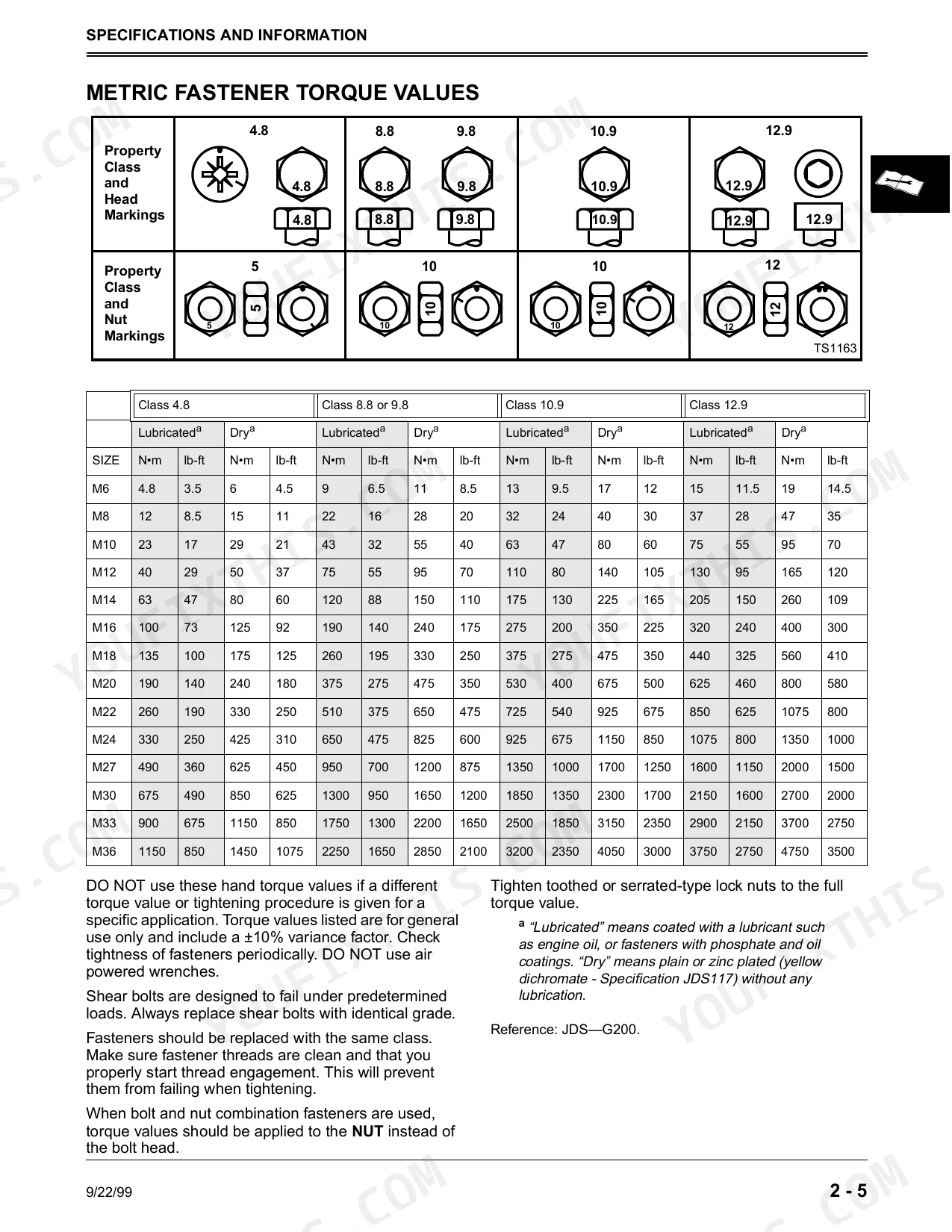

| Specifications | 9-18 | Metric Fastener Torque Values, Metric Fastener Torque Value, Grade 7, Inch Fastener Torque Values |
| Gasoline Specifications | 19 | 4-Cycle Engines, North America, Gasoline Storage |
| Oil and Lubricant Specifications | 20-22 | 4-Cycle Gasoline Engine Oil, North America, Hydrostatic Transmission and Hydraulic Oil, Anti-Corrosion Grease, Chassis and Mower Spindle Grease |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| O-Ring Face Seal Fittings (Metric Stud Ends) - M12x1.5 Steel/Gray Iron Torque | 21 N•m (15.5 lb-ft) | p. 16 |
| O-Ring Boss Fittings (Straight Fitting) - 7/16-20 UNF Torque | 12 N•m (9 lb-ft) | p. 18 |
| Control Linkage Assembly Condition | Inspect all parts for wear or damage. Replace parts as needed. | p. 173 |
| Control Linkage Adjustment | Adjust linkage if machine moves when control levers are in NEUTRAL position. | p. 164 |
| Park Brake Lever - Distance Between Trunnion Pin and Bottom of Collar | 6—8 mm (0.125—0.25 in.) | p. 199 |
| Park Brake Linkage Spring Distance (Unloaded) | 67—70 mm (2.625—2.75 in.) | p. 200 |
| Seat Safety Switch Function (Plunger Depressed) | Continuity across switch terminals | p. 142 |
| PTO Clutch Cap Screw Torque | 136 N•m (100 lb-ft) | p. 99 |
| Mower Deck Drive Belt Tension Spring Length | 30 cm (11.75 in.) | p. 206 |
| Hydraulic Pump Bypass Valve Torque | 13.5 N•m (119 lb-in.) | p. 149 |
| M653 | ||

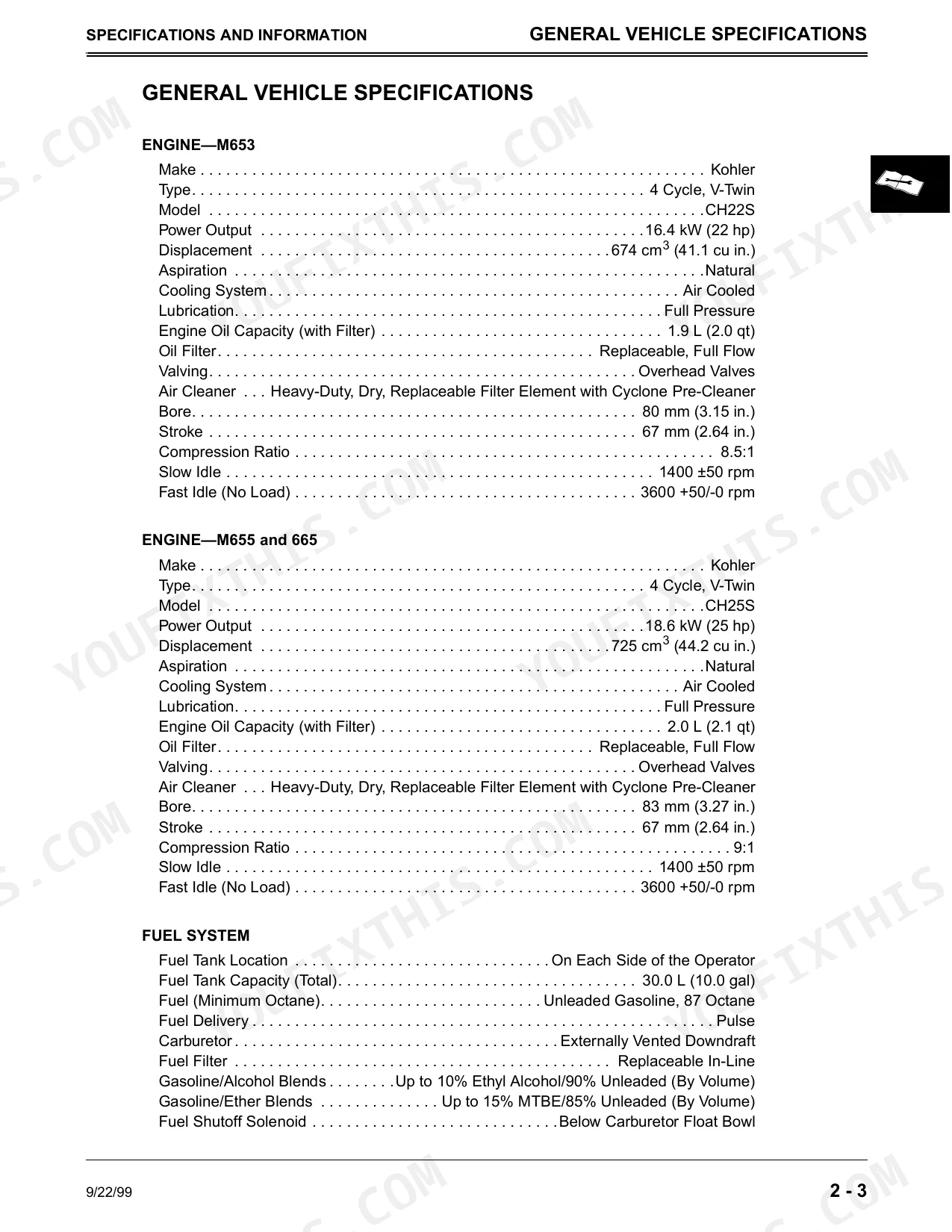

| Engine Oil Capacity (with Filter) | 1.9 L (2.0 qt) | p. 11 |
| M655, M665 | ||
| Engine Oil Capacity (with Filter) | 2.0 L (2.1 qt) | p. 11 |
John Deere M653–M665 Common Problems This Manual Covers
John Deere M653 ZTrak creeps forward or backward with control levers in neutral
Check the control linkage adjustment using the procedure on page 164. Place both motion control levers in the neutral lock position, start the engine, and verify the machine holds still. If creep persists, inspect all linkage parts for wear or damage per page 173 and replace anything bent or worn.
Manual Section: Hydrostatic Power Train Troubleshooting ChartHydraulic system fails to build pressure and machine won't move when drive controls are engaged
Check hydraulic oil level and top up to 7.6 L (2.0 gal) total capacity per specs on page 12. Verify the bypass valve is fully closed and seated. If oil level is correct and the bypass valve is closed but pressure still won't build, check the hydraulic schematic and pressure-test each circuit.
Manual Section: Hydrostatic Power Train Troubleshooting ChartMower deck won't engage or shuts off mid-run with PTO switch activated
Test the seat safety switch: depress the plunger and check for continuity across the terminals per page 142. If the switch is good, torque the PTO clutch cap screw to 136 N·m (100 lb-ft). Inspect the deck drive belt tension spring; an unloaded spring should measure 30 cm (11.75 in.).
Manual Section: Mower Deck Troubleshooting ChartPark brake won't hold machine on slopes and rolls when lever is engaged
Measure brake lining thickness; minimum is 1.6 mm (1/16 in.) before replacement. Adjust the park brake lever so the distance from the trunnion pin to the bottom of the collar is 6-8 mm (0.125-0.25 in.) per page 199. Verify the linkage spring unloaded length of 67-70 mm (2.625-2.75 in.) per page 200.

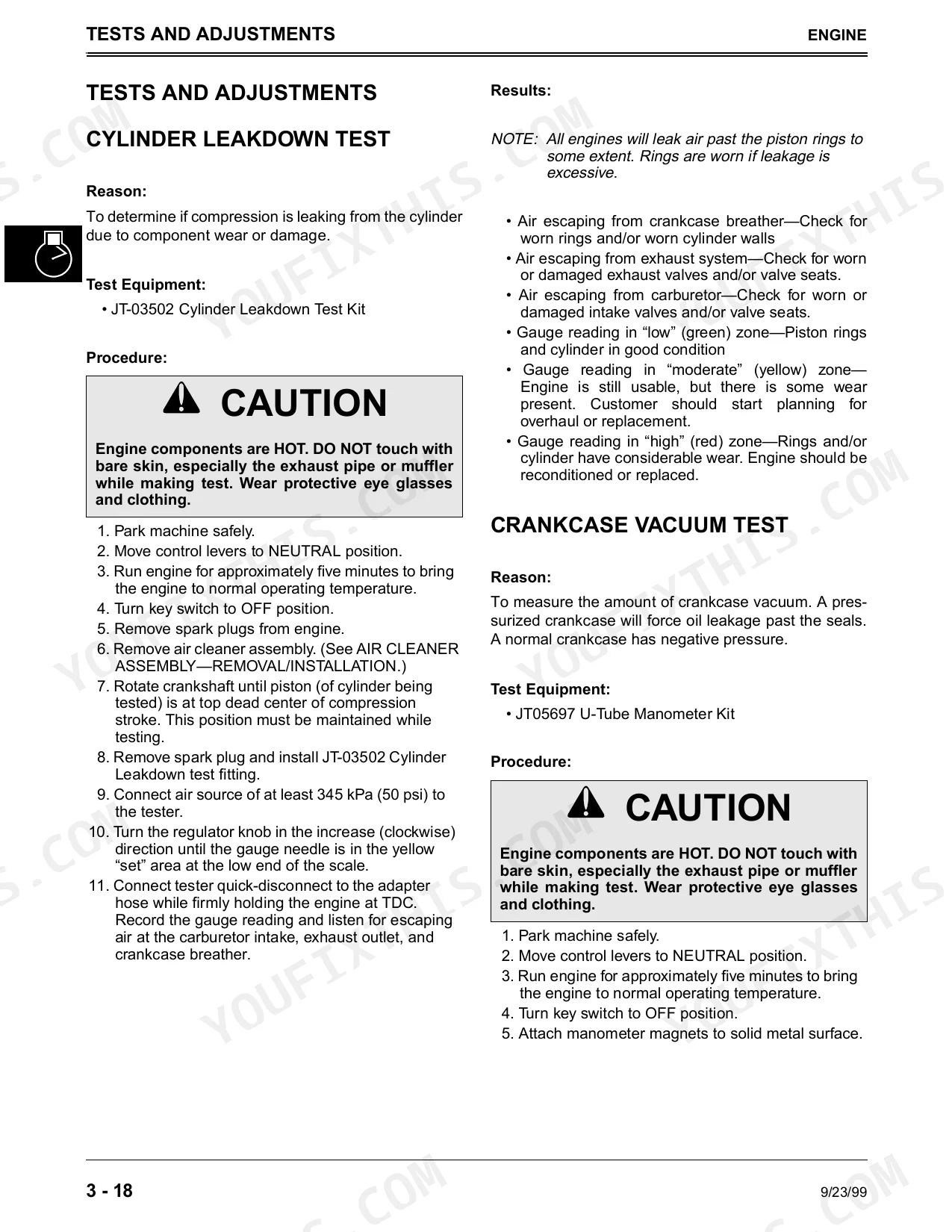

Manual Section: Brakes System Troubleshooting ChartEngine cranks slowly or fails to start after sitting overnight in cold weather
Check battery voltage with a multimeter; minimum is 12.4 volts to crank reliably per page 99. Inspect battery terminals and cables for corrosion. Verify the correct engine oil viscosity for cold-weather operation in the oil and lubricant specs on page 20. Also confirm spark plug gap is 1.02 mm (0.040 in.) per page 28.

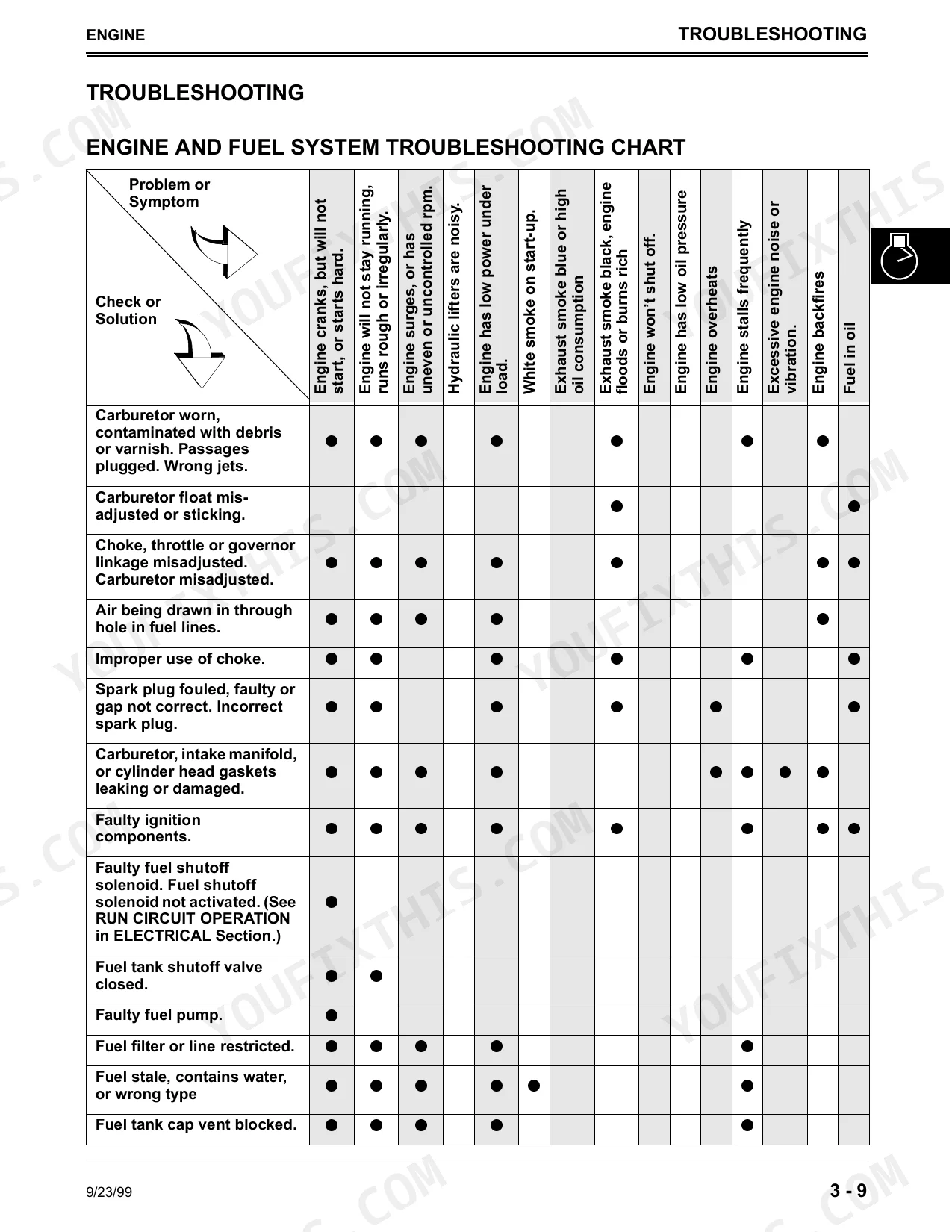

Manual Section: Engine and Fuel System Troubleshooting ChartDeck leaves an uneven cut with visible streaks and scalping on flat terrain
Level the deck and adjust until front-to-back blade height difference is within 3-6 mm (0.125-0.250 in.) per page 206. Check all blade tips for wear and replace any that are bent or nicked.
Frequently Asked Questions
What are the torque specs for John Deere M653 engine bolts?
The manual provides various torque specifications for engine components. For instance, the Engine Mounting Cap Screw Torque is 32 N•m (24 lb-ft), the Flywheel Retaining Screw Torque is 66.4 N•m (49 lb-ft), and the Rocker Arm Cover Cap Screw Torque is 8 N•m (70 lb-in.).
What are the replacement specifications for Hydraulic line?
The manual provides torque specifications for hydraulic line fittings. For example, a 1/2 inch tube O.D. (Dash Size -8) face seal fitting with inch stud ends requires a Tube Nut/Swivel Nut Torque of 50 N•m (37 lb-ft). The manual does not specify material or pressure ratings for the hydraulic lines themselves.
How do you fix john Deere M653 ZTrak creeps forward or backward with control levers in neutral?
Check the control linkage adjustment using the procedure on page 164. Place both motion control levers in the neutral lock position, start the engine, and verify the machine holds still. If creep persists, inspect all linkage parts for wear or damage per page 173 and replace anything bent or worn.
How do you fix hydraulic system fails to build pressure and machine won't move when drive controls are engaged?
Check hydraulic oil level and top up to 7.6 L (2.0 gal) total capacity per specs on page 12. Verify the bypass valve is fully closed and seated. If oil level is correct and the bypass valve is closed but pressure still won't build, check the hydraulic schematic and pressure-test each circuit.
What format is this John Deere M653 manual in?
Immediate download of the complete 246-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this John Deere M653 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

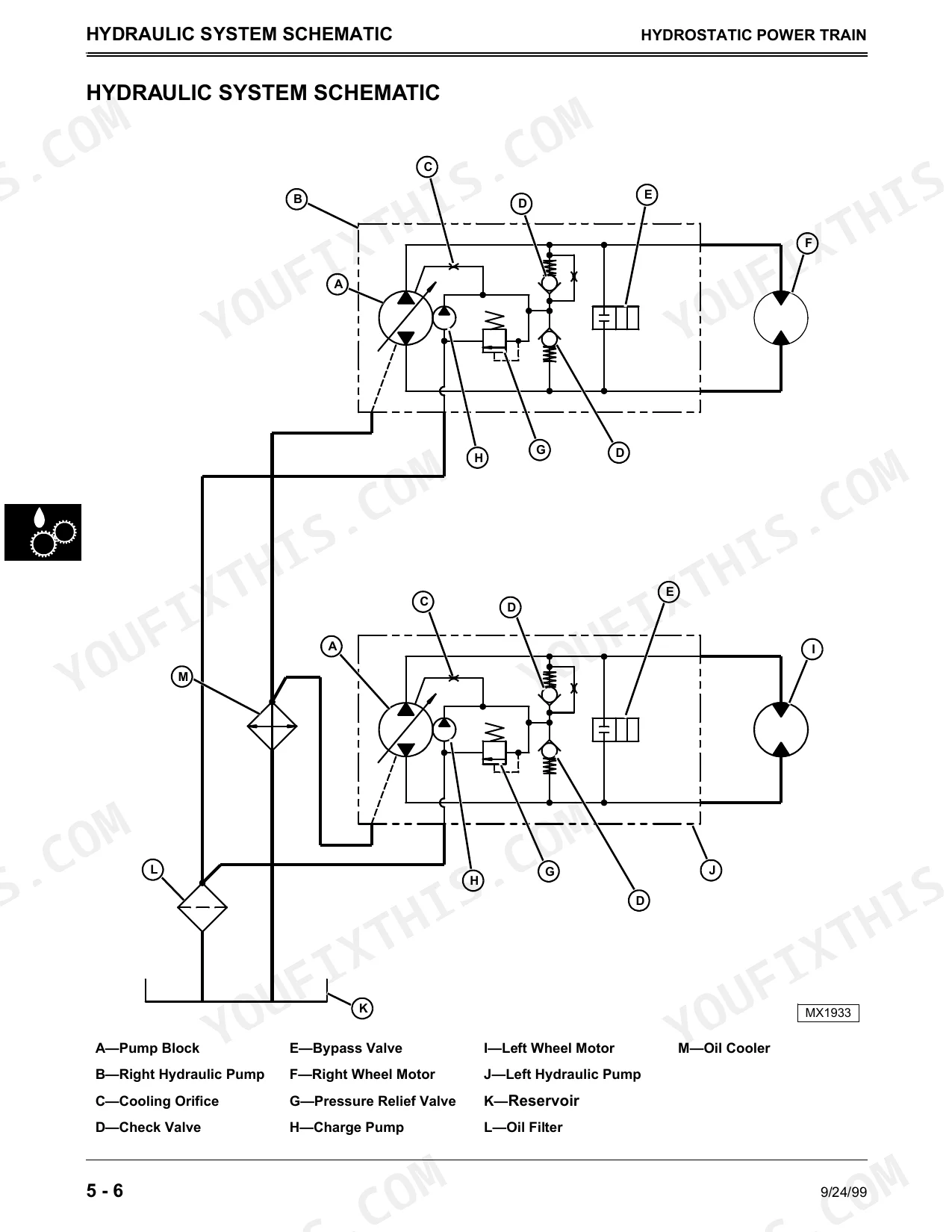

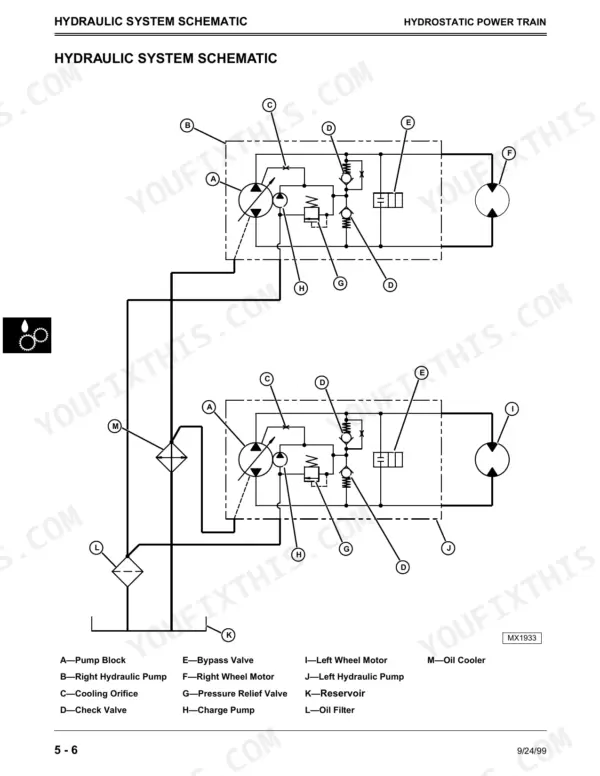

Can I find hydraulic circuit diagrams in this John Deere M653?
Yes. The manual includes a hydraulic system diagram covering the main circuits.
