All 314 pages of this John Deere STX30, STX38, STX46 Technical Manual PDF (OEM ID TM1561) point at one job: putting your lawn tractor back to factory condition, gear or hydrostatic drive alike. Inside: full wiring harness diagrams and schematics with circuit-by-circuit diagnosis, a dedicated troubleshooting section for engine, electrical, and power train faults, and fastener torque tables in metric and inch sizes. You also get step-by-step repair procedures for the engine, brakes, steering gear, mower decks, and both transaxle types. Gap the spark plug at 1.0 mm (0.040 in.), set fast idle to 3350 ±50 rpm, and check the gear-drive traction belt against its 2660 ±8 mm effective length before you blame the transaxle. No more chasing electrical gremlins with a test light and a hunch. Bookmarked and keyword-searchable; pull it up on your phone right at the tractor.
What's Inside This John Deere STX30, STX38, STX46 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | Table of Contents, Specifications, Theory of Operation, Troubleshooting Diagram, Diagnostics, Tests & Adjustments, Repair |
| Safety | 4-8 | - |

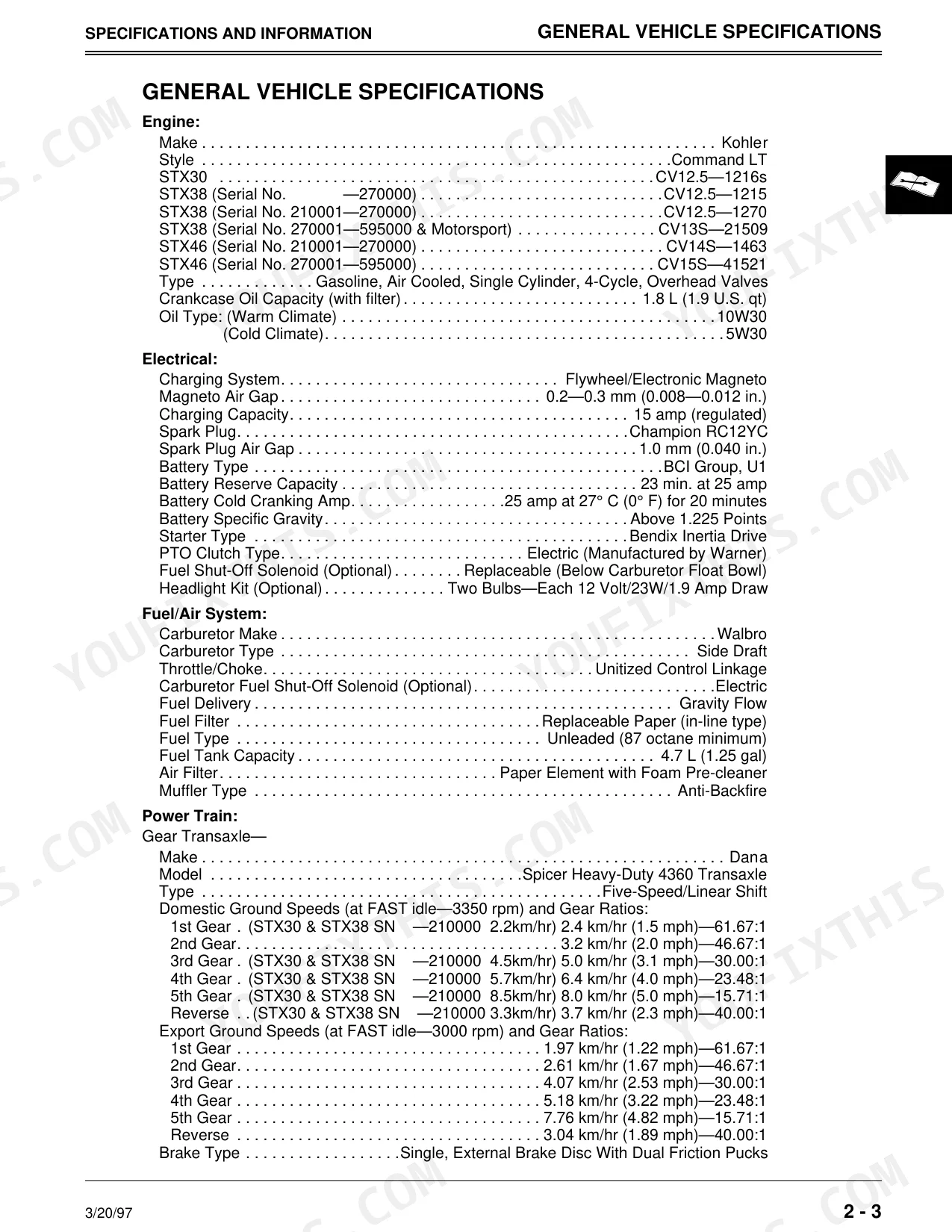

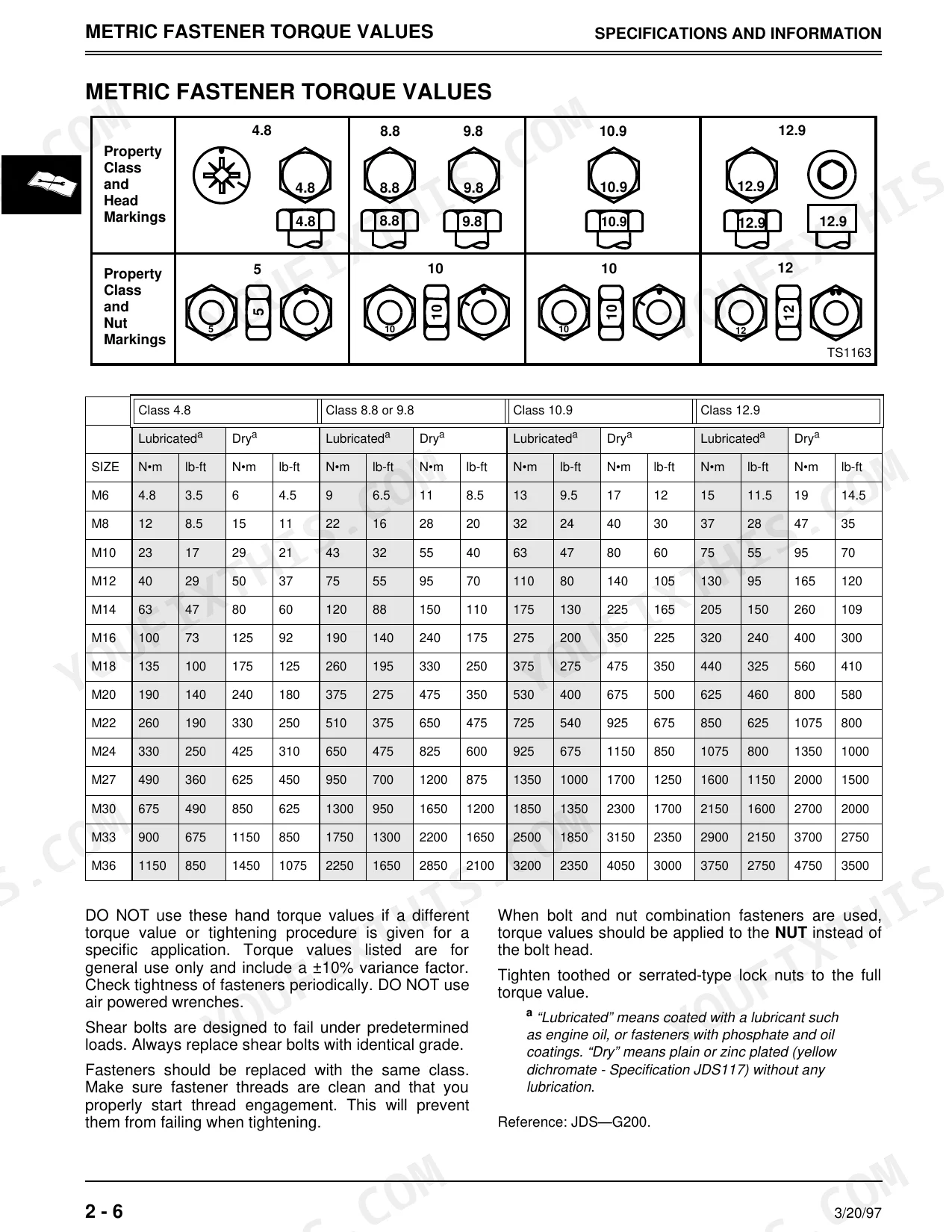

| Specifications & Information | 9-32 | General Vehicle Specifications, Metric Fastener Torque Values, Inch Fastener Torque Values, O-Ring Seal Service Recommendations, Gasoline Specifications, 4-Cycle Gasoline Engine Oil, Hydrostatic Transmission Oil, Serial Number Locations |

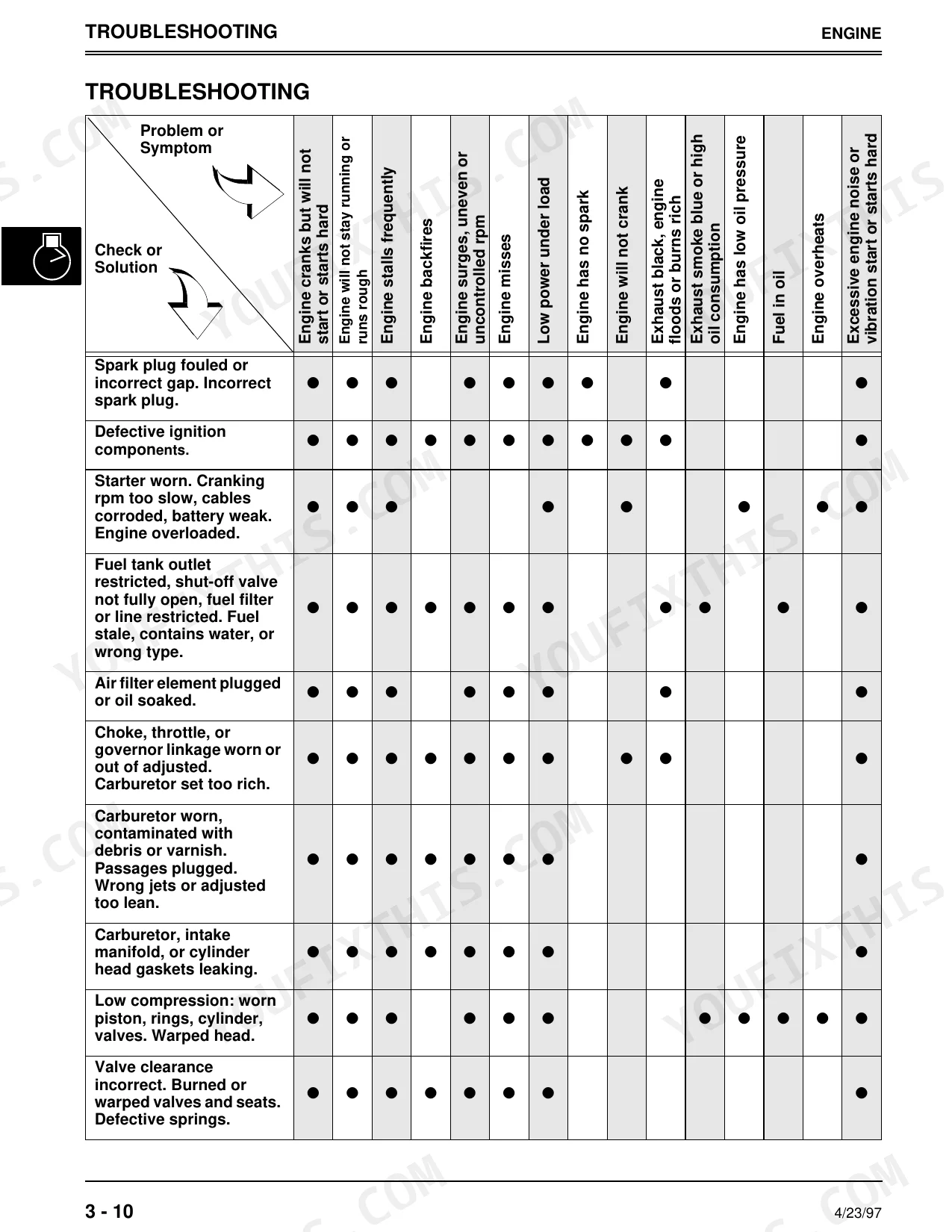

| Engine | 33-84 | Engine Specifications, Troubleshooting, Engine Diagnosis, Throttle Cable Adjustment, Fuel and Air System Repair, Engine Repair, Valve Guides, Cylinder Block |

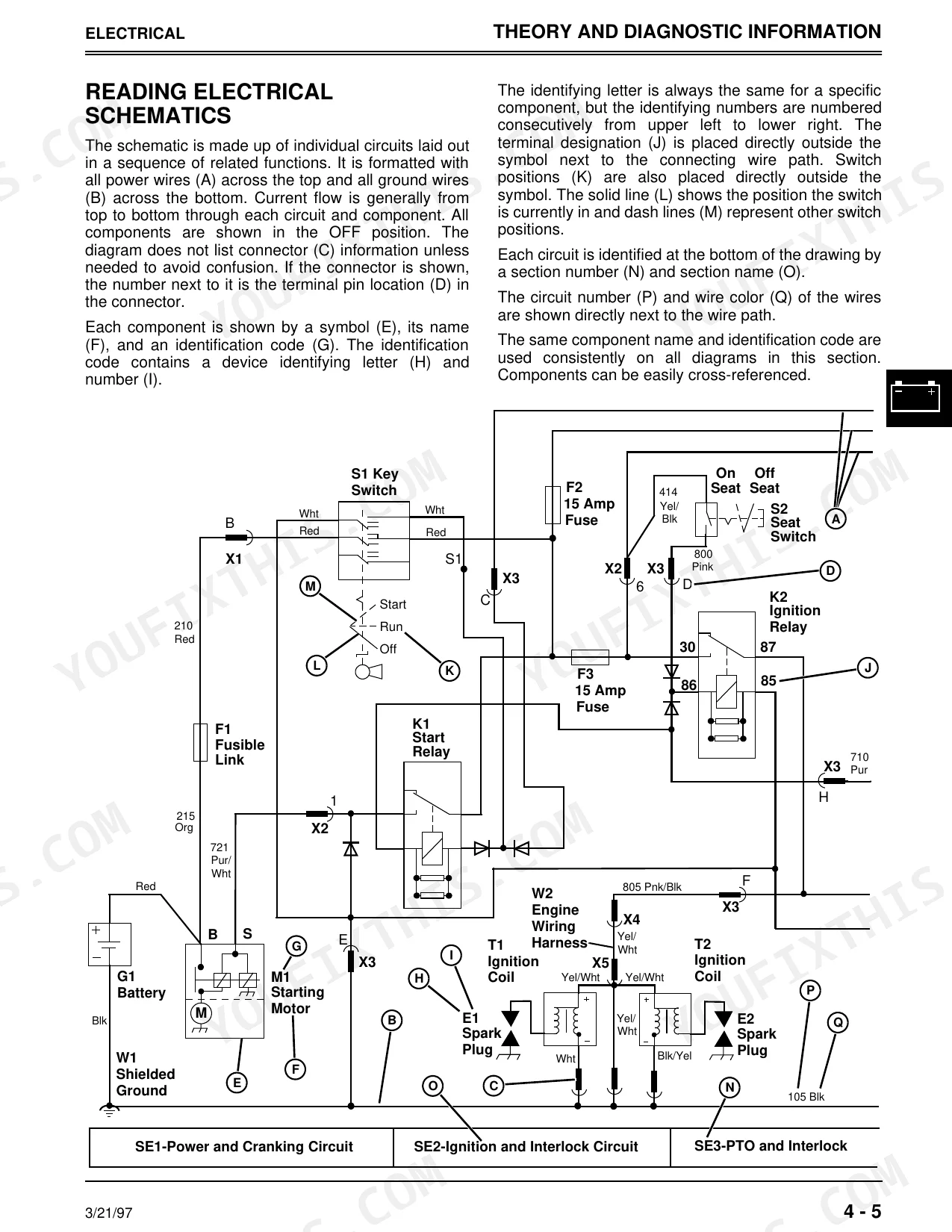

| Electrical | 85-164 | Electrical Specifications, Theory and Diagnostic Information, Component Location, Troubleshooting, Wiring Harness Diagrams, Wiring Schematics, Circuit Operation and Diagnosis |

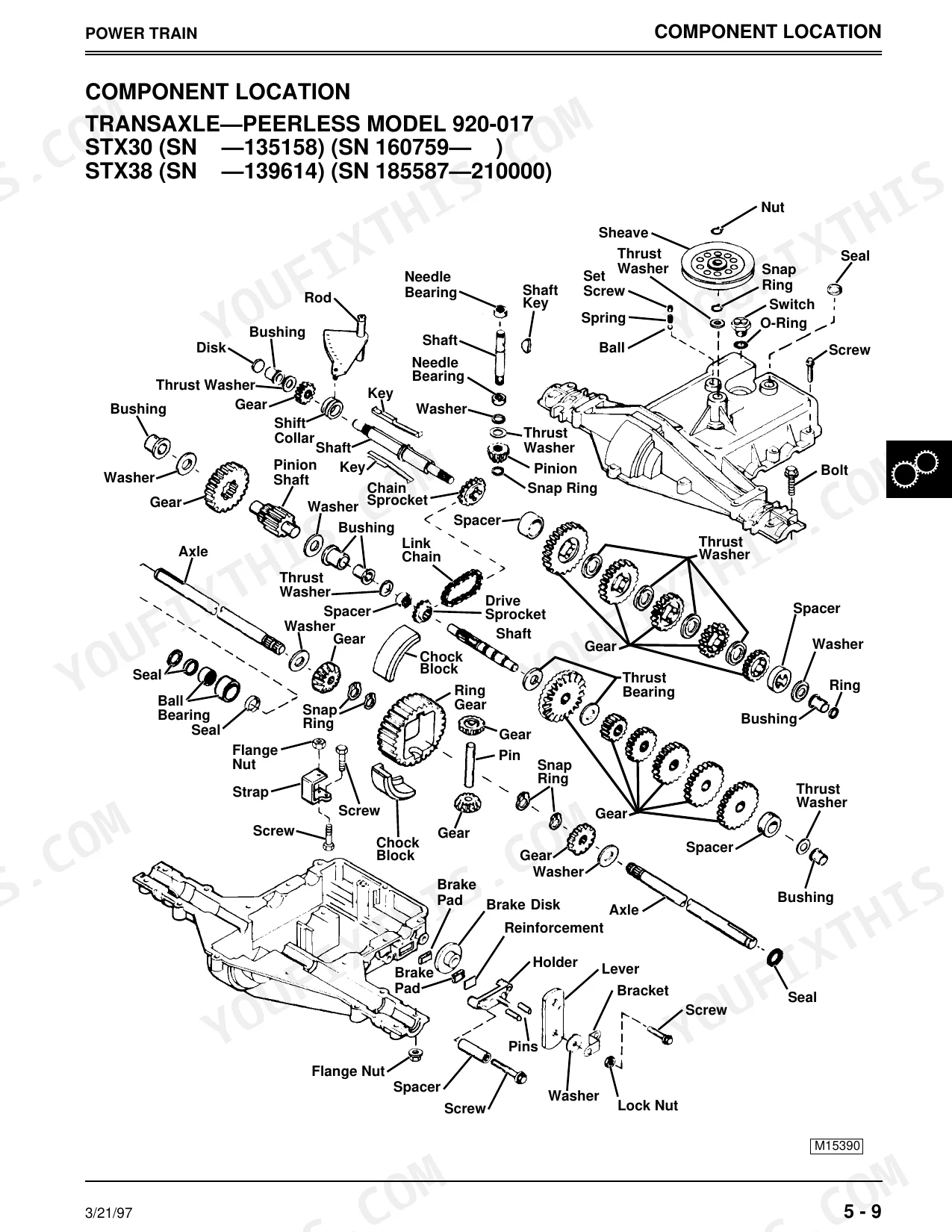

| Gear Power Train | 165-232 | Power Train Specifications, Component Location, Theory of Operation, Troubleshooting, Diagnosis, Tests and Adjustments, Repair, Brakes |
| Hydrostatic Power Train | 233-280 | Hydrostatic Power Train Specifications, Component Location, Theory of Operation, Troubleshooting, Diagnosis, Tests and Adjustments, Repair, Traction Drive Belt |
| Steering | 281-286 | Steering Specifications, Steering Backlash, Steering Gear Assembly, Pedestal Bushings |

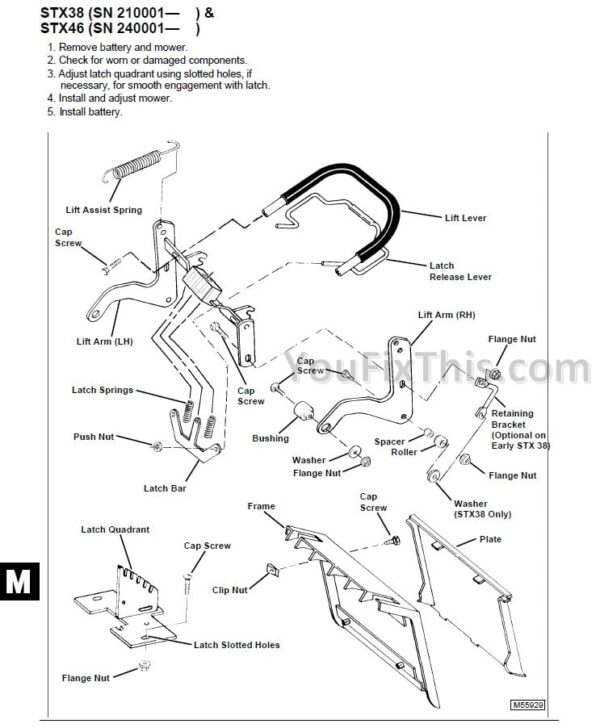

| Miscellaneous | 287-308 | Wheels, Front Axle, Mower Decks, Lift Linkage, Spindles, Seat Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Traction Drive Belt (Gear) - Actual effective length | 2660±8 mm (104.7±0.3 in.) | p. 12 |
| Traction Drive Belt (Hydro) - Actual effective length | 2485±8 mm (97.8±0.3 in.) | p. 12 |
| Spark Plug Air Gap | 1.0 mm (0.040 in.) | p. 11 |
| Slow Idle Speed—Domestic and Export | 1650 ±75 rpm | p. 34 |
| Fast Idle Speed—Domestic | 3350 ±50 rpm | p. 34 |
| Slow idle speed | 1650 ± 75 rpm | p. 44 |
| Domestic Fast idle speed | 3350 ± 50 rpm | p. 44 |
| Spark plug gap | 1.0 mm (0.04 in.) | p. 48 |
| Air Filter Assembly Nuts | 10 N•m (88 lb-in.) | p. 61 |
| Starter solenoid ground terminal voltage | greater than 0—less than 0.2 volts | p. 112 |
| PTO clutch air gap (Warner) | 0.38—0.64 mm (0.015—0.025 in.) | p. 138 |
| PTO clutch air gap (Ogura) | 0.30—0.51 mm (0.012—0.020 in.) | p. 138 |
John Deere STX30, STX38, STX46 Common Problems This Manual Covers
John Deere STX38 PTO clutch won't engage, blades not turning when switch is pulled
Check the clutch wiring connector for corrosion or melted pins before condemning the clutch. Measure clutch air gap against the Warner spec of 0.38 to 0.64 mm (0.015 to 0.025 in.) on page 138; Ogura units run 0.30 to 0.51 mm. Verify circuit resistance stays under 0.1 ohms and retorque loose engine mount bolts to restore the ground path.
Manual Section: Electrical PTO Circuit Diagnosis p. 138Engine won't start, cranks slowly, or mower deck shuts off unexpectedly while cutting
Verify battery voltage reads 11.8 to 13.2 volts before touching the starter. Check the engine mount bolts; loose bolts break the ground path to the battery on these Briggs and Kohler engines. Test the cranking circuit starting on page 112, and confirm starter draw stays below the 180 amps at 225 rpm maximum.
Manual Section: Electrical Cranking Circuit Diagnosis p. 112Engine keeps running and won't shut off when throttle is pulled back to idle
Adjust the slow idle stop screw to 1650 ±75 rpm using the service procedure on page 50. Inspect the engine ground cable at both ends; a loose or corroded ground breaks the shutdown circuit. Test the key switch and fuel shut-off circuit operation before blaming the carburetor.
Manual Section: Engine p. 50Carburetor overflows fuel, spark plug soaked with gas and engine floods on startup
Remove the float bowl and inspect the float needle seat for dirt; a stuck float lets fuel flow continuously into the intake. Clean the seat and bowl, install a fresh gasket, and torque the float bowl cap screw to 6 N•m (55 lb-in.) per page 62. Replace the fuel filter while the line is open.
Manual Section: Engine p. 62Traction drive belt jumps off sheaves or slips under load on slopes
Inspect the belt for glazing and check sheave alignment before replacing anything. Measure effective length; gear-drive units spec 2660 ±8 mm (104.7 ±0.3 in.) on page 217, with 2710 mm (106.7 in.) as the maximum. A belt stretched past that limit won't hold tension, so replace it and readjust the clutch and brake linkage.
Manual Section: Gear Power Train p. 217Frequently Asked Questions
What are the torque specifications for the blade cap screws on the mower deck?
The blade cap screws for the mower deck should be tightened to a torque of 46—60 N•m (34—44 lb-ft). p. 304

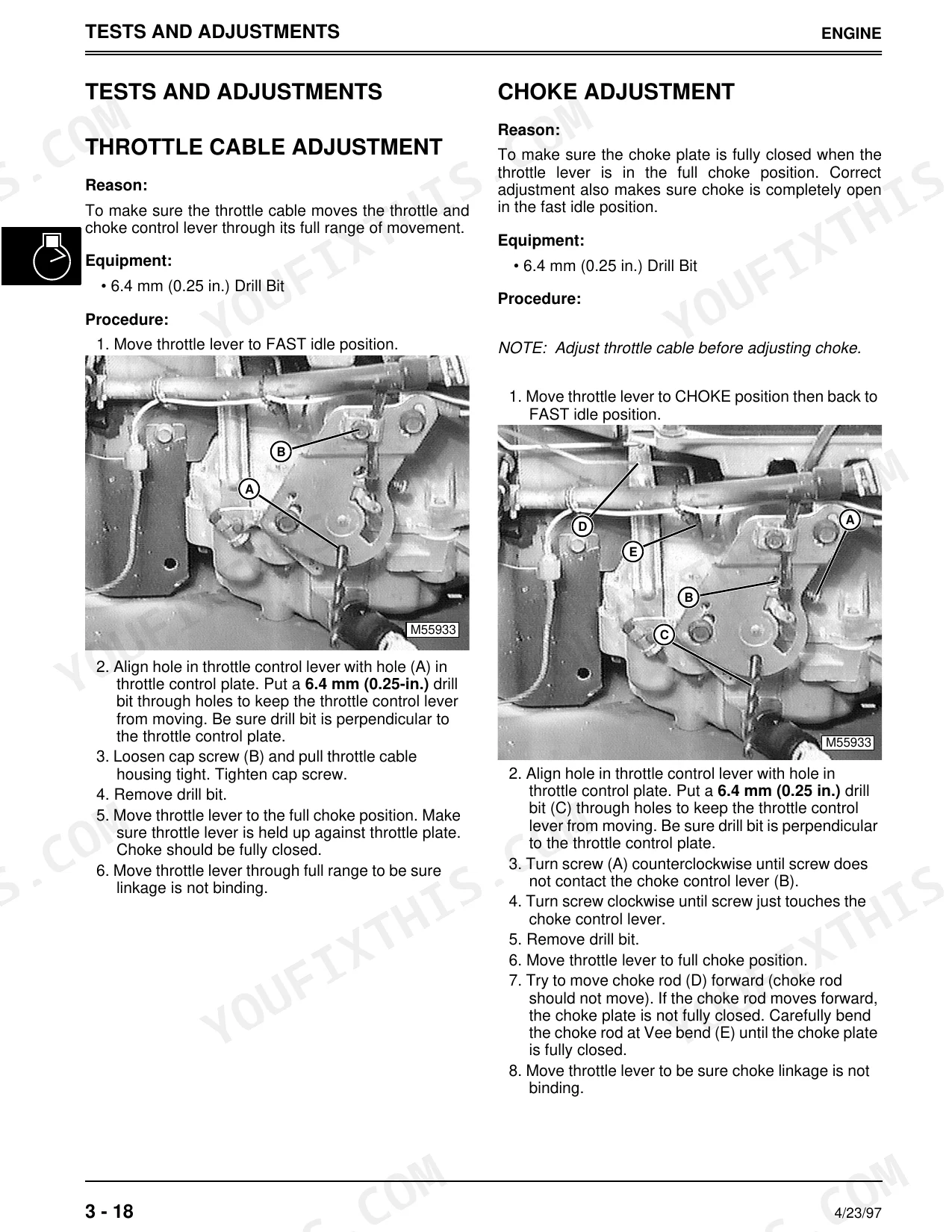

How do I adjust the throttle cable on the STX30, STX38, and STX46 lawn tractors?
To adjust the throttle cable, move the throttle lever to the FAST idle position, align the hole in the throttle control lever with the hole in the throttle control plate, and insert a 6.4 mm (0.25-in.) drill bit to hold it in place. Then, loosen the cap screw (B), pull the throttle cable housing tight, and tighten the cap screw. p. 50
What is the crankcase oil capacity for the Kohler engine on these tractors?
The crankcase oil capacity for the Kohler engine, including the filter, is 1.8 L (1.9 U.S. qt). p. 11
What is the correct spark plug gap for the engine?
The spark plug gap for the engine is 1.0 mm (0.040 in.). p. 11
What is the torque specification for the cylinder head cap screws?
The cylinder head cap screws should be torqued to 41 N•m (30 lb-ft). p. 40
How quickly can I access this John Deere STX30, STX38, STX46 manual after?
A 314-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this John Deere STX30, STX38, STX46 Technical Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
