Part of the Kubota Repair Manuals.
This Kubota Service Manual covers the M7580, M8580, and M9580 tractors in one 561-page volume, built around the V4302 and V4702 engines.It runs from tractor mechanism and identification through engine, clutch, transmission, rear axle, brakes, front axle, steering, hydraulics, electrical, and the operator platform. Each section gives troubleshooting, servicing specifications, and tightening torques, along with the fluid capacities, valve clearance, torque values, and free-play settings you need. Model differences, such as the larger fuel tank and PTO clutch on the M9580, are called out where they matter.It downloads as a text-searchable PDF, so you can move straight to the engine, transmission, hydraulic, or electrical section on a phone, tablet, or shop computer and print only the pages a job requires.
What's Inside This Kubota M7580, M8580, M9580 Manual
| System | Pages | Key Topics |
|---|---|---|
| Mechanism | 10-215 | Others (Tires, Types of Tire, Tread Adjustment, Front Wheel, Rear Wheel, Clamp Type Power Adjusted Wheel, Wheel Hub, Tire Pressure, Ballast, Tire Liquid Injection, Specifications of Implments Limitations, Hydraulic Control Unit Use Reference Chart) |
| General | 216-249 | Tractor Identification, Lubricants and Fluid, Tightening Torques, Maintenance Check List |

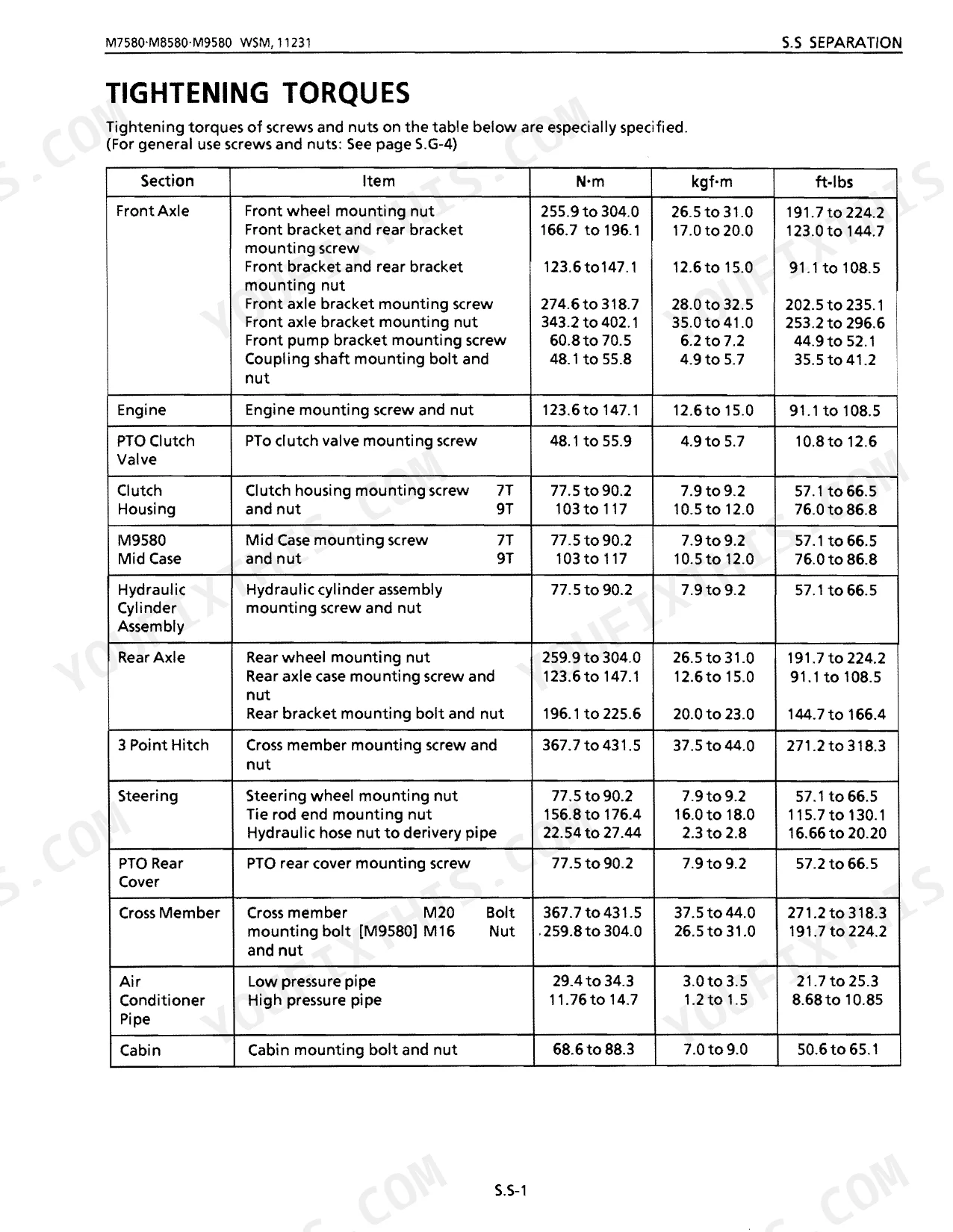

| Seperation | 250-273 | Tightening Torques (Front Axle, Engine, PTO Clutch Valve, Clutch Housing, M9580 Mid Case, Hydraulic Cylinder Assembly, Rear Axle, Point Hitch, PTO Rear Cover, Cross Member, Air Conditioner Pipe, Cabin) |

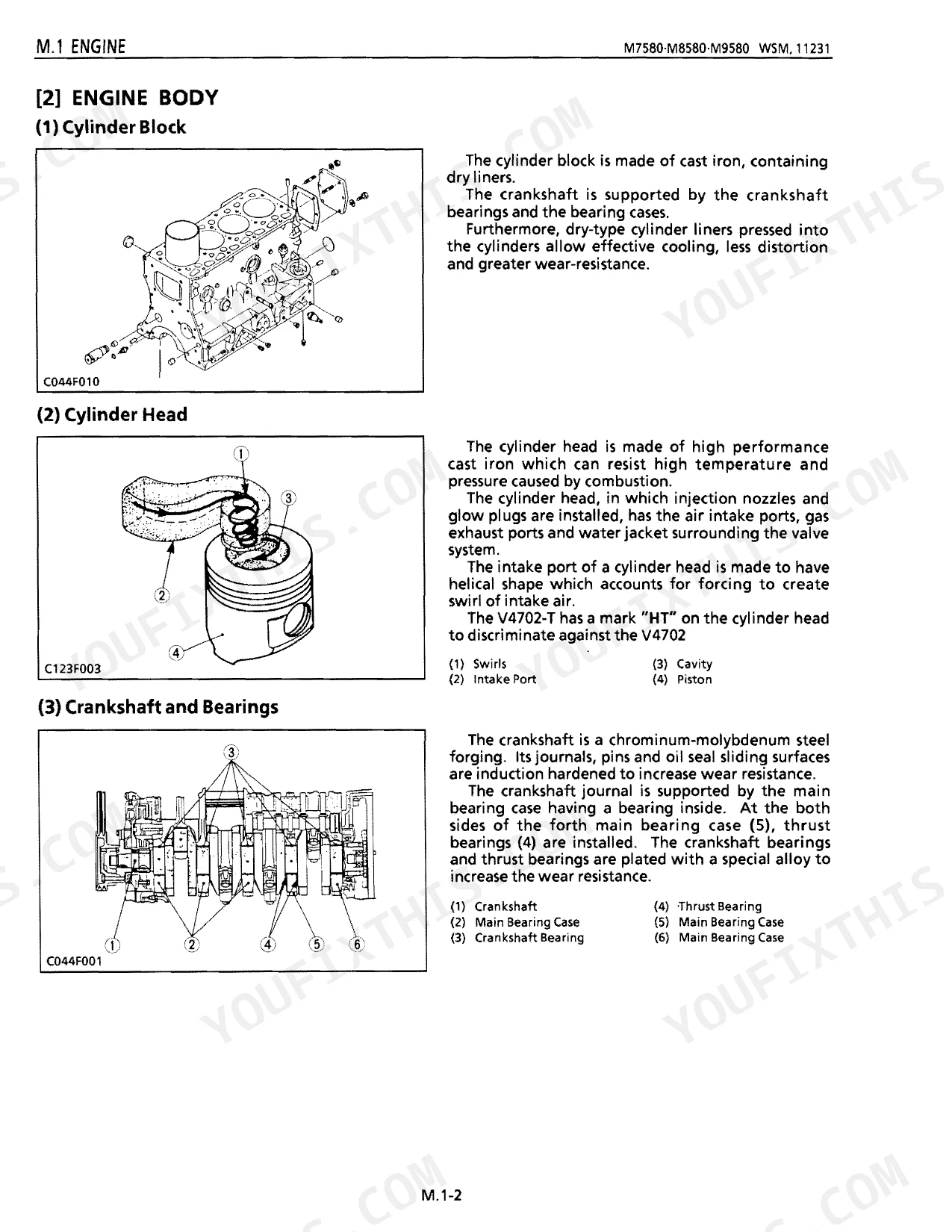

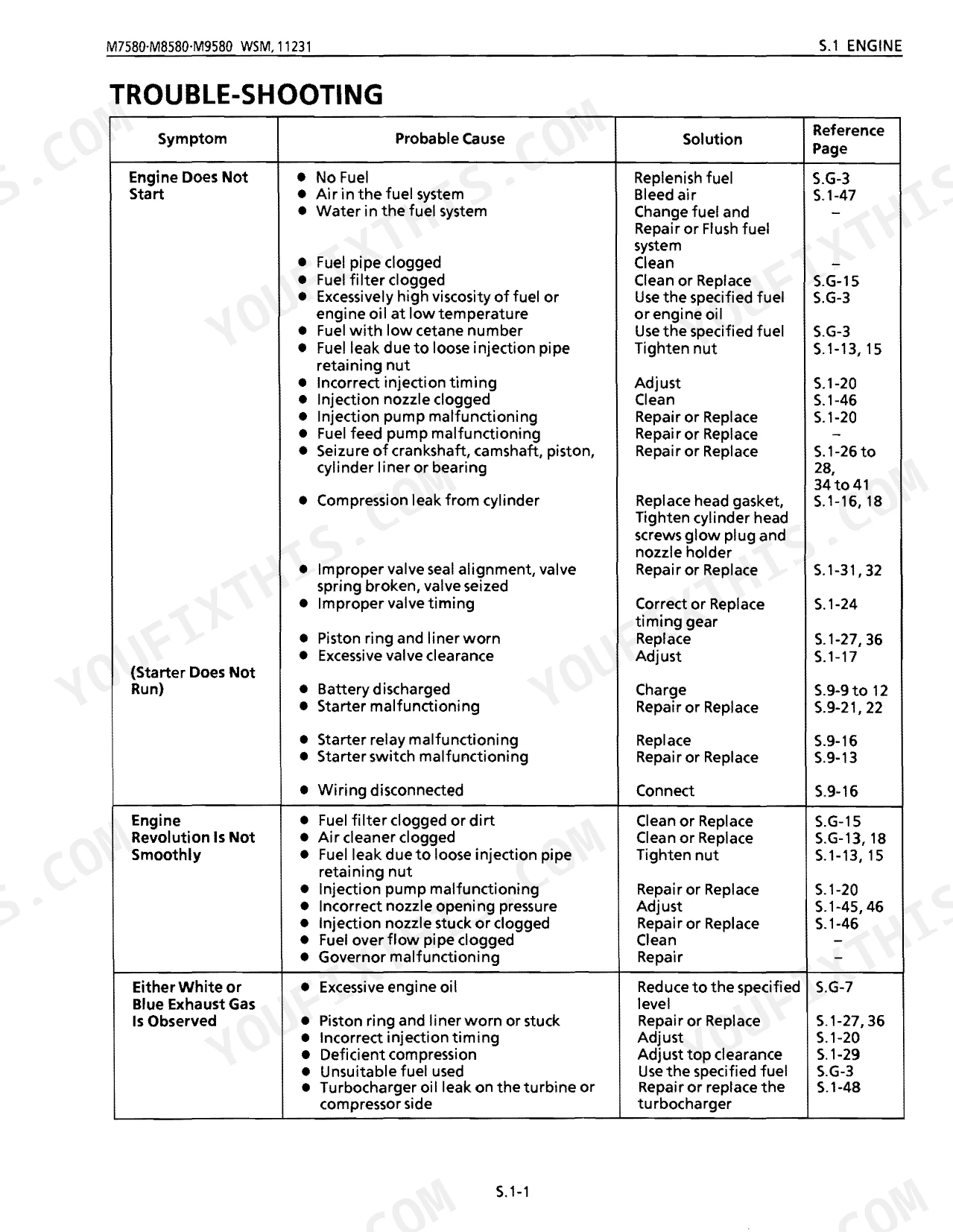

| Sect 1 Engine | 274-327 | Trouble-Shooting, Servicing Specifications (External Components, Engine Body), Valve Timing, Camshaft, Piston-Piston Ring, Connecting Rod, Cylinder Liner (Lubricating System) |
| Sect 2 Clutch | 328-343 | Trouble-Shooting (Travelling Clutch, PTO Clutch, Bi-Speed Turn, Servicing Specifications), Servicing Specifications (Travelling Clutch) |
| Sect 3 Transmission | 344-409 | Trouble-Shooting (Synchromesh Shuttle Transmission, Ic Shuttle Transmission, Dual Speed Transmission), Dual Speed Transmission (Bi-Speed Turn, Servicing Specifications) |
| Sect 4 Rear Axle | 410-417 | Trouble-Shooting, Servicing Specifications (Differential Gear, Rear Axle), Tightening Torques (Differential Gear, Rear Axle Case), Disassembling and Assembling (Differential Gear) |
| Sect 5 Brakes | 418-429 | Trouble-Shooting (Travelling Brake, Parking Brake), Servicing Specifications (Travelling Brake, Tightening Torques (Travelling Brake, Checking |
| Sect 6 Front Axle | 430-449 | Separating Front Axle, Tie-Rod, Bevel Gear Case, Front Wheel Case Cover, Front Wheel Case, Bevel Gear, Planetary Gear, Front Axle |
| Sect 7 Steering | 450-457 | Power Steering Controller, Separating Flow Priority Valve, Removing Gerotor, Grand Seal, Needle Bearing, Sleeve and Spool, Flow Priority Valve, Safety Valve [Except M7580] |

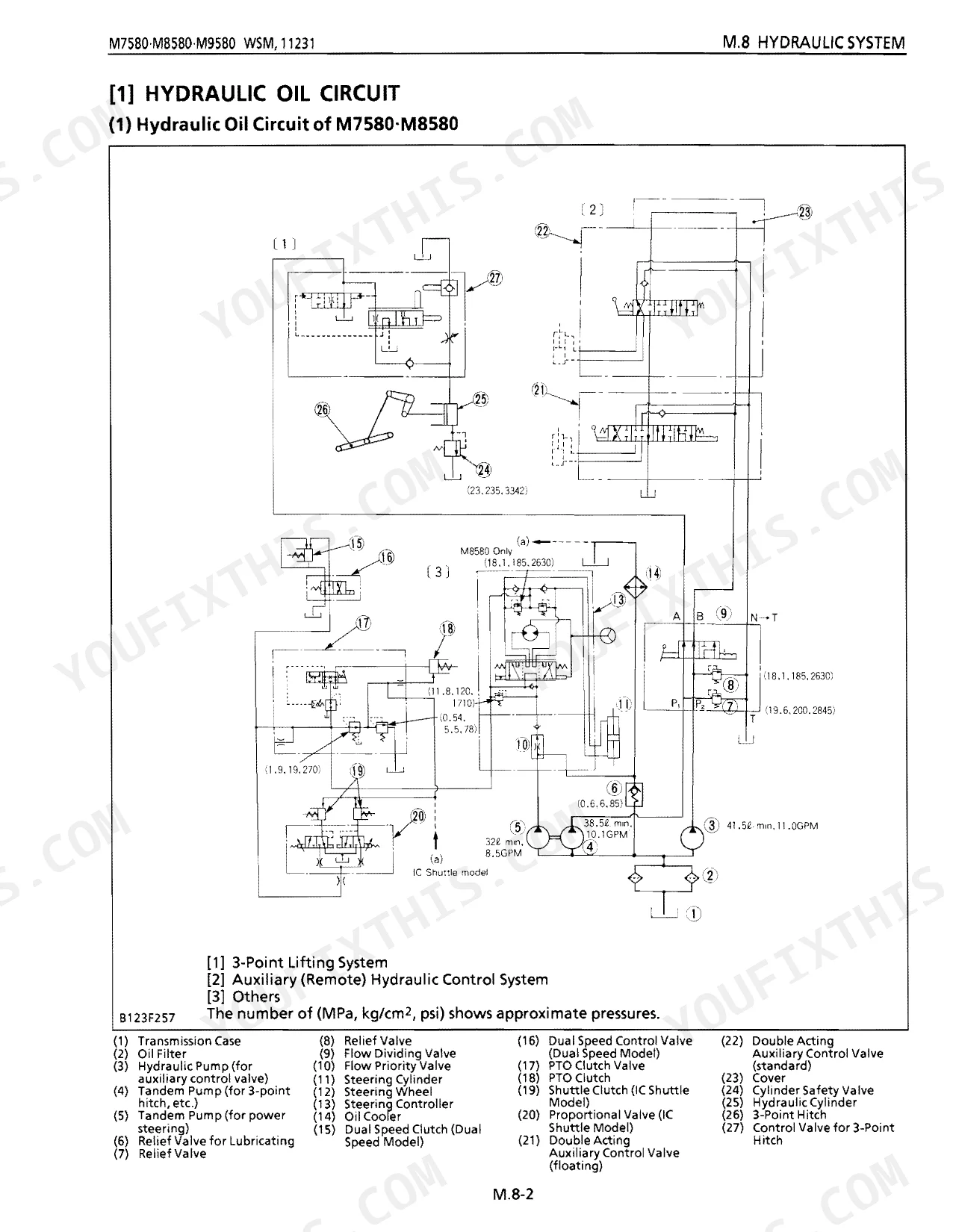

| Sect 8 Hydraulic | 458-485 | Trouble-Shooting, Servicing Specifications (Hydraulic Pump, Relief Valve, Cylinder Safety Valve), Hydraulic Cylinder (Draft Sensor Bar, Control Linkage) |
| Sect 9 Electrical | 486-543 | Trouble-Shooting (Battery, Starting System, Lighting System), Engine Key Switch Shut-Off System, Charging System, Lighting System (Easy Checker) |
| Sect 10 Platform | 544-561 | Precautions at Repairing Refrigerant Cycle, Handling of Service Tools, Manifold Gauge Set, Refrigerant Charging Hose, Gas Leak Tester, CAN Tap Valve, Service Stop Valve, T-Joint |

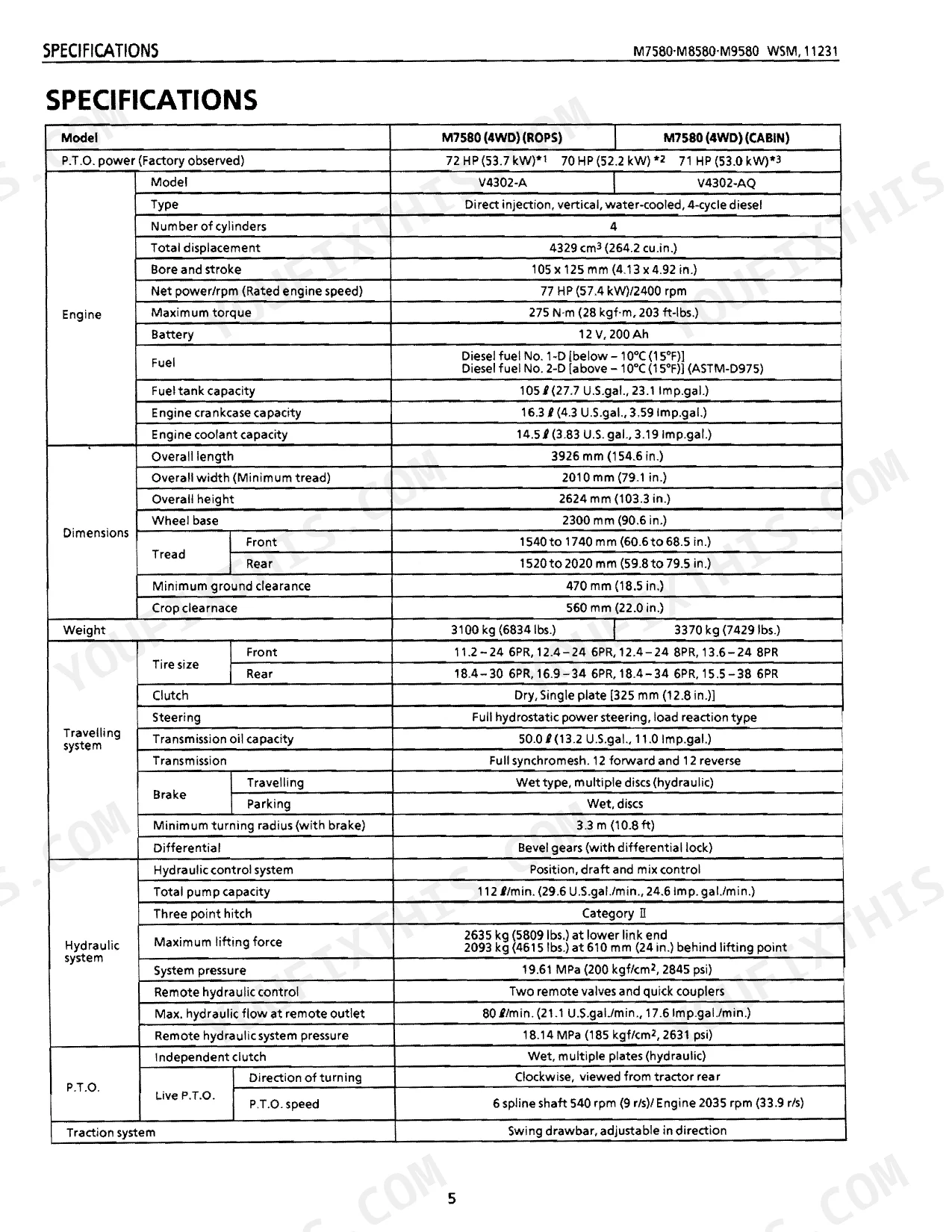

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M7580, M8580 | ||
| Fuel Tank Capacity | 105 l (27.7 U.S. gal, 23.1 Imp. gal) | p. 218 |
| M9580 | ||
| Fuel Tank Capacity | 120 l (31.7 U.S. gal, 26.4 Imp. gal) | p. 218 |
| All Models | ||
| Engine Crankcase Capacity (with filter) | 16.3 L | p. 5 |
| Hydraulic System Pressure | 19.61 MPa | p. 5 |
| Cylinder Head Screws Torque | 127.5 to 137.3 N·m | p. 285 |

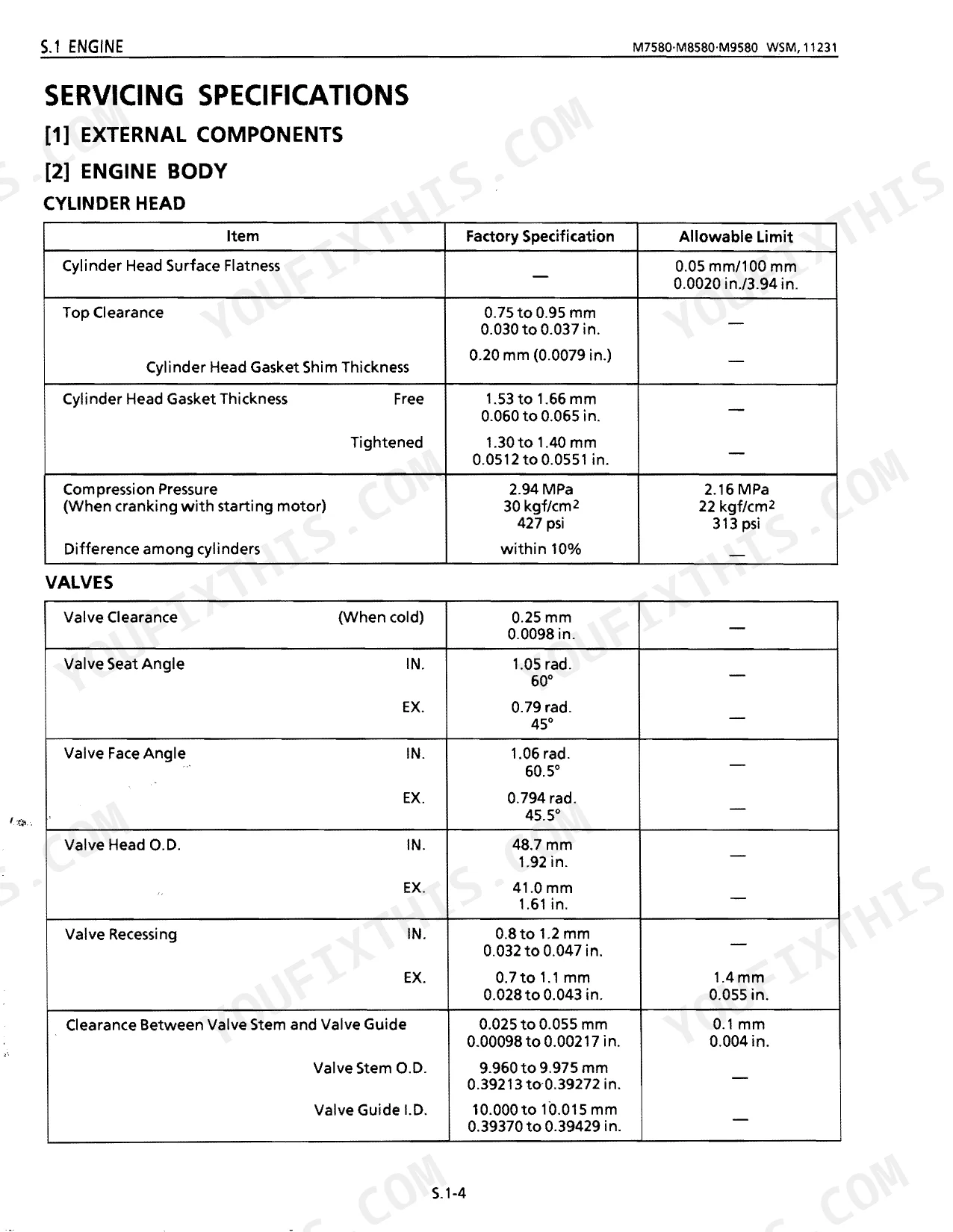

| Valve Clearance (cold) | 0.25 mm | p. 277 |
| Radiator Fan Belt Tension (Deflection at 98N) | 7 to 9 mm | p. 283 |
| Rear Axle Nut Torque | 392 to 539 N·m | p. 412 |
| Brake Pedal Free Play | 40 to 50 mm | p. 330 |
| Front Wheel Alignment Toe-in | 2.0 to 8.0 mm | p. 431 |
| M7580, M8580, M9580 | ||
| Fuel Tank Capacity | 105 L (M7580, M8580); 120 L (M9580) | p. 5 |
| PTO Clutch Disc Diameter | 325 mm (M7580-M8580); 350 mm (M9580) | p. 37 |
Kubota M7580, M8580, M9580 Common Problems This Manual Covers
Clutch slip or drag
A worn travelling clutch slips under load, while a dragging PTO clutch makes the PTO hard to engage. The Clutch section covers travelling-clutch, PTO-clutch, and Bi-Speed Turn troubleshooting and specifications.
Manual Section: Sect 2 Clutch p. 328Shuttle transmission shifting problems
Hard or noisy shifting in the synchromesh or IC shuttle transmission points to worn synchronizers or linkage. The Transmission section covers troubleshooting and dual-speed and Bi-Speed Turn servicing.
Manual Section: Sect 3 Transmission p. 344Weak three-point hitch or hydraulics
Low hydraulic pressure or a worn pump leaves the three-point hitch slow or unable to lift. The Hydraulic section covers the pump, relief valve, cylinder safety valve, and control linkage.
Manual Section: Sect 8 Hydraulic p. 458No-start or charging faults
A failing charging system, key switch shut-off circuit, or starting system leaves the tractor dead or with a flat battery. The Electrical section covers battery, starting, charging, and lighting troubleshooting.
Manual Section: Sect 9 Electrical p. 486Engine power loss or hard starting
Worn valves, incorrect clearance, or low compression cause weak power and hard starting. The Engine section covers troubleshooting, servicing specifications, valve timing, and the lubricating system.
Manual Section: Sect 1 Engine p. 274Heavy or unresponsive steering
A worn power-steering controller or low hydraulic supply makes the wheel heavy. The Steering section covers troubleshooting, servicing specifications, tightening torques, and checking.
Manual Section: Sect 7 Steering p. 450Frequently Asked Questions
Which tractors does this manual cover?
It covers three Kubota tractors, the M7580, M8580, and M9580, in one 561-page service manual using the V4302 and V4702 engines. Model-specific figures, such as fuel and transmission capacities, are noted per model.
Where are the fluid capacities and service intervals?
The General section covers tractor identification, lubricants and fluids, tightening torques, and the maintenance check list, including engine oil, fuel, and transmission capacities and their service intervals. p. 216
Does it cover the shuttle transmission?
Yes. The Transmission section covers synchromesh shuttle, IC shuttle, and dual-speed transmissions, including Bi-Speed Turn, with troubleshooting and servicing specifications. p. 344
What does the electrical section include?
The Electrical section covers battery, starting, charging, and lighting-system troubleshooting, the engine key-switch shut-off system, and the Easy Checker, with servicing detail for each. p. 486
Will this Kubota M7580 Service Manual download right away?
This is a 561-page searchable PDF, available to download the moment checkout completes. It opens on a laptop, tablet, or phone, so you can carry it onto the shop floor.
Can I print this Kubota M7580 manual?
None at all. The PDF is DRM-free, so print whatever sections you want to carry to the shop. Standard letter or A4 paper both work.

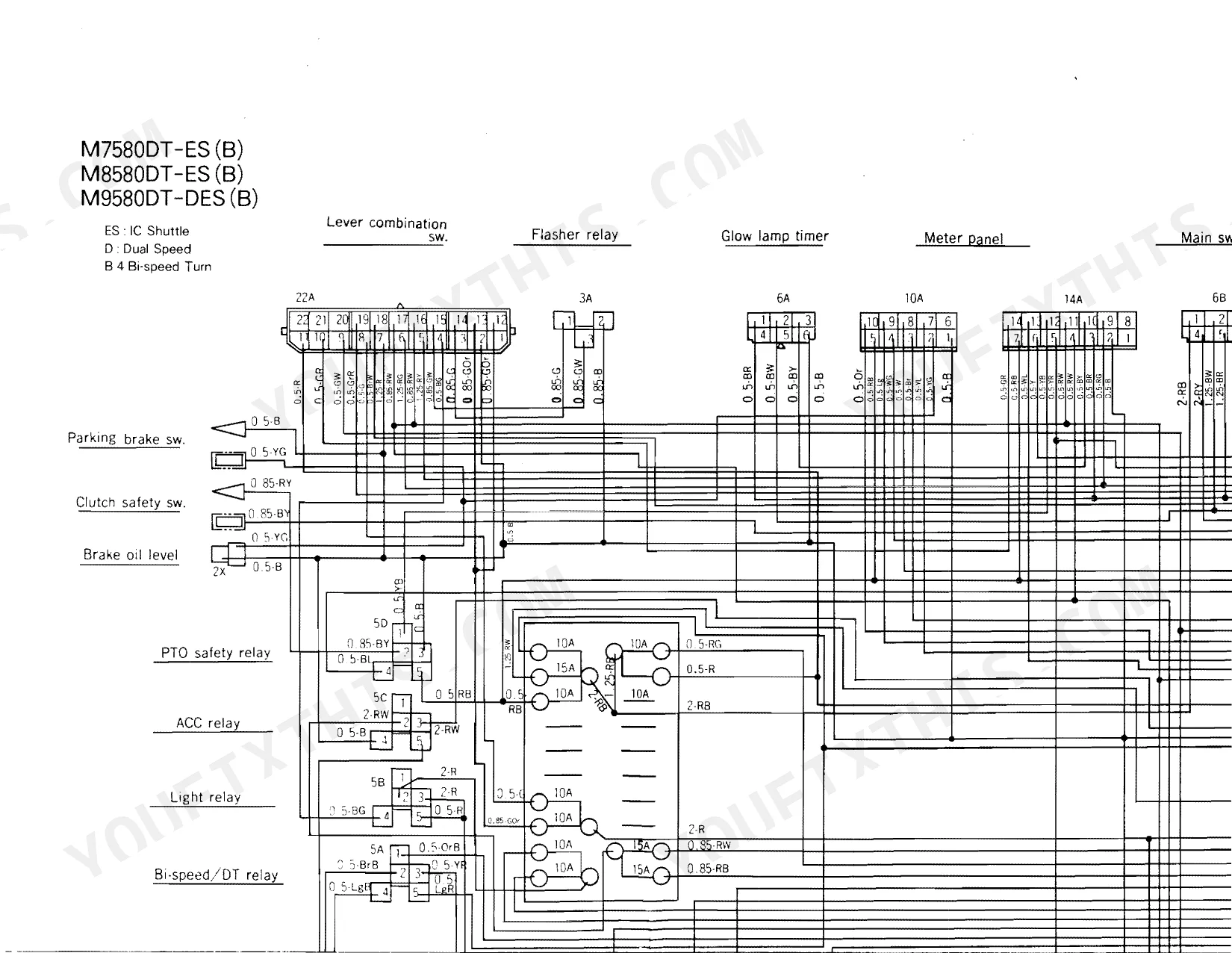

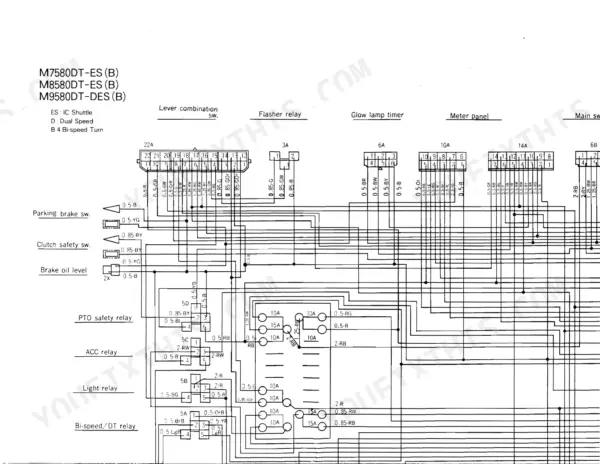

Does this Kubota M7580 manual include wiring diagrams?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
