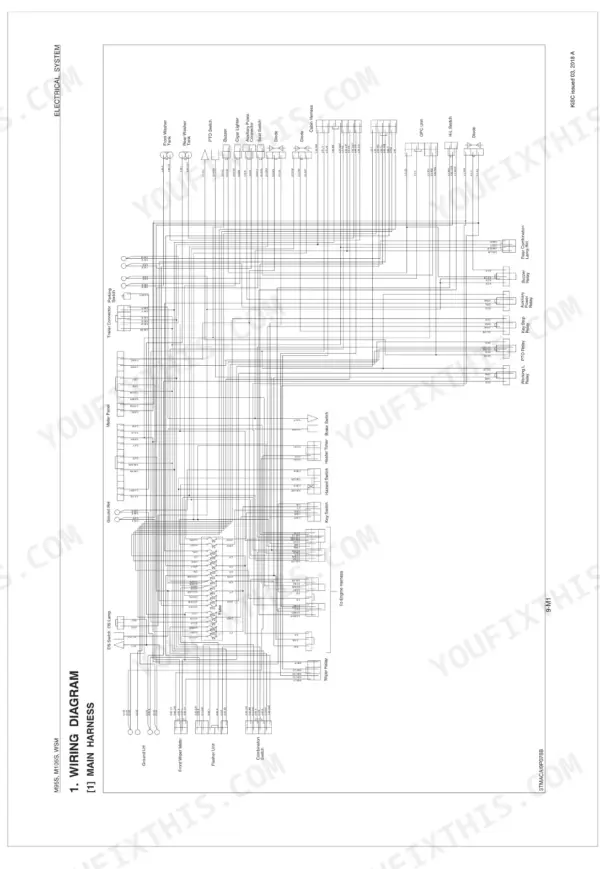

Need the factory Kubota M95S, M105S shop manual PDF? This 563-page service guide (OEM #9Y011-13343) covers the complete drivetrain on both tractors, including the engine, clutch, transmission, hydraulics, electrical, and cabin HVAC system. You will find full wiring schematics detailing the main harness, cabin harness, and engine lamp harness routing. It also includes hydraulic circuit diagrams tracing the shuttle valve, regulator valve, PTO clutch circuit, and dual speed valve. The document features 150 pages of step-by-step service procedures, 100 pages of exploded views, and eleven pages of tightening torque tables for every major assembly. Fill the transmission case to 60.0 L, top the engine crankcase to 10.7 L, and check your 175 L fuel tank before any extended service. Stop cross-referencing multiple files to find one specification. Because it is bookmarked and keyword-searchable, you can jump directly to any system, pull it up on your phone, and get back to work.
What's Inside This Kubota M95S, M105S Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 15-101 | Tractor Identification (Model Name and Engine Serial Number, Cylinder Number) |

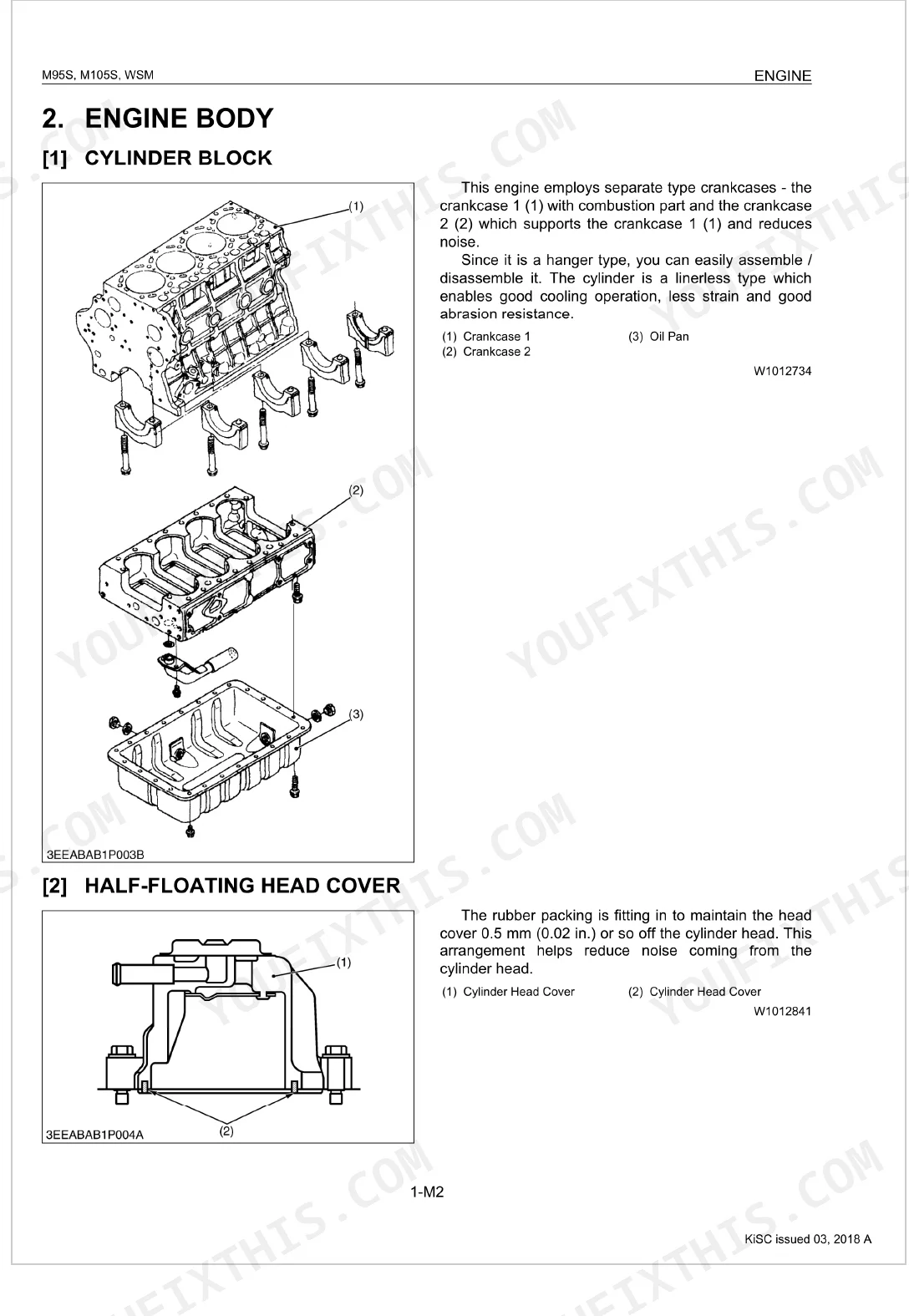

| Engine | 102-194 | Feature, Engine Body (Cylinder Block, Half-Floating Head Cover, Cylinder Head, Center Direct Injection System, Piston, Built-in Dynamic Balancer), Lubricating System (Oil Cooler) |
| Clutch | 195-224 | Mechanism (Traveling Clutch, PTO Clutch) |
| Transmission | 225-286 | Structure, Gear Shift Mechanism (Selecting the Traveling Speed, Main Gear Shift Lever, Swing Shift, Dual Speed) |
| Rear Axle | 287-299 | Mechanism (Structure) |
| Brakes | 300-322 | Mechanism (Feature) |
| Front Axle | 323-349 | Mechanism (Structure) |
| Steering | 350-357 | Mechanism (Structure) |

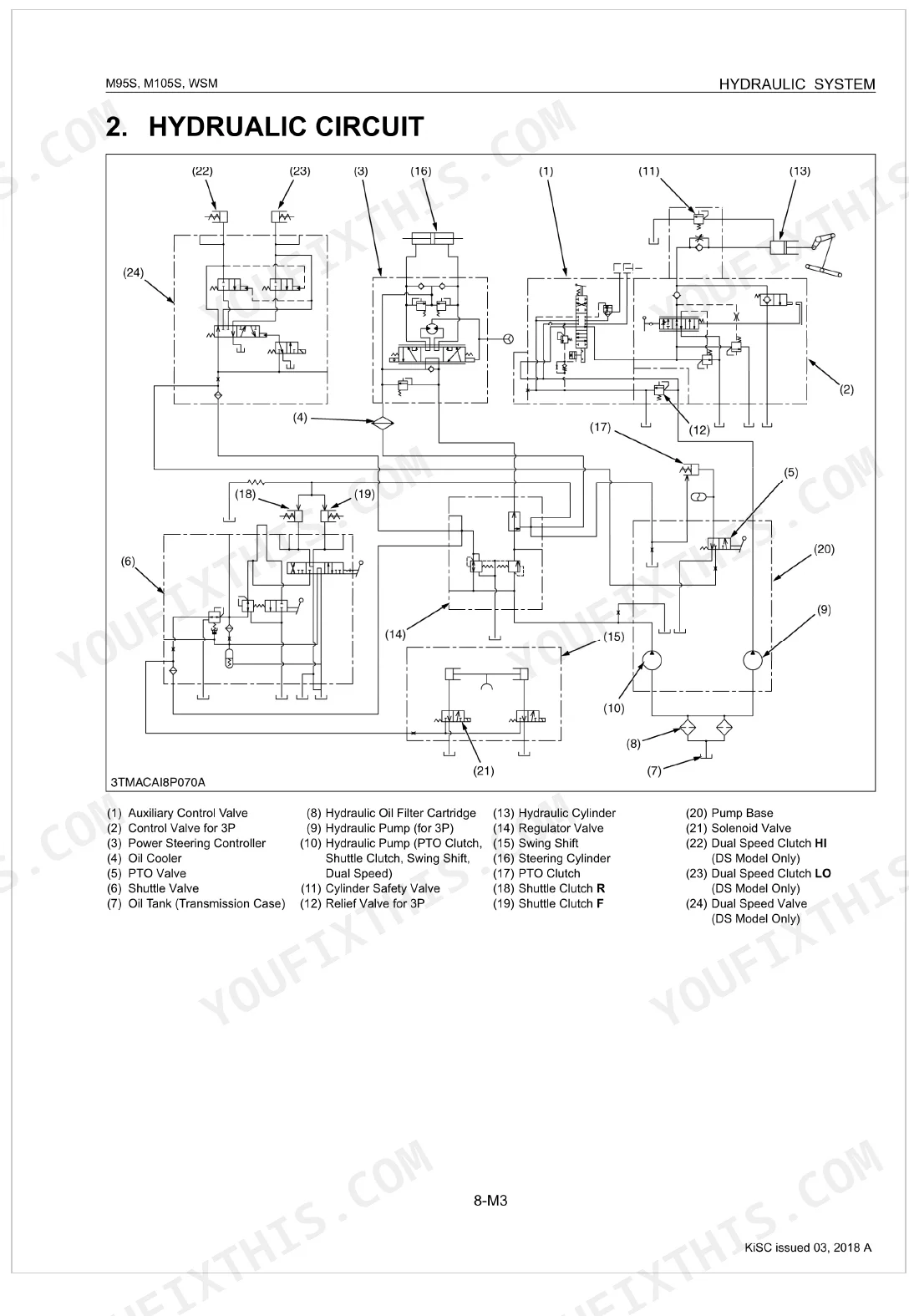

| Hydraulic System | 358-421 | Structure, Hydraulic Circuit, Hydraulic Shuttle Valve (Structure, Operation), Regulator Valve (Structure and Oil Flow), PTO Clutch, Dual Speed Valve |

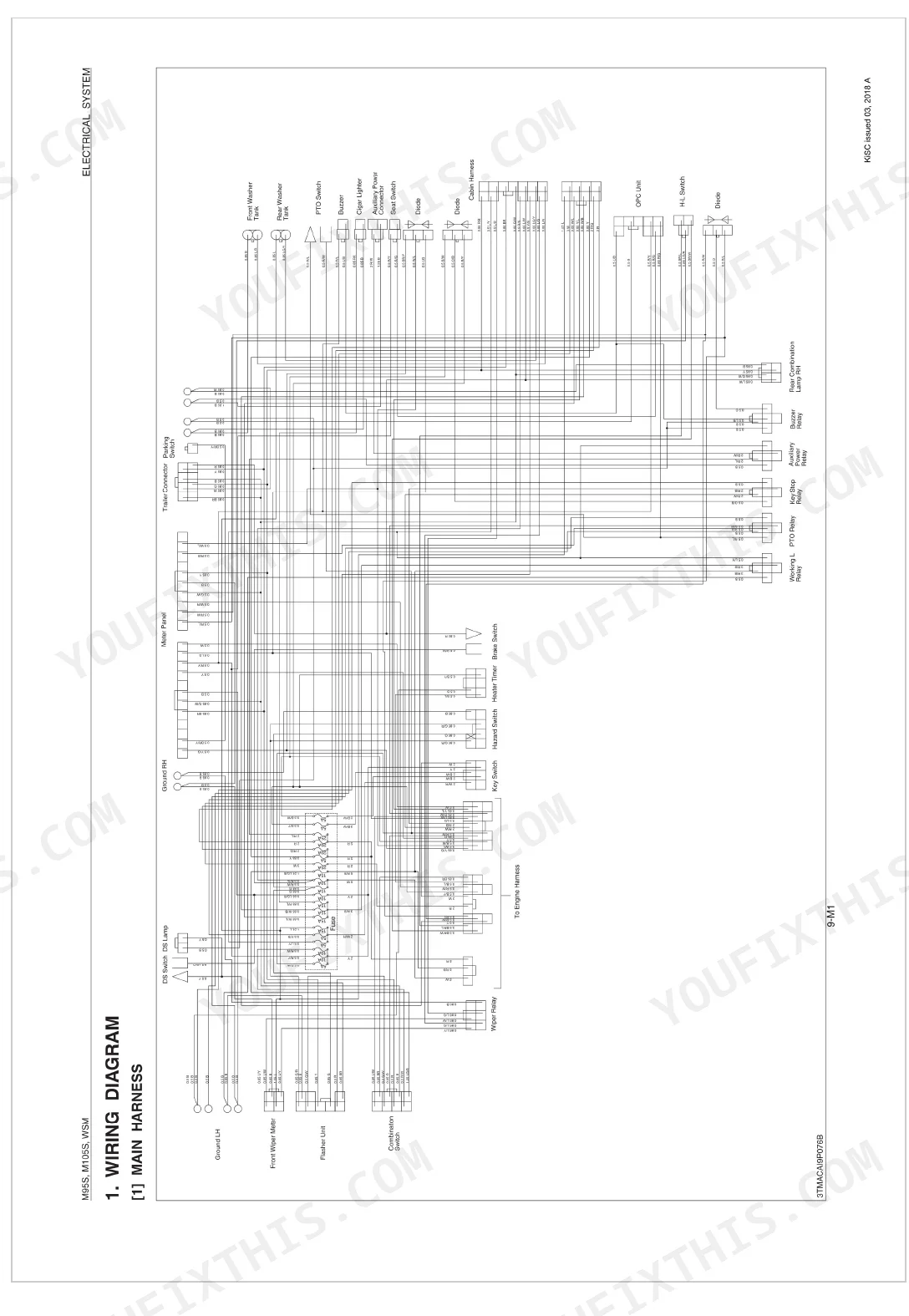

| Electrical System | 422-496 | Wiring Diagram (Main Harness, Cabin Harness, Engine and Head Lamp Harness, Wiring Color) |
| Cabin | 497-563 | Mechanism (Air Conditioning System, Air Flow, Air Control Vent, Control Panel, Operation, Electrical System) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 175 L | p. 24 |
| Engine crankcase capacity | 10.7 L | p. 24 |
| Engine Oil Capacity (Engine crankcase) | 10.7 L | p. 24 |
| Transmission Case Oil Capacity | 60.0 L | p. 24 |
| Front Differential Case Oil Capacity | 7.0 L | p. 24 |

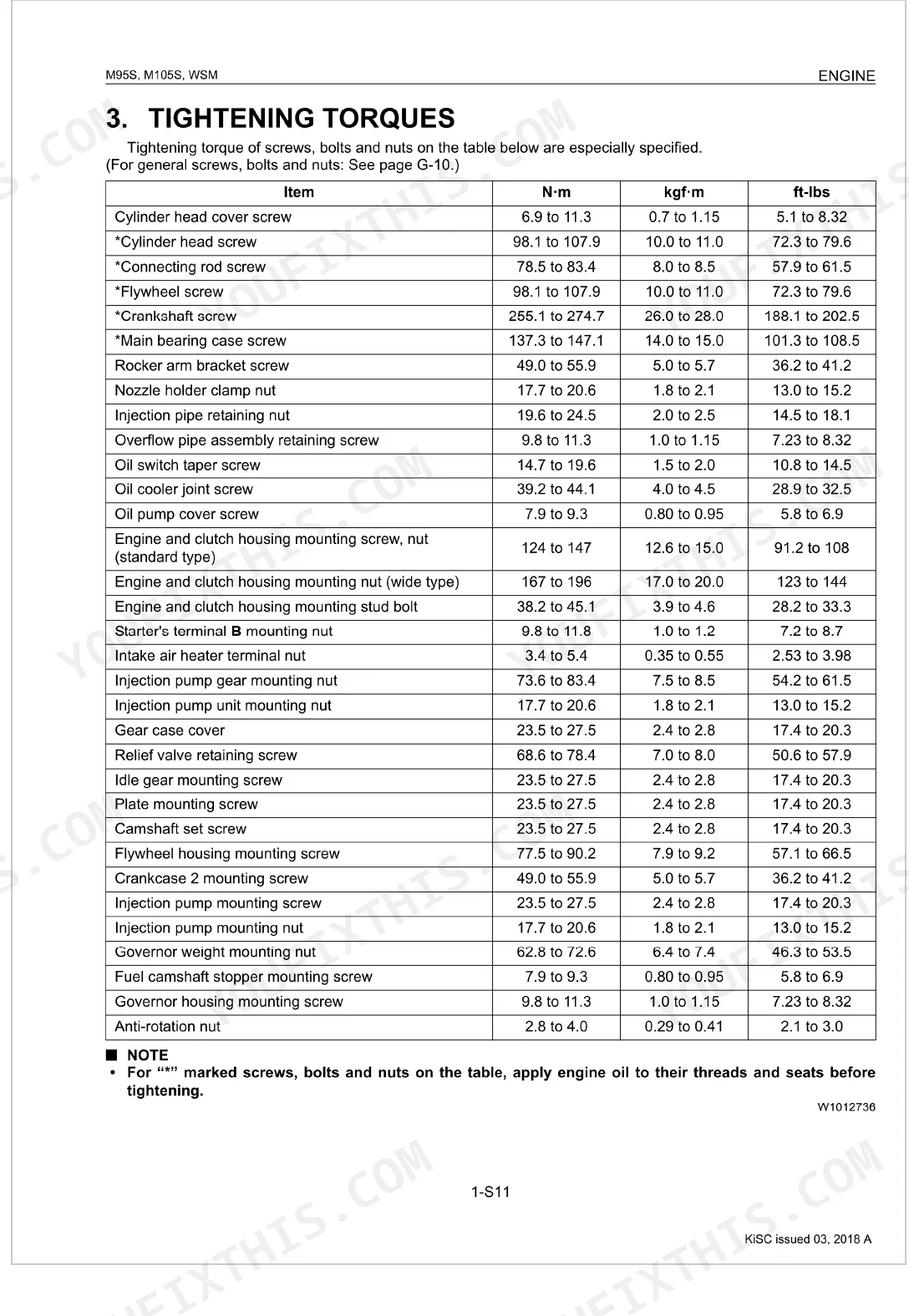

| Rear Wheel Mounting Nut Torque | 343 to 401 N·m | p. 26 |
| Cylinder Head Cover Screw Torque | 98.1 to 107.9 N·m | p. 130 |
| Shuttle Clutch Disc Thickness | 1.70 to 1.90 mm | p. 203 |
| Brake Pedal Free Travel | Below 15 mm | p. 305 |
| Hydraulic Pump for Power Steering Delivery | Above 48.9 L/min | p. 389 |
| Alternator Brush Length | 18.5 mm | p. 454 |
| A/C Compressor Magnet Clutch Airgap | 0.25 to 0.50 mm | p. 518 |
Kubota M95S, M105S Common Problems This Manual Covers

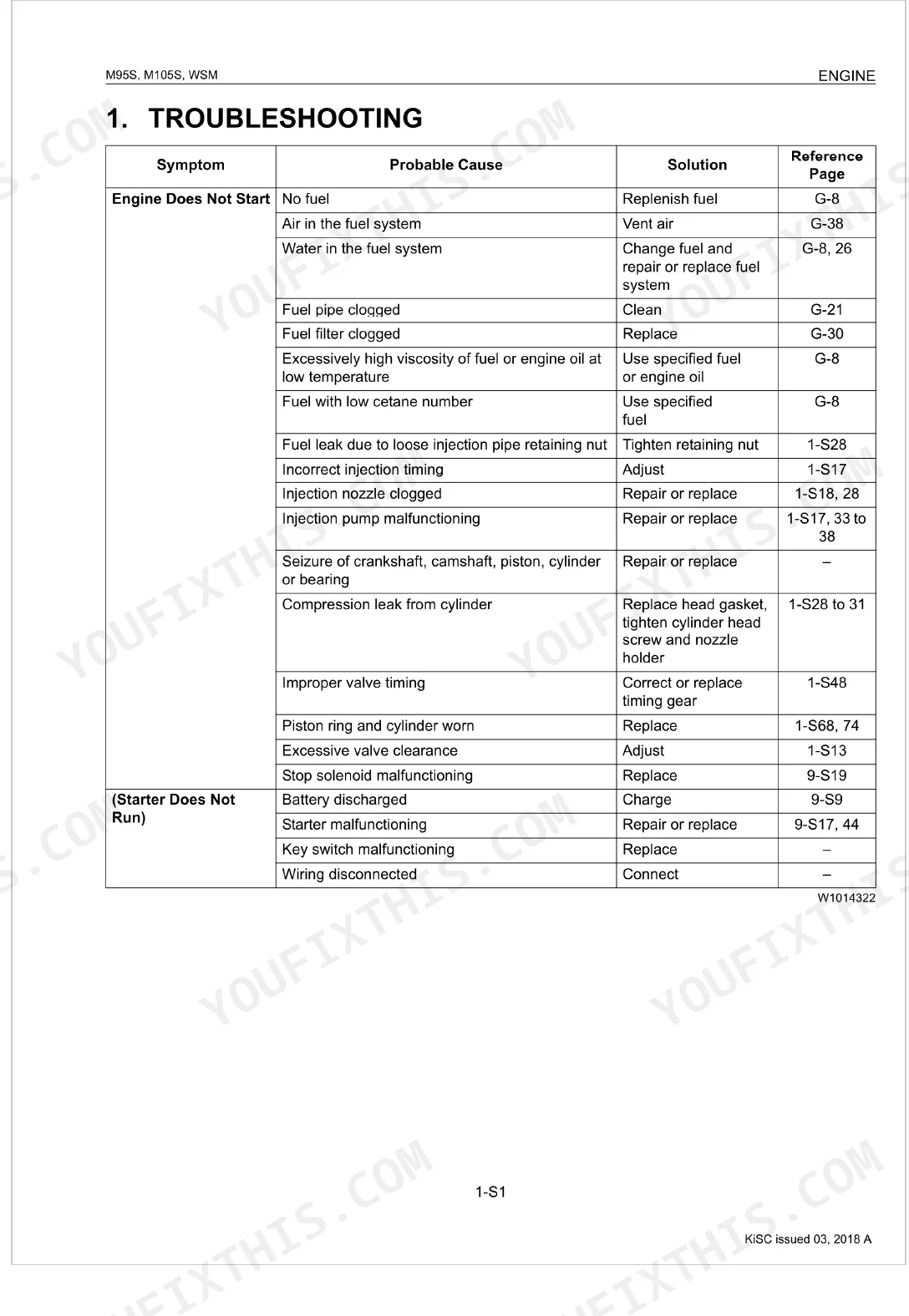

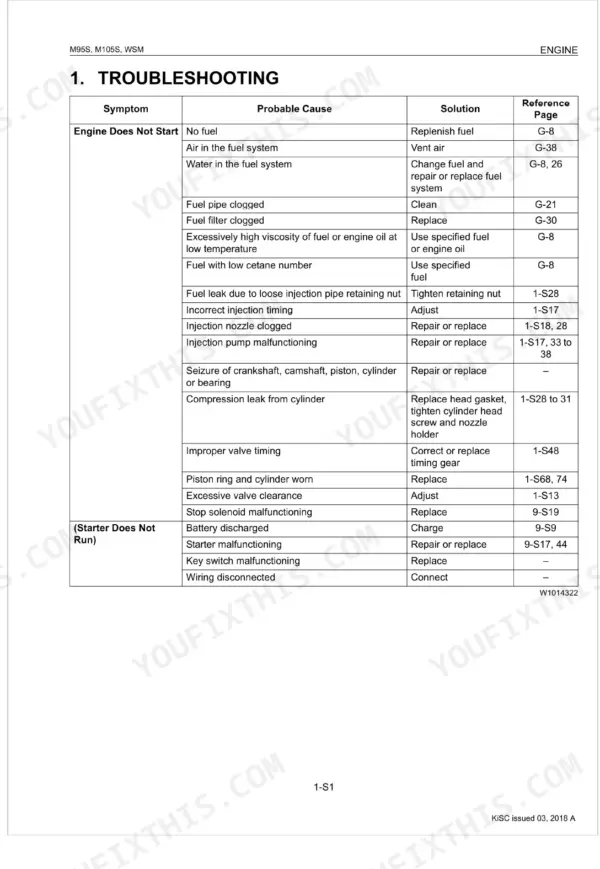

Engine cranks but won't fire, white smoke on cold morning startup
Inspect the fuel filter and replace it at 400-hour intervals per the maintenance schedule on page 28. Check the water separator for contamination and drain if milky. Verify the engine oil level; crankcase capacity is 10.7 L. If hard-start persists in cold conditions, work through injector and glow plug diagnostics.
Manual Section: EngineHydraulic lift slow or won't raise implement under load, pump whine during operation
Examine the hydraulic oil filter; the service interval is every 200 hours per page 28. Check the transmission case oil level (capacity is 60.0 L). Verify power steering pump delivery: minimum spec is 48.9 L/min (page 389). If flow is low, trace the circuit through the hydraulic schematic before pulling the pump.
Manual Section: Hydraulic SystemBrake pedal travels too far or feels spongy, tractor won't slow down quickly p. 304
Measure brake pedal free travel at the pad: the spec is below 15 mm (page 305). Check the brake system reservoir fluid (capacity is 0.3 L), top up if low, and inspect all lines for seepage. Brake adjustment is due every 600 hours. If pedal travel stays excessive after adjustment, work through the brake troubleshooting guide starting on page 304.
Manual Section: BrakesClutch slips or shudders on forward-reverse shuttle, loss of drive under load p. 202
Remove and measure the shuttle clutch disc thickness: the serviceable range is 1.70 to 1.90 mm (page 203). Discs worn below 1.70 mm must be replaced before reassembly. Verify the transmission case oil level; total capacity is 60.0 L. If slipping continues after disc replacement, check the hydraulic shuttle valve circuit in the Hydraulic System section starting on page 358.
Manual Section: ClutchCab A/C compressor clutch not engaging, blows warm air on all fan settings
Test the compressor magnet clutch airgap: spec is 0.25 to 0.50 mm (page 518). Measure stator coil resistance; the correct range is 3.0 to 4.0 Ω. Clean the condenser every 200 hours (page 29). If the gap and coil both pass, trace the A/C circuit through the cabin electrical system starting on page 497 for a wiring fault.
Manual Section: Air Conditioning SystemAlternator warning light stays on, battery not charging after extended field operation
Remove the alternator and measure brush length: minimum spec is 18.5 mm (page 454). Brushes worn short cause chronic undercharging; replace the brush assembly if below spec. Check battery condition at the initial 50-hour service per page 28. Review the main harness wiring diagram if alternator output is normal but battery voltage stays low.
Manual Section: Electrical SystemFrequently Asked Questions
What are the recommended service intervals?

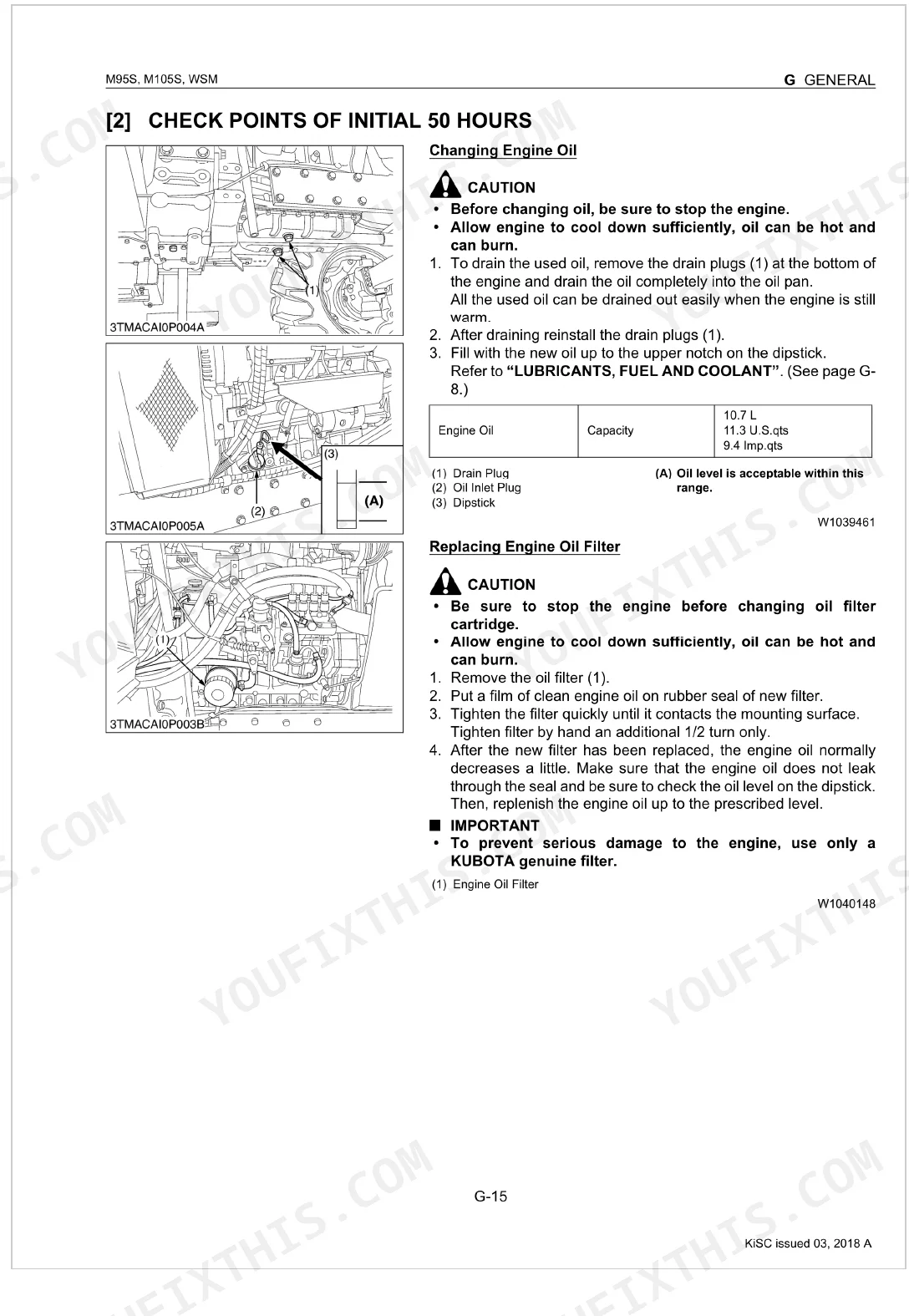

The manual provides a detailed maintenance schedule with various service intervals. For example, daily checks include inspecting the engine oil level and tire pressure, while initial 50-hour checks involve changing the engine oil and transmission fluid. Longer intervals include checking points every 100, 200, 300, 400, 600, 800 hours, and every 2 years, such as replacing the engine oil filter every 200 hours and checking the front axle gear case oil every 400 hours.
What fluids and capacities does this machine require?
The machine requires various fluids with specific capacities. For instance, the fuel tank has a total capacity of 175 L (46.2 U.S. gals, 38.5 Imp. gals) for diesel fuel. The engine crankcase requires 10.7 L (11.3 U.S. qts, 9.4 Imp. qts) of API service classification CD, CE or CF engine oil, while the transmission case needs 60.0 L (63.4 U.S. qts, 52.8 Imp. qts) of KUBOTA SUPER UDT fluid.
How to troubleshoot engine won't start?
If the engine won't start, common electrical problems include a discharged or defective battery, a blown slow blow fuse (G-41), or a defective starter relay (9-S16). Wiring harness disconnections between the main switch, PTO switch, safety switches, and starter relay can also prevent starting. Additionally, a defective engine stop solenoid (9-S19) or main switch (9-S11) could be the cause.
What are the hydraulic system specifications?
The hydraulic system specifications include details for the hydraulic pump and regulator valve. The hydraulic pump for power steering has a factory specification delivery of above 48.9 L/min (12.9 U.S.gals./min, 10.8 Imp.gals./min) with an allowable limit of 39.1 L/min. The relief valve setting pressure at the PTO clutch valve is 1.96 to 2.11 MPa (20.0 to 21.5 kgf/cm², 284 to 306 psi) at maximum engine speed.
How quickly can I access this Kubota M95S, M105S manual after buying?
This is a 563-page searchable PDF ready for immediate download. Works on any device — pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kubota M95S, M105S Shop Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Kubota M95S, M105S manual include wiring diagrams?
Yes, this Kubota M95S, M105S Shop Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
Document Quality
This document is a native digital PDF, which means you can search and copy the full text content directly. All text throughout the manual is consistently crisp, sharp, and easy to read. Diagrams and line illustrations are vector-based, maintaining their clarity and detail even when highly zoomed, and all labels are perfectly legible. The pages are clean, showing no scan artifacts, stains, or skewed content, with only dedicated section title pages present instead of truly blank pages.
