This Kubota Operator's Manual covers the L2501 compact tractor, built around the Kubota D1703-M-DI-E4 diesel engine. Its 97 pages guide you through daily operation and owner-level maintenance in one place.
You get starting and warm-up procedures, instrument panel and control layouts, PTO and 3-point hitch use, hydraulic controls, tire and ballast setup, and a full maintenance schedule with service intervals and lubricant specs. Specifications, identification plates, and capacities are laid out so you can run and service the tractor correctly.
Whether the L2501 is new to you or you are handling routine upkeep yourself, this PDF puts the factory operating and maintenance information at hand, ready to read on a phone in the field or print for the shop wall.
What's Inside This Manual
| System | Pages | Key Topics |
|---|---|---|
| Cover, Universal Symbols and Foreword | 1-4 | Operator's Manual Identification, Universal Symbols Guide, Foreword, Warranty and Dealer Contact |
| Contents | 5-8 | Full Table of Contents, Section Index |
| Safe Operation | 9-18 | Before Operation, Seat Belt and ROPS, Starting and Operating, Working Safely, Parking and Storage, Servicing Safely, Battery and Hydraulic Fluid Cautions |
| Servicing of Tractor | 19-20 | Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, ROPS Identification Plate |

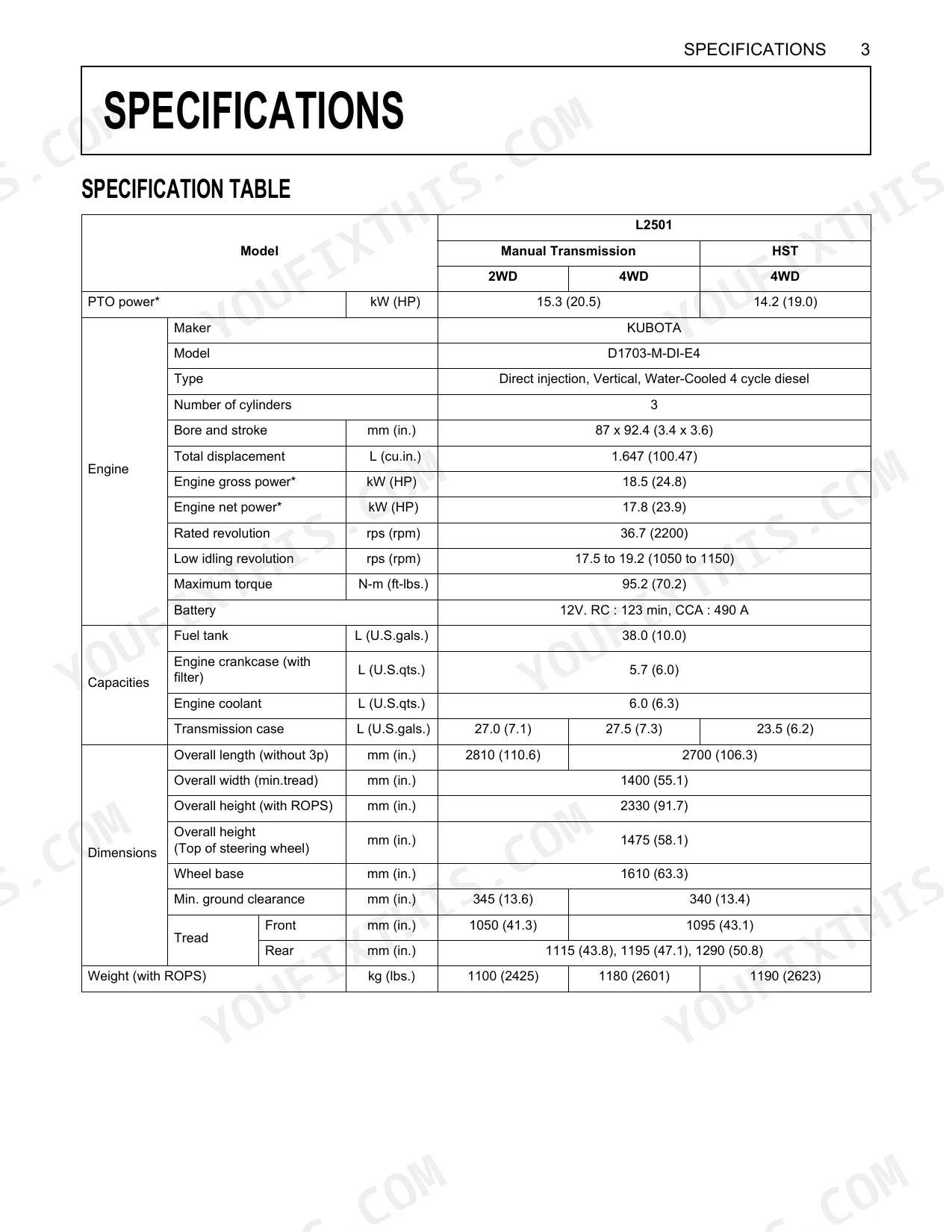

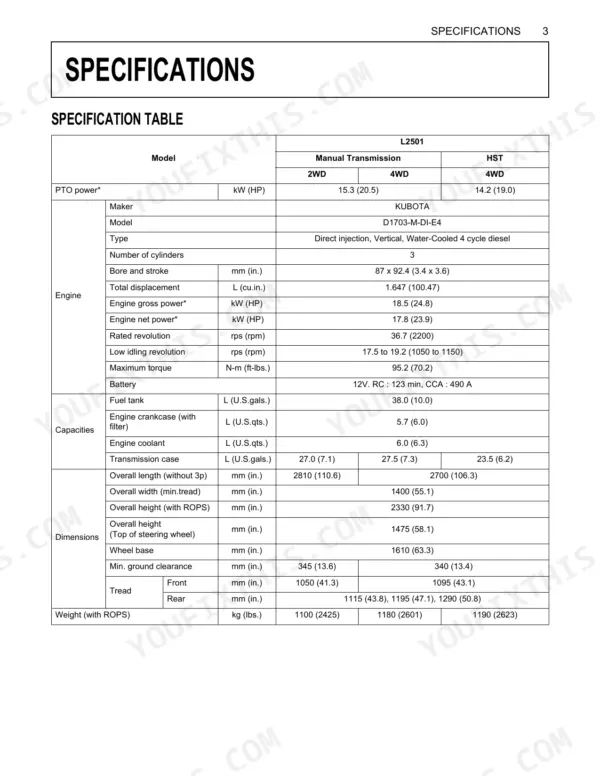

| Specifications | 21-23 | PTO Power, Engine, Capacities, Dimensions, Traveling System, Hydraulic Unit |
| Implement Limitations | 24-25 | Tread (Max. Width) with Farm Tires, Lower Link End Max. Lifting Capacity, Implement Weight, Max. Drawbar Load, Trailer Loading Weight |

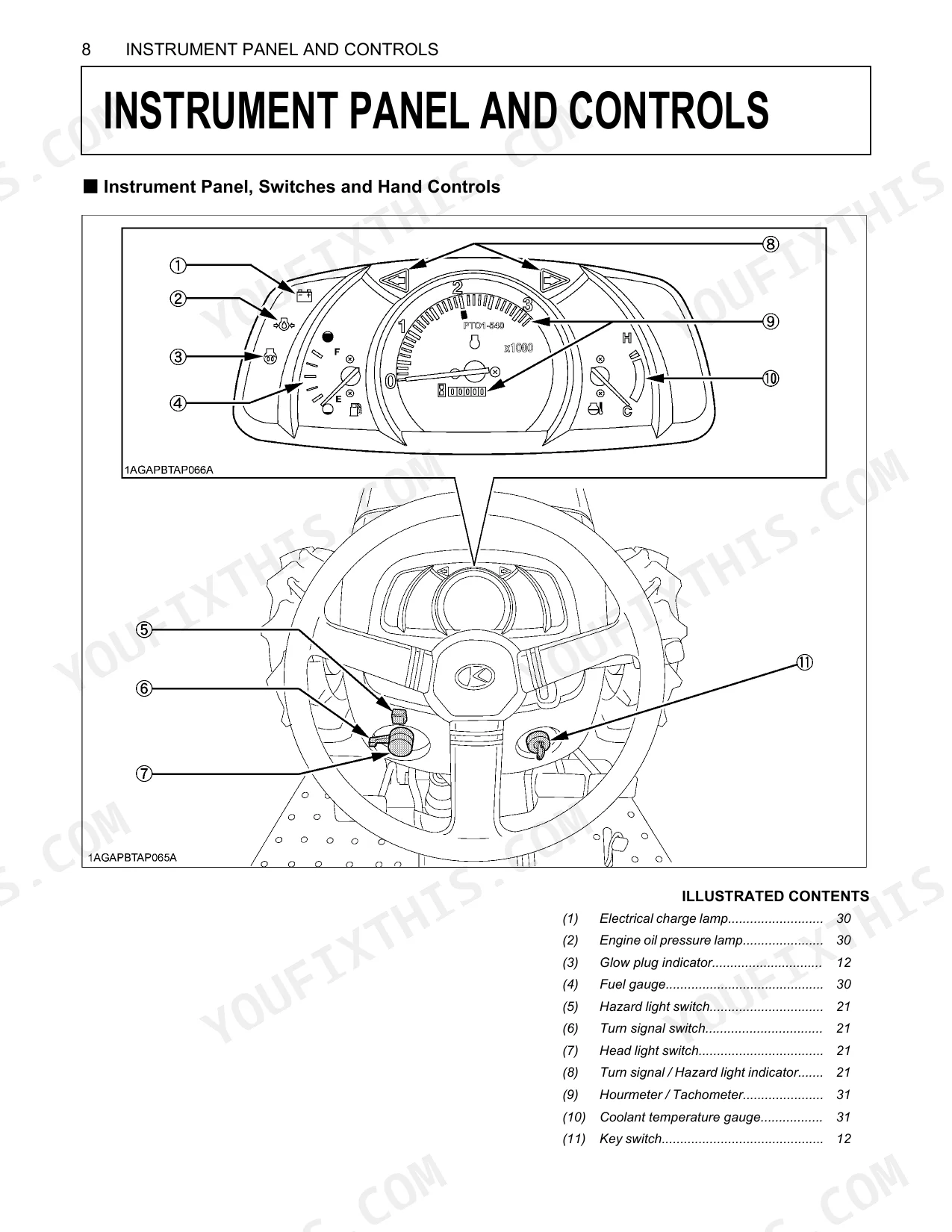

| Instrument Panel and Controls | 26-28 | Electrical Charge Lamp, Fuel Gauge, Hourmeter/Tachometer, Key Switch, Parking Brake Lever, Main Gear Shift Lever |
| Pre-Operation Check | 29 | Engine Oil Level, Transmission Oil Level, Coolant Level, Air Cleaner Evacuator Valve, Brake and Clutch Pedal, Seat Belt and ROPS |
| Operating the Engine | 30-35 | Starting the Engine, Stopping the Engine, Warming Up (Warm-Up Transmission Oil in the Low Temperature Range), Jump Starting |

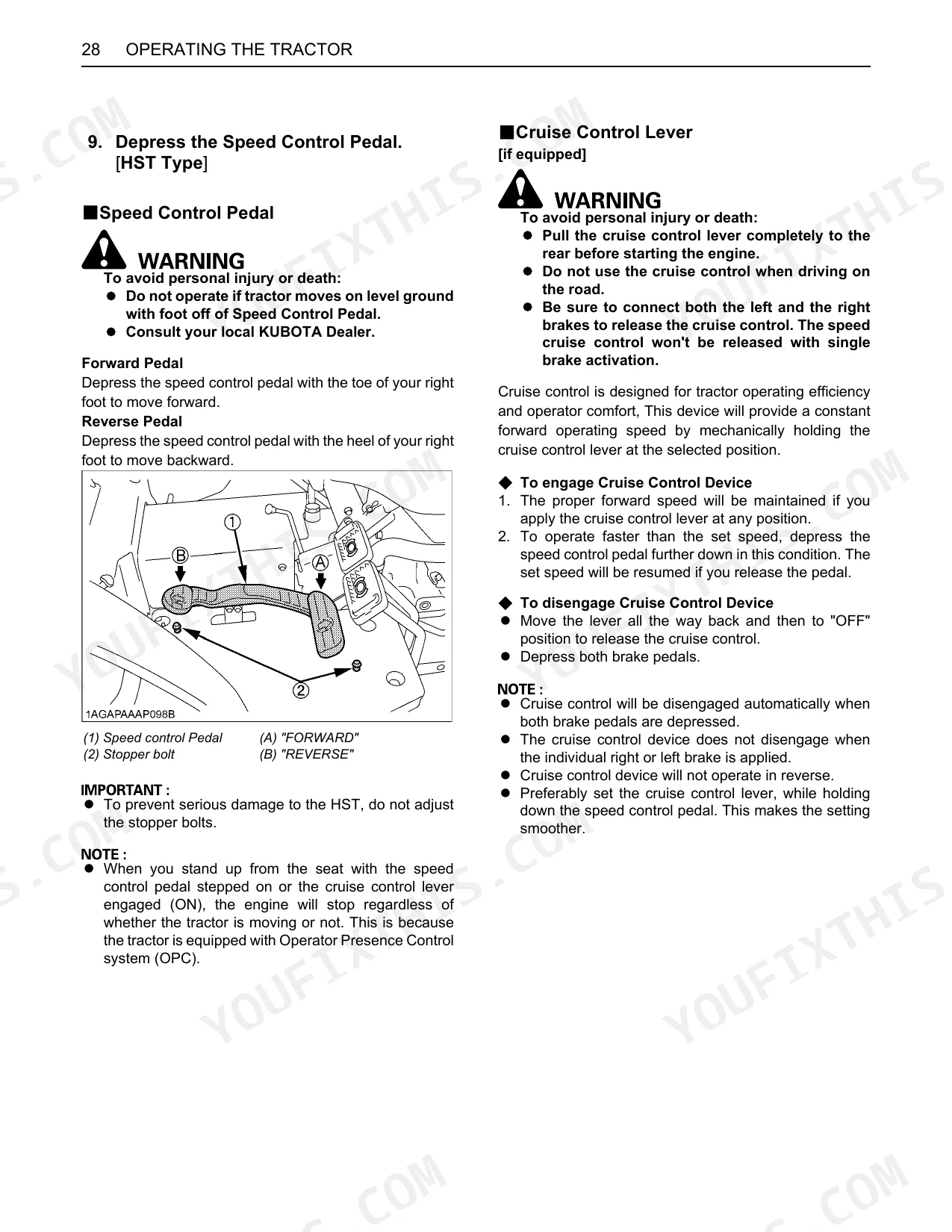

| Operating the Tractor | 36-51 | Starting, Working, Safety for Children, Operating on Slopes, Driving the Tractor on the Road |
| PTO | 52-53 | PTO Gear Shift Lever, Stationary PTO, PTO Shaft Cover, Shaft Cap |
| Point Hitch & Drawbar | 54-56 | Lower Links, Top Link Mounting Holes, Drawbar, Lifting Rod (Right), Top Link, Check Chains |
| Hydraulic Unit | 57-59 | 3-Point Hitch Lowering Speed, Position Control, Float Control, Hydraulic Block Type Outlet, Hydraulic Control Unit Use Reference Chart |
| Tires, Wheels and Ballast | 60-63 | Tires (Inflation Pressure, Dual Tires), Wheel Adjustment (Front Wheels, Rear Wheels), Ballast (Front Ballast, Rear Ballast), Liquid Ballast in Rear Tires |
| Maintenance | 64-68 | Service Intervals, Lubricants, Fuel and Coolant, Daily Check, Lubricating Grease Fittings, Replacing Transmission Oil Filter, Adjusting Engine Valve Clearance |

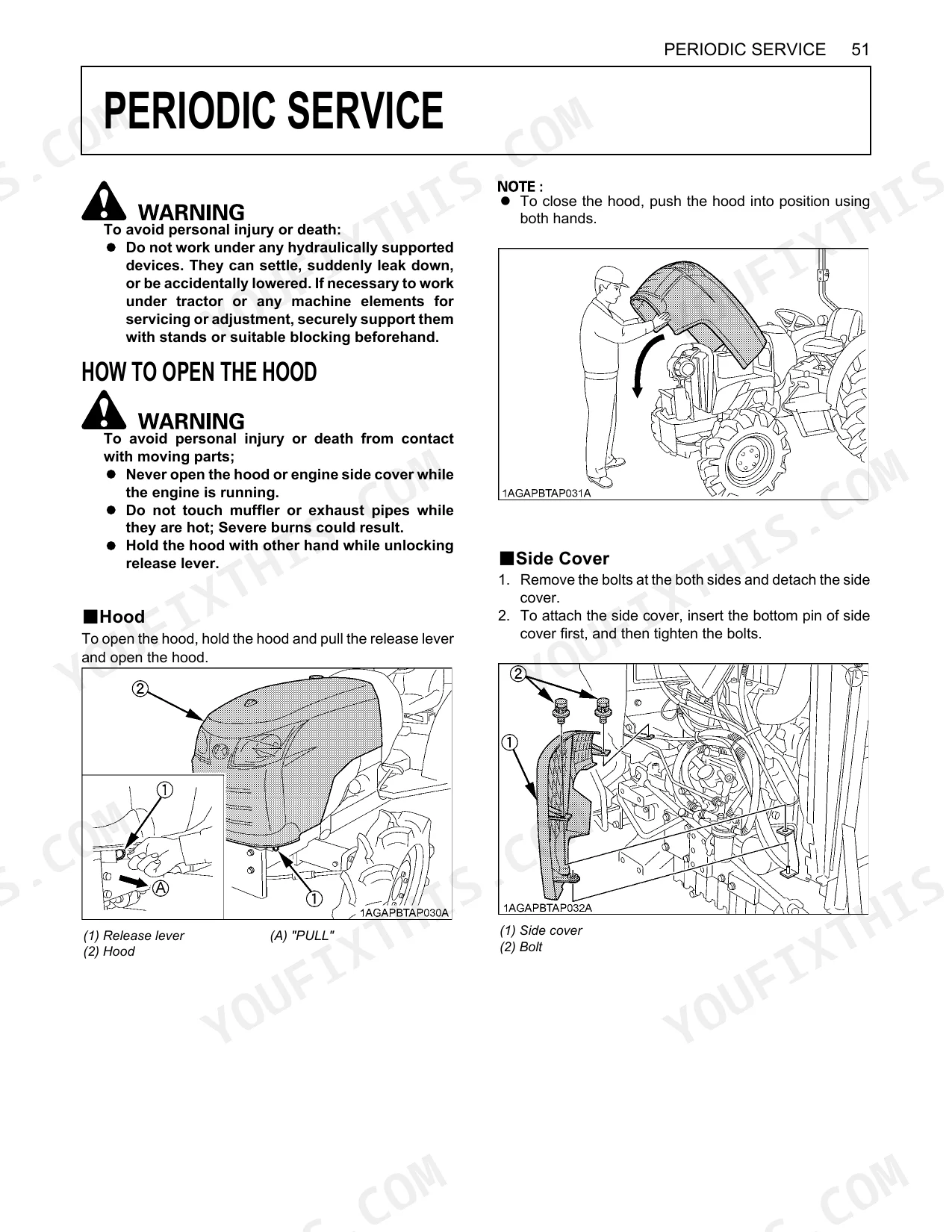

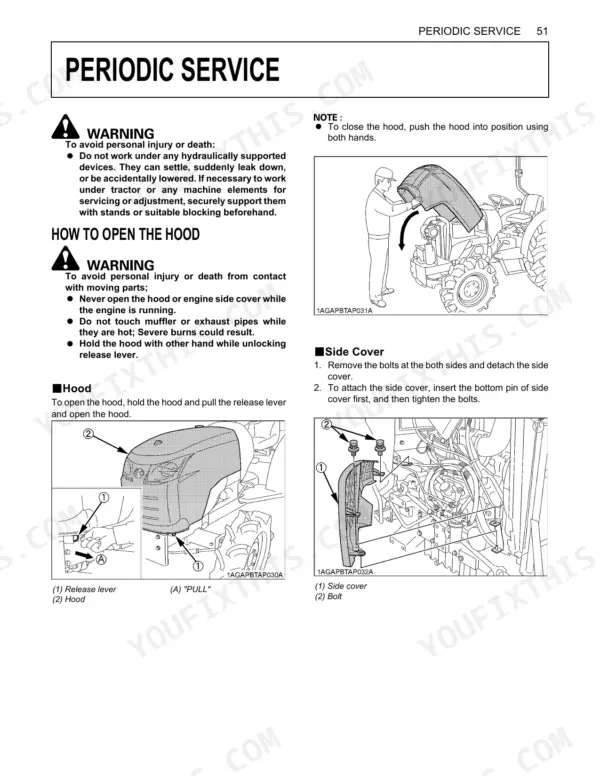

| Periodic Service | 69-92 | How to Open the Hood (Side Cover) |
| Storage | 93 | Tractor Storage Procedures, Battery Storage Procedures, Removing Tractor From Storage Procedures, Fluid Levels Check, Brake Adjustment |
| Troubleshooting | 94 | Engine Difficult to Start or Won't Start, Insufficient Engine Power, Engine Stops Suddenly, Exhaust Fumes Colored, Engine Overheats |
| Options | 95 | Engine Block Heater, Front End Weights, Rear Wheel Weights, Cruise Control, Double Acting Remote Hydraulic Control Valve, Stabilizer Kit |
| Appendices | 96-97 | 3-Point Hitch, Air Cleaner, Brake Pedal, Clutch Pedal, ROPS, PTO, Fuel System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt torque (1) | 137 N-m (14 kgf-m, 100 ft-lbs) | p. 61 |
| Wheel bolt torque (2) | 215 N-m (22 kgf-m, 160 ft-lbs) | p. 61 |
| Transmission case hydraulic fluid type | KUBOTA SUPER UDT-2 fluid | p. 66 |
| Front axle case [4WD] hydraulic fluid type | KUBOTA SUPER UDT-2 fluid or SAE 80 - SAE 90 gear oil | p. 66 |
| Proper brake pedal free travel | 15 to 20 mm (0.6 to 0.8 in.) | p. 79 |
| Proper clutch pedal free travel | 20 to 30 mm (0.8 to 1.2 in.) | p. 78 |
| Transmission oil filter [HST] replacement interval | every 200 Hr | p. 64 |
| Hydraulic oil filter [HST] replacement interval | every 400 Hr | p. 64 |
| Engine Crankcase Oil Capacity (with filter) | 5.7 L (6.0 U.S.qts.) | p. 21 |
| Fuel Tank Capacity | 38.0 L (10.0 U.S.gals.) | p. 21 |
| Engine Coolant Capacity | 6.0 L (6.3 U.S.qts.) | p. 21 |
| Max. Lift Force (at lift points) | 870 kg (1918 lbs) | p. 22 |
