This is the Kubota Service Manual for the M95X, M105X, and M125X tractors, powered by the V3800TE2, V3800TIE2, and F5802TE2 diesel engines. It is the 654 page factory workshop manual, Kubota code 97897-13270, in English and split into general, mechanism, and servicing information.The manual walks through every major system: engine, clutch, transmission with the power shift system, rear axle, brakes, front axle, steering, hydraulics, electrical, and cabin. You get servicing specifications, tightening torques, fluid capacities, valve clearances, and full troubleshooting for each area, plus model-specific wiring diagrams for the USA and Canada.Use it to diagnose a running fault, rebuild the engine or a hydraulic circuit, set clutch and brake adjustments, and torque assemblies back to factory spec. Download the PDF once and keep it on a computer, tablet, or phone, and print the exact pages you need at the bench.
What's Inside This Kubota M95X, M105X, M125X Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-10 | Safety First, Before Servicing and Repairing, Safety Starting, Safety Working, Avoid Fires, Safety Decals |
| Traveling Speeds | 12 | - |
| Dimensions | 13 | - |
| General | 14-98 | Contents (Tractor Identification, Handling Precautions for Electrical Parts and Wiring, Lubricants Fuel and Coolant, Tightening Torques, Maintenance, Check and Maintenance, Special Tools, Tires, Implement Limitations) |
| Engine | 99-236 | Cylinder Block, Piston, Oil Cooler, Thermostat, Fuel Injection Pump, Intake Air Heater |
| Clutch | 237-270 | Master Clutch, Clutch Safety Valve, PTO Clutch, Damper Disc, Clutch Pedal Control, Machine Speed Check Control |
| Transmission | 271-334 | Power Shift System, Hydraulic Control System, Auto Speed Control, Differential Gear, Main Shift Clutch, 4WD/Bi-Speed Clutch |
| Rear Axle | 335-345 | Planetary Gear, Internal Gear, Rear Axle Case, Planetary Gear Shaft, Planetary Gear Thrust Collar |
| Brakes | 346-362 | Brake Pedal, Master Cylinder, Equalizer, Brake Case, Parking Brake, Brake Disc |
| Front Axle | 363-397 | - |
| Steering | 398-406 | Steering Mechanism, Steering Controller, Steering Cylinder, Knuckle Arm, Power Steering Hoses, Front Differential Lock Hose |
| Hydraulic System | 407-464 | Hydraulic Circuit, PTO Clutch Valve, Regulator Valve, Power Shift Valve, Clutch Safety Valve, Three Point Hitch System, 8. 3-Point Hitch Control System |
| Electrical System | 465-597 | Electrical Circuit Detailed Chart, Power Shift Control, Digital LCD Monitor, 4. 3-Point Hitch Control, Starting System, Meter Panel, Opc (Operator Presence Control) |
| Cabin | 598-648 | Air Conditioning System, Precautions at Repairing Refrigerant Cycle, Checking and Charging Refrigerant Cycle |
| Wiring Diagram M105X for Usa | 649 | - |
| Wiring Diagram M125X for Usa | 650 | - |
| Wiring Diagram M95X for Canada | 651 | - |

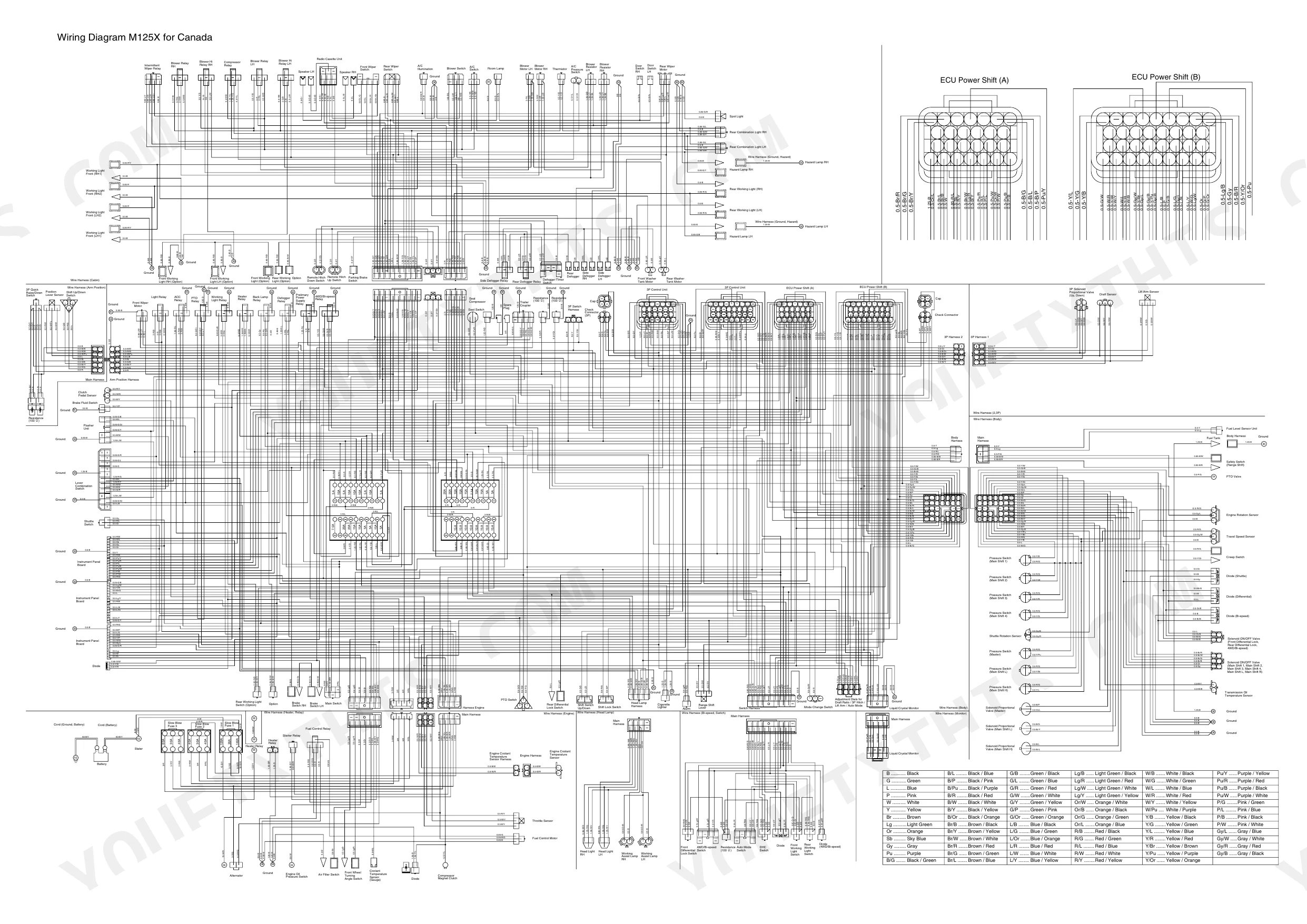

| Wiring Harness M105X (Canada) | 652 | Main Harness, Engine Harness, Cabin Harness, Arm Position Harness, Head Lamp Harness, Bi-Speed Switch Harness |

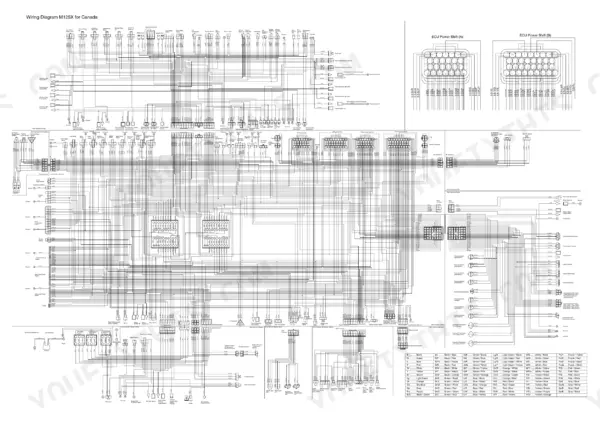

| Wiring Diagram M125X for Canada | 653 | - |
| 654 | - |

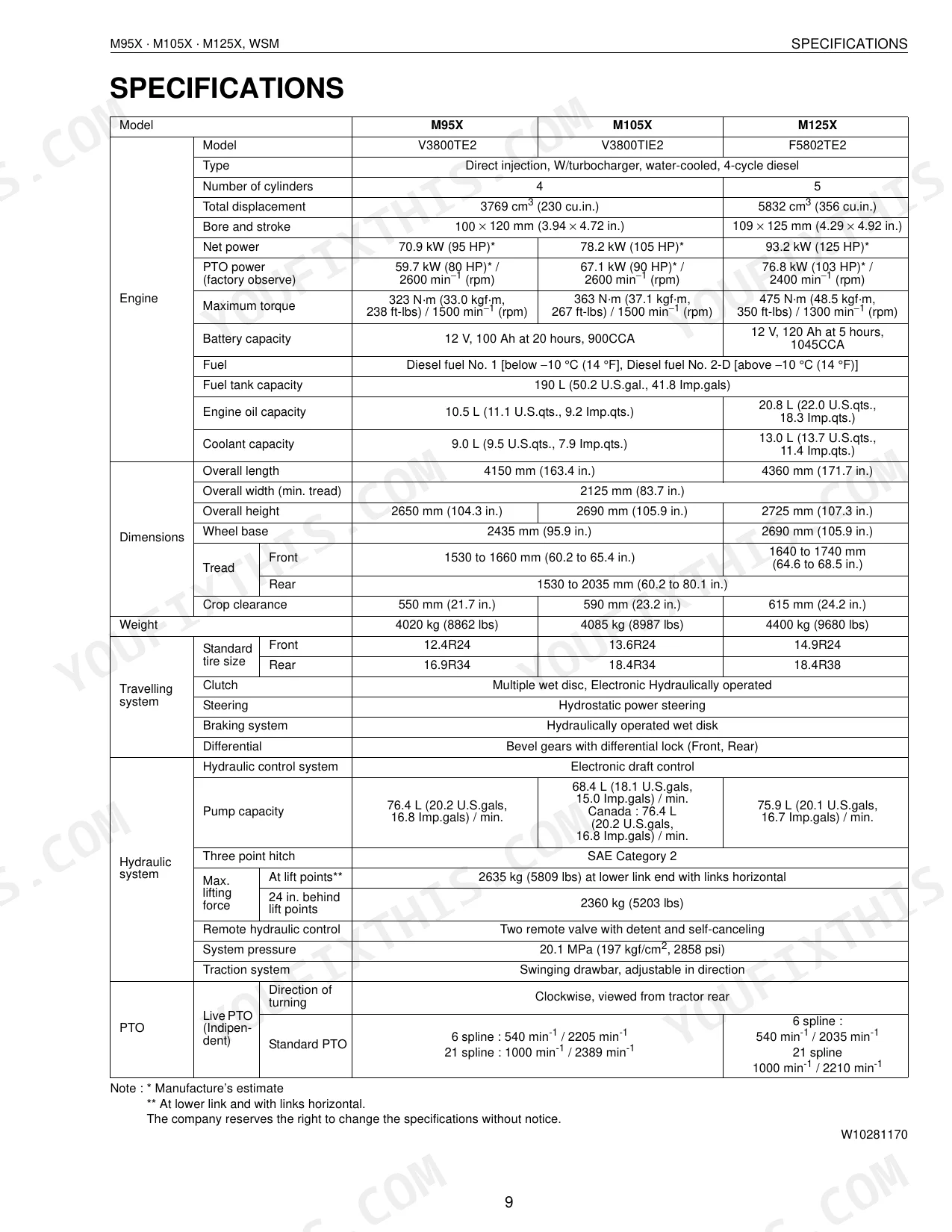

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel tank capacity | 190 L (50.2 U.S.gal., 41.8 Imp.gals) | p. 11 |
| Transmission case | 60 L (63.4 U.S.qts., 52.8 Imp.qts.) | p. 22 |
| Brake oil (reservoir and lines) | 0.3 L (0.3 U.S.qts., 0.3 Imp.qts.) | p. 22 |
| Washer liquid | 1.3 L (1.4 U.S.qts., 1.1 Imp.qts.) | p. 22 |
| M95X, M105X | ||
| Engine oil capacity (with filter) | 10.5 L (11.1 U.S.qts., 9.2 Imp.qts.) | p. 11 |
| Coolant capacity | 9.0 L (9.5 U.S.qts., 7.9 Imp.qts.) | p. 11 |
| Front differential case oil | 7.0 L (7.4 U.S.qts., 6.2 Imp.qts.) | p. 22 |
| Front axle gear case oil | 3.5 L (3.7 U.S.qts., 3.1 Imp.qts.) | p. 22 |
| M125X | ||
| Engine oil capacity (with filter) | 20.8 L (22.0 U.S.qts., 18.3 Imp.qts.) | p. 11 |
| Coolant capacity | 13.0 L (13.7 U.S.qts., 11.4 Imp.qts.) | p. 11 |
| Front differential case oil | 12.0 L (12.7 U.S.qts., 10.6 Imp.qts.) | p. 22 |
| Front axle gear case oil | 4.5 L (4.8 U.S.qts., 4.0 Imp.qts.) | p. 22 |
Kubota M95X, M105X, M125X Common Problems This Manual Covers

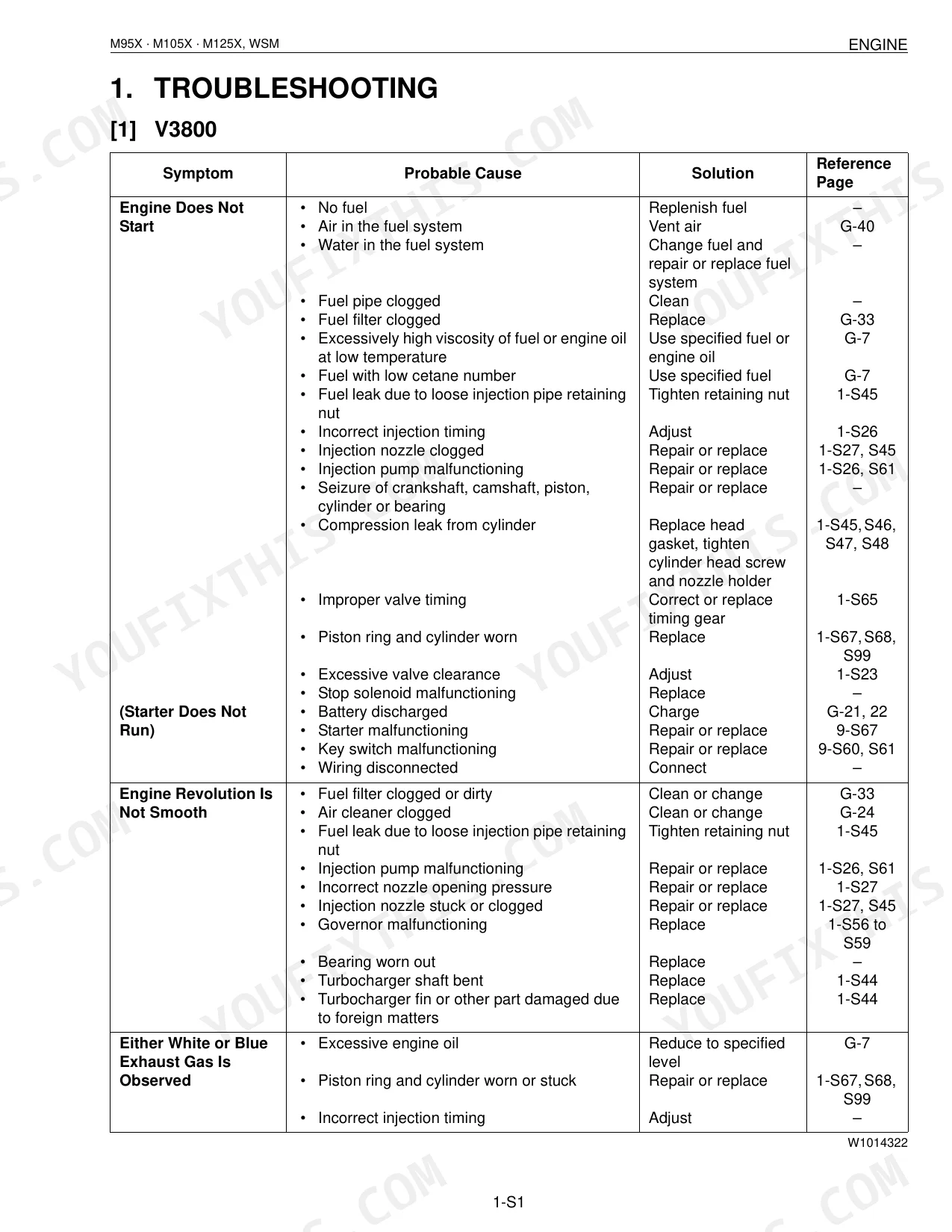

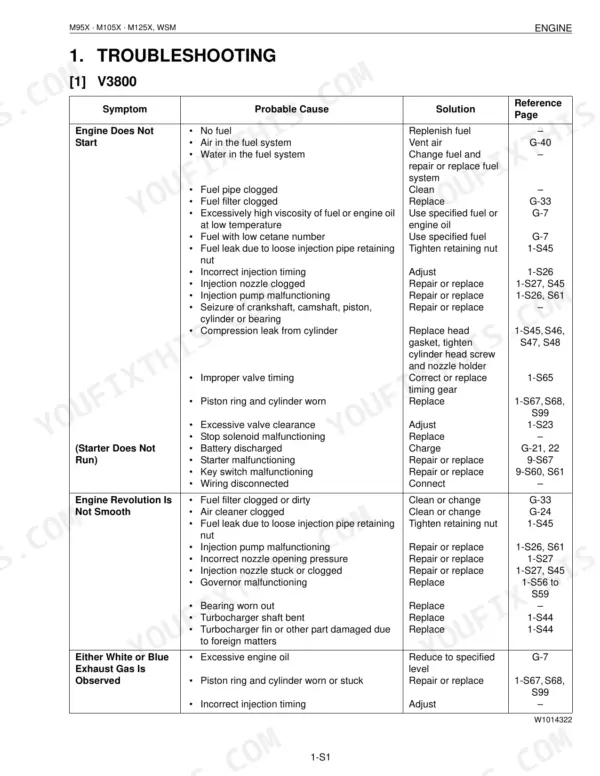

Hard starting and low power
Worn injection components, drifted valve clearance, or low compression leave these tractors hard to start and down on power. The Engine section covers the fuel injection pump, cylinder block, and servicing specifications.
Manual Section: 1 Engine p. 99Clutch slip or PTO trouble
A slipping master clutch or a PTO that will not engage points to a worn damper disc or a clutch adjustment problem. The Clutch section covers the master and PTO clutch, safety valve, and pedal control.
Manual Section: 2 Clutch p. 237Rough shifting and power shift faults
Harsh or missed shifts and auto speed control problems trace to the power shift and hydraulic control system. The Transmission section covers the power shift system, main shift clutch, and 4WD/Bi-speed clutch.
Manual Section: 3 Transmission p. 271Weak three-point hitch lift
A hitch that lifts slowly or will not hold usually means low system pressure or a worn hydraulic component. The Hydraulic System section covers the circuit and its servicing procedures.
Manual Section: 8 Hydraulic System p. 407Poor braking or brake drag
Spongy pedals, uneven braking, or a dragging brake point to the master cylinder, discs, or pedal free travel. The Brakes section covers the brake pedal, master cylinder, and disc servicing.
Manual Section: 5 Brakes p. 346Heavy or unresponsive steering
Hard steering and slow response trace to the steering controller, cylinder, or power steering hoses. The Steering section covers the steering mechanism, controller, and cylinder.
Manual Section: 7 Steering p. 398Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota M95X, M105X, and M125X tractors, with the V3800TE2, V3800TIE2, and F5802TE2 diesel engines. It is Kubota code 97897-13270.
Does it cover a full engine rebuild?

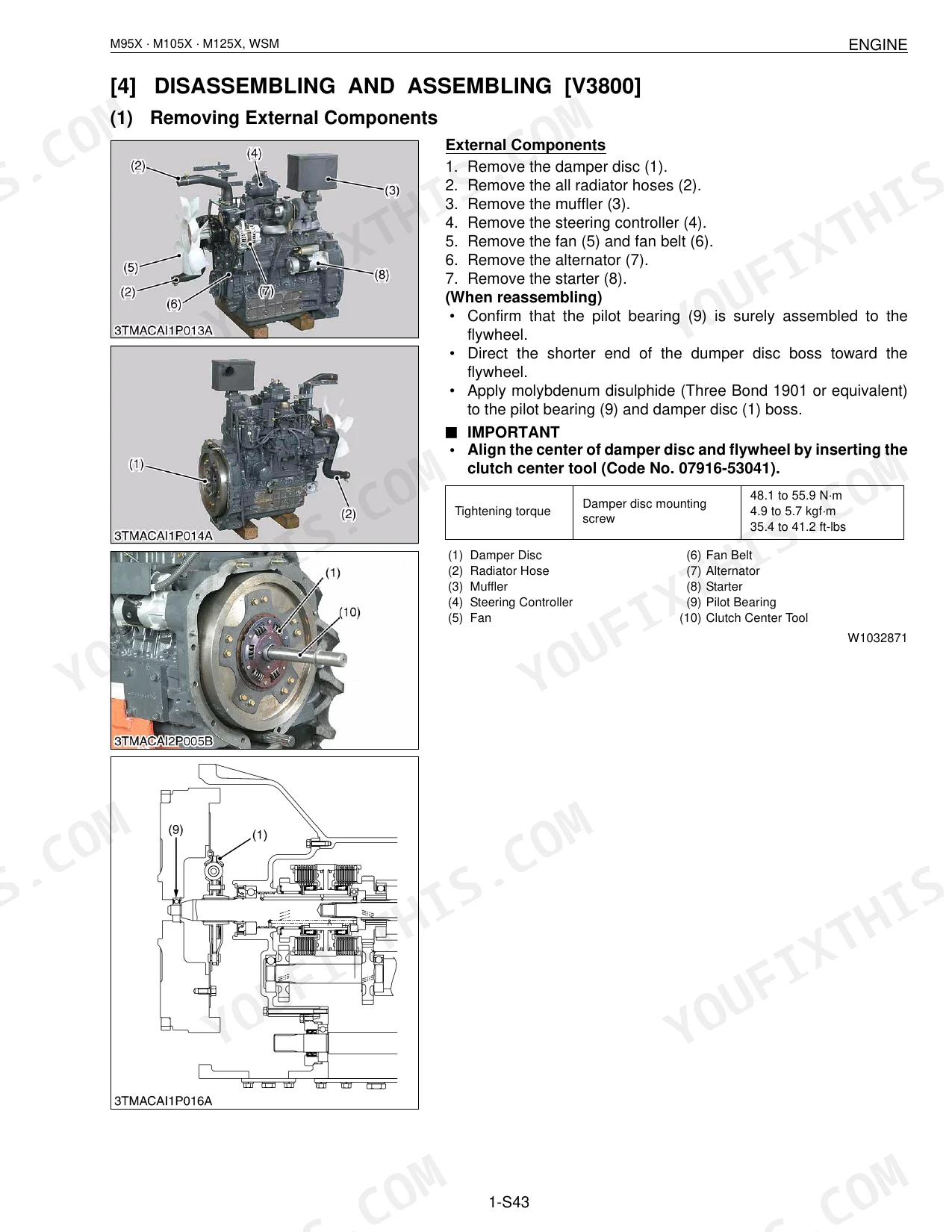

Yes. The Engine section covers the cylinder block, piston, oil cooler, thermostat, fuel injection pump, and intake air heater, with servicing specifications and torque values. p. 99
Are wiring diagrams included?
The Electrical System section covers electrical troubleshooting and checks, and model-specific wiring diagrams for the USA and Canada are included toward the back of the manual. p. 465
Is this the complete factory manual?
Yes. It is the full 654 page factory Service Manual in English, covering engine, clutch, transmission, axles, brakes, steering, hydraulics, electrical, and cabin.
How will I receive this Service Manual?
Instant PDF download. The full 654-page searchable Service Manual is available immediately after payment, ready to open on a laptop, tablet, or phone right in the shop.
Can I print specific sections of this Service Manual?
Yes. Print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.

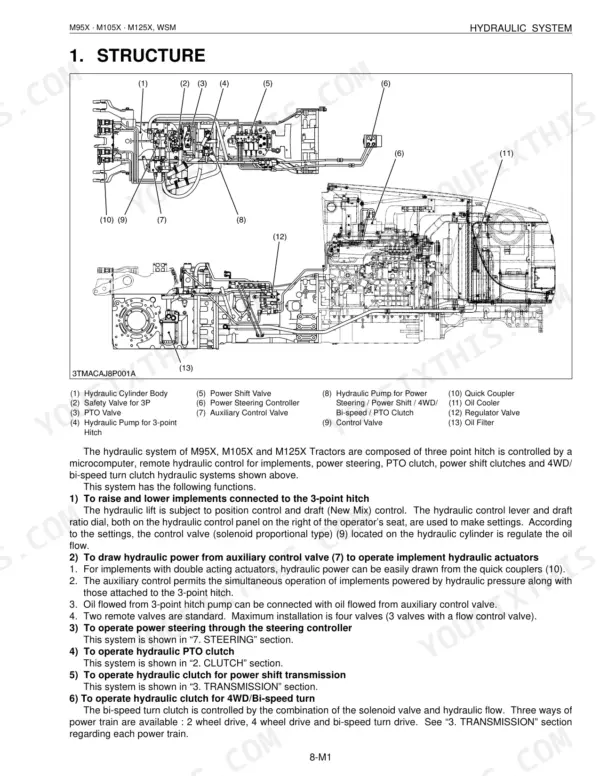

Does this Kubota M95X manual show the hydraulic circuits?

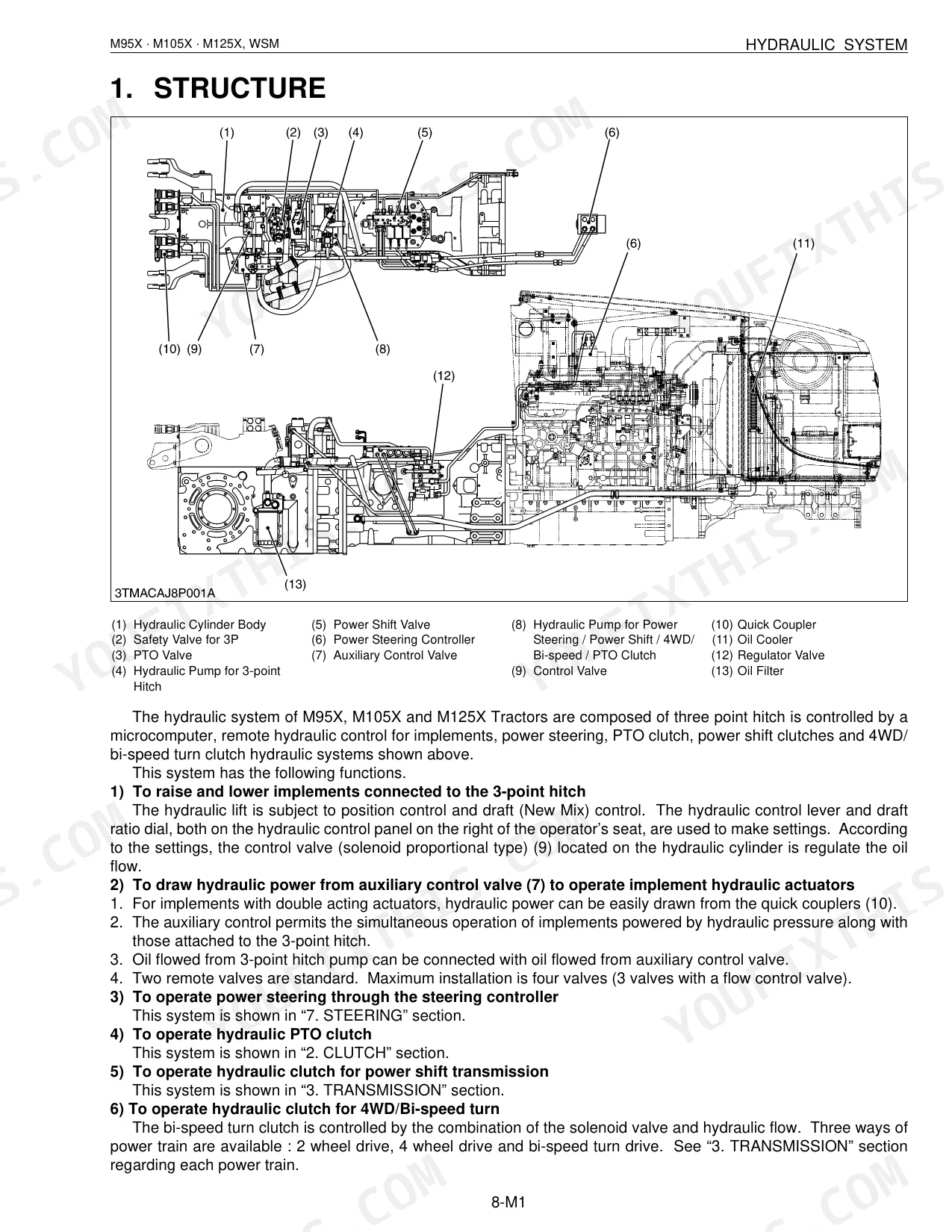

Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
