Setting rear wheel tread for singles, duals or triples is one of the jobs this 473-page New Holland Operator's Manual (OEM ID 87612879) walks through for the five-model T8010 through T8050 tractor range. As a New Holland T8040 operator manual PDF, it also covers PTO, three-point hitch and drawbar setup, remote hydraulics, Zuidberg front hitch use and loader operation. The instrumentation chapter explains programming the cluster display and Operator Adjust menu and reading each warning/fault display, while the Lubrication/Maintenance Chart sets out the service points. Capacities are listed per system. Fill the transmission/hydraulic system to 172 L; engine oil takes 21 L with a filter change. If your tractor shows power hop or wheel slip, the In-Field Performance chapter covers both next to ballasting and tire combinations for FWD tractors. Bookmarked and text-searchable, the pages also print cleanly, so the Lubrication/Maintenance Chart can serve as your working copy during each service.
What's Inside This New Holland T8010–T8050 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| New Holland T8010, 8020, 8030, 8040, 8050 Operator's Manual | 1 | |
| California Proposition 65 Warning | 2-3 | Diesel Engine Exhaust, Cancer, Birth Defects, Reproductive Harm, Battery Posts, Lead Compounds |
| 1 – to the Owner | 8-16 | Statement of Tractor Intended Use, Operator Manual Storage Compartment, Transport Towed Equipment at Safe Speeds, Product Identification and Serial Numbers, Machine Components |
| Safety/Decals | 17-36 | Safety Rules, Personal Safety, Instructional Seat Safety, Maintenance Safety, Fire Safety, Battery Safety, Machine Operation and Roll-Over Safety, Hazardous Chemicals |

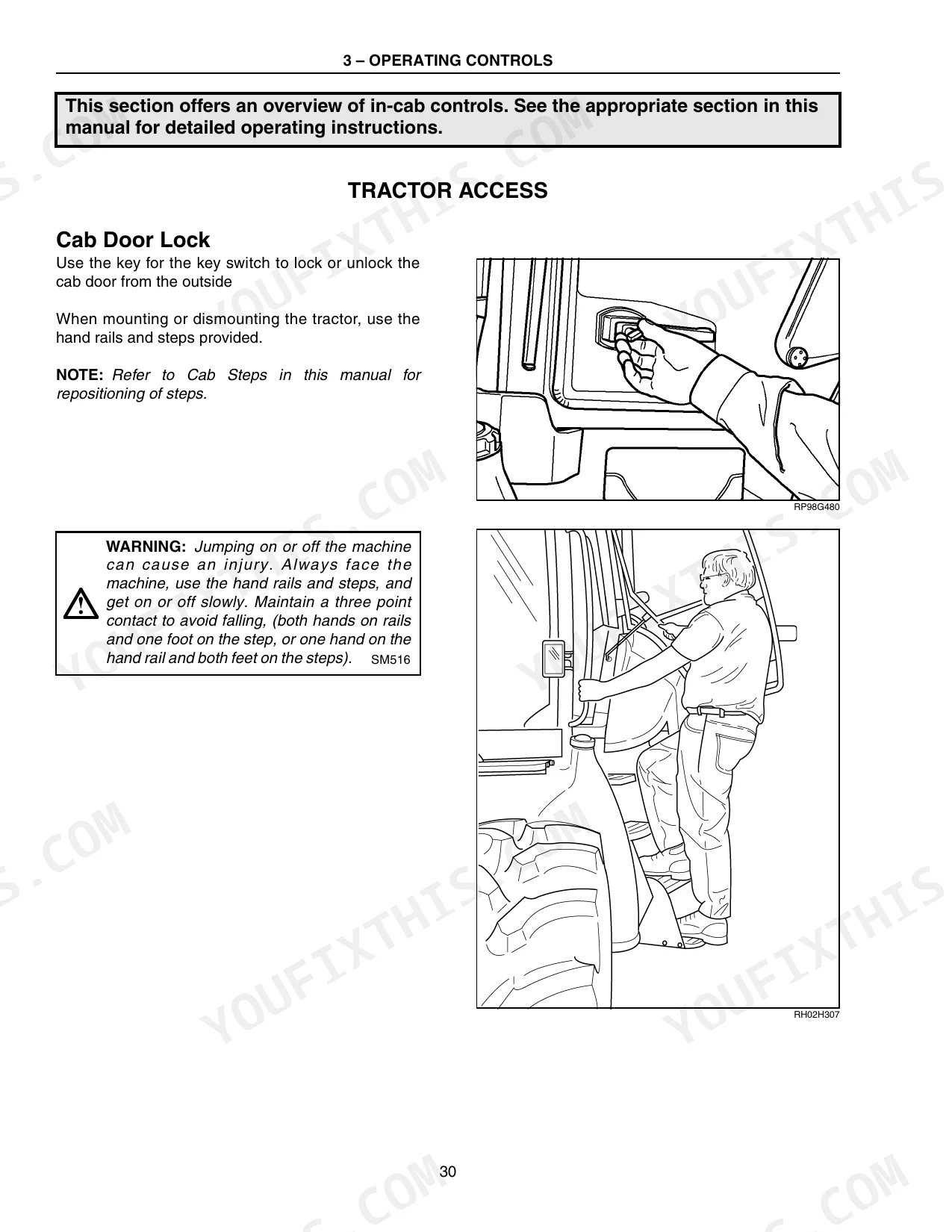

| Operating Controls | 37-71 | Tractor Access, Operator Seat and Controls, Instructional Seat, Steering Column Controls, Foot Pedals, Center Console Controls, Right Hand Console Controls |
| Instrumentation | 72-114 | Instrumentation Cluster Overview, Programming the Instrumentation Display, Programming the Operator Adjust Menu, Warning/Fault Displays, Instrumentation Cluster Operation |

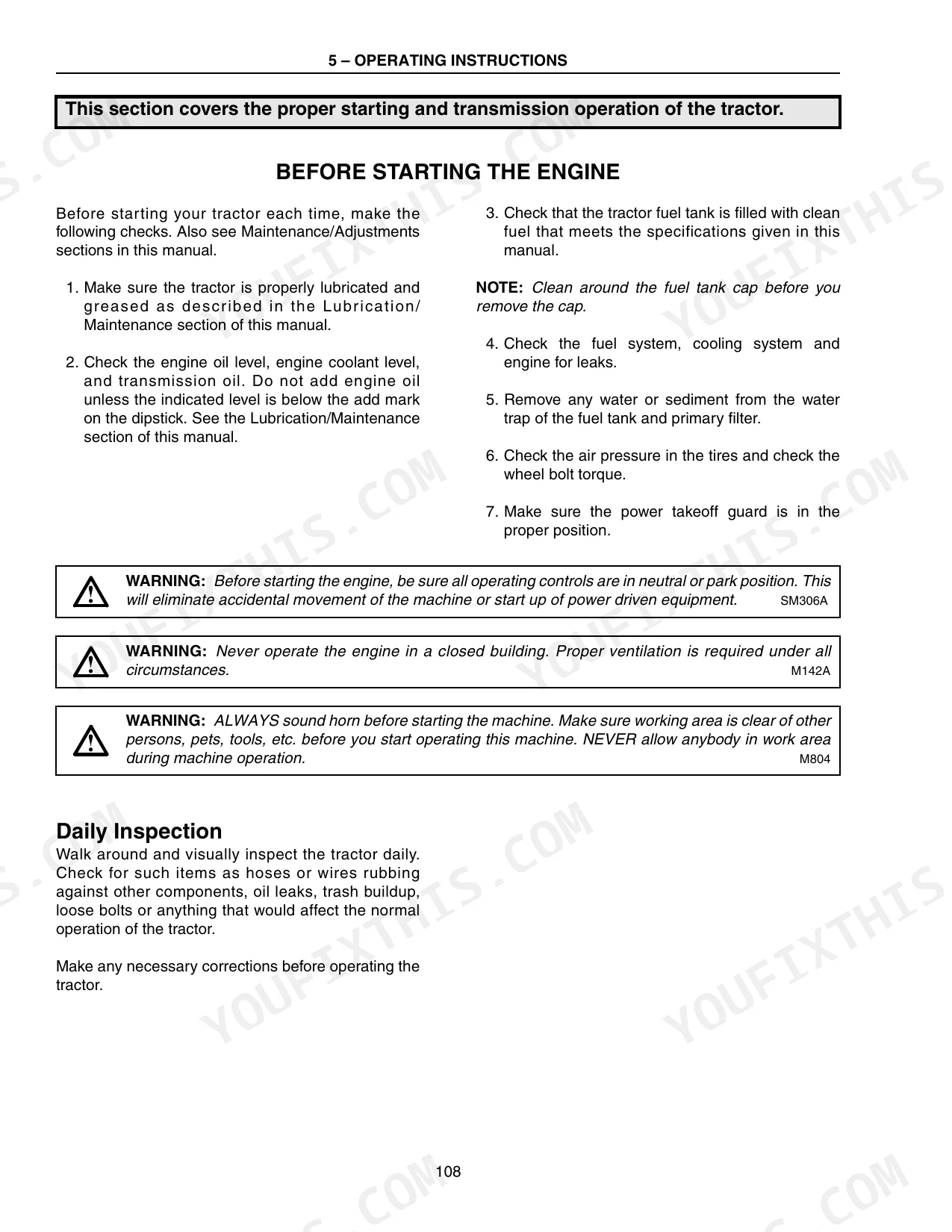

| Operating Instructions | 115-156 | Before Starting the Engine, Service Indicator Lamps and Bar Graph Displays, Seat Belts, Normal Engine Starting Procedure, Stopping the Engine, Cold Temperature Operation |
| Field Operation | 157-253 | Power Takeoff, Three Point Hitch, Hitch Operation, Drawbar Preparation, Zuidberg Front Hitch, Remote Hydraulics, Loader Operation, Chemical Tank Mounting |
| In-Field Performance | 254-354 | Differential Lock, FWD Operation, Ballasting Your Tractor for Optimum Performance, Wheel Slip, Power Hop, Tire Combinations for FWD Tractors, Steering and Oscillation Stops |

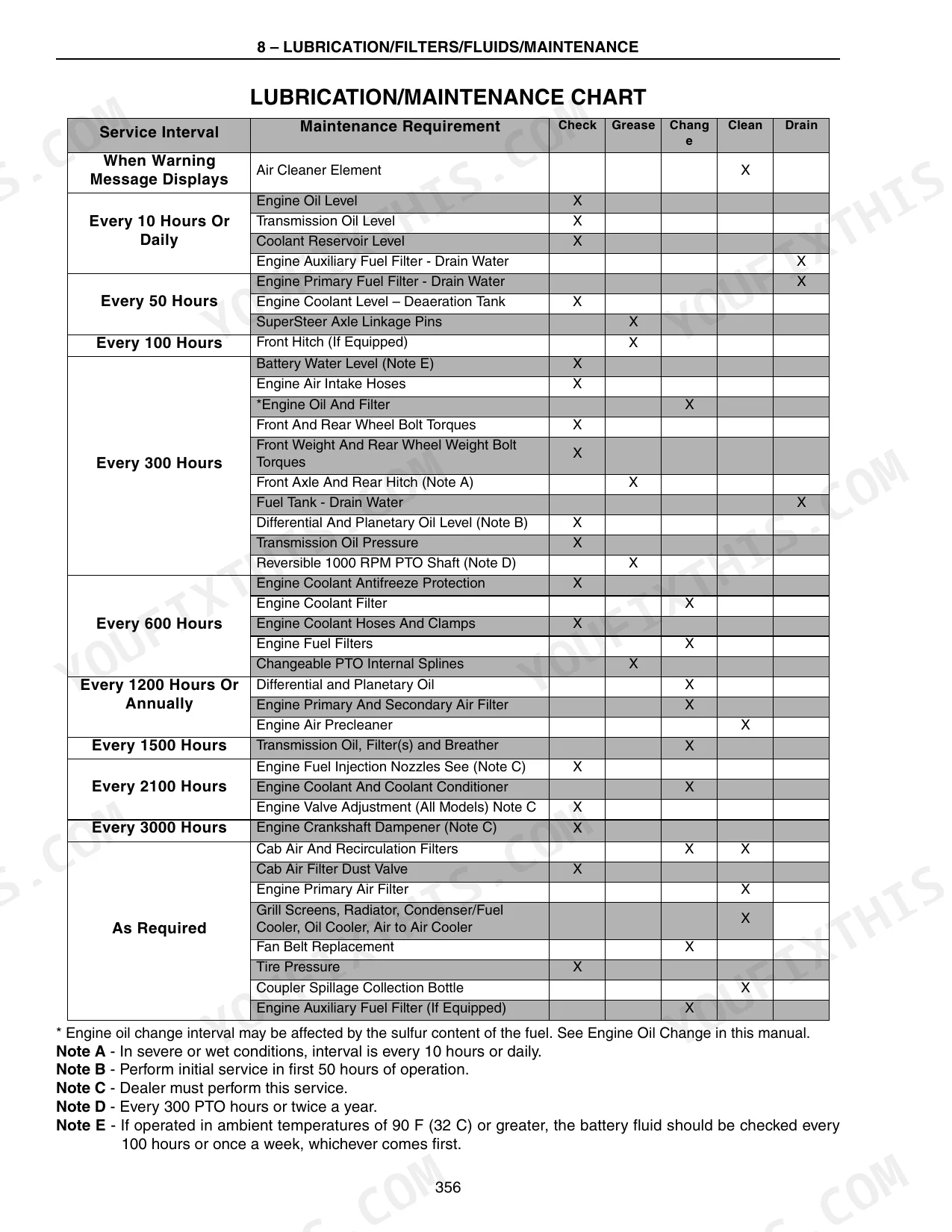

| Lubrication/Filters/Fluids/ Maintenance | 355-416 | Environment, Plastic Parts, Tool Box, System Capacities, Lubrication Chart, Engine Oil |
| Electrical System | 417-440 | Specifications, Radio Regional Programming, Battery System Servicing, Bulb and Lamp Replacement |

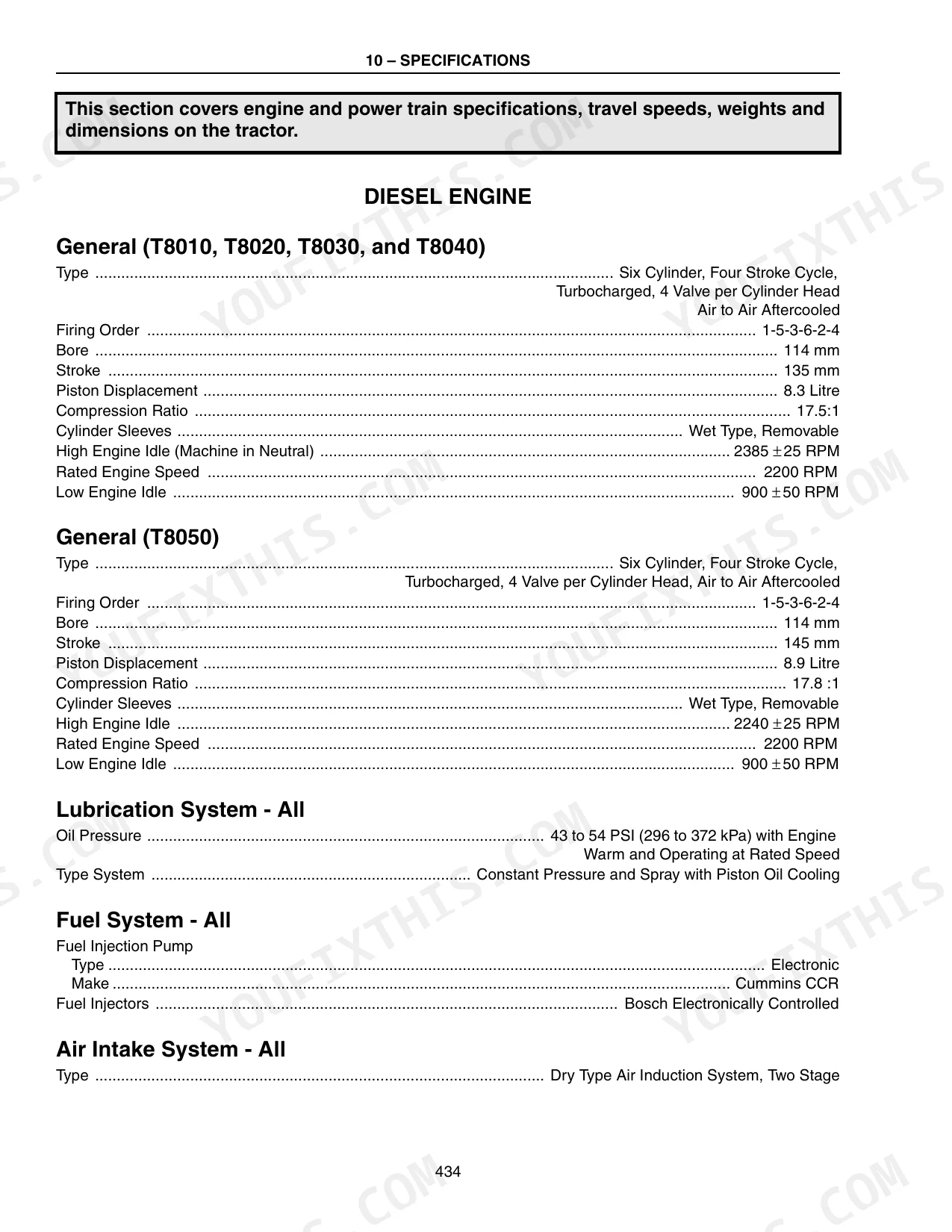

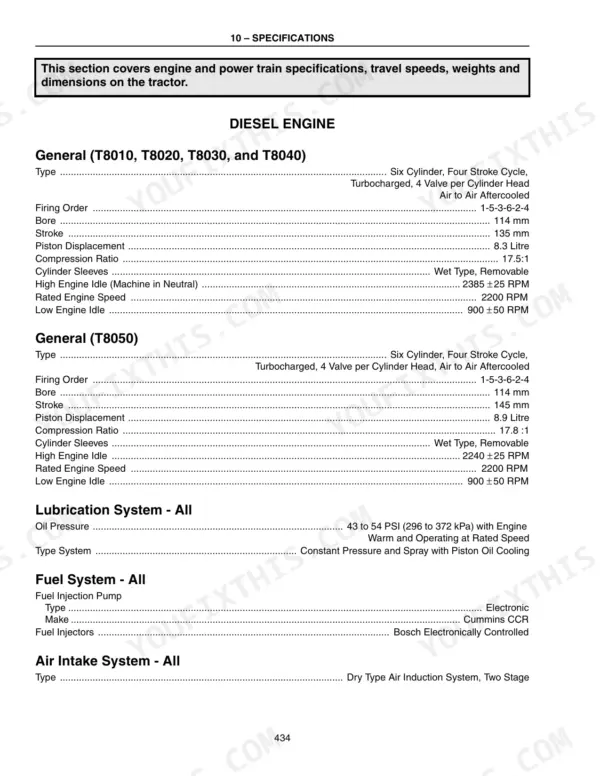

| Specifications | 441-459 | Diesel Engine, Power Train, Travel Speeds, Maximum Recommended Operating Weights |
| Delivery Report T8010, T8020, T8030, T8040, T8050 Tractors - Owner Copy | 466-467 | Delivery Date, Owner Information, Dealer Information, Tractor Model, Engine Serial Number, Safety Instruction Checklist |
| Delivery Report T8010, T8020, T8030, T8040, T8050 Tractors - Dealer Copy | 468-469 | Delivery Date, Owner Information, Dealer Information, Tractor Model, Engine Serial Number, Safety Instruction Checklist |
| First 50-Hour Service | 470-473 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Capacity (With Filter Change) | 21L | p. 356 |
| Cooling System Capacity | 26.5L | p. 356 |
| Fuel Tank Capacity | 674L | p. 356 |
| Transmission/Hydraulic System Capacity | 172L | p. 356 |
| Rear Wheel Weight Bolt Torque (Grade 10.9, 16 mm bolts) | 175 to 225 Nm | p. 283 |
| Rear Axle Duals Bushing Bolts Torque | 300-350 Nm | p. 338 |
| Rear Axle Duals Hub Bolts Torque | 530-570 Nm | p. 338 |
| Front Wheel Mounting Torque (10 Bolt Wheel, Disc to Front Axle Hub Nuts) | 385 TO 425 Nm | p. 301 |
| Front Wheel Mounting Torque (12 Bolt Wheel, Disc to Front Axle Hub Nuts) | 385 TO 425 Nm | p. 301 |
| Transmission Oil Change Drain Plug Torque (Range Housing) | 340 to 360 Nm | p. 190 |
| Drawbar Pivot Bolt Torque | 125 to 150 Nm | p. 216 |
| Cat III Drawbar Mounting Bolts Torque | 485 to 620 Nm | p. 218 |
New Holland T8010–T8050 Series Common Problems This Manual Covers
New Holland T8010 through T8050 red stop light flashing with ENGINE OIL PRESSURE VERY LOW on display
Shut the engine off immediately and check the oil level, as the Level 1 chart on page 90 directs, then look for other causes. RESET will not clear this warning. Performance clusters shut the engine down 30 seconds after detection. Cycle the key only if the tractor must be moved, because damage can occur. An oil and filter change takes 21L (page 356).
Manual Section: Warning/Fault Displays (Level 1 - Critical) p. 90Coolant gauge light flashing with ENGINE COOLANT TEMP VERY HIGH warning and audible alarm
Shut the engine off immediately, then check coolant level and inspect the radiator for blockage following the Level 1 chart on page 90. If the ENGINE COOLANT TEMP HIGH message appears instead, check coolant level and the air cooler for blockage per page 93, and contact your dealer if it persists. Cooling system capacity is 26.5L (page 356).
Manual Section: Warning/Fault Displays (Level 1 - Critical) p. 90Amber light flashing then staying on with TRANSMISSION CONTROLLER OFF LINE message in display
Check fuses #32, #43 and #44 and replace any that are blown, per the Level 2 chart on page 91. This message means the transmission controller is not communicating over the data bus. Pressing RESET clears the text for 10 minutes, but the amber light stays on with the engine running until the fault is corrected. If the condition persists, contact your dealer.
Manual Section: Warning/Fault Displays (Level 2 - Non-Critical) p. 91BATTERY VOLTAGE LOW warning on display with battery voltage dropping below 11 volts
Check the alternator belt, check battery water level, then test the battery as the Level 3 chart on page 94 lists. Treat every exposed metal part on the batteries as live and never lay a metal object across the terminals (page 425). If VOLTAGE VERY LOW appears, bring the tractor to a complete stop and turn the engine off before checking anything.
Manual Section: Warning/Fault Displays (Level 3 - Service Soon) p. 94WATER IN FUEL warning on the programmable display with amber light and audible alarm
Drain the fuel tank until the fuel runs clear, then drain the water from the fuel filter, following the Level 2 chart on page 93. If the FUEL FILTER BLOCKED message shows up afterward, change the fuel filter at the earliest convenience as the Level 4 chart on page 95 directs.
Manual Section: Warning/Fault Displays (Level 2 - Non-Critical) p. 93Ground speed shown on Performance Instrumentation Cluster does not match GPS indicated speed
Run the Radar Cal automatic mode following page 83: lay out a level, straight 60 meter (197 ft) course, then cross it at a steady 4 mph (6.4 km/h) or faster, pressing INCR at the start line and DECR at the finish. If it shows *FAILED*, repeat it, or use manual mode, where raising the 27.47 default lowers displayed speed.
Manual Section: Radar Sensor Calibration p. 83Frequently Asked Questions
How do I reset fault codes on a New Holland T8010, T8020, T8030, T8040, or T8050?
To reset warning faults, use the RESET key on the keypad. Pressing the RESET key will clear the warning text for 10 minutes, but the amber warning light will remain on if the engine is running until the fault is corrected. p. 76
What are the replacement specifications for engine oil and fuel filters on the New Holland T8010–T8050 Series?
The engine oil filter should be changed every 300 hours. The engine fuel filters should be changed every 600 hours. Always use New Holland approved filters. p. 363
What are the replacement specs for New Holland T8010–T8050 Series transmission and hydraulic suction/return filters?
The transmission oil, filters, and breather should be changed every 1500 hours. The main transmission filter should be changed at this interval as well. p. 363
What is the correct torque for the rear axle hub bolts on the New Holland T8010–T8050 Series?
The torque for the 10 hub bolts on the rear axle is 530-570 Nm (390-420 lb. ft.). p. 337
What is the procedure for changing the engine oil and filter?
Drain the oil using the oil pan drain plug (1) located on the left side of the frame. Remove the oil filter with a strap wrench, apply clean oil to the new filter gasket, and tighten the filter 1/2 to 3/4 of a turn by hand after the gasket makes contact. p. 375
Do I get instant access to this New Holland T8010–T8050 Series Operator Manual?
Immediate download of the complete 473-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print just the pages I need from this New Holland manual?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
