Before you climb into the cab of your compact excavator, grab this 224-page JCB 16C-1, 18Z-1 Operator Manual (OEM #9831/5417) to master every daily service check. You get complete walk-around inspection routines, detailed dashboard indicator breakdowns, and exact maintenance intervals designed to keep your machine out of the shop. Open up the guide to find step-by-step operating procedures covering everything from basic control pattern selection to safe transport tie-down methods. Verify the 20.5-liter fuel tank is topped off and confirm your track plate bolts are locked down at exactly 22 N·m before heading to the job site. Stop relying on guesswork to run your heavy equipment. Download this bookmarked document, pull it up on your tablet, and get to work.

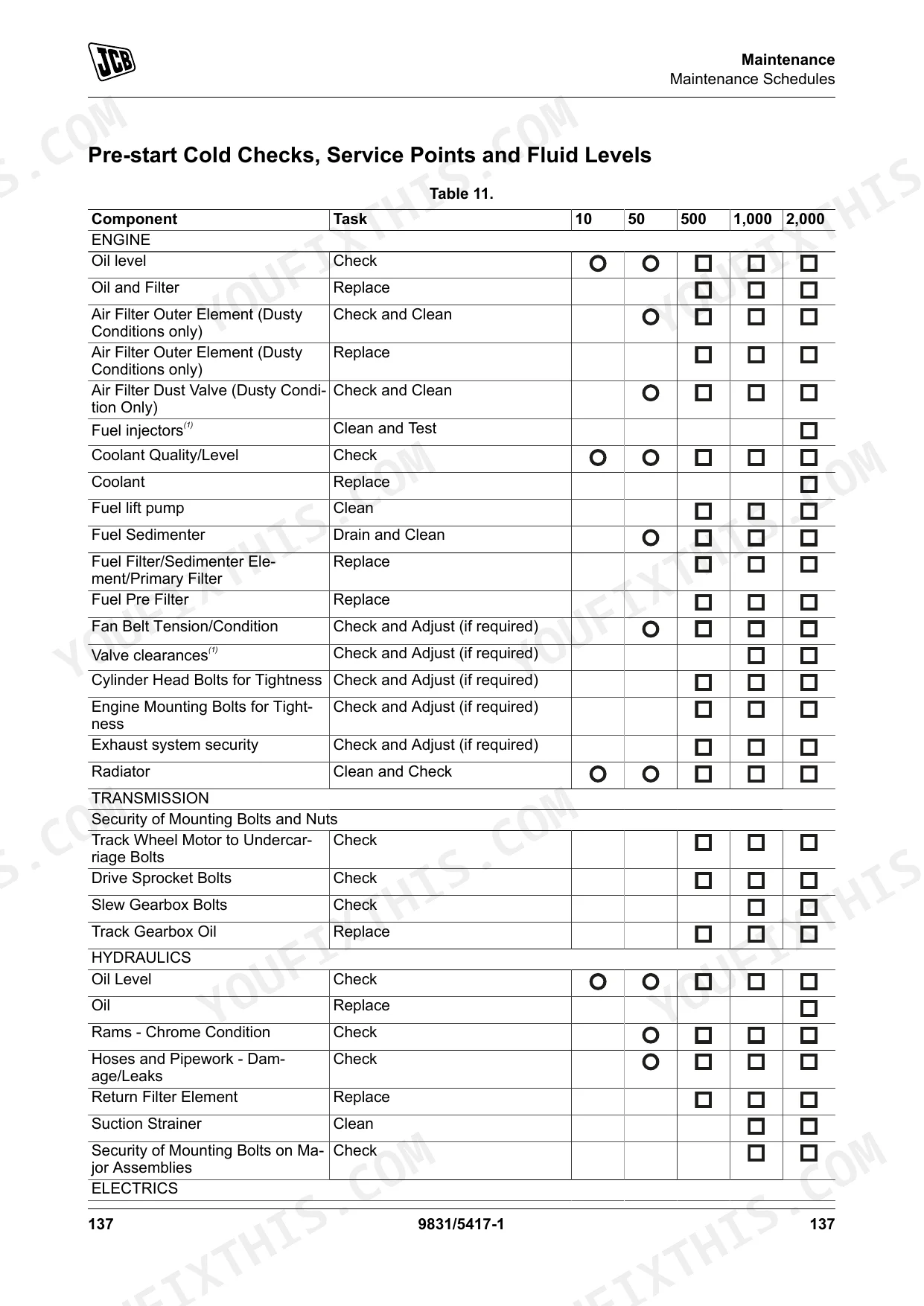

What's Inside This JCB 16C-1, 18Z-1, 19C-1 Operator Manual

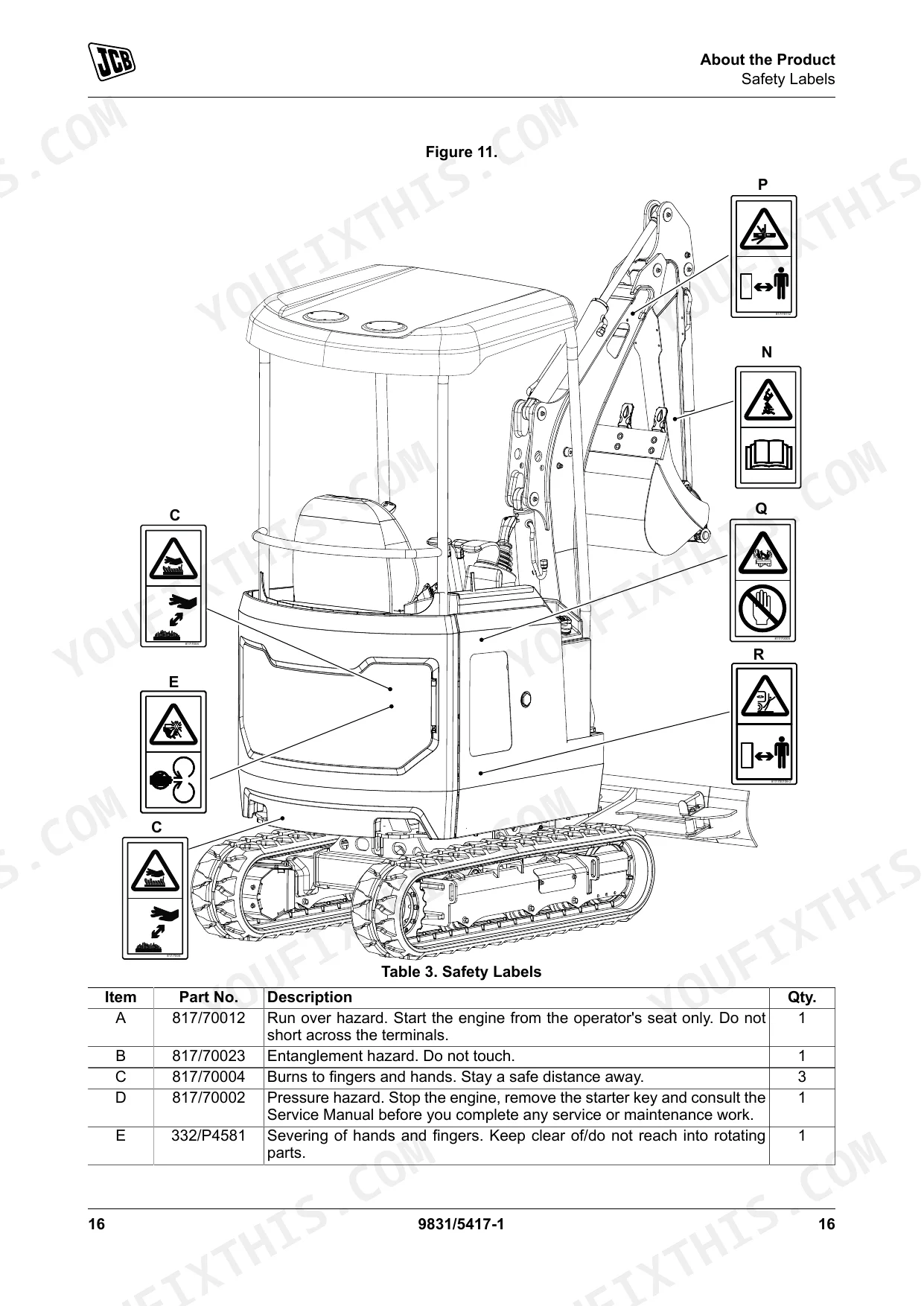

| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | Controller Area Network, Diesel Exhaust Fluid, Engine Control Module, Electronic Control Unit, Exhaust Gas Recirculation, Falling Object Protective Structure |
| Introduction | 13-14 | General |
| Safety | 15-18 | Safety - Yours and Others, Safety Warnings, Clothing and Personal Protective Equipment |
| About the Product | 19-38 | Description (General, Intended Use, Log Moving/Object Handling, Optional Equipment and Attachments, Danger Zone, Main Component Locations) |
| Operation | 39-224 | Operating Safety (General, Worksite Safety, Risk Assessment), Walk-Around Inspection (General), Entering and Leaving the Operator Station (General, Emergency Exit) |

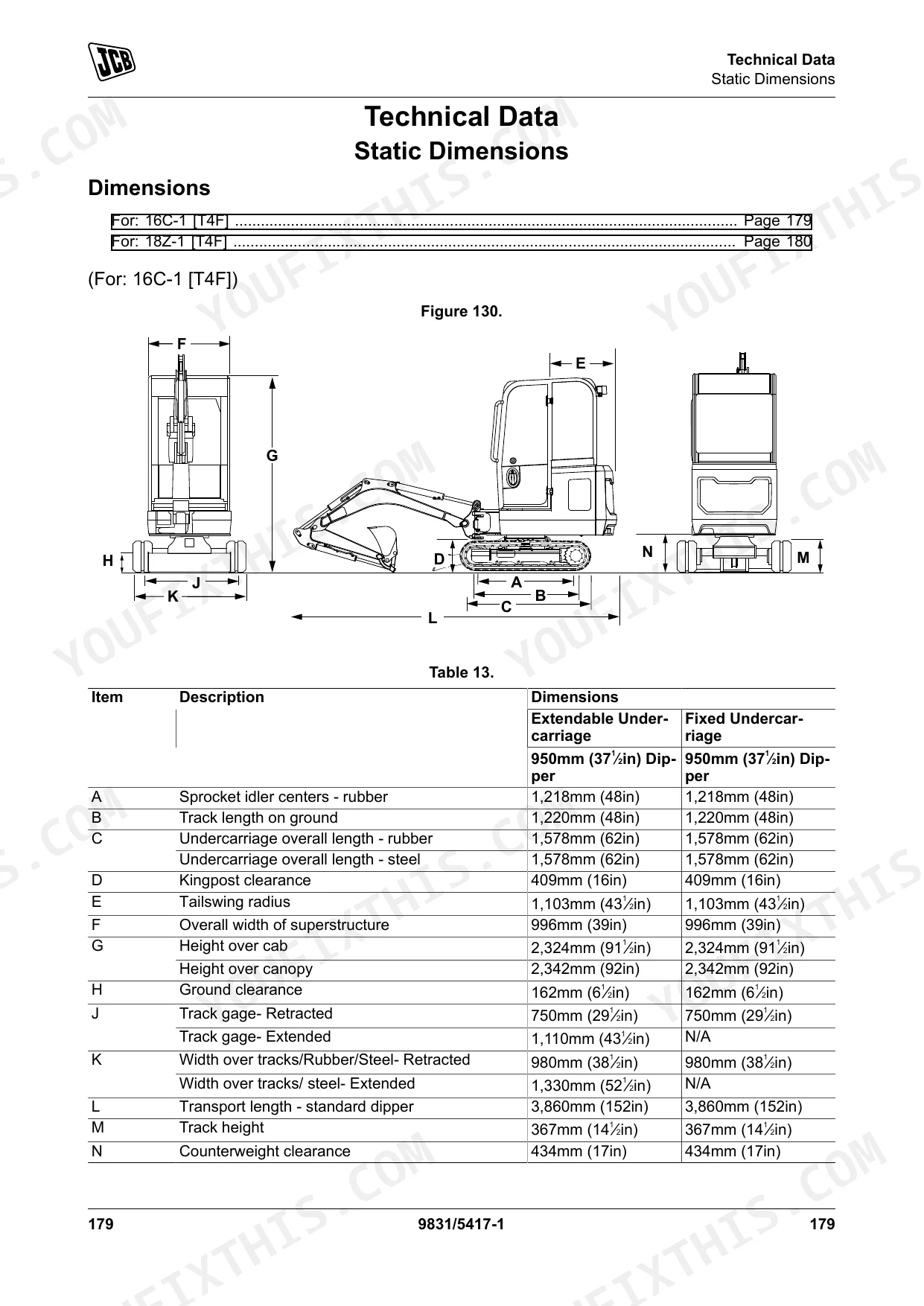

Quick Reference Specifications

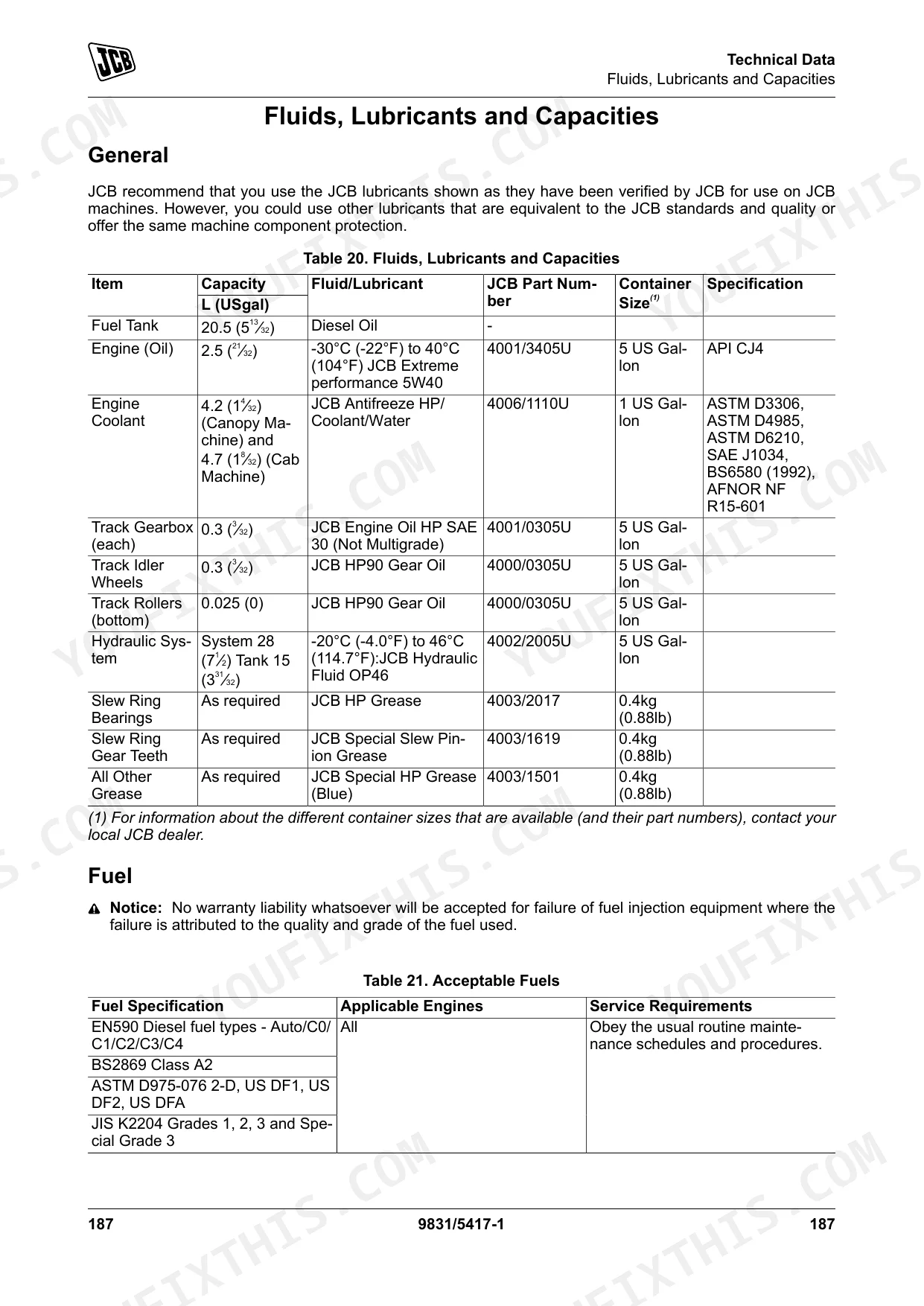

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Track plate bolts torque | 22 N·m (16.2 lb.ft) | p. 203 |
| Track tensioner cover plate bolts torque | 22 N·m (16.2 lb.ft) | p. 203 |
| Fuel Tank Capacity | 20.5 L | p. 199 |
| Engine Oil Capacity | 2.5 L | p. 199 |
| Hydraulic System Capacity (System) | 28 L | p. 199 |
| System voltage | 12 V | p. 204 |
| Engine Rating | 14.7 kW | p. 210 |
| Auxiliary Hydraulic Pressure | 200 bar | p. 211 |
| 16C-1 [T4F] | ||
| Horn fuse rating | 5 A | p. 205 |
| Buzzer alarm fuse rating | 3 A | p. 205 |
| Canopy Machine | ||
| Engine Coolant Capacity | 4.2 L | p. 199 |
| 16C-1, 18Z-1 | ||
| Auxiliary Hydraulic Flow | 27 L/min | p. 211 |
JCB 16C-1, 18Z-1, 19C-1 Common Problems This Manual Covers

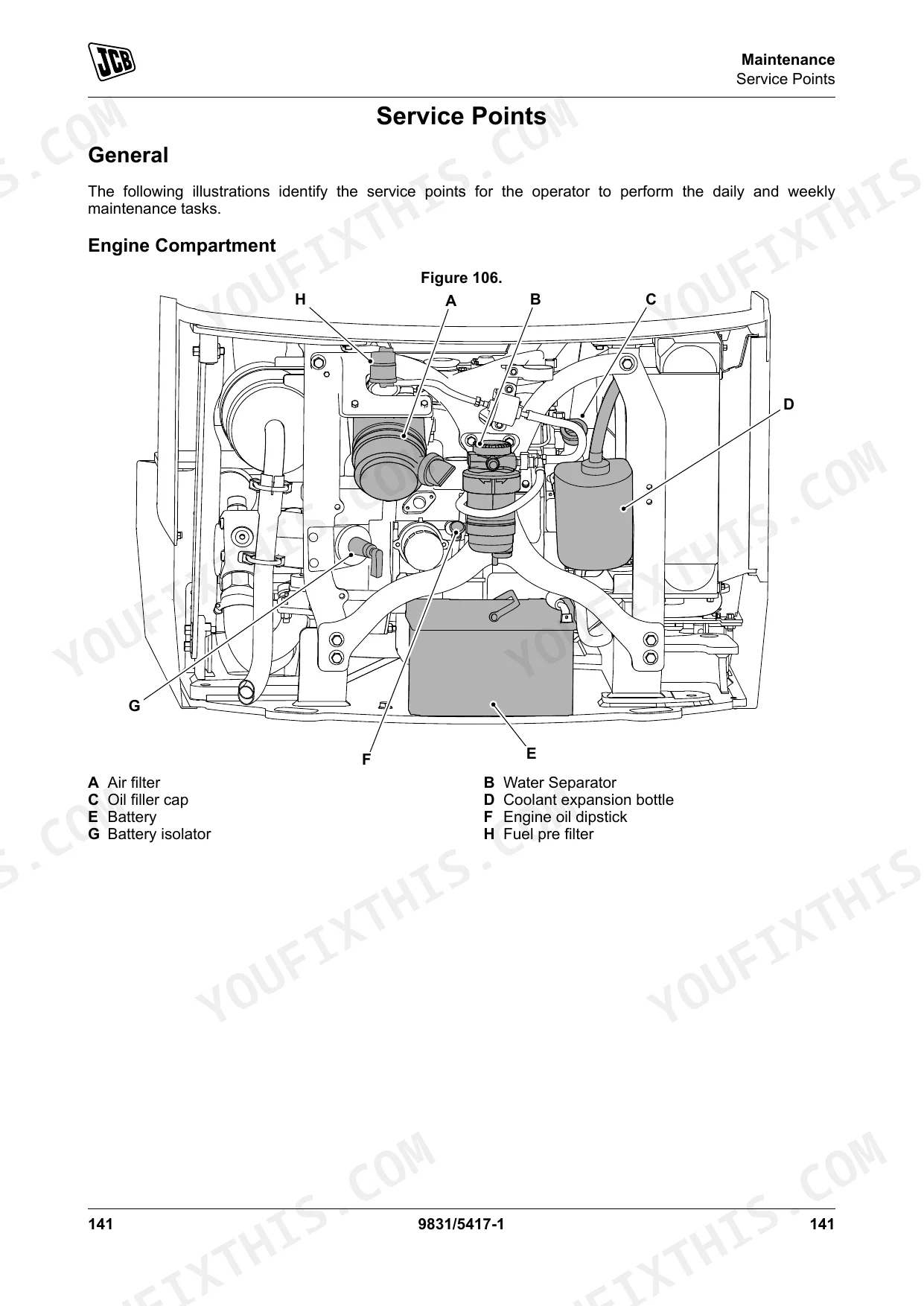

JCB 16C-1 engine will not start or turn over when turning the ignition key in cold weather.
Inspect the walk-around checklist. Verify the battery isolator switch is engaged and the system voltage reads 12 V. Follow the correct startup sequence and ensure the immobilizer is completely disarmed before attempting to crank the engine.
Manual Section: OperationExcavator arm and auxiliary hydraulics will not activate after lifting and returning the left-hand control pod. p. 39
Check the operating instructions on page 39. Re-select the 2-GO system button after lowering the left-hand pod to restore full function. Verify the auxiliary hydraulic flow is set correctly for your specific attachment, up to 27 L/min for 18Z-1 models.
Manual Section: OperationElectrical horn and travel buzzer alarms fail to operate during the daily pre-start machine inspection. p. 205
Inspect the fuse panel for blown circuits. On 16C-1 [T4F] models, replace the horn fuse with a new 5 A fuse as specified on page 205. Test the travel buzzer alarm and examine the wiring harness for chafing, missing insulation, or loose ground connections.
Manual Section: OperationHigh engine temperature warning light illuminates on the dashboard display during heavy digging operations. p. 199
Clean the hydraulic cooling pack and radiator fins to remove heavy dirt buildup. Check the fluid capacities on page 199 and top up the engine coolant to the maximum mark, ensuring the system does not exceed the 4.2 L total capacity for canopy machines.
Manual Section: OperationFrequently Asked Questions
How do I reset the JCB 16C-1/18Z-1 immobilizer or 2GO system?
The manual does not describe a general 'reset' procedure for the immobilizer system or a '2GO system'. However, it provides instructions for disarming the immobilizer by entering a four-digit PIN code (for keypad systems) or by using an ignition key (for unique key systems). To disarm the immobilizer with a keypad, turn the ignition key to position 1, enter your four-digit PIN code, and push the 'ENT' button. For unique key systems, simply put the ignition key in the ignition switch and start the engine. The immobilizer arms automatically after two minutes when the engine is stopped and the ignition key is removed.
What do the warning lights or fault codes mean on a JCB 1-2 tonne mini excavator?
The manual provides a table explaining the meaning of various warning and indicator lamps. For example, an illuminated red light for 'Engine oil pressure' indicates that oil pressure is too low, and if it remains on after starting, the engine should be stopped immediately. A red light for 'Battery charging condition' with a buzzer indicates the battery is not charging. An amber light for 'Master warning' suggests contacting the JCB dealer, while a red light means stopping the machine immediately.
What are the replacement specifications for Hydraulic hoses / pipework?
When replacing hydraulic hoses, it is crucial that the replacement hoses are of the same size and standard as the original ones. If you require more information or are unsure about the correct specifications, you should contact your JCB dealer for assistance. Damaged hoses can lead to fatal accidents, so regular examination of hoses and their fixtures is essential.
What are the replacement specifications for Rams / cylinders?
The manual does not provide specific replacement specifications for rams or cylinders. Instead, it advises to extend each ram fully, one at a time, and visually examine them for score marks, dents, leaks, or similar defects. If a ram piston appears defective, you should contact your service engineer or JCB dealer for further action.
What format is this manual in?
Immediate download of the complete 224-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this JCB 16C-1, 18Z-1 Operator Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This is a native digital PDF document, ensuring high clarity. You can search and copy the full text, as it includes an OCR layer. All text is consistently crisp and easy to read, with no blurriness or fading. Diagrams and illustrations are sharp and clear, and their labels are fully readable at any zoom level. The pages are clean, free from scan artifacts, stains, or skewed content, though several blank "Notes:" pages are included for your use, along with a few blank pages at the very beginning and end.
