Looking for the exact factory operating guidelines for your heavy equipment? This 248-page JCB 411HT, 413S, 417HT Operator Manual PDF (OEM #9831/1850) details the complete maintenance schedules, cab controls, and daily inspection routines for your loader. Inside, you get full dashboard indicator breakdowns, complete attachment operation steps, and a dedicated servicing section covering every daily and weekly grease point. Packed with fluid capacity tables and technical specifications, it gives your crew the exact numbers to run the machine correctly. Swap out the fuel filter exactly at the 500-hour mark and verify the 24V system voltage before turning the key. A neglected machine is a broken machine. Grab this bookmarked download, open it on your phone, and keep your iron pushing dirt.
What's Inside This JCB 411HT, 413S, 417HT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | Auxiliary Relief Valve, Automatic Temperature Control, Crankcase Ventilation, Diesel Exhaust Fluid, Electronic Control Unit, Falling Object Protective Structure |
| Introduction | 13-18 | About This Manual, Safety |

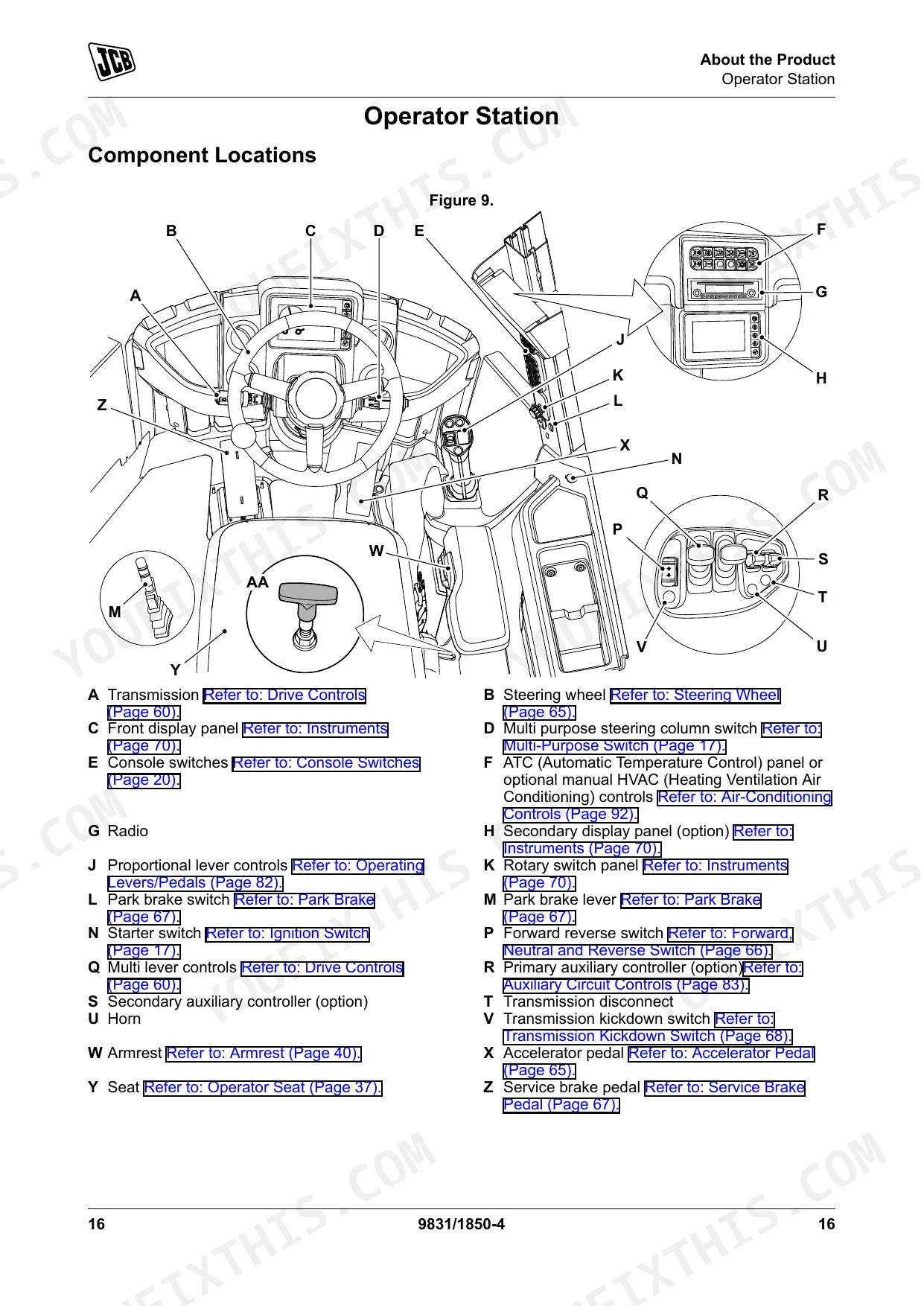

| About the Product | 19-34 | Product and Component Identification, Operator Protective Structure, Safety Labels, Operator Station, Interior Switches, Console Switches |

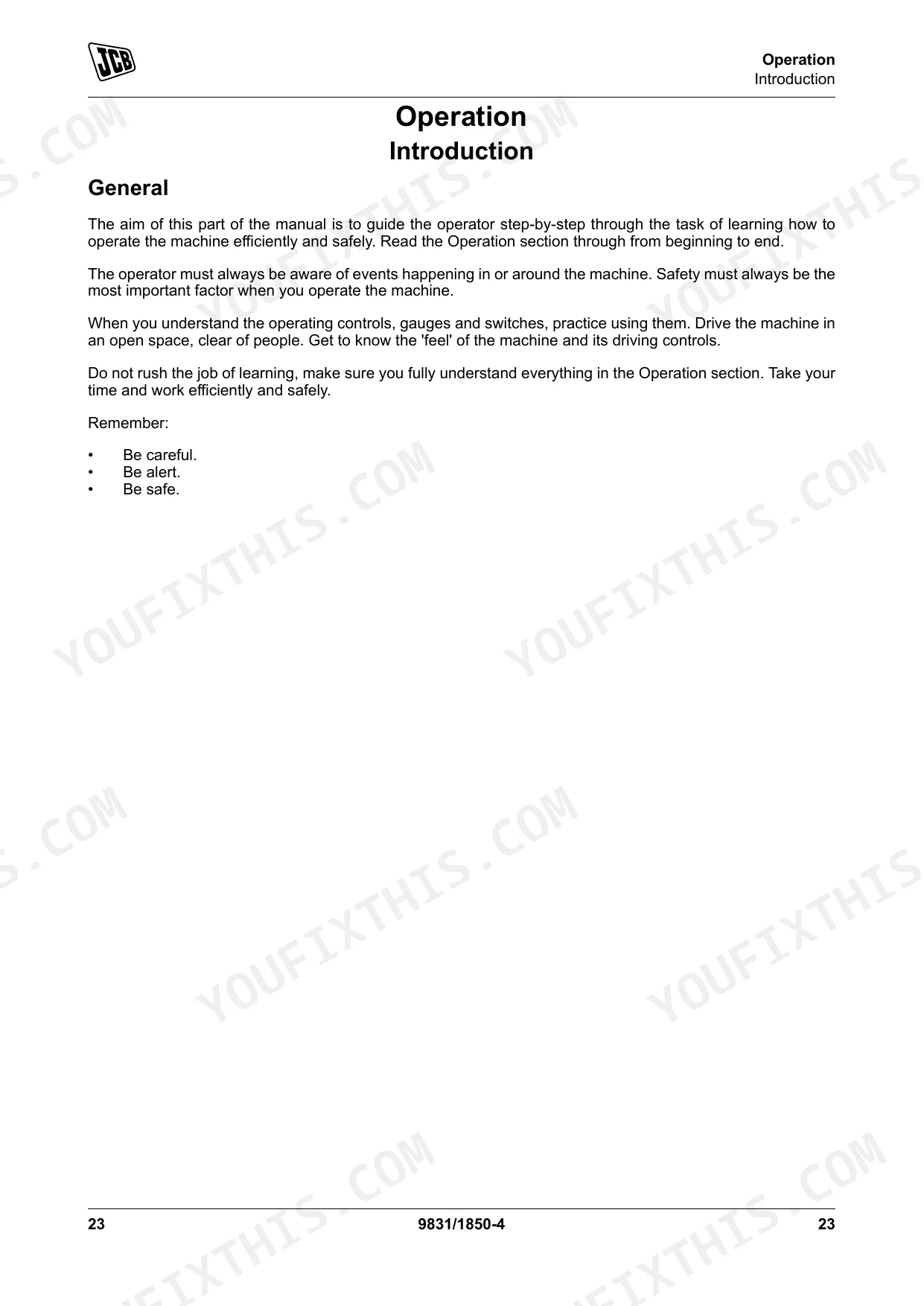

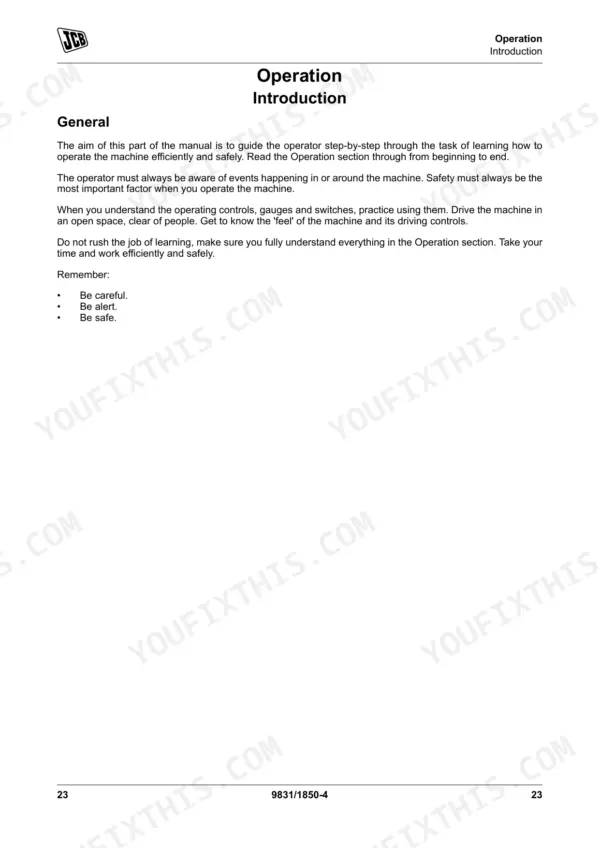

| Operation | 35-120 | Operating Safety, Walk-Around Inspection, Entering and Leaving the Operator Station, Doors, Windows, Battery Isolator, Before Starting the Engine, Operator Seat |
| Attachments | 121-138 | Working with Attachments, Quickhitch, Tow Hitches, Work Platforms |
| Preservation and Storage | 139-144 | Cleaning, Checking for Damage, Storage, Security |

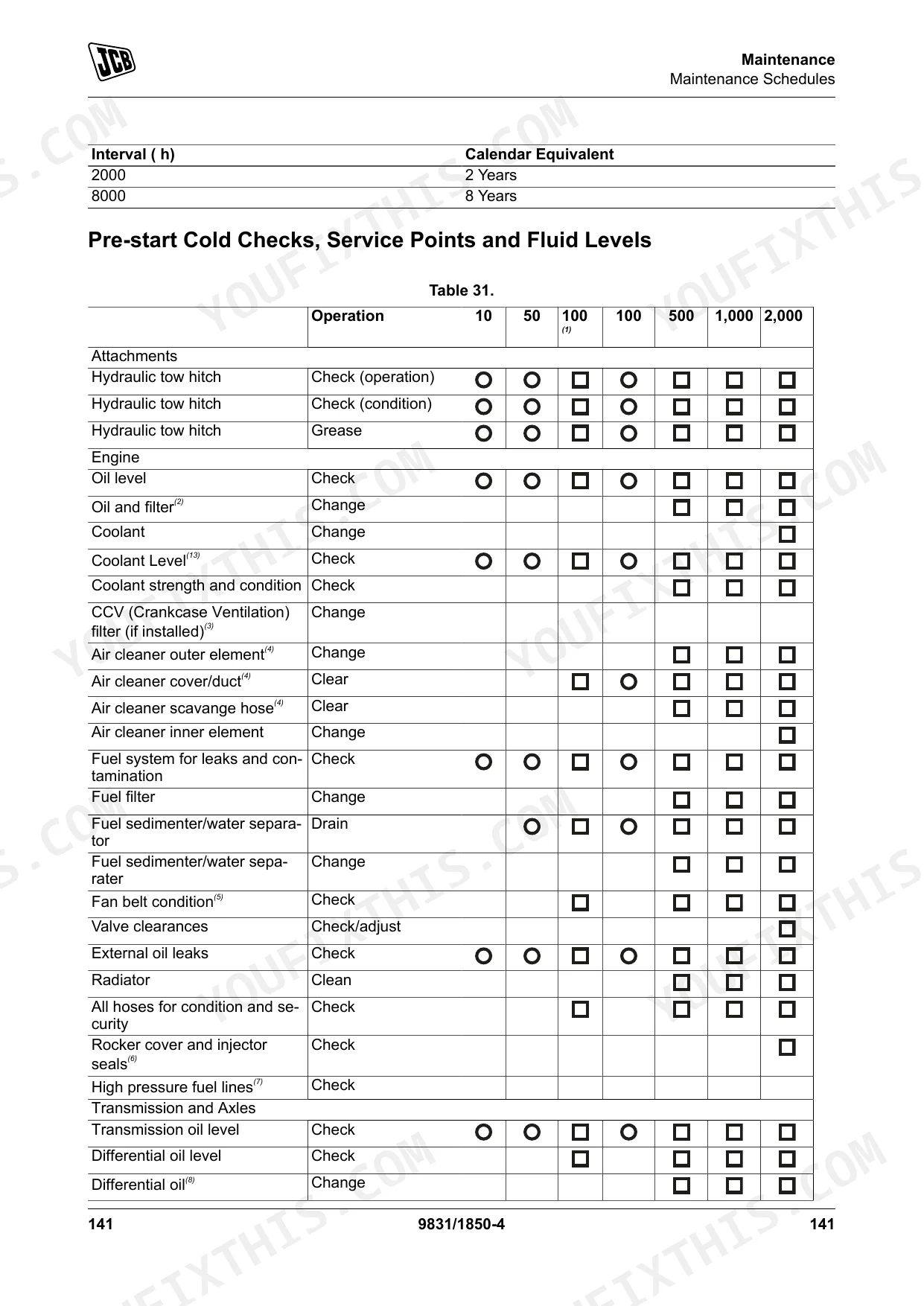

| Maintenance | 145-208 | Maintenance Safety, Maintenance Schedules, Maintenance Positions, Service Points, Access Apertures, Tools, Lubrication |
| Technical Data | 209-240 | Static Dimensions, Performance Dimensions, Towing Weights, Noise Emissions, Vibration Emissions, Fluids, Lubricants and Capacities, Torque Values |
| Declaration of Conformity | 241-242 | Ec Declaration of Conformity, Type Examination, Self-Certification Requirements, Model and Serial Number, Machine, Noise Data |
| Warranty Information | 243-248 | Service Record Sheet, Installation Checklist, 500h/3 Month Service, 1000h/6 Month Service, 1500h/9 Month Service, 2000h/12 Month Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter replacement interval | 500h | p. 153 |
| Hydraulic oil filter replacement interval | 500h | p. 154 |
| System voltage | 24 V | p. 229 |
| Primary fuse (I/O Module 1) | 40 A | p. 229 |
| Primary fuse (Fuses A7, A8, B6, B7, B8) | 30 A | p. 229 |
| Service brake accumulator functional check | If less than 6 operations, accumulators may have failed | p. 190 |
| Fan belt condition check interval | 100h | p. 153 |
| Fan belt replacement | Change if necessary | p. 155 |
| Engine Oil Capacity | 14 L | p. 219 |
| DEF Tank Capacity | 20 L | p. 219 |
| Engine Coolant Capacity | 26 L | p. 219 |
| Gearbox Capacity | 27 L | p. 219 |
JCB 411HT, 413S, 417HT Common Problems This Manual Covers
JCB 411HT coolant temperature warning light illuminates during heavy operation and engine derates p. 219
Stop the machine and allow the engine to cool. Check the coolant sight glass. If low, fill the system to the maximum mark, noting the full capacity is 26 L as listed on page 219. Inspect the cooling pack for debris and clean the radiator fins with compressed air.
Manual Section: Cooling System ChecksLoader arms lift slowly or fail to hold pressure during heavy bucket operations p. 154
Verify the hydraulic fluid level on the side tank gauge. If the fluid is full, replace the hydraulic oil filter. Ensure you follow the 500h replacement interval specified on page 154. Inspect all visible hoses for leaks or damage before resuming operation.
Manual Section: Hydraulic System ChecksEngine refuses to crank or turns over slowly after sitting overnight in cold weather p. 229
Test the battery terminals with a multimeter to confirm a system voltage of 24 V as required on page 229. Clean any corrosion from the battery posts and tighten the connections. Inspect the battery isolator switch to ensure it is fully engaged before attempting another start.
Manual Section: Electrical System Checks & RepairService brake pedal feels spongy and warning light illuminates on the dashboard p. 190
Pump the brake pedal repeatedly with the engine turned off. Count the number of pedal strokes. If you achieve fewer than 6 operations before the pedal becomes hard, the accumulators may have failed according to page 190. Inspect the brake fluid reservoir level immediately.
Manual Section: Brakes Check (Operation)Frequently Asked Questions
What are the replacement specifications for air filters?
The outer air filter element must be renewed immediately if the warning light on the instrument panel illuminates. A new inner air filter element must be installed at least every other time the outer element is changed.
What are the replacement specifications for fuel filters?
The fuel filter element should be replaced if any sediment is found in the water separator bowl. This is done after draining the water separator and before installing a new fuel filter.
How do you fix JCB 411HT coolant temperature warning light illuminates during heavy operation and engine derates?
Stop the machine and allow the engine to cool. Check the coolant sight glass. If low, fill the system to the maximum mark, noting the full capacity is 26 L as listed on page 219. Inspect the cooling pack for debris and clean the radiator fins with compressed air.
How do you fix loader arms lift slowly or fail to hold pressure during heavy bucket operations?
Verify the hydraulic fluid level on the side tank gauge. If the fluid is full, replace the hydraulic oil filter. Ensure you follow the 500h replacement interval specified on page 154. Inspect all visible hoses for leaks or damage before resuming operation.
Is this JCB 411HT, 413S, 417HT Operator Manual a digital download?
A 248-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this JCB 411HT, 413S, 417HT Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a native digital PDF, allowing you to search and copy the full text with ease. All text throughout the manual is crisp and highly readable, even when zoomed in. Most diagrams and illustrations are vector graphics, which remain sharp and clear at any zoom level, with all labels perfectly legible. However, a few diagrams, particularly those showing data plates or safety labels on the machine, are raster images that may appear slightly pixelated upon close inspection, though their accompanying tables provide all necessary information. The pages are consistently clean, free from any scan artifacts, stains, or skewed content, ensuring a professional appearance. You will find several blank "Notes" pages interspersed, which serve as filler pages.
