Every detail inside this 256-page JCB 411HT, 413S, 417HT Operator Manual PDF (OEM #EN - 9821/7050) focuses on keeping your wheel loader running right. You get complete daily maintenance schedules, step-by-step operating procedures, and clear breakdowns of every single dashboard indicator and control switch. Open to the technical data section to find precise fluid capacities, exact routine maintenance intervals, and lifting and transport procedures for safe machine handling. Verify that primary fuse A (D1 to D6) carries a 60A rating, or quickly identify a high-severity red "Y" hydraulic system fault code straight from the operator seat. Don't risk burning up a pump because you skipped a basic fluid check. Grab this bookmarked download, load it on your tablet, and keep your machine moving.
What's Inside This JCB 411HT, 413S, 417HT Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 12 | Cesar, DEF, ECU, Ems, Fops, ROPS, SRS |
| Introduction | 13-18 | About This Manual, Safety |

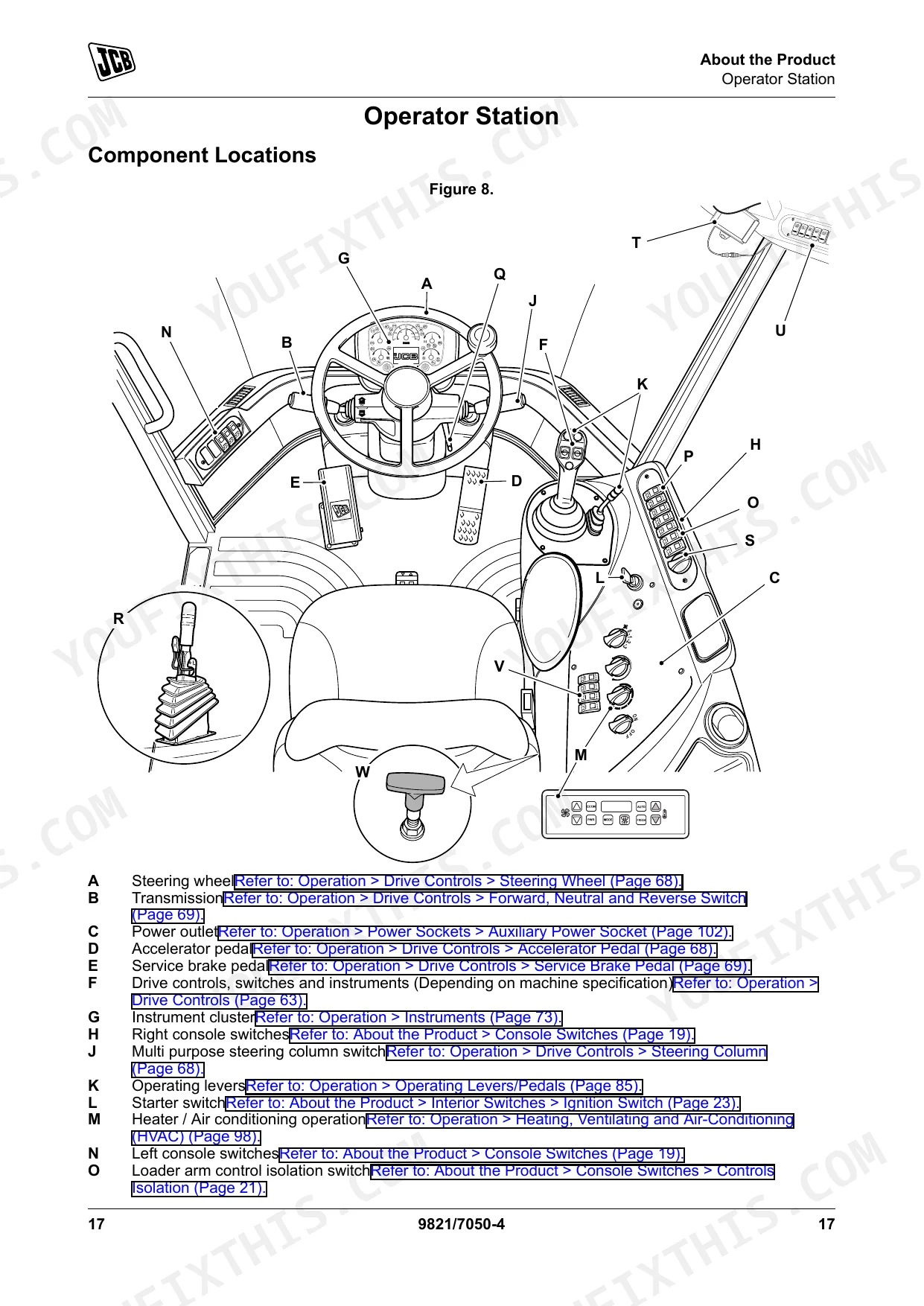

| About the Product | 19-38 | Product and Component Identification, Operator Protective Structure, Safety Labels, Operator Station, Console Switches, Interior Switches |

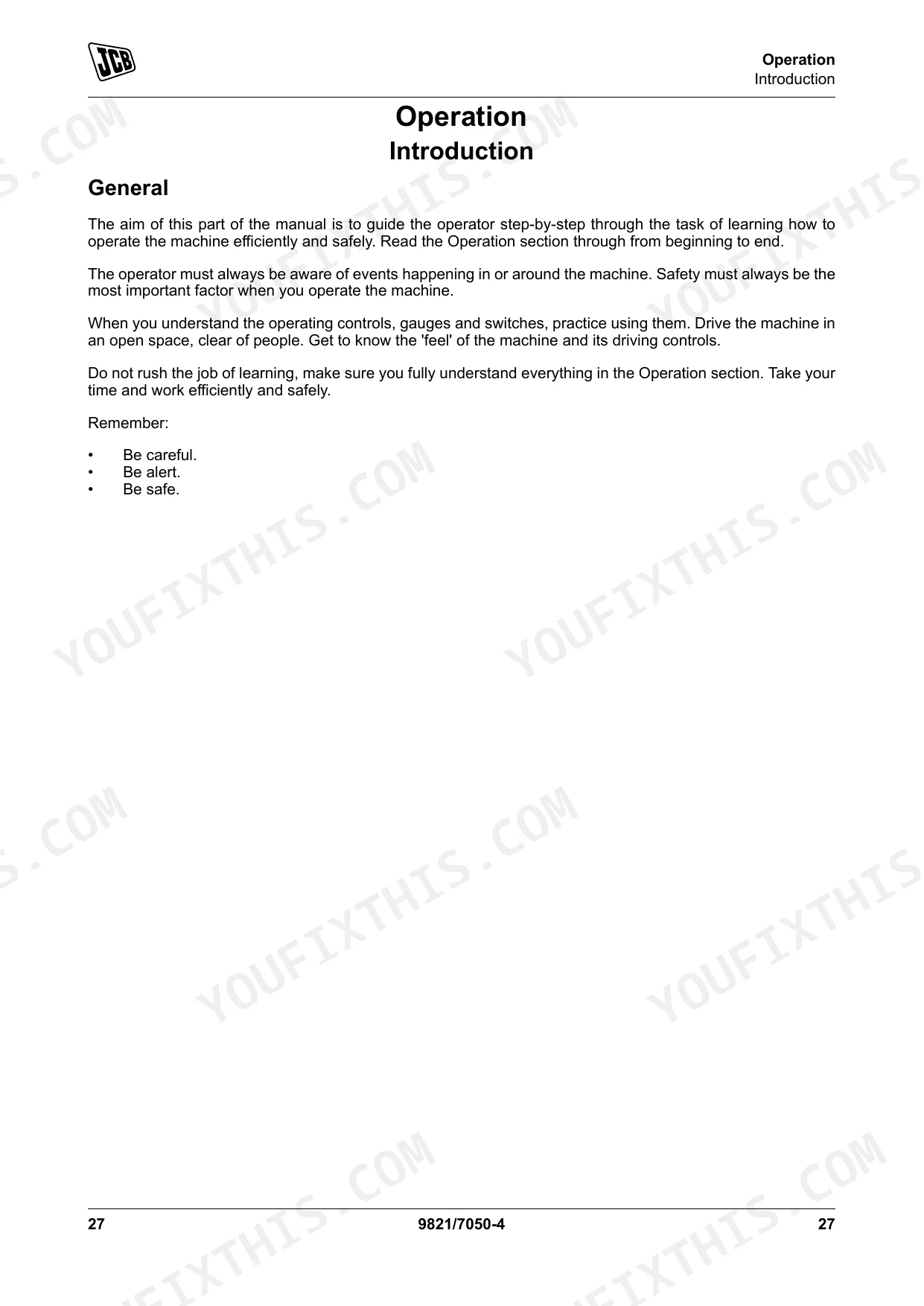

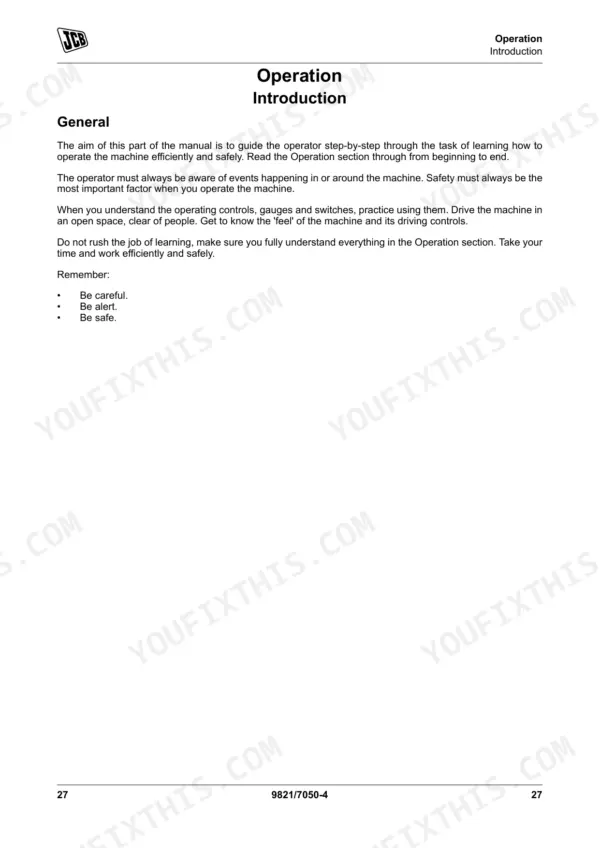

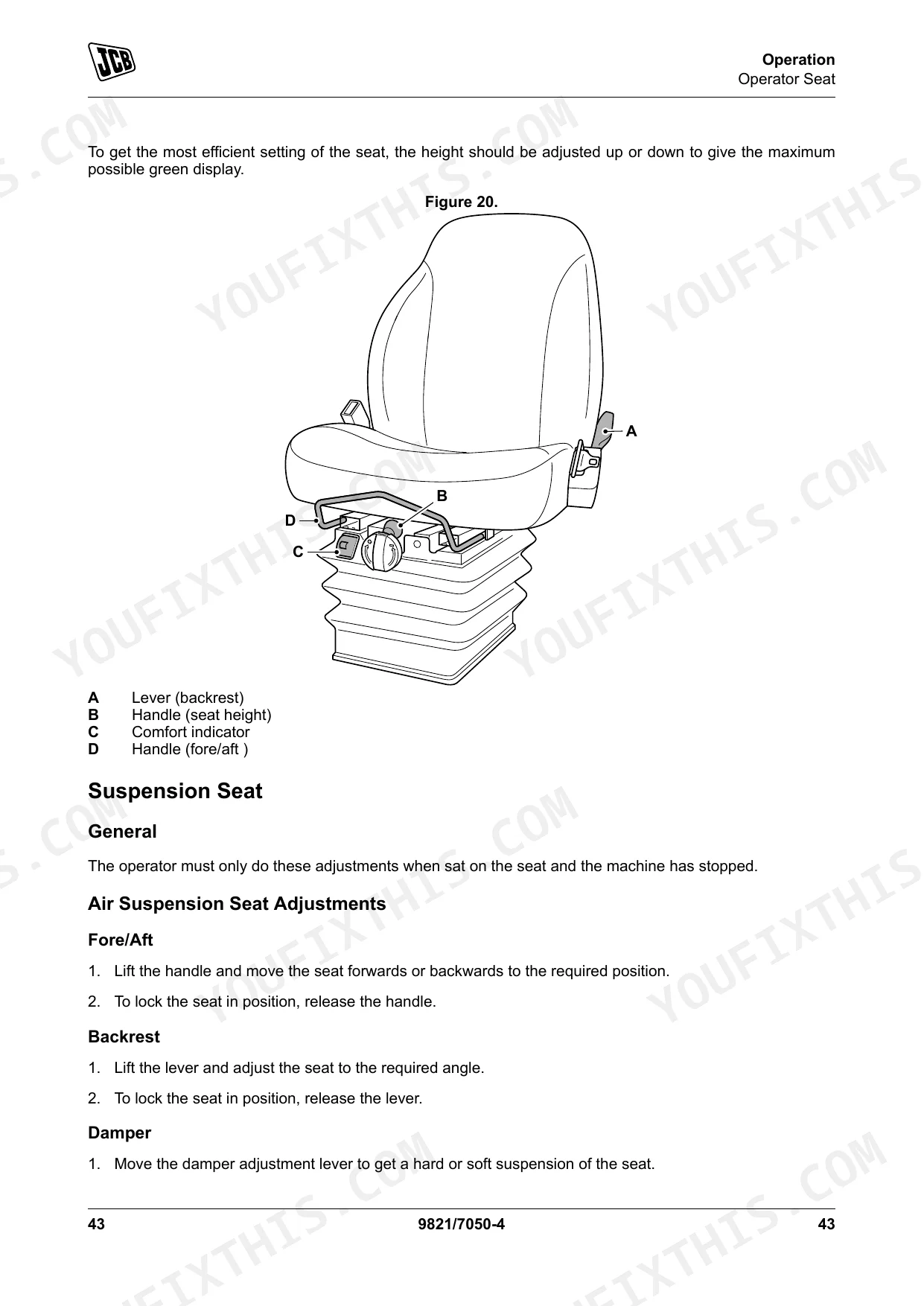

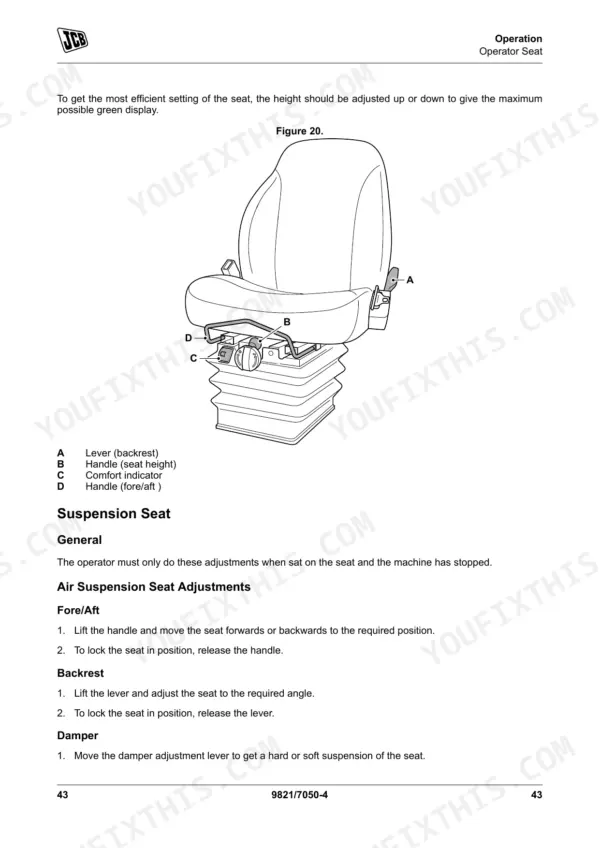

| Operation | 39-121 | Operating Safety, Risk Assessment, Walk-Around Inspection, Entering and Leaving the Operator Station, Doors, Windows, Before Starting the Engine |
| Lifting the Machine | 122-123 | Communications, Lifting Equipment, Articulation Lock, Sling Points, Spreader Frame, Lifting Eye |
| Transporting the Machine | 124-125 | Trailer, Ramps, Park Brake, Articulation Lock, Tie-Down Points, Chains, Restraints |
| Operating Environment | 126-127 | Air Cleaner, Hydraulic Oil Tank Filler Cap, Coolant Mixture, Battery, Cab Filters, Carbon Filter |
| Refuelling | 128 | Fuel, Fuel System, Fuel Tank, Fuel Filter, Filler Cap |
| Attachments | 129-148 | Working with Attachments, Quickhitch, Tow Hitches, Work Platforms |
| Preservation and Storage | 149-154 | Cleaning, Checking for Damage, Storage, Security |

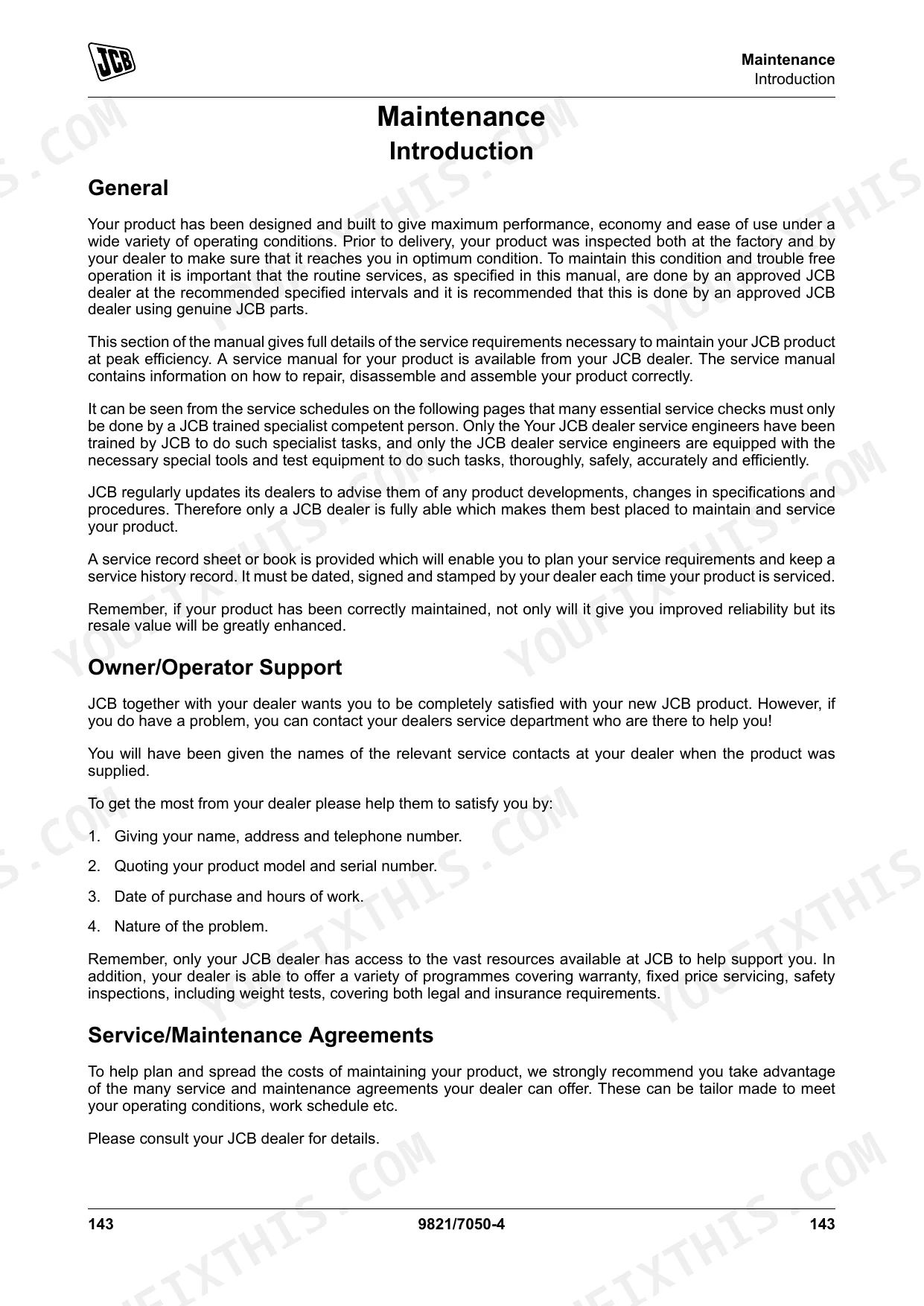

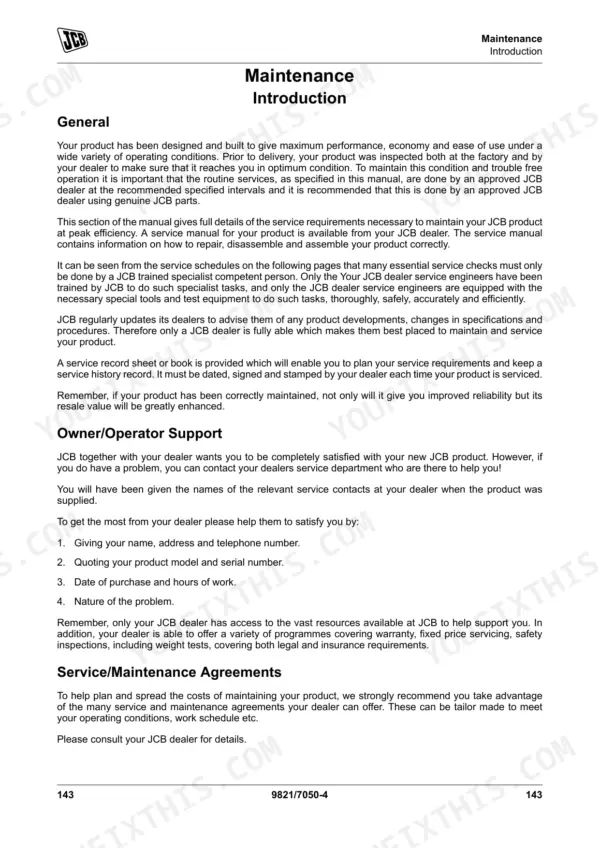

| Maintenance | 155-214 | Initial Service and Inspection, Maintenance Safety, Maintenance Schedules, Maintenance Positions, Service Points, Access Apertures, Tools |
| Technical Data | 215-249 | Static Dimensions, Performance Dimensions, Noise Emissions, Vibration Emissions, Fluids, Lubricants and Capacities, Torque Values, Electrical System |
| Warranty Information | 250-256 | Service Record Sheet, Installation Checklist, 500h/3 Month, 1000h/6 Month, 1500h/9 Month |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system fault code | Y (for Hydraulic system malfunction - high severity: Red) | p. 89 |
| Primary Fuse A (Fuses D1 to D6) amperage | 60 A | p. 237 |
| Additional Primary Fuse A (Grid heater) rating | 125A | p. 238 |
| Cab air filter replacement instruction | Replace the filter if severely blocked or the element is damaged | p. 184 |
| Hydraulic hose replacement instruction | Replace with hoses of the same size, standard and pressure rating | p. 205 |
| Engine Oil Capacity | 14L | p. 227 |
| Engine Coolant Capacity | 26L | p. 227 |
| Gearbox Oil Capacity | 27L | p. 227 |
| Hydraulic System Capacity | 155L | p. 227 |
| ROPS/FOPS (cab mounts) Bolts Torque | 330 N·m | p. 235 |
| System Voltage | 24V | p. 236 |
| Headlights - Main Rating | 75 W | p. 236 |
JCB 411HT, 413S, 417HT Common Problems This Manual Covers
JCB 411HT, 413S, 417HT hydraulic system warning light stays red after startup with abnormal loader arm response p. 89
Check the instrument cluster for fault code Y (hydraulic system malfunction, high severity) on page 89. Inspect hydraulic hoses for leaks and confirm the system is filled to its 155L capacity. Replace any damaged lines with hoses of the exact same size and pressure rating as specified on page 205.
Manual Section: OperationInstrument panel goes completely dead and the replacement secondary fuse blows immediately upon turning the key p. 239
Verify the 24V system voltage on page 236 before inspecting the harness for a dead short. Identify the blown fuse in the secondary fuse block using the amperage tables on pages 237-239, and replace it with a fuse of the correct rating as shown in those tables. Never install a higher amperage fuse to bypass the fault.
Manual Section: Technical DataCab blower fan airflow drops noticeably and heavy dust enters the operator station during normal operation p. 184
Inspect the cab air filter elements for severe blockage or physical damage. Replace the filter immediately if the element is damaged, as instructed on page 184. Confirm the 24V electrical system is supplying proper power to the blower motor before reassembling the housing.
Manual Section: Operating EnvironmentOperator cabin mounting hardware feels loose or shows visible gaps during the daily walk-around inspection
Check the operator protective structure for physical damage. Torque all loose ROPS and FOPS cab mounting bolts to exactly 330 N·m using a calibrated wrench. Review the daily pre-start checks to ensure all access panels and structural mounts remain secure.
Manual Section: Walk-Around InspectionFrequently Asked Questions
What do JCB 411HT/413S/417HT error codes mean?

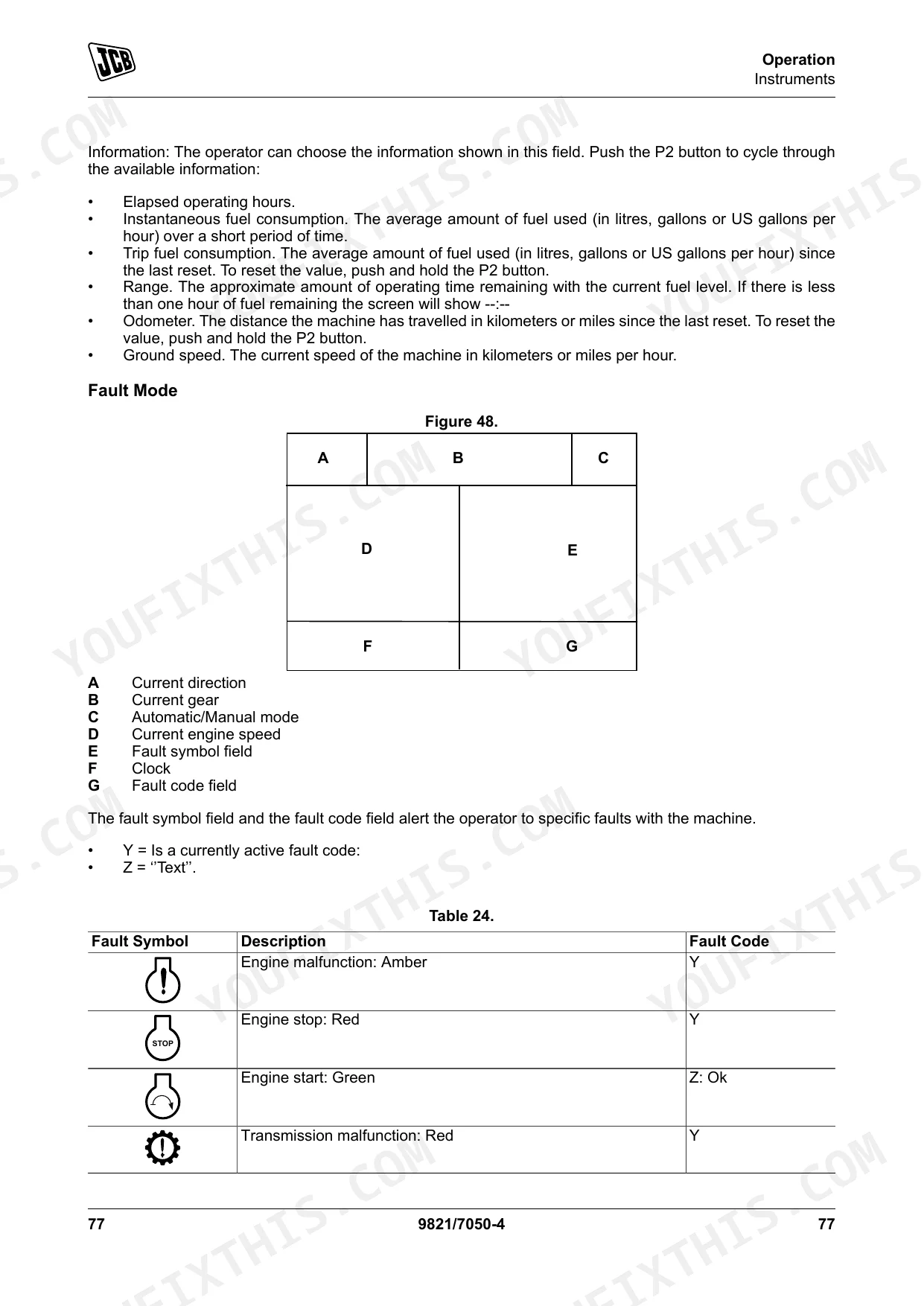

The manual provides a table of fault symbols and their descriptions on page 77. For example, 'Engine malfunction' is indicated by an amber Y code, 'Engine stop' by a red Y code, and 'Transmission malfunction' by a red Y code. An active fault is shown by 'Y', while cleared faults show a status such as 'Z: Ok' or 'Hours remaining'.
How to enter diagnostic mode on a JCB 411HT?
To enter Menu Mode, stop the machine and engage the park brake. Make sure there are no unacknowledged active faults, then push and hold the P1 button for 3 seconds. This gives access to machine data, setup options, and the Service Menu.
How to reset service interval on JCB 413S
To reset the service interval on a JCB 413S, access the Operator Menu. Select the 'Reset' option, which resets all values in the Operator Menu, including accumulated service hours and related counters.
What are the replacement specifications for fuses?
The manual provides amperage ratings for all fuse types. Primary fuse A (D1 to D6) is rated 60 A (page 237). The additional primary fuse A for the grid heater is rated 125A (page 238). Secondary fuses on the 24-to-12V power distribution board cover various circuits with ratings including 3 A, 5 A, 7.5 A, 10 A, 15 A, and 20 A depending on the circuit protected. Always replace any fuse with one of the correct ampere rating.
Is this JCB 411HT, 413S, 417HT Operator Manual a digital download?
A 256-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this JCB 411HT, 413S, 417HT Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a native digital PDF, allowing you to easily search and copy text throughout. The text is consistently crisp and clear, making it very easy to read on all pages. Diagrams and illustrations are primarily vector graphics, which remain sharp and legible even when zoomed in, with all labels being clear. The pages are clean with no noticeable scan artifacts, stains, marks, or skewed content. There are a few blank "Notes" pages included, which serve as filler.
