Need the exact operating guidelines for your 2006-2008 JCB Backhoe Loader? This 138-page JCB 214e (3c plus) operator manual pdf (OEM #9300 - 1) covers every cab control, daily maintenance check, and safety procedure. Detailed SAE lift charts for safe digging, dashboard indicator breakdowns, and step-by-step fluid service instructions all keep the rig running right. Open to the maintenance schedules to see exactly when to grease the kingpost and adjust the extradig dipper wear pads. Pour in exactly 2.6 US Gallons of 15W/40 engine oil, then lock down the drain plug to 34 Nm. Ignoring daily service checks costs you major downtime. Download this bookmarked file right to your tablet, look up your maintenance intervals fast, and get to work.
What's Inside This JCB 214e (3C Plus) Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 1-4 | Study This Manual Before Starting the Machine, Do Not Fit an Attachment to This Machine Which Is Not Jcb Approved, Danger, Warning, Caution |
| Introduction | 5-14 | Attachments for Your Machine |
| Before Entering the Cab | 15 | Check for Cleanliness, Check for Damage, Check the Tires, Check the Engine Panels, Hood and Fuel Cap |
| Entering/Leaving the Cab | 16 | - |
| Doors and Windows | 17 | Opening and Closing the Door, Opening and Closing the Side Window, Opening and Closing the Rear Window |
| Heater Controls | 18 | Heat Control, Heater Fan, Cab/Windshield Control |
| Seat Controls | 19 | Headrest, Armrest, Swivel, Fore/Aft, Weight, Backrest Angle |
| Seat Belt | 20 | Fasten the Seat Belt, Check the Seat Belt Is Operating Correctly, Release the Seat Belt |

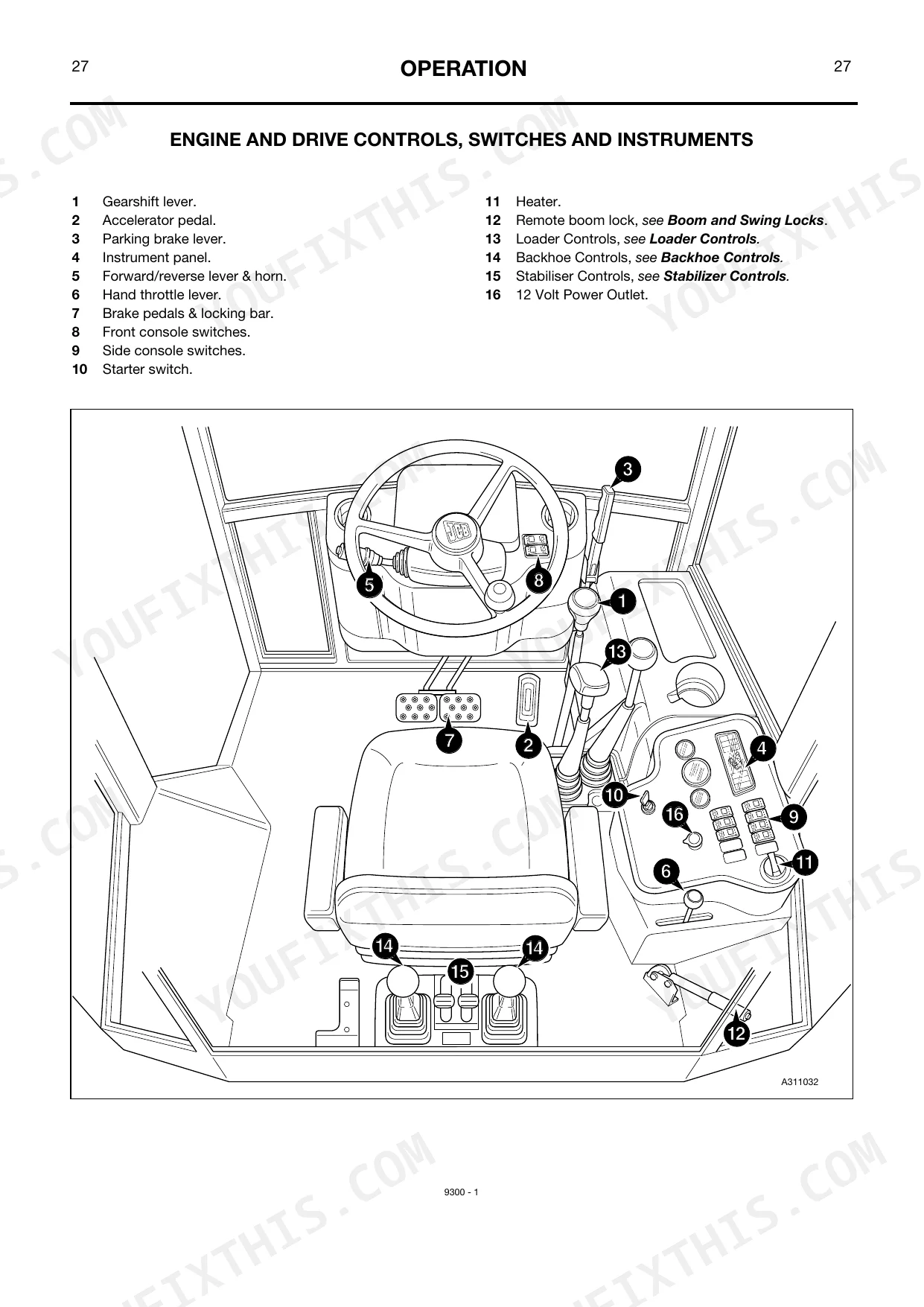

| Engine and Drive Controls, Switches and Instruments | 21-26 | Layout, Controls, Switches, Face Level Fan (If Fitted) |
| Loader Controls | 27-29 | Multipurpose Loader Bucket |
| Stabilizer Controls | 30 | Lever Controls |
| Backhoe Controls | 31-47 | Jcb Plus ('+') Pattern, 4-Lever (Ford Style), 3-Lever with Footswing (Case Style), 4-Lever with Footswing (Case Style with Extradig) |
| Boom and Swing Lock | 48-49 | Boom Lock, Swing Lock |
| Before Starting the Engine | 50 | Engage the Parking Brake, Lower the Attachments to the Ground, Do a Pre-Start Inspection, Adjust the Seat, Set the Rear View Mirror(s), Fasten the Seat Belt |

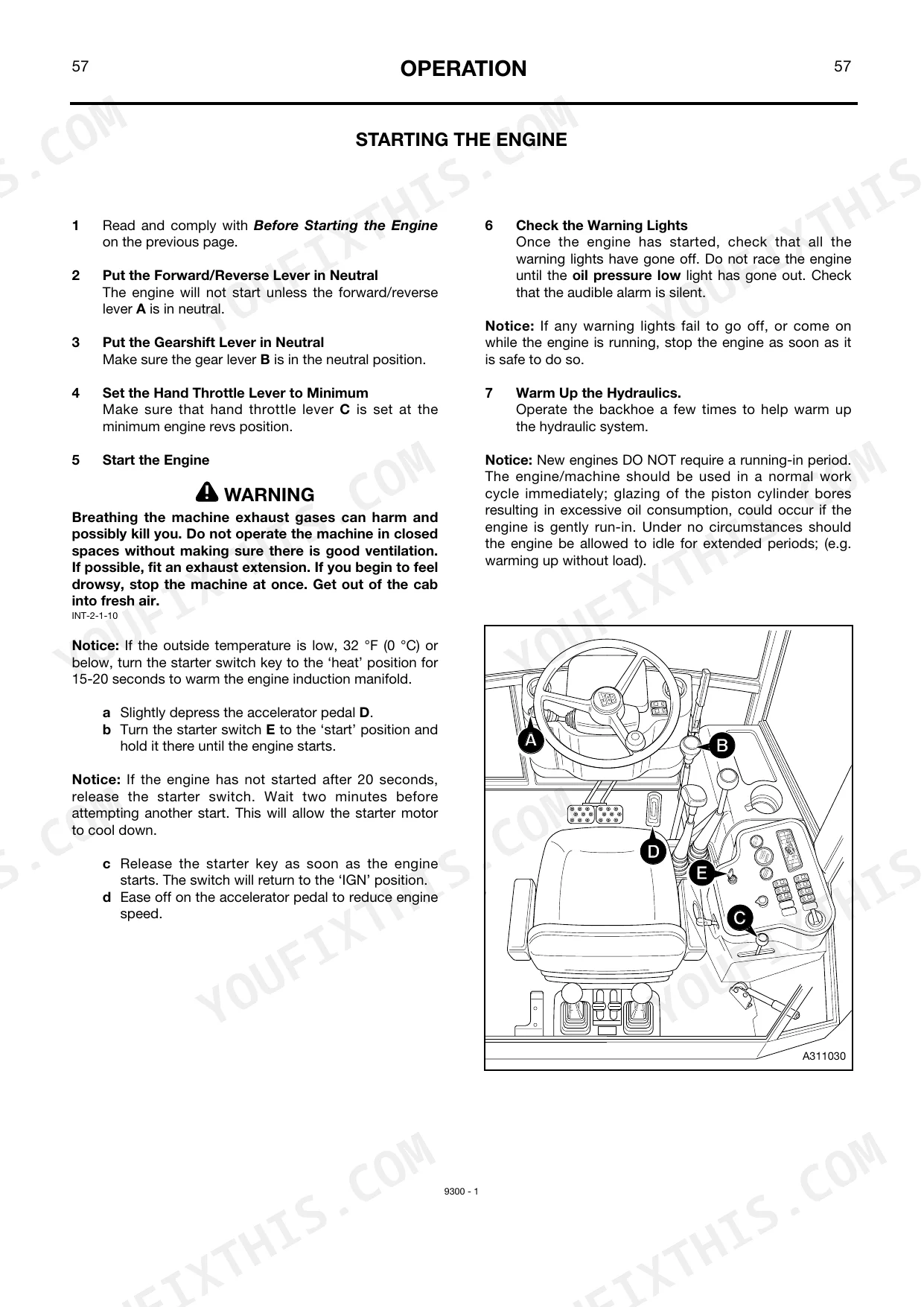

| Starting the Engine | 51 | Forward/Reverse Lever in Neutral, Gearshift Lever in Neutral, Hand Throttle Lever to Minimum, Start the Engine, Check the Warning Lights, Warm Up the Hydraulics |
| Jump-Starting the Engine | 52 | Parking Brake Engagement, Switch Settings, Loader Shovel Position, Positive Booster Cable Connection, Negative Booster Cable Connection, Engine Start |
| Preparing the Machine for Travel | 53-55 | Backhoe Travel Position, Road Traveling Position, Site Traveling Position |
| Testing the Parking Brake | 56 | Parking Brake Application, Brake Pedal Locking, Gear Selection, Foot Brake Pedal Operation, Parking Brake Lever Adjustment, Engine Speed Adjustment |
| Getting the Machine Moving | 57-58 | Operating Practices, Seat Belt and Seat, 2- or 4-Wheel Drive, Gear, Forward/Reverse Lever |
| Stopping and Parking the Machine | 59 | Stop the Machine, Parking Brake, Neutral Drive, Stabilizers, Attachments, Leave and Secure |
| Using the Attachments and Site Safety | 60-61 | Operating Practices, Electrical Power Cables, Reworking Old Sites, Communications, Work Sites, Banks and Trenches |
| Working with the Loader | 62-63 | Operating Practices, Filling the Loader Bucket, Loading a Truck, Getting the Machine Unstuck |
| Working with the Backhoe | 64-68 | Operating Practices, Preparing to Use the Backhoe, Removing a Bucket, Instaling a Bucket |
| Operating in Low and High Temperatures | 69 | Engine Lubricating Oil, Coolant Mixture, Battery, Fuel Tank, Radiator, Fan Belt |
| Moving a Disabled Machine | 70 | Preparation for Towing |
| Transporting the Machine | 71-72 | Transporter Wheels, Machine Onto the Trailer, Anchor the Machine, Machine Height |

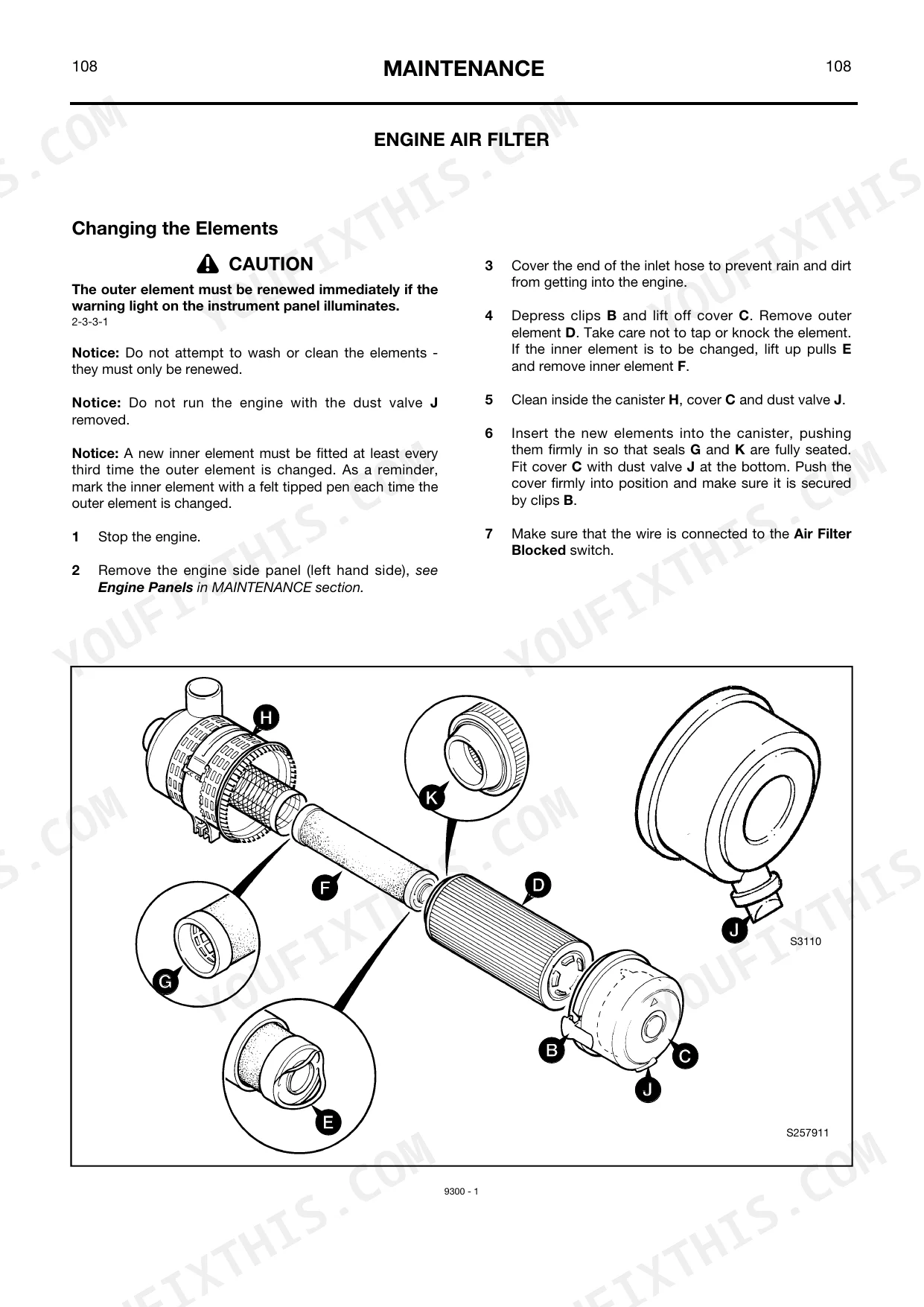

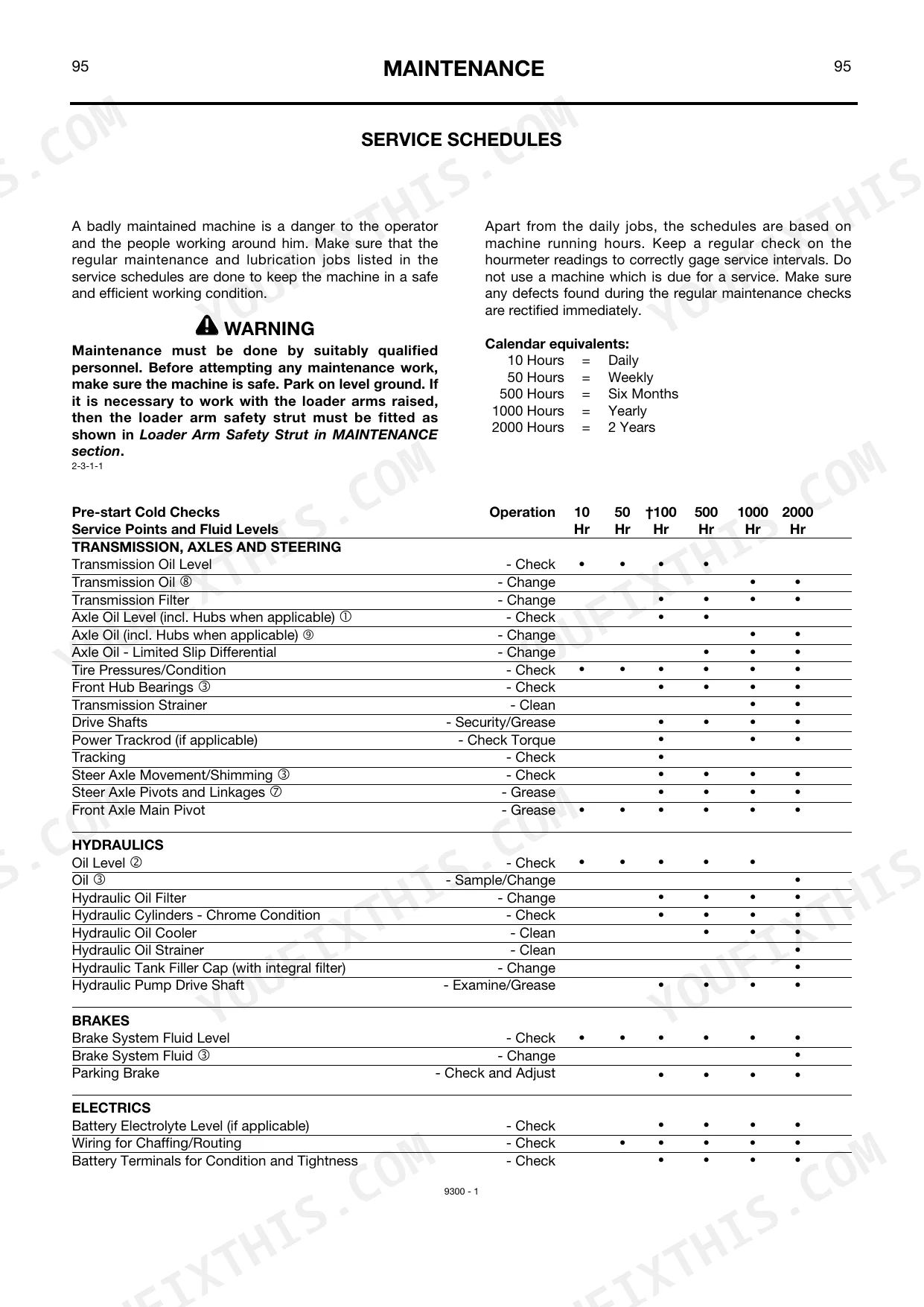

| Maintenance | 73-116 | Lubricants - Health and Safety, Service Requirements (Introduction, Owner/Operator Support), Cleaning the Machine, Checking for Damage, Obtaining Replacement Parts |
| Optional Attachments | 117-132 | Quick Release Couplings (- Do's & Don'ts, Connecting Quick Release Couplings, Disconnecting Quick Release Couplings) |

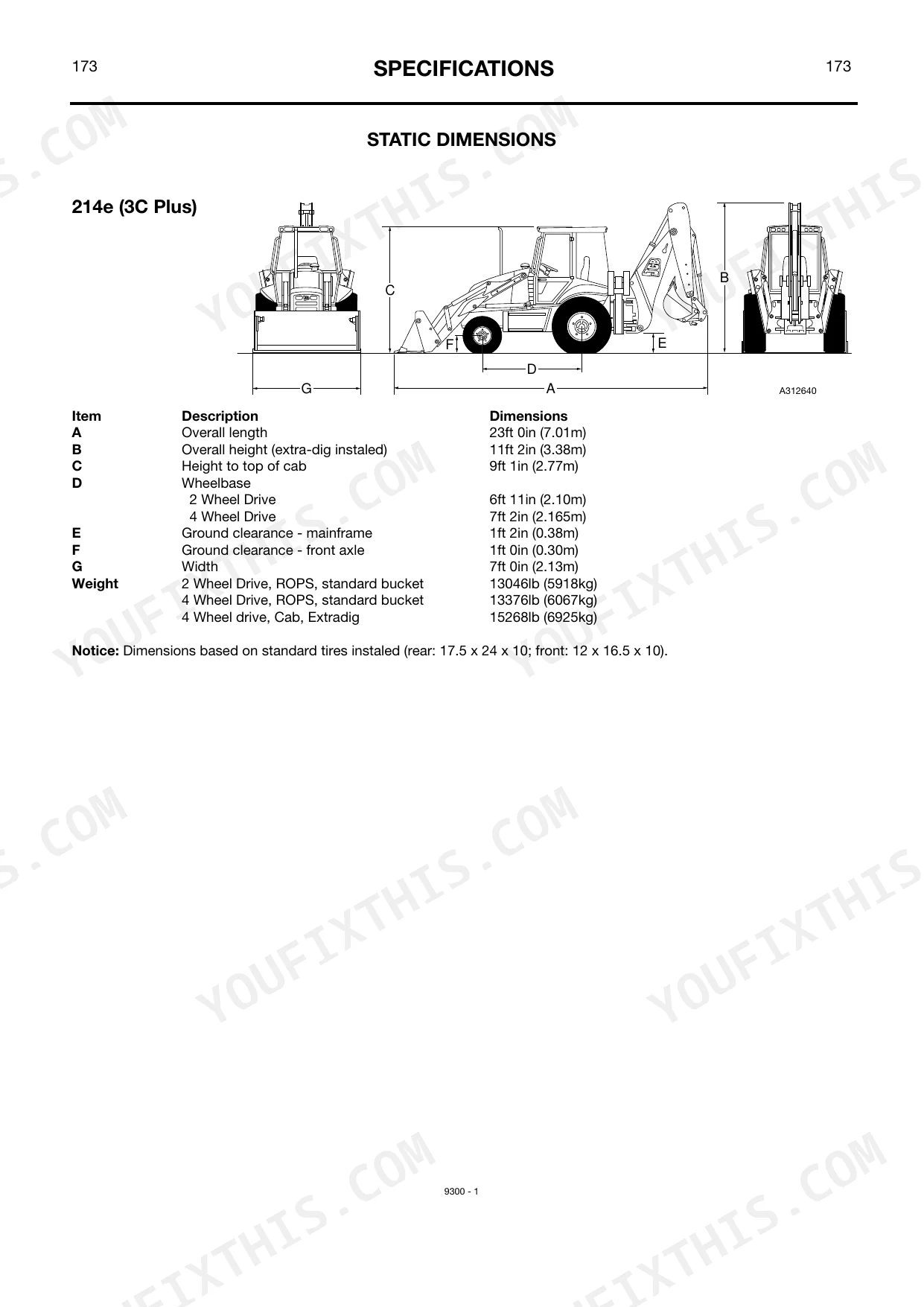

| Specifications | 133-138 | Lifting Regulations, Loader Performance, Backhoe Bucket Weights and Dimensions (Standard Duty Buckets, Heavy Duty Buckets, Heavy Duty, High Capacity Buckets) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil drain plug torque | 34 Nm (25 lbf ft) | p. 91 |
| Hydraulic filter element replacement (new machines) | 5 micron filter element replaced with 10 micron filter element at first 100 hour service | p. 101 |
| Hydraulic filter cover plate screws torque | 15.5 lbf ft (21 Nm) | p. 101 |
| Engine Oil Capacity (2 Wheel Steer Machines) | 2.6 US Gal (9.7 Liters) | p. 114 |
| Engine Oil Viscosity Range | SAE 15W/40 (-10°C to + 50°C) | p. 114 |
| Engine Coolant Capacity | 6.07 US Gal (23 Liters) | p. 114 |
| Syncro Shuttle (2WD) Transmission Oil Capacity | 3.8 US Gal (14.4 Liters) | p. 114 |
| Syncro Shuttle (4WD) Transmission Oil Capacity | 4.0 US Gal (15.4 Liters) | p. 114 |
| Front Axle Housing (2WS) Oil Capacity | 3.4 US Gal (13 Liters) | p. 114 |
| Rear Axle Oil Capacity | 6.1 US Gal (23 Liters) | p. 114 |
| Brake System Standard Fluid Capacity | 0.32 US Gal (1.2 Liters) | p. 114 |
| Hydraulic System Capacity | 34.3 US Gal (130 Liters) | p. 114 |
JCB 214e (3C Plus) Common Problems This Manual Covers
JCB 214e 3C Plus backhoe loses lift capacity and hydraulic functions feel weak during trenching p. 101
Check the system for leaks and verify the hydraulic tank holds the correct amount of the 34.3 US Gal (130 Liters) system capacity. If replacing the element on page 101, torque the cover plate screws to 15.5 lbf ft (21 Nm). Inspect all quick release couplings for damage.
Manual Section: MaintenanceEngine overheats under load or runs poorly during extreme high temperature conditions p. 69
Inspect the radiator and fan belt following the procedures for operating in high temperatures on page 69. Drain and refill the cooling system to the exact 6.07 US Gal (23 Liters) capacity on page 114. Verify the engine oil level is correct before returning the machine to service.
Manual Section: Operating in Low and High TemperaturesParking brake fails to hold the machine on an incline or requires excessive lever force p. 56
Test the brake application and lock functionality using the steps on page 56. Inspect the wheels and tighten the wheel nuts to exactly 500 lbf ft (680 Nm) as specified on page 88. Adjust the parking brake lever tension if the machine rolls in neutral drive.
Manual Section: Testing the Parking BrakeRoutine engine service required after operating in dusty environments or reaching scheduled maintenance interval p. 91
Drain the oil and torque the engine oil drain plug to 34 Nm (25 lbf ft) as shown on page 91. Refill the crankcase with SAE 15W/40 viscosity oil, ensuring you do not exceed the 2.6 US Gal (9.7 Liters) total capacity listed on page 114.
Manual Section: MaintenanceFrequently Asked Questions
What are the replacement specifications for hydraulic filters?
For new machines, the hydraulic system is initially fitted with a 5 micron filter element. This element must be replaced with a 10 micron filter element at the first 100 hour service. The manual provides a detailed procedure for changing the filter element.
What are the replacement specifications for fuel filters?
The fuel filter should be changed as part of the regular maintenance schedule. According to the service schedules, the fuel filter needs to be changed every 500 hours of operation.
How do you fix JCB 214e 3C Plus backhoe loses lift capacity and hydraulic functions feel weak during trenching?
Check the system for leaks and verify the hydraulic tank holds the correct amount of the 34.3 US Gal (130 Liters) system capacity. If replacing the element on page 101, torque the cover plate screws to 15.5 lbf ft (21 Nm). Inspect all quick release couplings for damage.
How do you fix engine overheats under load or runs poorly during extreme high temperature conditions?
Inspect the radiator and fan belt following the procedures for operating in high temperatures on page 69. Drain and refill the cooling system to the exact 6.07 US Gal (23 Liters) capacity on page 114. Verify the engine oil level is correct before returning the machine to service.
Is this JCB 214e (3C Plus) Operator Manual a digital download?
This is a 138-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text throughout. The text is generally crisp and readable, though not as sharp as a native digital file. Diagrams and illustrations are raster images, but their labels are clear and legible. The pages are clean with no noticeable scan artifacts, stains, or skewed content, and there is one blank page present.
