Need the exact factory maintenance schedules for your vibrating plate? This 46-page JCB VMP 14, 18, 24 Operator Manual PDF (OEM #332/A5752) breaks down every daily inspection, cold start procedure, and operating limit. Inside, you get complete preventative service intervals, full fluid capacity charts, and step-by-step instructions for adjusting the drive belt. You will also find detailed guidance on fitting tamping plate extensions, changing the exciter oil, and safely running the machine on severe gradients. Top off the forward and reverse shift cylinder with exactly 0.2 liters of oil, and secure the plate damper bolts to 184 Nm before hitting the trench. Equipment downtime from skipped daily maintenance ruins your profit margin. Download this bookmarked file directly to your smartphone, look up the right specs on the job site, and keep your compactor running strong.
What's Inside This JCB VMP 14, VMP 18, VMP 24 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Warranty Registration | 5-6 | JCB Light Equipment |
| Safety Notices | 7-8 | Important Information, Operator Manual, Safety Warnings |

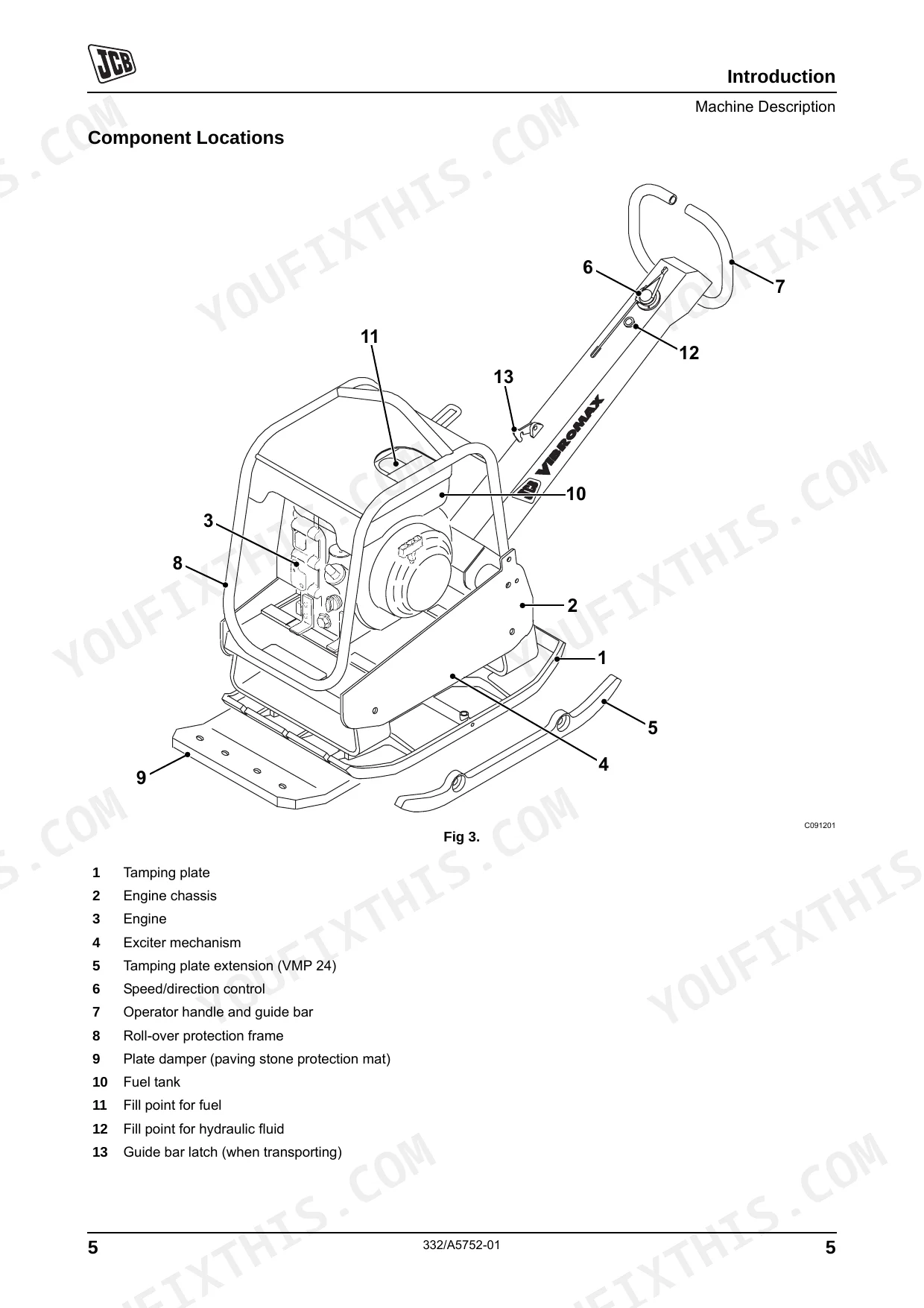

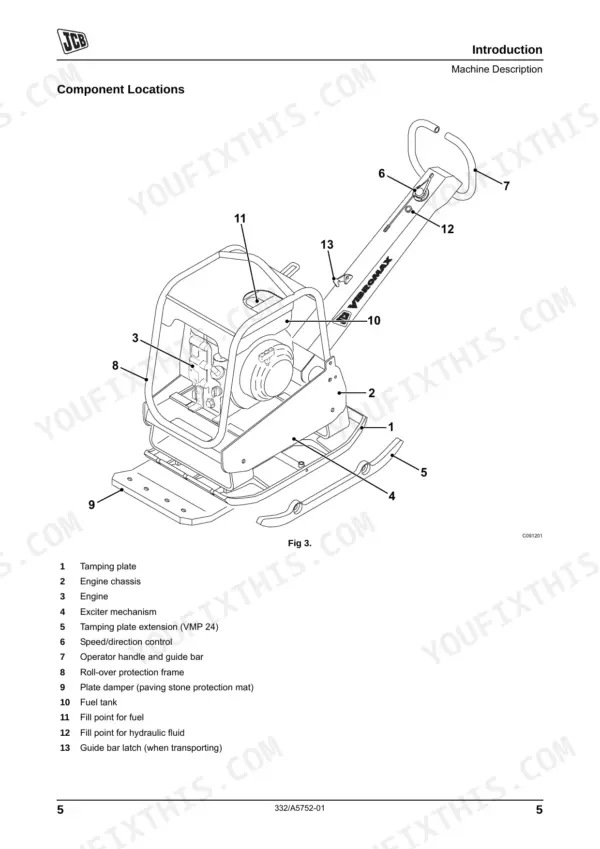

| Introduction | 9-20 | Machine Model and Serial Number, Using This Manual, Units of Measurement, Left Side, Right Side, Using the Machine, Cross References |

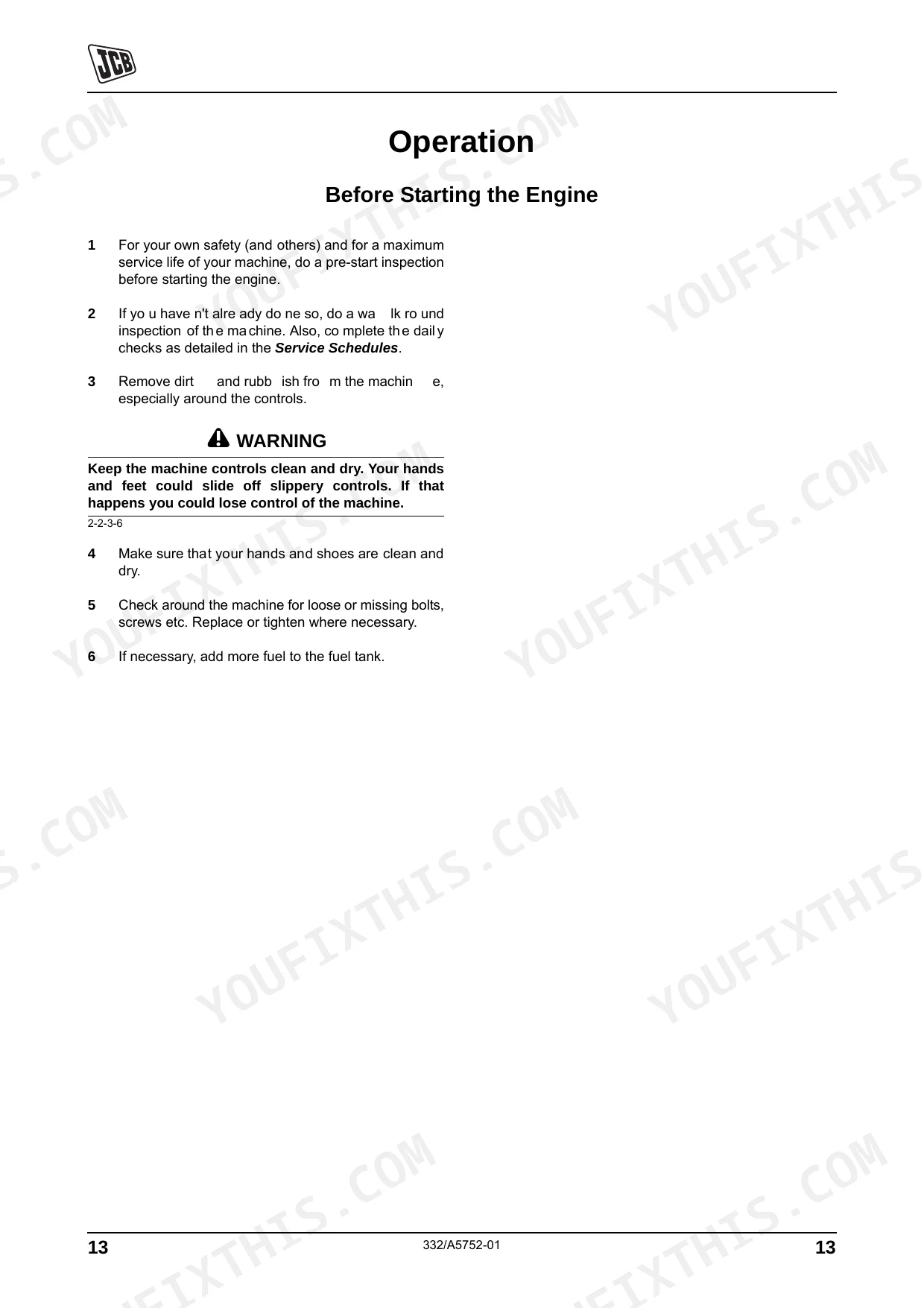

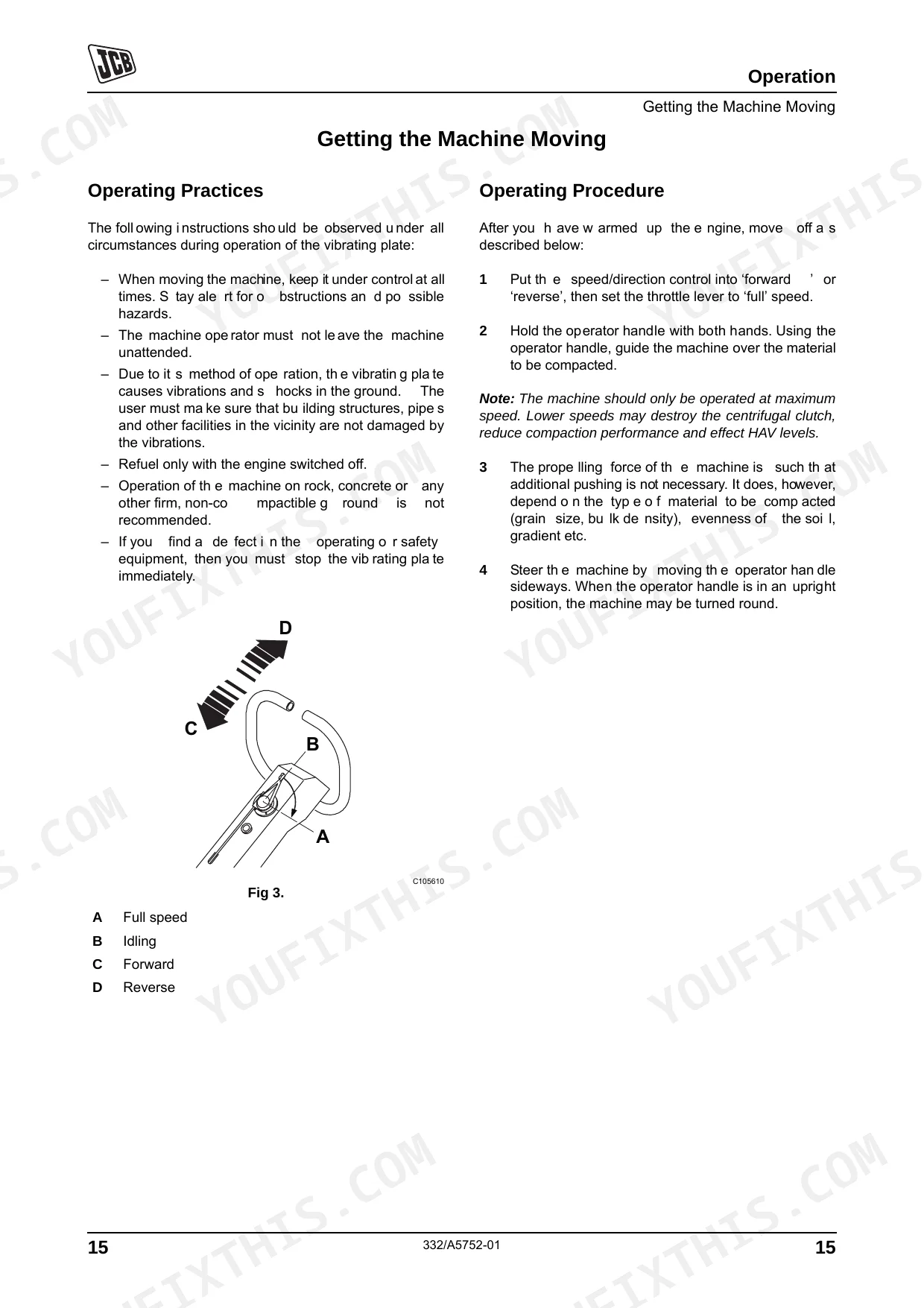

| Operation | 21-30 | Before Starting the Engine, Starting the Engine (Vmp 14, Vmp 18, Vmp 24), Getting the Machine Moving (Operating: Practices, Procedure) |

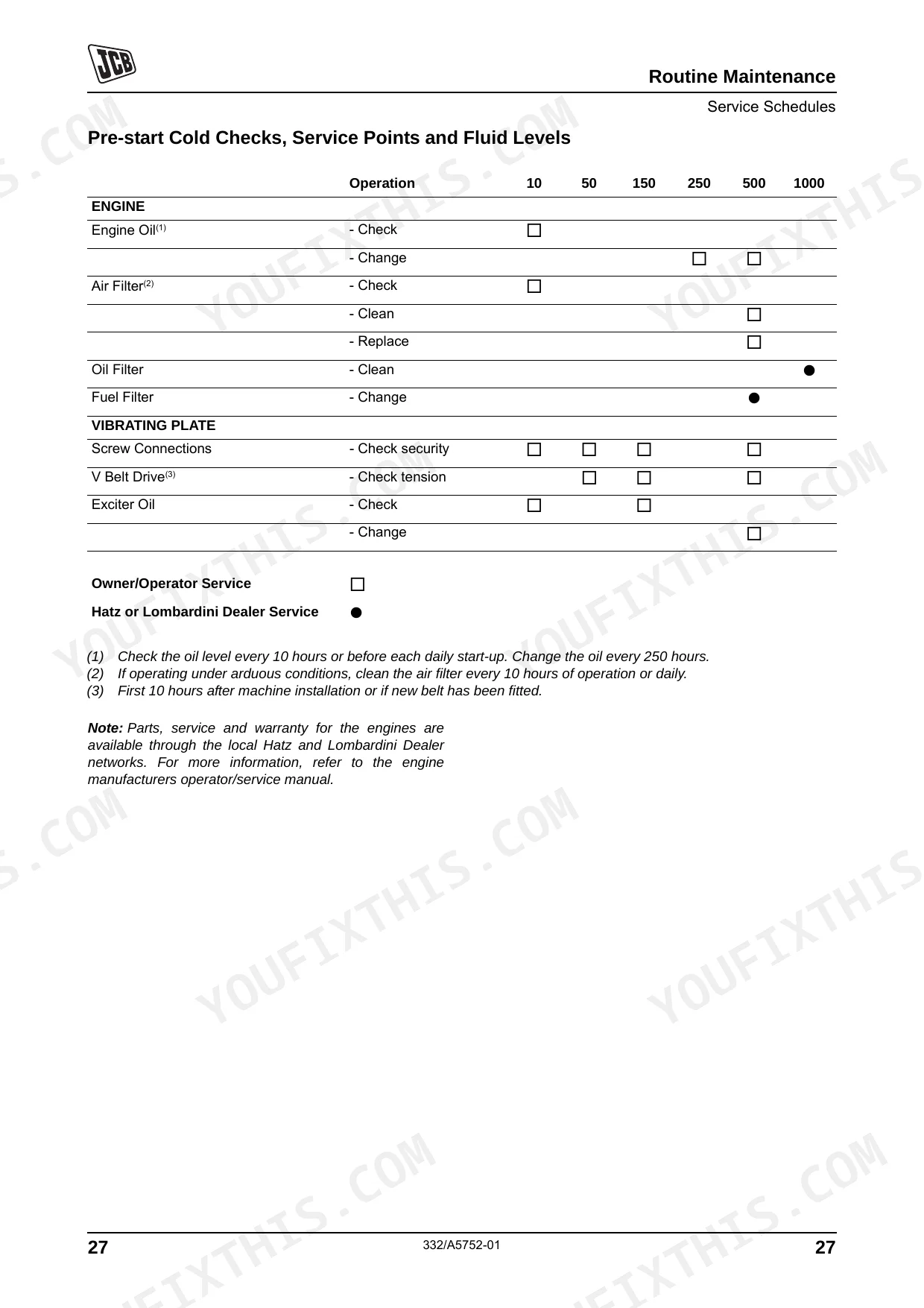

| Routine Maintenance | 31-42 | Service Requirements (Introduction, Owner/Operator Support, Service/Maintenance Agreements, Obtaining Replacement Parts, Engines), Health and Safety, Lubricants |

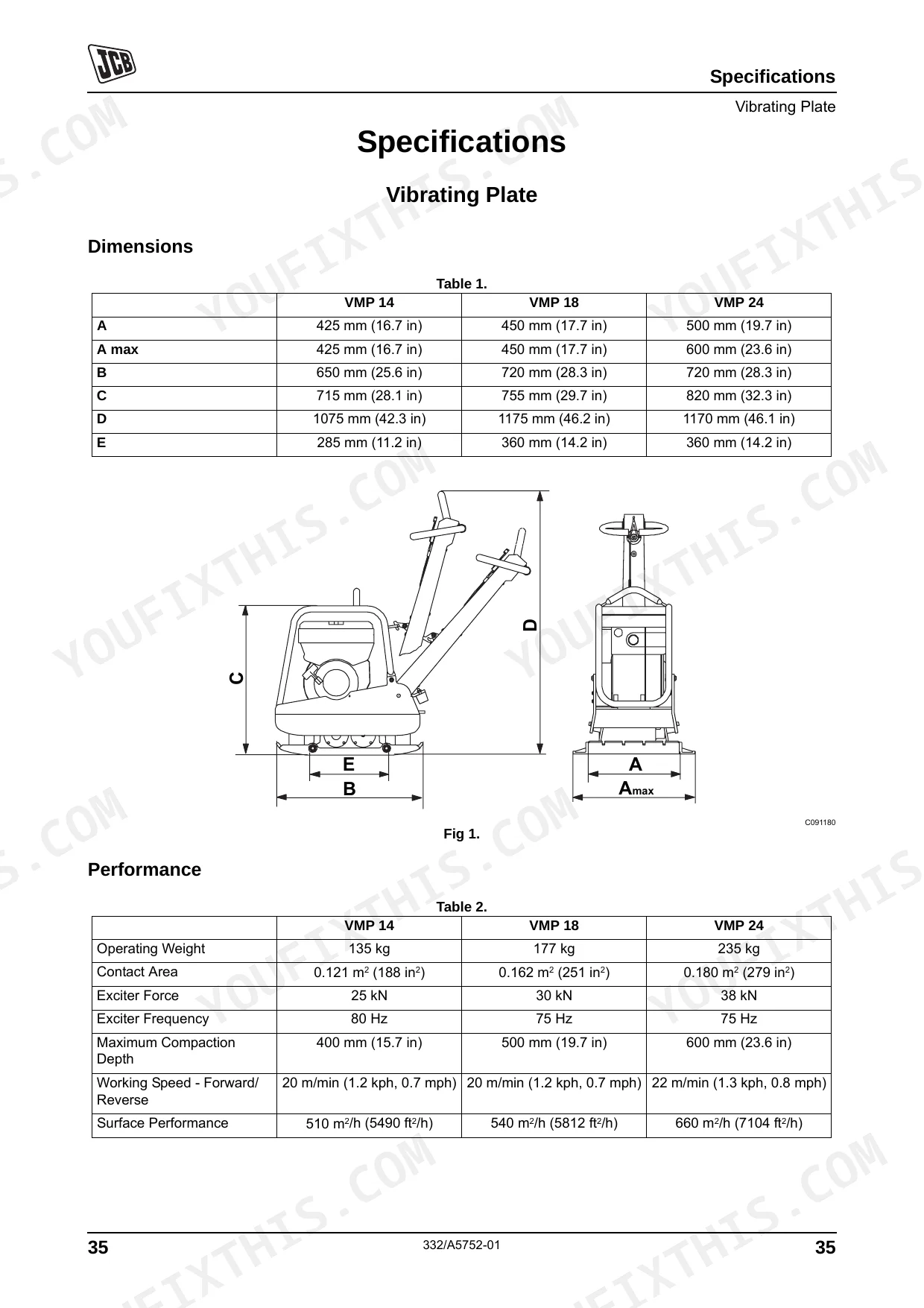

| Specifications | 43-46 | Vibrating Plate, Dimensions, Performance, Noise and Vibration, Engine |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| VMP 24 | ||
| Torque for bolts securing tamping plate extensions (A) | 43 Nm (31.7 lbf ft) | p. 41 |
| Torque for bolts securing plate damper to struts (E) | 184 Nm (135.7 lbf ft) | p. 41 |
| All Models | ||
| Welder earth (ground) cable distance from part being welded | no more than 0.6 metres (2 feet) | p. 19 |
| Engine Oil Specification | SAE 15W-40 | p. 36 |
| Drive Belt Deflection | 10 mm | p. 39 |
| Torque Setting (A) for Tamping Plate Extensions | 43 Nm (31.7 lbf ft) | p. 41 |
| VMP 14 | ||
| Shift Cylinder Oil (forward/reverse) capacity | 0.2 (0.04) Litres (UK Gal) | p. 36 |
| Exciter Drive Oil Capacity | 0.4 L | p. 36 |
| VMP 18 | ||
| Shift Cylinder Oil (forward/reverse) capacity | 0.2 (0.04) Litres (UK Gal) | p. 36 |
| VMP 14, VMP 18 | ||
| Fuel Tank Capacity | 3.0 L | p. 36 |
| Engine Oil Capacity | 0.9 L | p. 36 |
| Shift Cylinder Oil Capacity (forward/reverse) | 0.2 L | p. 36 |
JCB VMP 14, VMP 18, VMP 24 Common Problems This Manual Covers
JCB VMP 14 vibrating plate lacks compaction force or stops vibrating completely during operation p. 39
Inspect the drive belt for wear, slipping, or severe looseness. Adjust the tension mechanism until you measure exactly 10 mm of drive belt deflection, as shown on page 39. Tighten the mounting hardware securely and verify the exciter engages properly before resuming normal compaction work.
Manual Section: Routine MaintenanceForward and reverse travel controls feel sluggish or show visible oil leaking around the shift cylinder p. 36
Check the shift cylinder for damaged seals or leaking fittings. Drain and refill the system using HLP 46 hydraulic oil. Verify the correct fluid capacity on page 36, adding exactly 0.2 Litres for the smaller units, or 0.25 Litres for the largest unit.
Manual Section: Routine MaintenanceEngine runs hot or shuts down unexpectedly after short periods of heavy compaction work p. 36
Verify the engine oil level daily before startup. Park on a level surface and remove the dipstick. If the level is low, add SAE 15W-40 oil. Do not overfill past the 0.9 L total capacity listed on page 36 for the smaller models.
Manual Section: Routine MaintenanceExcessive rattling noise or loose components detected near the lower compaction assembly during operation p. 41
Torque all lower hardware before each shift. Tighten the bolts securing the tamping plate extensions to 43 Nm (31.7 lbf ft) as detailed on page 41. Verify the plate damper struts are also completely secured to prevent component failure during heavy vibration.
Manual Section: Routine MaintenanceFrequently Asked Questions
How do you fix JCB VMP 14 vibrating plate lacks compaction force or stops vibrating completely during operation?
Inspect the drive belt for wear, slipping, or severe looseness. Adjust the tension mechanism until you measure exactly 10 mm of drive belt deflection, as shown on page 39. Tighten the mounting hardware securely and verify the exciter engages properly before resuming normal compaction work.
How do you fix forward and reverse travel controls feel sluggish or show visible oil leaking around the shift cylinder?
Check the shift cylinder for damaged seals or leaking fittings. Drain and refill the system using HLP 46 hydraulic oil. Verify the correct fluid capacity on page 36, adding exactly 0.2 Litres for the smaller units, or 0.25 Litres for the largest unit.
How do you fix engine runs hot or shuts down unexpectedly after short periods of heavy compaction work?
Verify the engine oil level daily before startup. Park on a level surface and remove the dipstick. If the level is low, add SAE 15W-40 oil. Do not overfill past the 0.9 L total capacity listed on page 36 for the smaller models.
How do you fix excessive rattling noise or loose components detected near the lower compaction assembly during operation?
Torque all lower hardware before each shift. Tighten the bolts securing the tamping plate extensions to 43 Nm (31.7 lbf ft) as detailed on page 41. Verify the plate damper struts are also completely secured to prevent component failure during heavy vibration.
How quickly can I access this manual after buying?
You get a 46-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this JCB VMP 14, 18, 24 Operator Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a high-quality scanned PDF with an excellent OCR layer, allowing you to search and copy the full text content. The text throughout is crisp, clear, and very easy to read. Diagrams and illustrations are clear raster images, and all labels are perfectly readable. Pages are clean with no scan artifacts, stains, or skewed content. There are several pages explicitly marked as "Page left intentionally blank" (pages 8, 22, 30, 46).
