Covering everything from daily fluid checks to dashboard warnings, this 104-page JCB robot 160 operator manual pdf (OEM #4300-1) is the factory handbook for 1998-2005 Robot 160 and 180T skid steer loaders. Inside, you get complete operating procedures, daily maintenance schedules, and clear explanations for every cab control and warning light. Open to the attachments section to see proper quick-release coupling techniques, or review the exact fluid capacities and service intervals required to keep your machine earning its keep. Top off the 30-liter hydraulic system with JCB High Performance 10W/30, and make sure you clean the oil cooler every 10 operating hours. Prevent costly downtime caused by missed grease points or ignored warning lights. Grab this bookmarked download, load it on your tablet, and keep your skid steer running strong.
What's Inside This JCB Robot 160–180 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 1 | Machine Security |
| Introduction | 5-6 | About This Handbook, The JCB Skid Steer Loader |
| Safety First | 7-11 | - |
| Safety Decals | 12 | - |
| Identifying Your Machine | 13 | Machine Identification Plate |
| JCB Immobiliser Option | 14 | Electronically Coded Key, Immobiliser Key Receptacle, Activation, Deactivation, Replacement Keys |
| Emergency Exits | 15-18 | Entering/Leaving the Cab, Introduction, Cab Door and Vents |

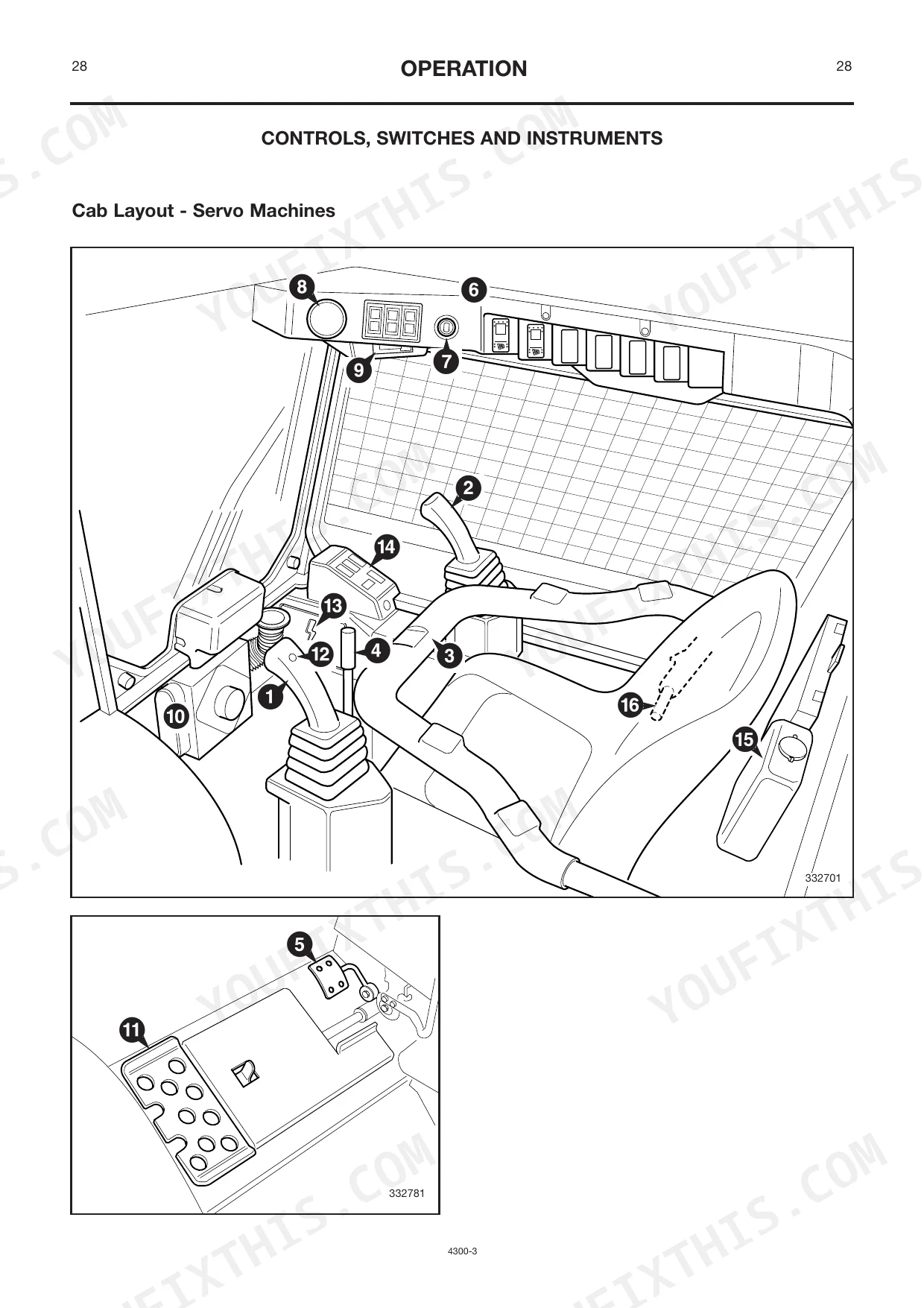

| Controls, Switches and Instruments | 19-26 | Parking Brake, Seat and Safety Restraint, Seat Belt, Controls, Switches and Instruments |
| Cab Interior Light (Optional) | 27-32 | Cab Heater Unit (Optional), Rotating Beacon (Optional) |

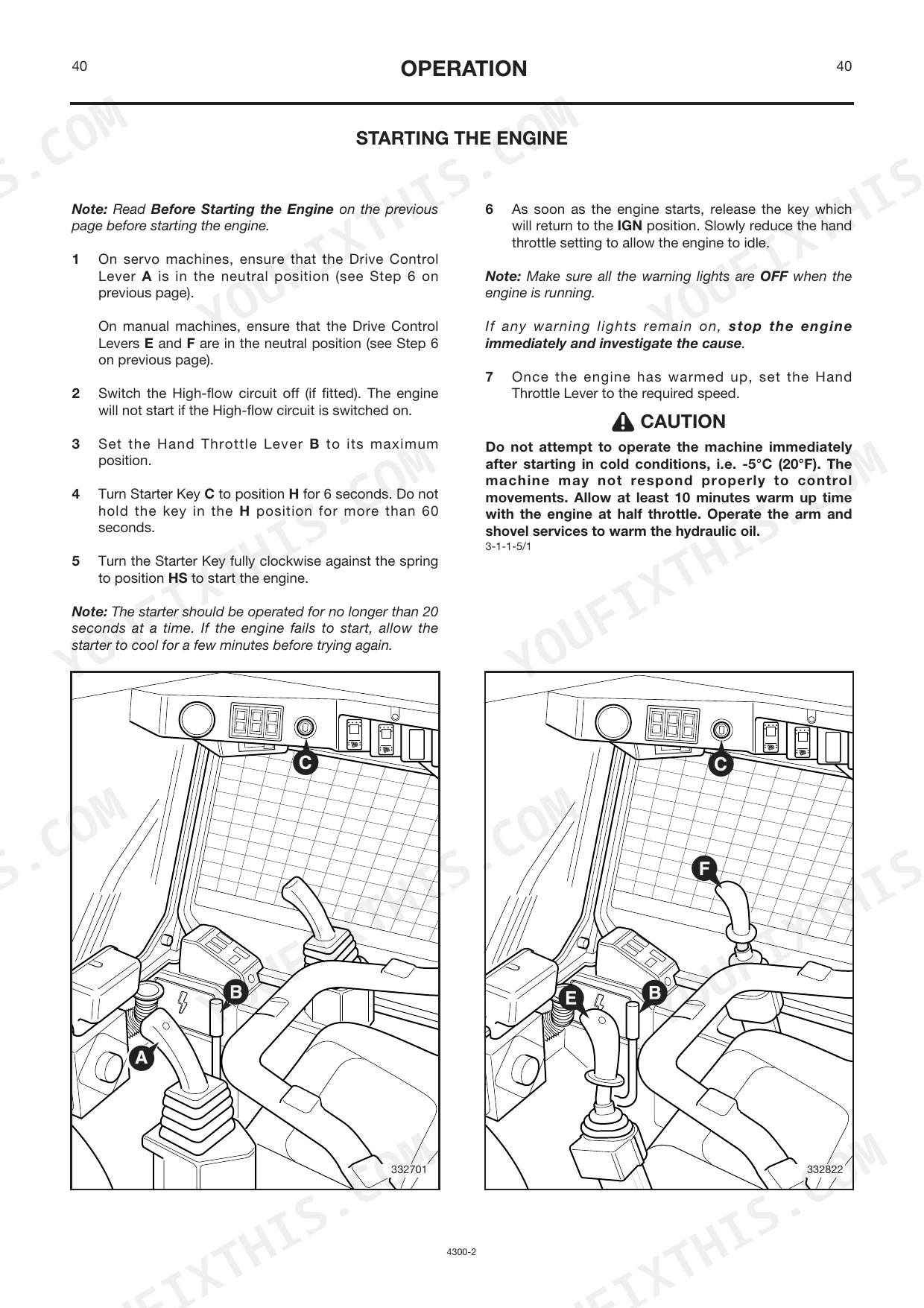

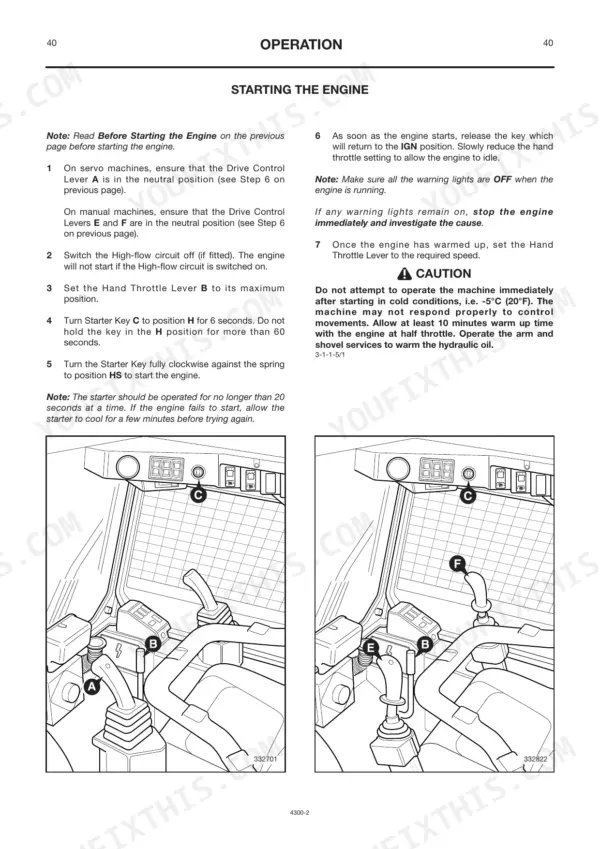

| Travelling Position | 33-37 | Starting the Engine, Before Starting the Engine, Jump-Starting the Engine |
| Using the Attachments and Site Safety | 38-43 | Driving the Machine, Operating Practices |

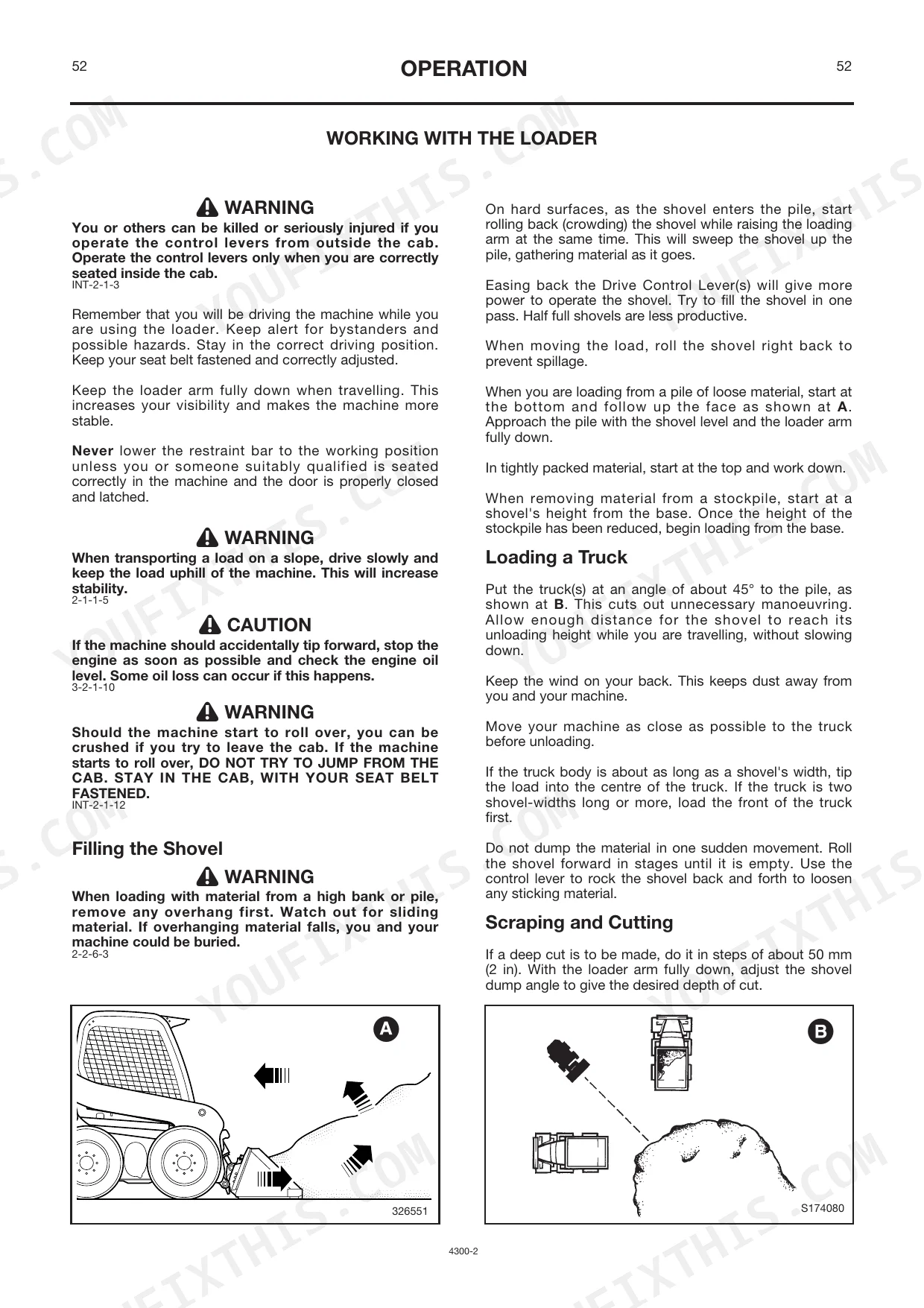

| Operating in Low Temperatures | 44-47 | Quickhitch Control, Working with the Loader |
| Lubricants - Health and Safety | 48-54 | Transporting the Machine, Moving a Disabled Machine, Emergency Load Lower Procedure, Lifting the Machine, Service Requirements |
| Loader Arm Safety Strut | 55-58 | Service Schedules, Cleaning the Cab Interior |

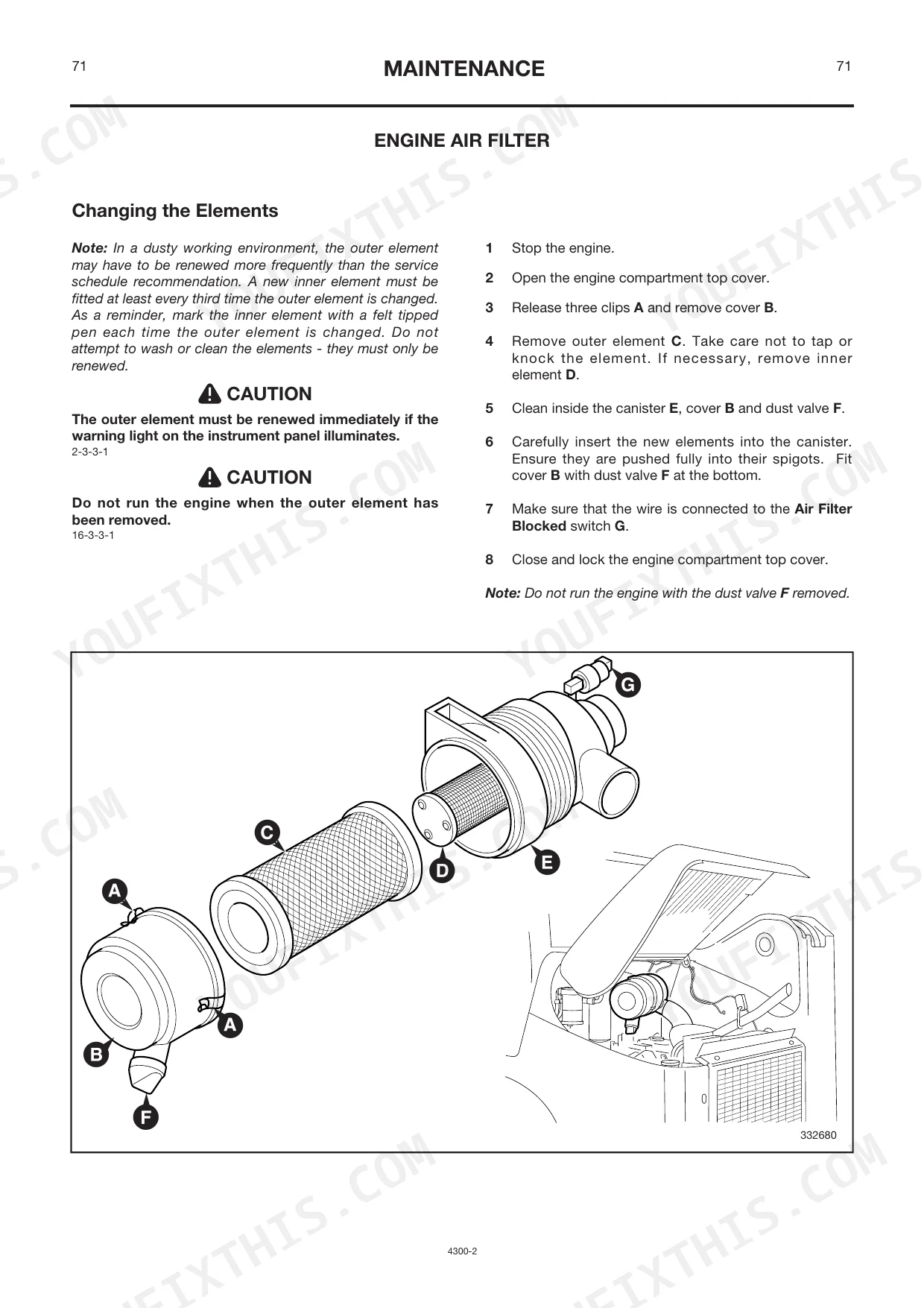

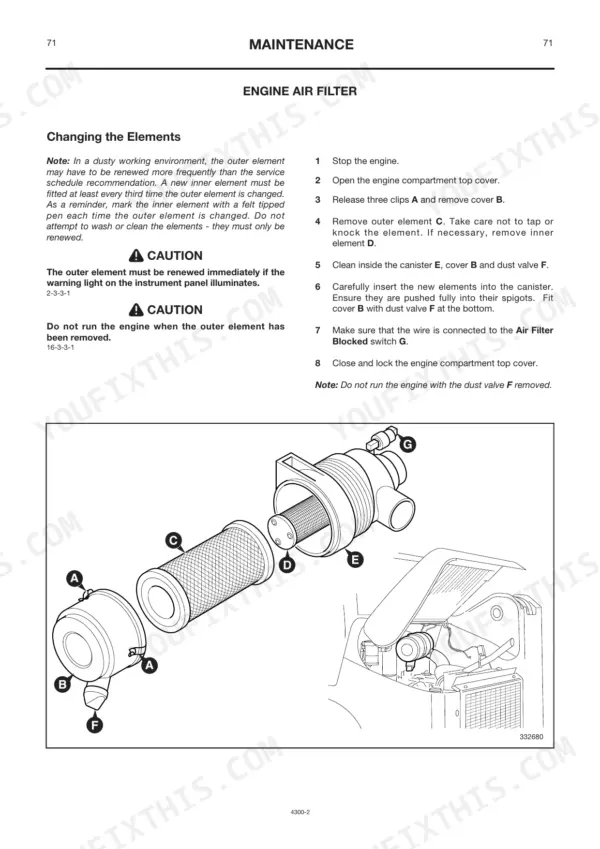

| Maintenance | 61-82 | Service Requirements, Lubricants - Health and Safety, Service Schedules, Cleaning the Cab Interior, ROPS/FOPS Cab/Canopy, Loader Arm Safety Strut, Engine Compartment Access, Seat Belt, Greasing (10 Hours), Greasing (50 Hours), Oiling (100 Hours), Engine Air Filter, Engine Oil and Filter, Engine Cooling System, Engine Alternator Belt, Drive Chain Lubrication, Fuel System, Hydraulic System, Battery, Electrical System, Windscreen Washer, Track Adjustment, Tyres and Wheels, Fluids, Capacities and Lubricants, Obtaining Replacement Parts |

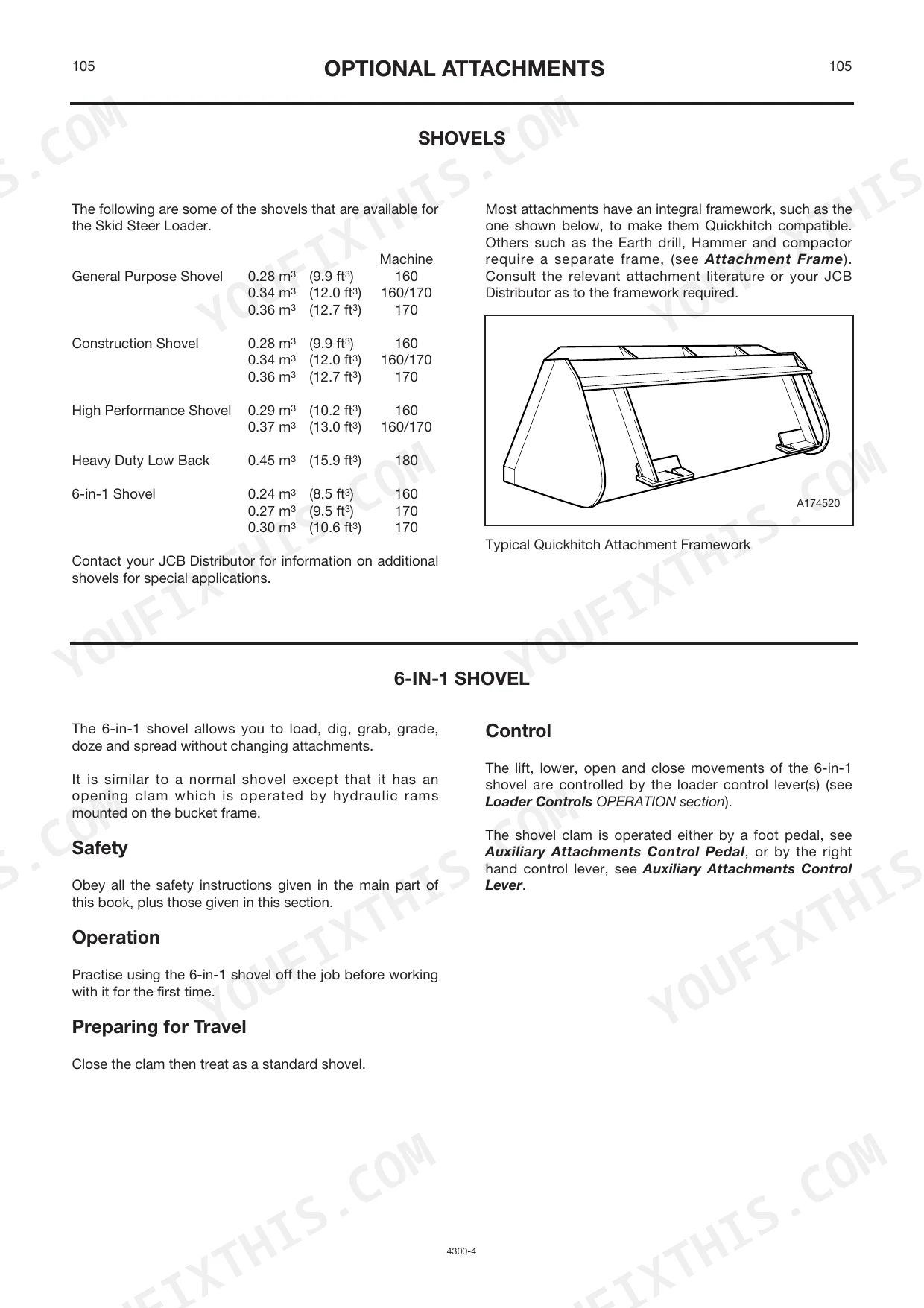

| Optional Attachments | 83-94 | Quick Release Couplings, Connecting/Disconnecting Hydraulic Hoses, Attachments Controls, Shovels, Pallet Forks, Manure/Silage Fork with Top Grab, Attachment Frame |
| Specification | 95-104 | General Specification, Wheeled Machine Static Dimensions, Tracked Machine Static Dimensions, Noise and Vibration Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic system capacity | 30 litres | p. 80 |
| Hydraulic fluid type | JCB High Performance 10W/30 | p. 80 |
| Hydraulic filter canister tightening | hand tight only | p. 73 |
| Oil cooler cleaning interval | Every 10 Operating Hours or Daily | p. 55 |
| Oil cooler connections check interval | Every 50 Operating Hours or Weekly | p. 55 |
| Cooling System Total Coolant | 8 litres | p. 80 |
| Cooling System Antifreeze | 4 litres | p. 80 |
| Fuel System Capacity | 80 litres | p. 80 |
| Chain Case Capacity | 17 litres | p. 80 |
| Alternator Belt Deflection | 7 mm | p. 68 |
| all (up to machine no. 681290) | ||
| Engine Oil Capacity | 8.2 litres | p. 80 |
| all (from machine no. 681291) | ||
| Engine Oil Capacity | 8.4 litres | p. 80 |
JCB Robot 160–180 Common Problems This Manual Covers
JCB Robot 160 sudden loss of all hydraulic power and drive while the engine still runs p. 80
Stop the engine immediately if the low hydraulic charge pressure warning light stays on. Check the fluid capacities on page 80 to ensure the hydraulic tank holds the full 30 litres of JCB High Performance 10W/30. Contact your distributor if the oil appears cloudy.
Manual Section: MaintenanceHydraulic oil overheats and loader performance falls off rapidly after running for a short time p. 55
Clean the oil cooler grille and radiator matrix to remove trapped dust and debris. Perform this routine cleaning every 10 Operating Hours or Daily as outlined on page 55. Check all cooler connections for leaks every 50 Operating Hours or Weekly to prevent fluid loss.
Manual Section: MaintenanceLoader arm movement is erratic and warning light illuminates indicating restricted hydraulic fluid flow p. 73
Replace the hydraulic oil filter to restore proper system flow. Install the new filter element and secure the canister to hand tight only as directed on page 73. Check the fluid level and top up with JCB High Performance 15W/40 oil if needed.
Manual Section: Hydraulic System MaintenanceMachine becomes weak on one side and rubber track slips over the drive sprocket during turns p. 78
Measure the undercarriage tension to ensure proper drive sprocket engagement. Adjust the track tensioner until you achieve a track sag of 5 to 10 mm as specified on page 78. Clear any packed mud from the tracks to prevent track derailment or drive slippage.
Manual Section: MaintenanceFrequently Asked Questions
What does JCB Robot servo pressure low code mean?
The 'Low Hydraulic Charge Pressure' indicator lights up if the hydraulic charge pressure drops too far. If this light remains on after starting the engine, you must stop the engine immediately to prevent serious transmission damage. A blocked hydraulic oil filter is a possible cause of this warning.
What are the replacement specifications for hydraulic fluid?
For the hydraulic system, the recommended fluid is JCB High Performance 10W/30 or JCB High Performance 15W/40 (for top-up only). The fluid should meet ACEA E2:B2:A2 and API CF4/SG specifications, with a total capacity of 30 litres.
How do you fix JCB Robot 160 sudden loss of all hydraulic power and drive while the engine still runs?
Stop the engine immediately if the low hydraulic charge pressure warning light stays on. Check the fluid capacities on page 80 to ensure the hydraulic tank holds the full 30 litres of JCB High Performance 10W/30. Contact your distributor if the oil appears cloudy.
How do you fix hydraulic oil overheats and loader performance falls off rapidly after running for a short time?
Clean the oil cooler grille and radiator matrix to remove trapped dust and debris. Perform this routine cleaning every 10 Operating Hours or Daily as outlined on page 55. Check all cooler connections for leaks every 50 Operating Hours or Weekly to prevent fluid loss.
What format is this manual in?
You get a 104-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this JCB Robot 160 & variants Operator Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This PDF is an OCR-processed scanned document, allowing you to search and copy the full text. The text is crisp and easy to read, and the diagrams are clear raster images with readable labels. Pages are clean, free from scan artifacts, stains, or skewing. All pages contain content, with no notable blank or filler pages present.
