JCB JZ140 [T4i], JZ141 [T4F] Operator Manual

4.5/5 on Trustpilot · 155 reviews

Original price was: $27.99.Current price is: $19.99.

-29%

Model: JZ140 [T4i] | JZ141 [T4F]

Type: EXCAVATOR

Serial: JZ140 [T4i] 2375081-2376080 | JZ141 [T4F] 2479659-2479759

294 Pages·29 MB·Searchable PDF·English

✓ Torque Specs
✓ Multi-Level Bookmarks (2-level navigation)

Preview Sample Pages (PDF)

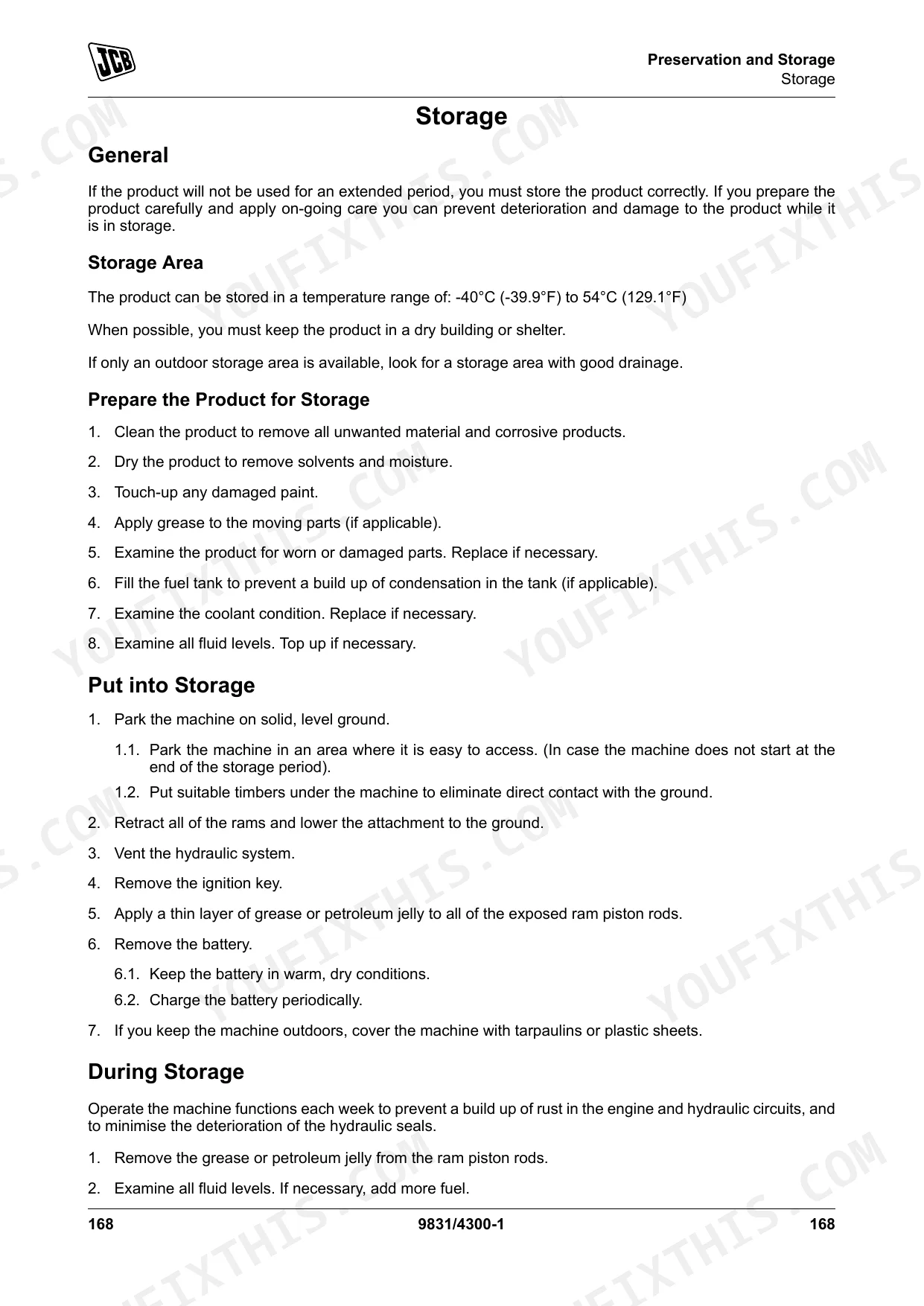

Manual Screenshots
Description
Additional Information
Reviews 0

Engine cranks but won't start? Before you drop cash on a new starter, check your fuel system for air. This manual shows you exactly how to bleed the lines and set correct track tension.

Need the exact daily maintenance intervals and cab control layouts for your excavator? This 294-page JCB JZ140 [T4i], JZ141 [T4F] Operator Manual PDF (OEM #9831/4300) focuses on running and maintaining your machine safely. It covers the operator station, console switches, dashboard indicators, and precise fluid capacities in full. A large section is dedicated to walk-around inspections, boom attachments, maintenance interval schedules, and error codes so you know exactly what the machine is telling you. Confirm your F1 beacon fuse rating is 10A, and torque the travel motor to 290 N.m during your routine undercarriage checks before rolling out. Don't let a simple dash code or forgotten service interval sideline your crew. Download this bookmarked file straight to your phone, find the exact spec, and get the excavator back to work.

What's Inside This JCB JZ140 [T4i], JZ141 [T4F] Operator Manual

System	Pages	Key Topics
Acronyms Glossary	12	Auxiliary Relief Valve, Construction Equipment Security and Registration, Display Electronic Control Unit, Engine Control Module, Exhaust Gas Recirculation

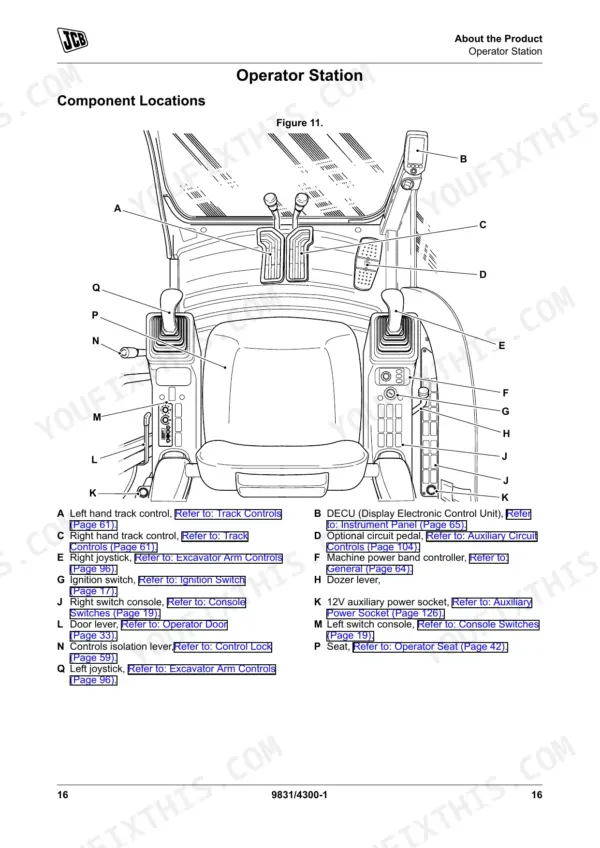

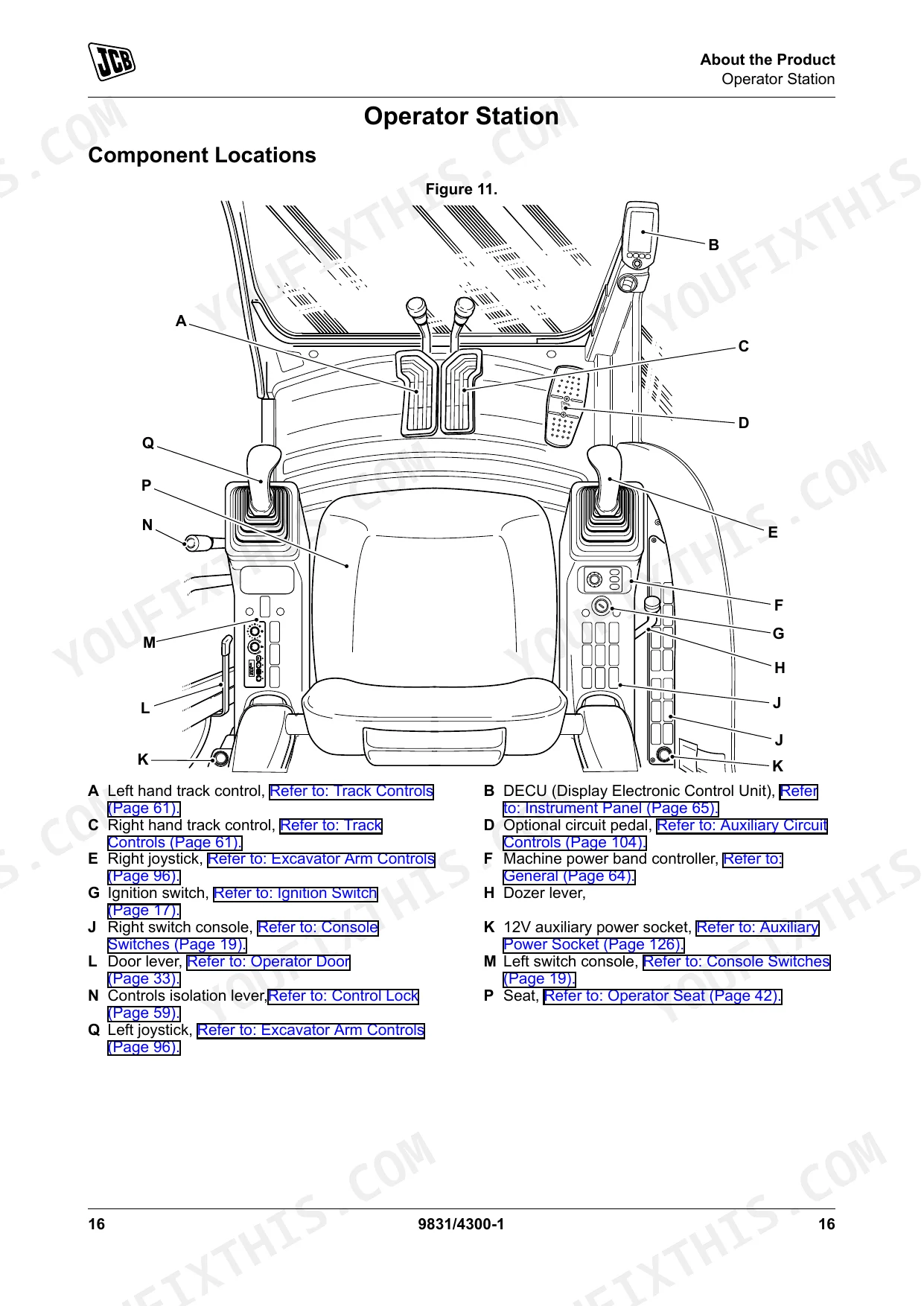

About the Product	17-34	Introduction (General, Name and Address of the Manufacturer, Product Compliance)

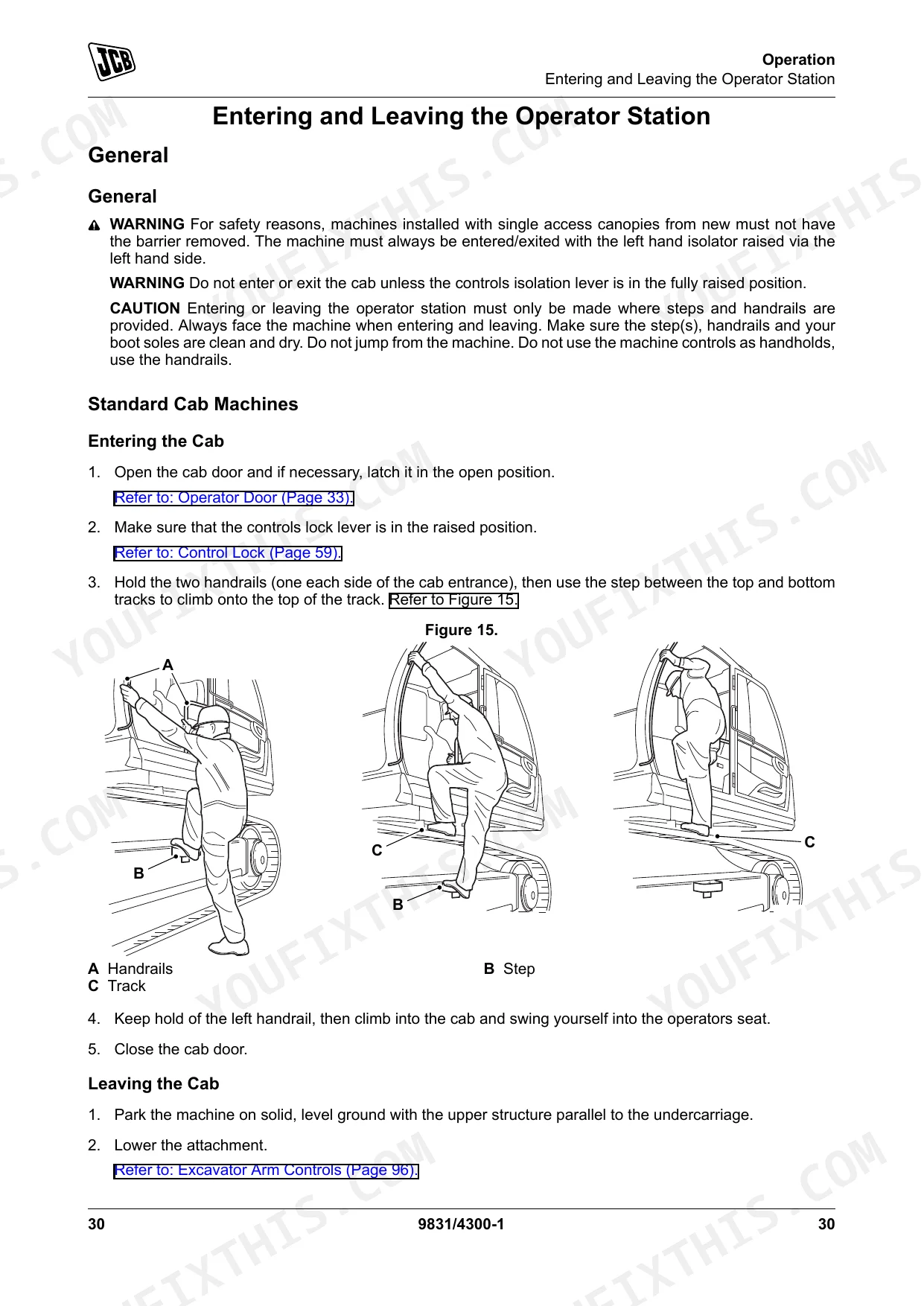

Windows	36-53	Operating Safety, Entering and Leaving the Operator Station
Seat Belt	54-59	Operator Seat
Starting the Engine	60-72	Mirrors
Instruments	73-107	Drive Controls
Operating Levers/Pedals	108-119	-
Working with the Excavator Arm	120-140	Lifting and Loading
Attachments	141-174	Moving a Disabled Machine
Maintenance Schedules	175-184	Maintenance Safety
Maintenance	185-242	Service Points, Access Apertures, Body and Framework, Engine, Fuel System, Electrical System, Static Dimensions
Technical Data	243-287	Performance Dimensions, Vibration Emissions, Fluids, Lubricants and Capacities, Electrical System, Service Record Sheet
Warranty Information	288-294	Service Record Sheet, Installation Checklist, 500h/3 Month, 1000h/6 Month, 1500h/9 Month, 2000h/12 Month

Quick Reference Specifications

Specification	Value	Page
Travel motor tightening torque	290 N.m	p. 278
Drive sprocket tightening torque	290 N.m	p. 278
System voltage	24V	p. 268
Battery tightening torque	7 N.m	p. 278
F1 Beacon rating	10A	p. 268
F10 HVAC (Heating Ventilation Air Conditioning) rating	20A	p. 268
Alternator voltage	26.8 V	p. 71
Bucket swivel pin clearance	0.8mm	p. 129
Air filter (outer) replacement interval	500h, 1000h, 2000h, 4000h	p. 195
Air filter (inner) replacement interval	500h, 1000h, 2000h, 4000h	p. 195
Engine fuel filter replacement interval	250h, 500h, 1000h, 2000h, 4000h	p. 195
Main fuel filter/sedimenter replacement interval	250h, 500h, 1000h, 2000h, 4000h	p. 195

JCB JZ140 [T4i], JZ141 [T4F] Common Problems This Manual Covers

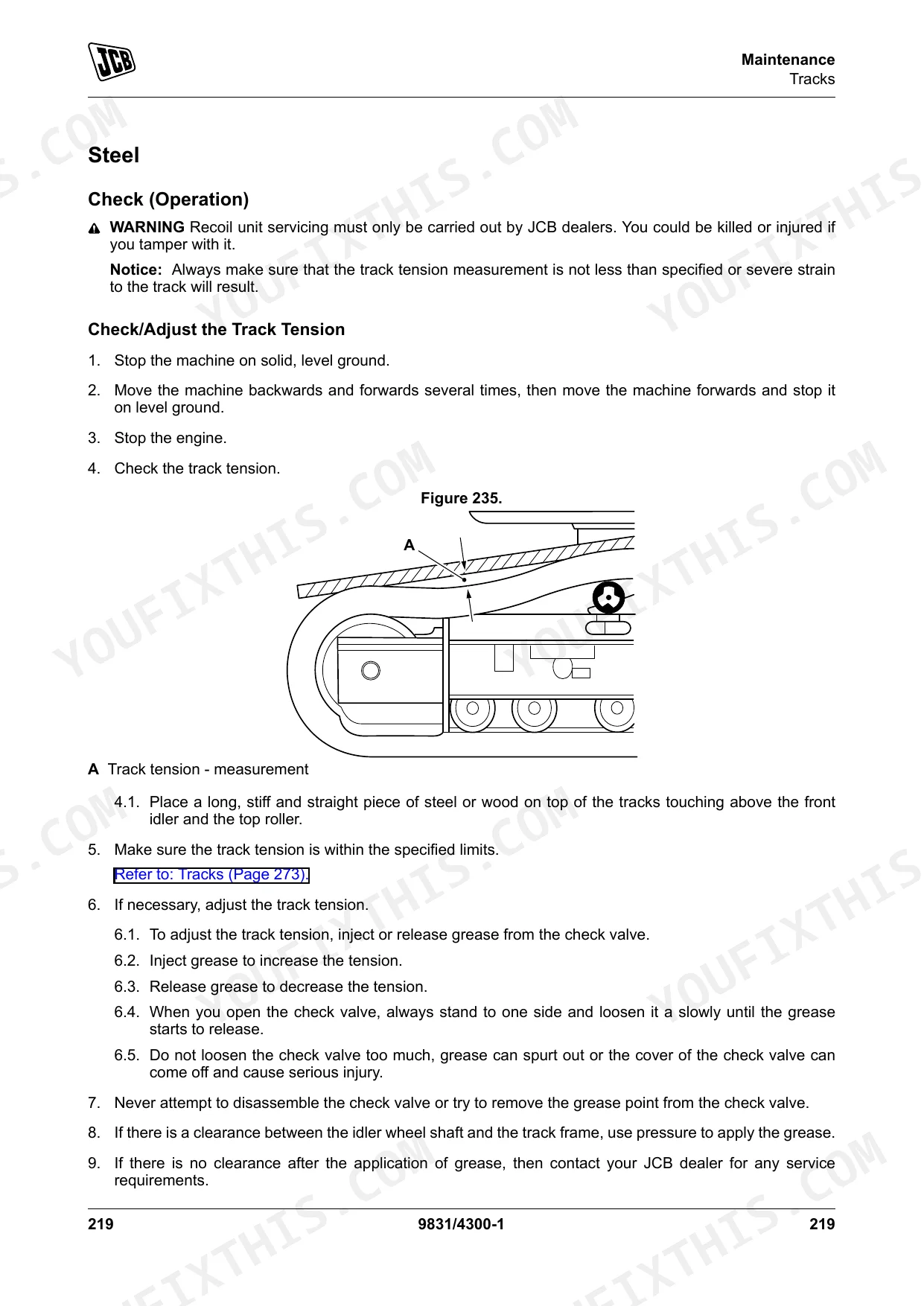

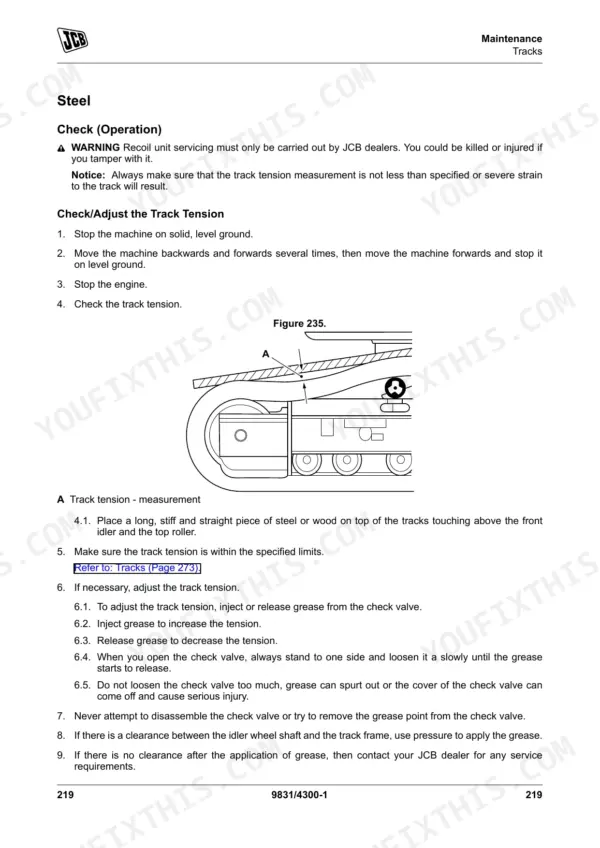

JCB JZ140 undercarriage making loud clanking noises during travel and tracks skipping over the sprocket p. 285

Check track tension using the procedure in the manual. Measure the droop between the bottom track roller and the track shoe. Adjust the grease cylinder to achieve a minimum track tension of 25mm as specified on page 285. Inspect lower rollers for excessive wear.

Manual Section: Track Tension Adjustment

High coolant temperature warning light flashing on the dashboard during heavy digging operations p. 270

Inspect the cooling pack components for debris blockages. Clean the radiator fins with compressed air. Verify the coolant level is within the normal range on the expansion tank. If low, fill the system to its maximum 23.6L capacity as outlined on page 270.

Manual Section: Cooling System Checks

Poor control response and noticeable hydraulic fluid dripping near the boom cylinder connections p. 194

Inspect all hydraulic hoses and adaptors for visible damage or weeping fluid. Replace any weakened lines immediately, noting the strict hydraulic hose replacement interval of 2 years or 4000 hours found on page 194. Top off the 160L hydraulic system if the sight glass shows low fluid.

Manual Section: Hydraulic Hoses Inspection

Complete loss of electrical power to cab displays and engine refuses to turn over p. 269

Verify the battery isolator switch is in the ON position. Inspect battery terminals for corrosion and ensure the battery system voltage reads exactly 24V. Check the PFA fuse box and replace the F17 Machine ECU fuse with a new 30A rating shown on page 269.

Manual Section: Electrical System Checks

Frequently Asked Questions

How to reset JCB JZ140 T4i service indicator?

The service event symbol and fault indicator for the JCB JZ140 T4i can only be cancelled by your JCB dealer. The manual explicitly states that this task should be performed by a qualified JCB dealer.

How to clear error codes on JCB JZ140 T4F?

Error codes, referred to as faults, can be acknowledged by pressing the enter button on the display. For service faults, this will silence the buzzer, and for multiple critical faults, you can navigate to the error log screen using the control wheel and press enter to acknowledge all active faults.

How to reset JCB JZ140 hydraulic pressure warning?

The overload warning system, which indicates hydraulic pressure issues, will automatically reset when the operator takes the necessary action to lower the lift. Once the lift is lowered, the buzzer and icon are cancelled, and the system resets.

What do JCB JZ140 T4i fault codes mean?

The manual describes that the fault log screen displays the fault code, time, date, engine hours, and the number of times a fault has been active. Faults are color-coded by severity: red for critical, yellow for warning, and gray for trivial. However, the manual does not provide a list of specific fault codes and their corresponding meanings.

how to find torque specs for JCB JZ140 undercarriage

Torque specifications for JCB JZ140 undercarriage components are listed in Table 57 on page 266. For example, the travel motor, drive sprocket, idler wheel, lower (track) roller, and track guard bolts (M16) should be tightened to 290 N.m. The upper (carrier) roller and turntable bearing (undercarriage) bolts (M16/M20) have torques of 290/550 N.m and 296/525 N.m respectively.

How quickly can I access this manual after buying?

This is a 294-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.

Am I able to print pages from this manual?

Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

Document Quality

This is a scanned document with an OCR text layer, allowing you to search and copy text throughout the manual. The text is crisp and consistently readable on every page, with no blurriness or fading. Diagrams and illustrations are clear raster images, and all labels within them are easily legible. Pages are clean and free from any scan artifacts, stains, or skewed content, although you will find several dedicated "Notes" pages and some other entirely blank pages included.

Brand	JCB
Model	JZ140 [T4i], JZ141 [T4F]
Machine Type	EXCAVATOR
Manual Type	Operator Manual
Language	English
Format	Searchable PDF (Digital Download)
Pages	294
File Size	29 MB
OEM Part Number	9831/4300
Serial Range	JZ140 [T4i] 2375081-2376080, JZ141 [T4F] 2479659-2479759
Wiring Diagrams	No
Hydraulic Schematics	No
Torque Specifications	Yes
Bookmarked / Indexed	Yes
Document Quality	Medium
