John Deere Technical Manual TM1563 takes your 2000 Series tractor down to the last shim across 634 pages, covering five models: 2000, 2100, 2200, 2300 and 2400. Electrical repair runs longer than any other chapter in this John Deere 2000 Technical Manual PDF, with system diagrams and schematics, harness repair, alternator and starting motor rebuilds, instruments, switches and sensors. The hydraulic section works through the main pump, hydraulics distributor, rockshaft cylinder and draft link torsion bar, while power train coverage carries the MFWD drop box, front wheel drive axles, rear differential housing and PTO shaft. Fill the transmission and hydraulic system with 27L on tractors without MFWD, 29L with it, and hold swinging lever to stop nut play at 0.2 to 0.3 mm. A tractor parked mid season burns daylight you cannot buy back. Bookmarked and searchable, it is bought once and yours for as long as you own the tractor.
What's Inside This John Deere 2000, 2100, 2200, 2300 & 2400 Manual

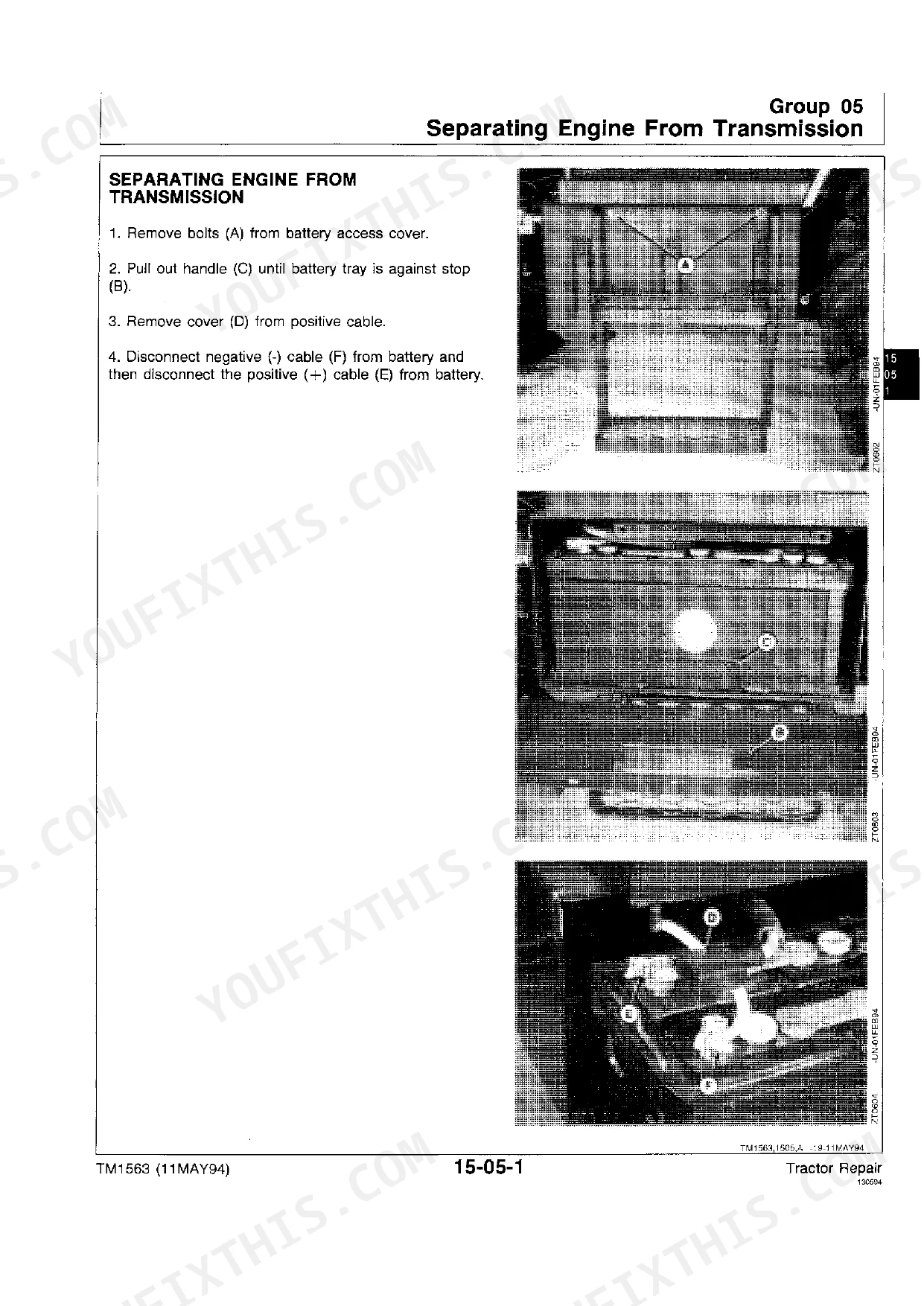

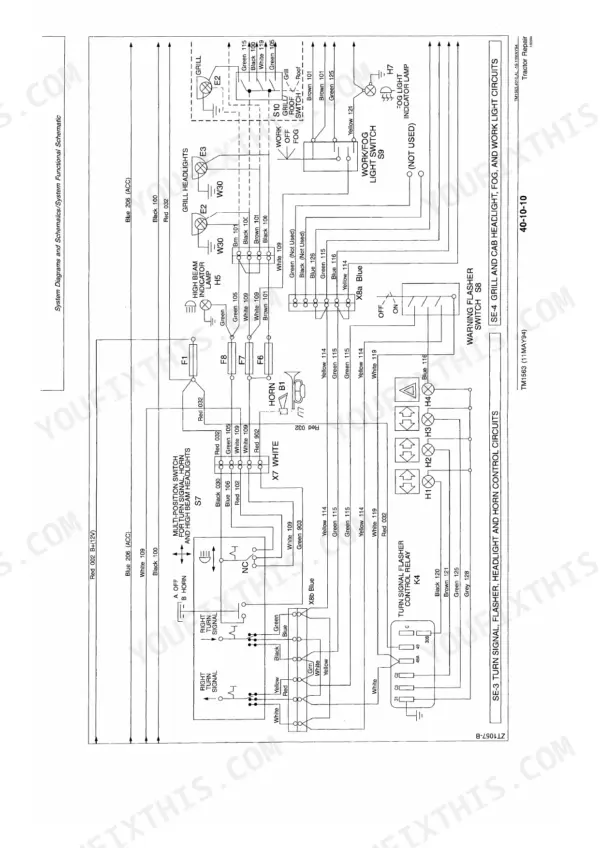

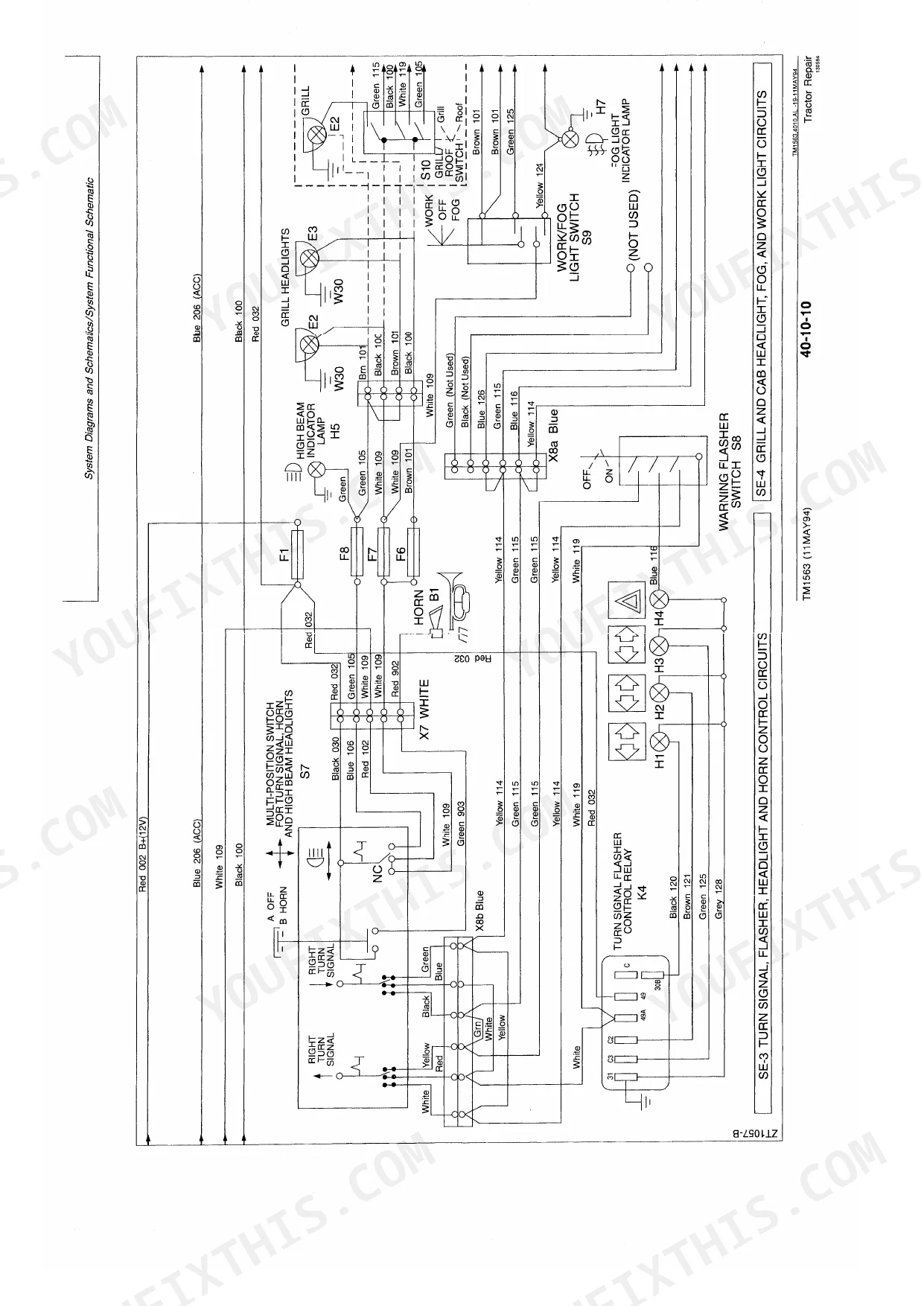

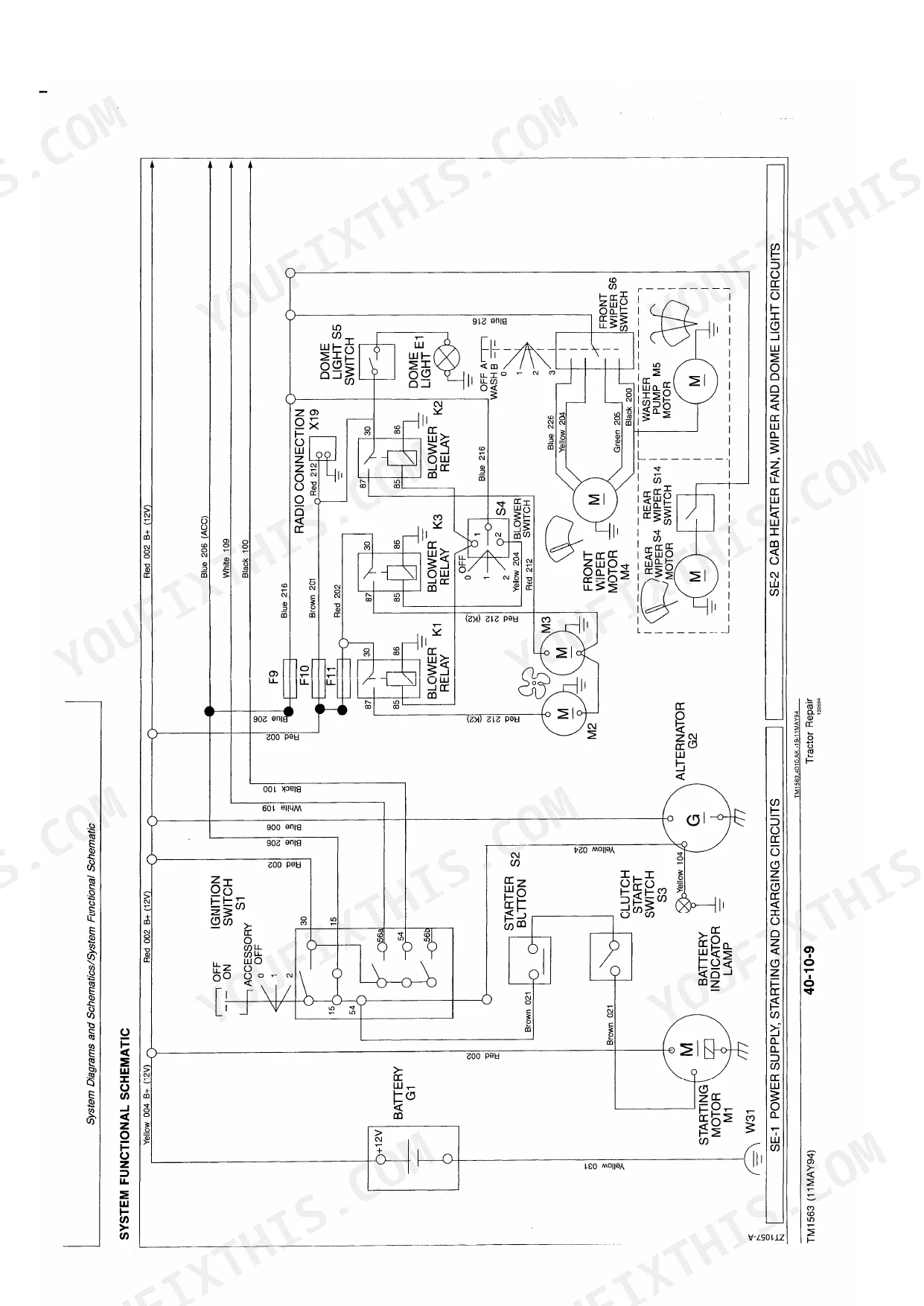

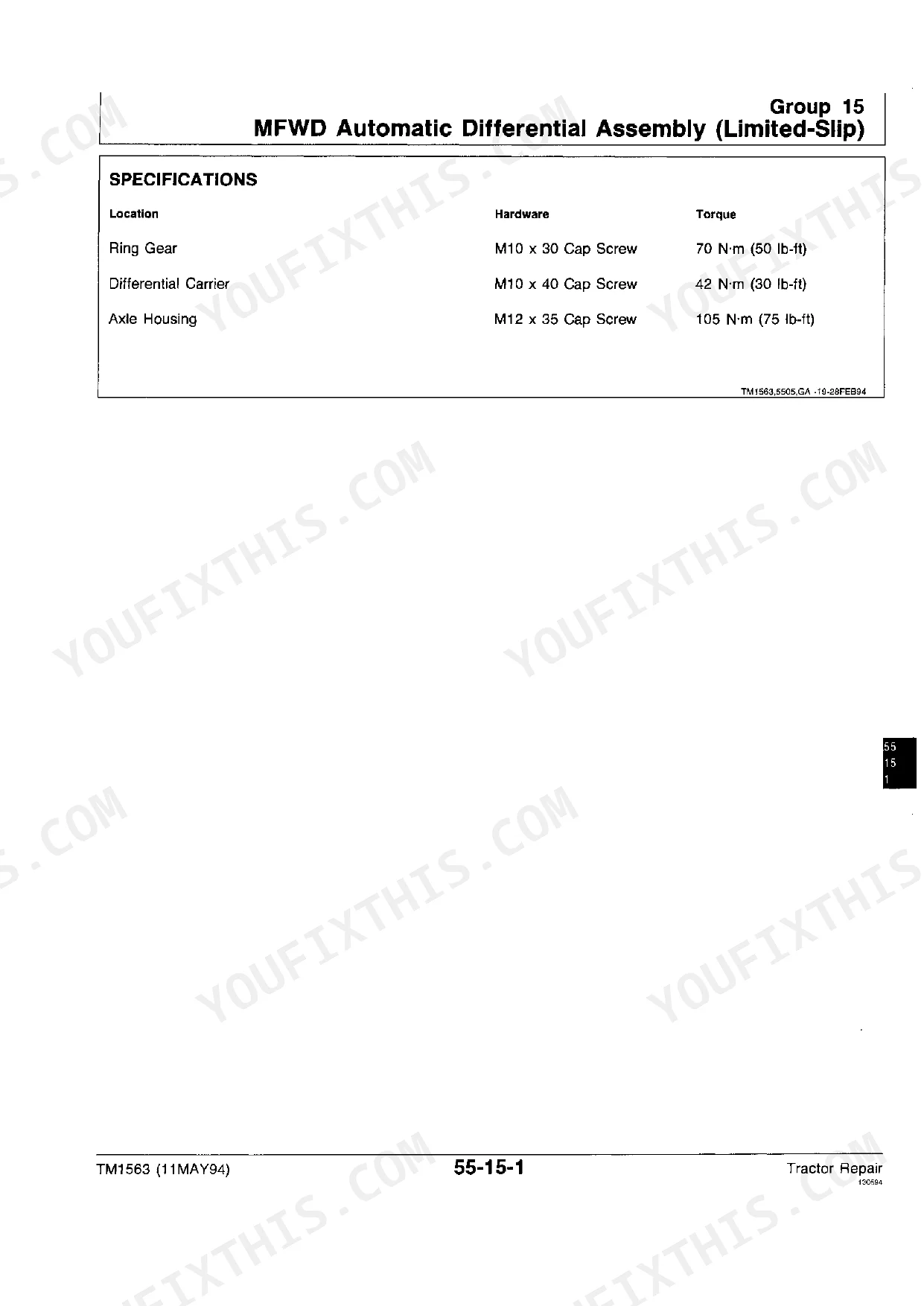

| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-18 | Fluids, Battery Explosions, Emergencies, Acid Burns, Chemical Products, High-Pressure Fluids |
| General Information | 19-38 | Fuels, Lubricants and Coolants |
| Component Removal/Installation | 39-82 | Special Tools and Specifications, Separating Engine From Transmission, Transmission, Final Drives, Differential Housing, Engine |
| Engine Repair | 83-196 | Special Tools and Specifications, Clutch, Engine Mounting, Cylinder Head and Valves, Crankshaft, Pistons, Rods and Liners, Camshaft and Timing Gear Train |
| Electrical System-Repair | 197-342 | System Diagrams and Schematics, Battery, Harness Repair, Alternator, Starting Motor, Lights, Instruments and Switches, Sensors |
| Mechanical Shift Transmission | 343-388 | Special Tools and Specifications, Clutch Housing, Transmission Cover, Gears and Shafts |
| Power Train Components | 389-490 | Driveshaft, Pinion Housing, MFWD Automatic Differential Assembly, Wheel Reduction-Gear Assembly, Front Wheel Drive Axles, MFWD Drop Box, Rear Differential Housing, Final Drive |
| Brakes and Steering | 491-526 | Special Tools, Bleed Brakes, Brake Adjustment, Disc Brakes, Master Cylinder, Proportional Valve, Slave Cylinder, Troubleshooting Brake System |
| Main Hydraulic System | 527-586 | Special Tools and Specifications, Main Hydraulic Pump, Internal Hydraulics Cover, Rockshaft Cylinder, Hydraulics Distributor, Hydraulic Control Levers, Rockshaft |
| Miscellaneous | 587-608 | Wheels and Tires, Ballast |
| Operator’s Station | 609-634 | Seat, Open Station Floor, Open Station Frame, Cab |

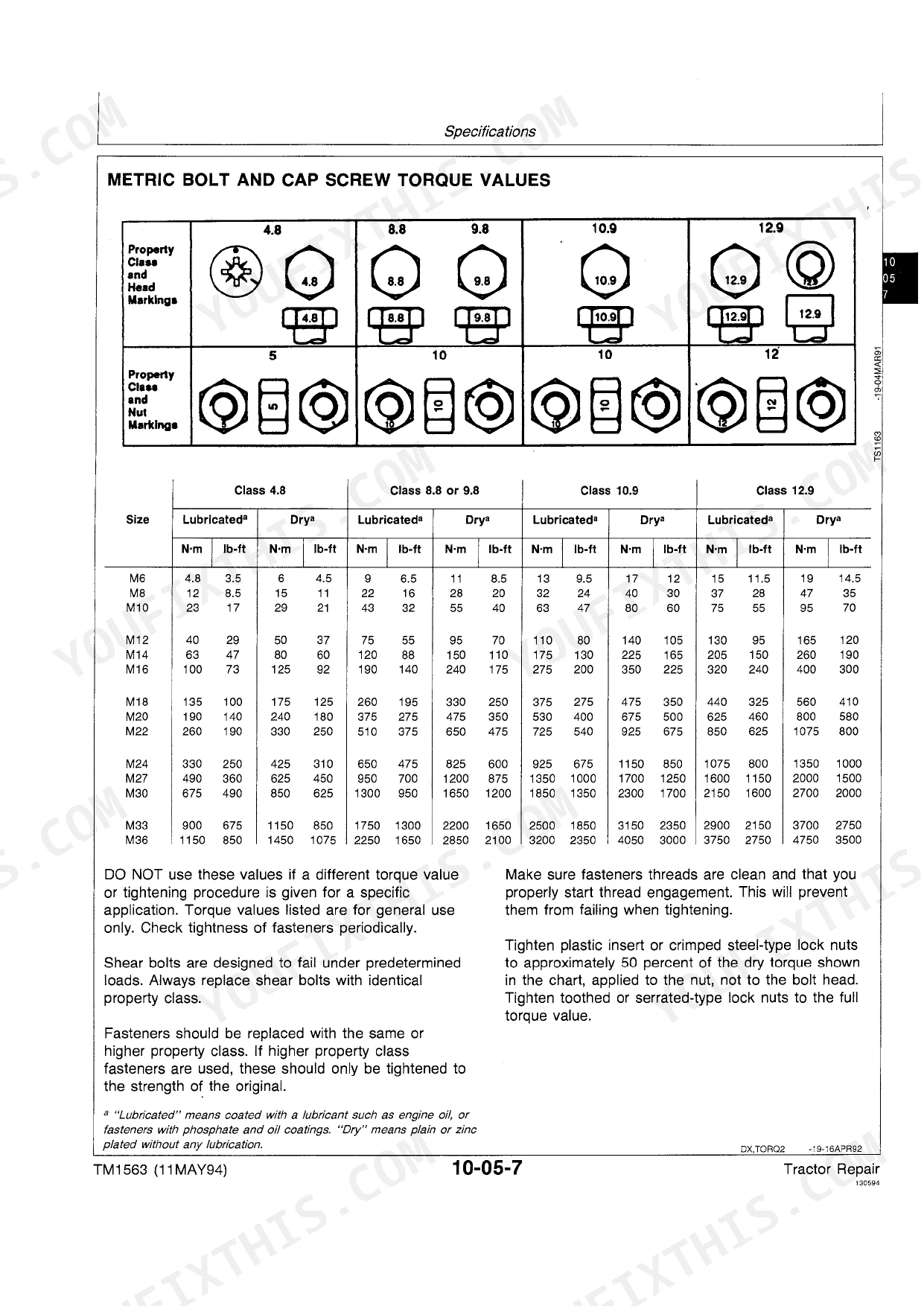

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Injection Pump Pressure | 18.6 - 0.8 MPa | p. 88 |
| Fuel Injection Pump Injection Advance Angle | 25° + 1° | p. 88 |
| Battery Voltage | 12v | p. 21 |
| Alternator Output | 14v, 55 Amp | p. 21 |
| Starting Motor Power | 12v, 2.9 kW | p. 21 |
| Transmission/Hydraulic System Oil Capacity (without MFWD) | 27 L | p. 22 |
| Transmission/Hydraulic System Oil Capacity (with MFWD) | 29 L | p. 22 |
| 2000, 2100, 2200, 2300 | ||
| Fuel Tank Capacity | 70 L (18.5 gal) | p. 22 |
| 2400 | ||
| Fuel Tank Capacity | 90 L (23.8 gal) | p. 22 |
| 2000 | ||
| Crankcase Oil Capacity | 9.0 L | p. 22 |
| Cooling System Capacity (without heating, 2000 model) | 10.5 L | p. 22 |
| 2100, 2200, 2300, 2400 | ||
| Crankcase Oil Capacity | 12.0 L | p. 22 |
John Deere 2000, 2100, 2200, 2300 & 2400 Common Problems This Manual Covers

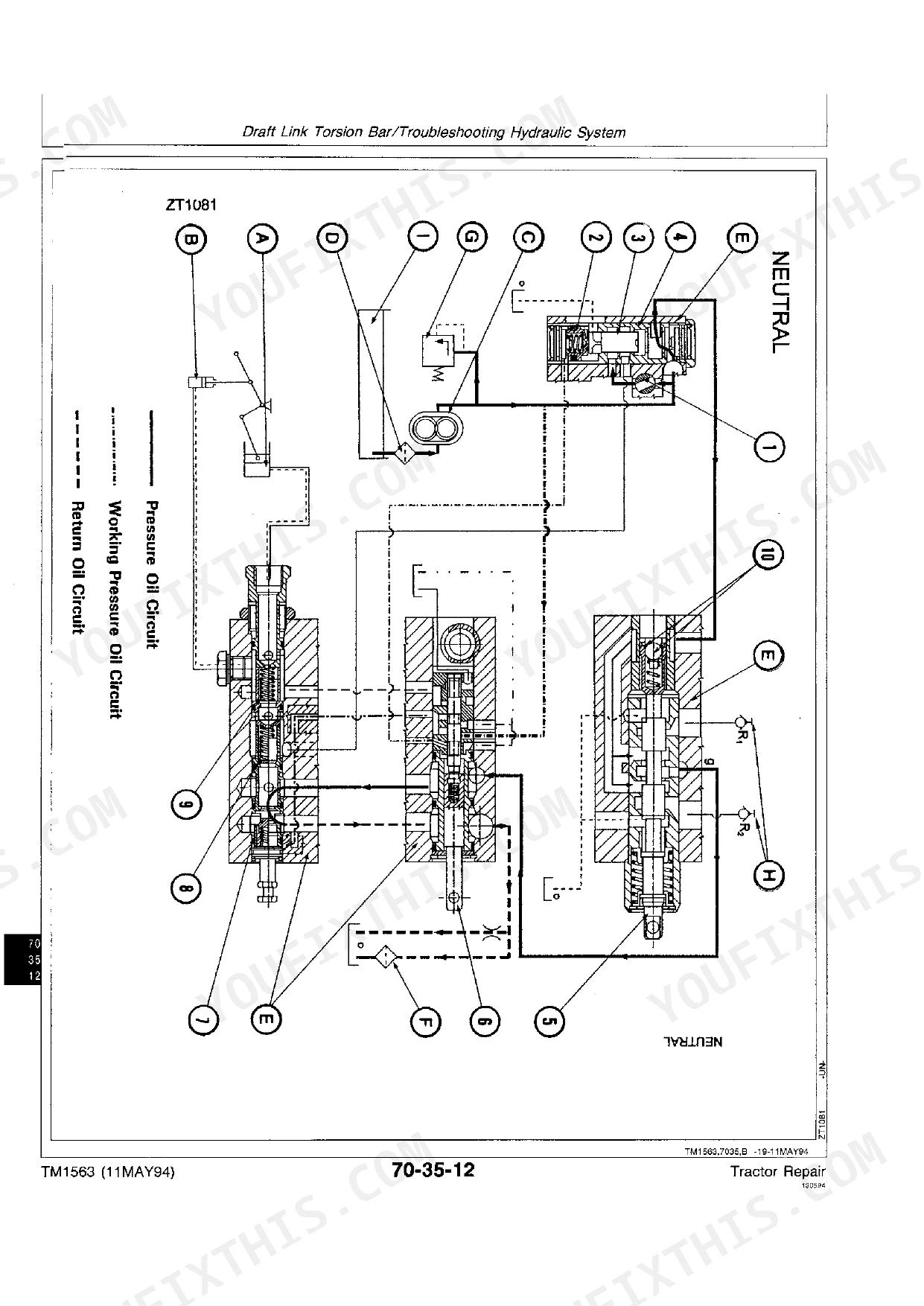

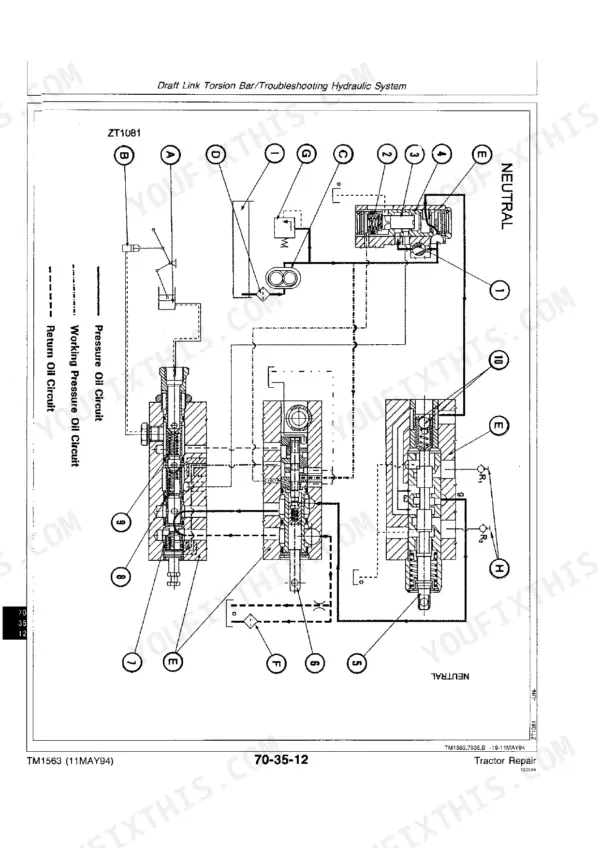

John Deere 2000 series three-point hitch lifts slow or jerky, drops under load
Check the hydraulic system troubleshooting steps starting before you pull anything apart. Drain and refill the transmission/hydraulic sump to 27 L without MFWD or 29 L with MFWD per page 43, then set play between the swinging lever fingers and stop nut to 0.2 to 0.3 mm as shown on page 575.
Manual Section: Main Hydraulic SystemEngine cranks strong but will not fire after running the fuel tank dry
Bleed air from the fuel system following the procedure on pages 179 to 180, working from the filter bleed screw forward to the injection lines. Replace both fuel filters, then confirm injection pump delivery pressure of 18.6 MPa and injection advance angle of 25 degrees plus 1 degree against the specs on page 88.
Manual Section: Fuel System BleedingClutch slips under PTO load or grinds when shifting into range
Inspect the clutch disc, pressure plate, and throw-out bearing after separating the engine from the transmission using the procedures beginning on page 39. Measure free pedal travel and replace any disc worn past the manual limits. Torque all driveline hardware to the values listed before you put the tractor back on the drawbar.
Manual Section: Engine Repair p. 83Temperature gauge climbs fast pulling a loaded baler or working heavy ground
Clean chaff off the radiator core and screen first, then flush and service the cooling system following page 34. Refill a 2000 tractor without cab heating to 10.5 L of coolant per the specifications on page 22. Verify water pump belt tension and check the thermostat before you head back to the field.
Manual Section: Engine Cooling System p. 34Starter clicks or cranks slowly, dash lights dim when key is turned
Load test the battery and verify 12 volts at the starter terminal, then clean and torque both cables. Run the starting motor diagnosis on pages 269 to 270 for a 12 volt, 2.9 kW unit. Check alternator output against the 14 volt, 55 amp rating on page 21 using the functional tests starting.
Manual Section: Starting Motor DiagnosisBrake pedal feels spongy or only one side grabs during a hard stop
Bleed the brakes using the procedure in the Brakes and Steering section beginning on page 491, then work the troubleshooting chart on pages 517 to 518 for dragging, slipping, or uneven pedals. Inspect the master cylinder, proportional valve, and slave cylinder for leakage, and adjust both pedals to equal travel before field work.
Manual Section: Brake System Troubleshooting p. 517Frequently Asked Questions
What are the torque specs for the MFWD driveshaft to pinion flange on a John Deere 2000 to 2400 tractor?
The torque specification for the MFWD driveshaft to pinion flange is 50 N-m (37 lb-ft) using M10 nuts. p. 391
What are the hydraulic oil filter replacement specifications for a John Deere 2000 to 2400 tractor?
The replacement element for the transmission-hydraulic oil filter must be an equivalent 10-micron filter. p. 36
What is the correct valve clearance for the John Deere 2000 to 2400 tractor engine?
The intake and exhaust valve clearance for all models is 0.25 ± 0.05 mm. p. 88
What is the transmission/hydraulic oil capacity of a John Deere 2000 to 2400 without MFWD?
The transmission/hydraulic system oil capacity for tractors without MFWD is 27 L, which should be increased to 34 L for tractors working on steep slopes or using SCVs. p. 22
What torque do the MFWD drop box mounting bolts take on a John Deere 2000 to 2400?
The MFWD Drop Box mounting bolts (M10 x 28 Cap Screw) should be torqued to 63 N-m (47 lb-ft). p. 439
How will I receive this John Deere 2000 Technical Manual?
Immediate download of the complete 634-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this John Deere 2000 manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
