Covering the 8000 Series grain drills across six configurations (8100, 8200, 8250, 8300, 8350 and the base 8000), John Deere technical manual TM1131 runs 62 pages of drill-specific repair work you can actually follow at the bench. Diagnosis sits up front, walking opener disks, fluted-feed shifters, feed gates and both seed and fertilizer distribution before a single bolt comes loose. Drive work takes up the bulk of the book: fluted-feed and double-run-feed setups, plain grain and grain-with-fertilizer, each carried through drive shaft bearings, drive tube and sprocket, clutch, countershaft and gear case, with exploded views showing how the stack goes back together. Torque the single-disk opener blade to the drawbar at 105 ft-lbs (142 N-m), and replace any wear washer measuring under 0.044 inches (1.1 mm). Nobody is standing beside you at 9 p.m. with seed still to go. Bookmarked and text-searchable, your copy prints clean for the shop, so grease on the corners costs you nothing.
What's Inside This John Deere 8000–8350 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4 | FOS Manuals, Technical Manuals |
| Safety and You | 5 | Personal Safety, Fluids Under Pressure |
| General Information | 6 | |

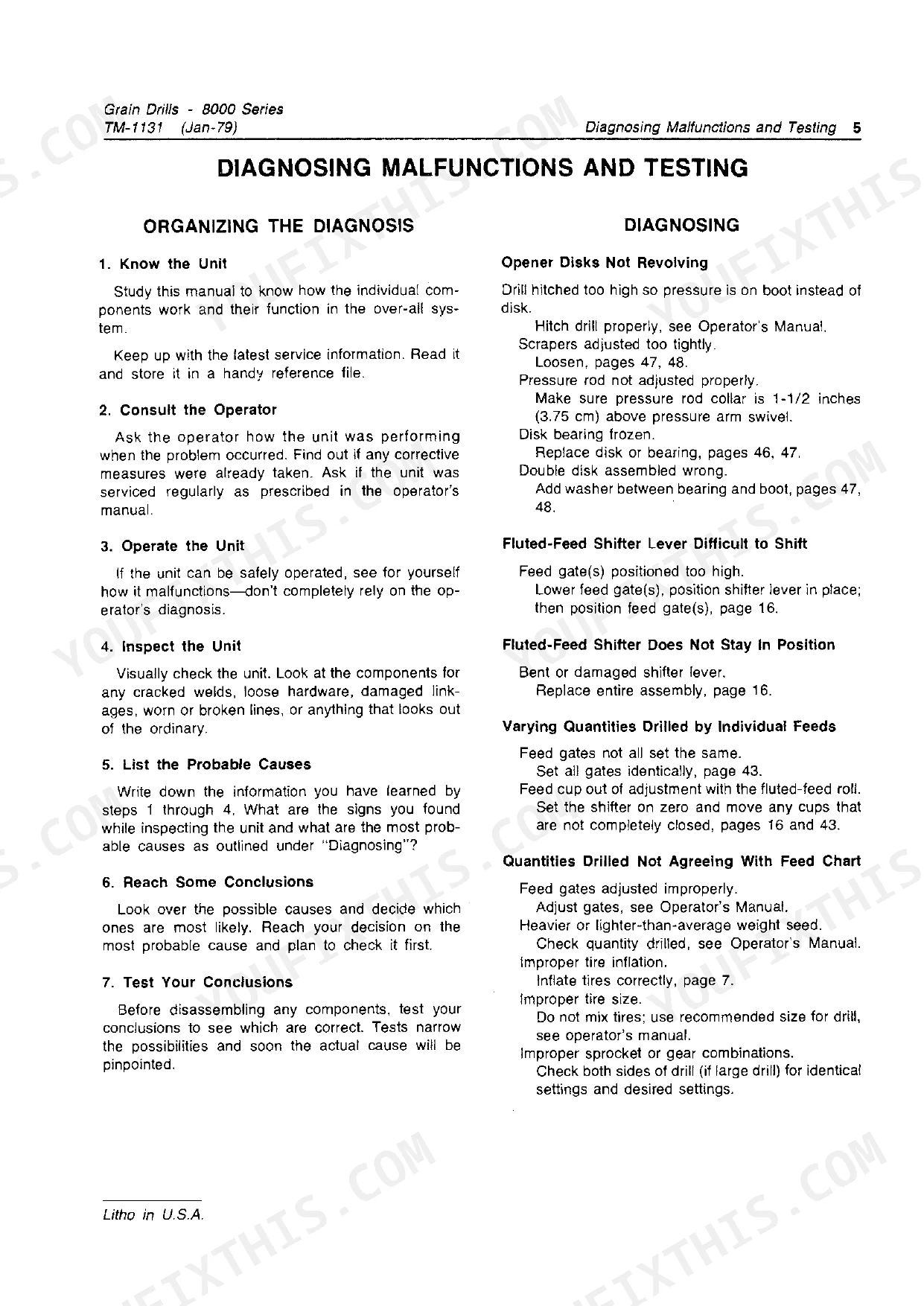

| Diagnosing Malfunctions and Testing | 7-8 | Opener Disks, Fluted-Feed Shifter, Feed Gates, Seed Distribution, Fertilizer Distribution, Acremeter |
| End Wheels | 9-11 | Axle and Axle Plate Disassembly, Assembly |

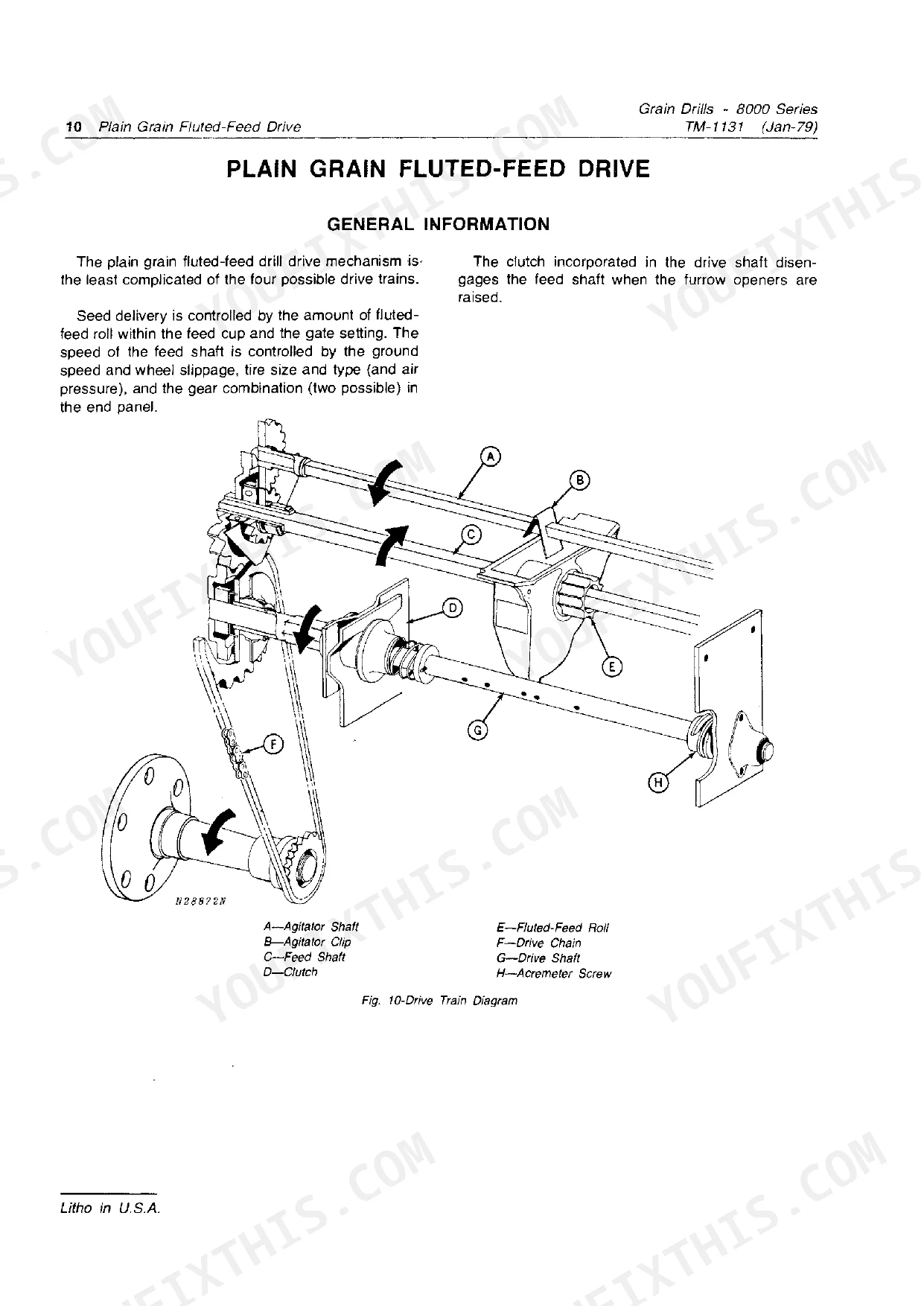

| Plain Grain Fluted-Feed Drive | 12-18 | Drive Shaft Bearings, Drive Tube, Sprocket Assembly, Clutch, Feed Shaft Bearing, Fluted-Feed Shifter |
| Grain and Fertilizer Fluted-Feed Drive | 19-31 | Drive Shaft Bearings, Drive Tube, Sprocket Assembly, Clutch, Countershaft Bearings, Fertilizer Gear Case |
| Plain Grain Double-Run-Feed Drive | 32-38 | Drive Shaft Bearings, Drive Tube, Sprocket Assembly, Clutch, Countershaft Bearings, Feed Shaft Bearing |
| Grain and Fertilizer Double-Run-Feed Drive | 39-43 | Drive Shaft Bearings, Drive Tube, Clutch, Traction Feed, Fertilizer Wheels and Bearings, Fertilizer Feed Shaft Bearing, Fertilizer Gear Case |
| Feed Cups | 44-47 | Fluted Feed Cup Repair, Double Run Cup Replacement, Feed Gate Setting, Feed Shaft Installation, Feed Cup Resetting |
| Furrow Openers | 48-52 | Single Disk, Boot, Drawbar, Toe Scraper, Spring-Trip Hoe, Double Disk |
| Press Wheels | 53-55 | Gage-O-Matic Opener, Firming Wheel, Bearing, Tire, Rim, Plastic Wheel |
| Grass Seed Attachment | 56 | Chain Tightener |

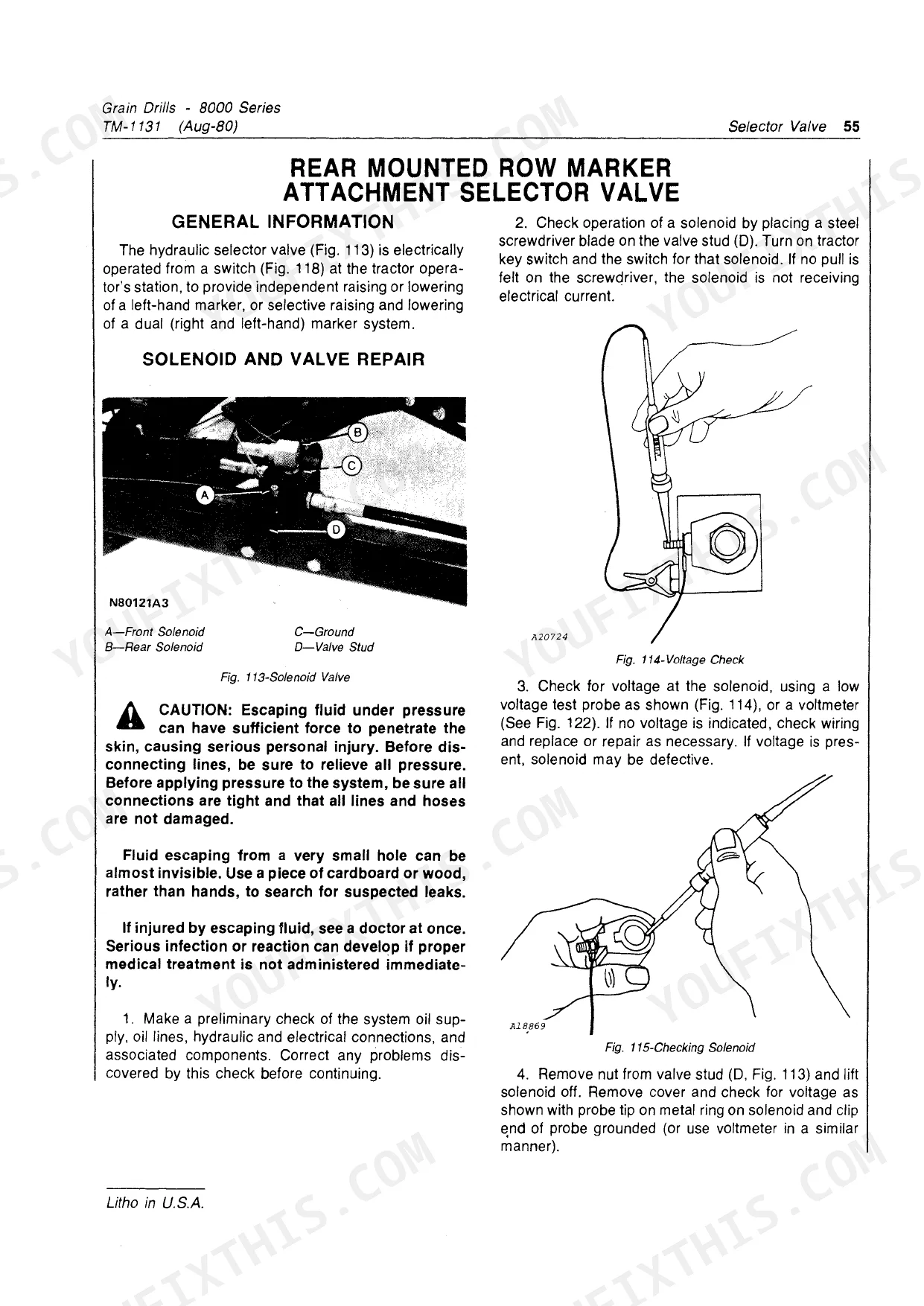

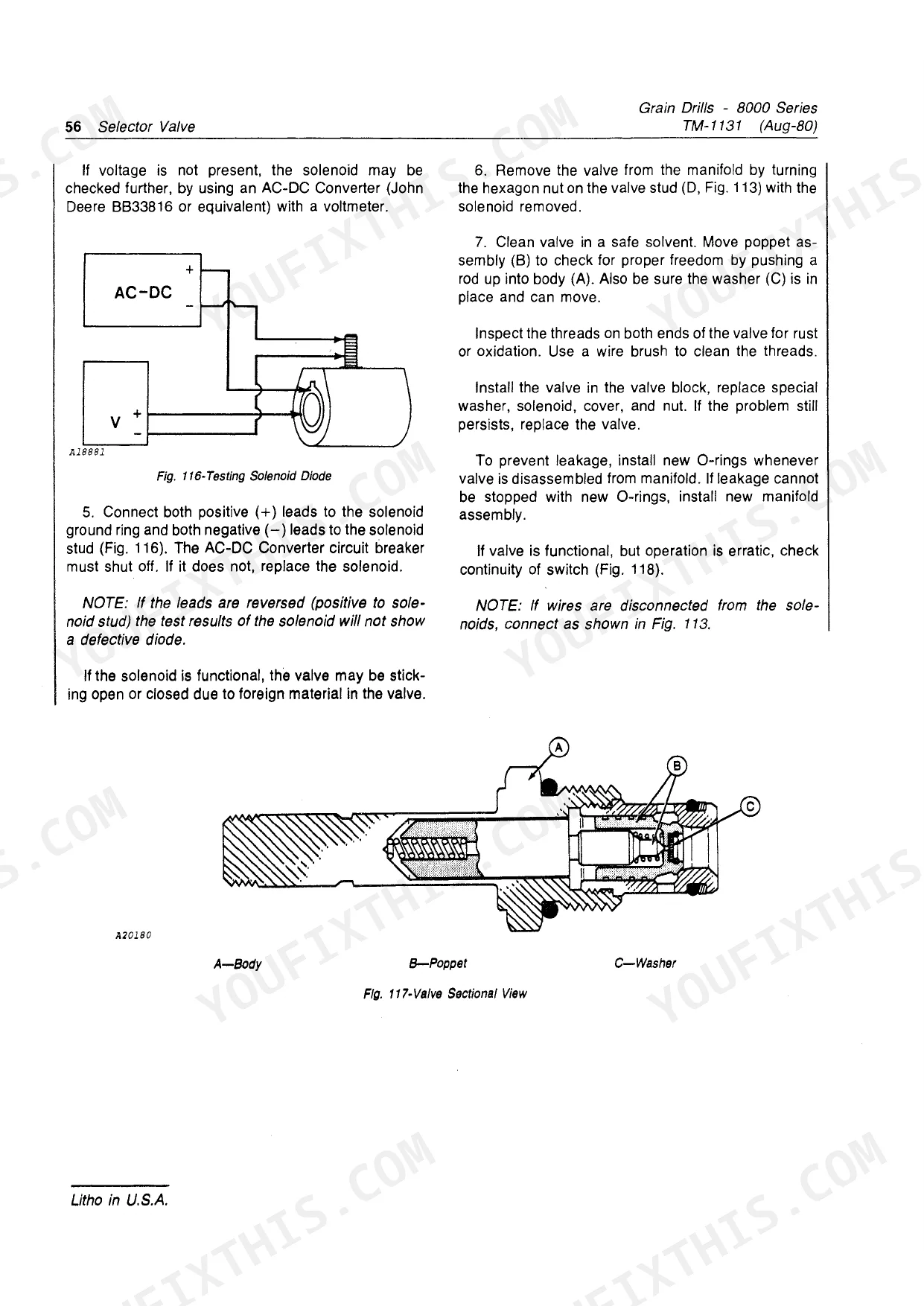

| Rear Mounted Row Marker Attachment Selector Valve | 57-59 | Hydraulic Selector Valve, Solenoid, Valve Stud, Manifold, Poppet Assembly, Switch |

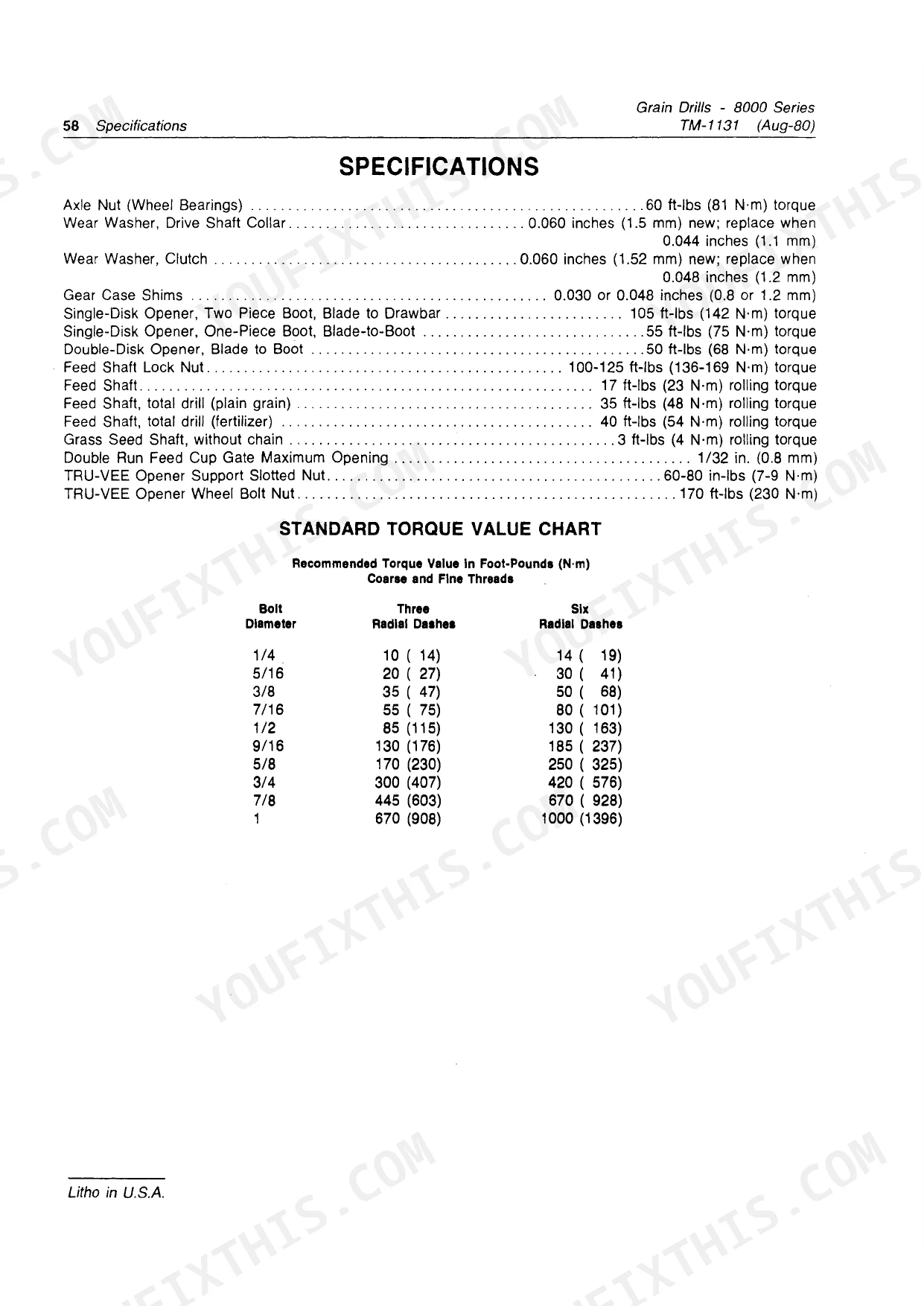

| Specifications | 60 | Axle Nut, Wear Washer, Feed Shaft Lock Nut, Torque Value Chart |
| Special Tools | 61-62 | Toe Scraper Adjusting Tool, Gear Case Tool, Meter |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wear washer thickness | less than 0.044 inches (1.1 mm) | p. 35 |
| TRU-VEE Opener Support Slotted Nut Torque | 60-80 in-lbs (7-9 N-m) | p. 60 |
| Single-Disk Opener, Two Piece Boot, Blade to Drawbar Torque | 105 ft-lbs (142 N-m) | p. 58 |
| Single-Disk Opener, One-Piece Boot, Blade-to-Boot Torque | 55 ft-lbs (75 N-m) | p. 60 |
| Grass Seed Shaft, without chain rolling torque | 3 ft-lbs (4 N-m) | p. 60 |
| Axle Nut (Wheel Bearings) Torque | 60 ft-lbs | p. 60 |
| Gear Case Oil Capacity | 1 qt. (0.95 L) | p. 6 |
| Double-Disk Opener, Blade to Boot Torque | 50 ft-lbs | p. 60 |
| Feed Shaft Lock Nut Torque | 100-125 ft-lbs | p. 60 |
| 4-ply Tire Pressure | 28 psi | p. 9 |
| 6-ply Tire Pressure | 32 psi | p. 9 |
John Deere 8000–8350 Common Problems This Manual Covers
John Deere 8300 grain drill openers skip seed and ride over residue in no-till ground
Pull the drill onto level ground and check each opener disk for wear, wobble, and loose boot hardware using the procedures on page 48. Replace thin blades and worn bushings, then torque single disk blade to drawbar hardware to 105 ft-lbs (142 N-m) per the chart on page 60.
Manual Section: Furrow Openers p. 48Seed drops unevenly between runs, heavy bunching in some rows and light stand in others
Run the drill up on jacks and turn the drive wheel by hand while watching each feed cup for bunching, following the checks on page 7. Reset any cup sitting out of line with the group as shown on page 44, then torque the feed shaft lock nut to 100-125 ft-lbs (136-169 N-m).
Manual Section: Feed Cups p. 44Feed shaft and drive turn hard or seize completely after sitting through winter storage
Soak the feed shaft bearings and chains with penetrating oil and work the shaft loose by hand before forcing anything. Pull the drive tube and measure the wear washer: replace it once thickness falls under 0.044 inches (1.1 mm), covered on page 35. Grease every fitting before the drill goes back to the field.
Manual Section: Plain Grain Double-Run-Feed Drive p. 35Drive chain jumps sprockets on the end wheel and the acremeter quits counting
Check end wheel tire pressure first: 28 psi on 4-ply tires, 32 psi on 6-ply. Pull the axle plate using the procedure on page 9, inspect the drive chain, bearings, and seals for wear, replace flattened rollers, and torque the axle nut to 60 ft-lbs (81 N-m) on reassembly.
Manual Section: End Wheels p. 9Fertilizer rate falls off across the field and oil weeps from the gear case
Drain and refill the fertilizer gear case to its 1 qt. (0.95 L) capacity, listed on page 6, and replace the shaft seals if oil keeps weeping. Inspect the countershaft bearings and fertilizer feed shaft bearing on page 25, then clean caked fertilizer from the feed cups before the next pass.
Manual Section: Grain and Fertilizer Fluted-Feed Drive p. 25Frequently Asked Questions
What are the torque specifications for the axle nut on the wheel bearings of a John Deere grain drill?
The axle nut for the wheel bearings must be tightened to a minimum of 60 ft-lbs (81 Nm). p. 11
What is the capacity of the gear case for the 8000 Series Grain Drills?
The gear case capacity is 1 quart (0.95 L) of John Deere SAE 90 Gear Lubricant or an equivalent SCL multipurpose gear oil. p. 6
What is the required torque for the feed shaft lock nut on a John Deere grain drill?
The feed shaft lock nut should be tightened to 100-125 ft-lbs (136-169 Nm) of torque. p. 16
What is the maximum rolling torque for the feed shaft on a John Deere grain drill?
The rolling torque for the feed shaft should not exceed 17 ft-lbs (23 Nm). p. 18
What is the correct tire pressure for 4-ply tires on the 8000 Series drills?
The 4-ply tires require 28 psi (1.9 bar) of pressure. p. 9
Is this John Deere 8000 manual a download or a disc?
Immediate download of the complete 62-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Does this John Deere 8000 manual allow printing?
Yes. Many mechanics print the section they need for their own shop and bring it to the bench.
