All 364 pages of this John Deere ProGator 2030 Utility Vehicle Technical Manual PDF (OEM TM1944) point at one machine: the diesel ProGator 2030 you count on to haul, spray, and top-dress. You get complete wiring schematics with component locations for the starting and charging circuits, hydraulic diagrams covering the steering control unit, auxiliary pump, and pressure relief valve, plus exploded views of the transaxle, differential, and axle housing. Inside: a full diesel engine troubleshooting section, brake bleeding steps, and torque tables for inch, metric, and O-ring face seal fittings. Set belt deflection at 10-15 mm under 98 N (22 lb-force) of applied force, and know a healthy starter pulls no more than 150 amps while cranking. Your Gator is down and the crew is waiting. Bookmarked with a full text layer; jump to any section or search any spec by keyword.
What's Inside This John Deere 2030, ProGator 2030 Utility Vehicle Manual
| System | Pages | Key Topics |
|---|---|---|

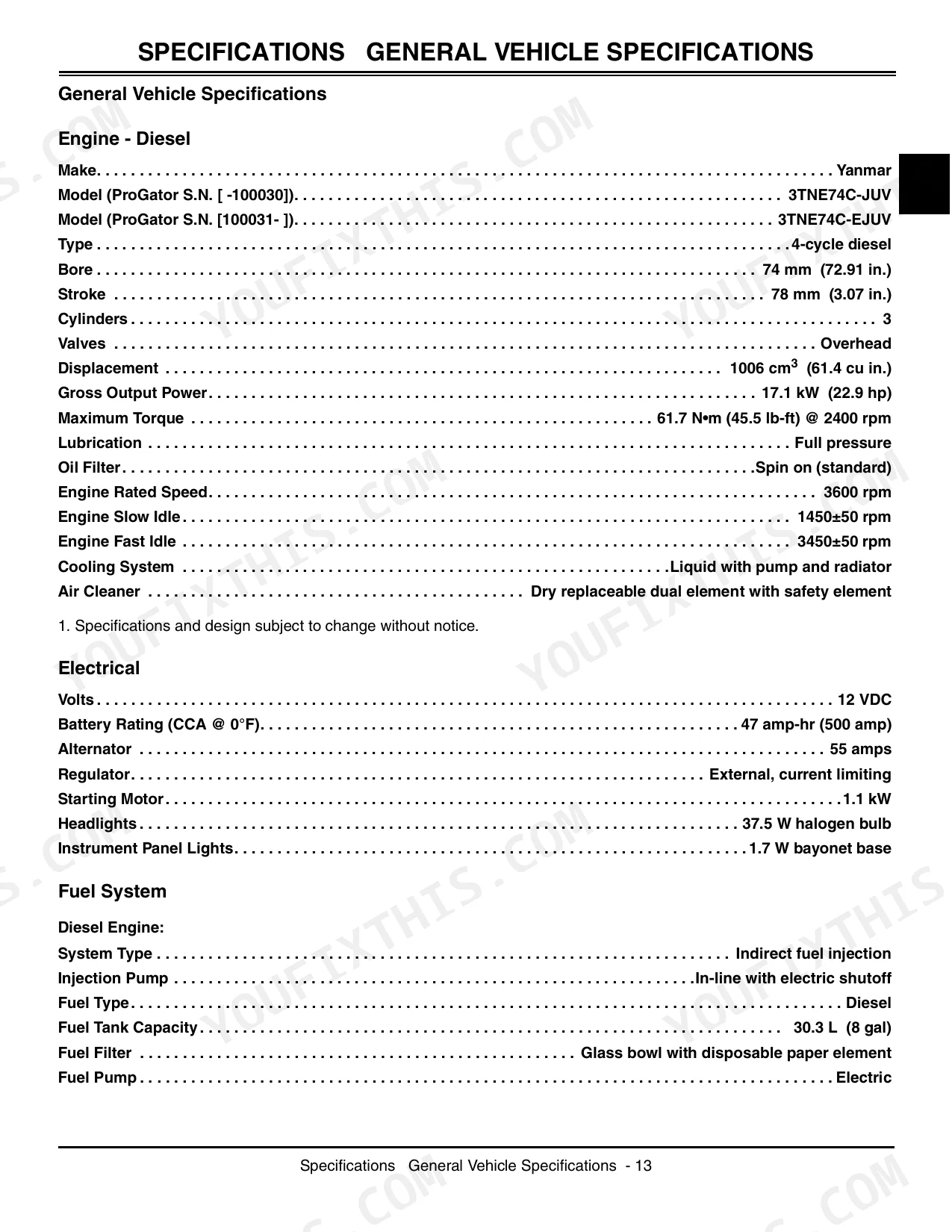

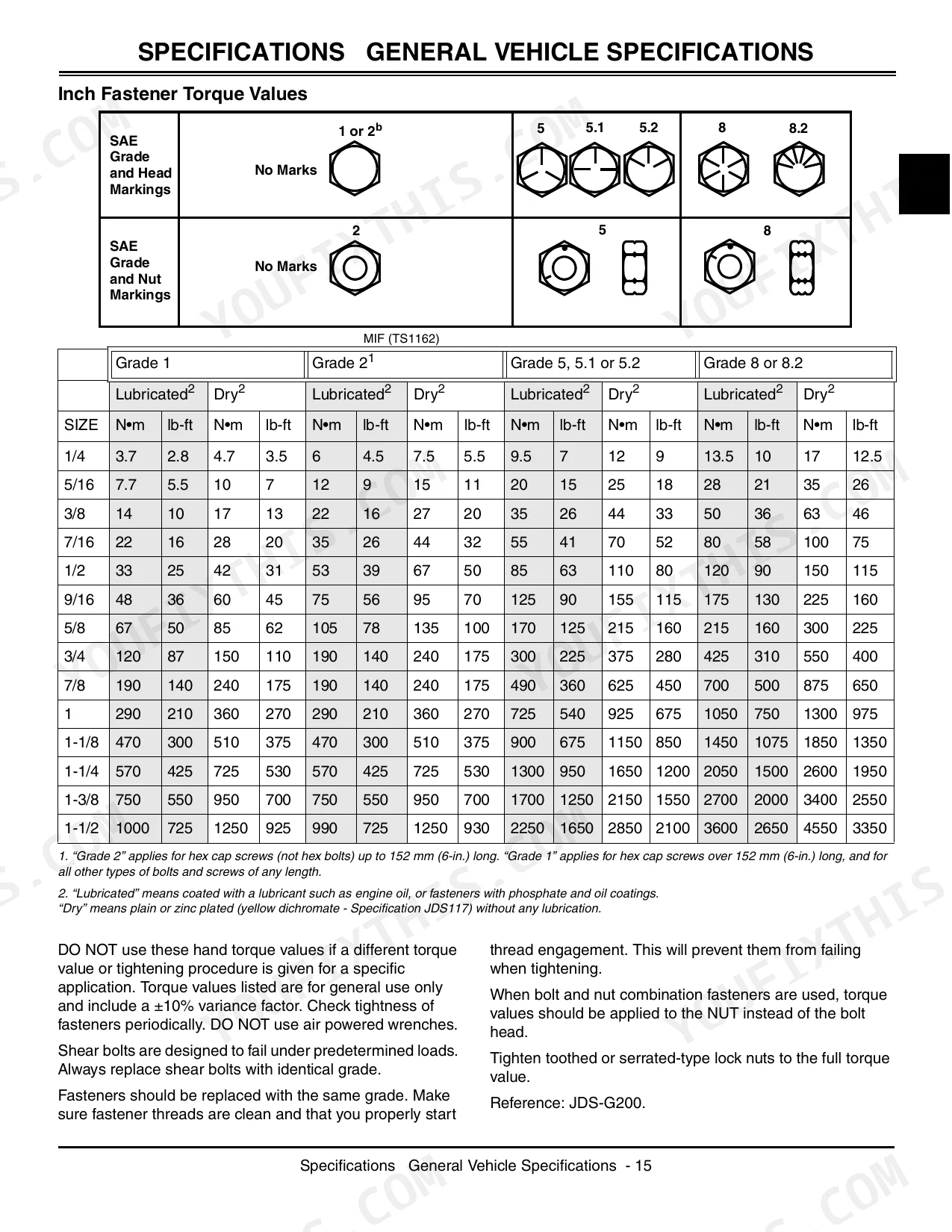

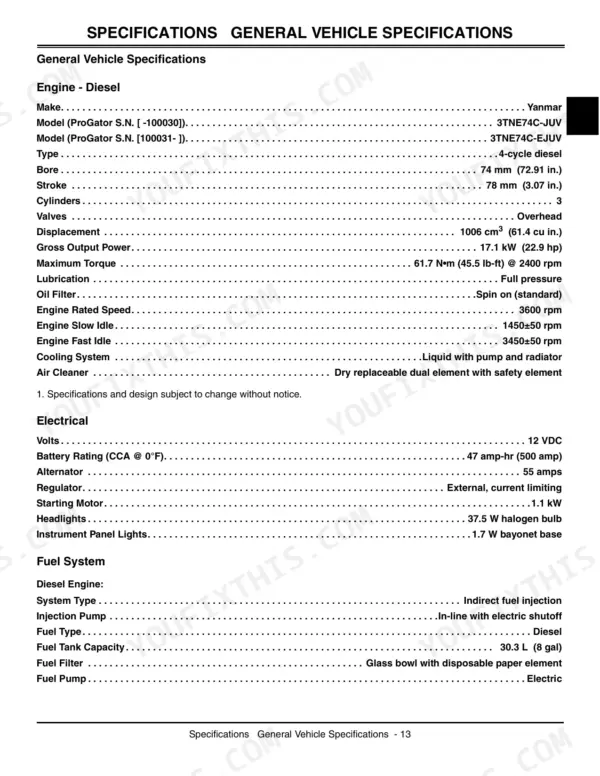

| General Vehicle Specifications | 13-20 | Engine - Diesel, Electrical, Fuel System, Drive Train, Hydraulic System, Tires, Dimensions, Inch Fastener Torque Values |
| Lubricants | 21-23 | Engine Oil (Break-In Diesel Engine Oil, Transmission and Hydraulic Oil, Chassis Grease, Alternative Lubricants, Synthetic Lubricants, Lubricant Storage, Mixing of Lubricants, Oil Filters) |
| Coolants | 24 | Coolant (Drain Intervals) |

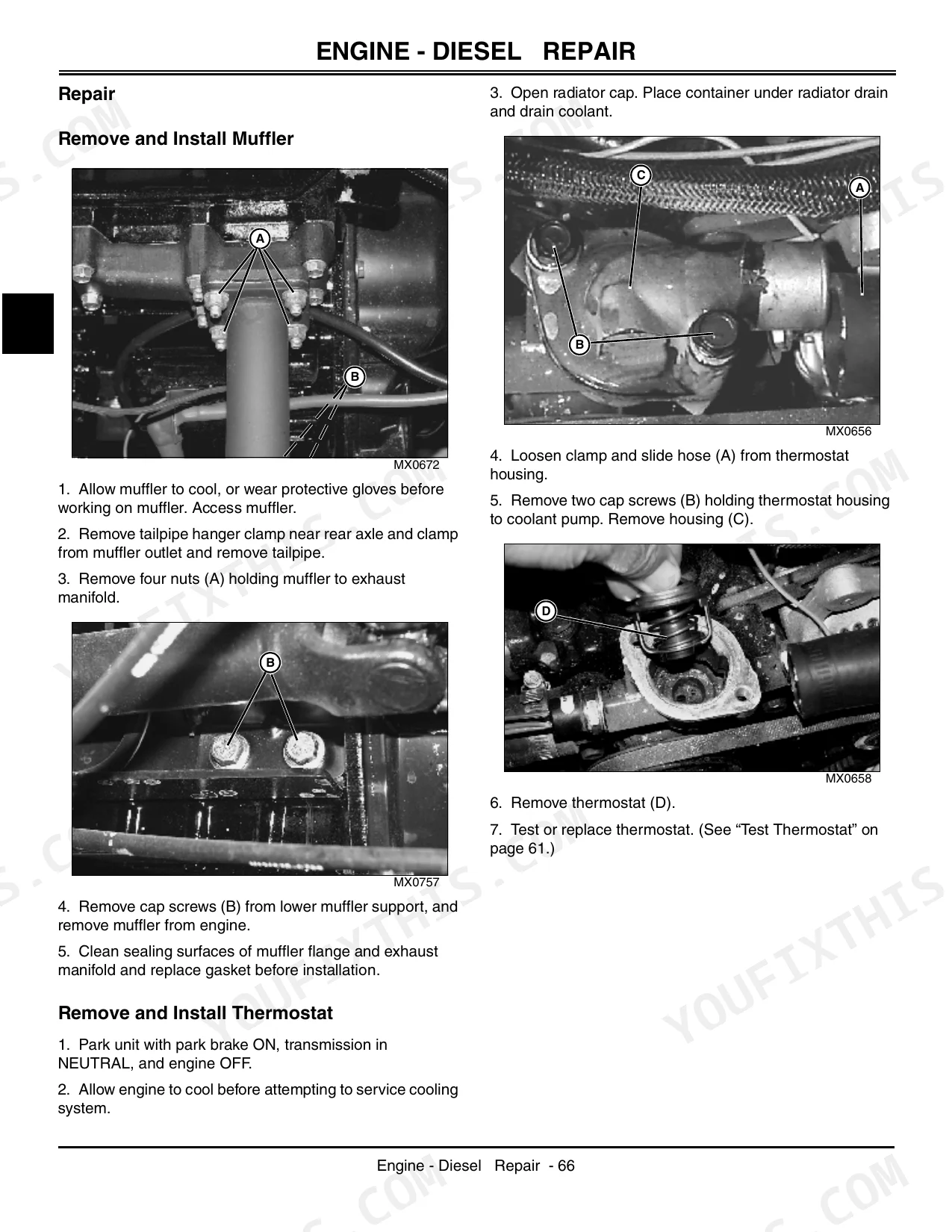

| Engine - Diesel | 25-120 | General Specifications, Troubleshooting, Tests and Adjustments, Repair, Fuel Injection Pump, Cylinder Head |

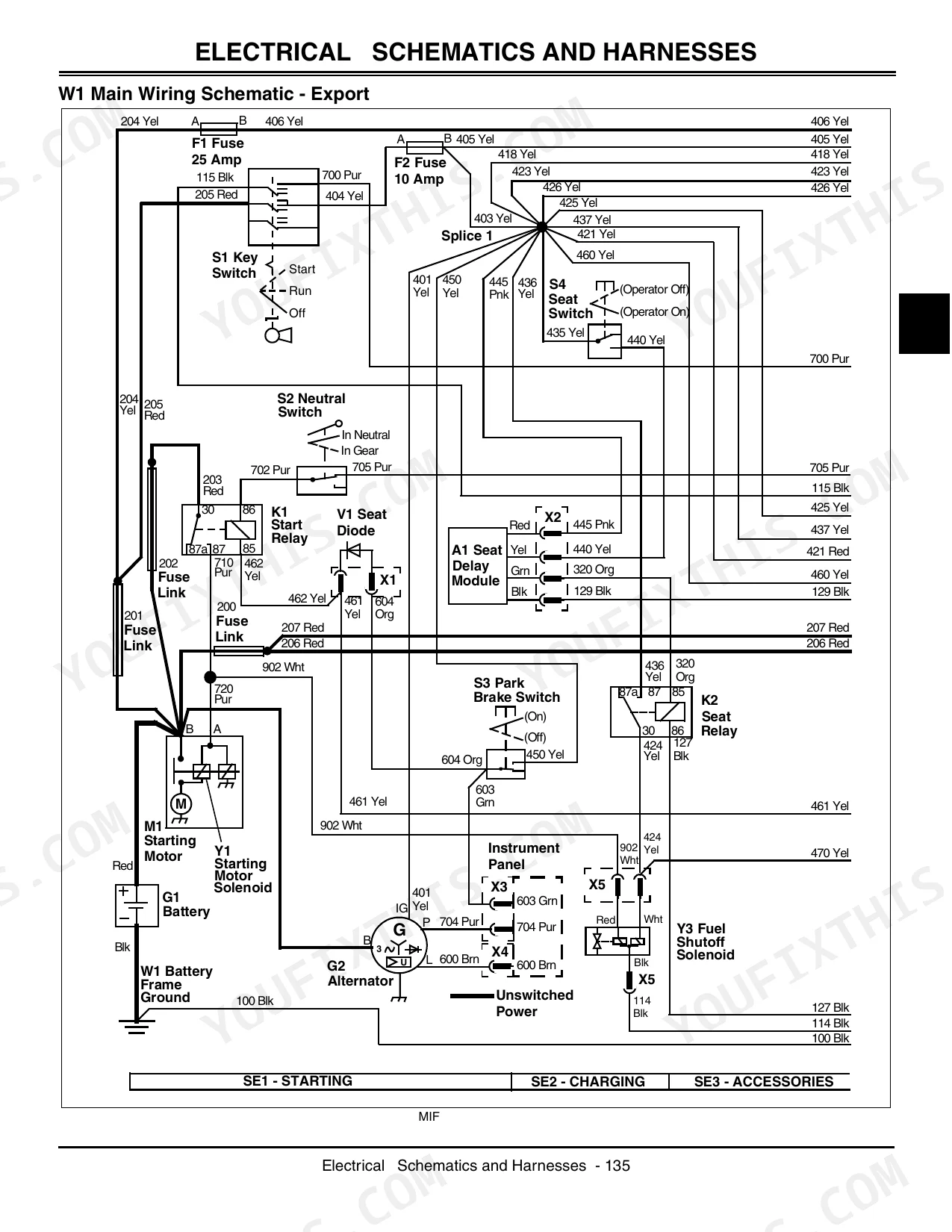

| Electrical | 121-232 | Wiring Schematics, Component Location, Starting Circuit, Charging Circuit, Alternator Repair, Lighting |

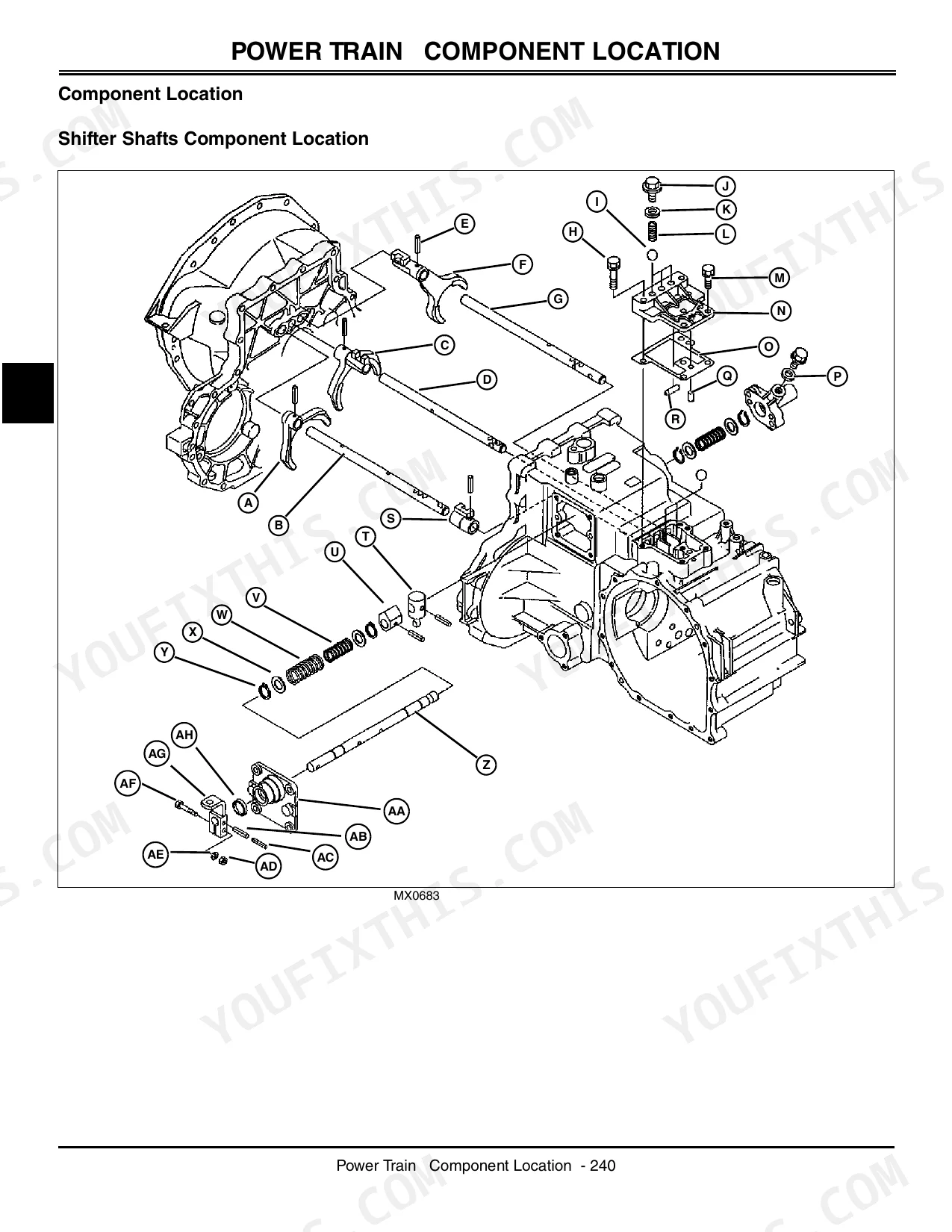

| Power Train | 233-274 | Transaxle, Differential, Input Shaft, Reduction Shaft, Countershaft, Axle Housing |
| Hydraulics | 275-304 | Hydraulic System Components, Steering Control Unit, Auxiliary Pump, Pressure Relief Valve, Steering Cylinder |
| Steering | 305-334 | 2-Wd Axle, MFWD Differential, Steering Cylinder, Front Leaf Spring, Tie Rod, Front Hub |
| Brakes | 335-348 | Brake System, Wheel Brake, Master Cylinder, Bleeding Brakes, Brake Shoe Replacement |
| Miscellaneous | 349-364 | Control Plate, Hood, ROPS, Seat, Radiator, Fuel Tank, Cargo Box |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Starting Motor | 1.1 kW | p. 13 |
| Belt Tightening Applied Force | 98 N (22 lb-force) | p. 30 |
| Belt Tightening Deflection | 10-15 mm (0.400-0.600 in.) | p. 30 |
| Starting Motor Current Draw While Cranking Engine (Max) | 150 amps | p. 123 |
| F1 Fuse | 25 amp | p. 156 |
| F2 Fuse | 15 amp | p. 156 |
| System capacity | 11.4 L (3.0 gal) | p. 298 |
| Diesel Engine Hydraulic Cycle Time | 2.5 seconds | p. 290 |
| Relief Pressure Control Valve | 16 553-17 926 kPa (2400-2500 psi) | p. 291 |
| Engine Gross Output Power | 17.1 kW (22.9 hp) | p. 13 |
| Fuel Tank Capacity | 30.3 L (8 gal) | p. 13 |
| Hydraulic System Capacity | 11.4 L (3.0 gal) | p. 14 |
John Deere 2030, ProGator 2030 Utility Vehicle Common Problems This Manual Covers
Diesel engine cranks but won't start after sitting overnight or in cold weather
Load test the battery first; it must deliver 500 cold cranking amps at 0°F per page 123. Clean both cable ends, then measure starter draw while cranking: more than 150 amps means a dragging starter (page 212). If cranking is strong, bleed air from the fuel system and replace the fuel filter, following the diesel troubleshooting steps.
Manual Section: Engine - DieselEngine overheats and loses power under load, temperature gauge climbs toward the red
Check the fan belt before anything else: it should deflect 10-15 mm (0.400-0.600 in.) under 98 N (22 lb-force) of thumb pressure, spec on page 62. A loose belt kills cooling and charging at the same time. Clean debris out of the radiator core, verify coolant level, then run the overheating checks in the troubleshooting procedures starting.
Manual Section: Engine - Diesel p. 62Battery goes dead overnight, alternator not charging, weak cranking on second start attempt
Verify alternator output first; the standard unit is rated 40 amps, spec on page 123. Check for a blown 25 amp F1 fuse (page 156), then inspect both battery cables for corrosion hiding under the insulation at the crimps. If output tests good with clean connections, trace the charging circuit through the wiring diagram starting.
Manual Section: Electrical p. 121Steering feels hard and slow to respond, front wheels shimmy at transport speed
Measure toe-in first; the spec is 3 mm ± 1.5 mm (0.125 ± 0.062 in.) on page 322, and worn tie rod ends throw it off enough to cause shimmy. Check the front hubs for bearing play, torque wheel lug nuts to 115 N•m (85 lb-ft) per page 337, and if steering stays hard, test the steering control unit.
Manual Section: Steering p. 322Frequently Asked Questions
How do I bleed the fuel system on a John Deere 2030?
The fuel filter is self-priming. Excess air is returned to the fuel tank through a return hose (D). p. 41
What are the common starting problems on a John Deere 2030?

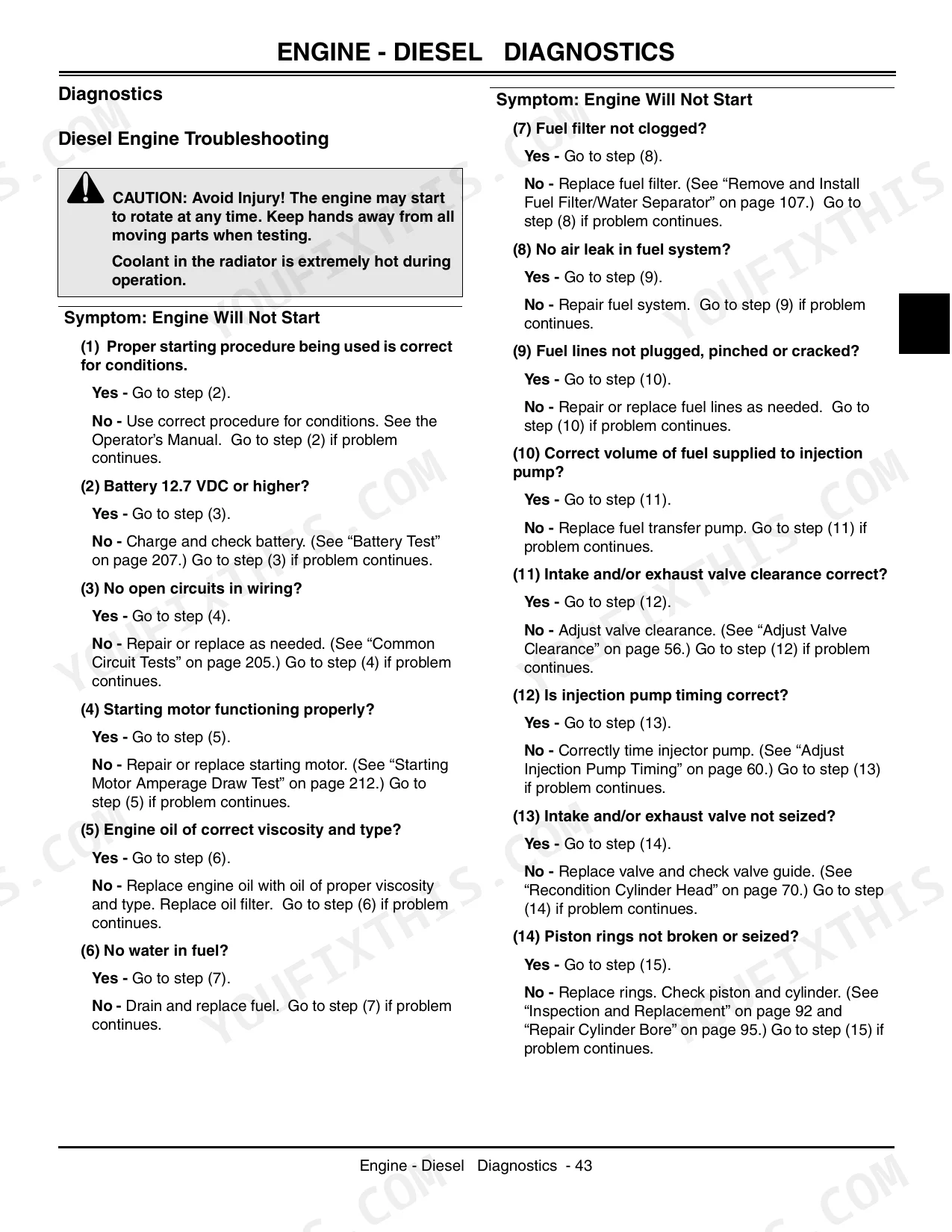

Common starting problems include battery voltage below 12.7 VDC, open circuits in wiring, starting motor failure, incorrect oil viscosity, water in fuel, or a clogged fuel filter. Refer to the Diesel Engine Troubleshooting section on page 43 for the complete step-by-step diagnostic procedure. p. 43
What hydraulic oil should I use in a John Deere 2030?
The preferred transmission and hydraulic oil is HY-GARD (JDM J20C). If that is not available, you may use LOW VISCOSITY HY-GARD (JDM J20D). p. 22
How do you fix john Deere ProGator 2030 hydraulic lift slow and jerky, cylinder won't hold or raise the box?
Check reservoir level first; the system holds 11.4 L (3.0 gal), and low oil makes lift action jerky before it fails outright. Time a full lift cycle: a healthy diesel unit runs 2.5 seconds per the spec on page 290. If it lags, test relief valve pressure against 16 553-17 926 kPa (2400-2500 psi) on page 291 before condemning the pump. p. 290
How quickly can I access this John Deere 2030 manual after buying?
This is a 364-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this John Deere 2030 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
Does this John Deere 2030 Technical Manual cover the hydraulic system?

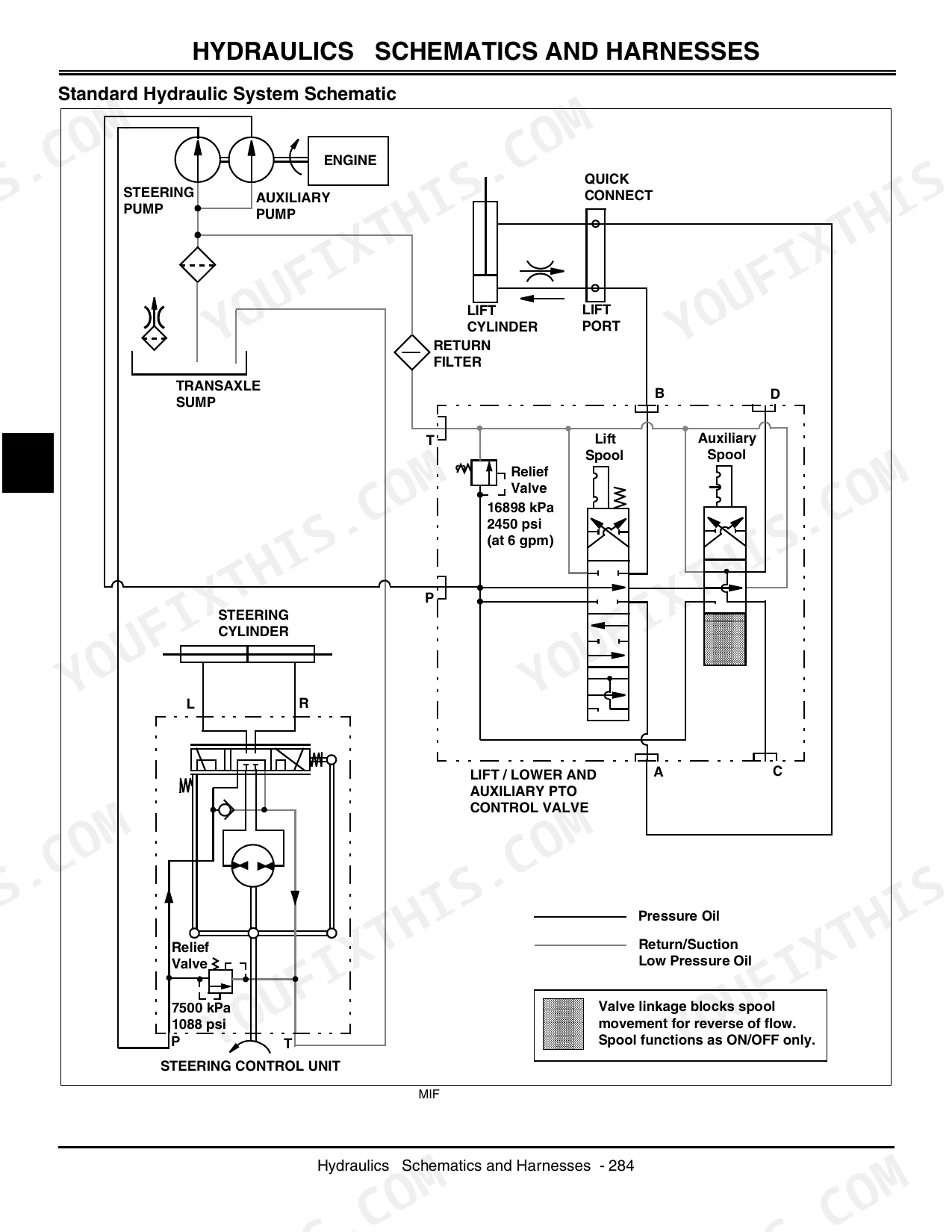

Yes. The Technical Manual includes a hydraulic diagram showing how the main circuit runs. There is one on page 284, for example.
