Part of the John Deere Repair Manuals.
This 663-page John Deere 5415, 5615, 5715 Repair Manual (OEM #TM606719) puts every group of the tractor line's technical manual in your hands, from Engine Repair and Fuel System through Power Train, Hydraulic, and Operator Station groups. You get full torque tables, fluid capacity charts, and a full procedures section covering clutch housing teardown, differential and final drive work, and rockshaft and selective control valve rebuilds. Check your Wheel Nut torque at 300 Nm (220 lb-ft) and the Engine-to-Clutch Housing Cap Screw at 318 Nm (235 lb-ft) before you button anything back up. Your machine doesn't care what a forum thread says the spec should be. Bookmarked by group and searchable by keyword, this PDF opens on your phone, tablet, or shop laptop so you can pull up the exact procedure standing next to the tractor and get it running right the first time.
What's Inside This John Deere 5415, 5615, 5715 Repair Manual

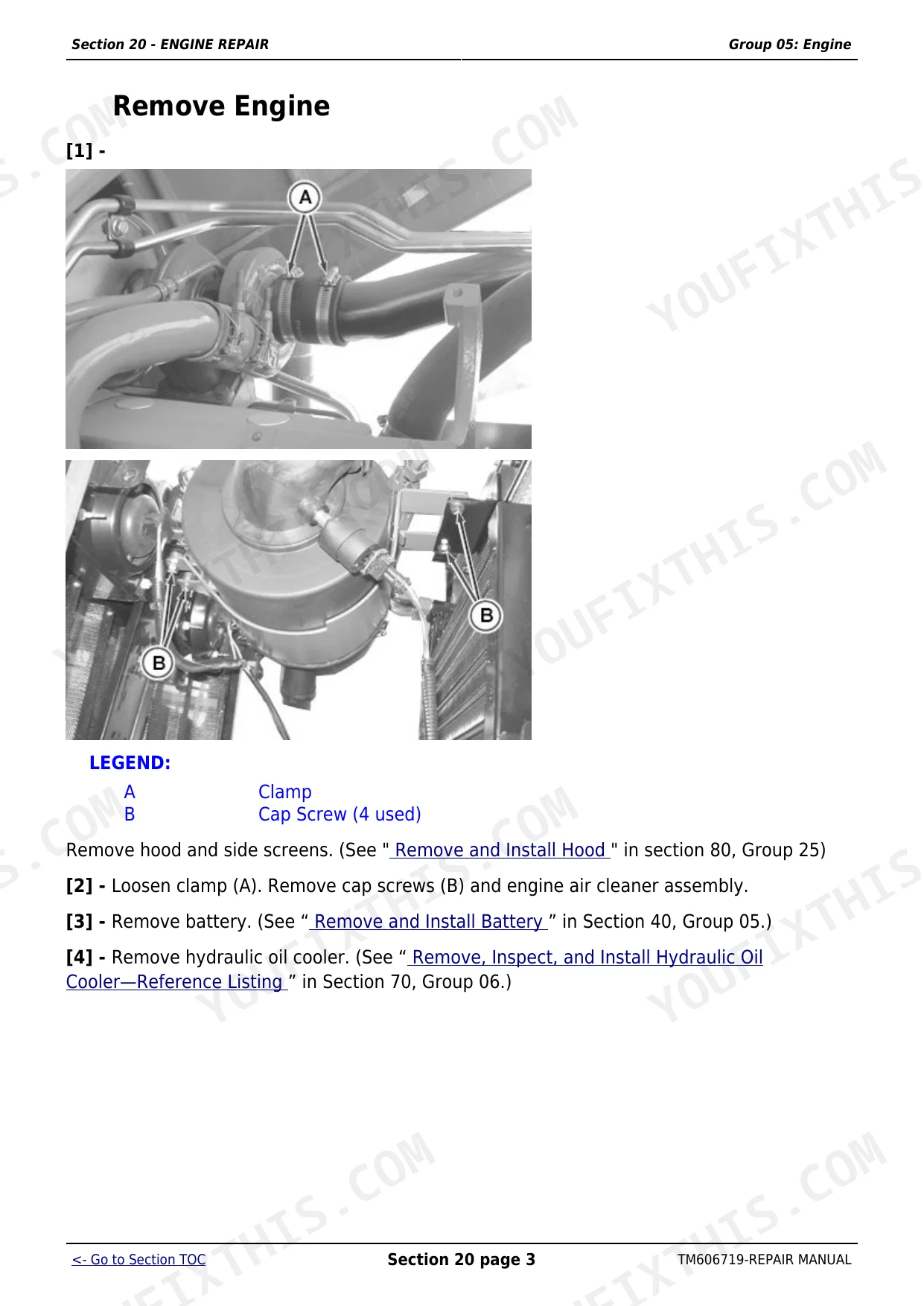

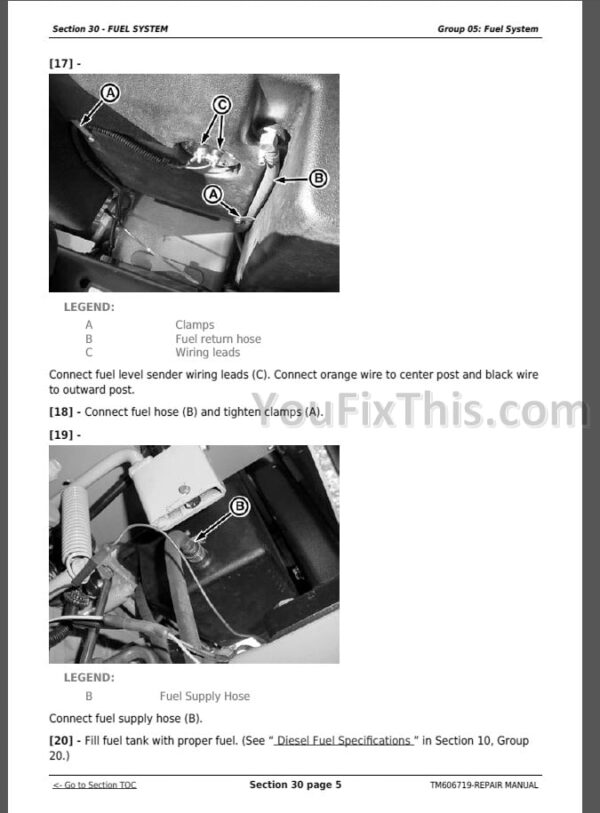

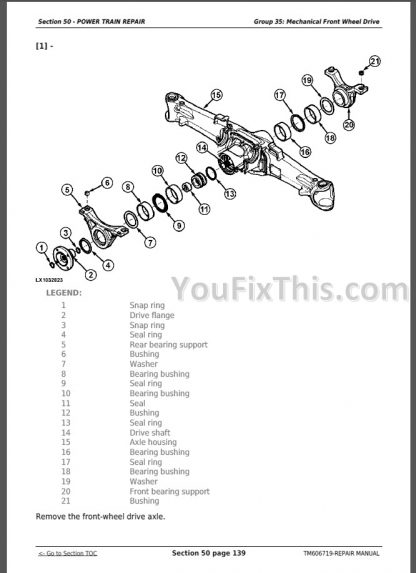

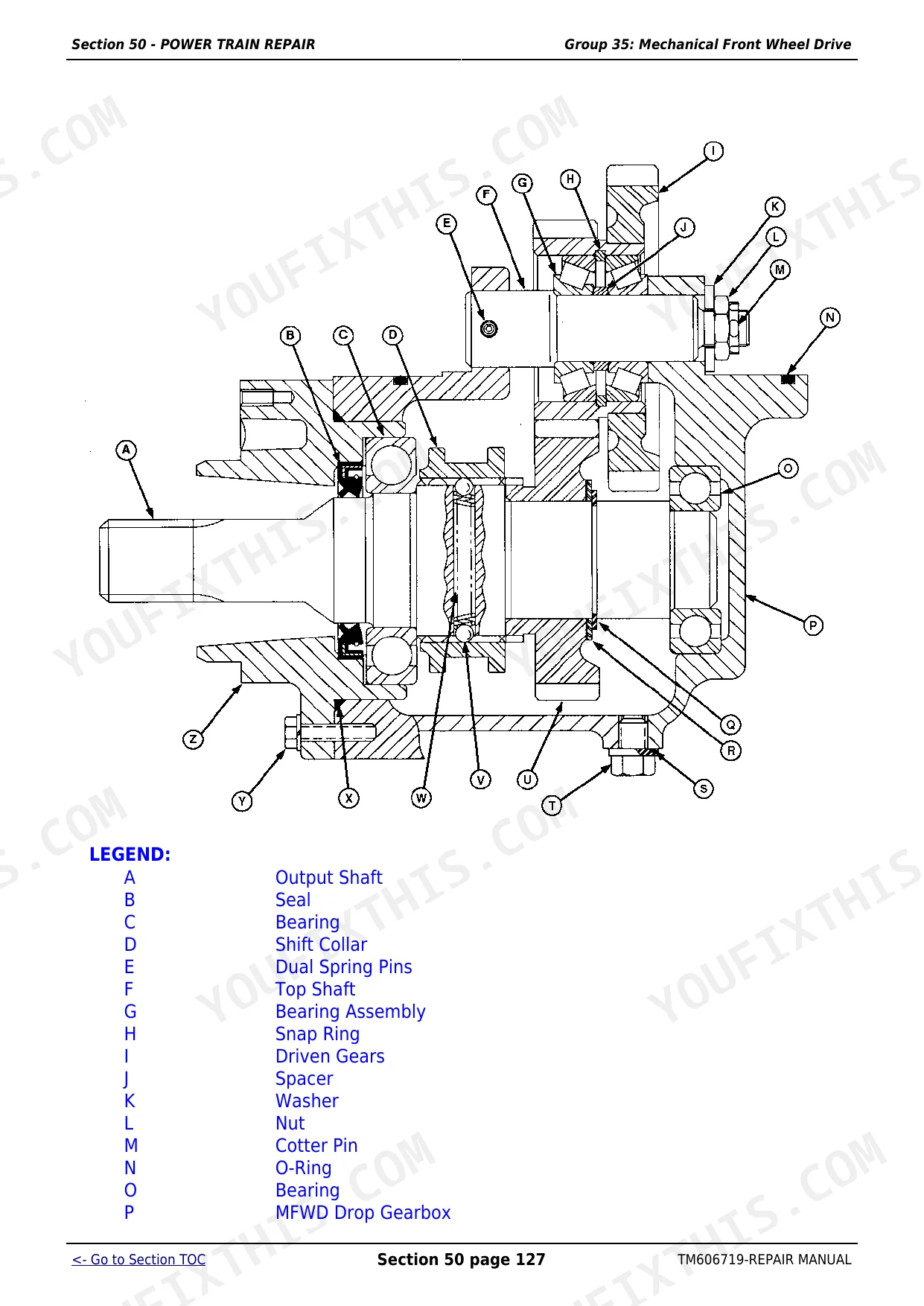

| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-108 | Group 05 - Safety, Group 10 - General Specifications, Group 20 - Fuel and Lubricants, Group 25 - Serial Number Locations, Group 30 - Features and Accessories |
| Engine Repair | 109-165 | Group 05 - Engine, Group 10 - Cooling System |
| Fuel System | 166-194 | Group 05 - Fuel System, Group 10 - Air Intake System, Group 15 - Speed Control Linkage |
| Electrical Repair | 195-255 | Group 05 - Battery, Starter and Alternator, Group 10 - Electrical System Components, Group 15 - Wiring Harness |
| Power Train Repair | 256-478 | Group 05 - Clutch Housing, Group 10 - Clutch Assembly, Group 15 - Synchronized Transmission, Group 20 - Rear PTO Drive Shaft, Group 25 - Differential, Group 30 - Final Drive |
| Steering and Brake Repair | 479-534 | Group 05 - Steering Repair, Group 10 - Brake Repair |
| Hydraulic Repair | 535-601 | Group 05 - Hydraulic Pump and Filter, Group 06 - Hydraulic Oil Cooler, Group 10 - Rockshaft, Group 15 - Dual Selective Control Valve, Group 16 - Single Selective Control Valve |
| Miscellaneous Repair | 602-635 | Group 05 - Front Axle, 2WD, Group 10 - Wheels, Group 15 - 3-Point Hitch, Group 20 - Fenders, Group 25 - Hood |
| Operator Station Repair | 636-658 | Group 05 - Seat and Support, Group 06 - Control Console and Panel, Group 10 - Roll-Gard® |
| Dealer Fabricated Tools | 659-663 | Group 00 - Dealer Fabricated Tools |

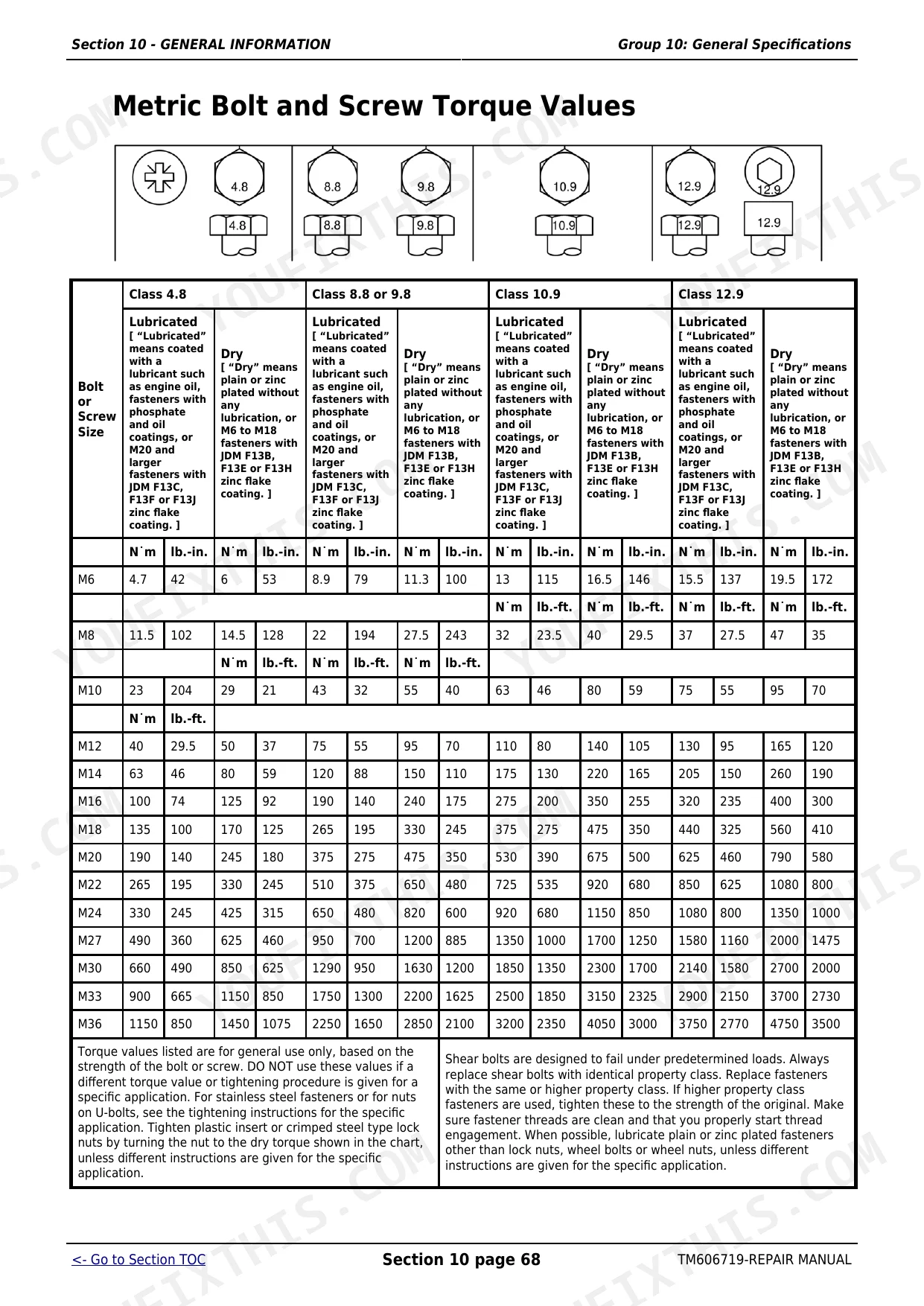

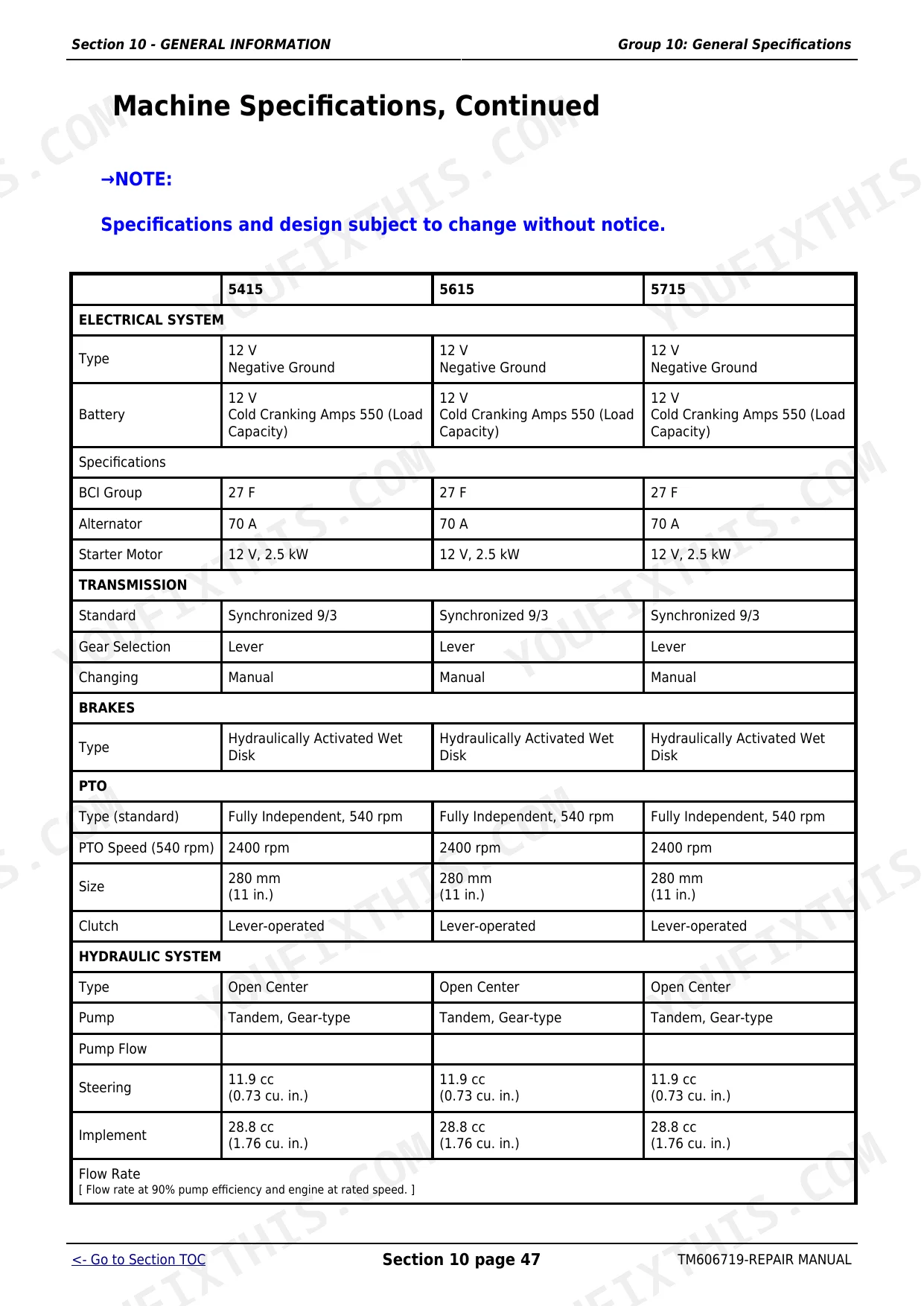

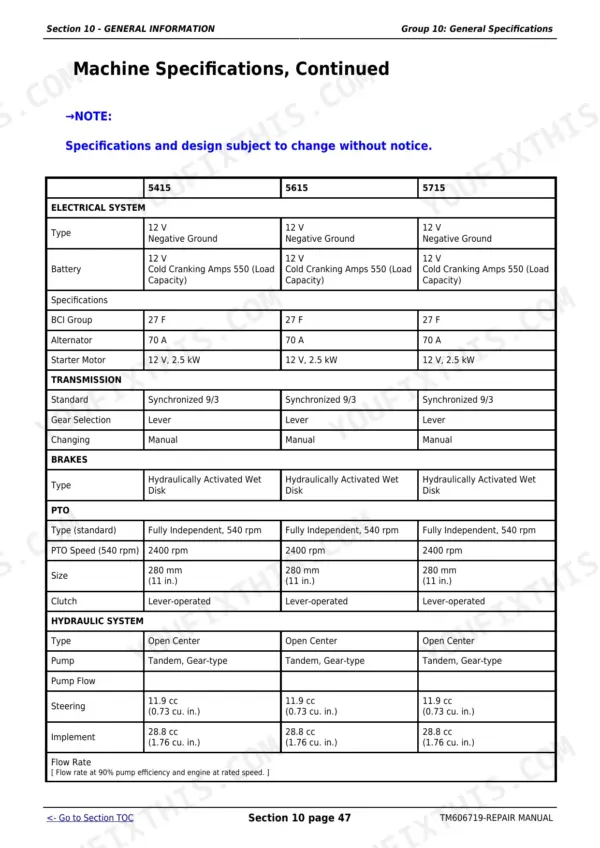

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| wheel retaining bolts/nuts | intervals specified in section Break-In Period and Service | p. 50 |
| Relieve pressure from the hydraulic system before removing accumulator | Relieve pressure from the hydraulic system before removing accumulator | p. 48 |
| Shut off engine | Shut off engine | p. 48 |
| Wheel Nut | 300 Nm (220 lb-ft) | p. 65 |
| Engine-to-Clutch Housing Cap Screw | 318 Nm (235 lb-ft) | p. 63 |
| PTO Cover-to-Differential Cap Screw | 65 Nm (48 lb-ft) | p. 64 |
| PTO Clutch Yoke Cap Screw | 65 Nm (48 lb-ft) | p. 64 |
| Engine-to-Front Support Cap Screw and/or Nut | 318 Nm (235 lb-ft) | p. 63 |
| Engine-to-Front Support (Dowel Hole) Cap Screw | 176 Nm (130 lb-ft) | p. 63 |
| Hydraulic system oil for operation below -25°C (-13°F) | J20D oil | p. 76 |
| Hydraulic system open center system flow rate for 3-cylinder engines | 43.2 L/m (11.4 gpm) | p. 596 |
| Fuel Tank Capacity | 95 L (25 U.S. gal) | p. 58 |
John Deere 5415, 5615, 5715 Common Problems This Manual Covers
John Deere 5415 hydraulic system pressure loss, slow SCV response and weak lift under load
Check the open center hydraulic system pressure spec on page 596; it should read 18995 kPa (190 bar / 2755 psi) at rated flow. If pressure sits well below that, inspect the pump for worn gears and drain the reservoir to check for contaminated or aerated fluid before replacing seals.
Manual Section: Hydraulic Pump and Filter p. 596Transmission won't engage gears smoothly, clutch slips or grinds when shifting under load
Pull the clutch housing and measure disk wear; traction clutch discs should read 10-6 mm (0.395-0.235 in.) per the spec chart on page 276. Replace any disc below minimum thickness and torque the housing-to-engine cap screws to 318 Nm (235 lb-ft) before reassembly.
Manual Section: Clutch Assembly p. 276Engine overheating or losing power during heavy pulling, coolant temp climbs fast under load
Shut off the engine and let it cool per the safety notice on page 48, then check coolant level; system capacity is 10.8 L (11.4 U.S. qt.) on page 58. Remove the radiator per the engine service procedures starting , flush blocked fins, and pressure test the cap before refilling.
Manual Section: Cooling System p. 58Starter cranks slowly or won't engage, alternator warning light stays on after startup
Check battery terminals and ground straps for corrosion in the electrical repair section starting page 195. Test alternator output at idle; if the starter cranks slowly, load-test the battery first. When remounting the alternator bracket, torque the M8 Grade 7 mounting screws to 20.3-27.1 N.m (15-20 lb-ft) per page 75 before restarting.
Manual Section: Battery, Starter and Alternator p. 195Steering feels heavy or wanders at low RPM, hydraulic steering response delayed on turns
Check steering pump output flow against the spec table on page 56; it should deliver 24.9 L/min (6.6 gpm) at rated engine speed. If flow is low, disassemble and inspect the steering valve in the steering repair section starting page 479 for worn spool bores or damaged seals.
Manual Section: Steering Repair p. 56Frequently Asked Questions
What are the torque specs for John Deere 5415 wheel lug nuts?
The manual provides several torque specifications for wheel retaining bolts/nuts. For the front wheel cap screws, the torque is 175 N·m (129 lb-ft) (page 607). For rear steel wheels with M20 cap screws, the torque is 600 N·m (442 lb-ft) (page 631, 552). For MFWD wheel nuts, the torque is 300 N·m (220 lb-ft) (page 424). p. 631
What is the engine oil capacity for the John Deere 5415, 5615, and 5715 tractors?
The crankcase capacity, including the filter, for the John Deere 5415, 5615, and 5715 tractors is 8.5 L (9 U.S. qt.). This specification is consistent across all three models. p. 58
What does the John Deere 5415, 5615, 5715 repair manual cover?
It covers the full tractor line by section group: General Information, Engine Repair (pages 109-165), Fuel System (166-194), Power Train, Hydraulic, and Operator Station. Each group carries the factory specifications, torque values, and repair procedures for the 5415, 5615, and 5715.
How many pages is this manual and what is the OEM number?
It is the 663-page official John Deere factory repair manual, OEM number TM606719, delivered as a searchable PDF.
What format is this John Deere 5415, 5615, 5715 manual in?
Instant PDF download. You get the full 663-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this John Deere 5415, 5615, 5715 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
