This is the factory repair manual for the John Deere 6105R, 6115R, 6125R and 6130R tractors - the workshop book, meaning removal, installation and reconditioning procedures, not operator fluff. It covers the engine, fuel and cooling systems, the electrical system and ECU replacement, the full drive train including MFWD, differential and final drives, plus both transmission families: AutoPowr/IVT and PowrQuad (with creeper and range transmission). You also get hydrostatic steering and AutoTrac, brakes including the hydraulic trailer brake and air brake system, the hydraulic system with charge pump, control blocks, rear hitch and SCVs, front axle and cab suspension, and the cab with air conditioning and ClimaTrak. If you are splitting one of these tractors or pulling a shift unit, this is the book you want on the bench.
What's Inside This John Deere 6105R, 6115R, 6125R, 6130R Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 8-62 | Safety Measures, Signal Words, ROPS, Safety Signs, Protective Clothing |
| General Information | 63-113 | Specifications, Tests and Adjustments, Predelivery Inspection |

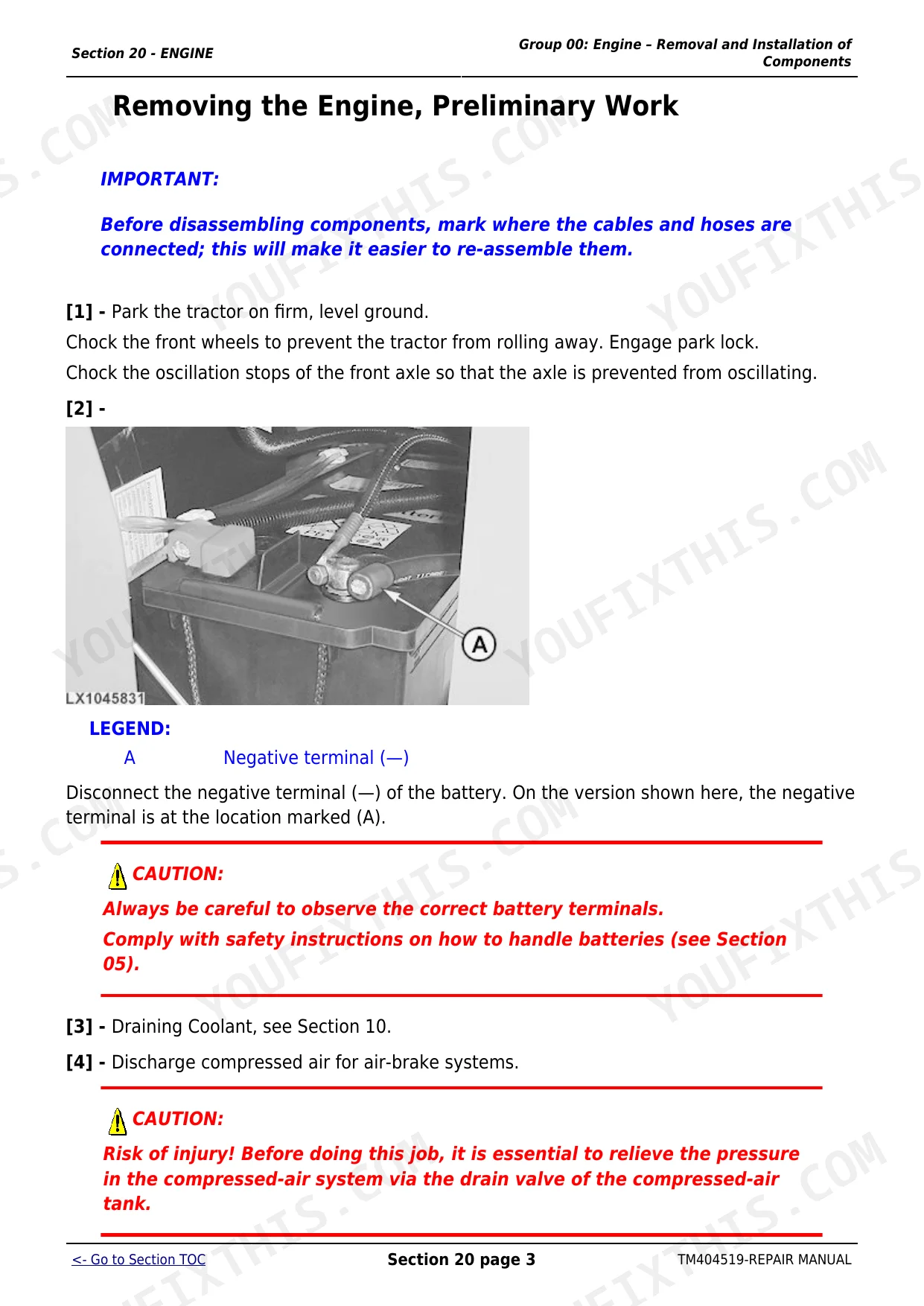

| Engine | 114-149 | Removal and Installation of Components |

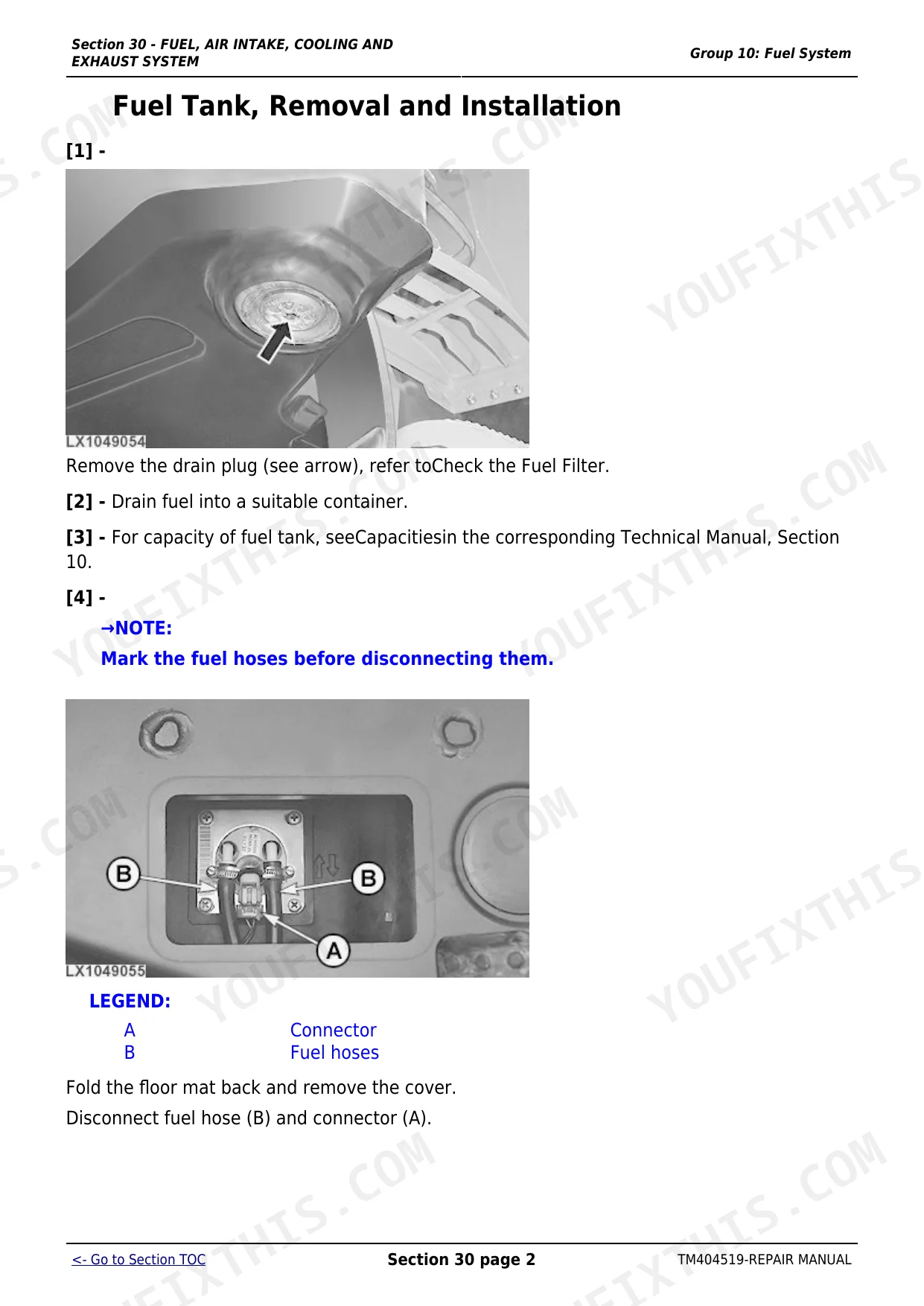

| Fuel, Air Intake, Cooling and Exhaust System | 150-204 | Fuel System, Air Intake System, Cooling System, Exhaust System |

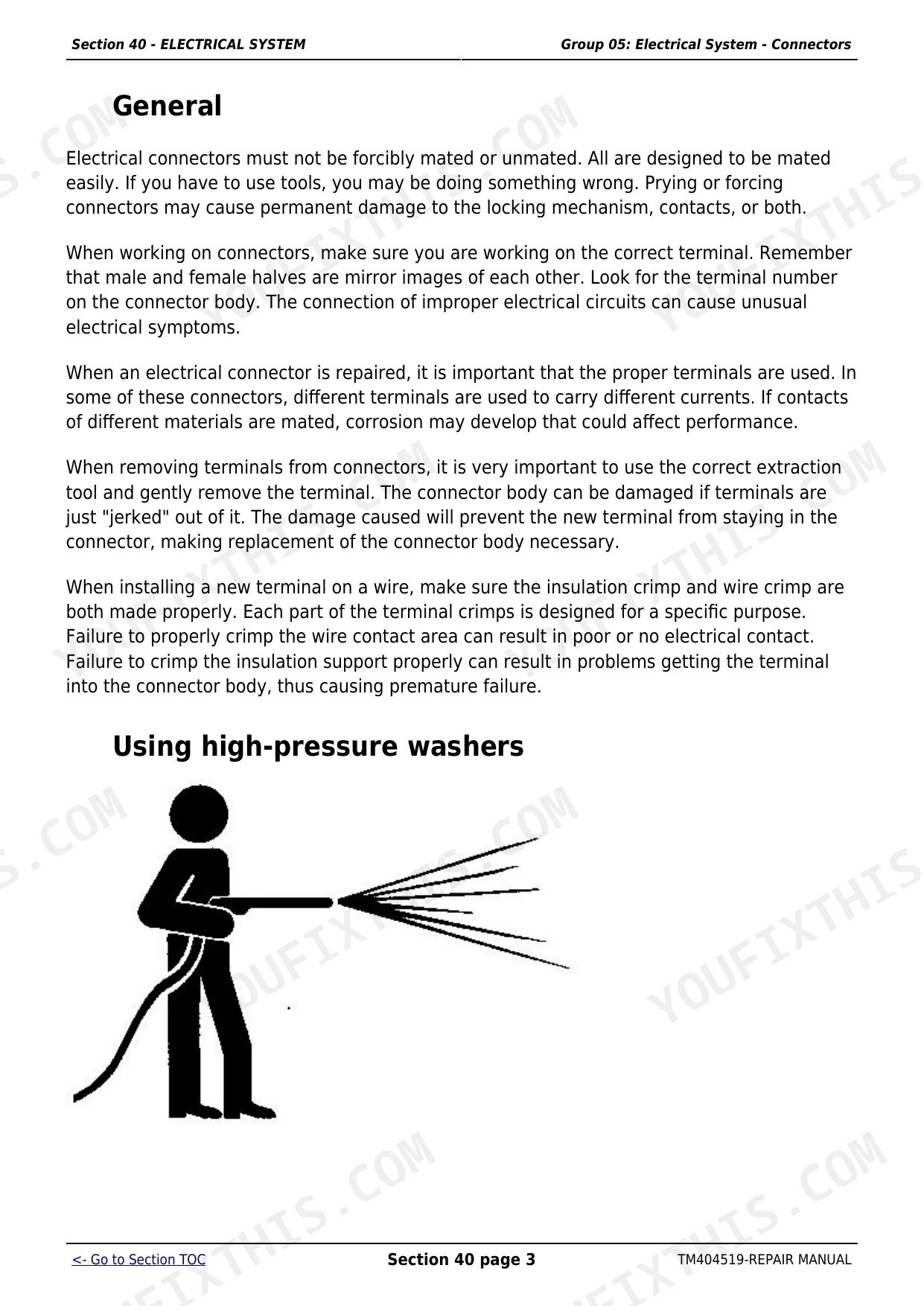

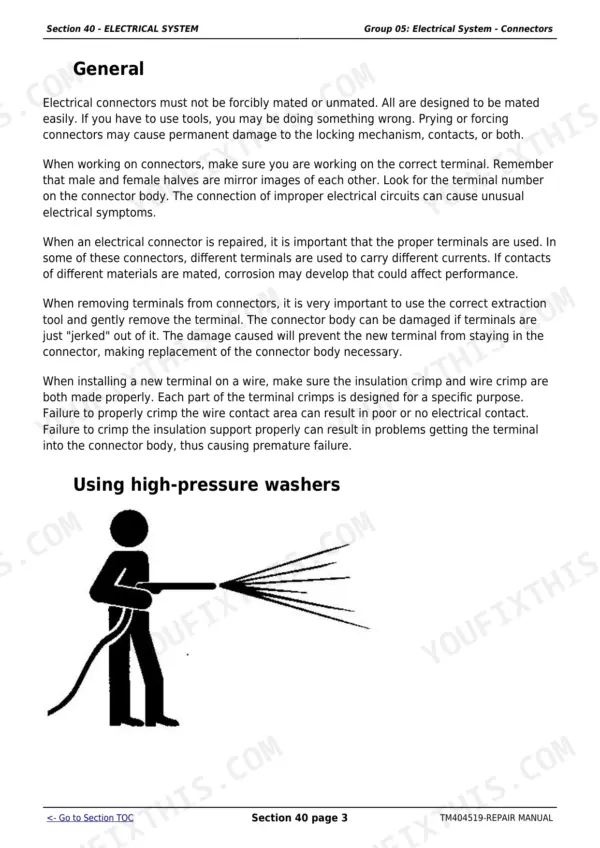

| Electrical System | 205-272 | Connectors, Charging Circuit, Starter Circuit, Headlights |

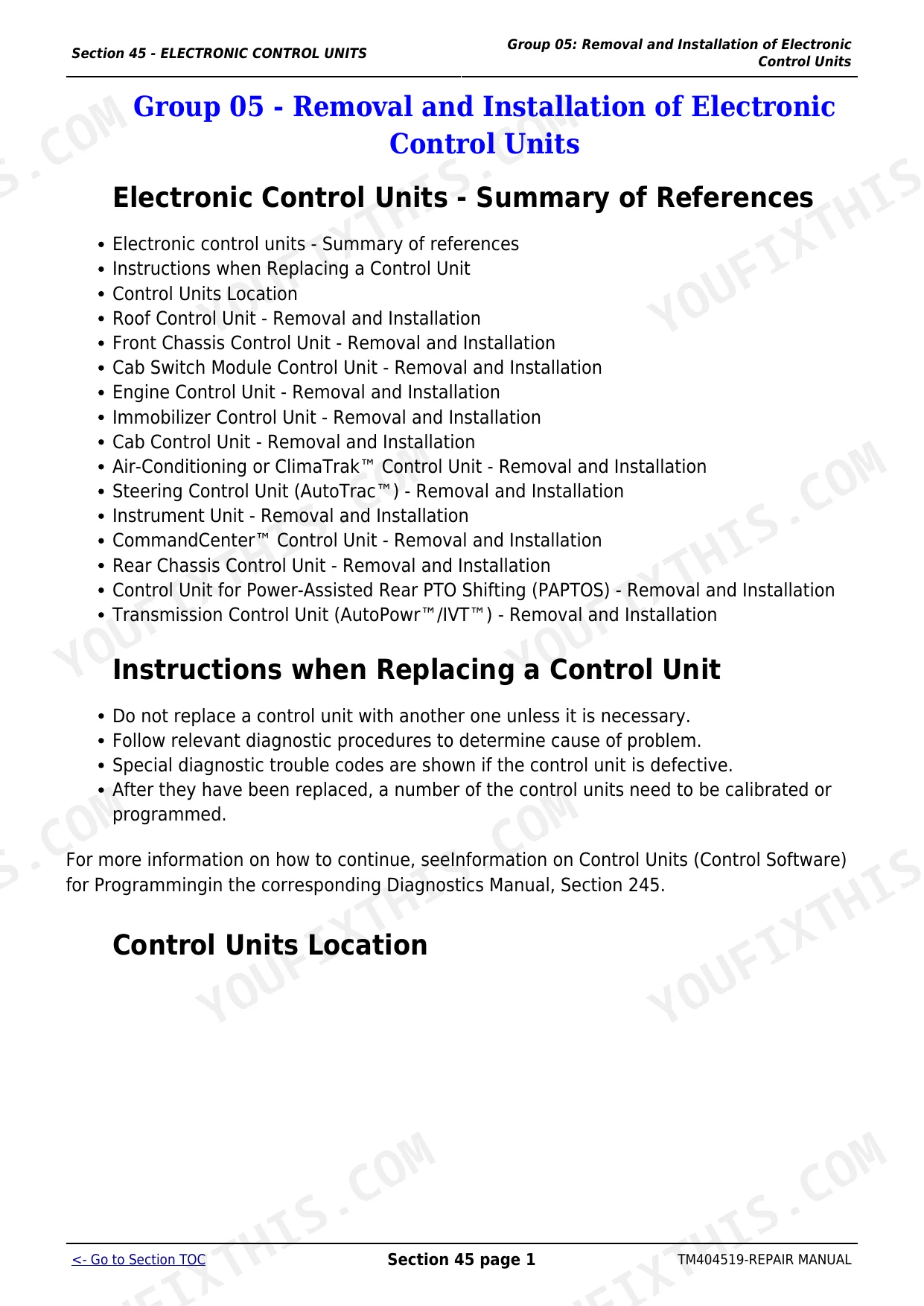

| Electronic Control Units | 273-312 | Removal and Installation of ECUs, Terminating Resistors |

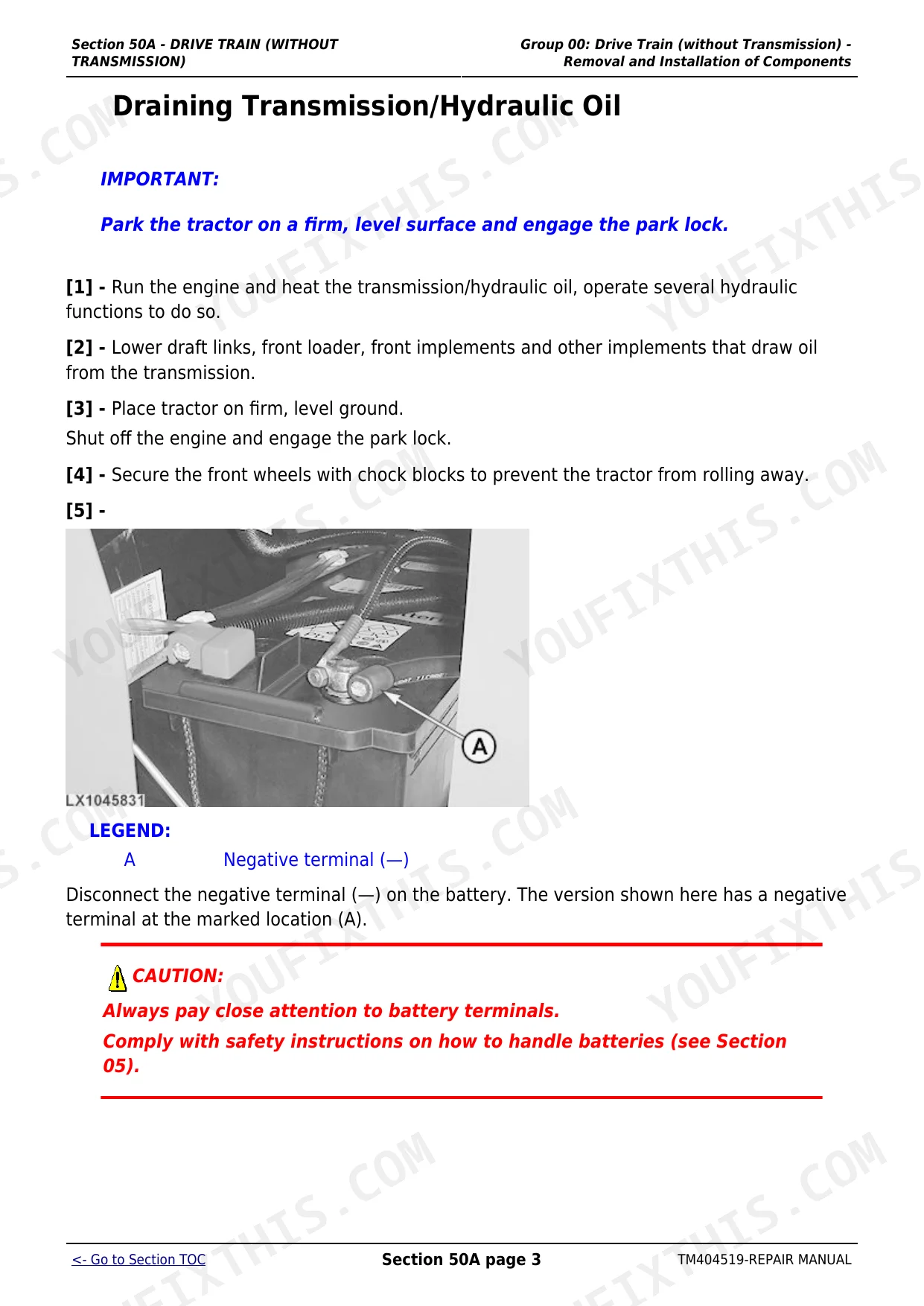

| Drive Train (Without Transmission) | 313-600 | U.J. Shafts, Torsion Dampers, MFWD, Differential, Final Drives, PTO Options |

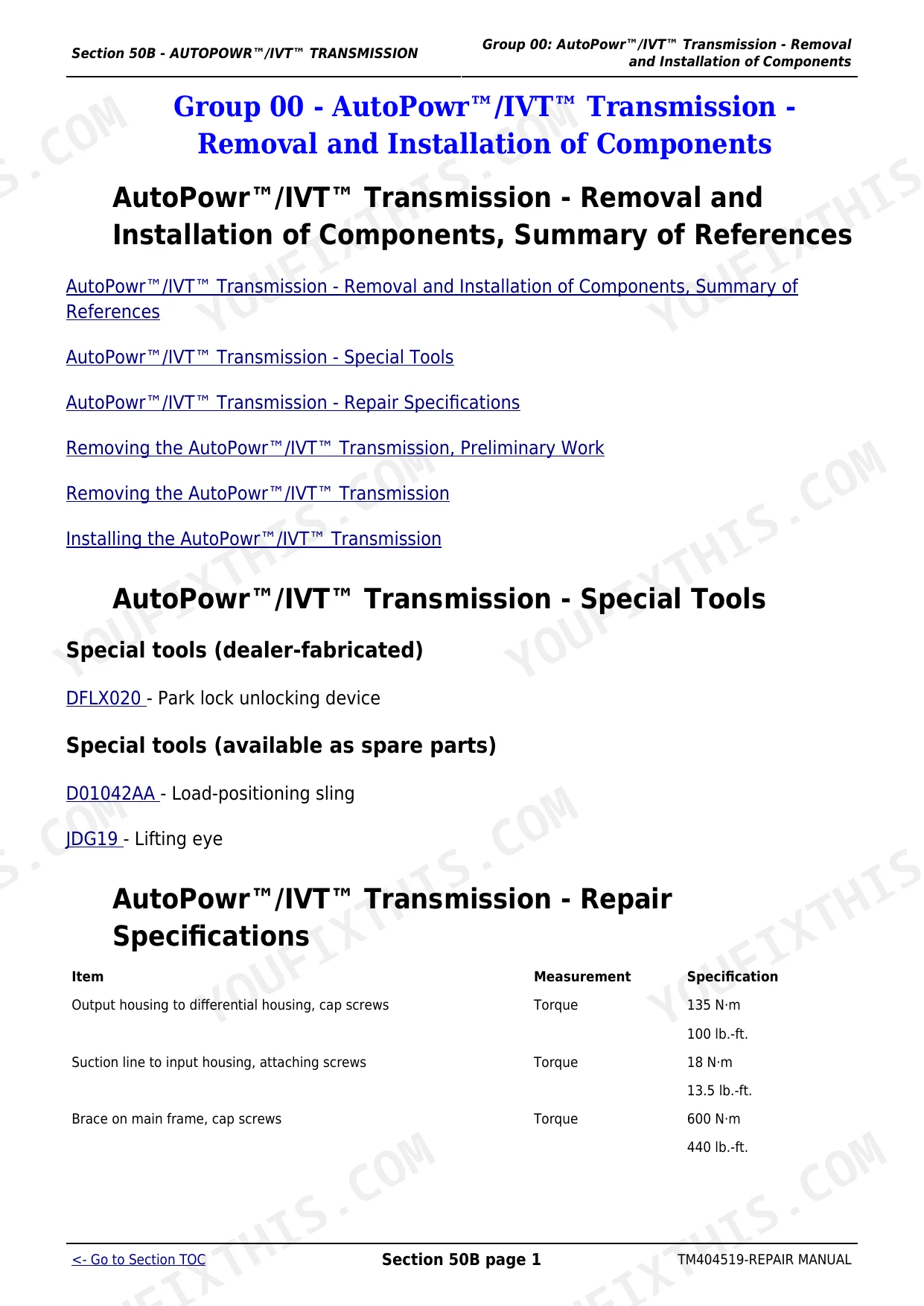

| AutoPowr/IVT Transmission | 601-775 | Shift Units, Input Housing, Output Housing, Differential Drive Shaft |
| PowrQuad Transmission | 776-1083 | Shift Control, PowrQuad Module, Creeper Transmission, Range Transmission |
| Steering | 1084-1120 | Hydrostatic Steering, AutoTrac |

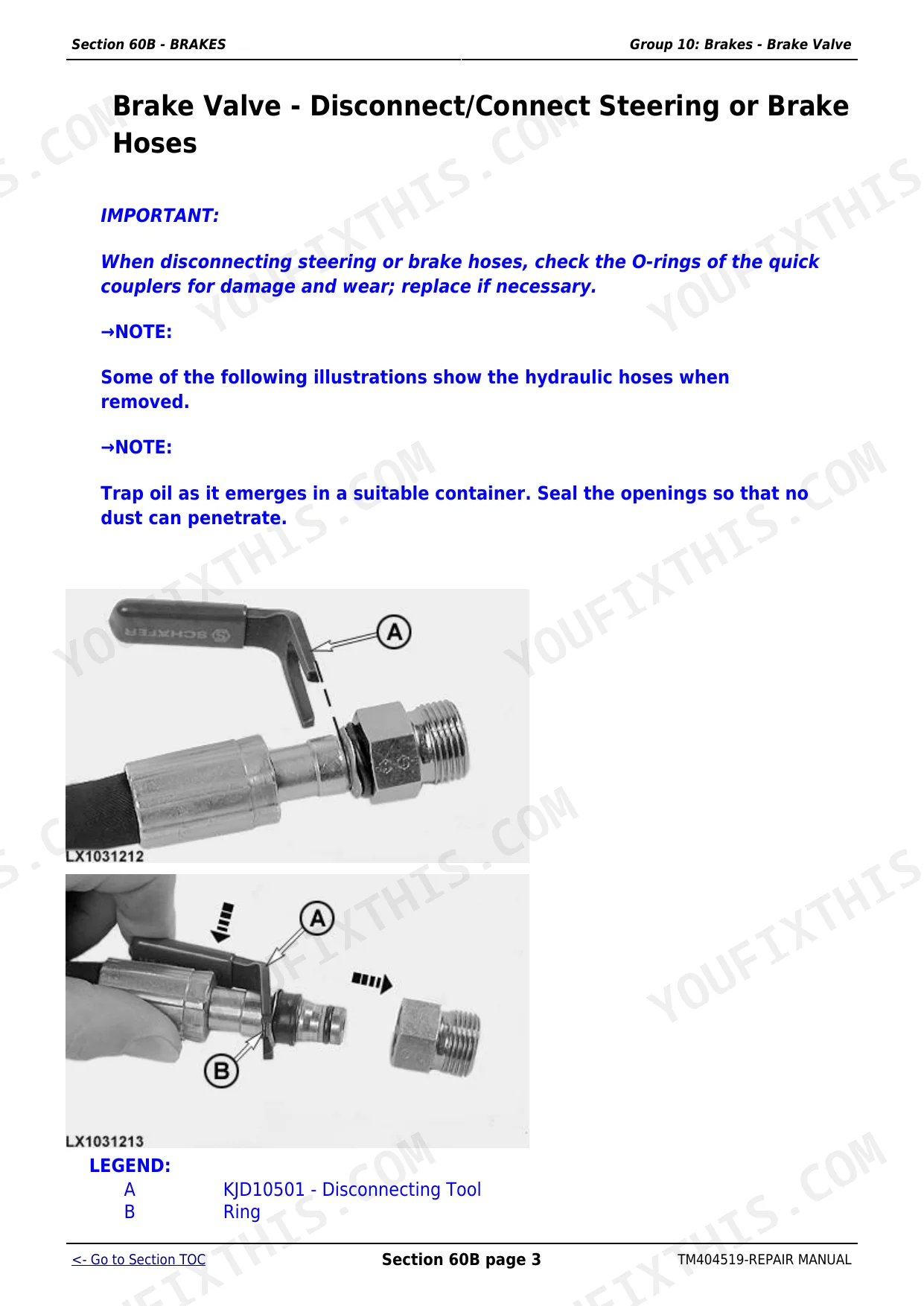

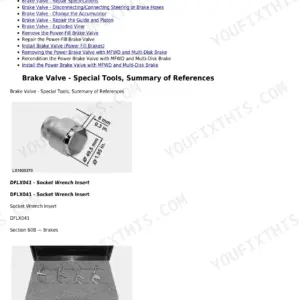

| Brakes | 1121-1219 | Brake Valve, Rear Brakes, Hydraulic Trailer Brake, Air-Brake System |
| Hydraulic System | 1220-1482 | Controls, Oil Filter, Charge Pump, Control Blocks, Rear Hitch, SCVs |
| Machine-Specific Systems | 1483-1660 | Main Frame, Wheels and Fenders, Trailer Hitch, Pick-Up Hitch |
| Suspension Systems | 1661-1743 | Suspended Front-Wheel Drive Axle, Cab Suspension |
| Operator's Cab | 1744-1915 | Operation and Control Devices, Air Conditioning, ClimaTrak, Seat |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Clutch design | hydraulically controlled wet clutch | p. 67 |
| PowrQuad Plus transmission type | synchronized hydraulic transmission | p. 67 |
| PowrQuad Plus number of ranges | 4 ranges (30 km/h (18.5 mph) transmission) / 5 or 6 ranges (40 km/h (25 mph) transmission) / 5 or 6 ranges (50 km/h (31 mph) transmission) | p. 67 |
| AutoQuad Plus transmission type | synchronized hydraulic transmission | p. 67 |
| AutoQuad Plus number of ranges | 4 ranges (30 km/h (18.5 mph) transmission) / 5 or 6 ranges (40 km/h (25 mph) transmission) / 5 or 6 ranges (50 km/h (31 mph) transmission) | p. 67 |
| Rear PTO engine speed | 1932-2037 rpm (540 rpm rear PTO) / 1575-1785 rpm (540E rpm rear PTO) / 1932-2037 rpm (1000 rpm rear PTO) / 1575-1785 rpm (1000E rpm rear PTO) | p. 67 |
| Differential lock actuation | electrical/hydraulic, pedal-operated | p. 67 |
| Front-wheel drive type | operated under load, hydraulically controlled drive with wet disk clutch | p. 68 |
| Hydraulic brakes type | self-adjusting, hydraulically operated wet disk brakes, individually acting in field operation | p. 68 |
| Hitch control types | load, depth and mixed control, float position | p. 68 |
| Cab suspension type | active spring system with leveling control | p. 68 |
| 1000 rpm in direction of forward travel, clockwise rotating (6 splines) | ||
| Front PTO engine speed | 1995 rpm | p. 67 |
| all models | ||
| Priority 3 valve to control block torque | 150 N·m (110.6 lb-ft) | p. 1291 |
| Pressure limiting valve to control block torque | 45 N·m (33 lb-ft) | p. 1291 |
| Studs to control block torque | 10 N·m (7.4 lb-ft) | p. 1291 |
| Hex socket screws, final tightening torque | 60 + 6 N·m (44.3 + 4.4 lb-ft) | p. 1307 |
John Deere 6105R, 6115R, 6125R, 6130R Common Problems This Manual Covers
Transmission stuck in neutral or hard to shift
Nine times out of ten on these it is a stuck or rusty speed shift linkage or a misadjusted interlock cable, not a dead gearbox. The PowrQuad Transmission section walks you through the shift control and PowrQuad module so you can free up or replace the linkage before committing to a split.
Manual Section: Section 50C - PowrQuad Transmission p. 781Engine will not crank
Start with the battery, its connections and the starter circuit wiring - corroded terminals and tired connectors cause most no crank complaints on these. The Electrical System section covers the connectors, charging circuit and starter circuit so you can test and repair the circuit end to end instead of throwing a starter at it.
Manual Section: Electrical System p. 255Engine runs rough, stalls, or loses power
Water, dirt or air in the fuel is the classic cause, followed by clogged fuel filters or a restricted air cleaner. The Fuel, Air Intake, Cooling and Exhaust System section covers the fuel system and air intake so you can bleed, clean and replace components in the right order and stop chasing ghosts.
Manual Section: Section 30 - Fuel, Air Intake, Cooling and Exhaust System, Group 10: Fuel System p. 150Coolant temperature climbing / overheating under load
Check coolant level, the radiator core and grille screens, the fan belt and the thermostat before condemning anything expensive. The cooling system coverage in the Fuel, Air Intake, Cooling and Exhaust System section gives the removal and installation procedures for the thermostat, radiator and related hardware.
Manual Section: Section 30 - Fuel, Air Intake, Cooling and Exhaust System, Group 20: Cooling System p. 158Frequently Asked Questions
Does this manual show how to clear fault codes or reset the service reminder?
No, and it is better you know that before buying. This is the repair (workshop) manual - it covers removal, installation and reconditioning of components, not diagnostic code lists or reset menus. If a code led you to a failed part, this book gets you through the actual repair: pulling the ECU, replacing the shift unit, rebuilding the brakes. For code definitions you need the separate diagnosis manual.
My 6115R has the AutoPowr/IVT transmission. Is it covered, or just PowrQuad?
Both. There is a dedicated AutoPowr/IVT section covering the shift units, input housing, output housing and differential drive shaft, and a separate PowrQuad section covering shift control, the PowrQuad module, the creeper transmission and the range transmission. Whichever gearbox your tractor left the factory with, the teardown procedures are here. p. 601
The transmission oil on my 6125R keeps overheating. Will this manual help me find it?
Yes, because the usual suspects are all serviceable with this book: a clogged transmission/hydraulic oil filter, a dirty oil cooler, low oil supply or an internal leak. The Hydraulic System section covers the oil filter, charge pump and control blocks, and the cooling system section handles the cooler side. Work through those before you blame the gearbox itself. p. 599
Does it cover the suspended front axle and cab suspension, or just the solid axle?
There is a full Suspension Systems section for the suspended MFWD front axle and the cab suspension - these R series tractors are common with both options, and the repair procedures for each are included. Wheels, fenders, main frame, trailer hitch and pick up hitch get their own section too. p. 1661
I need to work on the rear PTO. What does the manual say about it?
The Drive Train section covers the PTO options along with the U joint shafts, torsion dampers, MFWD, differential and final drives. The rear PTO on these tractors is independent and engages under load. If the PTO clutch pack is slipping under a baler or the shaft needs service, the disassembly procedure is in this section. Engine speed for PTO operation is printed on p67: 1932-2037 rpm for the 540 and 1000 rpm rear PTO, and 1575-1785 rpm for the 540E economy setting. p. 497
