Part of the John Deere Repair Manuals.
This 796-page John Deere 650, 750 Technical Manual (OEM #TM1242) covers the complete power train, engine, and hydraulic teardown for both the 650 and 750 tractor, so you're not guessing which spec applies to your unit. Open it to wiring diagrams for the charging, starting, and lighting circuits, hydraulic schematics for the rockshaft and selective control valve, and a full troubleshooting section that walks you through symptoms like slow lift speed or a rockshaft that won't lower. You get torque values and fluid intervals straight from the factory: replace the engine oil filter every 200 hours, and torque the hydraulic cover cap screws to 23-30 N.m. No more swapping parts on a hunch because a forum thread guessed wrong. Bookmarked by system and searchable by keyword, this PDF opens on your phone or tablet so you can carry the diagnosis right to the tractor and get it running again.
What's Inside This John Deere 650 & 750 Manual
| System | Pages | Key Topics |
|---|---|---|

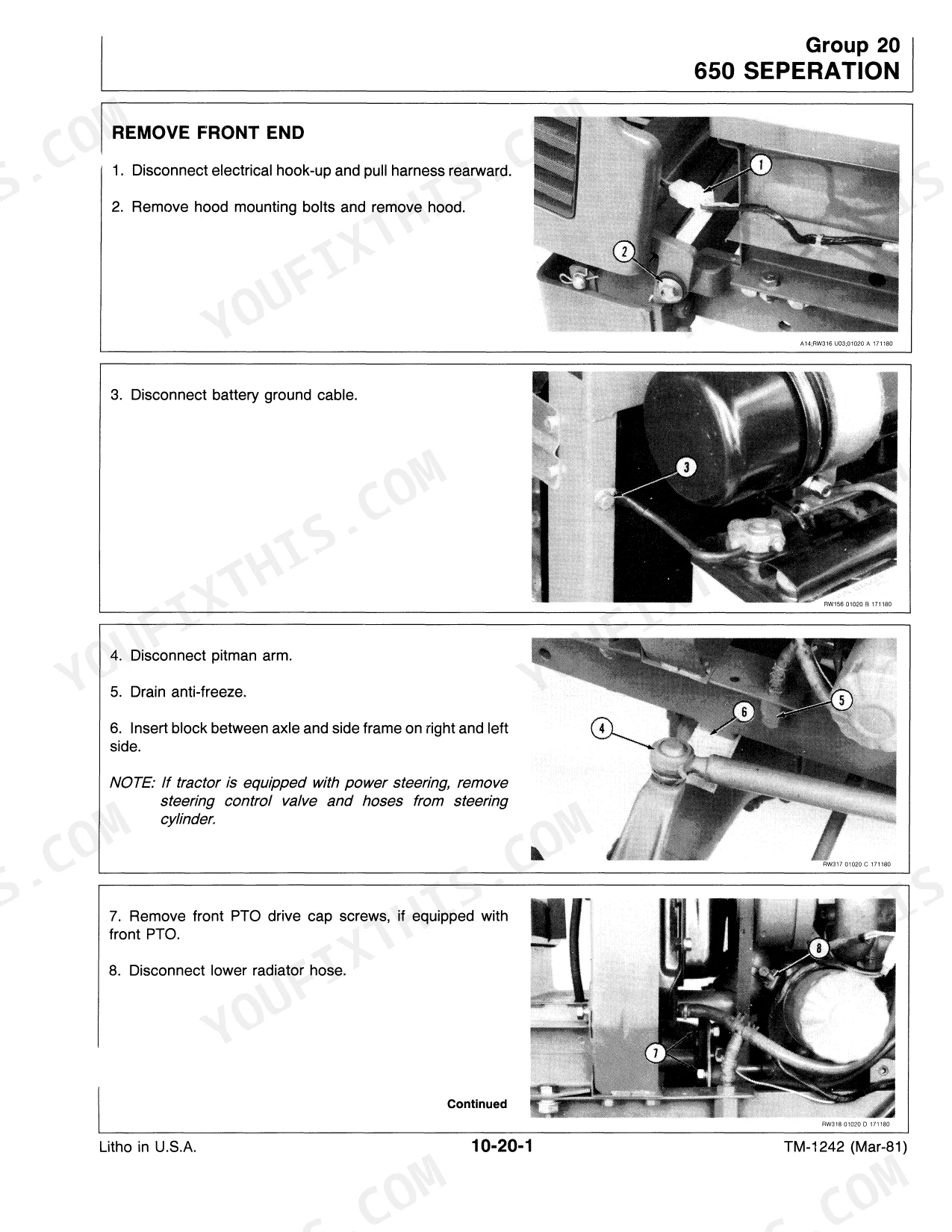

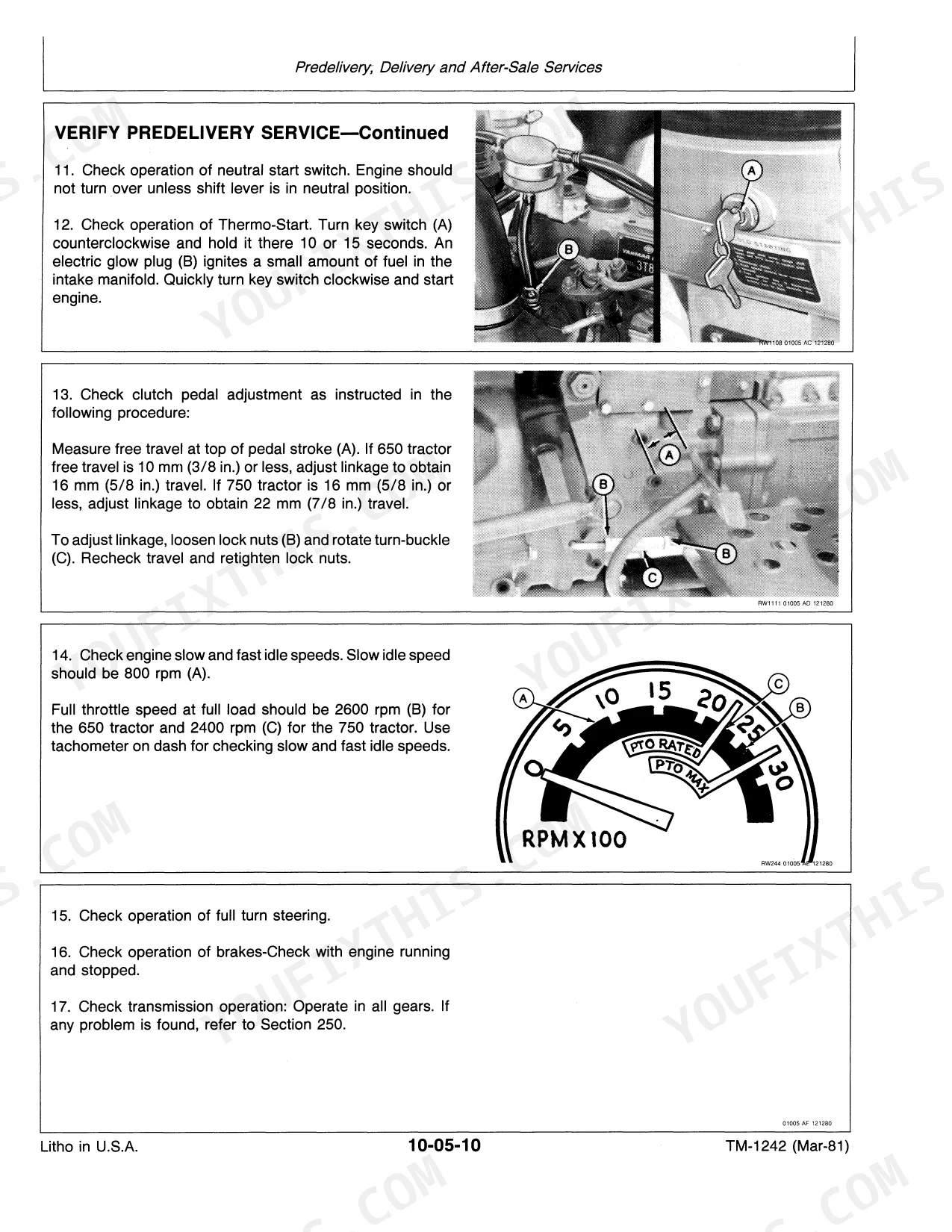

| General | 5-100 | Specifications, Special Tools, Tune-Up, Lubrication, 650 Separation, 750 Separation |

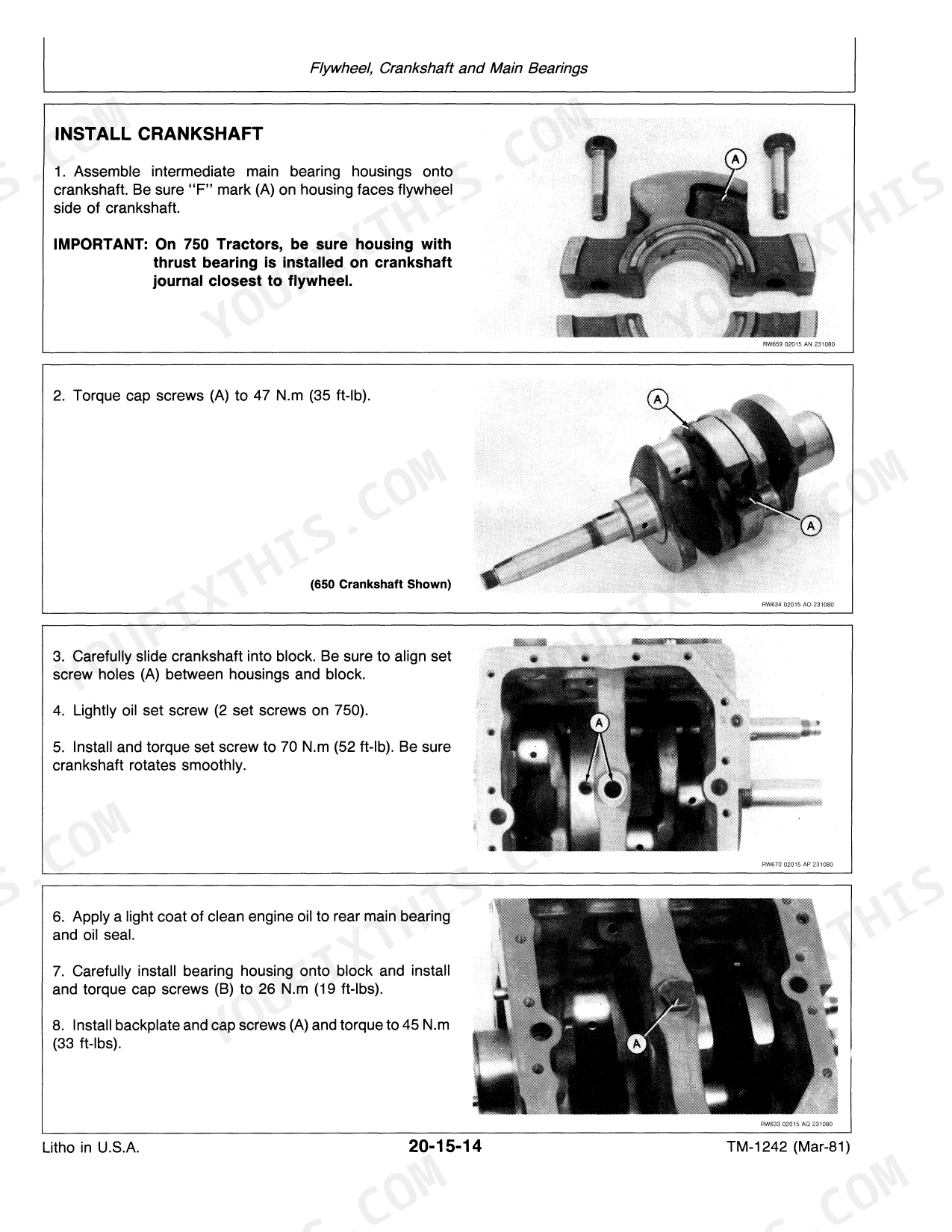

| Engine Repair | 101-174 | Valve Train, Cylinder Head, Camshaft, Pistons, Crankshaft, Cooling System |
| Fuel and Repair | 175-206 | Specifications, Special Tools, Air Intake System, Diesel Fuel System, Speed Control Linkage |

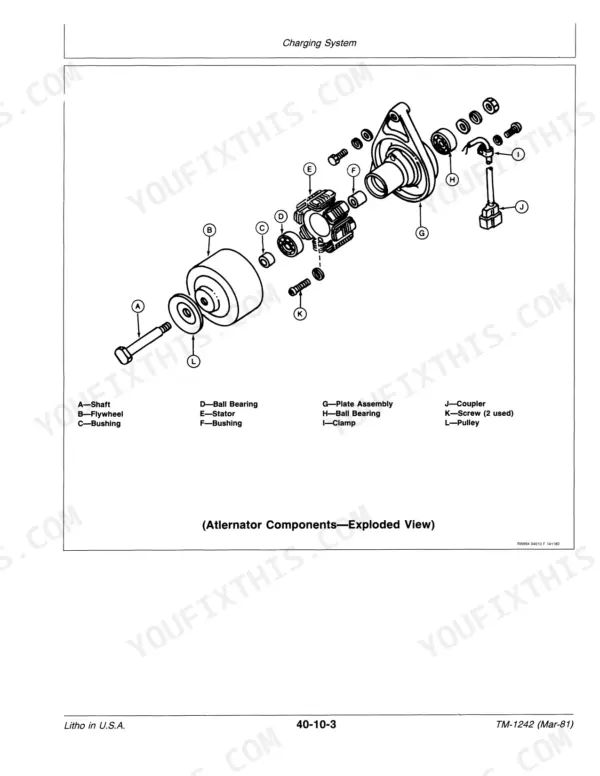

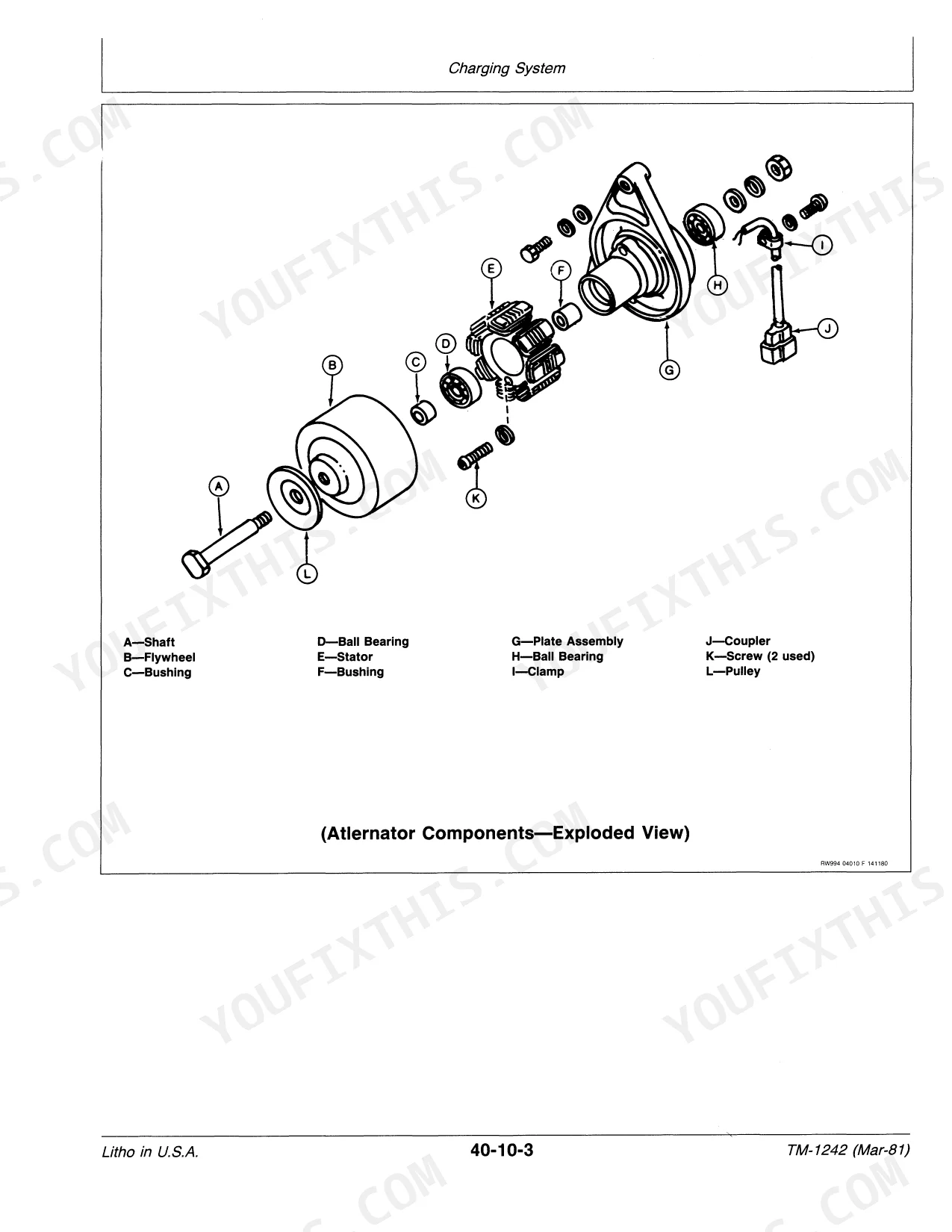

| Electrical Repair | 207-252 | Specifications, Special Tools, Charging System, Starting Motor, Instruments, Lighting Circuits |
| 650 Power Train Repair | 253-356 | Engine Clutch, Sliding Gear Transmission, Differential, Final Drives, PTO (650 Gearing) |
| 750 Power Train Repair | 357-476 | Engine Clutch, Sliding Gear Transmission, Differential, Final Drives, PTO (750 Gearing) |
| Steering/Brakes Repair | 477-514 | Specifications, Special Tools, Steering Gear, Power Steering, Brakes |
| Hydraulic Repair | 515-552 | Specifications, Special Tools, Hydraulic Pump, Rockshaft, Implement Hitches, Selective Control Valve |
| Miscellaneous Repair | 553-572 | Axle End-Play, Pivot Pin Bushing, Spindle Shaft, Wheel Bearings, Roll-Gard Protective Equipment |

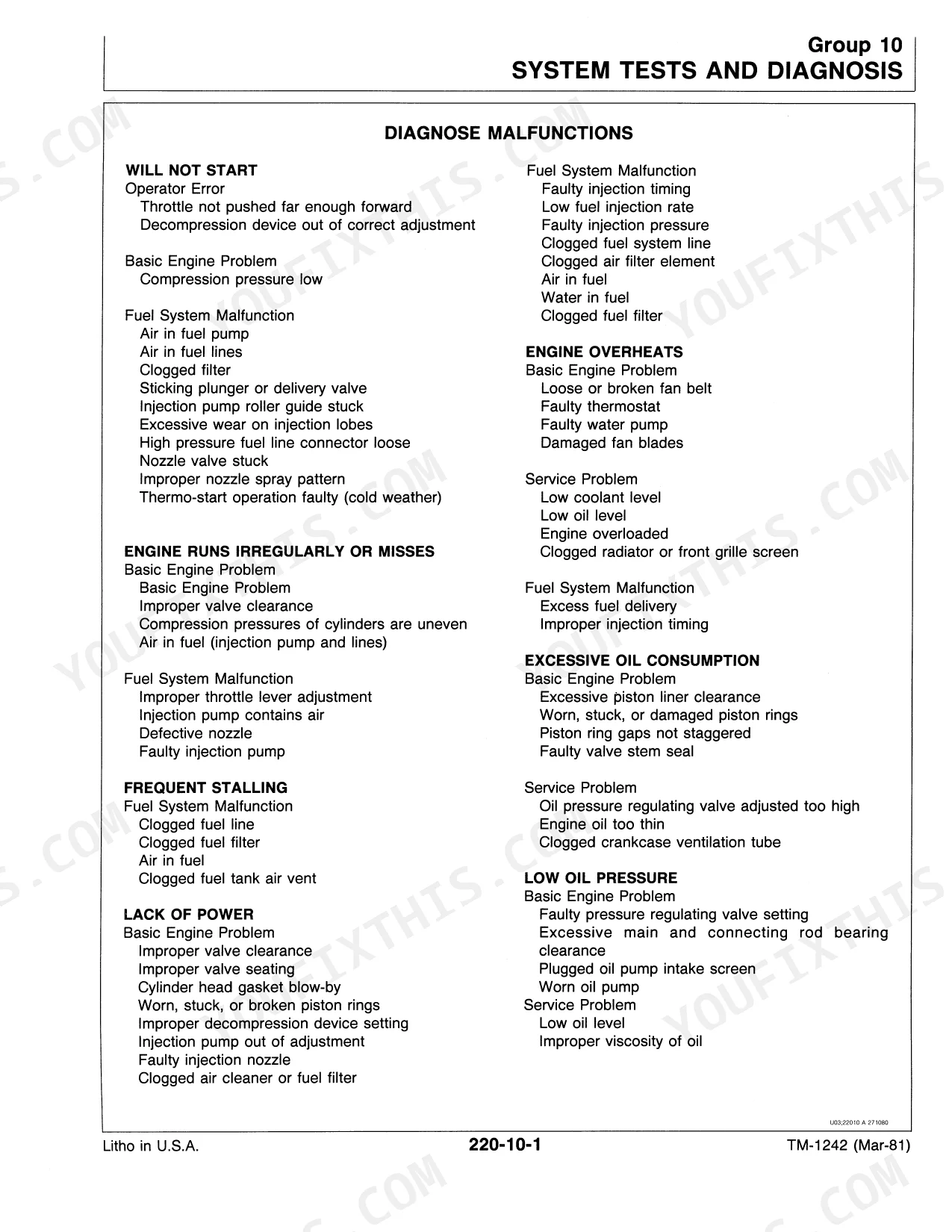

| Engine Operation and Tests | 573-590 | Lubrication System, Cooling System, Dynamometer Test, Compression Pressure, Valve Clearance, Engine Oil Pressure |
| Fuel/Air Operation and Tests | 591-622 | Air Intake System, Diesel Fuel System, Precombustion Chamber, Injection Pump Timing, Fuel Injection Nozzles, Governor Assembly |
| Electrical Operation and Tests | 623-673 | General Diagnosis, Wiring Diagrams, Charging System, Starting Circuit, Instruments and Accessory Circuits, Lighting Circuits |
| 650 Power Train Operation and Tests | 674-703 | Single-Stage Engine Clutch, Eight-Speed Transmission, Differential, Diagnosis, Tests (650) |
| 750 Power Train Operation and Tests | 704-731 | Single-Stage Engine Clutch, Eight-Speed Transmission, Differential, Diagnosis, Tests (750) |

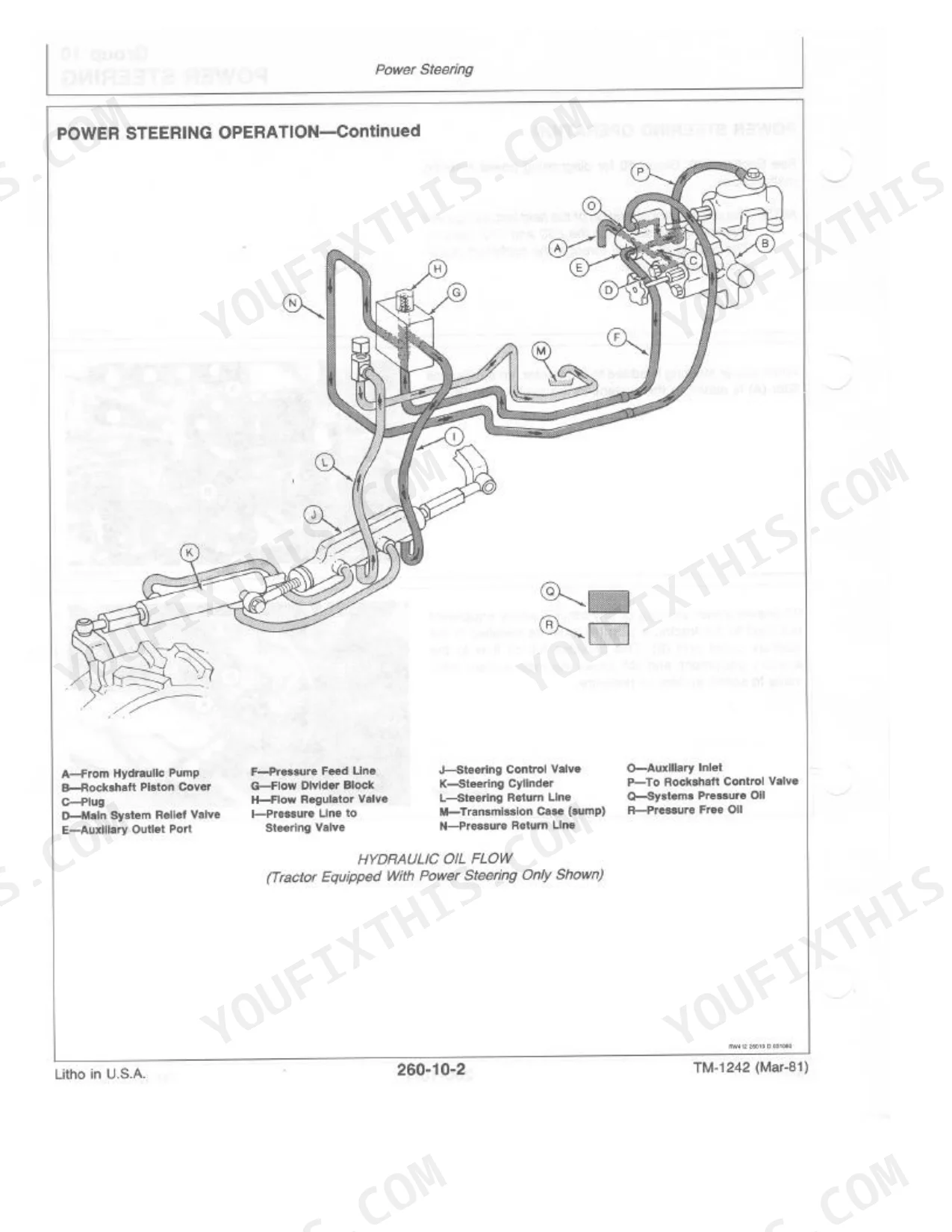

| Steering/Brakes Operation and Tests | 732-746 | Manual Steering Operation, Power Steering Operation, Flow Divider Block Operation, Brake Operation, Diagnosing Malfunctions |
| Hydraulic Operation and Tests | 747-796 | Hydraulic System Operation, Hydraulic System Tests, Hydraulic Pump Operation, Rockshaft Operation, Selective Control Valve Operation, Diagnosing Malfunctions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil filter replacement | 200 Hours | p. 49 |
| Transmission-Hydraulic oil filter replacement | 200 Hours | p. 51 |
| Air filter service interval | every 200 hours | p. 181 |
| Air filter replacement interval | annually or every 600 hours | p. 181 |
| Torque cover cap screws | 23-30 N.m (17-22 ft-lbs) | p. 524 |
| Tighten hex connector | securely | p. 525 |
| Battery Volts | 12.4 to 12.8 | p. 209 |
John Deere 650 & 750 Common Problems This Manual Covers
John Deere 650 three-point hitch hydraulic lift fails intermittently, rockshaft barely responds to control lever
Remove the hex connector on the hydraulic stop valve and check for a seized detent ball or lint packed in the passage, the most common cause of an unresponsive rockshaft. Clean the bore, reinstall, and tighten the hex connector securely per page 525. Torque the cover cap screws to 23-30 N.m (17-22 ft-lbs) per page 524.
Manual Section: Hydraulic Repair p. 525Engine runs away with uncontrolled speed increase that ignores throttle lever input
Shut the fuel off immediately with the manual shut-off lever, then trace the speed control linkage for a disconnected or worn pin using the Fuel/Air Operation and Tests procedures on page 591. Check the governor assembly for a broken spring. Verify the air filter hasn't exceeded its 200 hour service interval, since restriction can make a diesel surge.
Manual Section: Fuel/Air Operation and Tests p. 591Engine overheats repeatedly with radiator fins packed with dirt, chaff, and lint
Pull the radiator screen and clear chaff, dirt, and lint packed between the cooling fins, the leading cause of overheating on these tractors. Verify coolant level and run the cooling system test procedures beginning on page 573. Confirm the engine oil filter (M801002) hasn't run past its 200 hour service interval on page 49, since sludge-thickened oil also raises operating temperature.
Manual Section: Engine Operation and Tests p. 573Ignition key occasionally won't turn far enough to crank and engage the starter motor
Test battery voltage; it should read 12.4 to 12.8 volts per page 209, and a weak cell can make the key intermittently fail to turn. Inspect the ignition switch contacts and starter solenoid wiring for corrosion, then run the starting circuit diagnostic procedures on page 623. Clean or replace the switch if contacts stay open under load.
Manual Section: Electrical Operation and Tests p. 623No power steering assist and non-live PTO requiring constant throttle management at low RPM
Check the transmission-hydraulic oil filter first; it's rated for replacement every 200 hours on page 51, and a loaded filter starves the shared pump feeding both steering and PTO circuits. Run the steering and PTO diagnostic procedures in the Steering/Brakes Operation and Tests section beginning on page 732. Keep engine RPM up manually until PTO output stabilizes.
Manual Section: Steering/Brakes Operation and Tests p. 732Frequently Asked Questions
How to reset glow plugs on John Deere 650/750?
The manual describes how to test the Thermo-Start plug for proper operation, including checking for a bright red glow and dripping fuel after about five seconds in the "THERMO-START" position. If the plug is not working, it suggests checking wiring for continuity and loose connections, or replacing the plug if it fails the continuity test (Section 40, Group 20). There is no procedure for 'resetting' the glow plugs. p. 242
What are the torque specs for flywheel on John Deere 650 Yanmar engine?
When reinstalling the flywheel, torque NEW cap screws to 70 N·m (52 ft-lb). This specification is found in the engine repair section for flywheel, crankshaft, and main bearings. p. 149
Why won't my John Deere 650 start after resetting safety switch?
If the engine does not start after checking the safety switch, it could be due to various issues such as a low battery, a defective starter motor, or problems with the wiring. The manual suggests checking the battery condition, testing the starter motor under no-load conditions, and verifying continuity in the starting circuit, including the neutral start switch, to diagnose the problem. p. 652
What engine oil is best for John Deere 650 Yanmar 2-cylinder: 15W-40 or 30W?
John Deere TORQ-GARD SUPREME® engine oil is recommended. For temperatures above 0°C (32°F), SAE 30 is suitable, while SAE 15W-40 is recommended for a wider range of temperatures, including those below 0°C (32°F). p. 45
Is this John Deere 650, 750 Technical Manual a digital download?
Immediate download of the complete 796-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this John Deere 650, 750 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this John Deere 650, 750 manual cover the hydraulic system?
Yes, a hydraulic system diagram is included showing the main circuit layout.
