Part of the John Deere Repair Manuals.

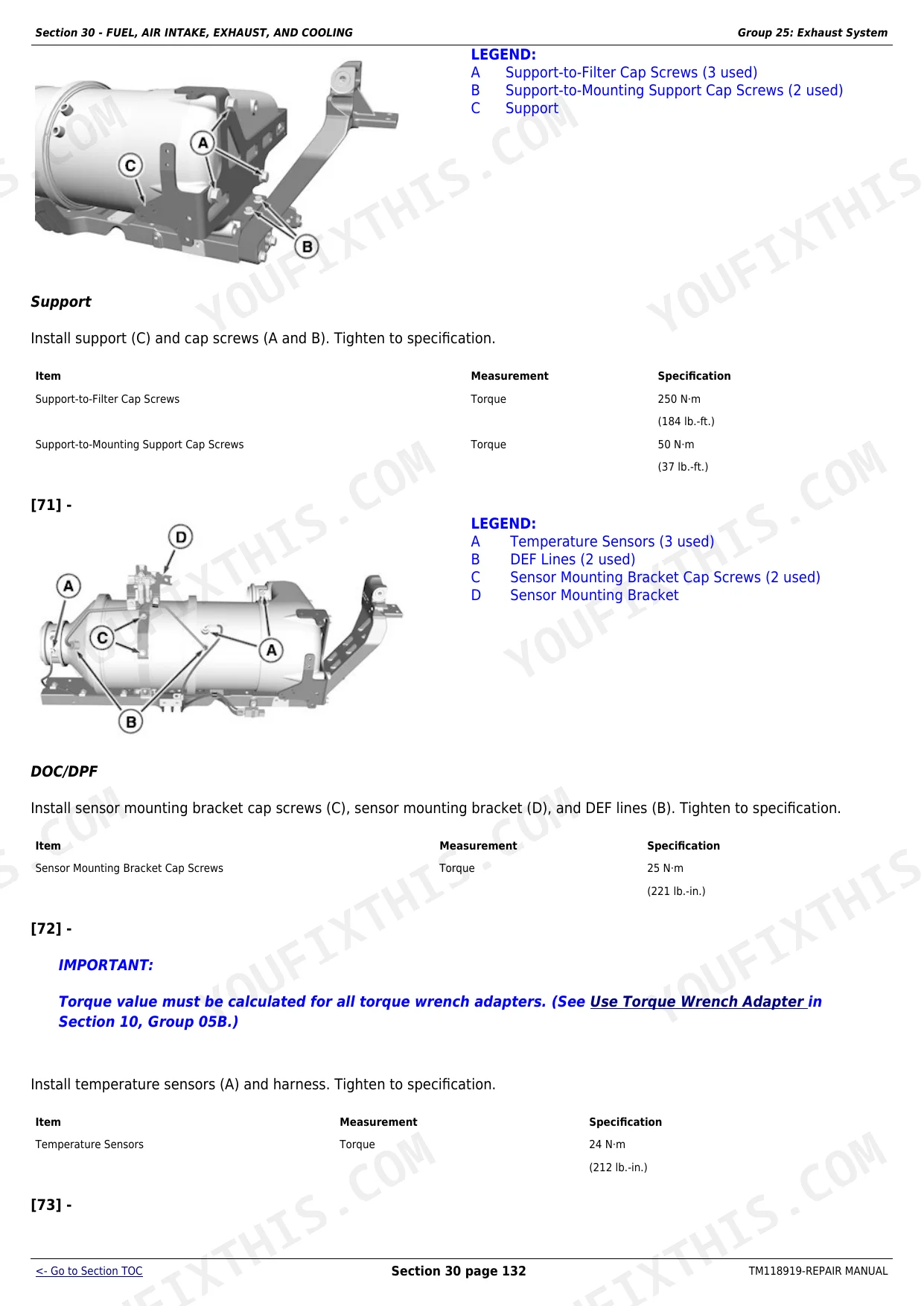

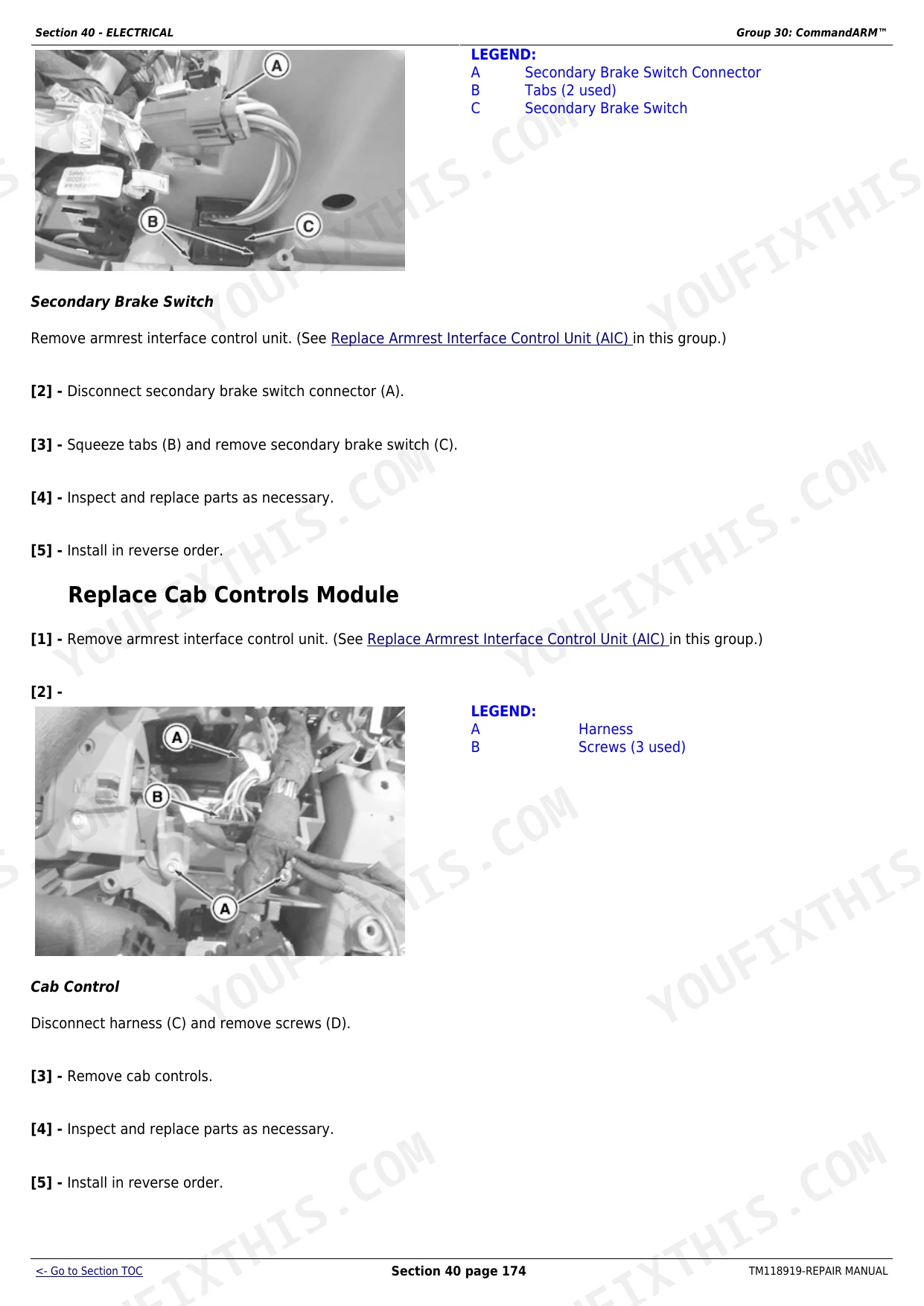

The complete factory repair manual (TM118919) for John Deere's 7R Series tractors, 7210R through 7310R. It runs the full teardown-and-rebuild path for every major system on the machine: the 6.8L and 9.0L PowerTech diesels, the IVT, E23 and CommandQuad transmissions, the MFWD front axles, Triple-Link Suspension, hydraulics and the CommandARM cab electronics. This is the same 2,120-page technical manual John Deere dealers use for component-level service, searchable, print-ready, and organized exactly the way the machine is built.
What's Inside This John Deere 7210R-7310R Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| GENERAL INFORMATION | Safety, General References | |
| ENGINE | Component Removal and Installation, Engine Repair | |
| FUEL, AIR INTAKE, EXHAUST, AND COOLING | Diesel Fuel System, Air Intake System, Auxiliary Drive System, Radiator and Coolers, Exhaust System | |
| ELECTRICAL | Connectors, Charging Circuit, Starting Circuit, Relays, Fuses, Solenoids, and Switches, Monitoring System, CommandARM™, Implement and Accessory Connectors, Convenience and Accessory | |

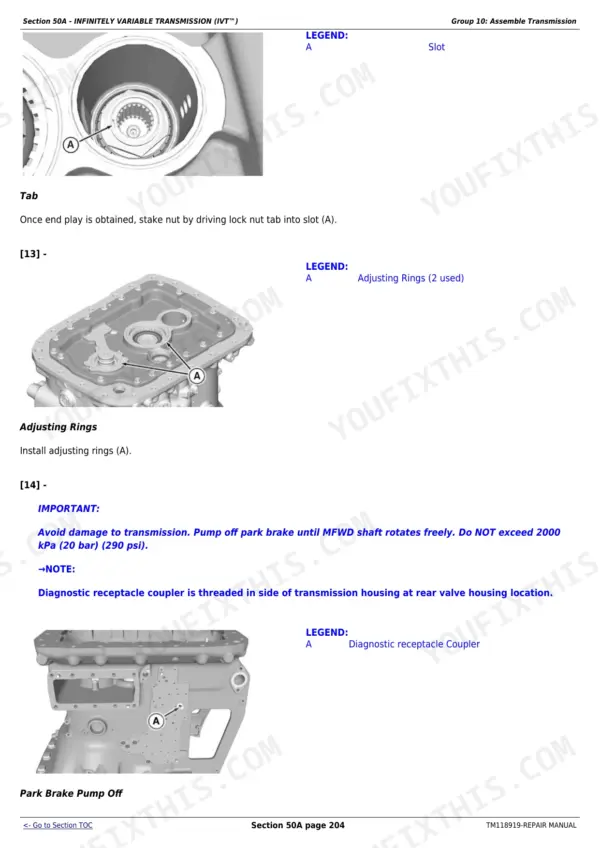

| INFINITELY VARIABLE TRANSMISSION (IVT™) | Component Removal and Installation, Transmission Repair, Assemble Transmission | |
| E23™ TRANSMISSION (E23™) | Component Removal and Installation, Transmission Repair, Assemble Transmission | |
| COMMANDQUAD™ TRANSMISSION (CQ) | Component Removal and Installation, PowrQuad-Plus™ Module, Range Box | |
| DRIVE TRAIN | Component Removal and Installation, Hydraulic Pump Drive, Rear Differential and Input Quill, Rear Final Drives, Rear PTO, Front PTO | |
| 1100 SERIES MFWD | Component Removal And Installation, Final Drives, Axle Housing, Differential | |
| 1300 SERIES MFWD | Component Removal And Installation, Final Drives, Axle Housing, Differential | |
| TRIPLE-LINK SUSPENSION (TLS™) | Component Removal And Installation, Final Drives, Axle Housing, Differential, Suspension Components | |
| BRAKES | Service Brakes, Hydraulic Trailer Brakes, Air Trailer Brakes | |
| STEERING | Steering Column, Steering Valves, Steering Cylinders | |
| HYDRAULICS | Component Removal and Installation, Hydraulic System, Integrated Hydraulic Pump, Hitch Valve, Selective Control Valves, and Couplers, Rear Hitch, Front Hitch | |
| MISCELLANEOUS | Hood and Side Shields, Wagon and Pick-Up Hitch | |
| CAB AND OPEN OPERATOR'S STATION | Component Removal and Installation, Heating, Ventilating, and Air Conditioning (HVAC), ComfortCommand™ Seat, ComfortCommand™ Seat with HCS Plus, ActiveSeat™™, Cab Door and Windshield, Cab Suspension | |
| DEALER TOOLS | Dealer Fabricated Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 7210R,7230R,7250R | ||
| Engine (7210R / 7230R / 7250R) | 6.8 L PowerTech diesel | |
| 7270R,7290R,7310R | ||
| Engine (7270R / 7290R / 7310R) | 9.0 L PowerTech diesel | |
| All Models | ||
| Transmission options | IVT, E23 (23-speed), CommandQuad | |
| Front axle | 1100 & 1300 Series MFWD, Triple-Link Suspension (TLS) | |
John Deere 7210R-7310R Common Problems This Manual Covers
Engine hard-starting or stalling under load
Work the Fuel, Air Intake and Exhaust section, check the injectors, fuel supply and air-intake path before condemning the engine.
Manual Section: Fuel, Air Intake, Exhaust, and CoolingHydraulic pressure drops during heavy lifting
Follow the Hydraulics section, inspect the integrated hydraulic pump, hitch valve and selective control valves for wear or internal leakage.
Manual Section: HydraulicsTransmission not shifting or engaging cleanly
Use the transmission section matching your build (IVT, E23 or CommandQuad) for component removal, repair and correct reassembly.
Manual Section: Transmission (IVT / E23 / CommandQuad)Frequently Asked Questions
Which tractors does TM118919 cover?
It covers the John Deere 7R Series: 7210R, 7230R, 7250R, 7270R, 7290R and 7310R tractors.
Does it include the transmission repair procedures?
Yes, it has dedicated sections for the Infinitely Variable Transmission (IVT), the E23 transmission and the CommandQuad transmission, covering component removal, repair and reassembly.
Is this the engine repair manual too?
Yes. It covers the 6.8L (7210R-7250R) and 9.0L (7270R-7310R) PowerTech diesels, plus the fuel, air intake, exhaust and cooling systems.
Is it the factory manual or an aftermarket one?
It is the John Deere factory technical manual, TM118919, the same document dealer technicians use for component-level service.
