TM2205 is the repair half of the John Deere 8230T, 8330T and 8430T track tractor library: 1199 pages issued February 2011, covering serial numbers 000001-904999 and 905000 and up. This is the book you open with the tractor already apart - component remove and install, disassembly, inspection and assembly for the 9 L wet sleeve six, PowerShift transmission, final drives, steering pump, hitch and SCVs, and the whole track frame including the tension cylinder and accumulator. Every procedure carries torque values, photo callouts with legends, and the dealer fabricated and essential tool lists. The electrical section gives connector work, harness routings and ground point locations. It is a wrenching manual, not a diagnostic one, and it earns its shelf space in any shop that keeps an 8x30T running.
What's Inside This John Deere 8230T-8430T Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-40 | Safety, Specifications, Torque Values, Glossary, Sealants and Adhesives |
| Engine | 41-57 | Component Removal and Installation, Engine Repair |
| Fuel and Cooling Systems | 58-128 | Diesel Fuel System, Air Intake System, Engine Cooling System, Coolers and Air Conditioning Condenser |
| Electrical | 129-325 | Connectors, Wiring Harness Routings, Charging Circuit, Starting Circuit, Relays and Fuses, Monitoring Systems and Sensors, Armrest Control |

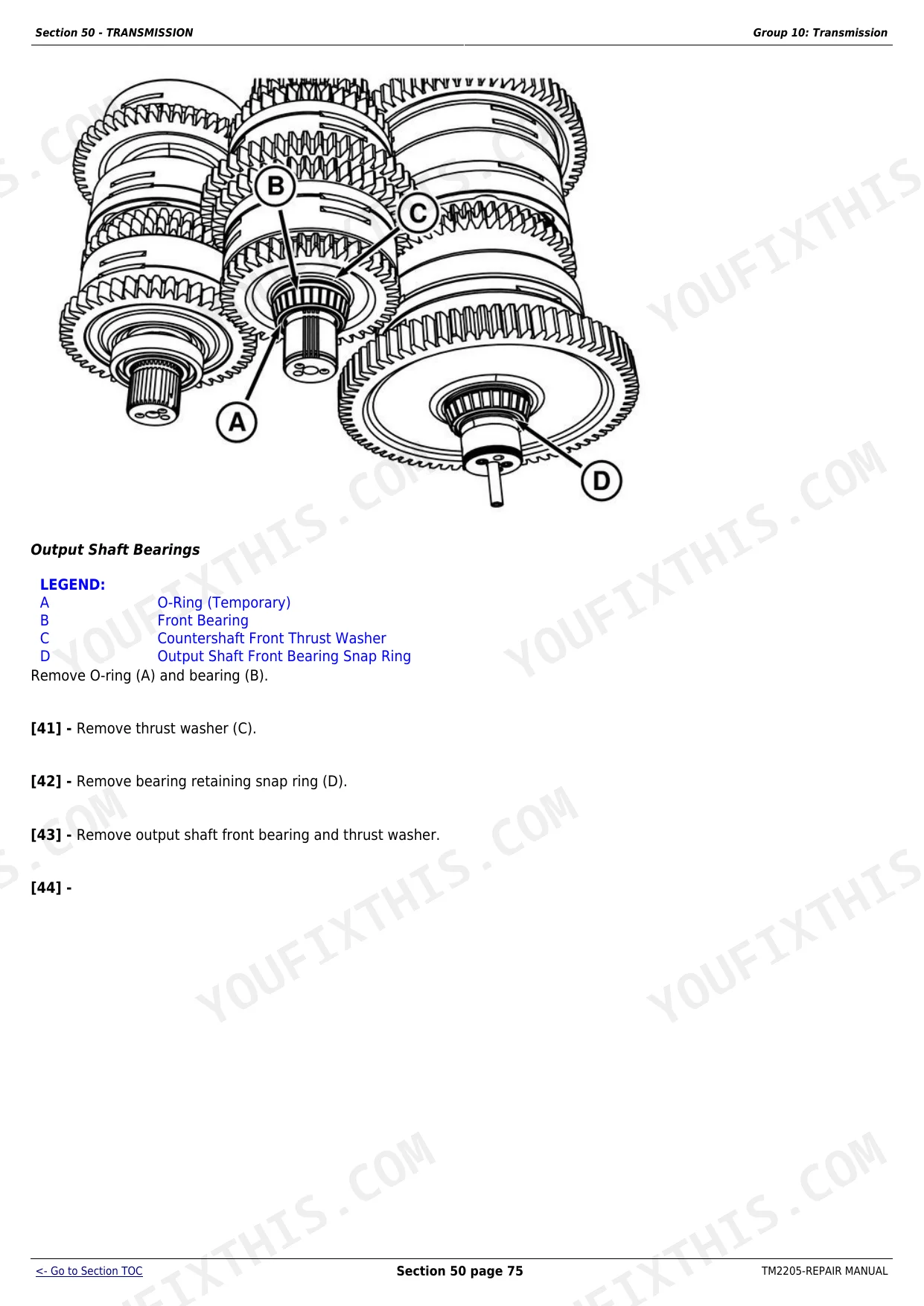

| Transmission | 326-507 | Transmission Repair, Rear Axle, Power Take Off |

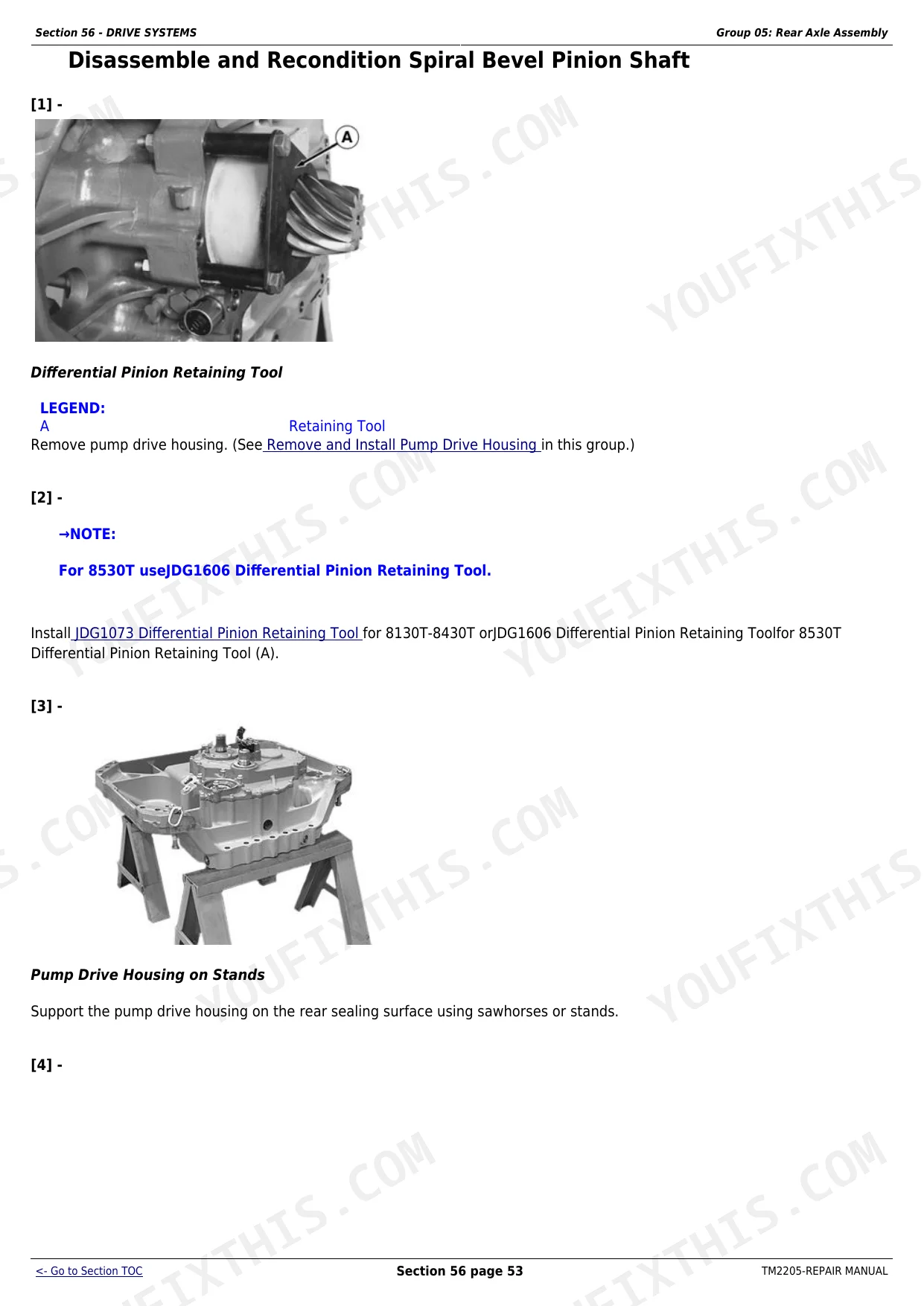

| Drive Systems | 508-688 | Final Drive, Steering Gears, Drive Shafts |
| Steering and Brakes | 689-796 | Steering Column, Steering Pump, Steering Motor, Brake Valve, Brake Components |

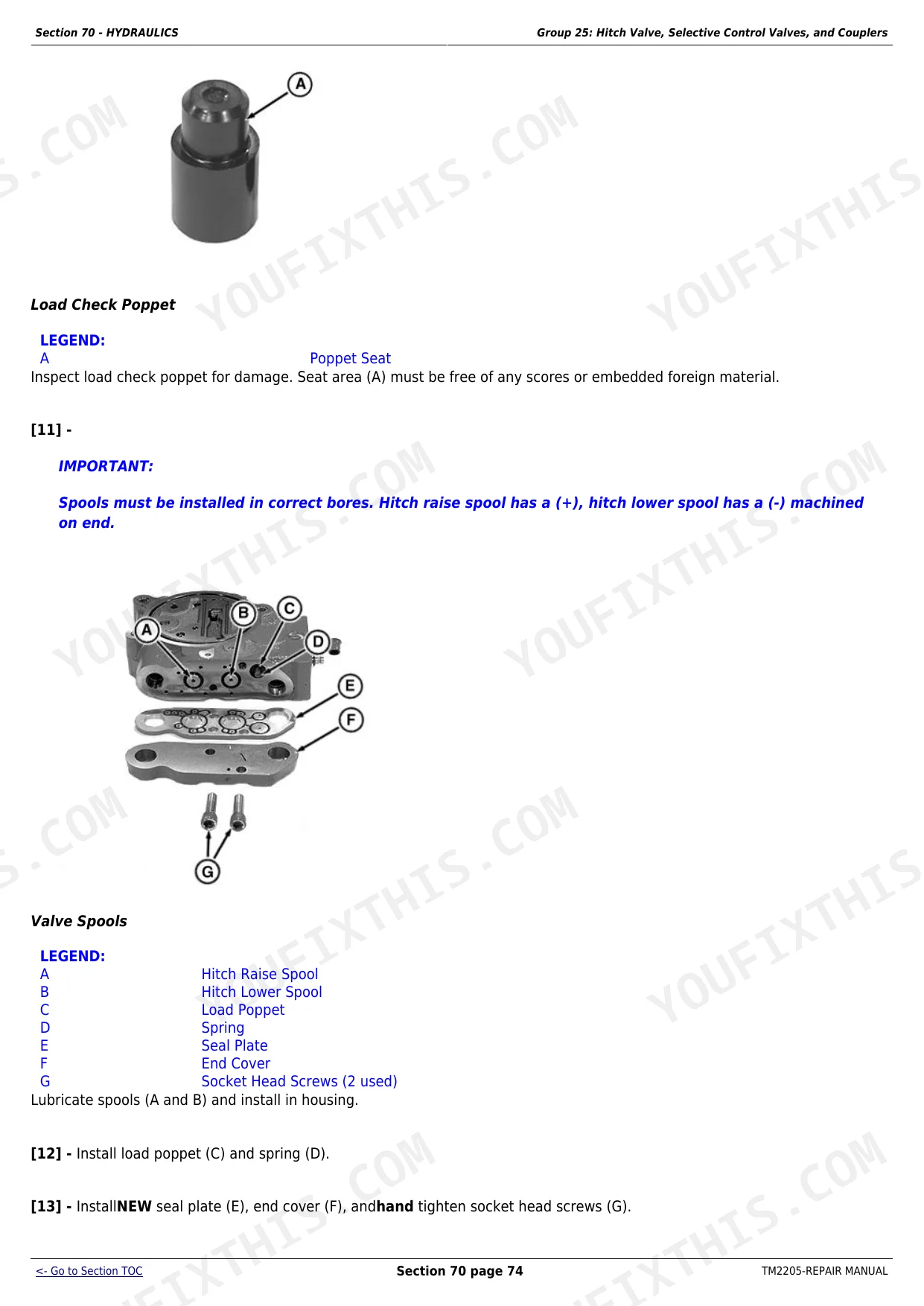

| Hydraulics | 797-941 | Hydraulic Pump, Hitch Valve, Selective Control Valves, Hydraulic Filters, Hydraulic System Repair and Cleanup |
| Miscellaneous | 942-955 | - |

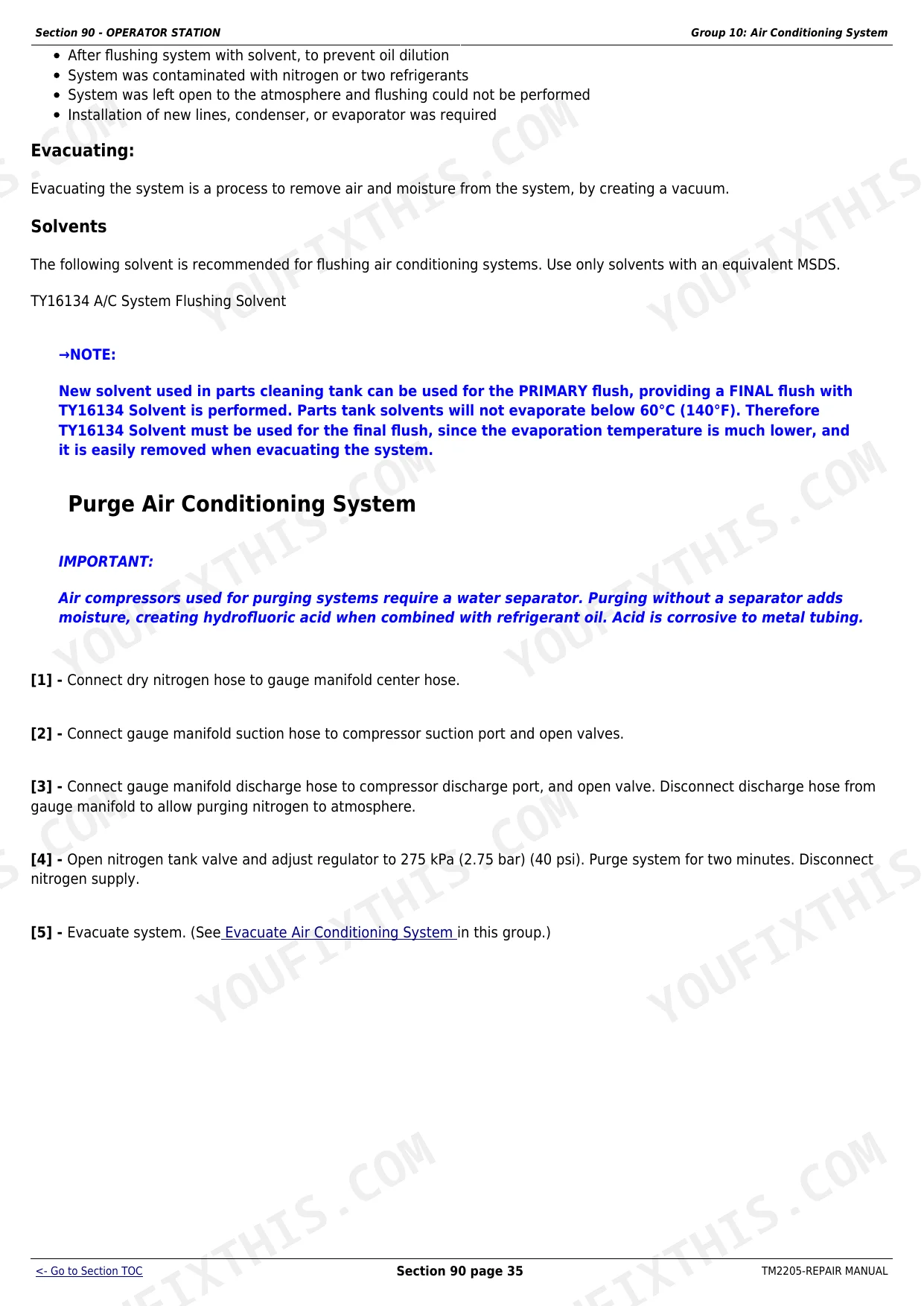

| Operator Station | 956-1055 | HVAC, Air Conditioning, Air Suspension Seat, Armrest, Cab Door |
| Track Frame and Components | 1056-1113 | Tracks, Tension Cylinder, Accumulator, Track Frame |
| Dealer Tools | 1114-1199 | Dealer Fabricated Tools, Essential and Recommended Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 8230T PTO Power | 149 kW (200 hp) | p. 27 |
| 8330T PTO Power | 175 kW (235 hp) | p. 27 |
| 8430T PTO Power | 190 kW (255 hp) | p. 27 |
| Engine Displacement | 9 L (549 in.³) | p. 27 |
| Engine-to-Front Frame 1/2 in. Cap Screw Torque | 142 N·m (105 lb-ft) | p. 41 |
| Engine-to-Transmission Drive Shaft Cap Screw Torque | 126 N·m (92 lb-ft) | p. 41 |
| Front Frame-to-Transmission Cap Screw Torque | 430 N·m (317 lb-ft) | p. 41 |
| Transmission and Hydraulics Capacity | 246 L (65 gal), includes 23 L (6 gal) for the clean-oil reservoir | p. 27 |
| Crankcase Capacity | 8230T and 8330T 24 L (25.5 qt); 8430T 25.5 L (27 qt) | p. 27 |
| Fuel Tank Capacity | 492 L (130 gal) | p. 27 |
| Hitch Lift Capacity | 6894 kg (15,200 lb) | p. 28 |
| Hydraulic Maximum Pressure | 20 000 kPa (200 bar) (2900 psi) | p. 28 |
| Electrical System | 12-volt, 200 amp alternator, two 12-volt batteries in parallel, 1850 CCA | p. 27 |
John Deere 8230T-8430T Common Problems This Manual Covers
One track runs hot, drifts out of line or wears the guide lugs off
Almost always tension set too high or the frame out of alignment, not a bad belt. The Track Frame and Components section walks the tension cylinder and accumulator service and track frame work so you fix the cause instead of replacing rubber.
Manual Section: Track Frame and Components / Tracks p. 1069Weak steering response or a steering charge pressure warning

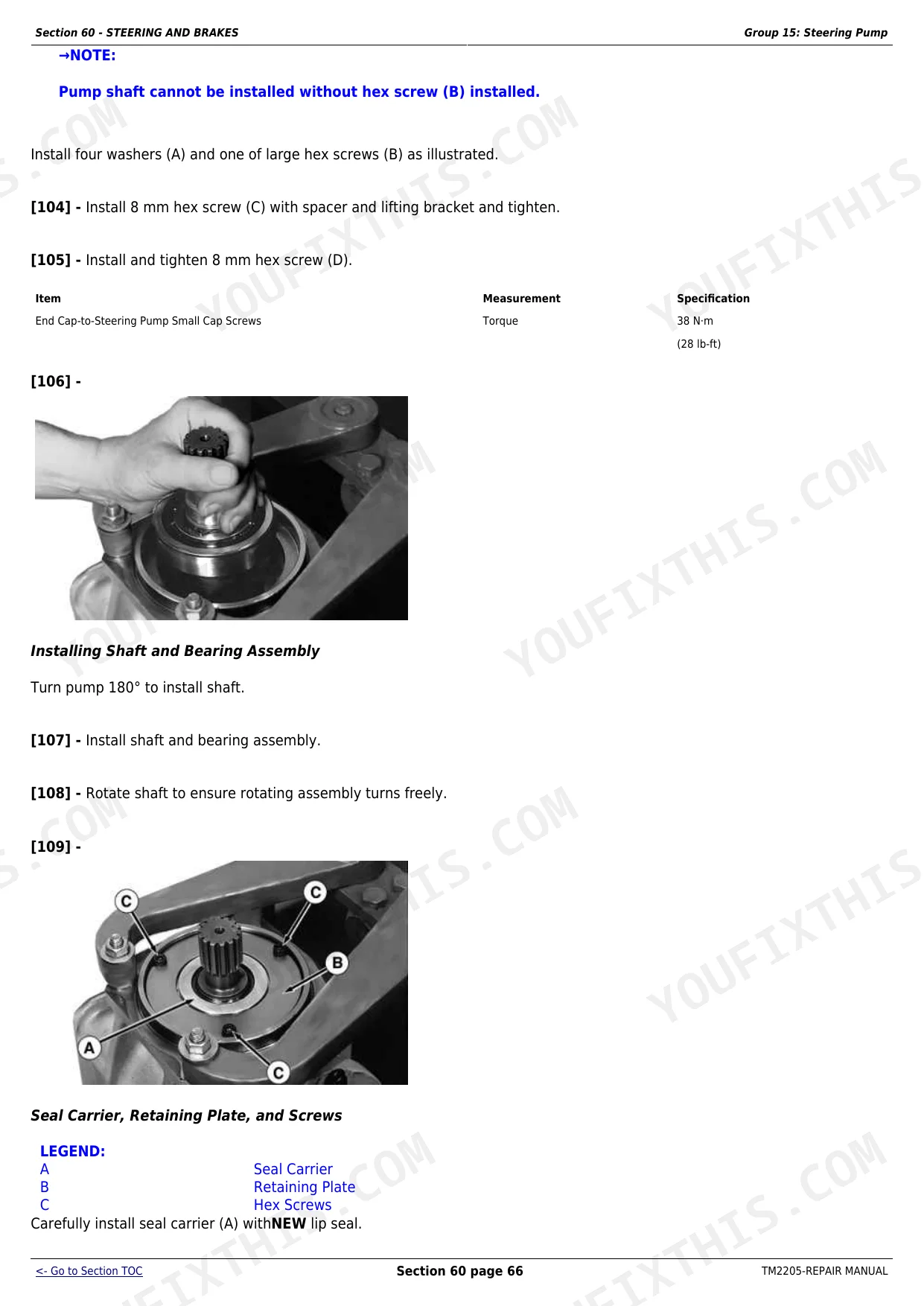

Start with a restricted steering charge filter, then suspect pump wear. The Steering and Brakes section covers the steering column, steering pump and steering motor with full disassembly, inspection specs and assembly torques, including the 38 N.m (28 lb-ft) end cap screws.
Manual Section: Steering and Brakes / Steering Pump p. 754Slow cranking or no crank at all

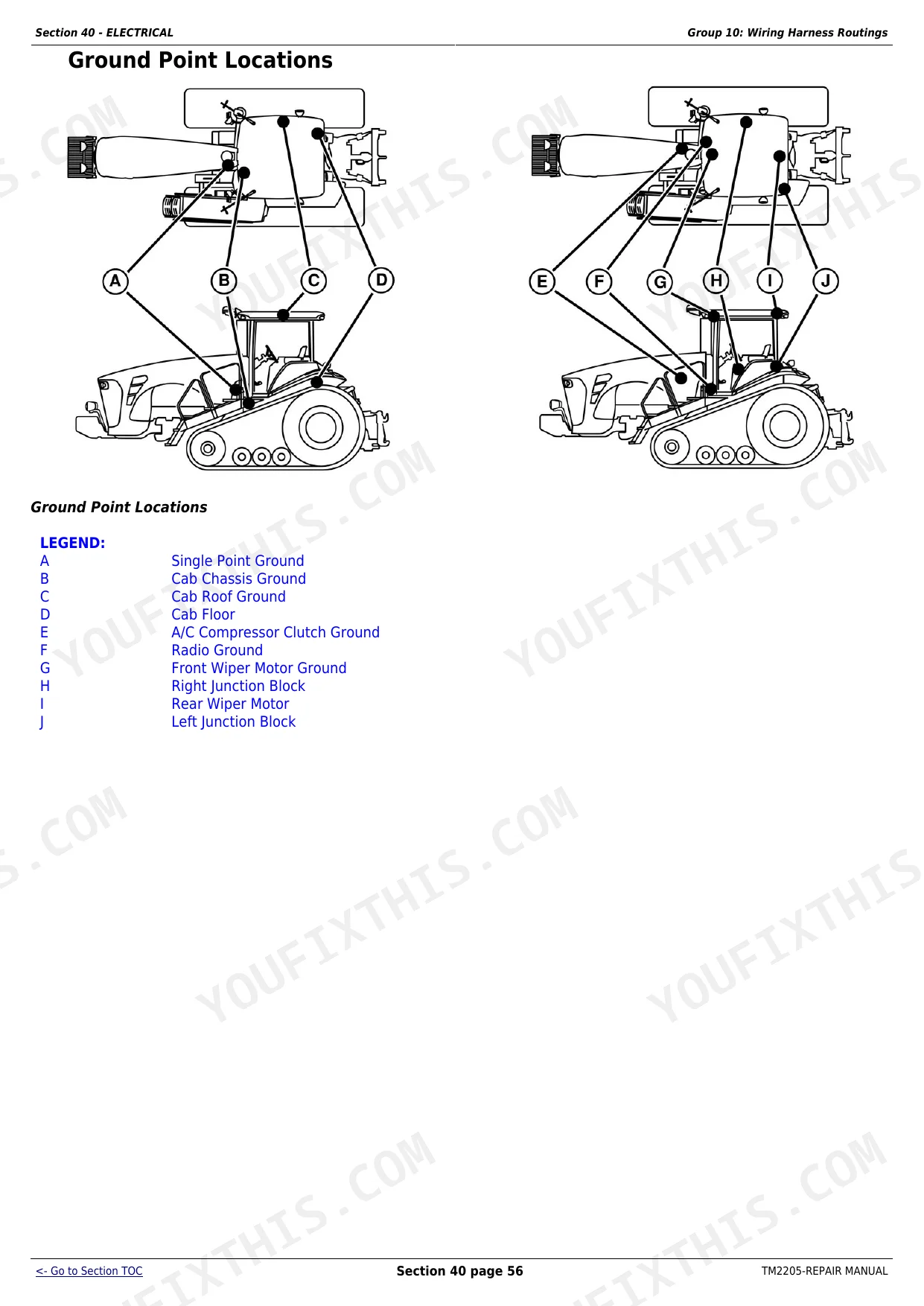

Two 12-volt batteries in parallel at 1850 cold cranking amps do not forgive a bad cable end. The Electrical section covers the starting circuit, charging circuit, relays and fuses, plus connector repair and harness routings to chase a voltage drop to its ground point.
Manual Section: Electrical / Charging Circuit p. 230Hydraulic oil overheating or SCVs getting sluggish
On a system holding 246 L (65 gal) shared with the transmission, contamination spreads fast. The Hydraulics section covers the hydraulic pump, hitch valve, selective control valves and filters, and its hydraulic system repair and cleanup procedure is the right answer after any pump failure.
Manual Section: Hydraulics / Hydraulic System Repair and Cleanup p. 819Frequently Asked Questions
Does this manual cover track removal, track tension and the tension cylinder?

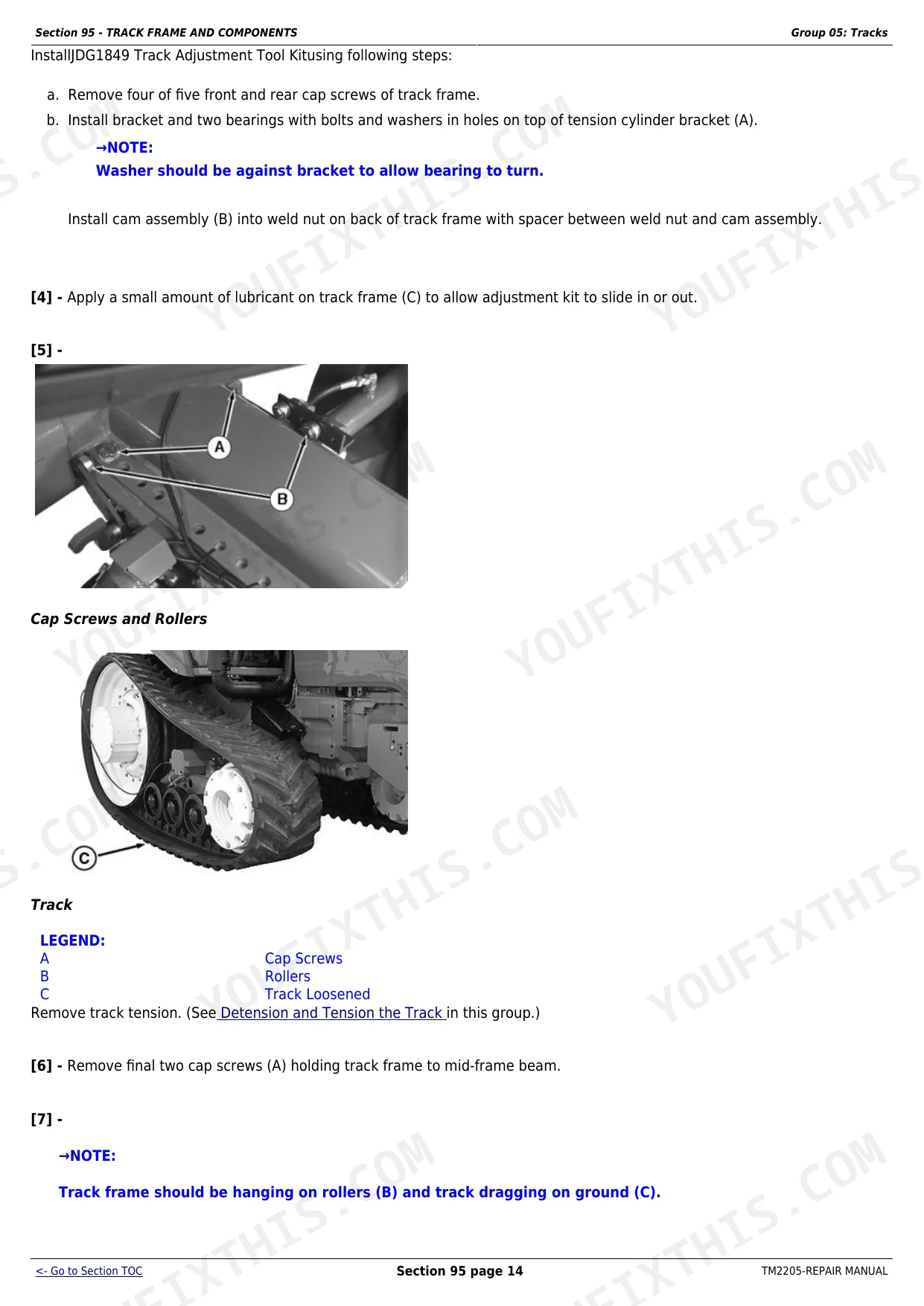

Yes. The Track Frame and Components section covers tracks, the tension cylinder, the accumulator and the track frame itself. If a belt is running hot on one side or chewing guide lugs, this is where you sort tension and alignment before you buy a new track. p. 1069
Are there fault codes, diagnostic tests or calibration procedures in TM2205?
No, and it is worth knowing before you buy. TM2205 is the repair manual: remove and install, teardown, assembly and torque. The electrical section has connector repair, harness routings, and monitoring system and sensor locations - physical stuff, not circuit drawings or test steps. Diagnostics live in the companion operation and tests volume. p. 5
Does it include torque values, or do I have to hunt for them?

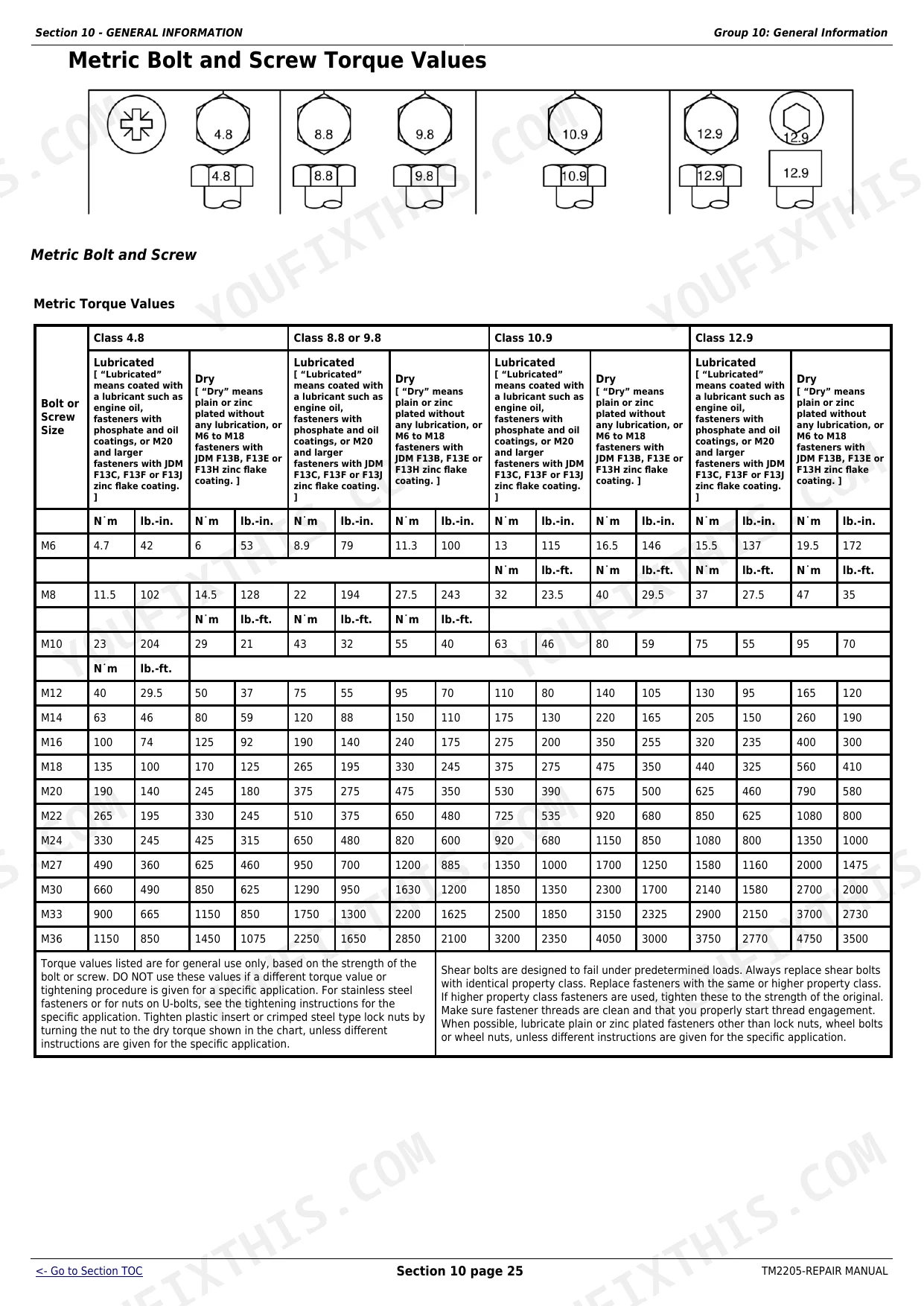

Torque values are printed with the procedures and in the General Information charts. Real examples from the book: end cap-to-steering pump small cap screws at 38 N.m (28 lb-ft), front frame-to-transmission cap screw at 430 N.m (317 lb-ft). Sealants and adhesives are called out too. p. 754
Can I rebuild the engine with this manual?
The Engine section covers component removal and installation plus engine repair for the in-line 6 wet sleeve diesel - 9 L (549 in.3), 118 mm (4.66 in.) bore, 136 mm (5.35 in.) stroke, 16.3:1 compression. Wet sleeves mean an in-chassis overhaul is realistic work, and the specs and valve clearances (0.46 mm intake, 0.71 mm exhaust) are all here. p. 27
Which machines exactly does TM2205 fit?
The 8230T, 8330T and 8430T track tractors, serial numbers 000001-904999 and 905000 and on - the machines built roughly 2005 through 2008. That is the 149 kW (200 hp), 175 kW (235 hp) and 190 kW (255 hp) PTO trio with the 16-speed PowerShift. One book covers all three. p. 1
