Part of the John Deere Repair Manuals.
This is the factory repair manual for the John Deere 8R Series - 8245R, 8270R, 8295R, 8320R, 8335R, 8345R, 8370R and 8400R row-crop tractors. It covers the physical wrench work: removal, disassembly, inspection, reassembly and installation for the diesel engine, fuel and cooling systems, the IVT, e23 and 16-speed PowerShift transmissions, drive train and MFWD front axle including ILS suspension, hydraulics, brakes, steering, cab and operator station, plus electrical harness repair. If you are splitting a tractor to get at a transmission, pulling a hydraulic pump, or swapping a DEF dosing unit, this is the book that walks you through the teardown and buttoning it back up. Note: fault-code diagnostics live in the separate Diagnosis manual.
What's Inside This John Deere 8245R-8400R Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine | 1-104 | Diesel Engine Removal, Disassembly, Inspection, Reassembly |
| Fuel, Air, Exhaust and Cooling | 105-280 | Fuel System, Air Intake, Exhaust Aftertreatment, Cooling |
| Electrical | 281-506 | Electrical Component Repair, Harnesses, Charging and Starting |

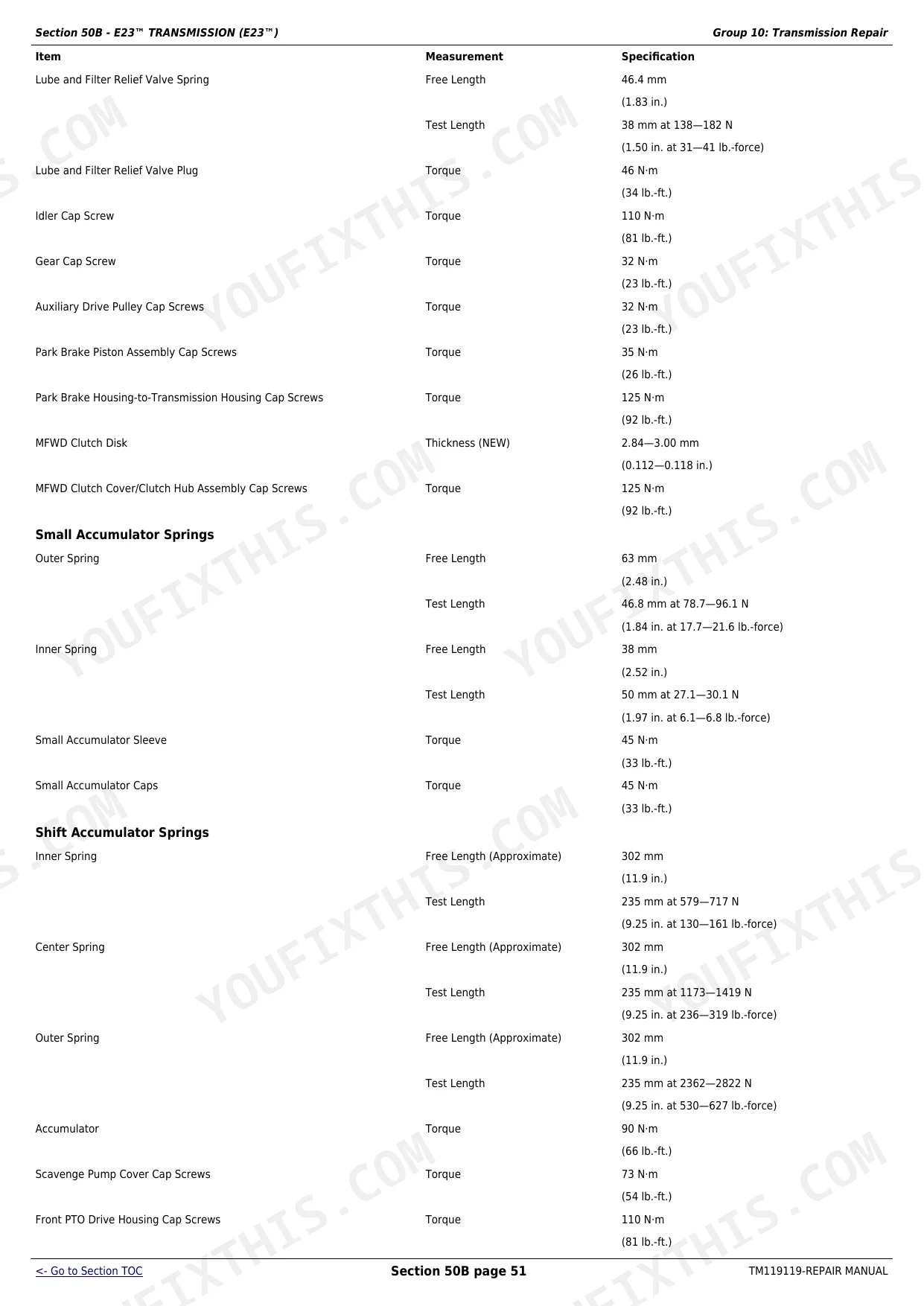

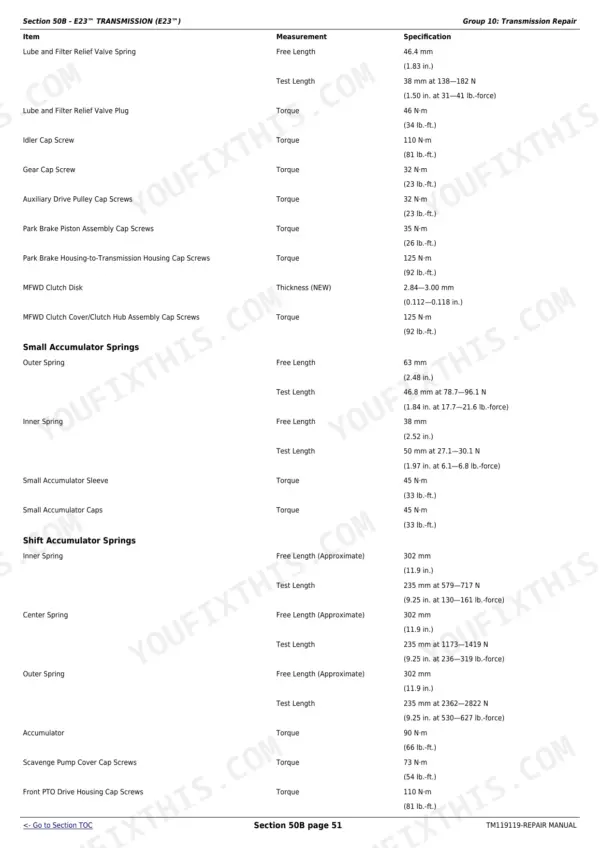

| Transmissions | 507-1126 | IVT, E23, 16-Speed PowerShift Repair |
| Drive Train and MFWD | 1127-1637 | Drive Train, 1300 and 1500 Series MFWD Front Axle |
| Independent Link Suspension | 1638-1856 | Ils Front Suspension Repair |
| Brakes and Steering | 1857-1945 | Brake Repair, Steering Repair |
| Hydraulics | 1946-2063 | Hydraulic Pump, Valves, SCV and Cylinder Repair |
| Miscellaneous | 2064-2085 | Miscellaneous Repair Procedures |
| Cab and Operator Station | 2086-2252 | Cab, HVAC, Operator Controls Repair |
| Dealer Tools | 2253-2292 | Special Dealer Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Metric Face Seal and O-ring Stud End Fitting (Standard Pressure) | ||
| system_pressure | Below 27.6 MPA (4,000 PSI) | |
| Metric Face Seal and O-ring Stud End Fitting (High Pressure) | ||
| system_pressure | Above 27.6 MPA (4,000 PSI), Working Pressure-41.3 MPA (6,000 PSI) | |
| SAE Face Seal and O-ring Stud End Fitting (Standard Pressure) | ||
| system_pressure | Below 27.6 MPA (4,000 PSI) | |
| SAE Face Seal and O-ring Stud End Fitting (High Pressure) | ||
| system_pressure | Above 27.6 MPA (4,000 PSI), Working Pressure-41.3 MPA (6,000 PSI) | |
| SAE Four Bolt Flange Cap Screw (Standard Pressure) | ||
| system_pressure | 27,600 KPA (4000 PSI) | |
| SAE Four Bolt Flange Cap Screw (High Pressure) | ||
| system_pressure | 41,400 KPA (6000 PSI) | |
John Deere 8245R-8400R Common Problems This Manual Covers
DEF pump failure - DEF temperature climbing past 200 degrees with code 43666 active, tractor headed for derate.
Once the DEF supply module is condemned, the Engine section walks through removing the pump and dosing hardware, inspecting supply and return lines for contamination, and installing and priming the new unit so it does not fail again.
Manual Section: EnginePTO not engaging or not releasing, or dragging under load.
The Drive Train and MFWD section covers PTO clutch removal, disassembly and inspection so you can measure plate wear, find a leaking piston seal or broken return spring, and reassemble the pack in the correct order.
Manual Section: Drive Train and MFWDHard or erratic steering, especially under load or at road speed.
The Hydraulics, Brakes and Steering section gives removal, inspection and rebuild procedures for the steering valve and cylinders, while the Drive Train and MFWD section covers checking ILS front axle components whose wear often shows up as steering complaints.
Manual Section: Hydraulics, Brakes and SteeringLighting circuit fuses blowing repeatedly, usually a chafed harness grounding out somewhere on the frame.
The Electrical section covers harness repair the right way - locating chafe points, repairing conductors and connectors to spec, and rerouting and securing the loom so the short does not come back after the next field season.
Manual Section: ElectricalFrequently Asked Questions
My 8345R threw code 43666 and DEF temp is reading over 200 degrees. Will this manual help me fix the DEF pump?
This is the repair side of that job. Once you or a diagnostic manual has condemned the DEF supply module, the Engine section covers removing the pump and dosing components, inspecting lines and fittings, and installing the replacement correctly. Chasing the code itself and testing sensors belongs to the separate Diagnosis manual, so plan on both if you are starting from a warning light.
Does this cover the IVT, or only the PowerShift boxes?
All three. The Transmissions section has full removal, disassembly, inspection and reassembly procedures for the IVT, the e23, and the 16-speed PowerShift. That matters because splitting an 8R and opening any of these boxes is not a job you want to improvise - clutch pack order, seal orientation and reassembly sequence come straight out of this book.
The PTO on my 8320R will not engage cleanly, or drags when it should be off. Is that in here?
Yes, on the mechanical side. The Drive Train section covers PTO clutch removal, disassembly and inspection, so you can find worn plates, a leaking piston seal, or damaged linkage and put it back together right. If the cause turns out to be electrical or a control fault, the harness repair procedures in the Electrical section plus the Diagnosis manual finish the picture.
Steering has gone hard and jerky. Where do I start in this manual?
Start in the Hydraulics, Brakes and Steering section. It covers the steering valve, cylinders and related hydraulic components with removal, inspection and reassembly steps. On MFWD and ILS front axles, worn axle and suspension components can also masquerade as steering trouble, and the Drive Train and MFWD section covers tearing those down and checking them.
Is this a PDF I can use in the shop, and does one manual really cover all seven models?
Yes. The 8245R through 8400R share the same platform, so Deere documents them in one repair manual with model-specific differences called out where they exist. As a PDF you can search it, print the pages you need for a job, and keep grease off the rest.
