Looking for the John Deere JD310 Technical Manual PDF that dealer techs actually use? All 324 pages of factory manual TM-1036 cover your JD310 Loader Backhoe from basic engine work to the backhoe swing cylinder. Inside: wiring diagrams for the charging, starting, and ignition circuits, full hydraulic schematics with testing and diagnosis procedures, plus torque tables and troubleshooting charts for every major system. You also get page after page of exploded views spanning the clutch, transmission, reverser, differential, and final drives. Torque the cylinder head cap screws evenly to 95 ft-lbs, then set the rocker arm shaft cap screws at 35 ft-lbs; the idler gear shaft should mic at 0.6240 to 0.6250 inches. Your backhoe is down and the clock is running. Download the bookmarked PDF, search any spec by keyword, and get the factory answer on the first try.
What's Inside This John Deere JD310 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4-6 | FOS Manuals, Technical Manuals, Table of Contents, Exploded Views, Service Techniques, Safety Alert Symbol |

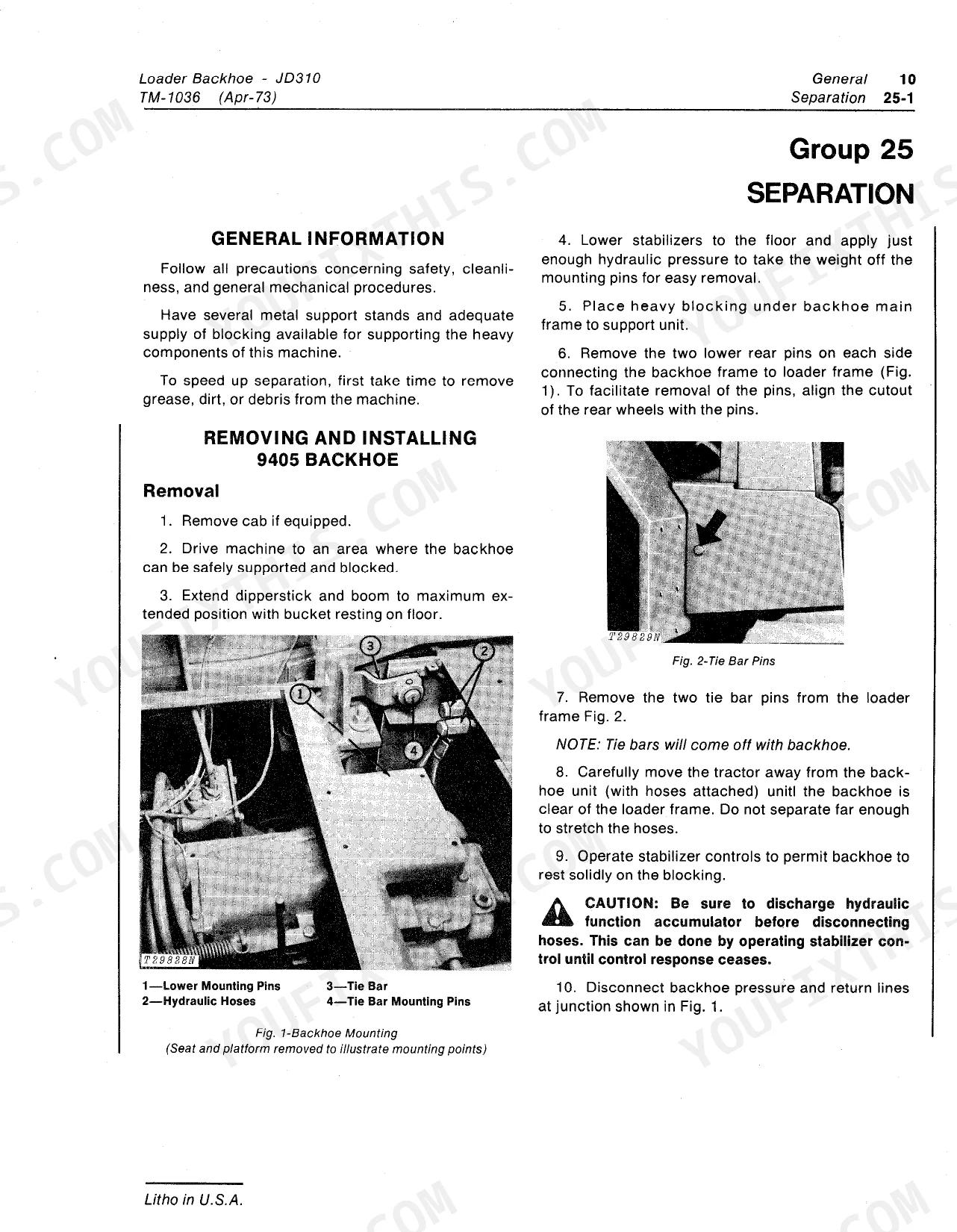

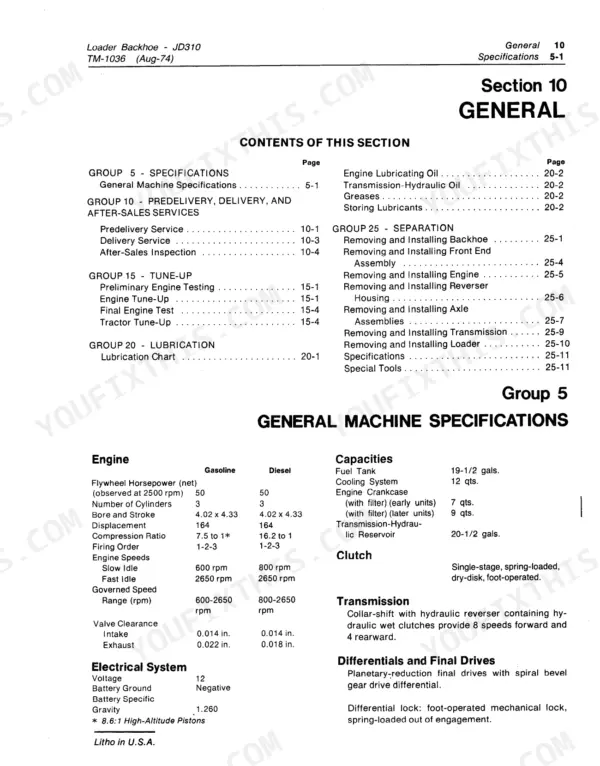

| General | 7-32 | General Machine Specifications, Predelivery, Delivery, And After-Sales Services, Tune-Up, Lubrication, Separation |

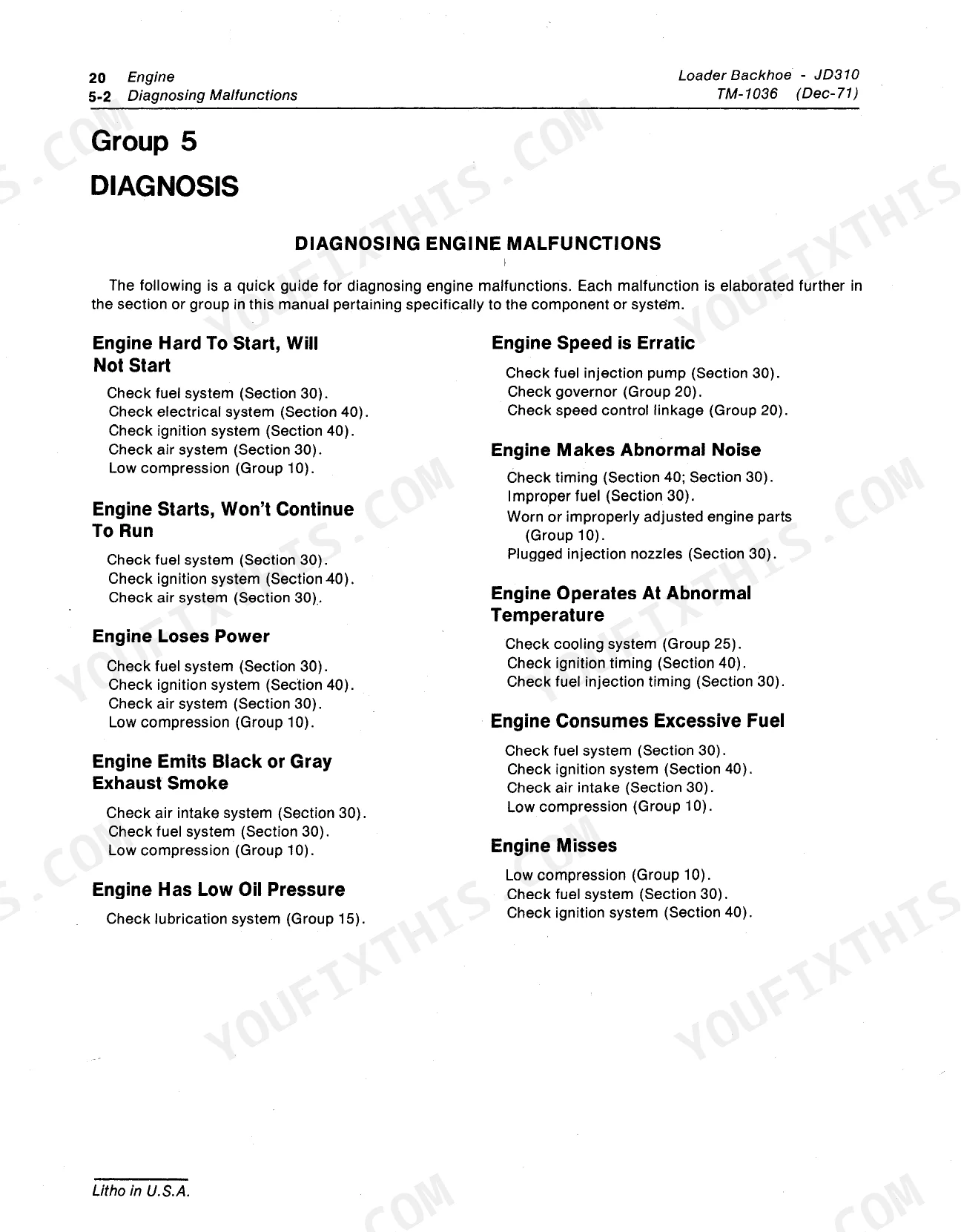

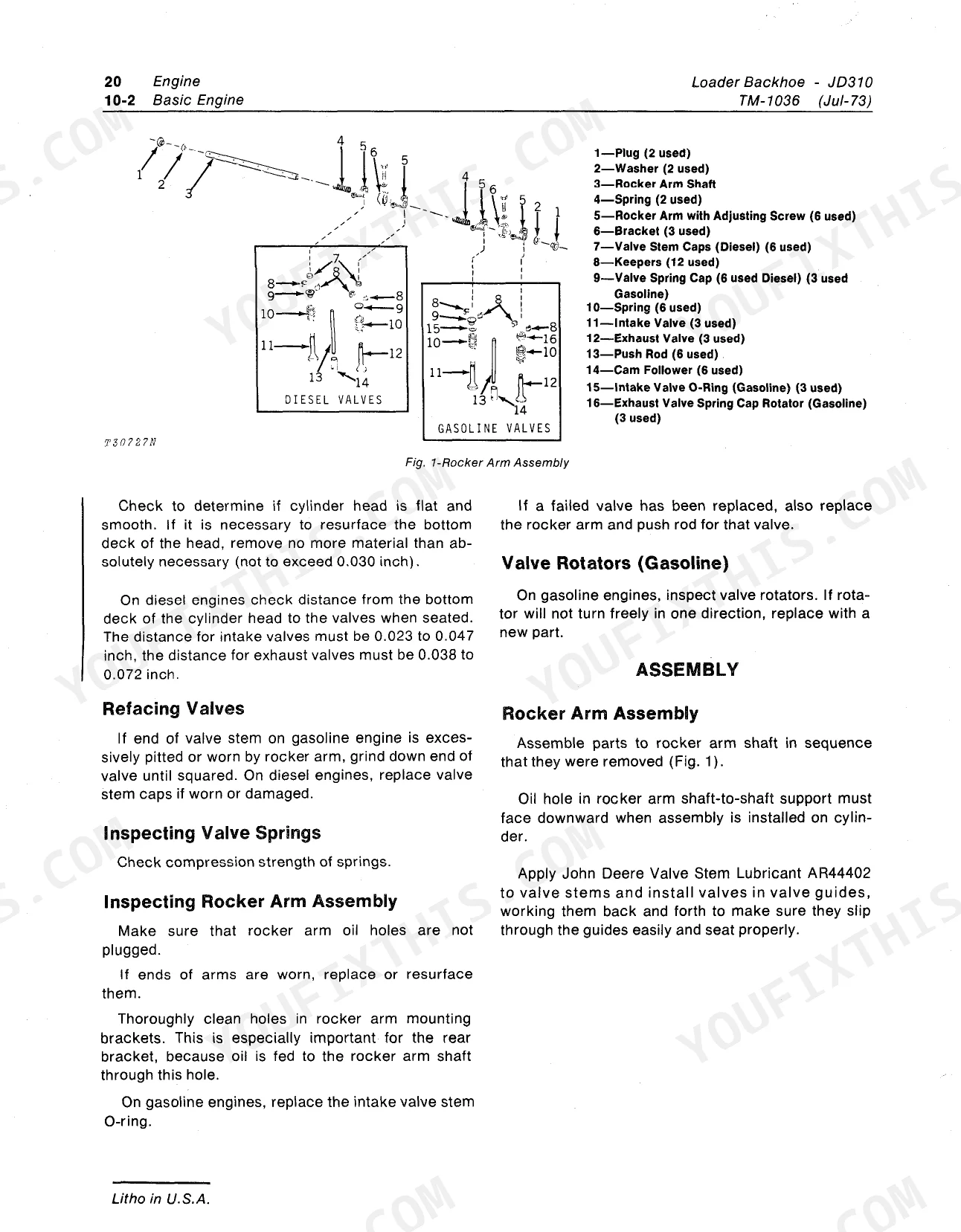

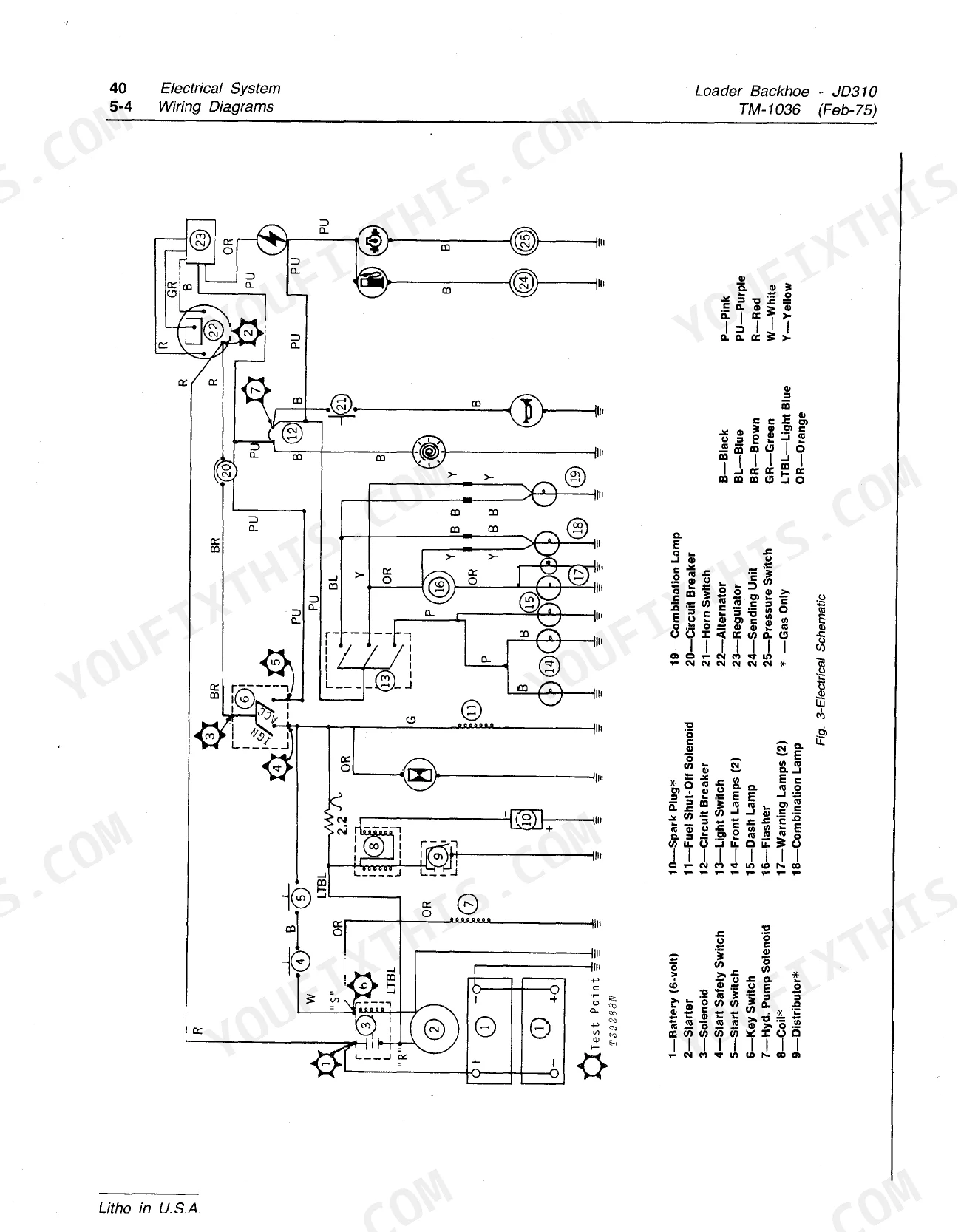

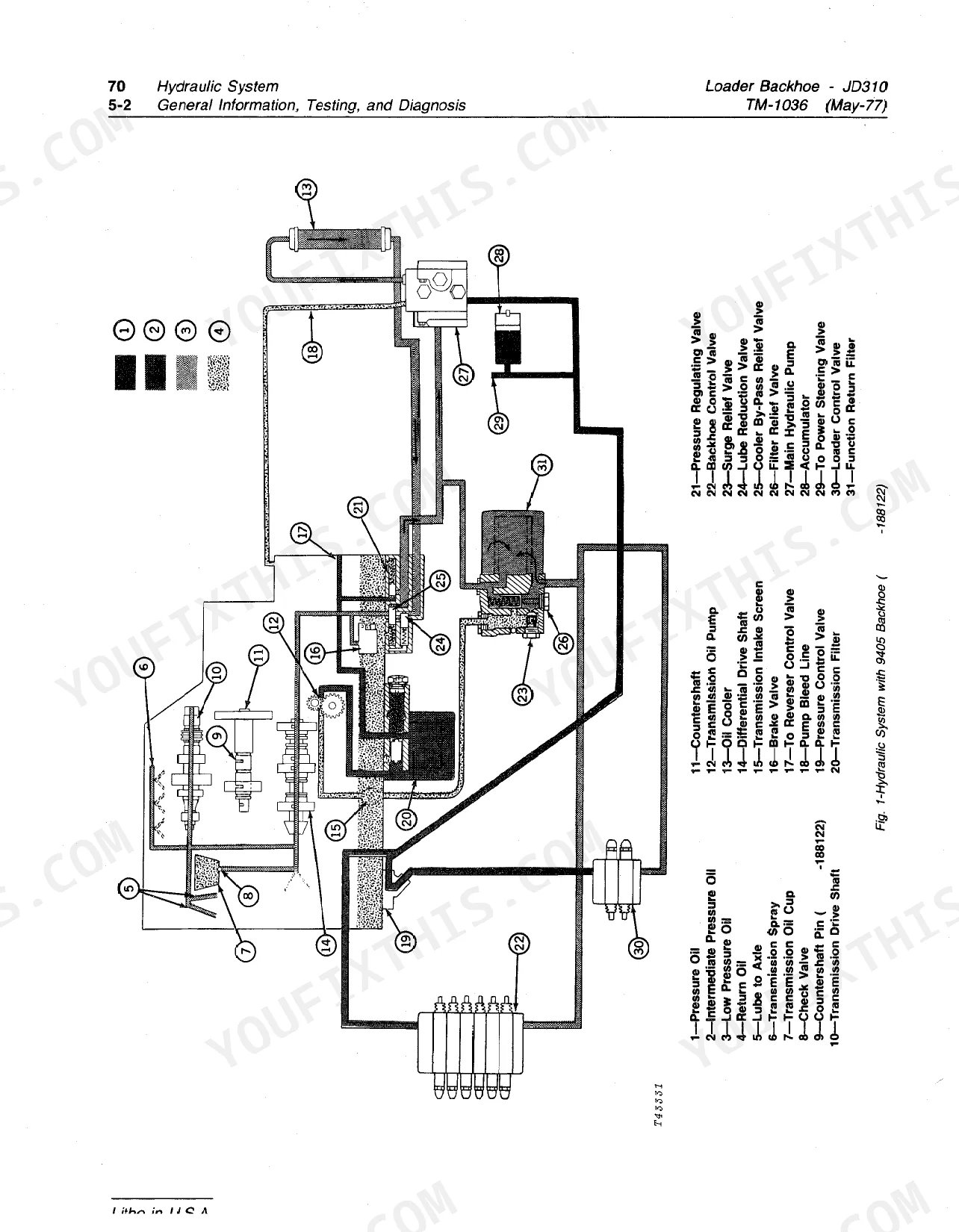

| Engine | 33-70 | Diagnosis, Basic Engine, Lubrication System, Governor and Speed Control Linkage, Cooling System, Specifications and Special Tools |
| Fuel System | 71-88 | Diagnosis, Fuel Tank, Transfer Pump, And Filter, Air Intake System, Carburetor, Fuel Injection Pumps |
| Electrical System | 89-114 | Wiring Diagrams, Charging Circuit, Starting Motor, Ignition System, Gauges and Switches |
| Power Train | 115-164 | Diagnosing System Malfunctions, Clutch Assembly, Transmission, Reverser, Differential and Parking Brake, Final Drives |
| Steering and Brakes | 165-194 | Hydraulic Brakes, Brake Valve, Pressure Plates and Disks, Brake Adjustment and Bleeding, Power Steering (Early and Later Serial Ranges), Testing and Diagnosing Power Steering |
| Hydraulic System | 195-288 | General Information, Testing and Diagnosis, Hydraulic System Analyzer, Hydraulic Pump, Hydraulic Components, Loader Control Valve, Backhoe Control Valve (9405 and 9500), Hydraulic Cylinders, 9500 Backhoe Swing Cylinder |
| Miscellaneous | 289-314 | Front Axle and Front Support, Loader Frame, Boom and Bucket, Backhoe Frame, Extendible Dipperstick |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

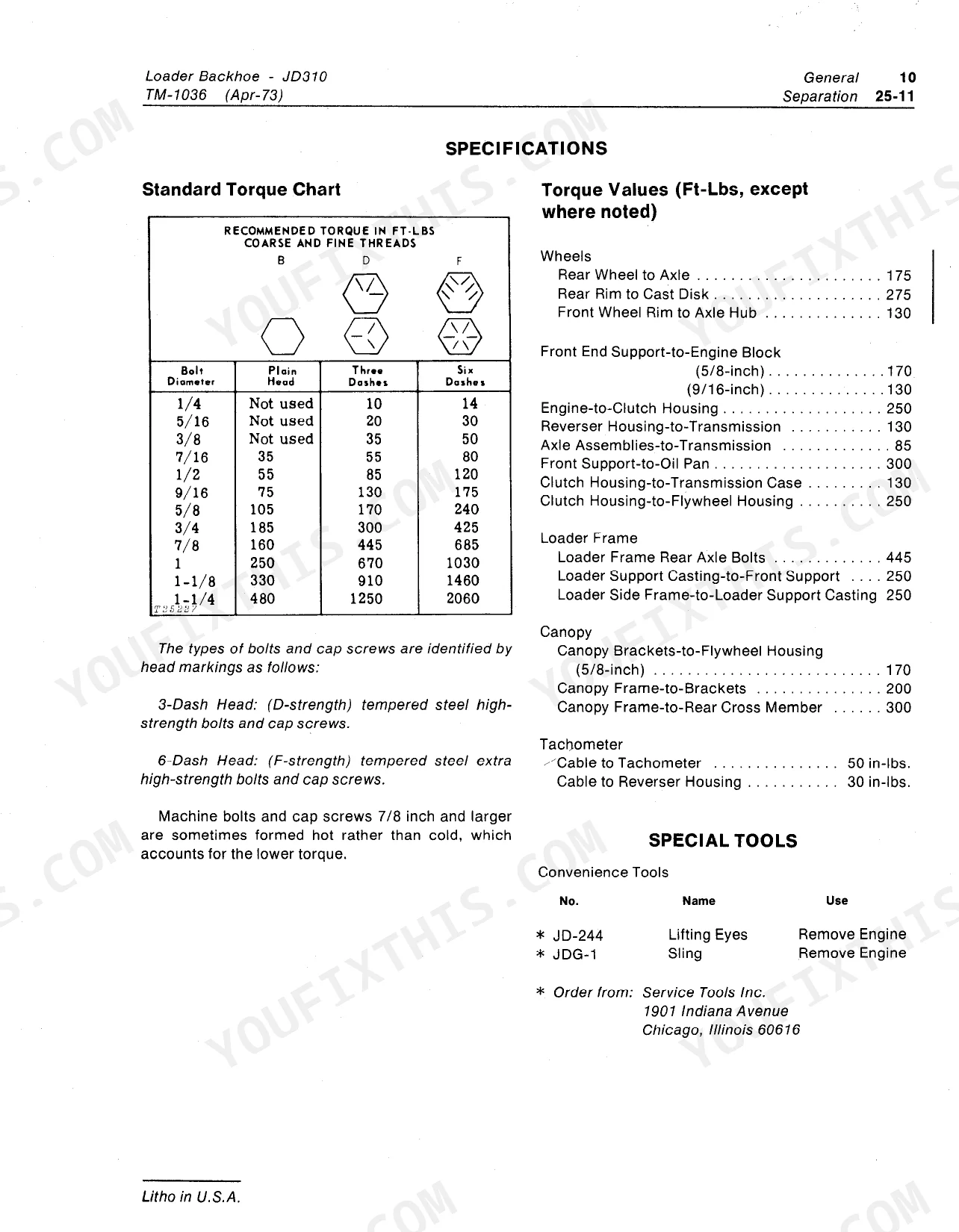

| Cylinder head cap screw torque | 95 ft-lbs | p. 37 |
| Rocker arm shaft cap screw torque | 35 ft-lbs | p. 37 |
| Engine-to-Clutch Housing torque | 250 ft-lbs | p. 31 |
| Rear Wheel to Axle torque | 175 ft-lbs | p. 31 |
| Loader Frame Rear Axle Bolts torque | 445 ft-lbs | p. 31 |
| Cable to Tachometer | 50 in-lbs | p. 31 |
| Cable to Reverser Housing | 30 in-lbs | p. 31 |
| O.D. of idler gear shaft | 0.6240 to 0.6250 in. | p. 135 |
| O.D. of idler gear | 1.6940 to 1.6950 in. | p. 135 |
| Pump shaft end play | 0.001 to 0.003 in. | p. 228 |
| Drive coupling cap screws torque | 23 to 27 ft-lbs | p. 228 |
| Piston spring compression force | 34.2 to 40.2 lbs | p. 229 |
| Boom cylinder piston stop nut torque | 475 to 575 ft-lbs | p. 279 |
| gasoline | ||

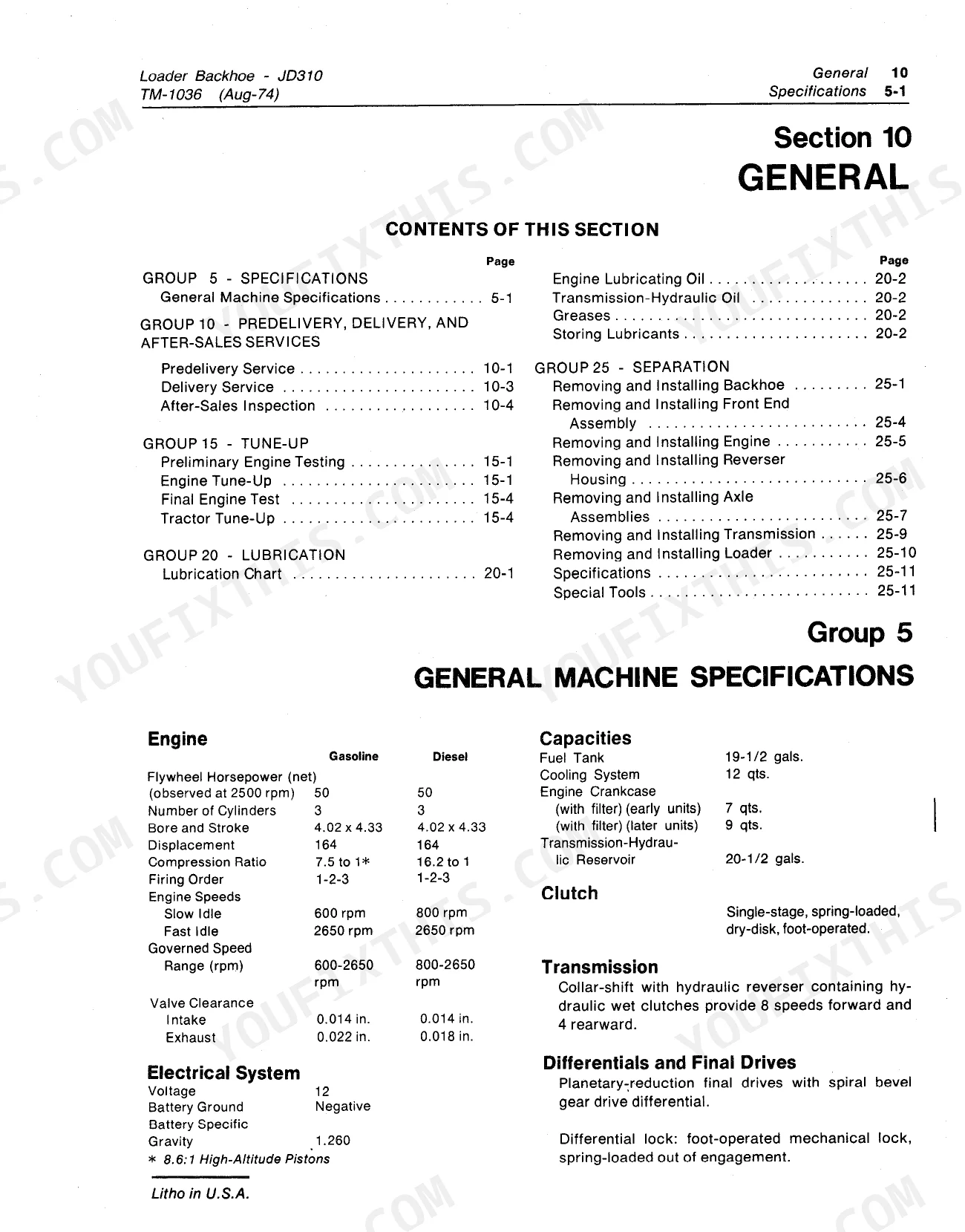

| Gasoline Engine Slow Idle Speed | 600 rpm | p. 7 |
| diesel | ||
| Diesel Engine Slow Idle Speed | 800 rpm | p. 7 |
John Deere JD310 Common Problems This Manual Covers
John Deere JD310 loader hydraulics slow and jerky under load, boom lifts weak, pressure drops when warm
Check reservoir oil level and change the hydraulic filter first; cold or dirty oil causes jerky operation. Trace the pressure loss with the hydraulic schematic, then test the pump. Measure pump shaft end play; anything outside 0.001 to 0.003 in. means the pump needs a rebuild, specs are on page 228.
Manual Section: Hydraulic System Malfunctions p. 195Machine won't shift into gear after start-up, brakes won't release, no transmission hydraulic flow
Check transmission oil level and filter before condemning hardware. If flow is still dead after warm-up, pull the transmission supply pump and inspect the gears; idler gear thickness must measure 0.5085 to 0.5095 in. per page 135. While the pump is out, verify drive shaft end play sits at 0.004 to 0.006 in.
Manual Section: Power Train System Malfunctions p. 115Diesel engine cranks strong but won't start, or fires briefly then stalls
Drain the sediment bowl and replace the fuel filter, then bleed air from the lines back to the injection pump. Check the tank for water contamination and inspect the injection nozzles for plugging. Work through the fuel system diagnosis starting on page 71. Once running, confirm the diesel settles into a slow idle of 800 rpm.
Manual Section: Fuel System Malfunctions p. 71Backhoe boom drifts down overnight, bucket won't hold position under load
Inspect rod-end fittings for external leaks first, then test for internal bypass: raise the boom, shut the engine off, and time the drift. Reseal the leaking cylinder with new packings and rod wiper. On reassembly, torque the boom cylinder piston stop nut to 475 to 575 ft-lbs per the chart on page 279.
Manual Section: Hydraulic System Malfunctions p. 195Hydraulic oil overheats after an hour of digging, whole system slows down
Check hydraulic oil level and top up before anything else; low oil recirculates too fast and cooks. Clean debris out of the oil cooler fins and replace a plugged transmission filter. Verify oil viscosity matches the season. If heat persists, follow the diagnosis in the hydraulic system section beginning on page 195 and test pump output.
Manual Section: Hydraulic System Malfunctions p. 195Frequently Asked Questions
What are the torque specifications for the engine head bolts on a John Deere 310 backhoe?
The cylinder head cap screws should be tightened to 95 ft-lbs in the sequence shown in Figure 2 on page 37. p. 37
What are the replacement specifications for hydraulic filters on the JD310?
The hydraulic return oil filter uses a filter element (16) and packing (17). When installing a new element, ensure the filter cover packing is seated properly in the oil filter relief valve housing. p. 235
What are the replacement specifications for fuel filters on the JD310?
The diesel engine uses either a single-stage fuel filter with a sediment bowl or a dual-stage fuel filter with sediment bowls. Refer to the Operator's Manual for specific filter replacement information. p. 74
What is the correct valve clearance for the diesel engine on the JD310?
For the diesel engine, the intake valve clearance is 0.014 inch and the exhaust valve clearance is 0.018 inch. p. 16
What is the engine oil capacity for the JD310?
The engine crankcase capacity is 7 U.S. quarts for early units and 9 U.S. quarts for later units, including the filter. p. 19
Is this John Deere JD310 manual a PDF I download?
You download the Technical Manual yourself: 324 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print just the pages I need from this John Deere JD310 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
