Part of the John Deere Repair Manuals.
All 360 pages of this John Deere JD544 Technical Manual PDF (OEM #TM-1002) are aimed at one job: putting your JD544 or JD544-A Loader back to factory spec, from the basic engine to the 9305 Backhoe. Inside: factory wiring diagrams for the charging and starting circuits, hydraulic schematics tracing flow from reservoir through pump, control valve, and cylinders, and a thick run of exploded views covering the transmission, axles, and differentials. You also get full diagnosis sections for the engine, fuel system, power steering, and brakes. Pump-to-transmission cap screws go to 85 ft-lbs; cover-attaching screws take 55 ft-lbs; the fuel tank holds 40 gallons and the cooling system takes 7-1/2. Your loader is down and the forum threads don't agree. This bookmarked PDF opens on any device; jump to the right system and get wrenching.
What's Inside This John Deere JD544, JD544-A Manual

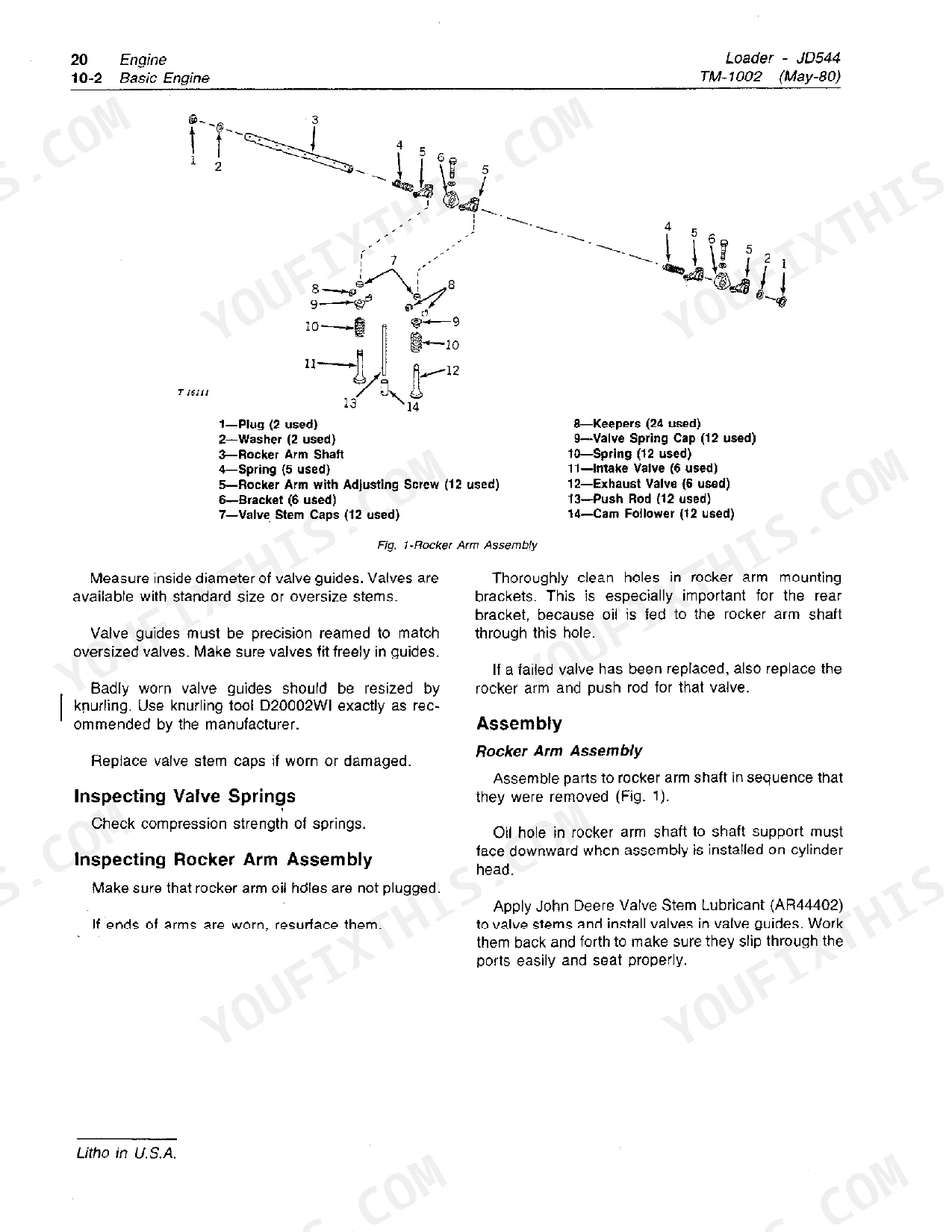

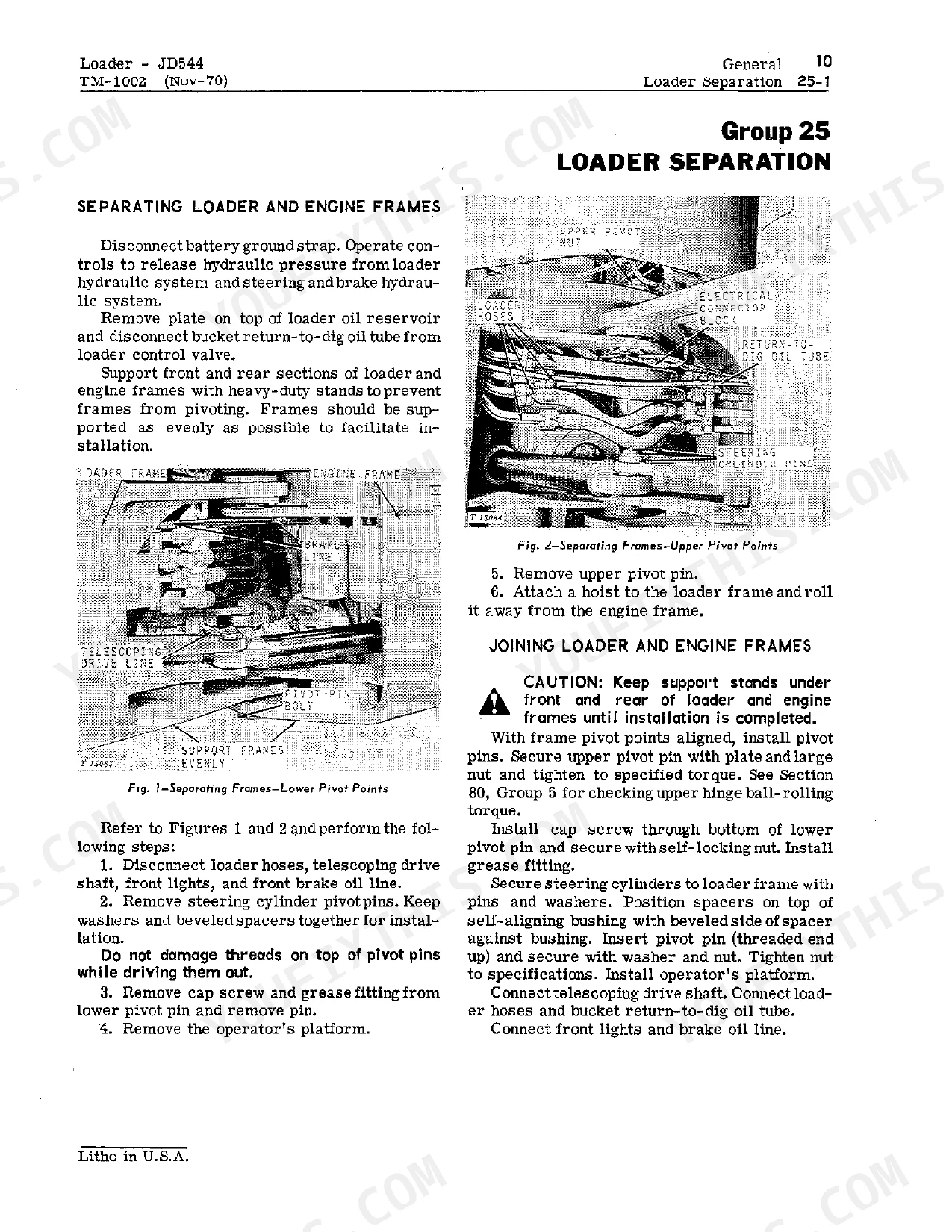

| System | Pages | Key Topics |
|---|---|---|
| General | 7-32 | Specifications, Predelivery, Delivery, And After-Sales Services, Tune-Up and Adjustment |
| Engine | 33-74 | Diagnosis, Basic Engine, Engine Lubrication, Speed Control Linkage, Engine Cooling, Specifications and Special Tools |
| Fuel System | 75-100 | Tank, Filters, And Transfer Pump, Air Intake System, Fuel Injection Pumps |
| Electrical System | 101-156 | Wiring Diagrams, Charging System, Starting Circuit, Gauges and Switches |
| Power Train | 157-230 | Damper and Drive Shafts, Transmission Assembly, Disconnect Output Shaft, Axle Assemblies, Differentials |
| Power Steering and Brake Systems | 231-280 | General Information, Testing, And Diagnosis, Steering System, Brake System |
| Hydraulic System | 281-338 | General Information, Testing, And Diagnosis, Reservoir and Filters, Hydraulic Pump, Control Valve, Cylinders |
| Miscellaneous Components | 339-354 | Frames, Buckets, Drott 4-In-1 Buckets, Backhoe, Specifications and Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cover-attaching cap screws | 55 ft-lbs | p. 301 |
| Pump-to-transmission cap screws | 85 ft-lbs | p. 301 |

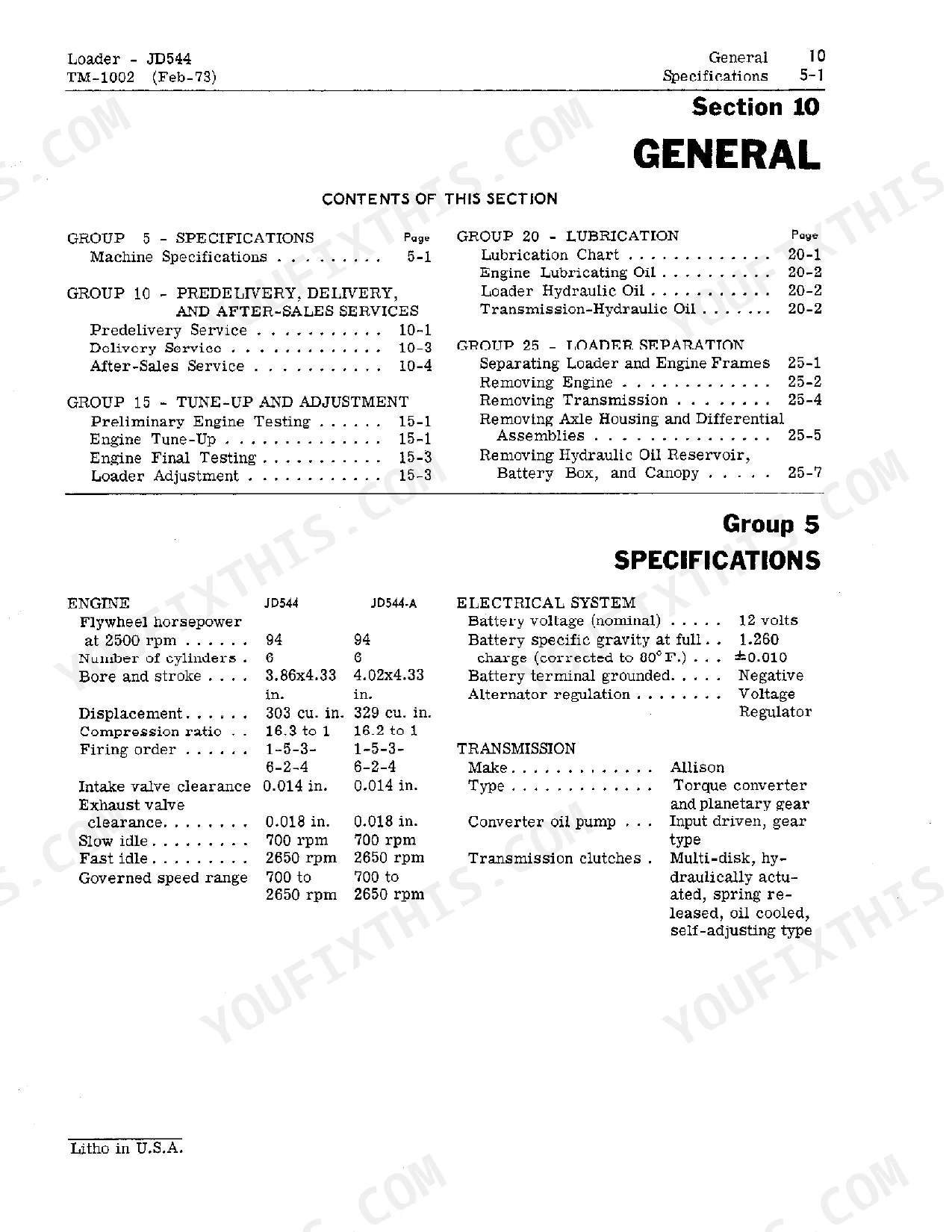

| Battery Voltage | 12 volts | p. 7 |
| Fuel Tank Capacity | 40 gal. | p. 8 |
| Cooling System Capacity | 7-1/2 gal. | p. 8 |
| Engine Crankcase Oil Capacity | 12 qt. | p. 8 |
John Deere JD544, JD544-A Common Problems This Manual Covers
Engine overheats pulling a full bucket uphill, coolant level drops between daily checks
Check coolant level with the engine cold; the system holds 7-1/2 gal. and a slow external leak hides on a hot block by evaporating. Pressure test the radiator cap, then inspect hoses, water pump seal, and core plugs. Work through the cooling diagnosis in the engine section starting on page 33.
Manual Section: Engine p. 33Starter cranks slowly on cold mornings, panel lights dim to nothing while cranking

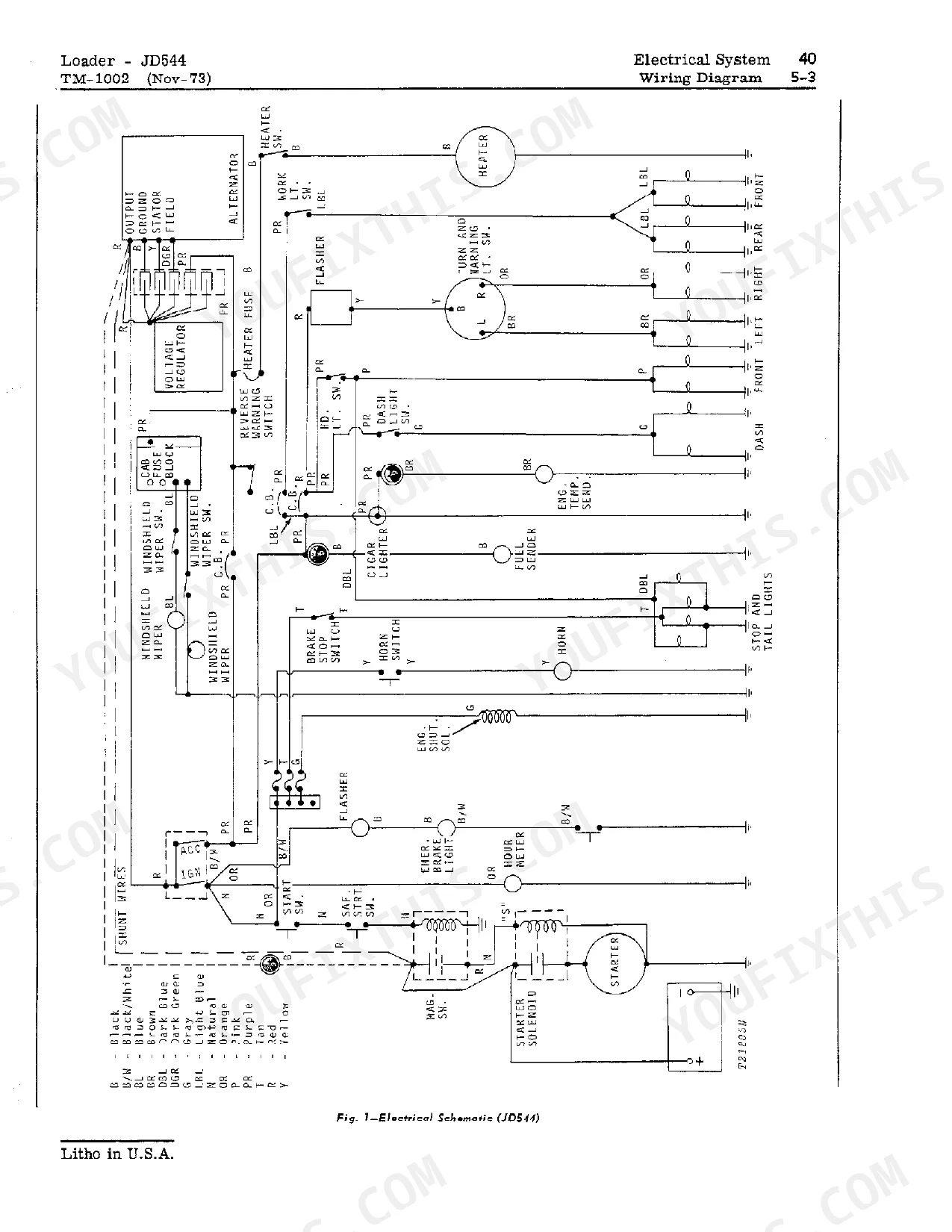

Test battery voltage under load; this is a nominal 12 volt system and a weak battery drags the starter without failing outright. Clean and tighten the ground cables at the frame and starter mount. If the battery load-tests good, trace the starting circuit on the electrical schematic on page 103, which shows the start switch, safety start switch, starter solenoid, and starter.
Manual Section: Electrical System p. 103Frequently Asked Questions

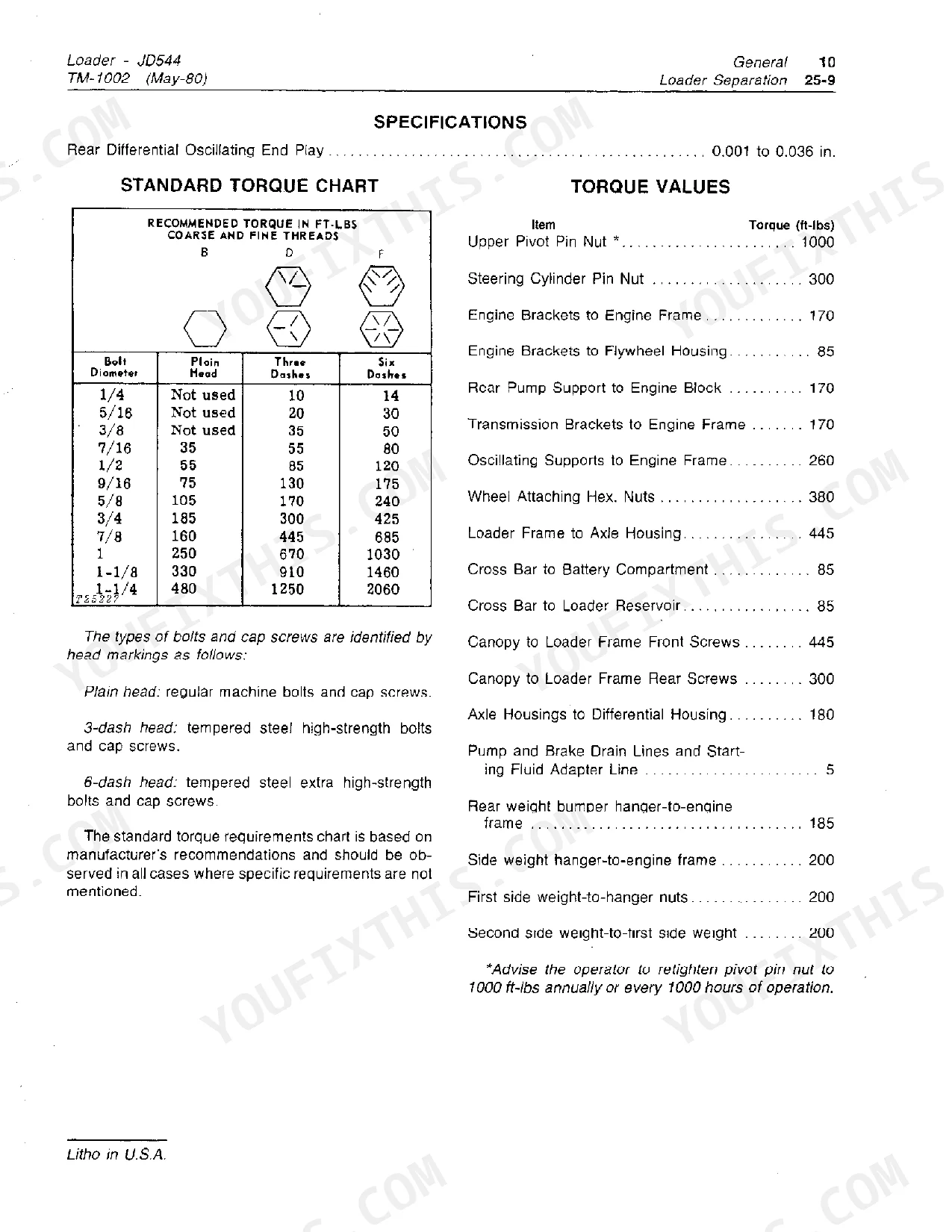

What are the torque specifications for the wheel attaching hex nuts on a JD544 loader?
The torque specification for the wheel attaching hex nuts on the JD544 loader is 380 ft-lbs. p. 31
How do you fix john Deere JD544 diesel hard to start, cranks strong but fires briefly then dies?
Drain a fuel sample and check for water; a half-full 40 gal. tank sweats overnight and contaminates fuel fast. Replace the fuel filter element, then bleed air at the transfer pump and injection lines using the fuel system procedures starting on page 75. Test injection nozzles last, not first. p. 75
How do you fix boom raises slowly under load and settles back down when the control lever centers?
Check reservoir oil level and change clogged filters before blaming the cylinders. Test for internal cylinder leakage by holding the boom raised and watching for drift, following the hydraulic diagnosis procedures starting on page 281. If teardown shows a worn pump, torque the cover-attaching cap screws to 55 ft-lbs on reassembly. p. 281
How do you fix hydraulic pump whines at idle and reservoir oil comes back foamy after warm-up?
Verify oil level and viscosity first; a low reservoir lets the pump pull air, and aerated oil makes exactly this whine. Inspect the suction line and fittings for loose connections drawing air. If the pump comes off for repair, torque the pump-to-transmission cap screws to 85 ft-lbs on reassembly, per page 301. p. 301
Will this John Deere JD544 Technical Manual download right away?
A 360-page Technical Manual in scanned PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print a copy of this John Deere JD544 Technical Manual for the shop?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.

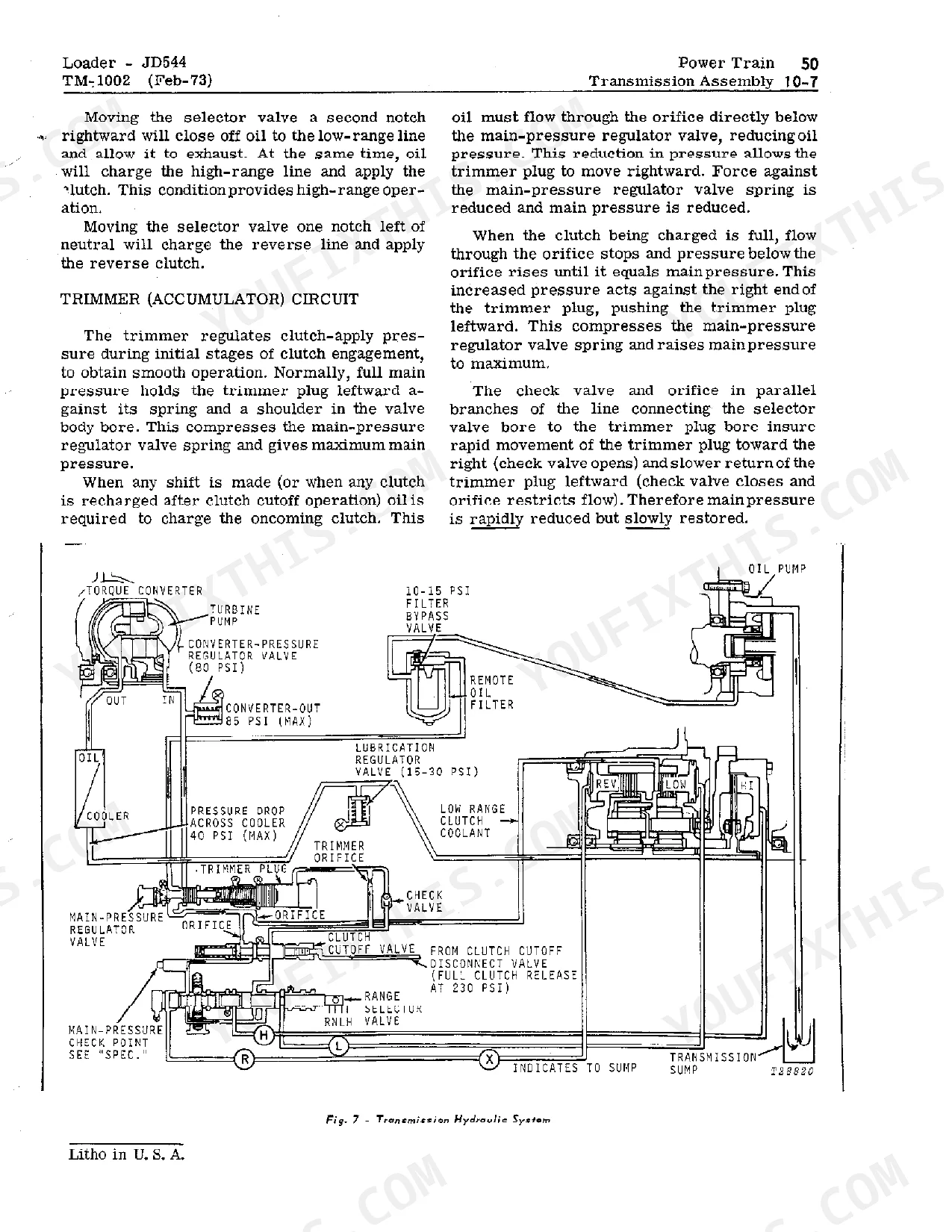

Are there hydraulic schematics in this John Deere JD544 manual?
A hydraulic system diagram is included, enough to follow the main lines on the John Deere JD544, JD544-A. You can see one on page 171.
