Part of the John Deere Repair Manuals.

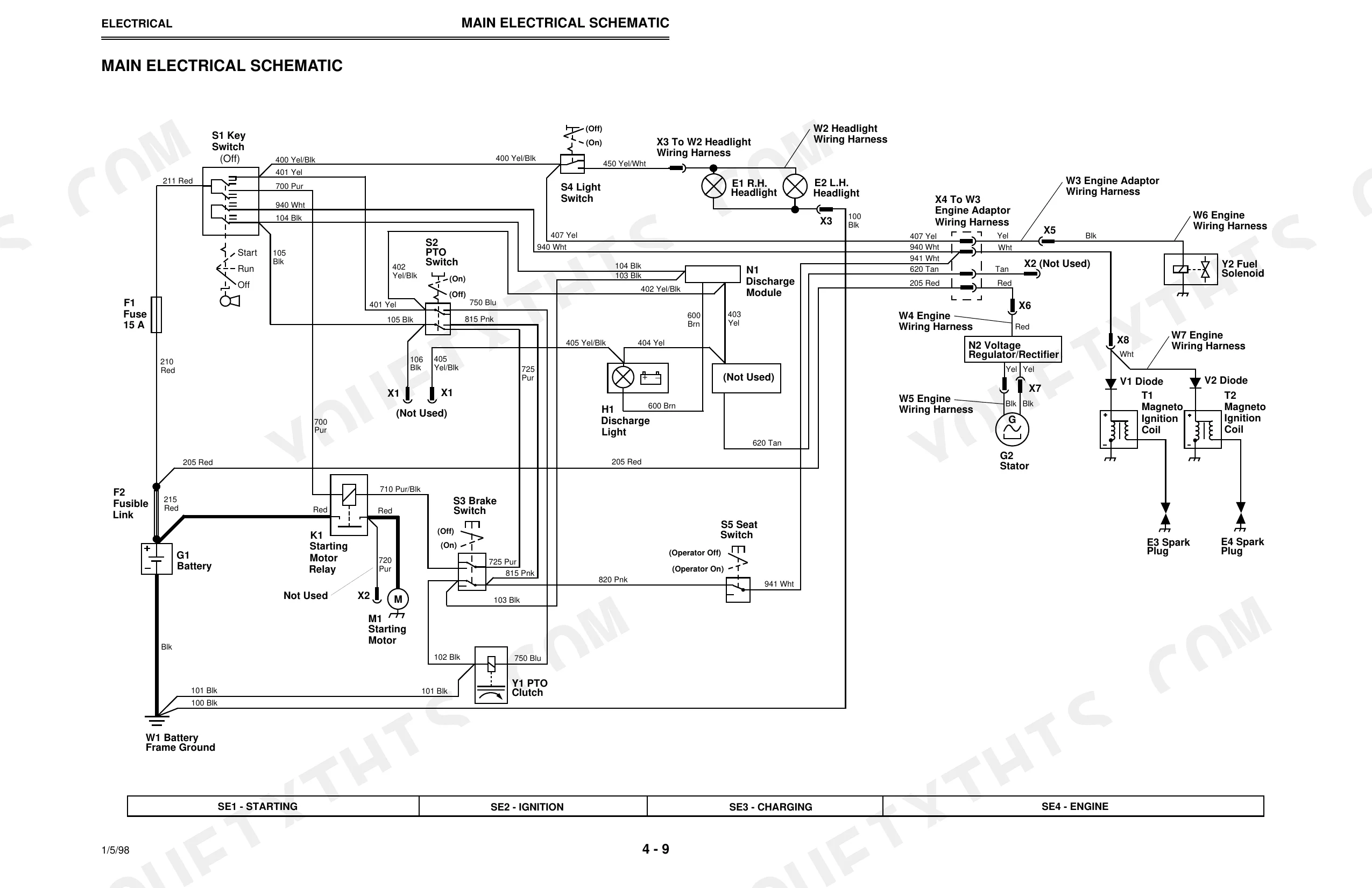

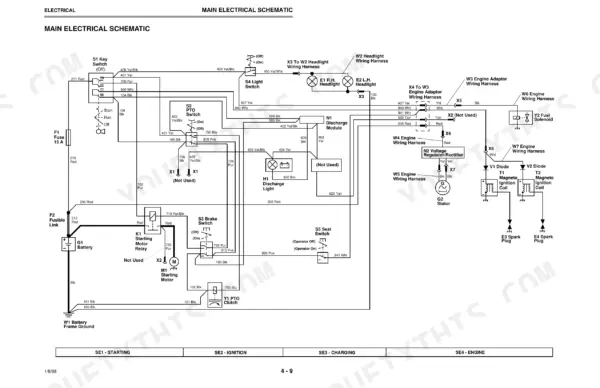

Every one of the 294 pages in this John Deere 1842GV, 1842HV Sabre Yard Technical Manual PDF (OEM #TM1740) is aimed at one job: servicing your Sabre Yard tractor the way the factory intended. Inside you get wiring diagrams with component locations and theory-of-diagnosis walkthroughs for chasing electrical gremlins, plus hydrostatic power train schematics, troubleshooting charts, and page after page of step-by-step procedures covering the Briggs & Stratton engine, gear and hydrostatic drives, steering, and brakes. Torque tables for both metric and inch fasteners sit right up front. Check your blades at 545.2 mm (21.46 in.) and set cutting height anywhere from 25 to 102 mm before the season starts. No more chasing wiring faults with a multimeter and a prayer. Bookmarked and keyword-searchable; jump straight to the spec and get back to mowing.
What's Inside This John Deere Sabre 1842GV & 1842HV Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | - |
| Safety | 4-8 | Recognize Safety Information, Handle Fluids Safely-Avoid Fires, Use Safe Service Procedures, Service Tires Safely, Handle Chemical Products Safely, Live with Safety |
| Specifications & Information | 9-24 | General Vehicle Specifications, Metric Fastener Torque Values, Inch Fastener Torque Values, Gasoline, Engine Oil, Product Identification Locations |
| Briggs & Stratton Engine | 25-74 | Specifications, Troubleshooting, Tests & Adjustments, Repair, Lubrication, Breather Valve Service |
| Electrical | 75-130 | Theory of Operation Information, Specifications, Component Location, Troubleshooting, Theory and Diagnosis, Tests & Adjustments |

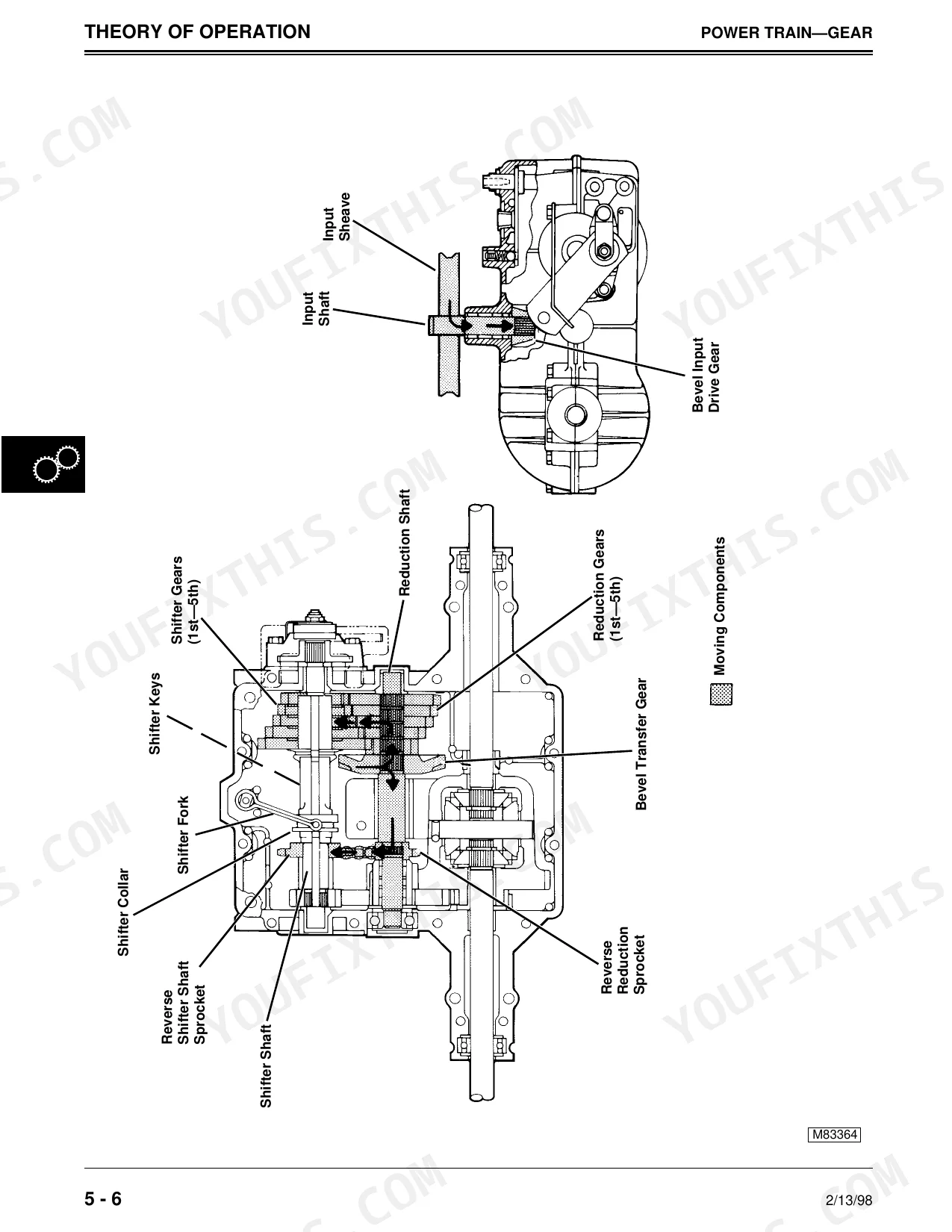

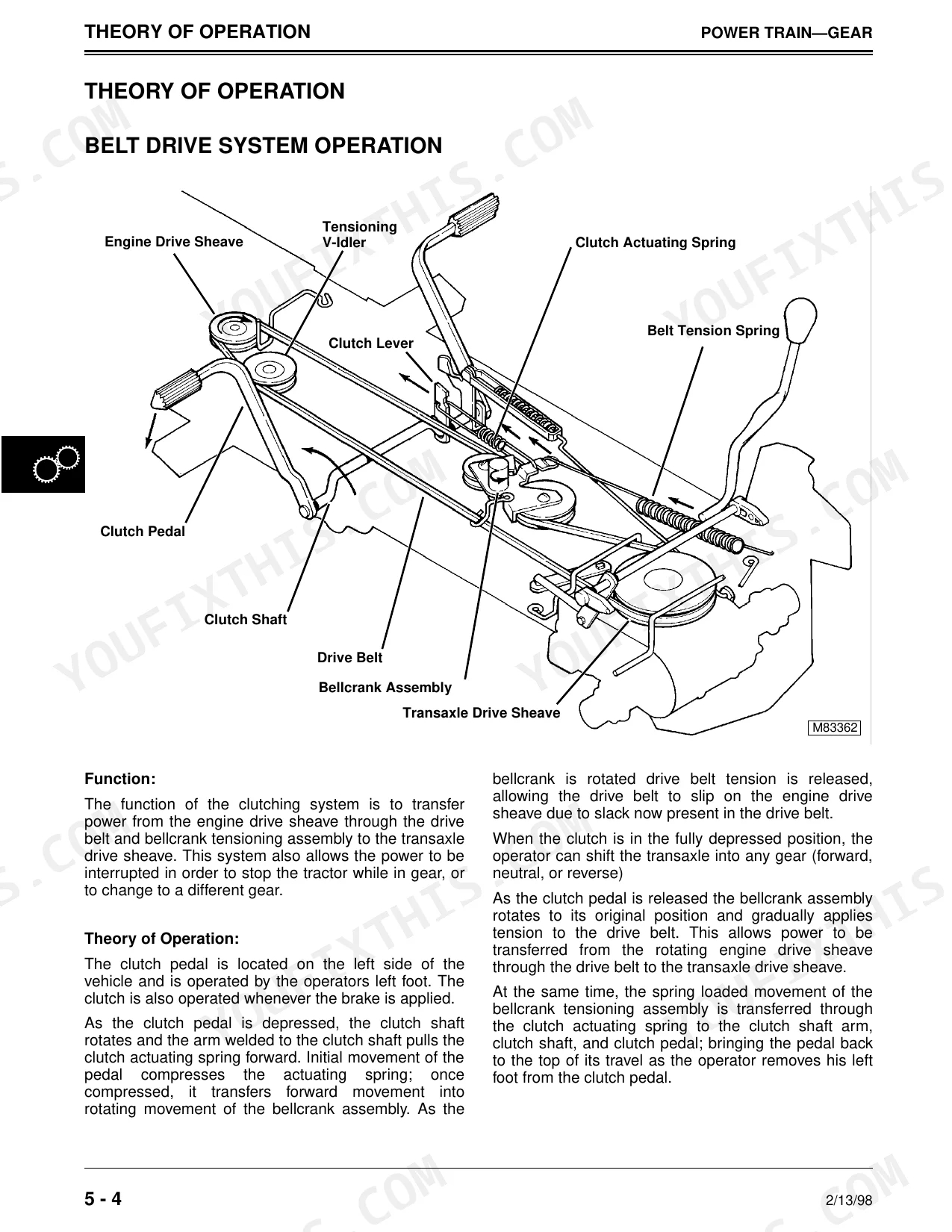

| Power Train/Gear | 131-172 | Specifications, Theory of Operation, Troubleshooting Chart, Diagnosis, Adjustments, Repair |
| Power Train, Hydrostatic | 173-232 | Specifications, Component Location, Theory of Operation, Troubleshooting, Diagnosis, Repair |
| Steering | 233-242 | Specifications, Theory of Operation, Troubleshooting, Repair, Steering System Diagnosis, Left Turn Stop Modification |
| Brakes | 243-258 | Brake Adjustment |
| Attachments | 259-276 | Mower Gage Wheels Adjust, Mower Level Front-to-Rear, Mower Level Side-to-Side |
| Miscellaneous | 277-288 | Specifications, Other Materials, Front Axle and Tires Component Location, Lift Assist and Depth Stop Operation, Hood Removal and Installation, Fender Deck Removal and Installation |

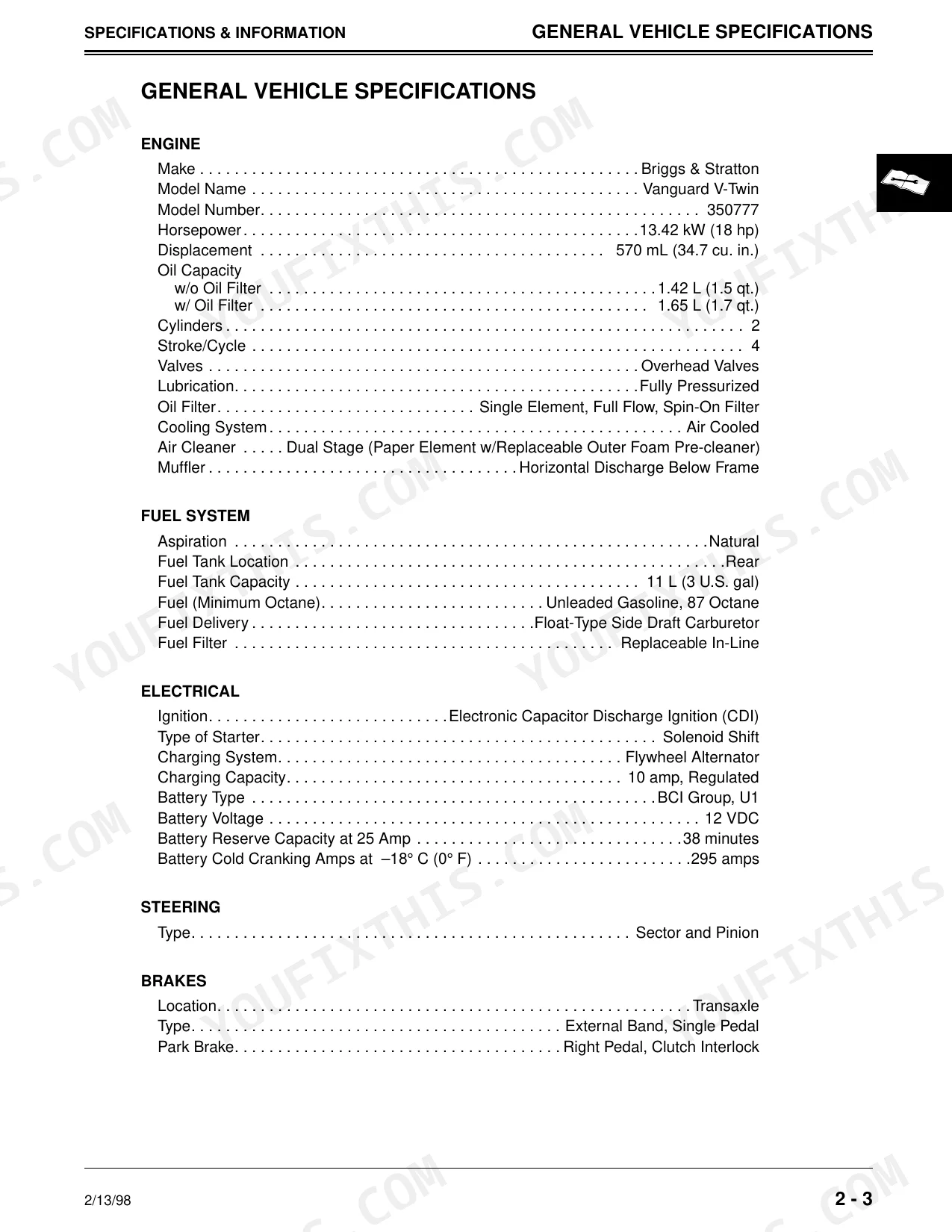

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Blade Length | 545.2 mm (21.46 in.) | p. 12 |
| Cutting Height-Approx. | 25-102 mm (1 – 4 in.) | p. 12 |
| Air Cleaner | Dual Stage (Paper Element w/Replaceable Outer Foam Pre-cleaner) | p. 11 |
| Ignition | Electronic Capacitor Discharge Ignition (CDI) | p. 11 |
| Battery Type | BCI Group, U1 | p. 11 |
| Battery Voltage | 12 VDC | p. 11 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 27 |
| Fuel Shutoff Solenoid | 5 N•m (45 lb-in.) | p. 3 |
| Air Cleaner Base to Carburetor | 7 N•m (65 lb-in.) | p. 9 |
| TRACTION DRIVE BELT TENSION ADJUSTMENT | page 28 | p. 172 |
| Flat idler sheave | Remove | p. 171 |
| V-idler sheave | Remove | p. 171 |
John Deere Sabre 1842GV & 1842HV Common Problems This Manual Covers
John Deere Sabre Yard tractor cranks but will not start, no click from the fuel solenoid
Test the seat, brake, and PTO interlock switches for continuity using the wiring diagram before condemning the starter. Load-test the battery; a healthy one delivers 295 cold cranking amps at 12 VDC. Pull the spark plug, confirm it is a Champion RC12YC, and set the gap to 0.76 mm (0.030 in.).
Manual Section: ElectricalMower deck will not engage, belt squeals then blades quit spinning under load
Inspect the deck belt for glazing and cracked ribs, then check the belt tensioning spring against the wear criteria on page 268; a stretched spring lets the belt slip the moment blades hit grass. Spin each idler pulley by hand and feel for bearing roughness. After belt work, torque blade cap screws to 68 N•m (50 lb-ft.).
Manual Section: Attachments p. 268Deck vibrates badly at full throttle and leaves uneven steps between mowing passes
Remove each blade and check for bends and balance; replace a bent blade, never straighten it. Grab each spindle and rock it to feel for bearing play per the checklist on page 267. Reinstall with the spindle mounting nut at 24 N•m (18 lb-ft.) and the sheave nut at 108 N•m (80 lb-ft.), then level the deck side-to-side within 3 mm (0.125 in.).
Manual Section: Attachments p. 261Engine surges and bogs down when mulching heavy leaves or cutting thick grass

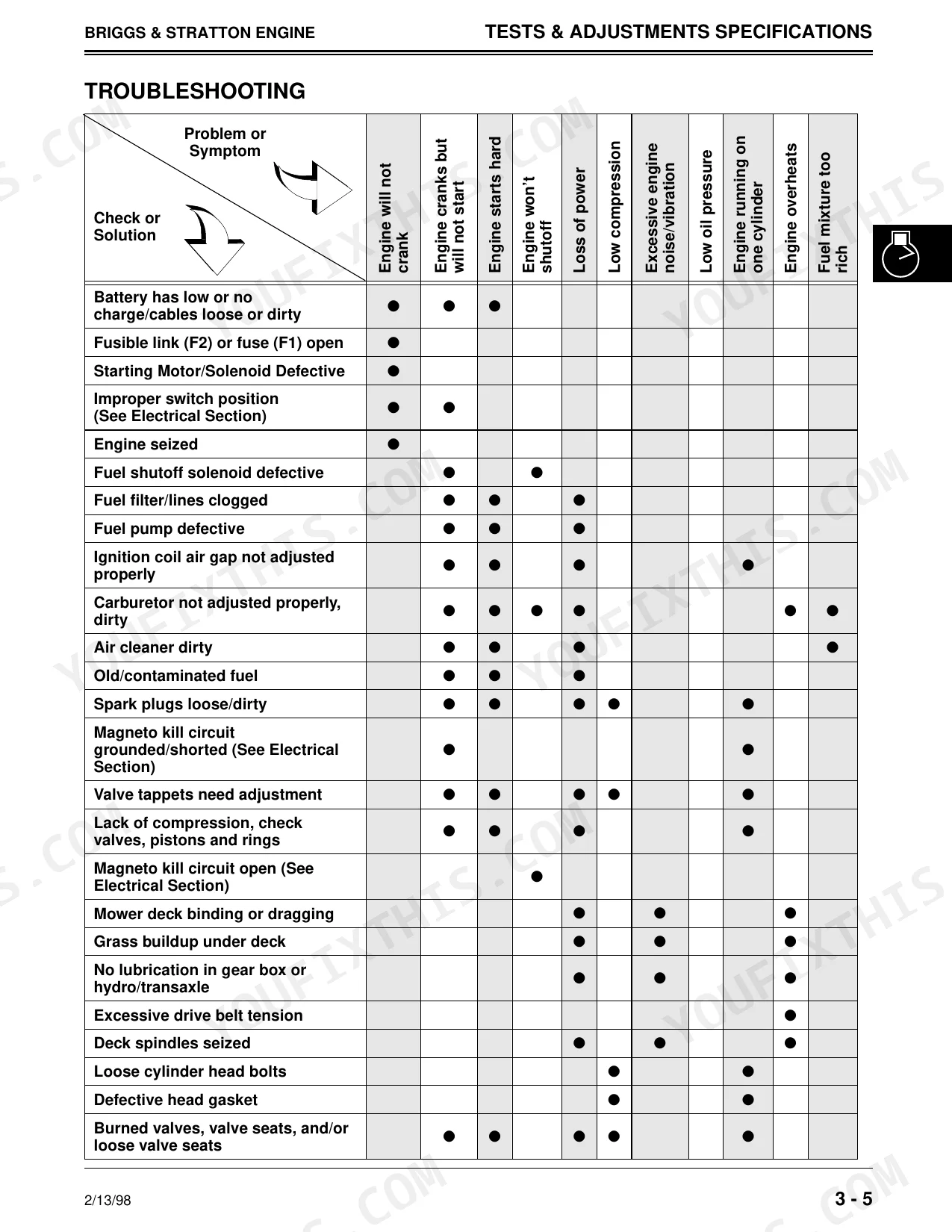

Drain stale fuel from the 11 L (3 U.S. gal) tank and refill with fresh gasoline. Remove the air cleaner, wash the foam pre-cleaner, and replace the paper element if it is dark or oil-soaked. Work through the surging and loss-of-power steps in the engine troubleshooting guide starting on page 29 before touching the carburetor.
Manual Section: Briggs & Stratton Engine p. 29Hydrostatic drive creeps forward in neutral and ground speed hunts on slopes
Check the neutral return linkage for binding and adjust it until the machine sits still with the pedal released. Verify the freewheel valve is fully closed; a cracked-open valve causes erratic speed under load. On 1842HV models, drain and refill the transaxle with 3.4 L (7.2 U.S. pt) of fresh oil per page 175 if the fluid is dark or foamy.
Manual Section: Power Train, Hydrostatic p. 175Frequently Asked Questions
What are the recommended service intervals?
The manual specifies lubrication intervals for the spindle grease fitting and kingpin. For severe conditions, it's every 25 hours, and for normal conditions, it's every 50 hours. p. 235
What fluids and capacities does this machine require?
The machine requires unleaded gasoline with 87 octane minimum, with a fuel tank capacity of 11 L (3 U.S. gal). Engine oil capacity is 1.42 L (1.5 qt.) without the oil filter and 1.65 L (1.7 qt.) with the oil filter. For chassis grease, John Deere Standard JDM J13A2, NLGI Grade 1 is specified for North America. Hydrostatic transmission oil is 5W-50 Synthetic Oil, with a capacity of 3.4 L (7.2 U.S. pt). Gear transmission grease is AN102562 Corn Head Grease. p. 11
How to troubleshoot engine won't start?

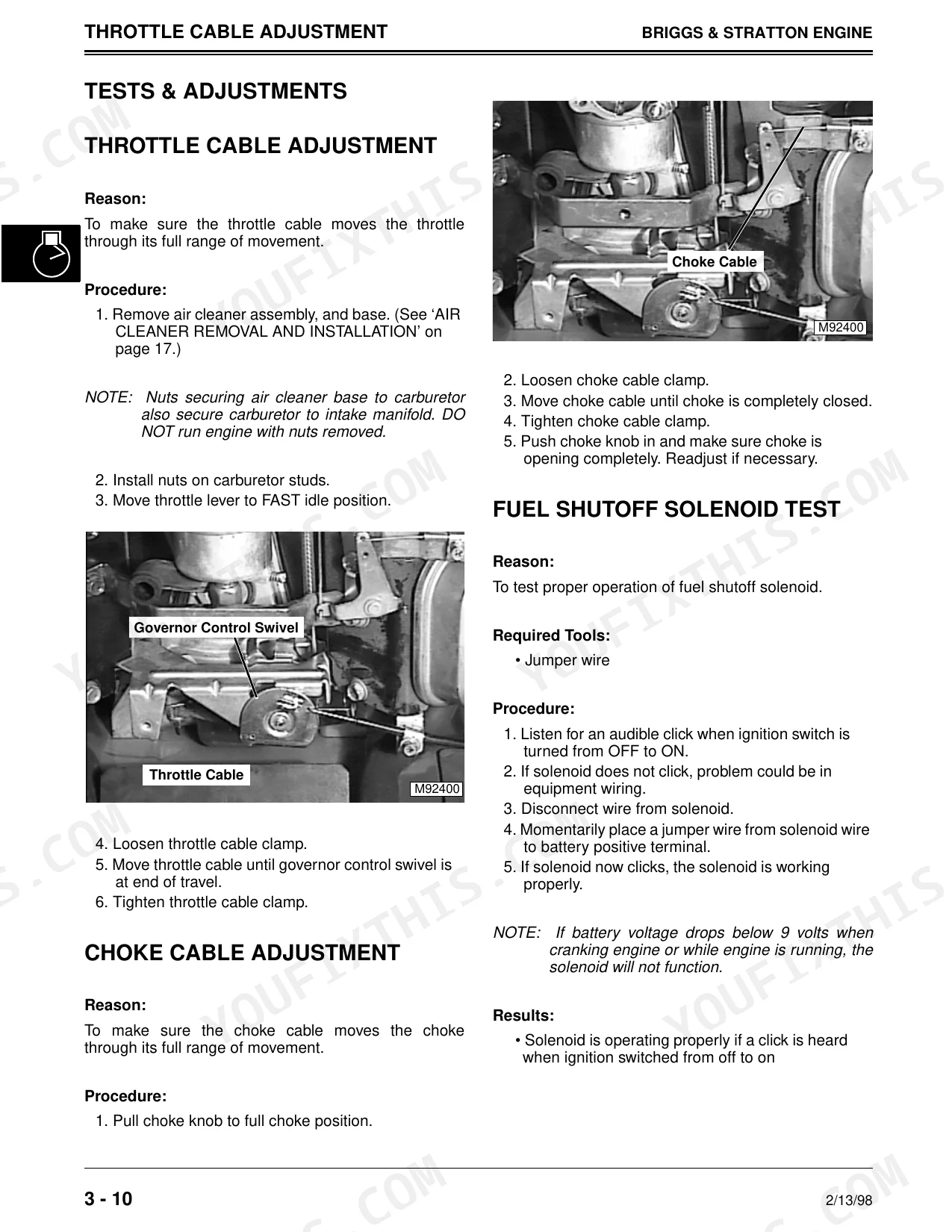

To troubleshoot an engine that cranks but will not start, first check battery voltage (should be 11.8 and 13.2 volts). If low, charge and retest. Then check if the fuel shutoff solenoid clicks when the ignition switch is turned to START/RUN; if not, the solenoid or switches/wiring may be defective. Also, verify strong blue spark from spark plugs and proper fuel delivery. p. 32
What are the valve clearance specifications?
The valve clearance specification is 0.10 – 0.16 mm (0.004 – 0.006 in.). The lock nut for adjustment should be torqued to 7 N•m (60 lb-in.). p. 39
What torque specifications are listed?

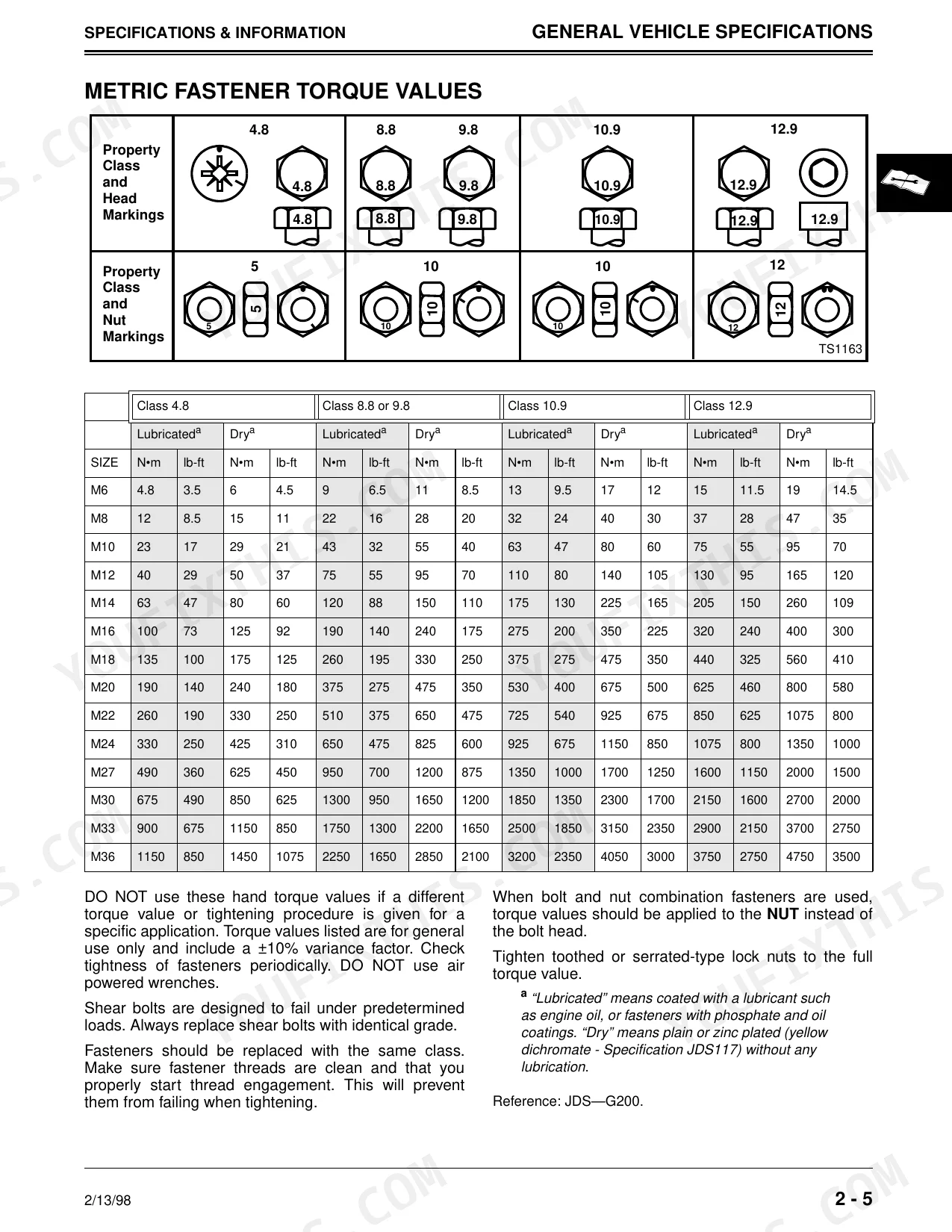

Various torque specifications are listed, including metric fastener torque values (e.g., M6 lubricated: 4.8 N•m, 3.5 lb-ft; M36 lubricated: 1150 N•m, 850 lb-ft) and inch fastener torque values (e.g., 1/4 inch Grade 1 lubricated: 3.7 N•m, 2.8 lb-ft; 1-1/2 inch Grade 8 or 8.2 lubricated: 3600 N•m, 2650 lb-ft). Specific engine components also have torque values, such as connecting rod cap screws at 13 N•m (115 lb-in.) and flywheel nut at 175 N•m (125 lb-ft). p. 13
How will I receive this John Deere 1842GV & variants Technical Manual?
You get a 294-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
