Dull blades on the 230GM mower deck get a sharpening procedure in the New Holland T1010 operator manual PDF, a 139-page owner's guide (OEM ID 87722409) for the T1010 and T1030 tractors and their matching deck. Wiring diagrams in the maintenance chapter trace the electrical circuits, and the general information pages carry hardware tightening torque tables for metric and inch fasteners. Operation pages take you through seat and ROPS setup, the instrument panel, key switch and engine starting, while the deck chapter covers mounting, leveling, cutting height, belt replacement and blade removal. Expect the thermostat to start opening at 82°C. Fit a 51BCI battery rated at 450 CCA, protected by a 40A slow-blow main fuse. Routine checks are listed too: lubrication fittings, engine oil, fuel filter and air cleaner, plus predelivery safety item checks. Bookmarks and a searchable text layer lead straight to the product identification number, so service parts ordered for your tractor match it the first time.
What's Inside This New Holland T1010, T1030, 230GM Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| T1010 T1030 230GM Operator's Manual | 1 | |
| To the Owner | 1 | Model Number |
| Improvements | 2 | |
| Precautionary Statements | 6 | Warning |
| Personal Safety | 6 | Warning |
| Machine Safety | 6 | Precautionary Statements, Machine Damage, Safety Instructions |
| Information | 7 | Supplementary Information, Safety Symbols, Operator's Manual |
| Safety | 8-10 | Tractor Operation, Roll Bar, Seat Belt, Front End Loader, Servicing, Hydraulic Fluid, Fuel Injection System, Asbestos |
| Safety Decals | 11-19 | Warning Decals, Danger Decals, Instruction Decals, Decal Locations, Decal Maintenance |
| Ecology and the Environment | 20 | |
| Universal Symbols | 21 | Instrument Symbols, Control Symbols, Switch Symbols, Fuse Box Symbols |
| General Information | 22-25 | Product Identification Number, Hardware Tightening Torques, Metric Hardware, Inch Hardware |

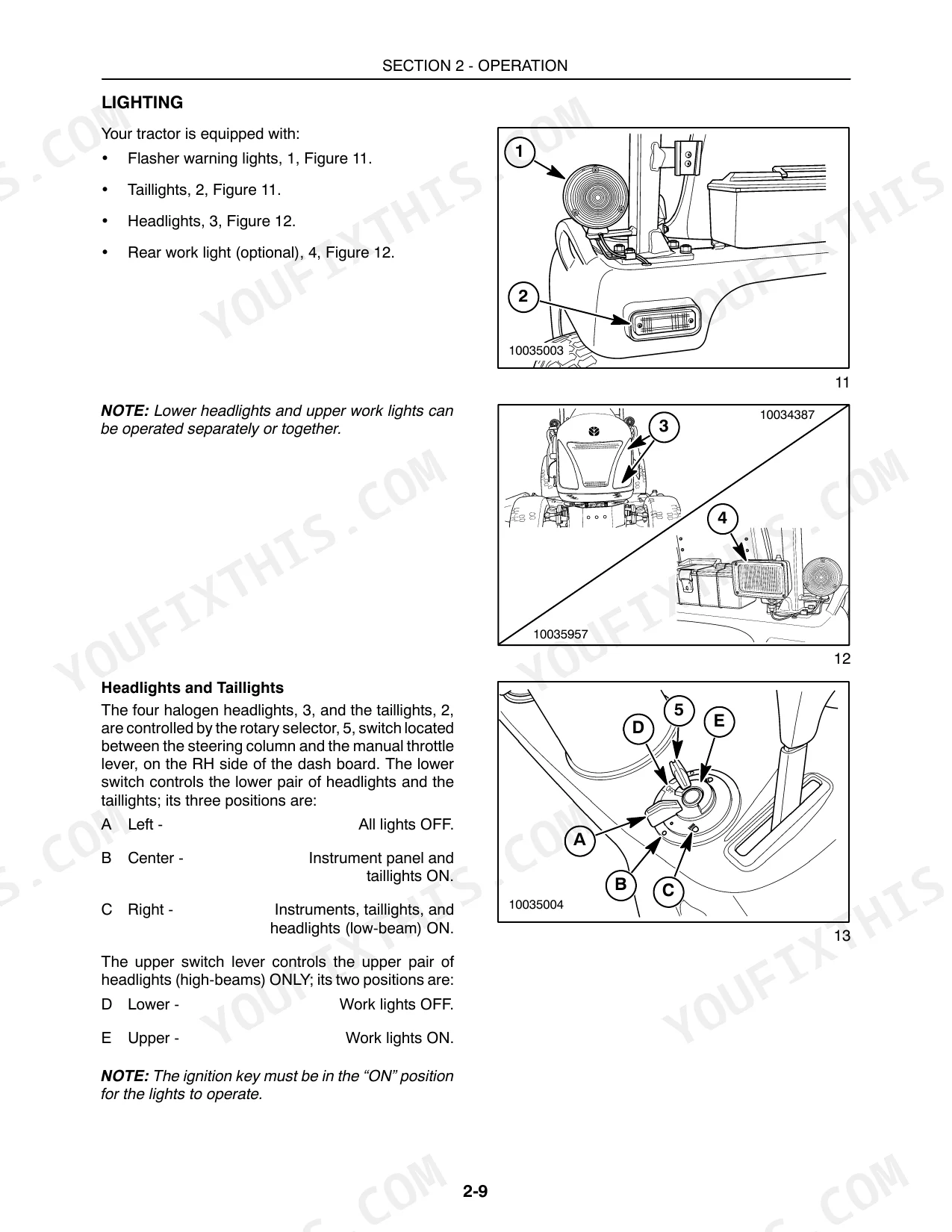

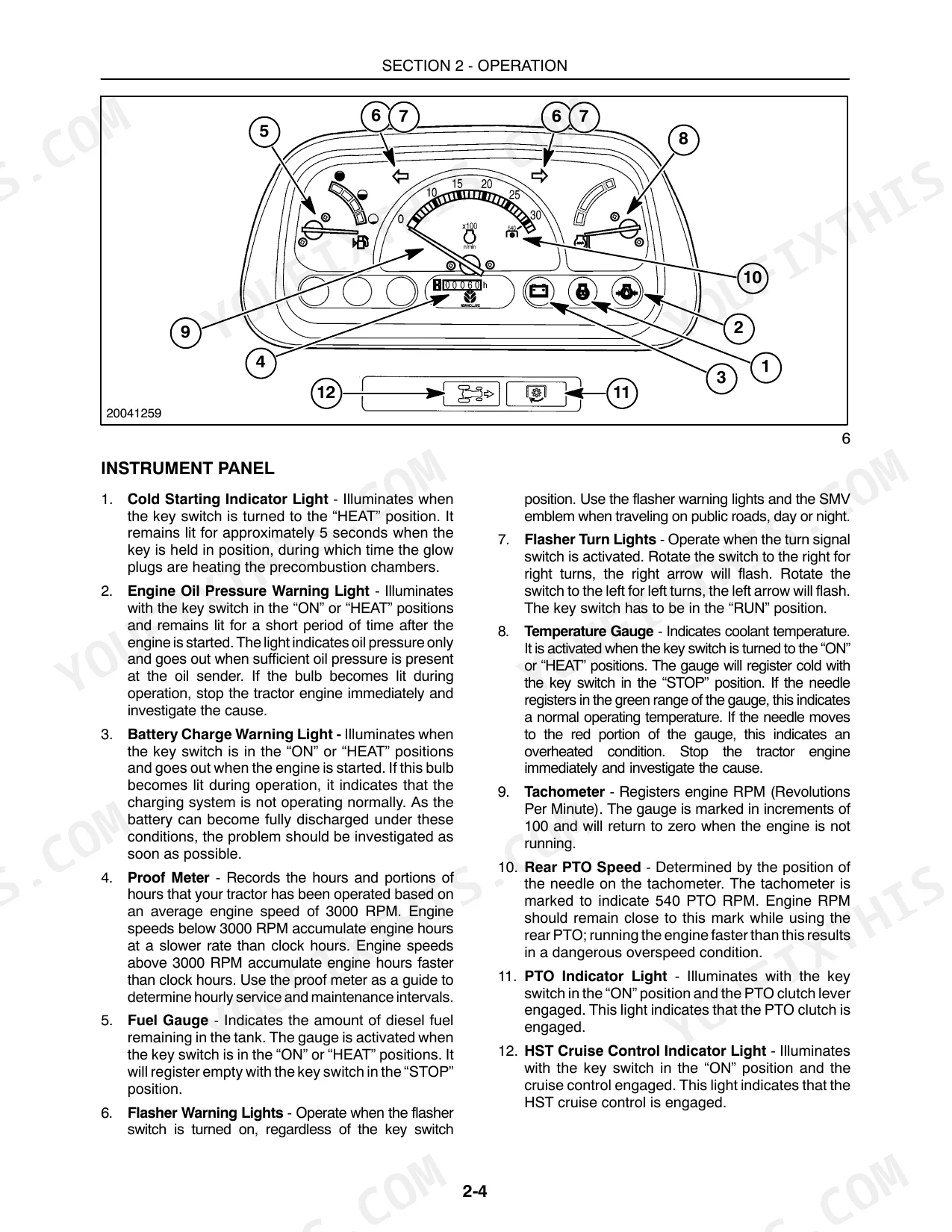

| Operation | 26-55 | Seat Adjustment, Seat Belt, Rollover Protective Structure, Instrument Panel, Key Switch, Starting the Engine, Lighting, Throttle Controls |

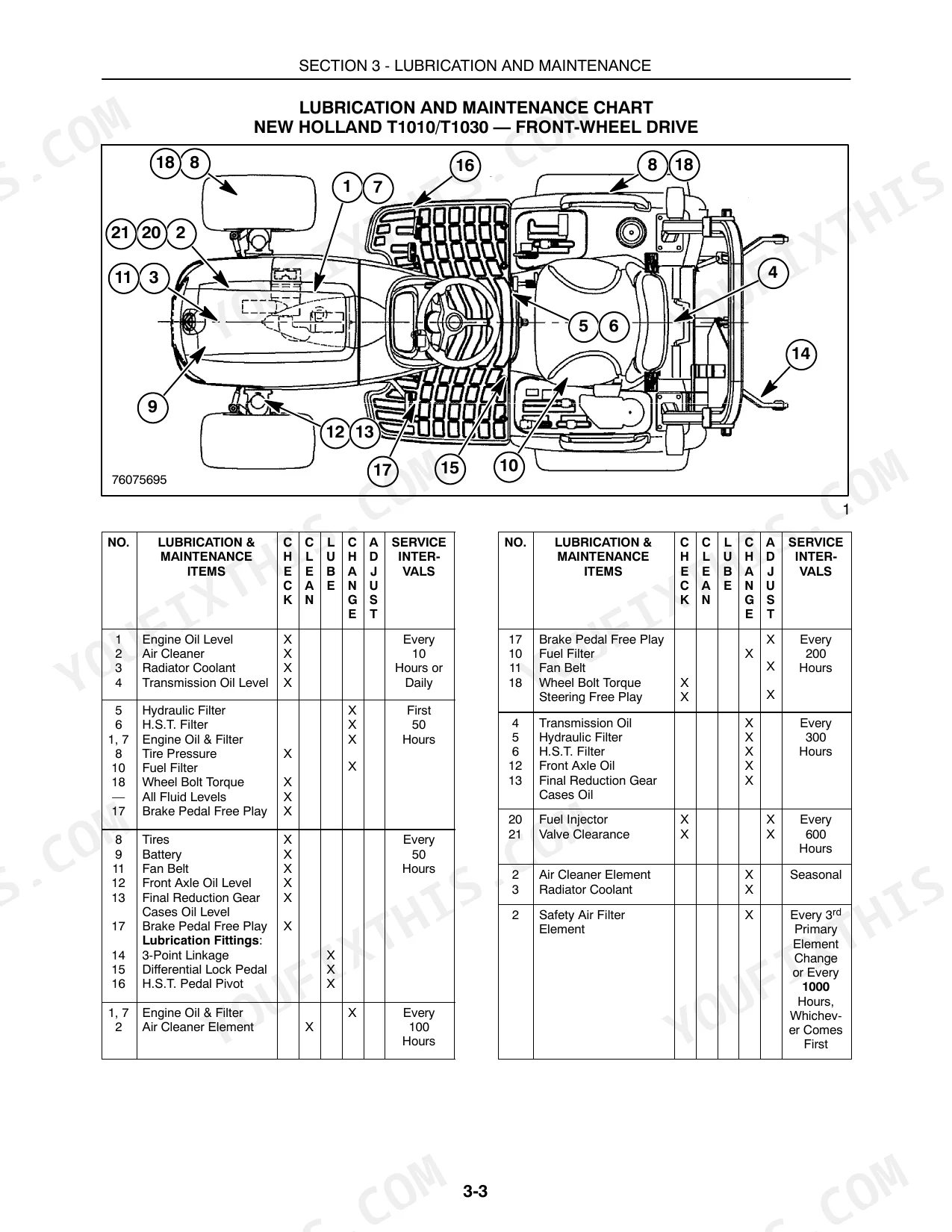

| Lubrication and Maintenance | 56-87 | Lubrication Fittings, Diesel Fuel, Engine Oil, Fuel Filter, Air Cleaner, Transmission Oil, Hydraulic System Oil, Cooling System |
| 230GM Mower Deck | 88-125 | Mower Deck Mounting, Mower Deck Dismounting, Mower Deck Leveling, Cutting Height Adjustment, Mower Blade Sharpening, Belt Replacement, Mower Blade Removal, Mower Blade Installation |
| Specifications | 126-133 | Engine Specifications, Cooling System Specifications, Electrical System Specifications, Fuel System Specifications, Brake Specifications, Steering Specifications |
| Predelivery Service | 136-139 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Inspection Performed, Warranty Explained |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| T1010 | ||
| Front Wheel-Disc-to-Hub Torque | 88 N⋅m (65 ft-lbs) | p. 130 |
| Rear Wheel-Disc-to-Axle Torque | 122 N⋅m (90 ft-lbs) | p. 130 |
| All Models | ||
| Main System Protection | 40A Slow-Blow Fuse | p. 127 |
| Battery Type | 51BCI/450 CCA | p. 127 |
| Thermostat Start to Open | 82°C | p. 127 |
| Thermostat Fully Open | 95°C | p. 127 |
| Engine Crankcase Oil Capacity (with filter) | 3.3 liters | p. 126 |
| Fuel Tank Capacity | 26.0 liters | p. 126 |
| Cooling System Capacity | 3.5 liters | p. 126 |
| Front Wheel Bolt Torque | 88 N·m | p. 81 |
| Rear Wheel Bolt Torque | 122 N·m | p. 81 |
| 230GM | ||
| Mower Blade Retainer Nut Torque | 150 - 177 N·m | p. 92 |
New Holland T1010, T1030, 230GM Common Problems This Manual Covers
New Holland T1010 T1030 engine shuts off about two seconds after the operator leaves the seat
Move the range lever to NEUTRAL before leaving the seat with the engine running, as the operator presence chart on page 32 requires. Check the PTO selector: in REAR PTO the engine keeps running, but MID PTO or MID/Rear PTO shuts it down in about two seconds. Always restart from the operator's seat, never standing beside the tractor (page 32).
Manual Section: Operator Presence System Operation p. 32Battery discharged after the engine stops with warning lights left on and key not turned off
Turn the key switch fully OFF after every shutdown. Page 33 warns that the warning lights otherwise drain the battery. To jump start, shield your eyes, connect positive to positive, then connect the auxiliary negative to the tractor starter ground terminal. Wear eye and skin protection and keep sparks away from battery gases. Start only from the operator's seat and crank no more than 30 seconds (page 32). A replacement battery is 51BCI/450 CCA (page 127).
Manual Section: Starting the Tractor with Jumper Cables p. 33Mower deck with loose blade fasteners or grass buildup under the deck has excessive vibration

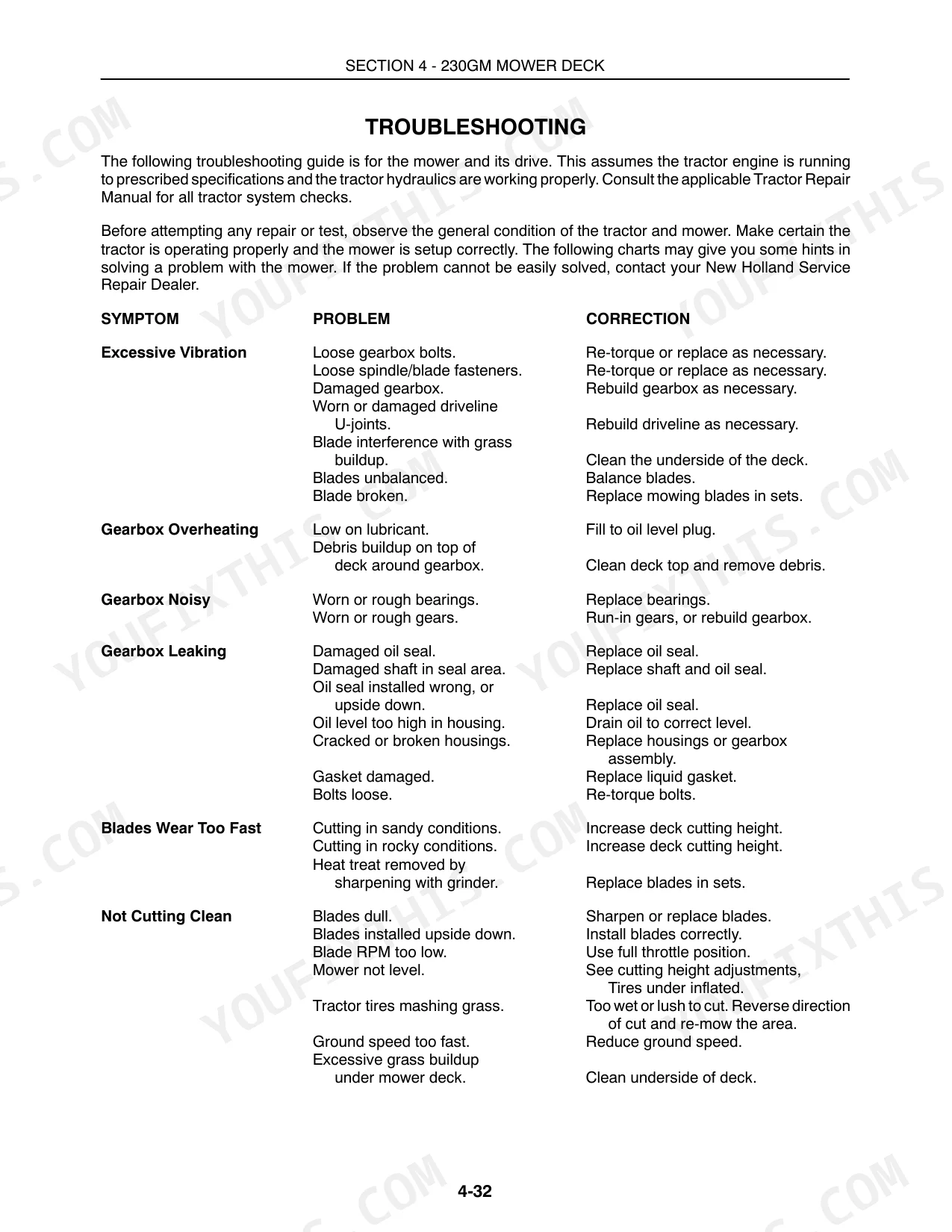

Shut off the engine, disengage all drives, and lower attachments before working on the deck (page 56). Clean grass buildup from the underside, then re-torque the blade retaining bolts to 98 to 118 N·m per page 114. Balance the blades and replace broken blades in sets, as the chart on page 119 lists. Inspect blade retainer bolts and spindle nuts daily (page 95).
Manual Section: Mower Deck Troubleshooting p. 119Mower deck gearbox overheating or leaking oil from the seal area during mowing
Shut off the engine and disengage all drives first (page 56). Check the gearbox lubricant and fill to the oil level plug, following the chart on page 119. Clean debris off the deck top around the gearbox. If it leaks, drain oil to the correct level when overfilled and re-torque loose bolts. A damaged oil seal or cracked housing needs replacement. If the problem cannot be easily solved, contact your New Holland dealer.
Manual Section: Mower Deck Troubleshooting p. 119Mower deck not cutting clean and leaving streaking or windrow conditions in the swath
With the engine shut off and drives disengaged (page 56), inspect the blades. Sharpen or replace dull ones and confirm none are installed upside down (page 119). Mow at full throttle for blade RPM and reduce ground speed. Check that the deck is not lower at the rear than the front using the cutting height adjustments. Clean buildup from the underside and let wet grass dry before cutting (page 120).
Manual Section: Mower Deck Troubleshooting p. 120Mower deck loads the tractor down while mowing at too fast a ground speed
Set the hand throttle to the full throttle position and reduce ground speed, following the chart on page 120. Shut off the engine and disengage all drives (page 56), then clean grass buildup from under the deck. If loading continues, check for gearbox wear or driveline damage. Page 119 says to contact your New Holland Service Repair Dealer when a problem cannot be easily solved.
Manual Section: Mower Deck Troubleshooting p. 120Frequently Asked Questions
What are the torque specifications for the T1010 and T1030 front and rear wheel bolts?
The front wheel bolts must be torqued to 88 N⋅m (65 ft-lb). The rear wheel bolts must be torqued to 122 N⋅m (90 ft-lb). p. 81
What are the replacement specs for engine oil and hydraulic/transmission filters on a New Holland T1010, T1030, 230GM?
Change the engine oil and filter after the first 50 hours, then every 100 hours. The hydraulic system oil filter should be replaced after the first 50 hours, then every 300 hours. The H.S.T. system oil filter should also be changed after the first 50 hours, then every 300 hours. p. 68
What are the replacement specifications for the fuel filter on the New Holland T1010, T1030, 230GM?
The fuel filter should be replaced every 200 hours of operation. When installing, ensure the directional arrow on the filter points in the direction of fuel flow, from the tank to the engine. p. 63
What is the valve clearance specification for the T1010 and T1030 engines?
The valve clearance for both the intake and exhaust valves on the T1010 and T1030 models is 0.20 mm (0.008 in) when cold. p. 126

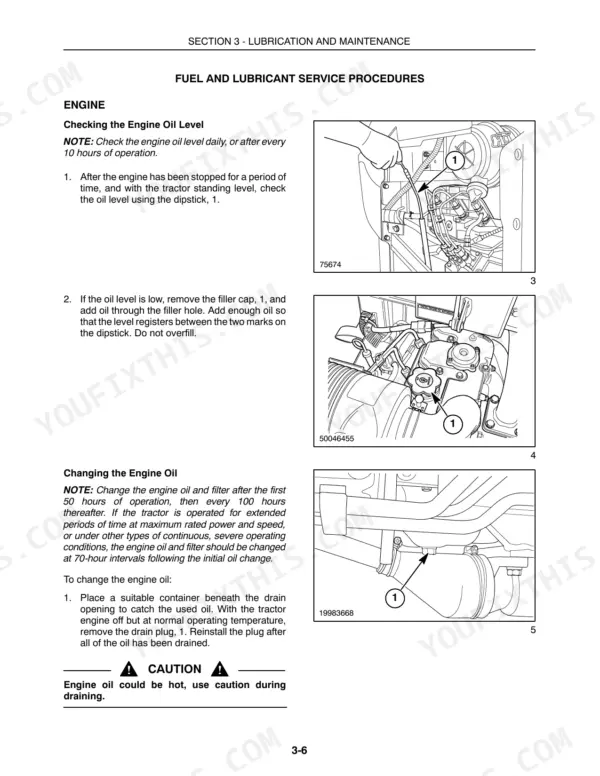

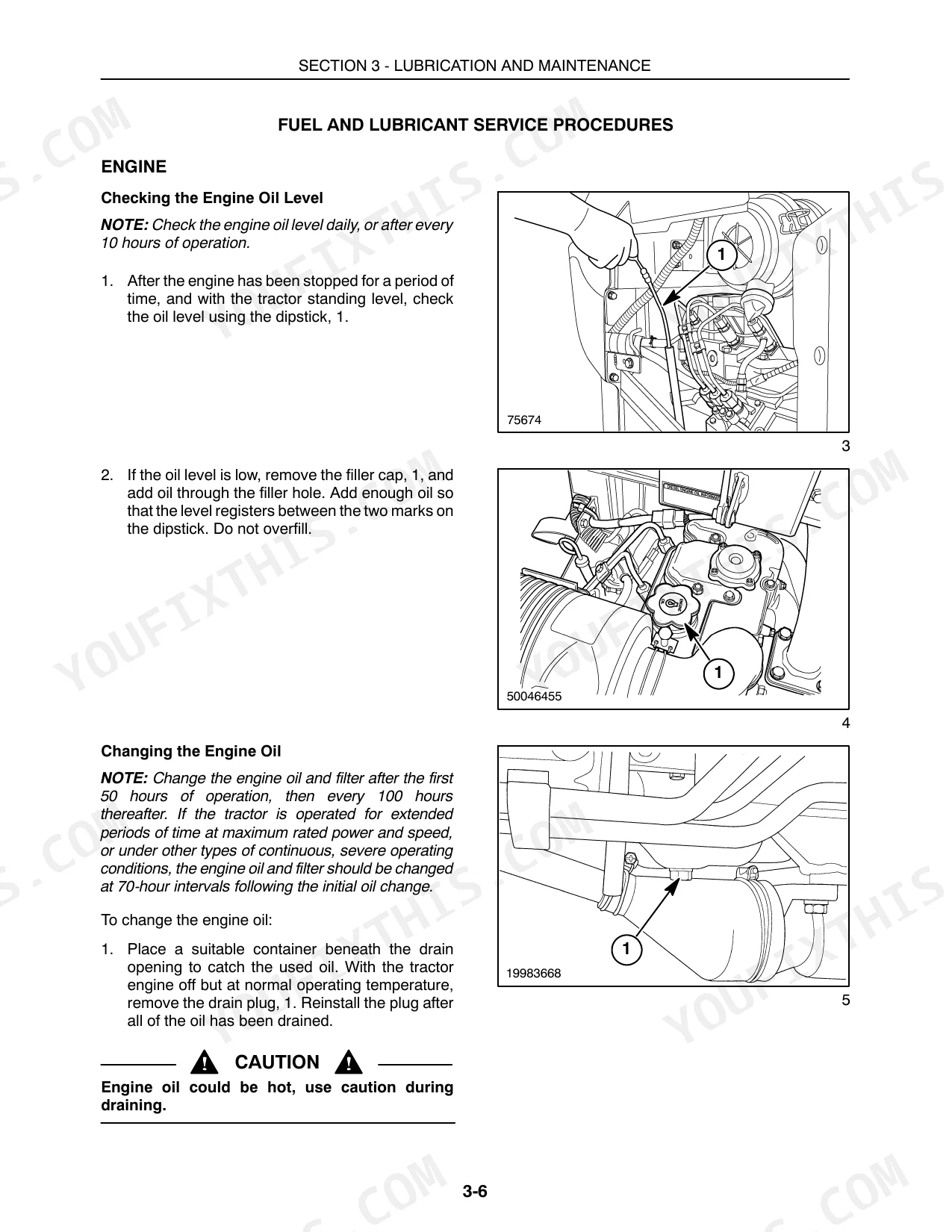

What is the correct procedure for checking the engine oil level?
Check the oil level daily or after every 10 hours of operation. With the engine stopped for a period of time and the tractor standing level, use the dipstick to check the level. If low, add oil through the filler cap until the level is between the two marks on the dipstick. p. 61
Do I get instant access to this New Holland T1010 Operator Manual?
Instant PDF download. You get the full 139-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this New Holland T1010 Operator Manual printable?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
