Oil draining into the pan and the only question that matters is how much goes back in: 25 L on a T9.435, 36 L on a T9.700. Page 336 settles it before you open the first jug.
The book itself is New Holland publication 47754862, 488 pages, written for the T9.435, T9.480, T9.530, T9.565, T9.600, T9.645 and T9.700 with Cursor engines, serial number ZFF403001 and above. Sections run from controls and instruments through operating instructions, transport, working operations, maintenance, troubleshooting and specifications.
Use it to work the armrest console and remote valve controls, connect and run the rear PTO, torque wheel and hub bolts after a ballast or dual change, pull fault codes off the display, and follow the maintenance chart interval by interval. It downloads as a PDF, so it rides in your pocket to the far end of the field where the tractor actually stopped.
What's Inside This New Holland T9.435–T9.700 Tier 4B Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 9-26 | Advice, Engine Hood, Engine Side Shields, Opening the Right-Hand Service Door, Battery Access, Power Cut-Off Switch, Filling the Fuel Tank, Fuel Tank Capacity |
| Safety Information | 27-66 | Safety Alert Symbol and Signal Word Definition, Proposition 65, Safety Rules, Ecology and the Environment, Protective Structures, Emergency Exit |
| Controls and Instruments | 67-158 | Access to Operator's Platform (Cab Access/Exit), Operator's Seat (Overview, Control Identification), Instructor's Seat (Overview) |

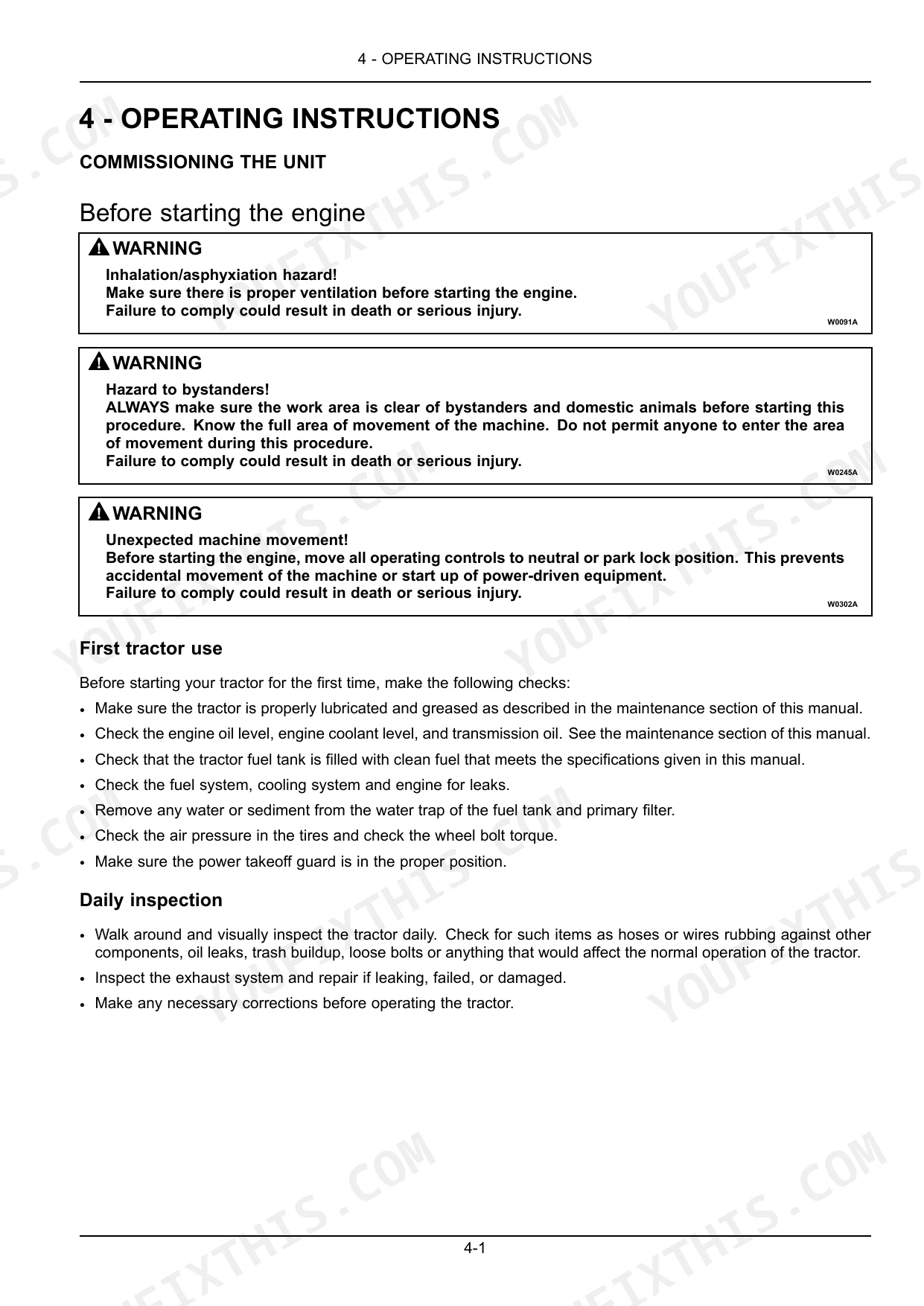

| Operating Instructions | 159-206 | Commissioning the Unit (Before Starting the Engine), Starting the Unit (Normal Engine Starting, Cold Temperature Operation), Stopping the Unit (Stopping the Machine and the Engine) |
| Transport Operations | 207-220 | Road Transport (Tractor Warning Lamps and Slow Moving Vehicle Symbol, Wide Transport Marker Light, Operating the Tractor Warning Lamps, Safe Transport Speed, Implement Warning Lamps and Slow Moving Vehicle Symbol, Safety Chain) |
| Working Operations | 221-320 | Rear Power Take-Off (Power Take-Off Safety Rules, Connecting the Power Take-Off, Power Take-Off Operation) |

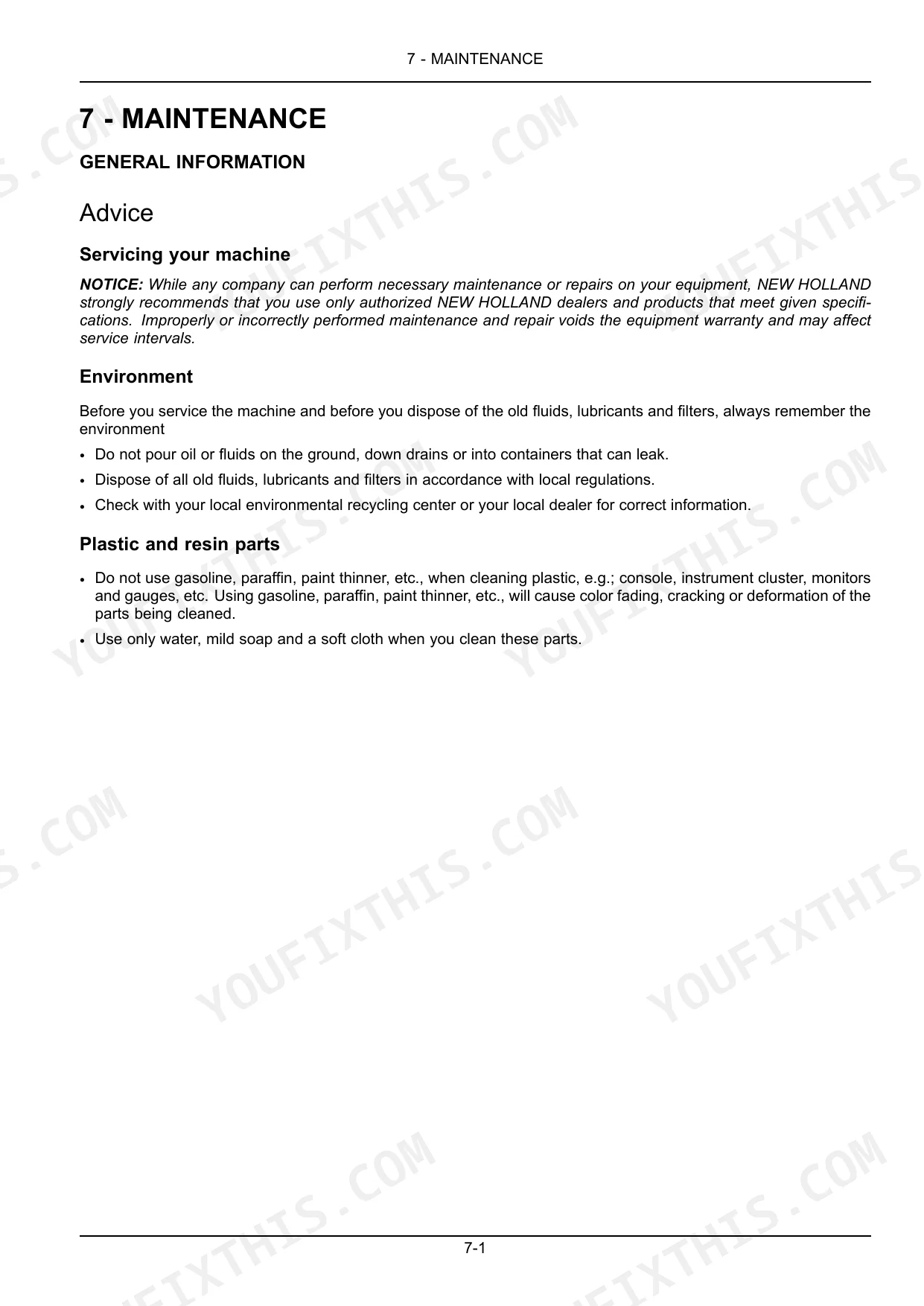

| Maintenance | 321-446 | Maintenance Chart, At Warning Message Display (Air Cleaner, Primary Fuel Filter, Fuel Supply Restricted) |

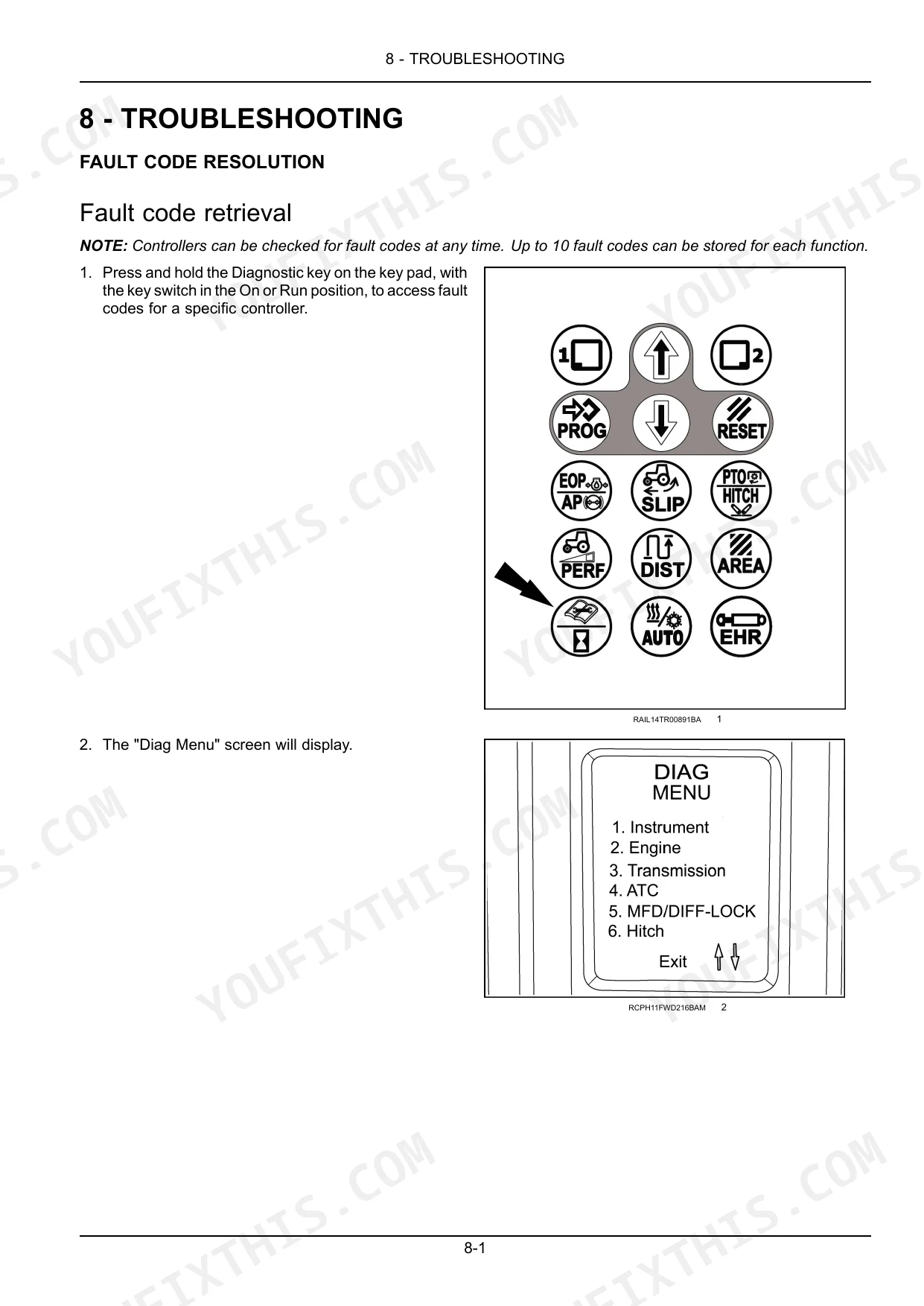

| Troubleshooting | 447-462 | Fault Code Resolution (Fault Code Retrieval), Alarm (Display Warnings, Transmission Disengages; Neutral Icon Flashes) |

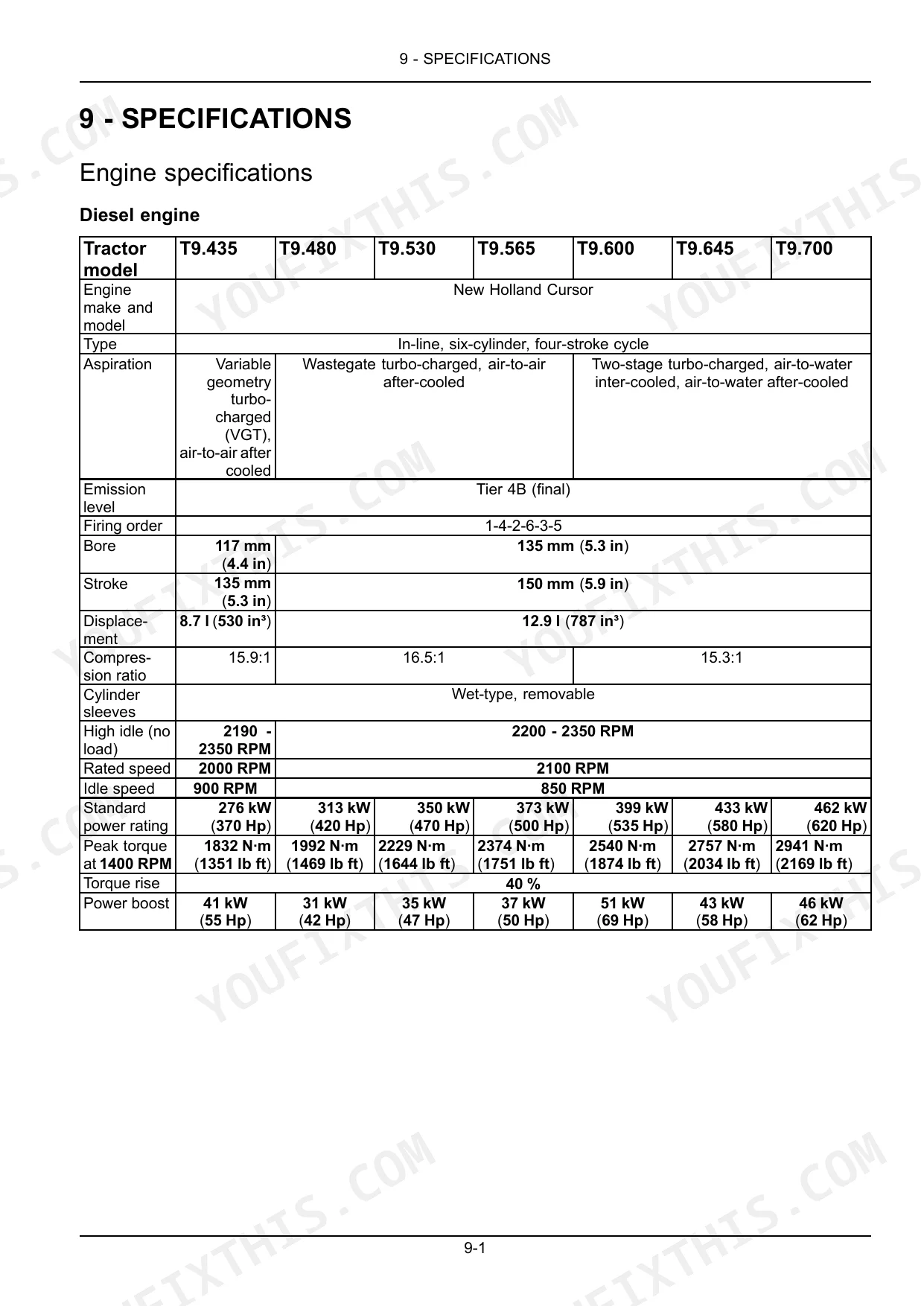

| Specifications | 463-474 | Engine Specifications, Power Train and Hydraulics, Lubricants and Capacities, Speed Charts, Vehicle Dimensions and Shipping Weight, Maximum Operating Weight |
| Accessories | 475-488 | Farming System Displays, Chemical Tank Mounting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Bushing to Hub Bolts (10 Bolt wheel, 115 mm, 127 mm Axle) | 298 - 353 N·m (220 - 260 lb ft) | p. 305 |
| Wheel to Hub Bolts (10 Bolt wheel, 115 mm, 127 mm Axle) | 529 - 569 N·m (390 - 420 lb ft) | p. 305 |
| Bushing to Hub Bolt Torque | 298 - 353 N·m | p. 305 |
| Engine Oil Drain Plug Torque | 30 N·m | p. 369 |
| Engine Crankcase Breather Filter Bolt Torque | 12 - 15 N·m | p. 388 |
| T9.435 | ||
| Engine Oil Capacity (T9.435) | 25 L | p. 336 |
| T9.480, T9.530, T9.565 | ||
| Engine Oil Capacity (T9.480, T9.530, T9.565) | 27.25 L | p. 336 |
| T9.600, T9.645, T9.700 | ||
| Engine Oil Capacity (T9.600, T9.645, T9.700) | 36 L | p. 336 |
| T9.435, T9.480, T9.530, T9.565, T9.600, T9.645 | ||
| Transmission Oil Capacity (Standard) | 63 L | p. 336 |
| T9.645 Scraper, T9.700 | ||
| Transmission Oil Capacity (Scraper/T9.700) | 68 L | p. 336 |
| 10 Bolt wheel | ||
| Wheel to Hub Bolt Torque (10 Bolt wheel) | 529 - 569 N·m | p. 305 |
| 18 Bolt wheel | ||
| Wheel to Hub Bolt Torque (18 Bolt wheel) | 692 - 746 N·m | p. 305 |
New Holland T9.435–T9.700 Tier 4B Common Problems This Manual Covers
Transmission drops to neutral, icon flashing
The transmission drops out and a flashing box appears around the neutral icon. The Troubleshooting chart traces it to causes such as starting with the lever out of Park or Neutral, the operator not being seated or cold oil, and gives the steps to re-engage.
Manual Section: Troubleshooting p. 462Wheel and hub bolts working loose
After a dual change, a spacer swap or a ballast adjustment, hub hardware backs off and elongates the bolt holes if it is not re-checked. The torque tables give 529 - 569 N·m (390 - 420 lb ft) for wheel to hub bolts on a 10 Bolt wheel and 692 - 746 N·m (510 - 550 lb ft) on an 18 Bolt wheel.
Manual Section: Working Operations p. 305Wrong oil quantity at service time
Engine oil capacity is not the same across the range, and a single overfilled crankcase can push oil past the breather. The Maintenance section lists 25 L for the T9.435, 27.25 L for the T9.480, T9.530 and T9.565, and 36 L for the T9.600, T9.645 and T9.700, plus 63 L of transmission oil on standard units.
Manual Section: Maintenance p. 336SCR supply module filter restriction
A plugged DEF supply module filter shows up as a derate warning at the worst time in the season. Maintenance walks the filter change and gives 15 - 25 N·m for the supply module filter cover, which matters because overtightening the cover distorts the seal and starts the next leak.
Manual Section: Maintenance p. 401Cranks but will not fire cold
On a frozen morning the engine turns over and quits, or starts and stumbles before it will hold an idle. Operating Instructions covers normal engine starting and the separate cold temperature operation procedure, including what must be done before the key is turned rather than after the batteries are already flat.
Manual Section: Operating Instructions p. 159Rear PTO will not engage
The PTO shaft refuses to pick up, or it engages and kicks back out as soon as the implement loads it. Working Operations covers connecting the rear power take-off, PTO operation and the safety rules around the shaft and guarding, which is where an engagement interlock problem usually shows itself.
Manual Section: Working Operations p. 221Warning lamps dead on the road
Moving between fields at dusk, the flashing warning lamps quit or the implement lamps stay dark once the tractor lamps are switched on. Transport Operations covers operating the tractor warning lamps, the wide transport marker light, implement warning lamps, the slow moving vehicle symbol and the safety chain.
Manual Section: Transport Operations p. 207Frequently Asked Questions
Which tractors and serial numbers does this cover?
New Holland T9.435, T9.480, T9.530, T9.565, T9.600, T9.645 and T9.700 tractors with Cursor engines, serial prefix ZFF403001 and above. It is publication 47754862, 488 pages, in English. Model-specific values such as oil capacities are called out per model inside the book. p. 1
Does it give wheel and hub bolt torque values?
Yes. The torque table lists wheel to hub bolts at 529 - 569 N·m (390 - 420 lb ft) on a 10 Bolt wheel and 692 - 746 N·m (510 - 550 lb ft) on an 18 Bolt wheel, with bushing to hub bolts at 298 - 353 N·m (220 - 260 lb ft). p. 305

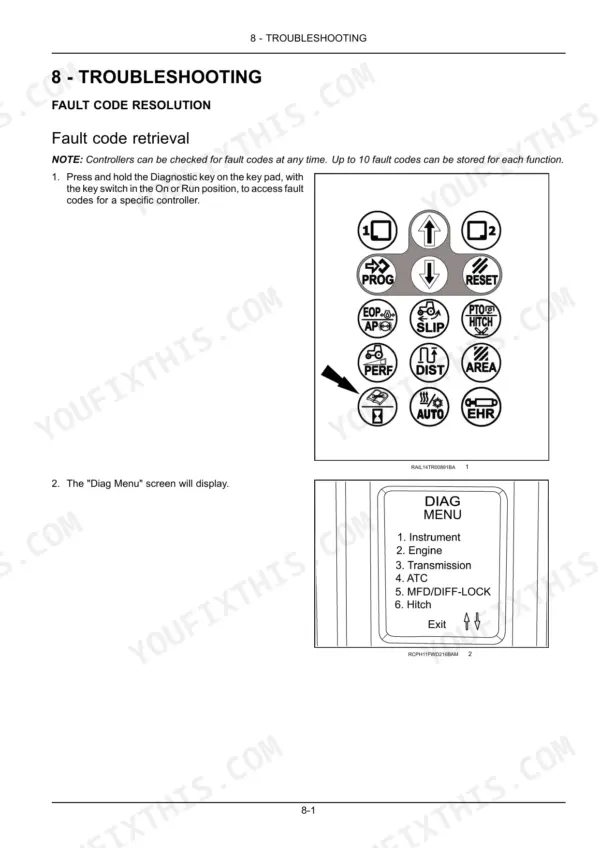

Can I read fault codes without a dealer laptop?
The Troubleshooting section covers fault code retrieval from the display along with the alarm and display warning list, so you can pull the code and identify what it points at. Component-level bench testing and overhaul are not part of an operator manual. p. 447
How much oil does a service take?
The Maintenance section lists engine oil capacity as 25 L for the T9.435, 27.25 L for the T9.480, T9.530 and T9.565, and 36 L for the T9.600, T9.645 and T9.700. Standard transmission capacity is 63 L, and 68 L on the T9.700 and T9.645 Scraper. p. 336
What do I get after purchasing this New Holland T9.435–T9.700 manual?
You get a 488-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland T9.435–T9.700 manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
