Built for the operator running a 150T, 155, 175, 210, 210T, 215, or 215T skid steer loader, this JCB skid steer operator manual (OEM #9831/5450) runs 270 pages. Operating procedures cover joystick control patterns, instrument panel indicators, slope protocols, and quickhitch attachment work, followed by safety warnings, maintenance interval schedules, error code readouts, and a technical data section listing static dimensions and weights for every variant. The hydraulic system holds 43.5L total, with 26L in the tank; the outer air filter swaps at 500 hours, the inner at 1,000. Service intervals shouldn't be guesswork. With bookmarks throughout, you can search any spec by keyword and pull it up right at the machine.
What's Inside This JCB 150T & variants Operator Manual

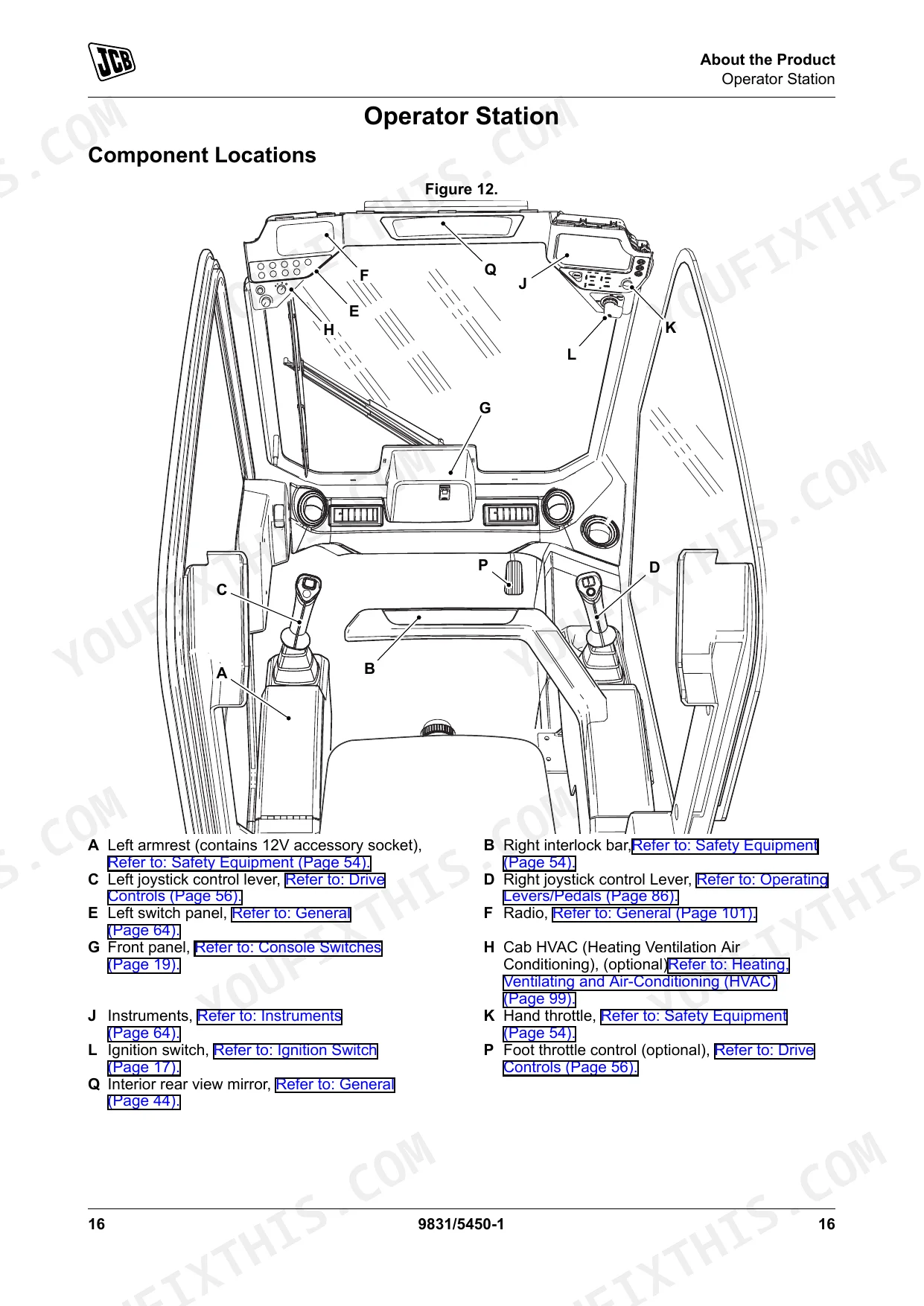

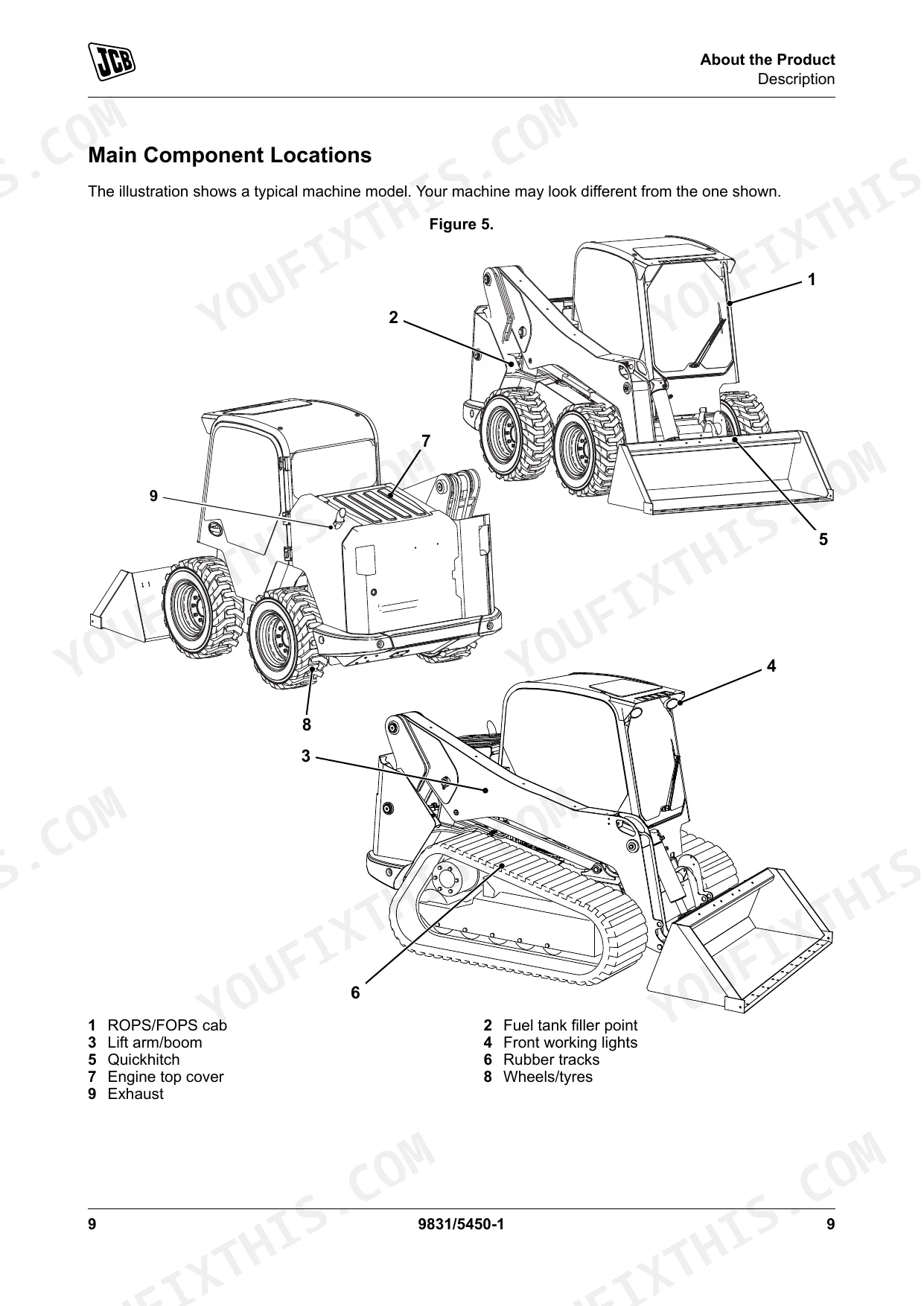

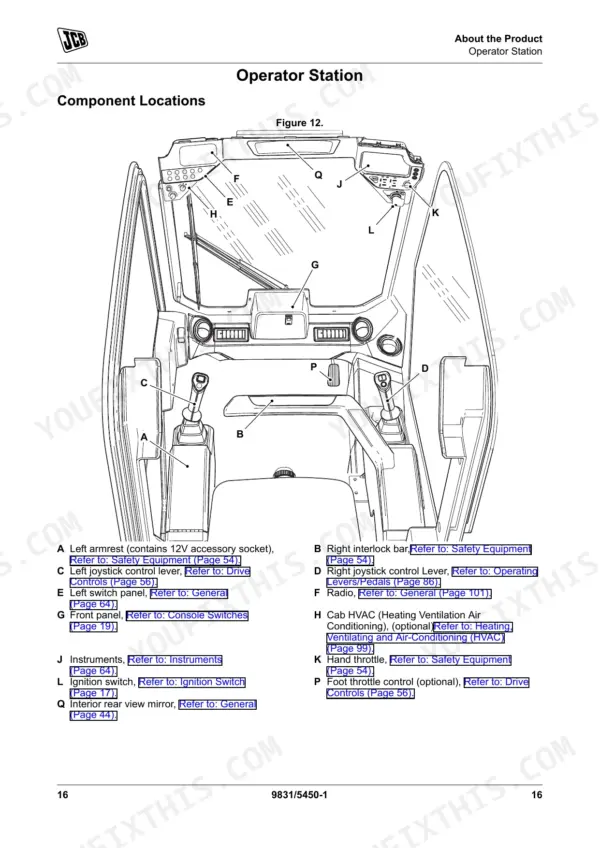

| System | Pages | Key Topics |
|---|---|---|
| About the Product | 19-32 | Introduction (General, Name and Address of the Manufacturer, Product Compliance) |

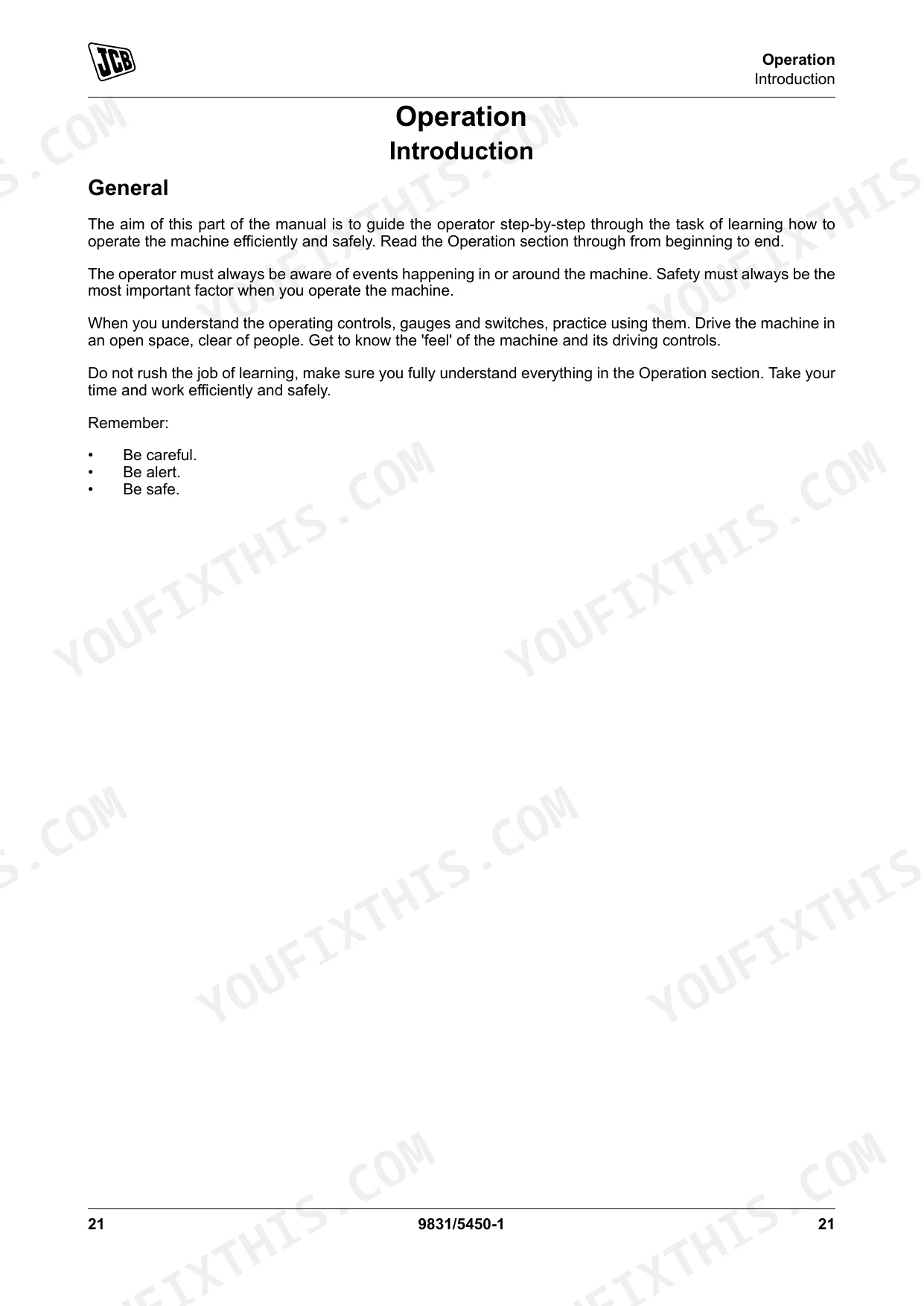

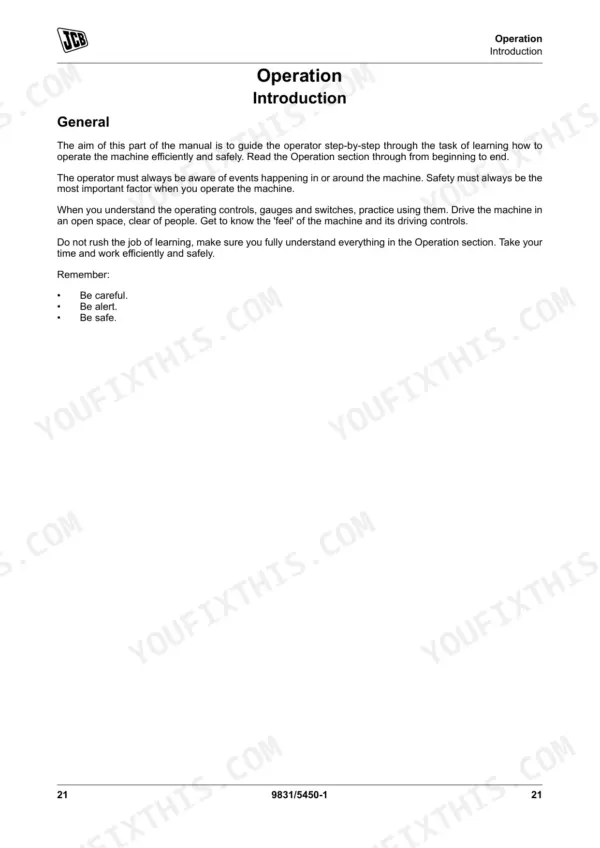

| Operation | 33-102 | Introduction, Operating Safety, Worksite Safety, Risk Assessment, Walk-Around Inspection, Entering and Leaving the Operator Station, Emergency Exit, Doors |
| Working with the Lift Arm | 103-110 | General, Lifting, Fork Ratings, Handling Palleted Loads, Unloading, Handling Bales, Placing Bales, Filling the Shovel |
| Heating, Ventilating and Air-Conditioning (HVAC) | 111 | General, R134a Refrigerant, Pag Type Refrigerant Oil |
| Power Sockets | 112 | Auxiliary Power Socket |
| Radio | 113-115 | General, Basic Operation (Power, Mute, Display, Liquid Crystal Display, Volume), To Set the Clock, Timer, Auxiliary Input Function, Audio and Menu Adjustment |
| Fire Extinguisher | 116 | General, Location - Option |
| Moving a Disabled Machine | 117-119 | General, Jump-Starting the Engine, Retrieval, Loader Arm (Load Recovery Procedure) |
| Lifting the Machine | 120-122 | General, Safe Lifting Procedure, Standard Lift Points, Fops Level 2 Lift Points |
| Transporting the Machine | 123-125 | General, Loading the Machine Onto the Transporting Vehicle/Trailer (Using a Trailer), Using a Truck, Transportation Safety |
| Operating Environment | 126-127 | General, Operating in Dusty or Sandy Areas, Operating in Coastal Regions, Operating on Wet or Soft Ground, Operating in Low Temperatures, Operating in High Temperatures |
| Refuelling | 128 | General, Low Fuel Levels, Filling the Tank |
| Attachments | 129-162 | Working with Attachments, Connecting/Disconnecting Hydraulic Hoses, Impact Protection, Attachment Frame, Quickhitch, Shovels, Grapple Shovel, In-1 Shovel |
| Preservation and Storage | 163-168 | Cleaning (General, Detergents, Pressure Washing and Steam Cleaning), Preparation, Checking for Damage (General) |

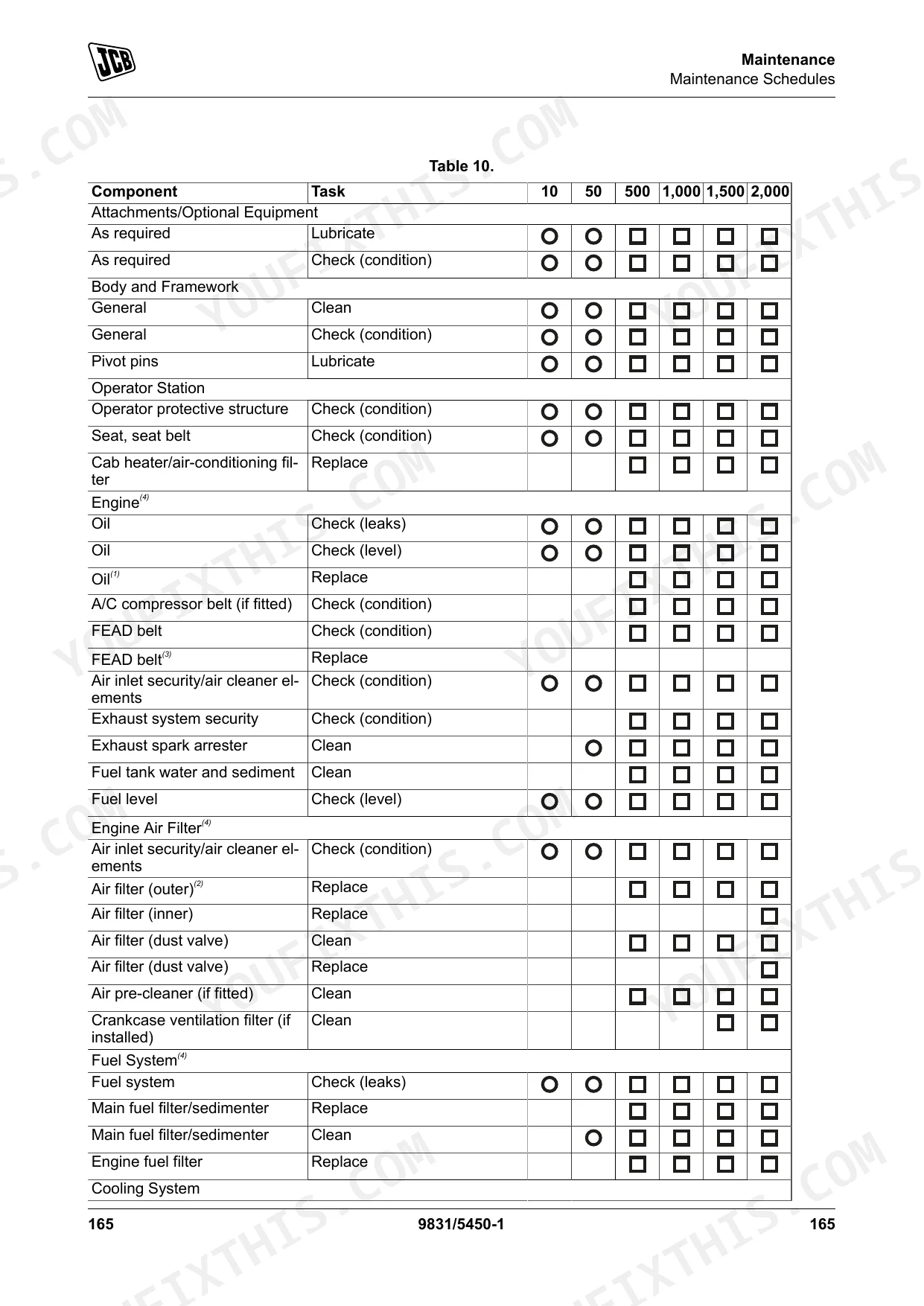

| Maintenance | 169-236 | Introduction (General, Owner/Operator Support, Service/Maintenance Agreements, Obtaining Spare Parts) |

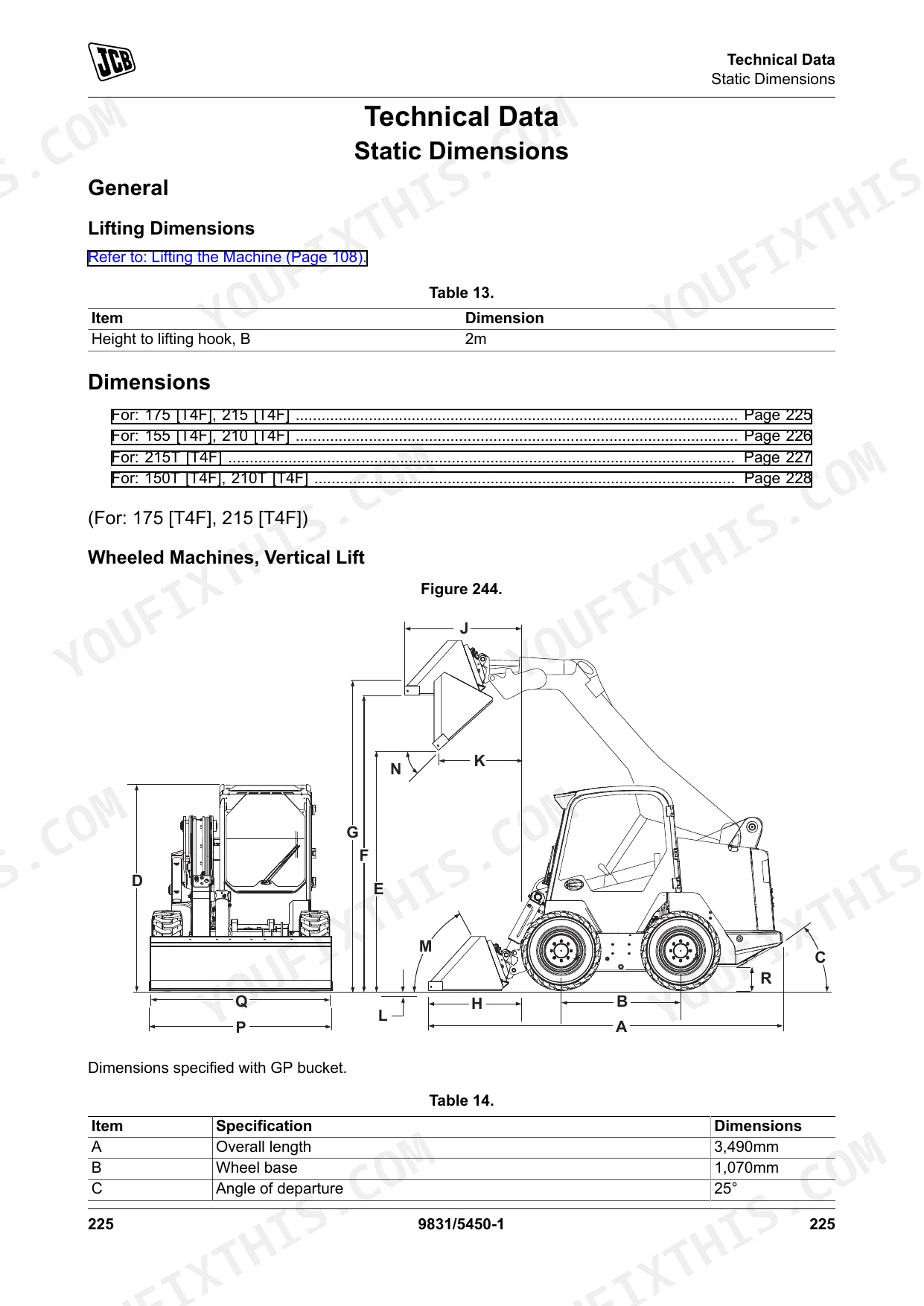

| Technical Data | 237-270 | Static Dimensions (General, Lifting Dimensions, For: 175 [T4F], 215 [T4F], For: 155 [T4F], 210 [T4F], For: 215T [T4F], For: 150T [T4F], 210T [T4F], Wheeled Machines, Vertical Lift, Tracked Machines, Tracked Machines - Radial Lift, Weights, Kohler Kdi 1903 Tcr, For: 210T [T4F], Kohler Kdi 2504 Tcr, Kohler Kdi 2504 Tcr) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 150T [T4F], 210T [T4F], 215T [T4F] | ||
| Track sprocket bolt torque | 368N·m | p. 255 |
| All Models | ||
| Air filter (outer) replacement interval | 500 hours | p. 177 |
| Air filter (inner) replacement interval | 1,000 hours | p. 177 |
| Hydraulic system capacity | System: 43.5L, Tank: 26L | p. 251 |
| Hydraulic fluid type | JCB Extreme Performance Hydraulic Fluid 46 (climates between -20°C (-4°F) and 46°C (115°F)) | p. 251 |
| Engine coolant capacity | 10L | p. 251 |
| Engine coolant type | JCB Antifreeze HP | p. 251 |
| Chain cases oil capacity (each side) | 19L | p. 251 |
| Chain cases oil type | JCB Engine Oil EP 15W40 | p. 251 |
| High speed operation temperature threshold for proper control response | below 0°C (32.0°F) | p. 59 |
| 150T [T4F], 155 [T4F], 175 [T4F] | ||
| Engine oil capacity | Min 5.5L, Max 7.4L | p. 251 |
| 210 [T4F], 210T [T4F], 215 [T4F], 215T [T4F] | ||
| Engine oil capacity | Min 7.8L, Max 10.2L | p. 251 |
JCB 150T & variants Common Problems This Manual Covers
JCB 150T hydraulic warning light flashing and loader arm response feels sluggish during operation p. 227
Inspect the hydraulic fluid through the sight glass as shown on page 227. If it looks cloudy from water or air contamination, drain the tank. Refill to the full 43.5L capacity with JCB Extreme Performance Hydraulic Fluid 46 (part 4002/2900).
Manual Section: Hydraulic System Pressure Discharge and Component ChecksEngine coolant temperature warning alarm sounds loudly and dashboard indicator flashes red p. 254
Stop the machine at once and, after the engine cools, check the coolant level in the expansion bottle. Confirm the mixture protects down to -40°C (-40°F) as page 254 specifies. Top up the cooling system to its 10L maximum with approved antifreeze.
Manual Section: Technical DataAir warning indicator illuminates on dashboard and engine power feels noticeably restricted p. 177
Examine the primary air filter element for heavy dust or debris. Replace the outer element right away, and confirm your service intervals on page 177. Fit a new inner element once the machine passes 1,000 hours of operation.
Manual Section: MaintenanceUnexpected grinding or clanking noise coming from the lower chain case during travel p. 251
Check the chain case oil level at the side inspection plug; fluid should be visible. If it looks degraded, drain both housings and refill each side with exactly 19L of fresh oil. See page 251 for approved oil grades.
Manual Section: Technical DataDrive controls and implement joystick on the JCB 175 feel stiff and unresponsive during winter morning startups p. 59
Let the machine warm at idle before any high-speed moves. Page 59 notes that high speed operation is restricted below 0°C (32.0°F). Wait for the hydraulic oil temperature gauge to climb into the normal operating zone.
Manual Section: OperationFrequently Asked Questions
How to reset the service light on a JCB 150T/155/175/210/210T/215/215T?
The service indicator shows the time to the next service. Reset it by pressing and holding the information switch for 3 seconds; that clears the display.
How to clear fault codes on a JCB skid steer loader?
You can cycle through error codes with the Up or Down button, but the manual gives no procedure for actively "clearing" them. When no active codes are present, the display reads "No Error Code".
What do the warning lights and error codes mean on a JCB 215T?
On the JCB 215T, the manual explains each warning light: the coolant temperature light flashes and alarms when critical, the fuel light turns red when low and flashes if empty or water is in the fuel, the hydraulic oil temperature light turns red and alarms when critical, and the malfunction light shows amber for caution or red for a critical warning. It displays an "ERR CODE" readout but lists no specific error code meanings.
How to reset the hydraulic pressure sensor fault on a JCB skid steer?
If hydraulic charge pressure drops too low, the warning light comes on and "service required" appears. The manual offers no procedure for resetting a hydraulic pressure sensor fault, which points to service by a qualified technician.
Is this JCB 150T & variants Operator Manual a digital download?
A 270-page operator manual in searchable PDF, available the moment you check out. Read it on a computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and take it to the shop floor.
Document Quality
This document is a scanned PDF with a high-quality OCR layer, allowing you to search and copy the full text content. The main body text is consistently crisp and easy to read throughout. Diagrams and illustrations, while raster-based, are clear with readable labels, though some text in them is slightly less sharp than the main text. Pages are clean and free from scan artifacts, stains, or skewed content. Please note there are several intentionally blank "Notes:" pages included for your convenience.
