Looking for the John Deere 14SZ technical manual PDF? This 716-page factory Technical Manual (TM1471) covers twelve walk-behind mower models in one download: the 12PB, 12PC, 12SB, 14PB, 14PT, 14PZ, 14SB, 14SC, 14SX, 14SE, and 14ST alongside the 14SZ. You get full teardown and rebuild procedures for the Briggs & Stratton 2-cycle, B&S 4-cycle, and Kawasaki FC150V engines, plus wiring diagrams, exploded views, and a dedicated troubleshooting section for the blade brake clutch, zone start, and Kansaki 2-speed and 5-speed transaxles. Torque the Kawasaki cylinder head cap screws to 18 N·m initial and 24 N·m final, then set intake valve clearance at 0.127 to 0.179 mm on the 14PZ and 14SZ. Your mower is down and the grass keeps growing. Bookmarked PDF that opens on any device; find the spec, walk to the machine, fix it.
What's Inside This John Deere 12PB, 12PC, 12SB, 14PB, 14PT, 14PZ, 14SB, 14SC, 14SX, 14SE, 14ST, 14SZ Manual
| System | Pages | Key Topics |
|---|---|---|

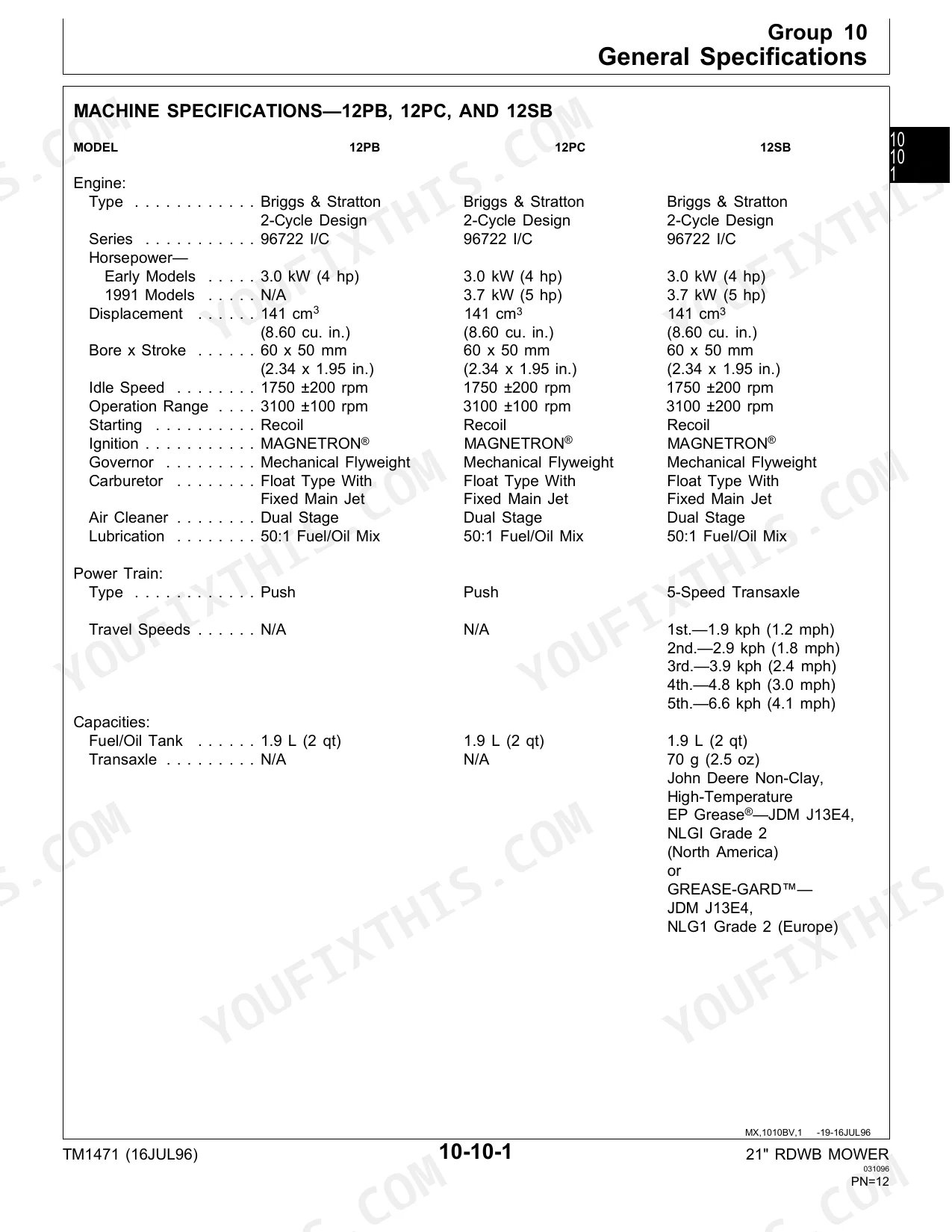

| General Information | 11-52 | Safety, Repair Specifications, Fuels and Lubricants, Serial Number Locations |

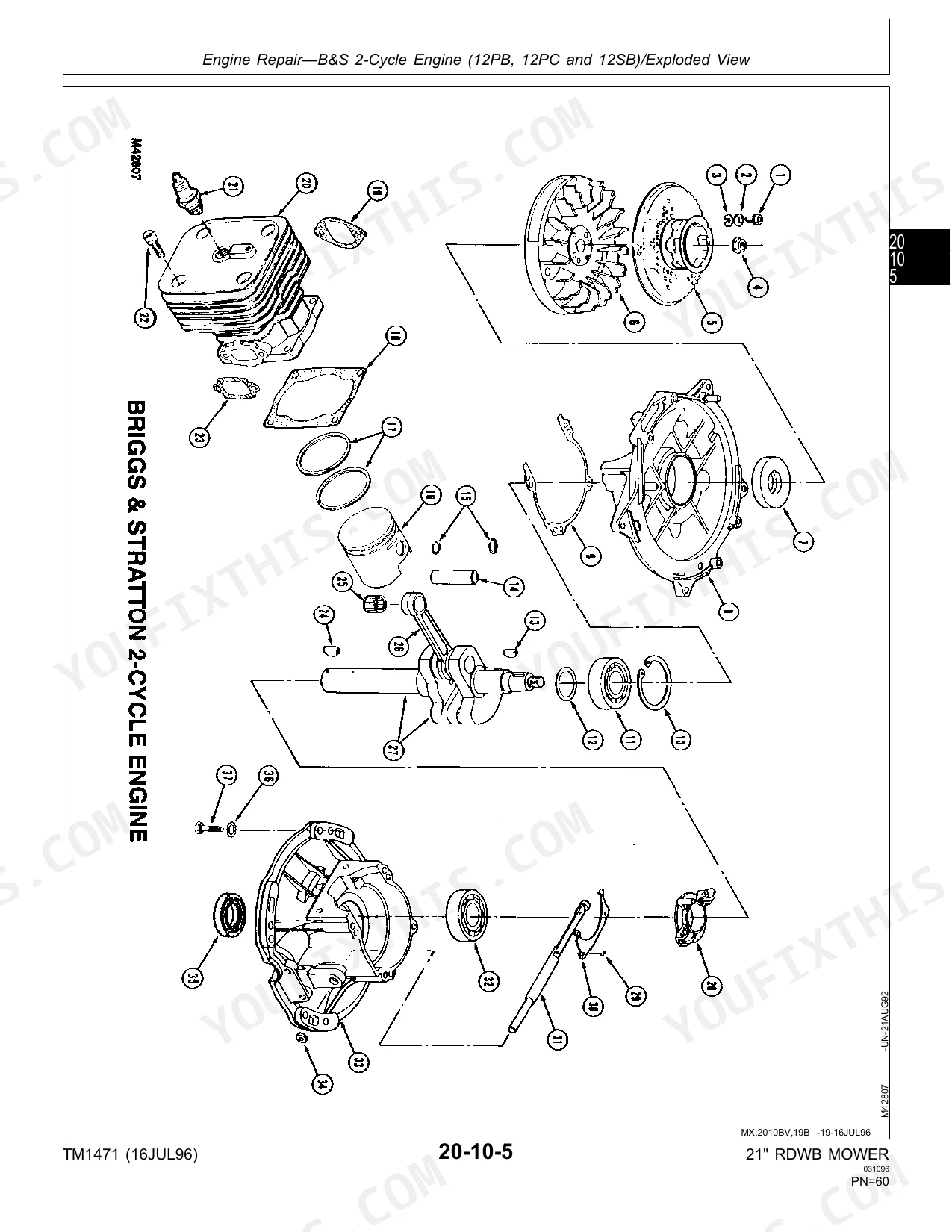

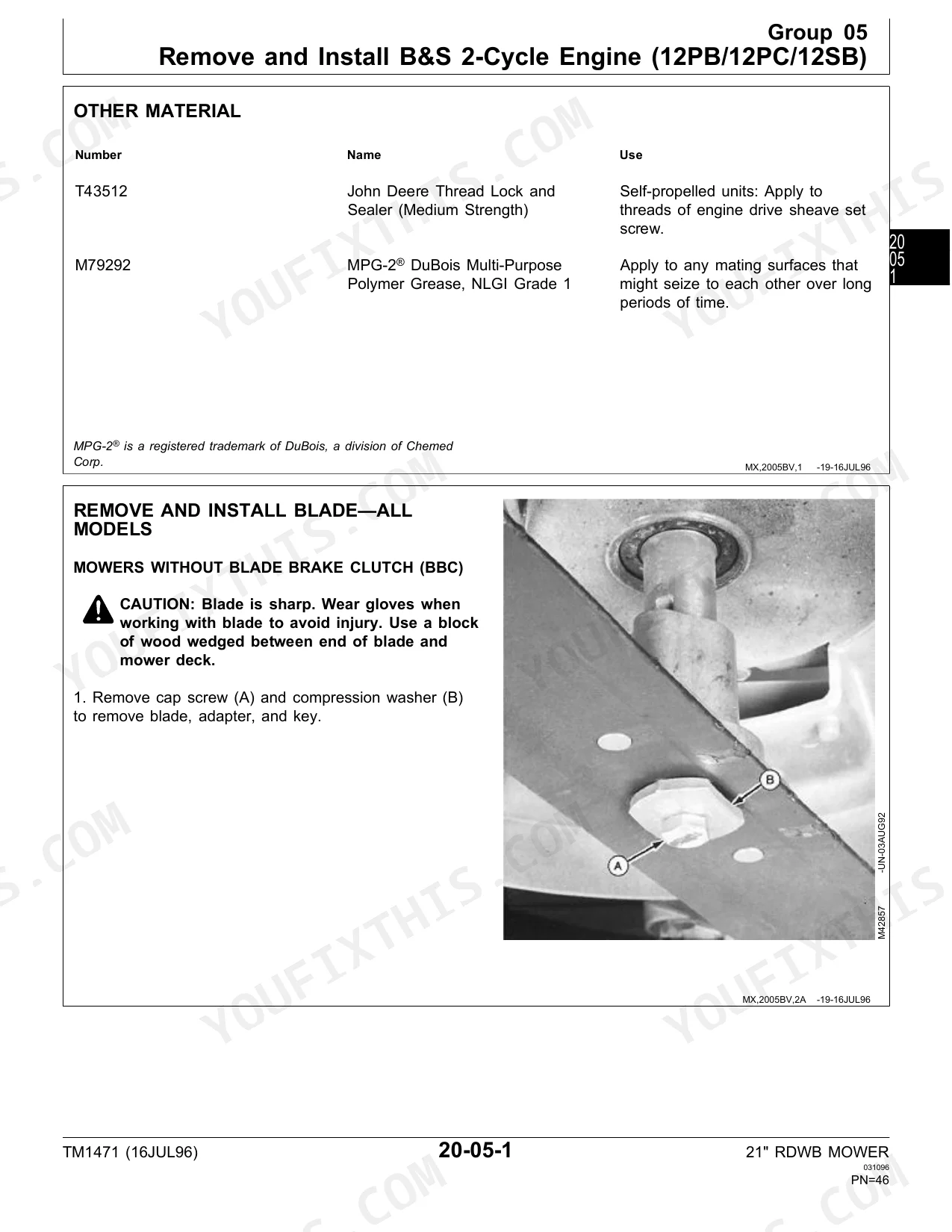

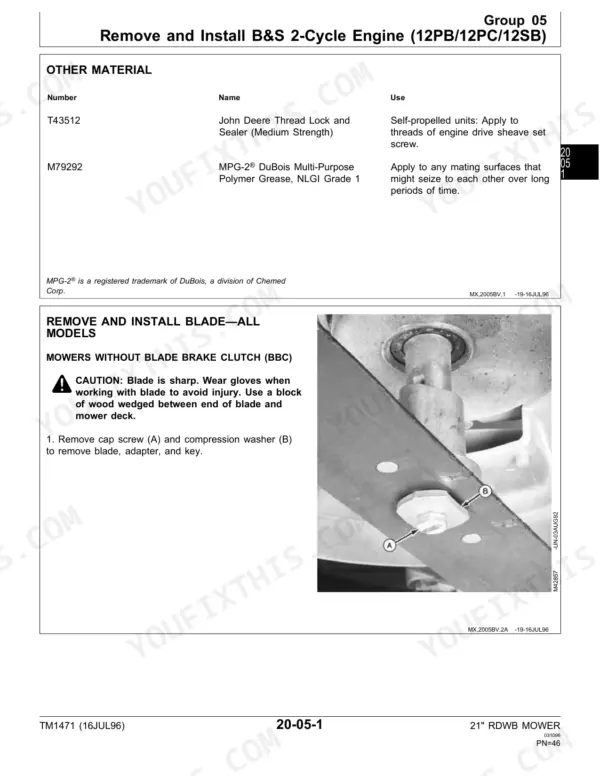

| Engine Repair - Briggs & Stratton 2-Cycle Engine | 53-96 | Remove and Install B&S 2-Cycle Engine, Engine Repair - B&S 2-Cycle Engine, Recoil Start Repair - B&S 2-Cycle Engine |
| Engine Repair - Briggs & Stratton 4-Cycle Engine | 97-154 | Remove and Install B&S 4-Cycle Engine, Disassemble Engine - B&S 4-Cycle Engine, Recoil Start |
| Engine Repair - Kawasaki 4-Cyc Eng | 155-210 | Remove and Install Engine, Engine Repair - Kawasaki FC150V 4-Cycle Engine, Recoil Start and Electric Start Repair |
| Fuel and Air - B&S 2-Cycle Engine | 211-228 | Air Cleaner Assembly, Carburetor Assembly - B&S 2-Cycle, Fuel Tank Assembly - B&S 2-Cycle |
| Fuel and Air - Briggs & Stratton 4-Cycle Engine | 229-242 | Air Cleaner Assembly - B&S 4-Cycle, Carburetor Assembly - B&S 4-Cycle, Fuel Tank - B&S 4-Cycle |
| Fuel and Air - Kawasaki 4-Cyc Eng | 243-260 | Air Cleaner/Breather/Carburetor - Kawasaki 4-Cycle, Fuel Tank Assembly - Kawasaki 4-Cycle, Exhaust System - Kawasaki 4-Cycle |
| Electrical System - Briggs & Stratton 2-Cycle | 261-266 | Ignition Coil - B&S 2-Cycle, Safety Switch - B&S 2-Cycle |
| Electrical System - Briggs & Stratton 4-Cycle | 267-272 | Ignition Coil - B&S 4-Cycle, Safety Switch - B&S 4-Cycle |
| Electrical System - Kawasaki 4-Cyc | 273-280 | Battery - Kawasaki 4-Cycle, Key Switch - Kawasaki 4-Cycle, Ignition/Charging Repair - Kawasaki 4-Cycle |
| Power Train - Bbc Mowers | 281-302 | Blade Brake Clutch (Bbc), Drive Belt, Blade Brake Clutch (Bbc) Control Cable, Lever and Bail |
| Power Train - Zone Start | 303-318 | Flywheel Brake Assembly, Drive Belt, Flywheel Brake Control Cable and Bail |
| Power Train - Kansaki 2-Speed Transaxle | 319-342 | Remove and Install Transaxle, Disassemble and Assemble Transaxle, Shift Cable and Lever Assembly |
| Power Train - Kansaki 5-Speed Transaxle | 343-366 | Remove and Install Transaxle, Disassemble and Assemble Transaxle, Shift Cable and Lever Assembly |
| Miscellaneous Repair | 367-418 | Wheels, Wheel Height Adjusters, Throttle Cable and Control Lever |
| Test and Adjustment Specifications/Operational Checkout Procedure | 419-432 | Test and Adjustment Specifications, Operational Checkout Procedure |
| Engine Operation Tests and Adjustments - Briggs & Stratton 2-Cycle | 433-454 | Component Location, Diagnosis, Tests and Adjustments |
| Engine Operation Tests and Adjustments - Briggs & Stratton 4-Cycle | 455-494 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Engine Operation Tests and Adjustments - Kawasaki | 495-534 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Fuel/Air Operation Tests and Adjustments - Briggs & Stratton 2-Cycle | 535-542 | Theory of Operation, Diagnosis, Tests and Adjustments |
| Fuel/Air Operation Tests and Adjustments - Briggs & Stratton 4-Cycle | 543-550 | Theory of Operation, Diagnosis, Tests and Adjustments |
| Fuel/Air Operation Tests and Adjustments - Kawasaki | 551-558 | Theory of Operation, Diagnosis, Tests and Adjustments |

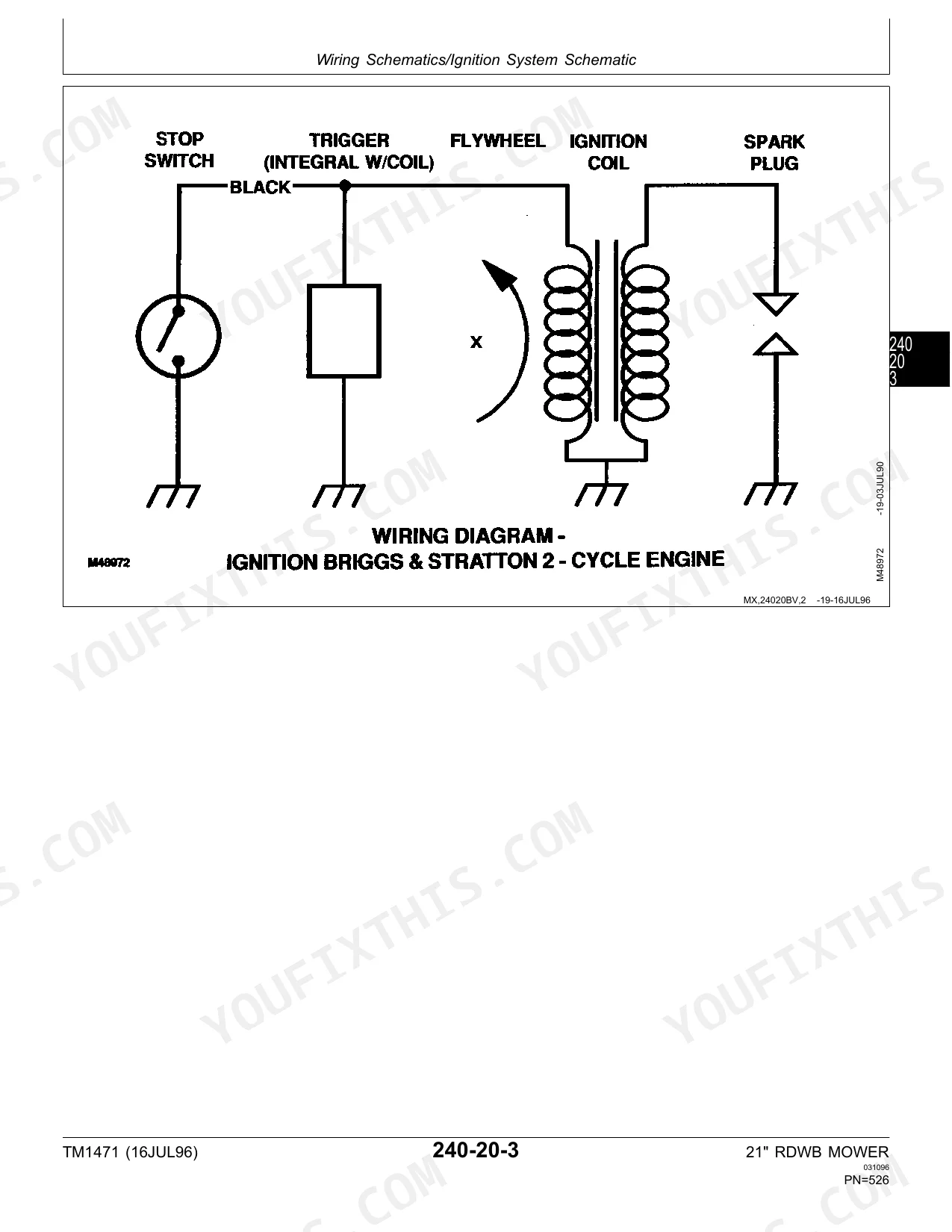

| Electrical Operation Tests and Adjustments - Briggs & Stratton 2-Cycle | 559-578 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Electrical Operation Tests and Adjustments - Briggs & Stratton 4-Cycle | 579-596 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Electrical Operation Tests and Adjustments - Kawasaki Engine | 597-630 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Power Train Operation Tests and Adjustments | 631-668 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
| Power Train Tests and Adjustments | 669-704 | Component Location, Theory of Operation, Diagnosis, Tests and Adjustments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

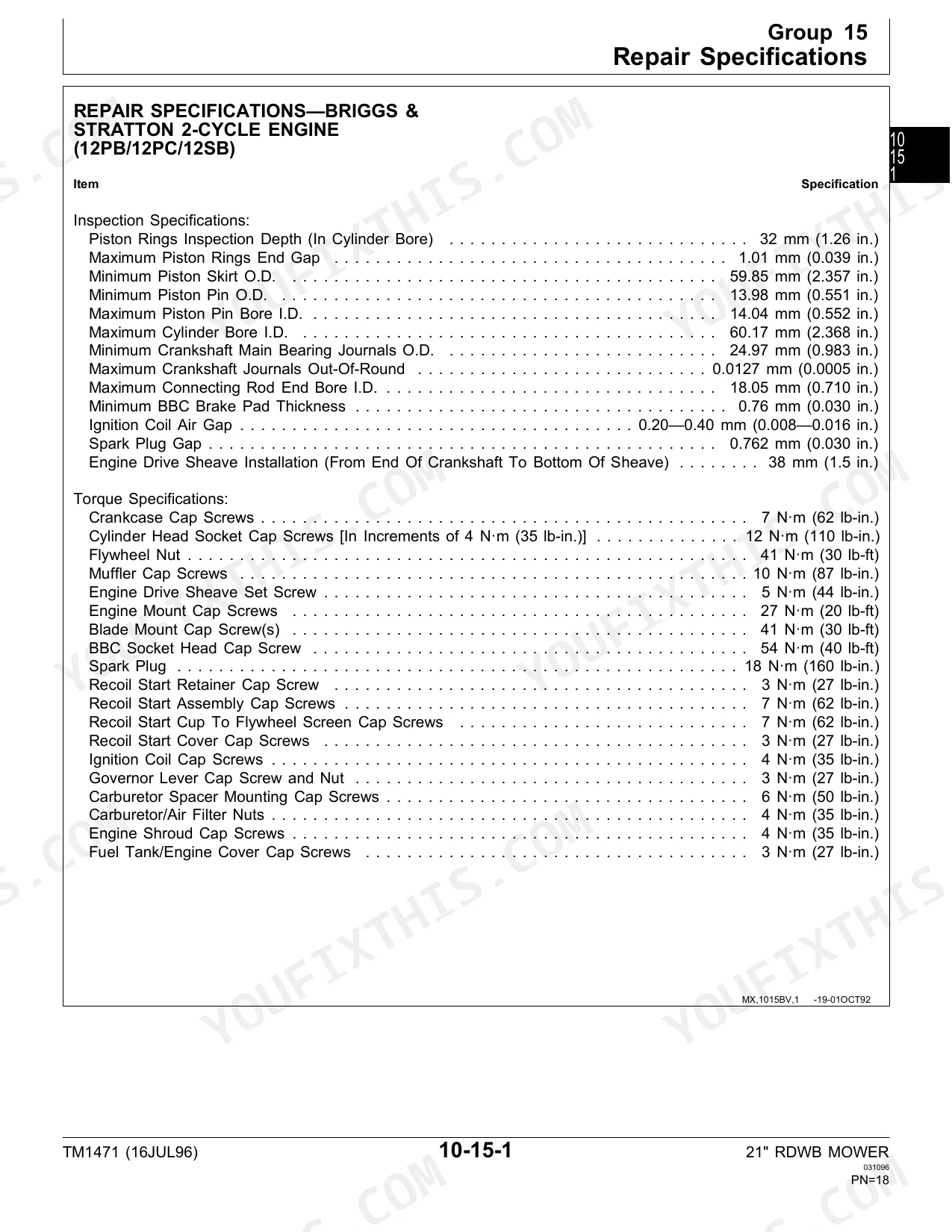

| Cylinder Head Socket Cap Screws (Briggs & Stratton 2-Cycle) | 12 N·m | p. 9 |
| Cylinder Head Socket Cap Screws (Briggs & Stratton 4-Cycle 14PZ/14SZ) | 16 N·m | p. 11 |
| Intake Valve Clearance (Briggs & Stratton 4-Cycle 14PZ/14SZ) | 0.127—0.179 mm | p. 26 |
| Exhaust Valve Clearance (Briggs & Stratton 4-Cycle 14PZ/14SZ) | 0.179—0.229 mm | p. 26 |
| Cutting Width | 533 mm | p. 23 |
| Cutting Height Range | 13 to 90 mm | p. 23 |
| Wheel Diameter | 200 mm | p. 23 |
| 12PB, 12PC, 12SB | ||
| Fuel/Oil Tank Capacity (12PB, 12PC, 12SB) | 1.9 L | p. 19 |
| 14PB, 14PT, 14SB | ||
| Fuel Tank Capacity (14PB, 14PT, 14SB) | 1.3 L | p. 20 |
| 14PZ | ||
| Fuel Tank Capacity (14PZ) | 1.4 L | p. 20 |
| 14PB, 14PT, 14PZ, 14SB | ||
| Crankcase Oil Capacity (14PB, 14PT, 14PZ, 14SB) | 0.60 L | p. 20 |
| 12SB, 14SB, 14SC, 14SX, 14SE | ||
| Transaxle Grease Capacity (12SB, 14SB, 14SC, 14SX, 14SE) | 70 g | p. 20 |
John Deere 12PB, 12PC, 12SB, 14PB, 14PT, 14PZ, 14SB, 14SC, 14SX, 14SE, 14ST, 14SZ Common Problems This Manual Covers

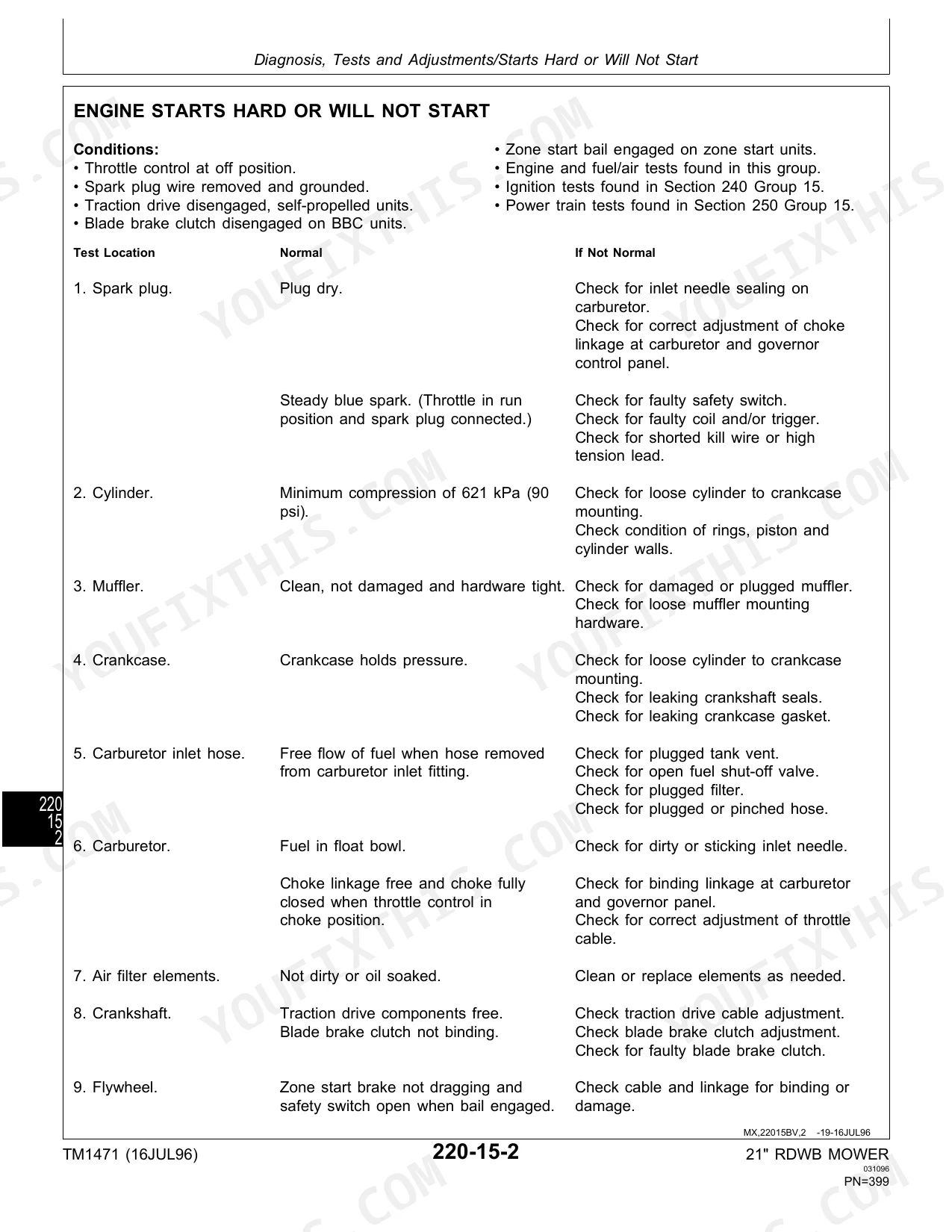

John Deere 12SB two-cycle engine cranks but will not start or starts hard after winter storage
Check spark plug condition and gap first, then work through the troubleshooting chart starting on page 438: cylinder compression, muffler, crankcase seals, carburetor, and air filter. If the flywheel was pulled during ignition service, verify the flywheel key is intact and torque the flywheel nut to 41 N·m before retesting for spark.
Manual Section: Engine Operation Tests and Adjustments - Briggs & Stratton 2-Cycle p. 438Four-cycle engine runs rough, misses at full throttle, will not stay running when warm
Check the diagnosis procedures for the four-cycle Briggs engine beginning on page 455. Drain stale fuel, clean or replace the air filter, and inspect the carburetor. On 14PZ and 14SZ engines, measure valve clearance cold and set intake to 0.12-0.18 mm and exhaust to 0.18-0.23 mm per the specs on page 421.
Manual Section: Engine Operation Tests and Adjustments - Briggs & Stratton 4-Cycle p. 455Blue smoke at startup and oil soaking the air filter after tipping mower on its side
Drain the crankcase through the cover drain plug and reinstall it torqued to 21 N·m on Kawasaki engines (page 29). Refill with fresh oil; 14PB, 14PT, and 14SB crankcases hold 0.60 L (page 20). Clean oil out of the air cleaner housing and replace a soaked filter element before restarting.
Manual Section: Engine Operation Tests and Adjustments - Kawasaki p. 495Self-propelled drive slips under load, wheels barely pull in tall grass or uphill
Inspect the drive belt for glazing, cracks, and correct routing, then verify shift cable adjustment using the power train diagnosis procedures beginning on page 631. If the transaxle gets opened during repair, repack it with 70 g of grease on 12SB, 14SB, 14SC, 14SX, and 14SE units (page 20) before reassembly.
Manual Section: Power Train Operation Tests and Adjustments p. 631Blade brake clutch slips or blade keeps spinning after operator releases the bail
Frequently Asked Questions
What are the torque specifications for the blade mount cap screw on a John Deere 12PB mower?
The torque specification for the blade mount cap screw on the 12PB mower is 41 N·m (30 lb-ft). p. 25
How do I adjust the valve clearance on a Kawasaki 4-cycle engine?
To adjust the valve clearance on a Kawasaki 4-cycle engine, rotate the crankshaft until the piston is at the highest position in the compression stroke. Measure the clearance and, if necessary, loosen the nut (A) and turn the pivot (B) in or out to adjust the clearance to 0.12 mm (0.005 in.). Tighten the nut to 7 N·m (62 lb-in.). p. 177
What is the correct spark plug gap for a Briggs & Stratton 2-cycle engine?
The correct spark plug gap for a Briggs & Stratton 2-cycle engine is 0.762 mm (0.030 in.). p. 25
What is the fuel/oil mixture ratio for a 2-cycle engine?
The recommended fuel/oil mixture ratio for a 2-cycle engine is 50:1, using 3.8 L of gasoline to 76 ml of oil, or 4.5 L of gasoline to 90 ml of oil. p. 42
What is the torque specification for the flywheel nut on a Briggs & Stratton 4-cycle engine?
The torque specification for the flywheel nut on a Briggs & Stratton 4-cycle engine is 75 N·m (55 lb-ft). p. 27
What format is this John Deere 12PB & variants manual in?
A 716-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this John Deere 12PB & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
