Part of the John Deere Repair Manuals.
This is the complete John Deere factory repair manual (TM102619) for the 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M and 5105ML tractors. Across 1,933 pages it covers every major system: engine teardown and rebuild for two diesel families, all four transmission variants, full hydraulic service from pump to hitch valve, electrical wiring with harness diagrams, steering, brakes and cab components. Torque values, fluid capacities and test pressures are called out throughout so the job is done to factory spec the first time.
What's Inside This John Deere 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5105ML Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, General Specifications, Fuel and Lubricants, Serial Number Locations | |
| Engine | Engine Removal and Rebuild, Cooling System | |

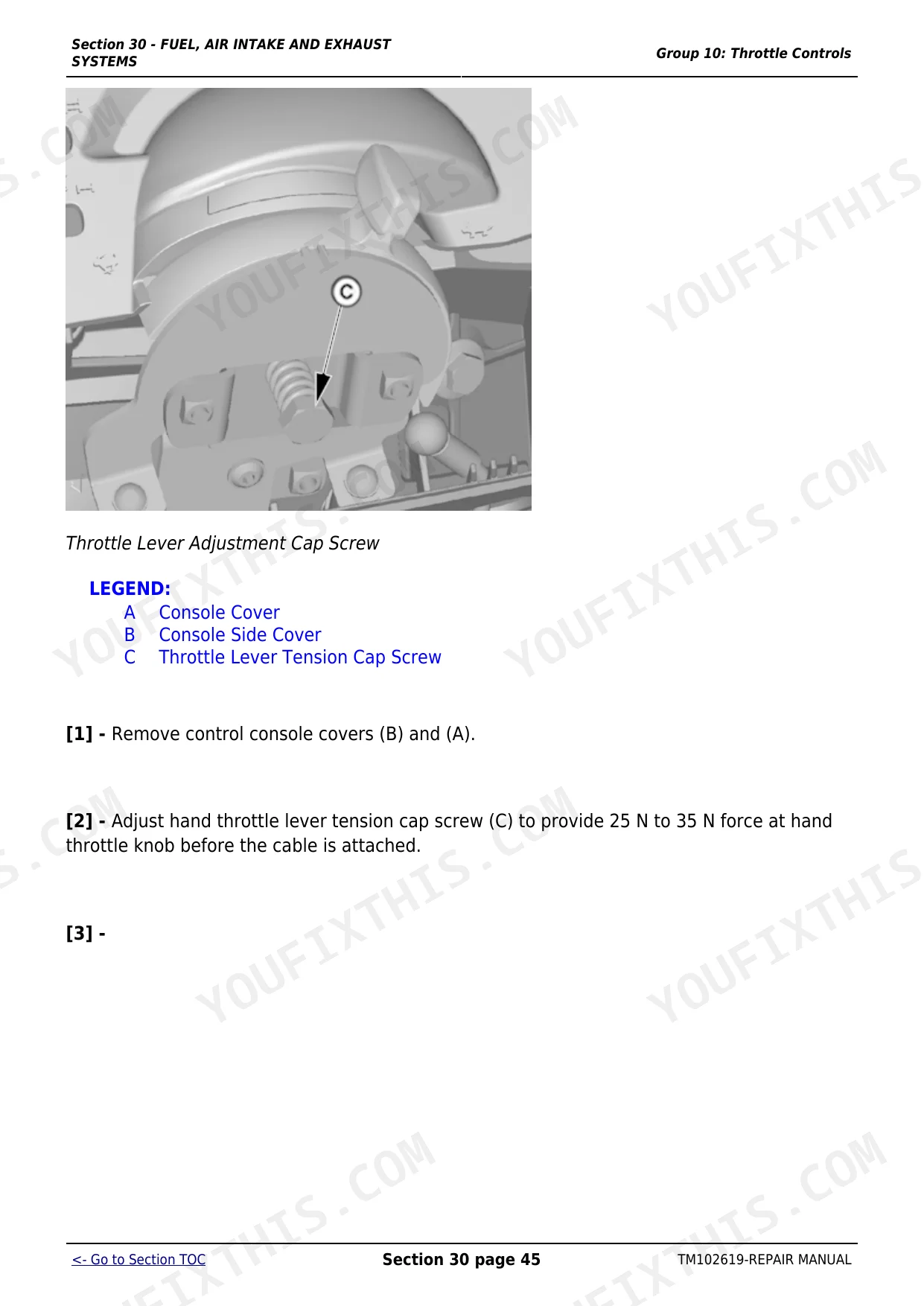

| Fuel, Air Intake and Exhaust Systems | Fuel System, Throttle Controls, Air Intake System, Air Exhaust System | |

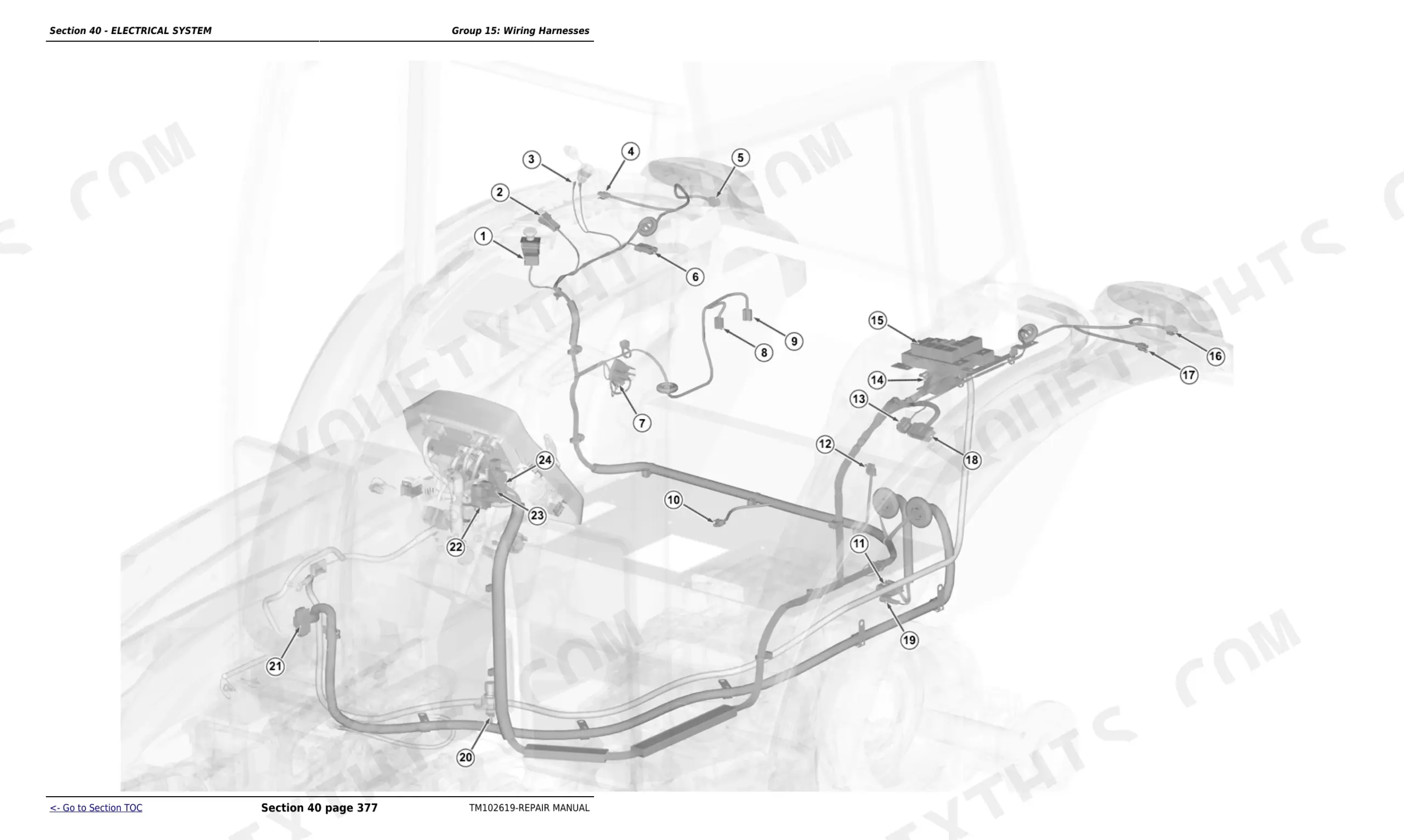

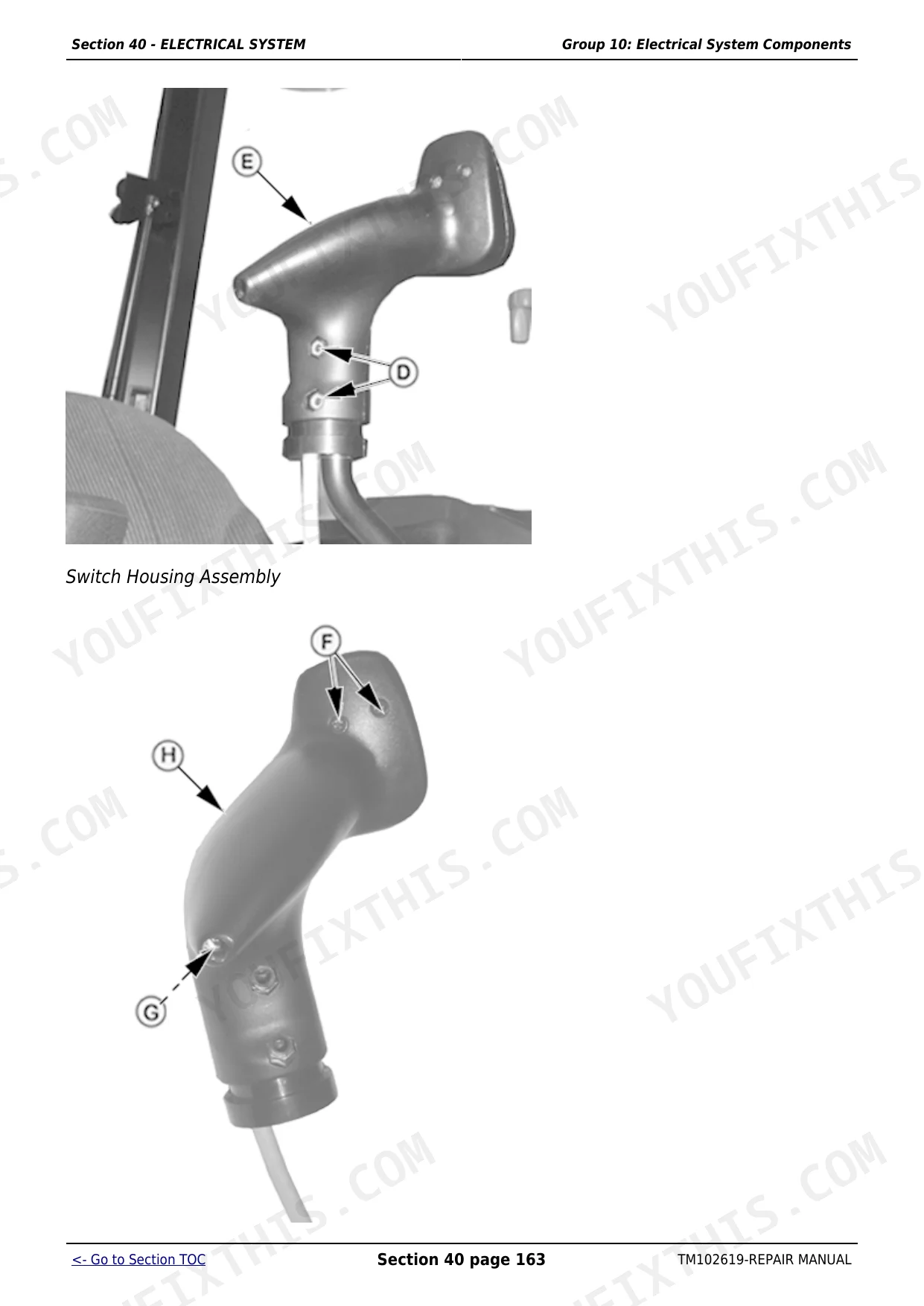

| Electrical System | Battery, Starter and Alternator, Electrical System Components, Wiring Harnesses | |
| Power Train | SyncShuttle Plus Transmission, SyncReverser Transmission, PowrReverser Transmission, PowrReverser Plus Transmission, Clutch Assembly, Differential, Control Valve, Final Drives, Hi-Crop Final Drives, MFWD, Creeper Assembly | |
| Steering and Brake | Steering Repair, Brake Repair | |
| Hydraulic System | Hydraulic Pump and Filter, Hydraulic Oil Cooler, Hitch Valve, Rear Selective Control Valve, Mid-Mount Selective Control Valve, Hydraulic Lines, Hydraulic Trailer Brake Valve | |
| Miscellaneous | Front Axle 2WD, 3-Point Hitch, Fenders, Hood | |
| Operator's Station | Seat and Support, Control Console, Roll-Gard, Cab Components, Open Operator's Station Components, Air Conditioning System, Heating System | |
| Special Tools | Dealer Fabricated Tools, Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5065M | ||
| Rated Engine Power (ISO 97/68/EC, +/-3%) | 47.5 kW (63.8 hp) | |
| 5075M | ||
| Rated Engine Power (ISO 97/68/EC, +/-3%) | 55 kW (73.8 hp) | |
| 5085M | ||
| Rated Engine Power (ISO 97/68/EC, +/-3%) | 63.5 kW (85.2 hp) | |
| 5065M-5075M (3.0 L) / 5085M-5105M (4.5 L) | ||
| Engine Displacement | 3.0 L (184 cu in.) In-line 5 / 4.5 L (276 cu in.) In-line 4 | |
| 5065M, 5075M | ||
| Crankcase Capacity with Filter | 10 L (2.6 gal) | |
| 5085M, 5095M, 5095MH, 5105M | ||
| Crankcase Capacity with Filter | 13 L (3.4 gal) | |
| All models | ||
| Transmission-Hydraulic System Capacity | 53 L (14 gal) | |
| Hydraulic System Working Pressure | 19500 +/- 500 kPa (195 +/- 5 bar / 2878 +/- 73 psi) | |
| Hydraulic Pump Flow (Standard) | 73.6 L/min (19.4 gpm) | |
| Cooling System Pressure | 70 kPa (0.7 bar / 10 psi) | |
| PTO Speed | 540, 540E and 1000 rpm | |
| 5065M-5095MH / 5105M | ||
| Hitch Lift Capacity at 610 mm behind Hitch Balls | 1631 kg (3595 lb) / 2041 kg (4498 lb) | |
John Deere 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5105ML Common Problems This Manual Covers
Engine stalls under load or loses power intermittently in high-dust environments
This points to fuel starvation from a clogged final fuel filter or a restricted primary air filter. The Fuel, Air Intake and Exhaust Systems section covers the complete fuel system service procedure, including filter replacement and fuel pump inspection. Check and replace the air filter at the 1200-hour interval specified in the General Information section to prevent repeat starvation events.
Manual Section: Fuel, Air Intake and Exhaust SystemsHydraulic lift functions become slow or stop responding without visible external leaks
Worn hydraulic pump or internal valve seat failure in the lift control circuit are the most common causes. The Hydraulic System section covers removing and testing the hydraulic pump, checking flow rate against the 73.6 L/min (19.4 gpm) standard spec and inspecting the hitch valve and rear selective control valve for internal leakage before replacing the pump.
Manual Section: Hydraulic SystemEngine overheating even after cleaning the radiator externally
A failing water pump or internal debris in the cooling circuit from missed oil changes is the usual cause when external cleaning does not help. The Engine section covers water pump removal and inspection, and the cooling system pressure test (70 kPa / 0.7 bar). Verify coolant capacity is correct (13 L for 5065M/5075M, 11.4 L for 5085M+) and bleed any air pockets before condemning the pump.
Manual Section: EngineDiagnostic port (DLC) will not communicate with scan tools after 2-3 years of field use
Corroded or broken pins in the 12-pin DLC connector from moisture exposure are the primary cause. The Electrical System section covers wiring harness and connector inspection and repair procedures. Clean the connector pins, check for bent or pushed-back terminals and test continuity back to the ECU before replacing the connector body. Replacing only the terminal pins often restores communication without rewiring the harness.
Manual Section: Electrical SystemFrequently Asked Questions
What engine power ratings do the John Deere 5M Series tractors produce?
The 5065M makes 47.5 kW (63.8 hp), the 5075M makes 55 kW (73.8 hp) and the 5085M makes 63.5 kW (85.2 hp), all measured to the ISO 97/68/EC standard at +/-3 percent. The General Information section lists the rated output for all seven variants and confirms which engine family each model uses.
What transmission types does this manual cover?
The manual covers four transmission families: SyncShuttle Plus (12 forward/4 reverse), SyncReverser (16 forward/16 reverse), PowrReverser (16 forward/16 reverse) and PowrReverser Plus (32 forward/16 reverse). The Power Train section covers clutch assembly, differential, control valve, final drives and the creeper assembly for each variant.
How do I diagnose a hydraulic lift that is slow or unresponsive on a John Deere 5085M?
Start by checking the transmission-hydraulic system fluid level (53 L / 14 gal capacity) and filter condition. The Hydraulic System section covers removing and testing the hydraulic pump and verifying working pressure (19500 kPa / 195 bar). If pump output is good, check the hitch valve and rear selective control valve for internal leakage before pulling major components.
What are the key fluid capacities for the John Deere 5M Series tractors?
Crankcase capacity is 10 L (2.6 gal) for the 5065M and 5075M, and 13 L (3.4 gal) for the 5085M through 5105M. Transmission-hydraulic system capacity is 53 L (14 gal) for all models. Cooling system capacity is around 13 L for the smaller models and 11.4 L for the larger ones. The General Information section lists all capacities and the correct lubricant specifications.
Does this manual cover the electrical wiring for the 5M Series tractors?
Yes. Section 40 covers the full electrical system: battery service, starter and alternator, all electrical system components and wiring harnesses. It includes the information needed to trace faults such as a non-functional diagnostic port (DLC) or intermittent electrical failures caused by corroded harness connectors.
Is this John Deere 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5105ML manual a?
This is a 1933-page searchable PDF (100 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this John Deere 5065M, 5075M, 5085M, 5095M, 5095MH, 5105M, 5105ML manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
