This is the John Deere TM1792 Technical Manual for the 5105 and 5205 utility tractors, both powered by the 3029D PowerTech engine. It is the same 894-page factory service document Deere technicians use, covering the tractor in two halves: repair sections that show how to rebuild each component, and operation and test sections that help you diagnose faults before you start turning wrenches.Inside you get engine, fuel and air, electrical, power train, steering, brake, and hydraulic coverage, plus operational checkout procedures, wiring schematics, and torque and clearance specifications throughout. Whether you are chasing a hard start, an overheating engine, a weak hydraulic lift, or a clutch problem, the diagnostic groups walk you through it step by step.Delivered as a downloadable PDF you can read on any device or print, so the pages you need are on the bench when the tractor is apart.
What's Inside This John Deere 5105, 5205 Manual

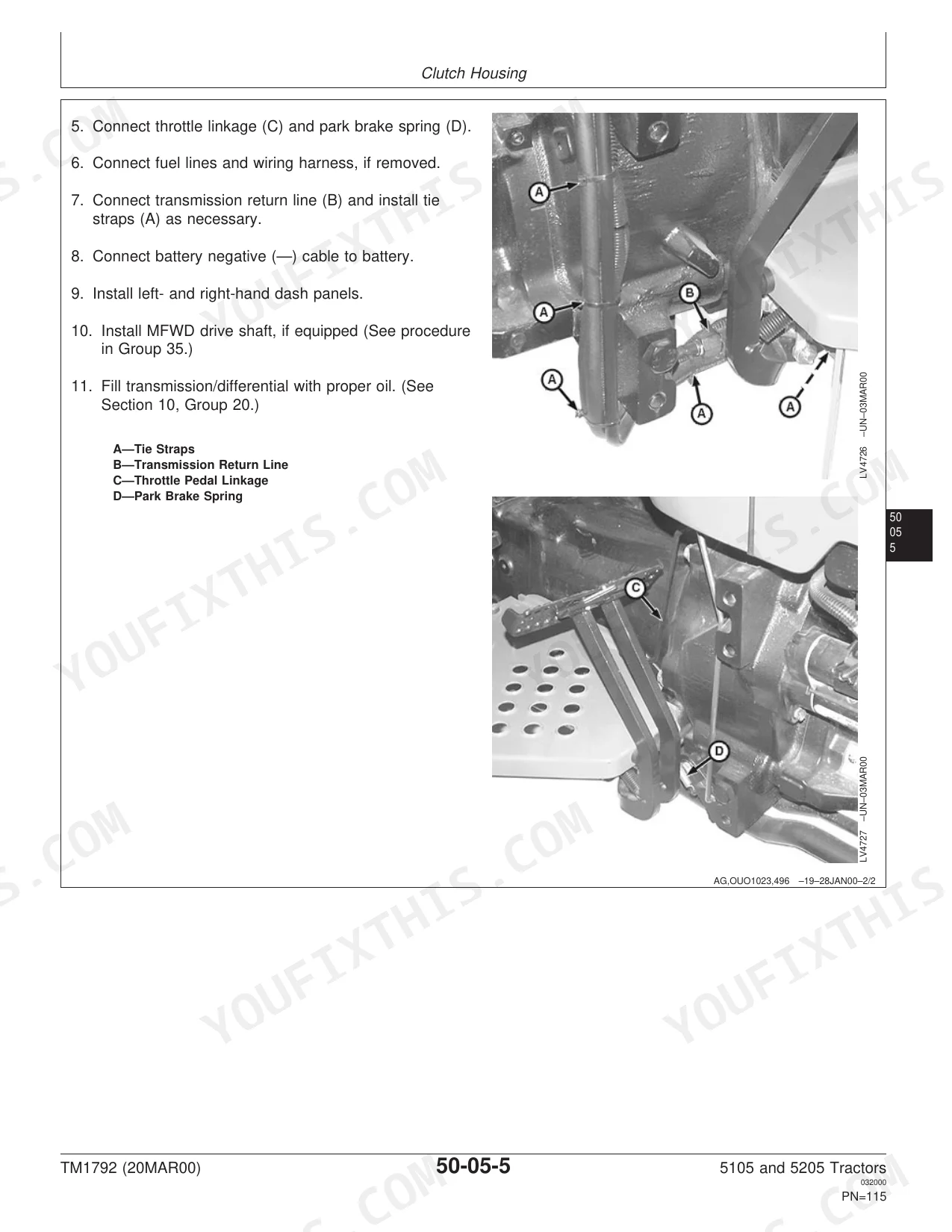

| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-60 | Safety, Fuel and Lubricants, Serial Number Locations, Features and Accessories |
| Engine Repair | 61-78 | Engine, Cooling System |
| Fuel and Air Repair | 79-88 | Fuel System, Air Intake System, Speed Control Linkage |
| Electrical Repair | 89-110 | Battery, Starter and Alternator, Electrical System Components, Wiring Harness |
| Power Train Repair | 111-244 | Clutch Housing, Clutch Assembly, Transmission, Rear PTO, Differential, Final Drives, Mechanical Front Wheel Drive |
| Steering and Brake Repair | 245-276 | Steering Repair, Brake Repair |
| Hydraulic Repair | 277-348 | Hydraulic Pump and Filter, Rockshaft, Selective Control Valve, Hydraulic Mid Mount Coupler |
| Miscellaneous Repair | 349-366 | Front Axle?2WD, Wheels, 3-Point Hitch |
| Operator Station Repair | 367-386 | Seat and Support, Roll-Gard?, Operator Platform, Fenders |
| Operational Checkout Procedures | 387-416 | Engine Oil Level and Condition Check, Coolant Level and Condition Check, Transmission and Hydraulic Oil Check, Electrical System Check, Hydraulic System Check, Brake Check |

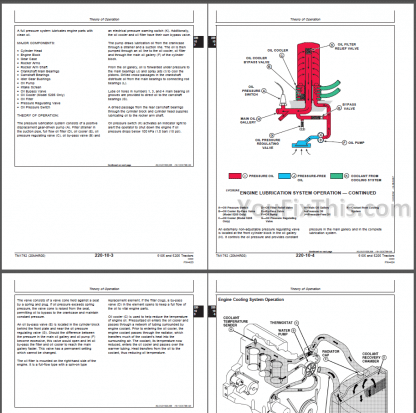

| Engine Operation, Tests and Adjustments | 417-462 | Engine Component Location, Lubrication & Cooling Theory of Operation, Hard-Start / Low-Power / Smoke Diagnosis, Oil Pressure & Compression Tests, Injection Pump Timing, Valve Clearance Adjustment |
| Fuel/Air Operation, Tests and Adjustments | 463-482 | Fuel & Air Intake Component Location, Fuel System / Injection Nozzle Theory of Operation, Fuel-Air Diagnosis, Tests and Adjustments |
| Electrical System Operation, Tests & Adjust | 483-670 | Component Location, Theory of Operation, Diagnosis, Test and Adjust, Wiring Schematics |
| Power Train Operation, Tests & Adjustments | 671-730 | Component Location?Power Train, Theory of Operation?Transmission, Diagnosis, Tests and Adjustments?Power Train |
| Steering and Brake Operation, Test & Adjust | 731-764 | Steering & Brake Component Location, Steering Valve Theory of Operation, Steering Pump Flow & Relief Tests, Steering Cylinder Leakage Test, Toe-In & Brake Pedal Adjustment |
| Hydraulic System Operation, Test & Adjust | 765-878 | Component Location, Theory of Operation, Diagnosis, Hydraulic Tests?Without SCV, Hydraulic Tests?With SCV, Hydraulic Tests?With Mid Mount Control Valve, Hydraulic Tests?All |
| Dealer Fabricated Tools | 879-882 | DFLV1A Final Drive Turning Tool |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

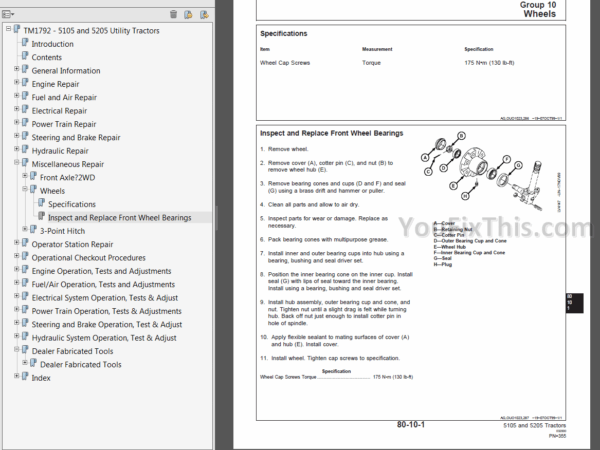

| Front Wheel Cap Screws Torque (2WD) | 175 N•m (130 lb-ft) | p. 357 |
| MFWD Front Wheel Nuts Torque | 300 N•m (220 lb-ft) | p. 225 |
| Fuel Filter Element | Replace element | p. 434 |
| Radiator Cap Pressure Valve Opening Pressure | 43—53 kPa (0.43—0.53 bar) (6.25—7.75 psi) | p. 431 |
| New Standard V-Belt—JDG529 Gauge Method Tension | 578—622 N (130—140 lb force) | p. 431 |
| Used Standard V-Belt—JDG529 Gauge Method Tension | 378—423 N (85—94 lb force) | p. 431 |
| Fuel Injection Nozzle Line Nuts Torque | 27 N•m (20 lb-ft) | p. 462 |
| Crankcase Breather | No restrictions | p. 442 |
| Thermostat (Starts to open / full open) | 71°C (160°F) / 95°C (202°F) | p. 443 |
| Engine Oil Temperature at 825 rpm Engine Speed Temperature | 93°C (200°F) | p. 431 |
| Power train housings condition | Clean and dry, with no evidence of leakage from drain plugs, gaskets or seals. | p. 720 |
| Engine Displacement | 2.9 L | p. 21 |
John Deere 5105, 5205 Common Problems This Manual Covers
Hard starting or no start
Air in the fuel system, a clogged fuel filter element, water or dirt in the fuel, or faulty injectors can leave these tractors cranking without firing. The Fuel and Air Repair section covers the fuel system, air intake, and speed control linkage where these faults live.
Manual Section: Fuel and Air Repair p. 79Engine overheats
A dirty radiator core, low coolant, a failing radiator cap, or a loose fan belt push coolant temperature up until the engine runs hot. The Engine Operation, Tests and Adjustments section carries the cooling diagnosis, thermostat, and radiator cap pressure checks.
Manual Section: Engine Operation, Tests and Adjustments p. 417Engine knock under load
Insufficient oil, injection pump timing that has drifted, low coolant temperature, or running the tractor overloaded can produce a knock. The Engine Repair section covers the engine and cooling system teardown needed to trace it.
Manual Section: Engine Repair p. 61Clutch or transmission trouble
Slipping clutches, hard shifting, or noise from the transmission become more common as the hours climb on the 5105 and 5205. The Power Train Repair section covers the clutch housing, clutch assembly, transmission, differential, and final drives.
Manual Section: Power Train Repair p. 111Weak or slow hydraulic lift
A 3-point hitch that lifts slowly or will not hold load usually points to the hydraulic pump, filter, rockshaft, or selective control valve. The Hydraulic Repair section covers each of these assemblies.
Manual Section: Hydraulic Repair p. 277No start with a charged battery
When the battery is charged but the tractor still will not crank, the fault is often in the starter circuit, wiring, or a safety switch. This section provides component locations, diagnosis, and full wiring schematics.
Manual Section: Electrical System Operation, Tests & Adjust p. 483Oil leaks from power train housings
Wet housings around drain plugs, gaskets, or seals signal a leak; the factory standard is housings clean and dry with no evidence of leakage. This section covers the diagnosis and the checks.
Manual Section: Power Train Operation, Tests & Adjustments p. 671Frequently Asked Questions
Which tractors does the TM1792 manual cover?
It covers the John Deere 5105 and 5205 utility tractors, both built around the 3029D PowerTech engine. This is the TM1792 technical manual, the factory repair and diagnostic document for these two models.
What are the front wheel torque values?
On the 2WD front axle the wheel cap screws torque to 175 N•m (130 lb-ft), and the MFWD front wheel nuts torque to 300 N•m (220 lb-ft). The Wheels section lists the hardware and procedure. p. 357
At what temperature does the thermostat open?
The thermostat starts to open at 71°C (160°F) and is fully open at 95°C (202°F). The Engine Operation, Tests and Adjustments section carries the cooling diagnosis and the radiator cap and oil temperature checks. p. 417
The battery is charged but it will not start. Where do I look?
Start in the Electrical System Operation, Tests and Adjust section, which gives component locations, starter and charging diagnosis, and full wiring schematics to trace the starter circuit and safety switches. p. 483
Is this John Deere 5105, 5205 Technical Manual a digital download?
Instant PDF download. You get the full 894-page searchable Technical Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this John Deere 5105, 5205 manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the John Deere 5105, 5205.
