Hunting for the John Deere 777, 797 Technical Manual PDF? All 428 pages of TM2077 cover your Max-Frame Z-Trak Mower from the gasoline engine to the mower deck and MCS blower. You get full electrical schematics with wiring harness layouts and circuit diagnostics, plus a hydrostatic power train section that pairs the hydraulic system schematic with pump and wheel motor repair steps. Open to the troubleshooting charts when the machine acts up, or flip to the metric and inch fastener torque tables before you reach for a wrench. Set the PTO clutch air gap at 0.3-0.6 mm, gap the spark plugs to 0.75 mm, and confirm the battery cranks 340 amps at -18°C. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a real text layer: search any spec, jump to any section, get back to mowing.
What's Inside This John Deere 777, 797 Manual
| System | Pages | Key Topics |
|---|---|---|

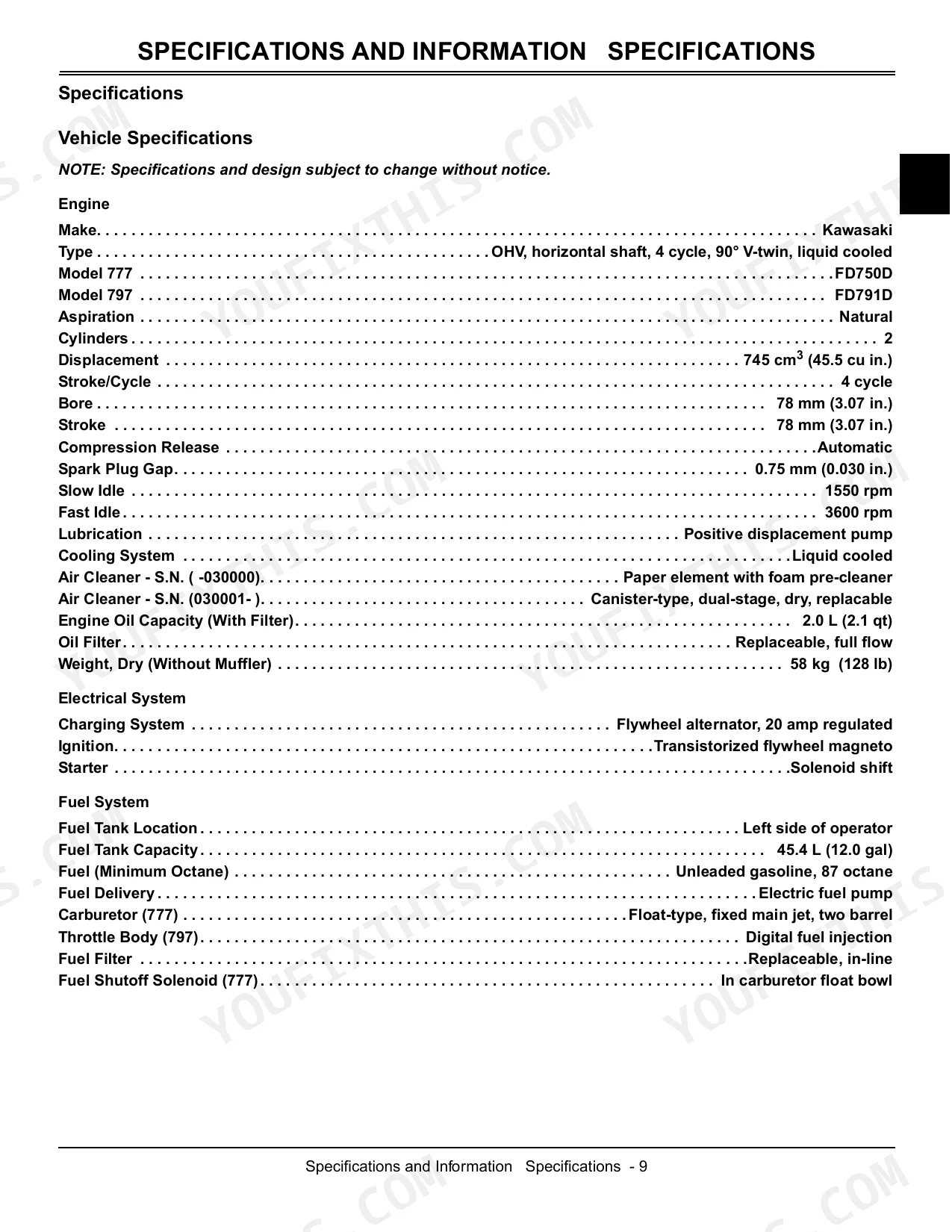

| Specifications | 9-11 | Vehicle Specifications |

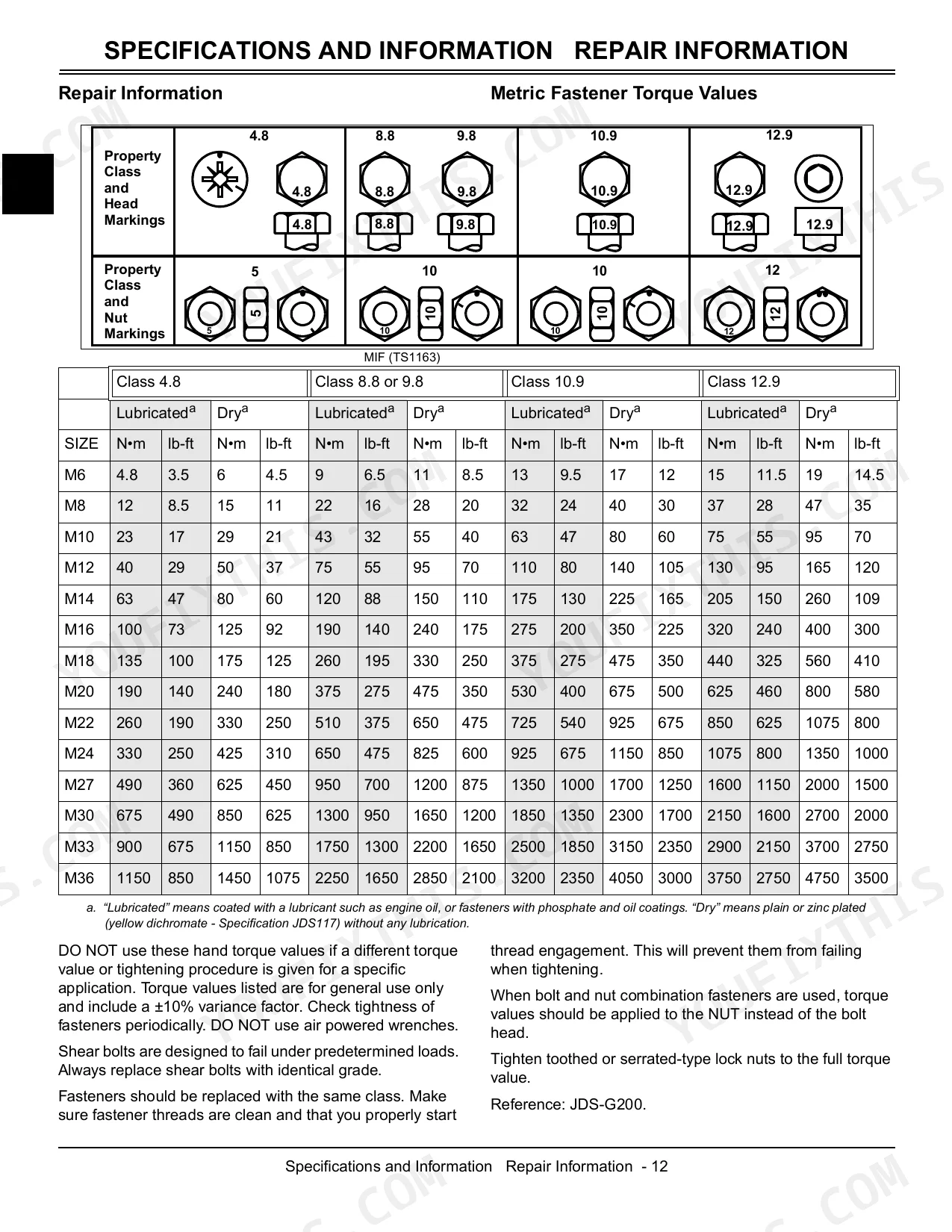

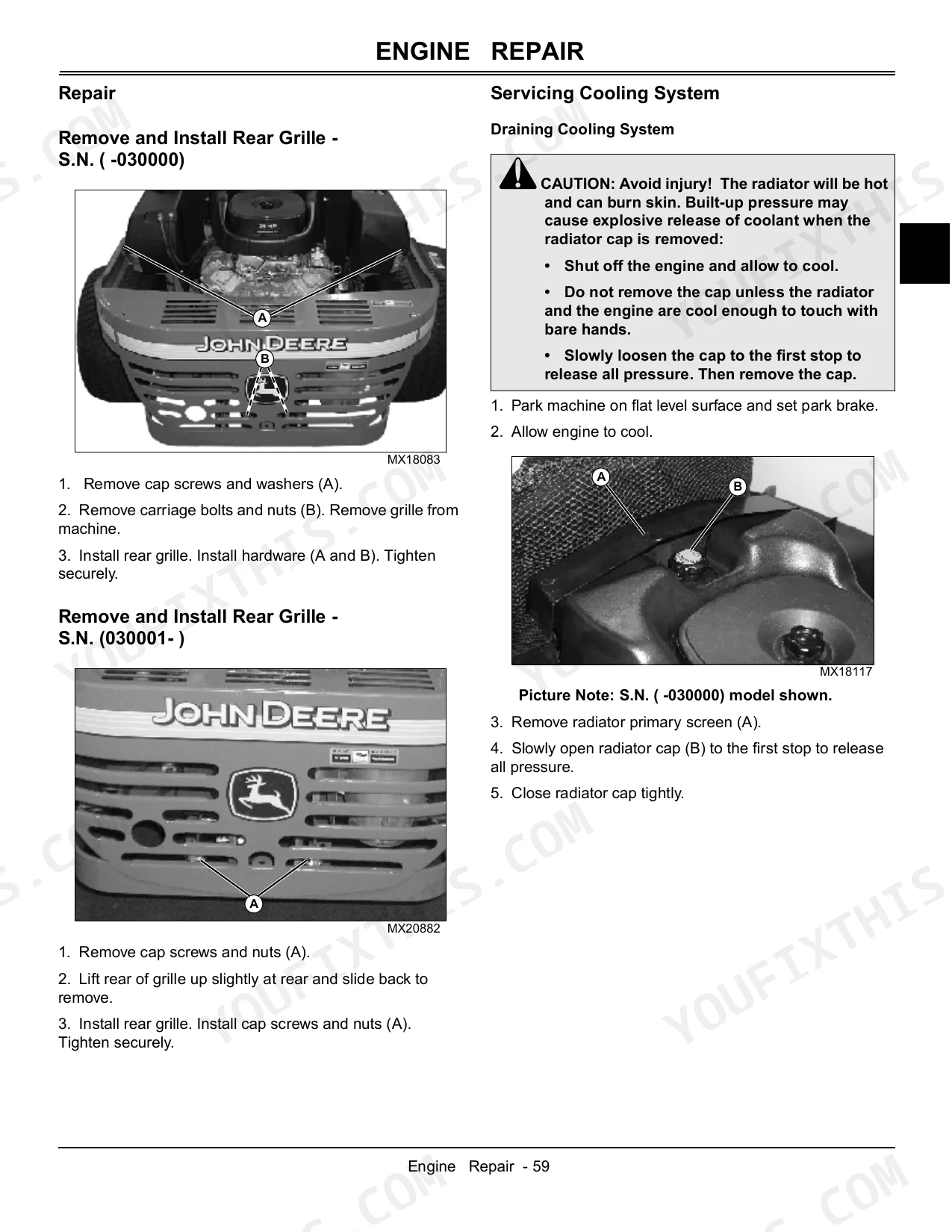

| Repair Information | 12-18 | Metric Fastener Torque Values, Metric Fastener Torque Values - Grade 7, Inch Fastener Torque Values, Hydraulic Fitting Service Recommendations, O-Ring Seal Service Recommendations |
| Gasoline | 19 | Using Proper Fuel, Engine Oil |
| Oils & Lubricants | 19-20 | Engine Oil, Hydrostatic Transmission and Hydraulic Oil, Grease, Alternative Lubricants, Synthetic Lubricants, Lubricant Storage, Mixing of Lubricants, Oil Filters |
| Coolant Specifications | 21 | Synthetic Lubricants, Lubricant Storage, Mixing of Lubricants, Oil Filters |
| Machine Identification | 22-26 | Identification Number Locations, Engine Serial Number, Coolant Drain Interval, Coolant Requirements |
| Engine | 27-122 | Engine Specifications, Theory of Operation, Engine Diagnostics, Repair Procedures, Starting Motor Disassembly |
| Electrical Section Contents | 123-128 | Section Table of Contents, Component Index |
| Schematic Legend and Component Location | 129-135 | Wiring Harness Legend, Symbol Legend, Component Location |

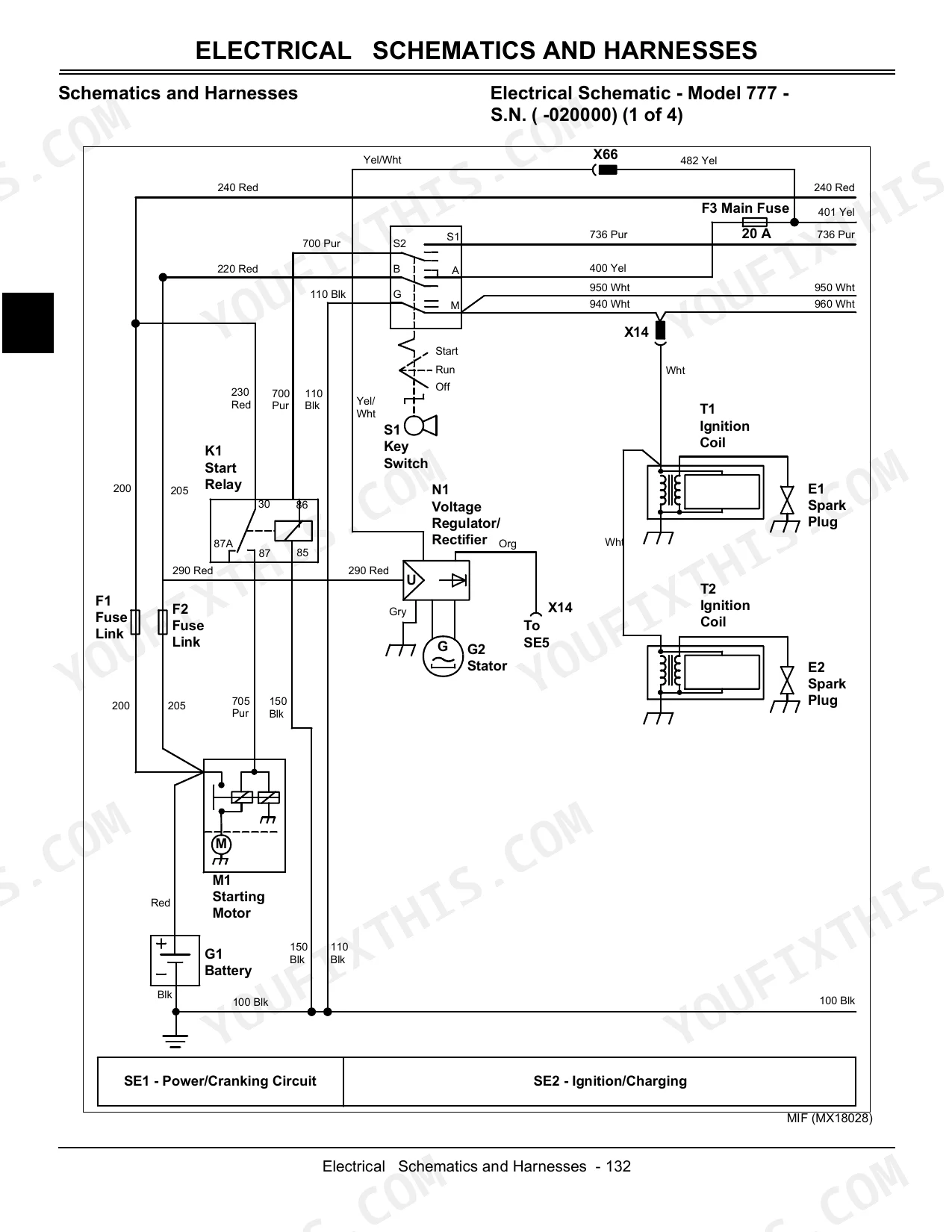

| Electrical Schematics and Harnesses | 136-176 | Electrical Schematics, Wiring Harnesses, Connector Views, Harness Routing |
| Circuit Operation and Diagnosis | 177-273 | Circuit Operation, Diagnostic Procedures, Starting Circuit, Charging Circuit, PTO Circuit, Safety Interlock Circuit |
| Electrical Tests and Adjustments | 274-291 | Component Tests, Neutral and Interlock Switch Adjustment, Voltage and Continuity Checks |
| Electrical Repair | 292-296 | Connector Removal, Component Replacement |
| Hydrostatic Power Train | 297-348 | Hydraulic System Schematic, Hydrostatic Pump Repair, Wheel Motor Repair, Motion Control Linkages |
| Brakes | 349-360 | Brake System Operation, Park Brake Diagnostics, Brake Band Replacement, Park Brake Linkage Repair |
| Attachments and Index | 361-428 | Mower Deck Repair, MCS Blower Repair, Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Spark Plug Gap | 0.75 mm (0.030 in.) | p. 13 |
| Air Cleaner Mounting Cap Screw Torque | 9.8 N\u2022m (87 lb-in.) | p. 32 |
| Battery Cold Cranking Amps at -18\u00b0C (0\u00b0F) | 340 amps | p. 125 |
| PTO Clutch Air Gap | 0.3-0.6 mm (0.012-0.024 in.) | p. 363 |
| PTO Clutch Coil Resistance S.N. (-030000) | 2.2-2.4 ohms | p. 363 |
| Secondary Belt Deflection | 6.35 mm (0.25 in.) | p. 378 |
| Blade Cutting Edge Width (Maximum) | 0.40 mm (0.016 in.) | p. 363 |
| Engine Oil Capacity (With Filter) | 2.0 L | p. 13 |
| Fuel Tank Capacity | 45.4 L | p. 13 |
| Fast Idle Speed | 3600 rpm | p. 13 |
| Hydraulic System Oil Capacity | 9.5 L | p. 14 |
| Mower Deck Cutting Height | 38-127 mm | p. 14 |
John Deere 777, 797 Common Problems This Manual Covers
Engine overheats and loses power under load in tall grass
Work the overheating chart on page 48: check that the radiator passages are clean and free of restrictions, that the fan shroud is installed and undamaged, and that the fan belt is in good condition and properly tensioned (see “Adjust Fan Belt Tension” on page 56). Check oil level before anything else and never overfill. If it still runs hot, the chart routes you to the Radiator Bubble Test on page 57 to rule out a head gasket pushing compression into the coolant.
Manual Section: Engine Diagnostics p. 48Mower creeps forward in neutral or pulls hard to one side at full stick
Start at “Symptom: Machine Will Not Drive Straight” on page 307: confirm the bypass valves are fully closed, the lines are free of sharp bends and the fittings are tight, bleeding air from the system as you go. If the machine still tracks off, test hydrostatic pump flow per page 313, and check neutral lock effort on page 316. A worn linkage pivot mimics a bad pump, so inspect the joints before condemning it.
Manual Section: Hydrostatic Power Train p. 307Frequently Asked Questions

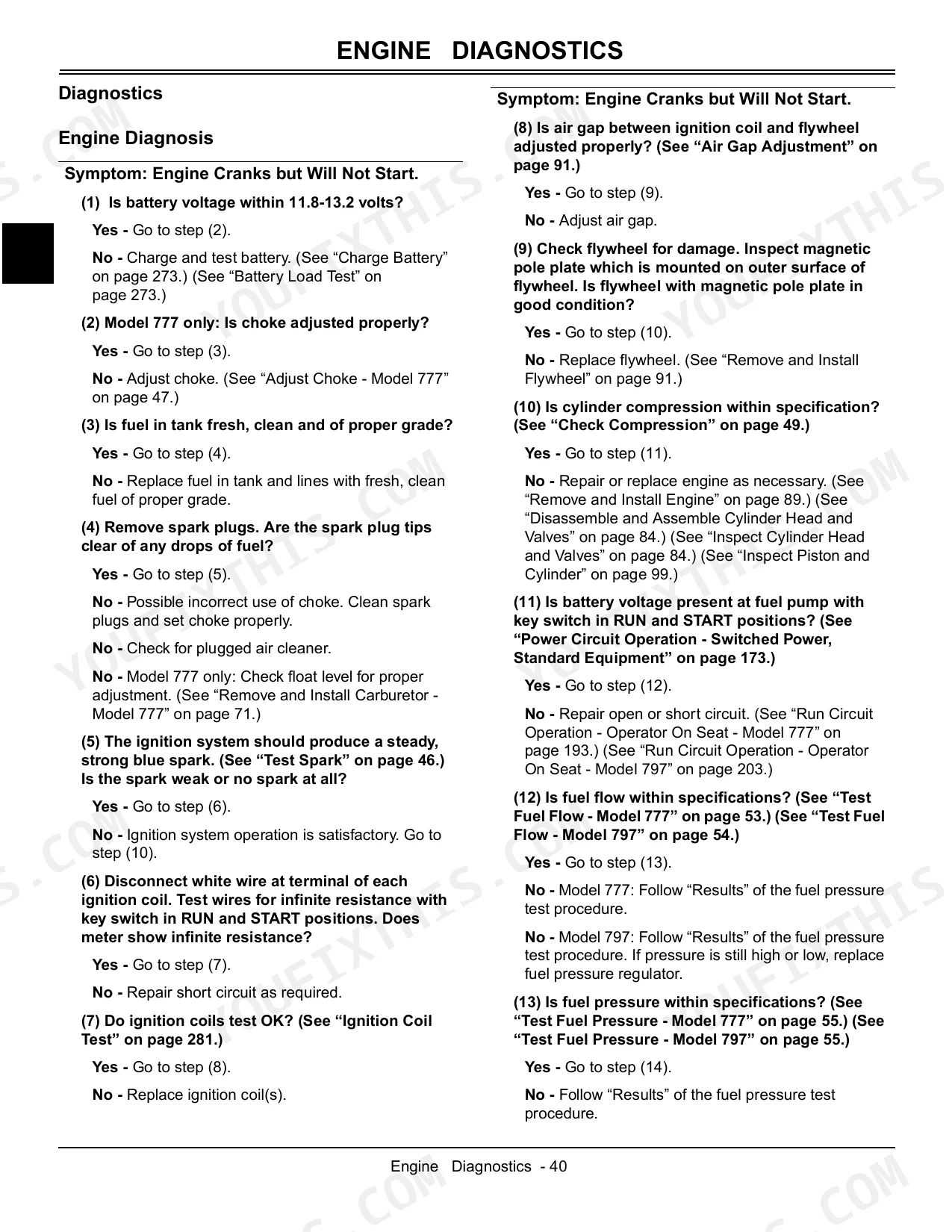

How do I troubleshoot a John Deere 797 that won’t start?
To troubleshoot a John Deere 797 that will not start, follow the diagnostic steps on page 44. First, ensure battery voltage is between 11.8-13.2 volts, check that fuel is fresh and of the proper grade, and verify the ignition system produces a steady, strong blue spark. If these are correct, check for fuel flow and pressure, and ensure the ECU is operating correctly as described in the diagnostic procedure. p. 44
How do you fix john Deere 777 or 797 Z-Trak will not move with engine running, drive wheels dead?
Check both bypass valve levers first and make sure they are fully closed; techs push machines onto trailers and forget them. Verify hydraulic oil level, the system holds 9.5 L, spec on page 14. Inspect the pump drive belt for breaks or glazing, then run the hydrostatic diagnosis charts starting on page 297. p. 297
How do you fix engine dies instantly while mowing, restarts after a few minutes, no sputter or warning?
Test the seat safety switch and its connector first; an instant shutoff with no sputter is electrical, not fuel. Load-test the battery, it must deliver 340 cold cranking amps at -18°C, spec on page 125. Trace the run circuit with the wiring diagram, wiggling harness connectors while the engine idles. p. 125
How do you fix blades engage slowly or not at all, burning smell from PTO clutch under deck?
Measure the PTO clutch air gap with a feeler gauge and set it to 0.3-0.6 mm. Check coil resistance: 2.2-2.4 ohms before S.N. 030000, 1.9-2.3 ohms after, and confirm the coil draws at least 7.0 A at 12 VDC per page 371. Torque the clutch cap screw to 67.8 N•m on reinstall. p. 363
Is this John Deere 777 manual a download or a disc?
Immediate download of the complete 428-page searchable Technical Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this John Deere 777 Technical Manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

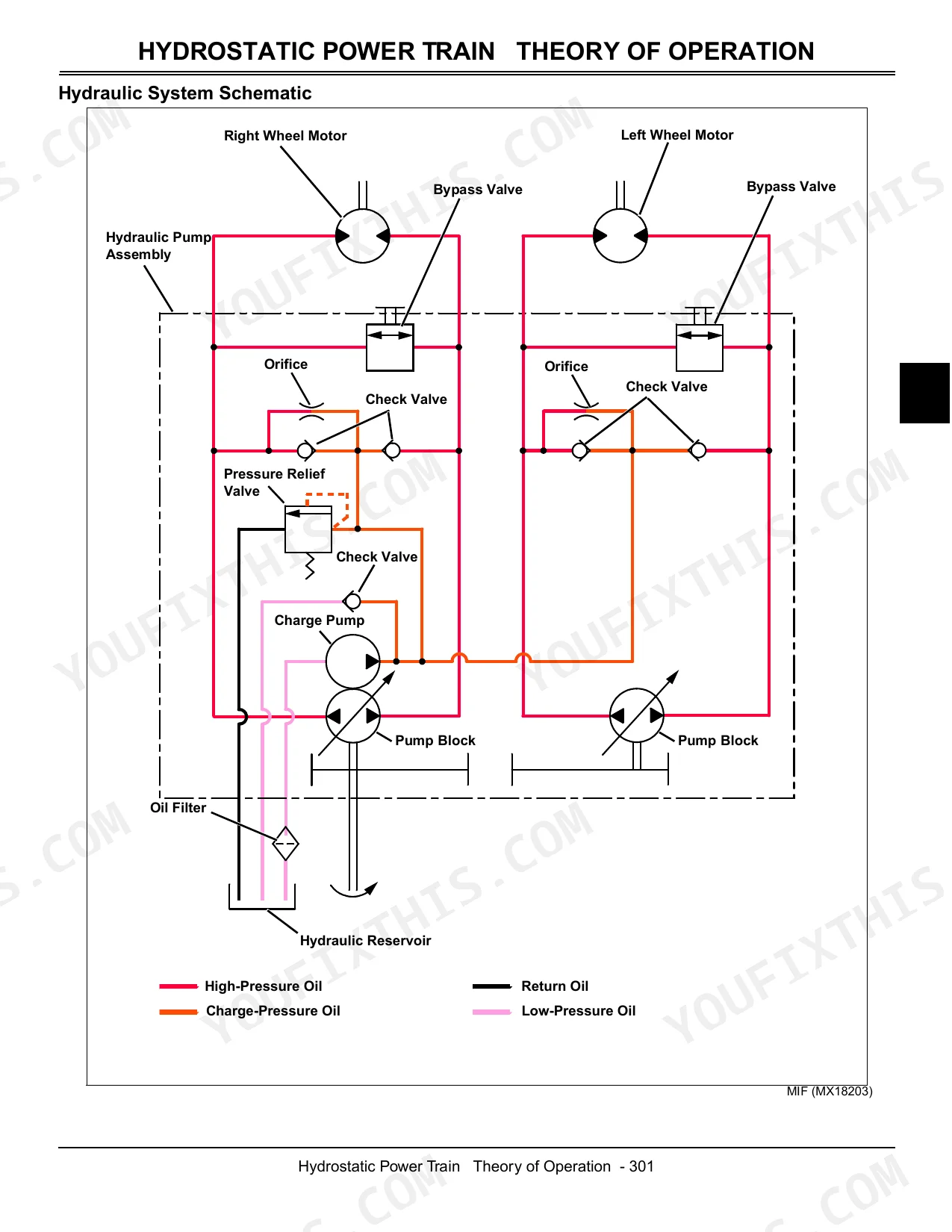

Is there a hydraulic diagram in this John Deere 777 Technical Manual?
Yes, a hydraulic system diagram is included showing the main circuit layout. Page 305 carries one of them.
