This 383-page John Deere 415, 455 Technical Manual (OEM #TM1836) puts the complete Lawn and Garden Tractor factory reference in your hands, covering both the 3TN66 and 3TNA72 engine variants side by side. Inside you get full wiring diagrams for chasing electrical gremlins, a dedicated troubleshooting section for engine, hydrostatic, and PTO complaints, and page after page of test-and-adjustment procedures written the way Deere techs actually work through them. Set valve clearance and confirm your fuel transfer pump is flowing 450 mL in 15 seconds at 172 kPa minimum before you chase anything downstream; PTO clutch pack wear tops out at 2.7 mm before those plates need replacing. No more guessing whether that idle stumble is fuel, timing, or a tired injector. Bookmarked by section so you can jump straight to torque values or transmission specs, this PDF opens on your phone or tablet right at the tractor, so you're wrenching instead of hunting through a stack of paper.
What's Inside This John Deere 415, 455 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 2-6 | Safe Servicing Practices, Handling Fuel and Fluids, Working in a Ventilated Area, High-Pressure Washer Cautions, Asbestos Dust Precautions |

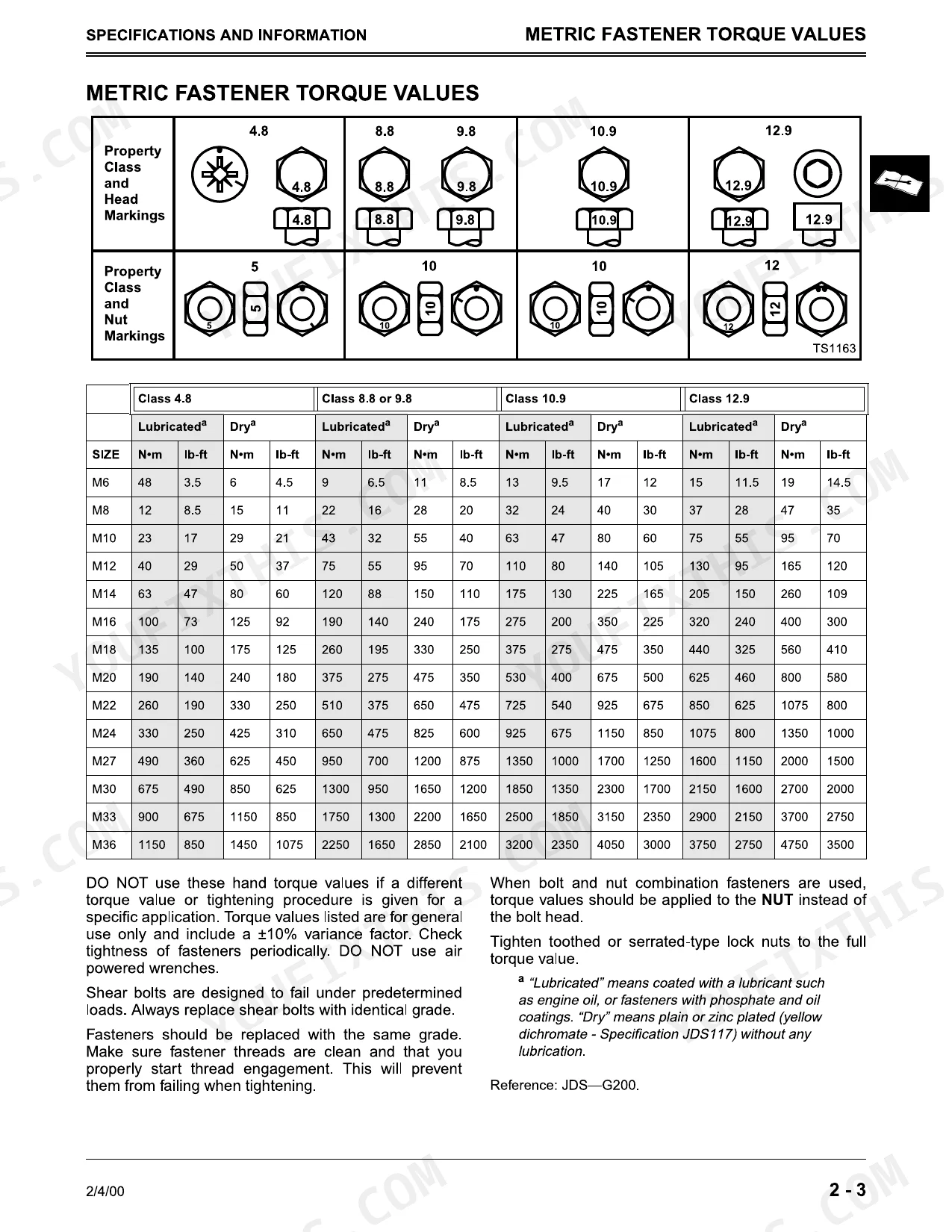

| Specifications and Information | 7-14 | Metric and Inch Fastener Torque Values, Engine Oil and Break-In Oil Specifications, Hydrostatic Transmission and Hydraulic Oil, Coolant Specifications and Freeze Protection |

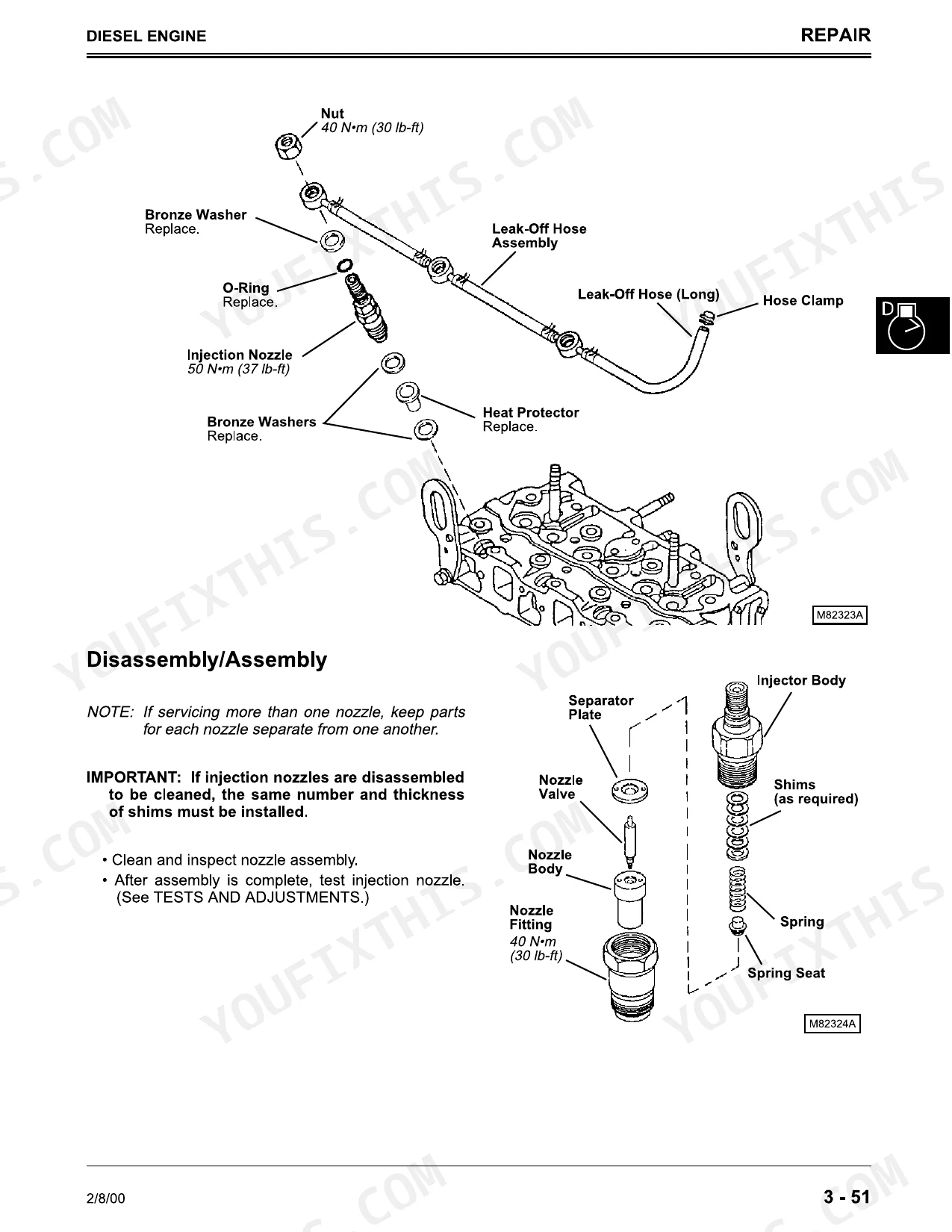

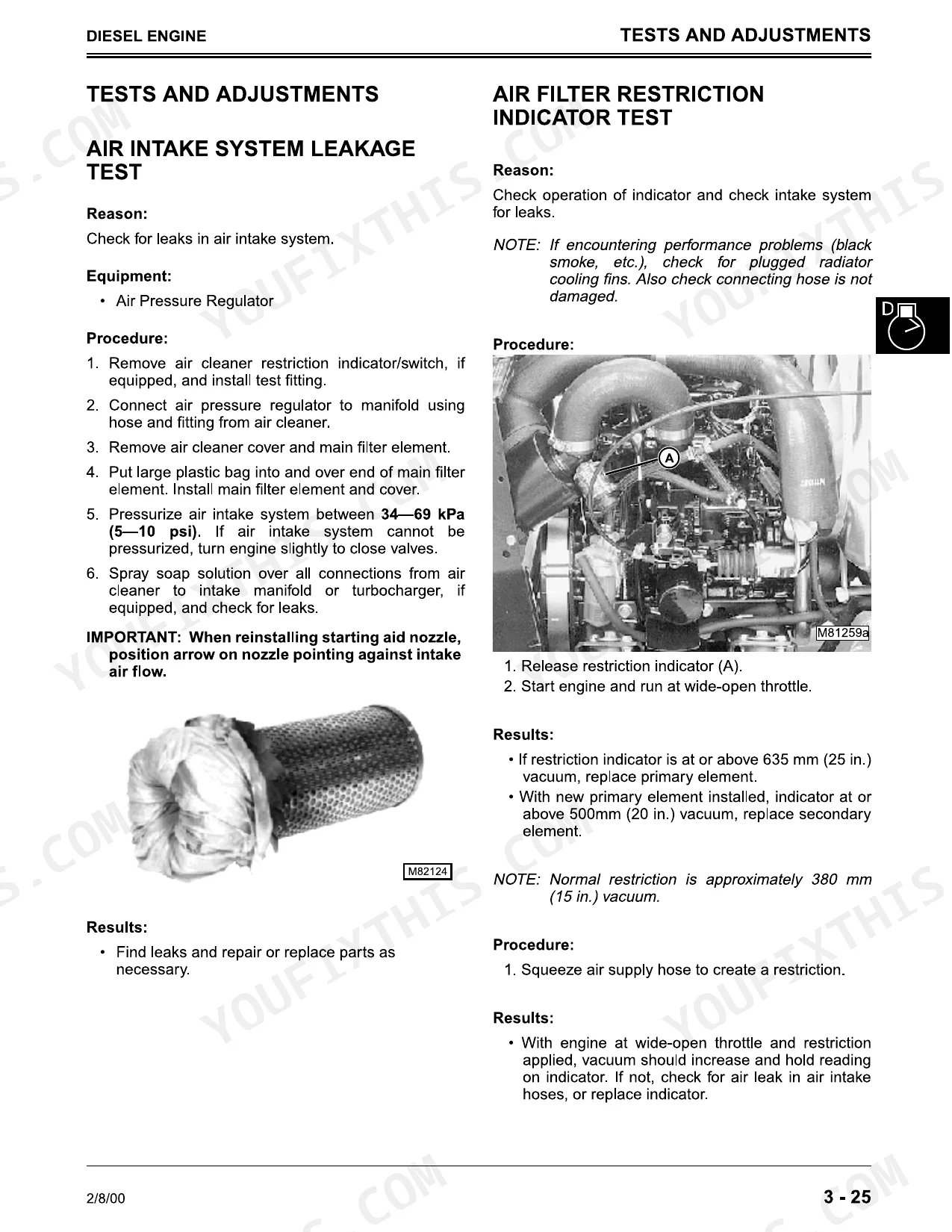

| Diesel Engine (Yanmar 3TN66 and 3TNA72) | 15-100 | Test and Adjustment Specifications, Repair Specifications, Slow and Fast Idle, Fuel Injection Pump and Injectors, Fuel Transfer Pump Flow and Pressure, Cylinder Head, Camshaft and Crankshaft Repair, Oil Pump and Pressure Regulating Valve |
| Electrical: Component Location and Theory of Operation | 101-112 | Component Location, Circuit Theory of Operation, Wire Colour and Gauge Conventions, Connector and Ground Identification |

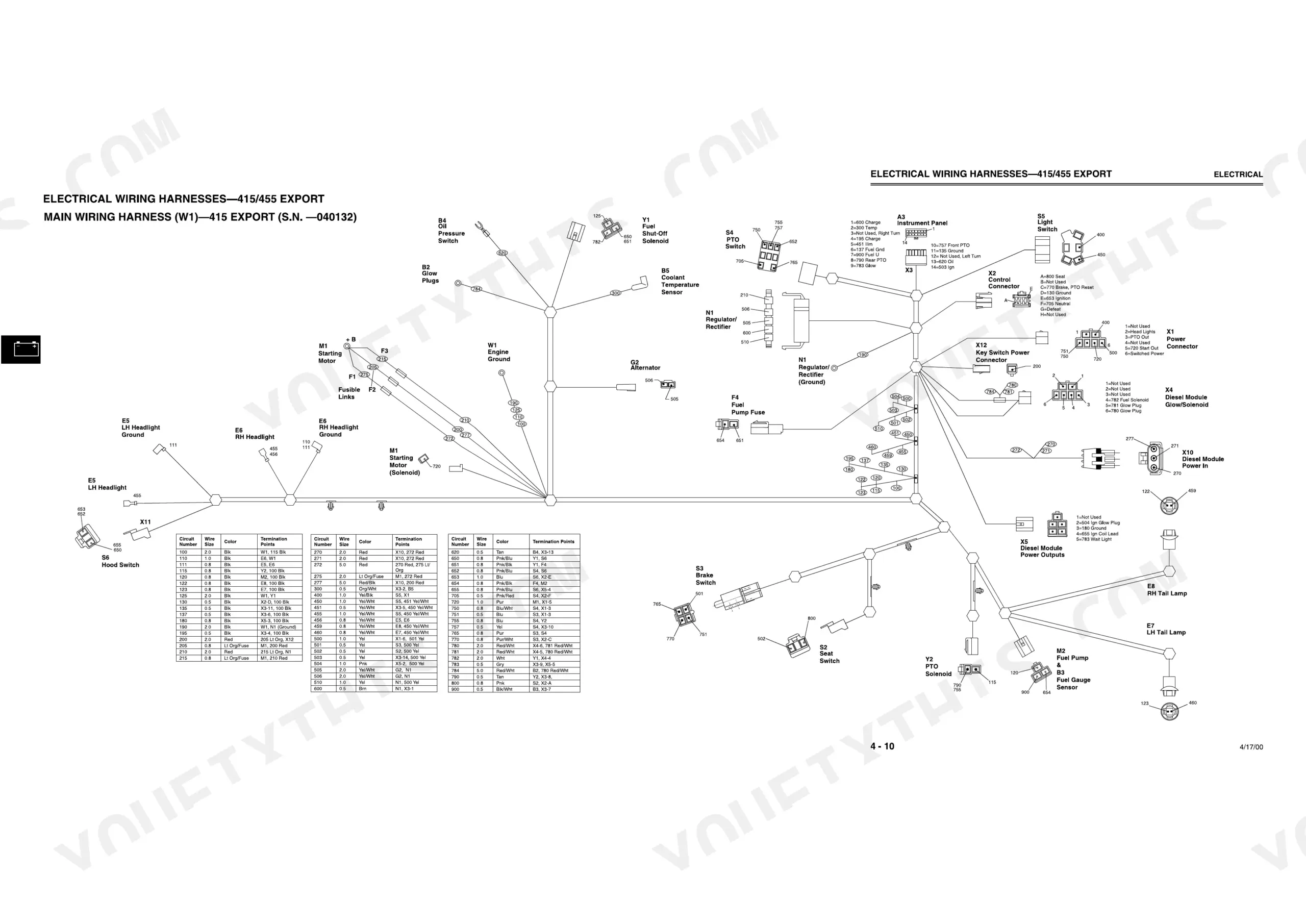

| Electrical: Wiring Harnesses and Schematics (415/455 Export) | 113-179 | Main Wiring Harness Diagrams, Schematic Circuits with Wire Numbers and Colours, Power, Start, Charging and PTO Circuits, Serial-Number Variants |
| Electrical: Wiring Harnesses and Schematics (415 European) | 180-217 | European Main Harness Diagrams, Lighting and Signal Circuits, Schematic Circuits by Serial-Number Break |
| Electrical: Wiring Harnesses and Schematics (455 European) | 218-266 | 455 European Main Harness Diagrams, Main Electrical Schematic (S.N. 030101-070000 and 070001-), Sensor, Light and Interlock Circuits |
| Electrical, Tests and Adjustments | 267-282 | Control/fuse Module Test, Diesel Control Module Test, Charging and Starting Circuit Tests, PTO and Safety Interlock Circuit Tests |
| Electrical, Repair | 283-287 | Starter and Alternator Repair, Switch, Relay and Solenoid Replacement, Harness and Connector Service |
| Hydrostatic Power Train | 288-333 | Hydrostatic Transmission Oil Capacities, Transmission Tests and Adjustments, PTO Clutch Pack Wear Limits, Differential and Axle Repair, Transmission Removal, Disassembly and Assembly |
| Steering | 334-355 | Steering Specifications, Two-Wheel and All-Wheel Steer Operation, Tests and Adjustments, Steering Cylinder, Valve and Column Repair |
| Brakes | 356-365 | Brake Specifications, Brake Tests and Adjustments, Brake Linkage Adjustment, Brake Disc and Actuator Repair |
| Hydraulics | 366-377 | Hydraulic Specifications, System Pressure Tests, Hydraulic Pump, Valves and Cylinders, Hose and Line Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel Transfer Pump Flow (Min) | 450 mL (15 oz)/15 seconds | p. 17 |
| Fuel Transfer Pump Pressure (Min) | 172 kPa (25 psi) | p. 17 |
| PTO Clutch Pack Wear Clearance Between Plate and Bottom of Gear/Hub Groove | 2.7 mm (0.106 in.) maximum | p. 290 |
| PTO clutch plates replacement clearance | 2.7 mm (0.106 in.) or more | p. 315 |
| Drain Plug (5 Used) | 38 N•m (28 lb-ft) | p. 375 |
| Diesel Engine Oil Break-in Period | 100 hours | p. 12 |
| Diesel Engine Coolant Freeze Protection | -37°C (-34°F) | p. 14 |
| 415, 455 (Two-Wheel Steer) | ||
| Hydrostatic Transmission Oil Capacity (Two-Wheel Steer) | 6.6 L (7.0 qt) | p. 290 |
| 415, 455 (All-Wheel Steer) | ||
| Hydrostatic Transmission Oil Capacity (All-Wheel Steer) | 5.7 L (6.0 qt) | p. 290 |
| 3TN66 | ||
| Diesel Engine Slow Idle (3TN66) | 1650 ± 150 rpm | p. 17 |
| Diesel Engine Fast Idle (3TN66) | 3350 ± 100 rpm | p. 17 |
John Deere 415, 455 Common Problems This Manual Covers
John Deere 455 engine starts when brake pedal is depressed or PTO switch is engaged
Check the safety interlock circuit for a shorted brake pedal switch, PTO switch, or seat switch. Verify charging voltage reads 12.2 to 13.8 volts per the alternator spec on page 105, then trace each switch input and output for opens or shorts using the control module test procedure until the fault isolates.
Manual Section: Electrical Control/Fuse Module TestPTO fails to engage mower blades even with switches and clutch appearing functional
Inspect the PTO clutch pack for wear. Measure clearance between the clutch plate and bottom of the gear hub groove; if it exceeds 2.7 mm (0.106 in.) per page 315, replace the clutch plates. Also check the seat and brake pedal safety switches for corrosion before condemning the clutch.
Manual Section: PTO Clutch Specifications p. 315Mower spindle keeps spinning more than 5 seconds after PTO is disengaged
Inspect the PTO brake pads and clutch plates for wear; replacement clearance is 2.7 mm (0.106 in.) or more per page 315. Drain the brake housing if fitted, noting the drain plug torques to 38 N•m (28 lb-ft) per page 375, then reassemble with fresh components and retest stopping time.
Manual Section: PTO Brake Assembly / Drain Plug Specifications p. 375Engine speed fluctuates, slowing down and speeding up repeatedly under load
Run the fuel transfer pump flow and pressure test. Confirm flow of at least 450 mL (15 oz) in 15 seconds and pressure above 172 kPa (25 psi) per the 3TN66 specifications on page 17; replace a clogged fuel filter or bleed trapped air from the line if readings fall short.
Manual Section: Engine Fuel System Tests p. 17Engine runs rough and lacks power after 500 hours without a valve adjustment
Check valve clearance with the engine cold; 3TN66 spec calls for 0.20 mm (0.008 in.) per page 17. Adjust rocker arm clearance to spec if the machine has exceeded 500 hours since the last check, then verify compression meets minimum 2448 kPa (355 psi) before returning the tractor to service.
Manual Section: Specifications, 3TN66 p. 17Frequently Asked Questions
What are the replacement specifications for PTO clutch?
The PTO clutch pack wear clearance between the plate and bottom of the gear/hub groove should not exceed 2.7 mm (0.106 in.). If the clearance is 2.7 mm (0.106 in.) or more, the PTO clutch plates should be replaced. For detailed procedures, refer to page 58. p. 34
How do you fix john Deere 455 engine starts when brake pedal is depressed or PTO switch is engaged?
Check the safety interlock circuit for a shorted brake pedal switch, PTO switch, or seat switch. Verify charging voltage reads 12.2 to 13.8 volts per the alternator spec on page 105, then trace each switch input and output for opens or shorts using the control module test procedure until the fault isolates.
How do you fix PTO fails to engage mower blades even with switches and clutch appearing functional?
Inspect the PTO clutch pack for wear. Measure clearance between the clutch plate and bottom of the gear hub groove; if it exceeds 2.7 mm (0.106 in.) per page 315, replace the clutch plates. Also check the seat and brake pedal safety switches for corrosion before condemning the clutch. p. 315
How do you fix mower spindle keeps spinning more than 5 seconds after PTO is disengaged?
Inspect the PTO brake pads and clutch plates for wear; replacement clearance is 2.7 mm (0.106 in.) or more per page 315. Drain the brake housing if fitted, noting the drain plug torques to 38 N•m (28 lb-ft) per page 375, then reassemble with fresh components and retest stopping time. p. 375
What format is this John Deere 415, 455 manual in?
You get a 383-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this John Deere 415, 455 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this John Deere 415, 455 manual?
Included. The John Deere 415, 455 Technical Manual provides a wiring diagram for the electrical system.
