Part of the John Deere Repair Manuals.
All 594 pages of this John Deere Z225 Technical Manual PDF (OEM #TM112919) focus on four EZtrak Residential Mowers: the Z225, Z245, Z235, and Z255. Inside: full wiring schematics with connector pinouts, a complete troubleshooting section covering both single-cylinder and V-Twin engines, and step-by-step repair procedures for power train, attachments, and electrical systems. You also get torque tables, theory-of-operation breakdowns for every electrical circuit, and a dedicated tests-and-adjustments section for both engine families. Check the ignition switch continuity: A-B in Off, C-D in Run, and C-D plus E-F in Start — that is factory data, not a forum guess. Chasing an electrical fault on a Z225 without the right schematic is a half-day time sink. Jump to any section by bookmark, pull the spec on your phone, and fix it right the first time.
What's Inside This John Deere Z225, Z245, Z235, Z255 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 6-40 | Group 05 - Safety, Group 10 - General Specifications, Group 15 - Fuel and Lubricants, Group 20 - Machine Specifications |
| Single Cylinder Engine Repair | 41-111 | Group 10 - Engine Single Cylinder |
| V-Twin Engine Repair | 112-215 | Group 10 - Repair Engine V-Twin |
| Electrical Repair | 216-240 | Group 10 - Component Location, Group 20 - Wiring Harness |
| Power Train Repair | 241-269 | Group 10 - Hydrostatic Drive Component Location, Group 20 - Transaxle and Drive System Repair |
| Attachments Repair | 270-321 | Group 10 - Mower Deck Component Location, Group 20 - Deck and Bagger Attachment Repair |
| Miscellaneous Repair | 322-352 | Group 10 - Component Location, Group 20 - Repair |

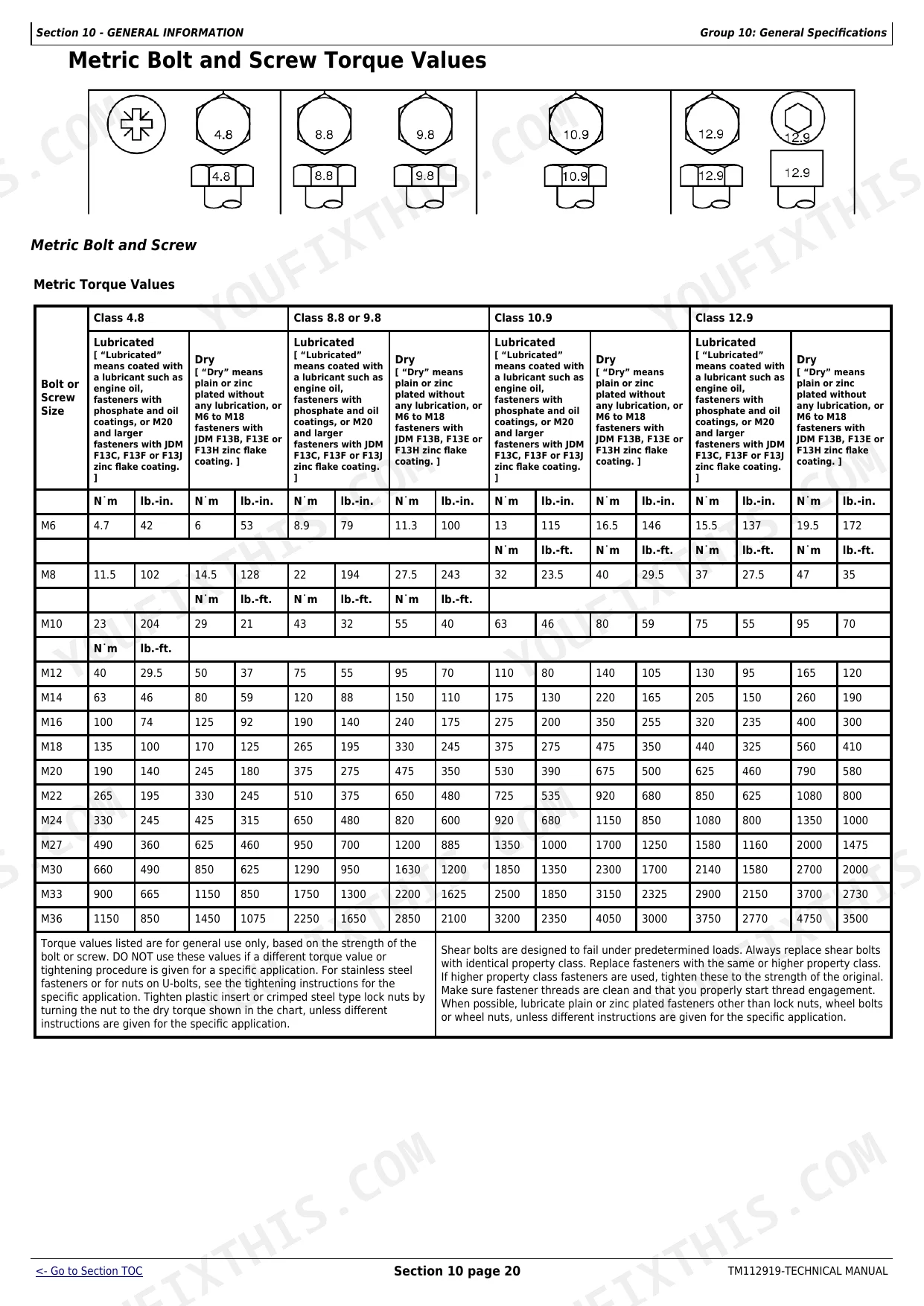

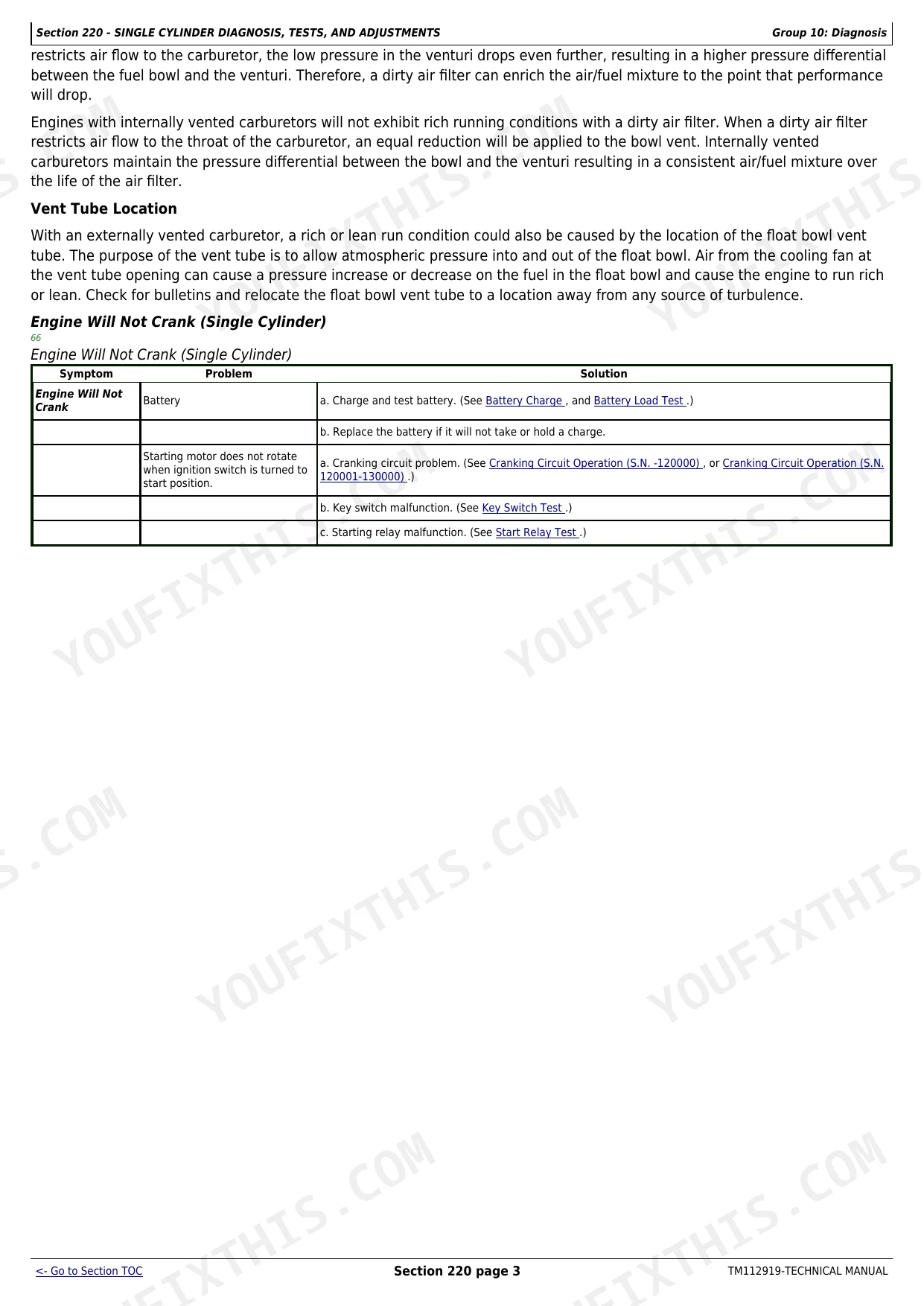

| Single Cylinder Diagnosis, Tests, and Adjustments | 353-372 | Group 10 - Single-Cylinder Engine Diagnosis, Group 20 - Single-Cylinder Tests and Adjustments |
| V-Twin Engine Diagnosis, Tests, and Adjustments | 373-403 | Group 10 - V-Twin Engine Diagnosis, Group 20 - V-Twin Engine Tests and Adjustments |

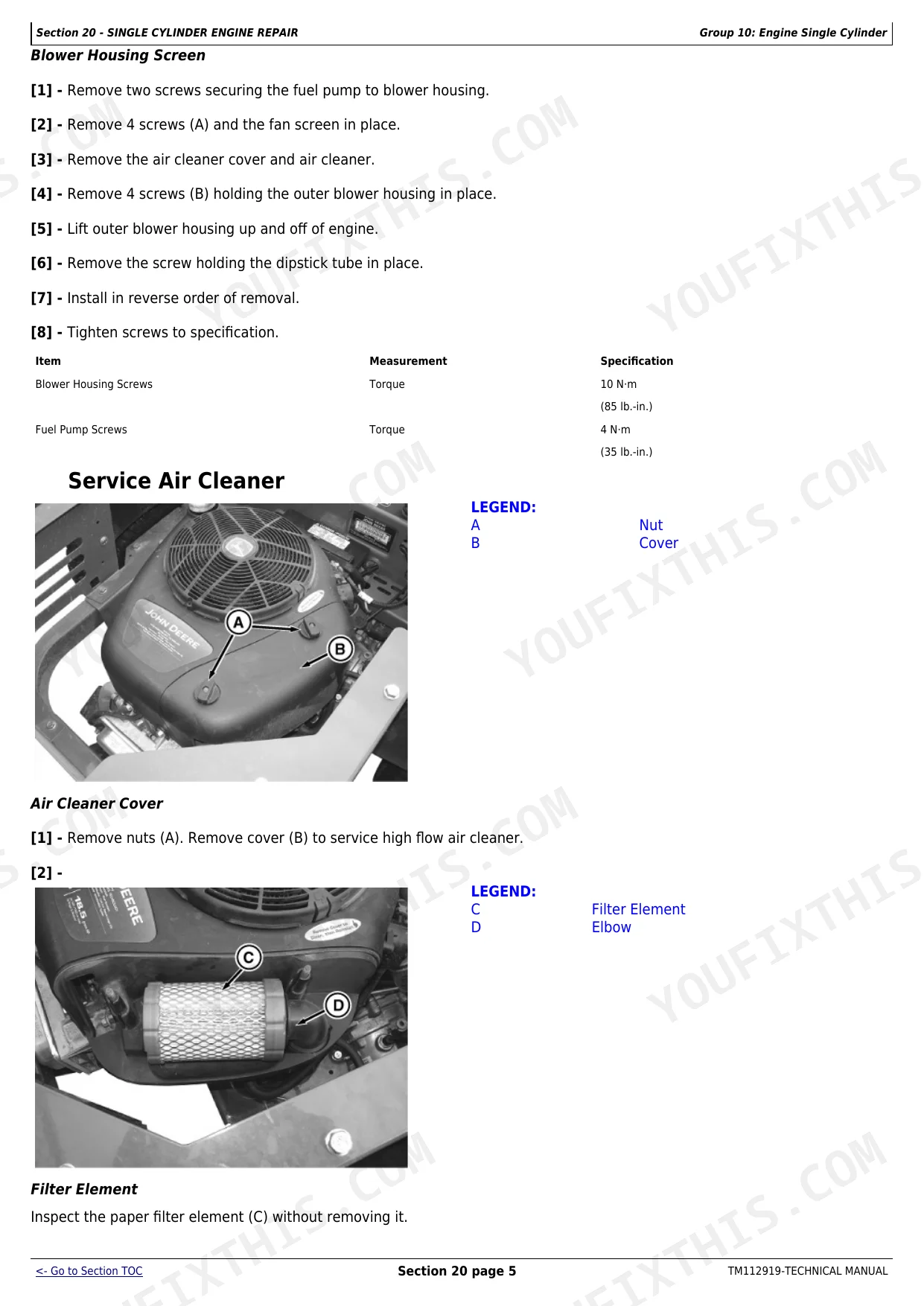

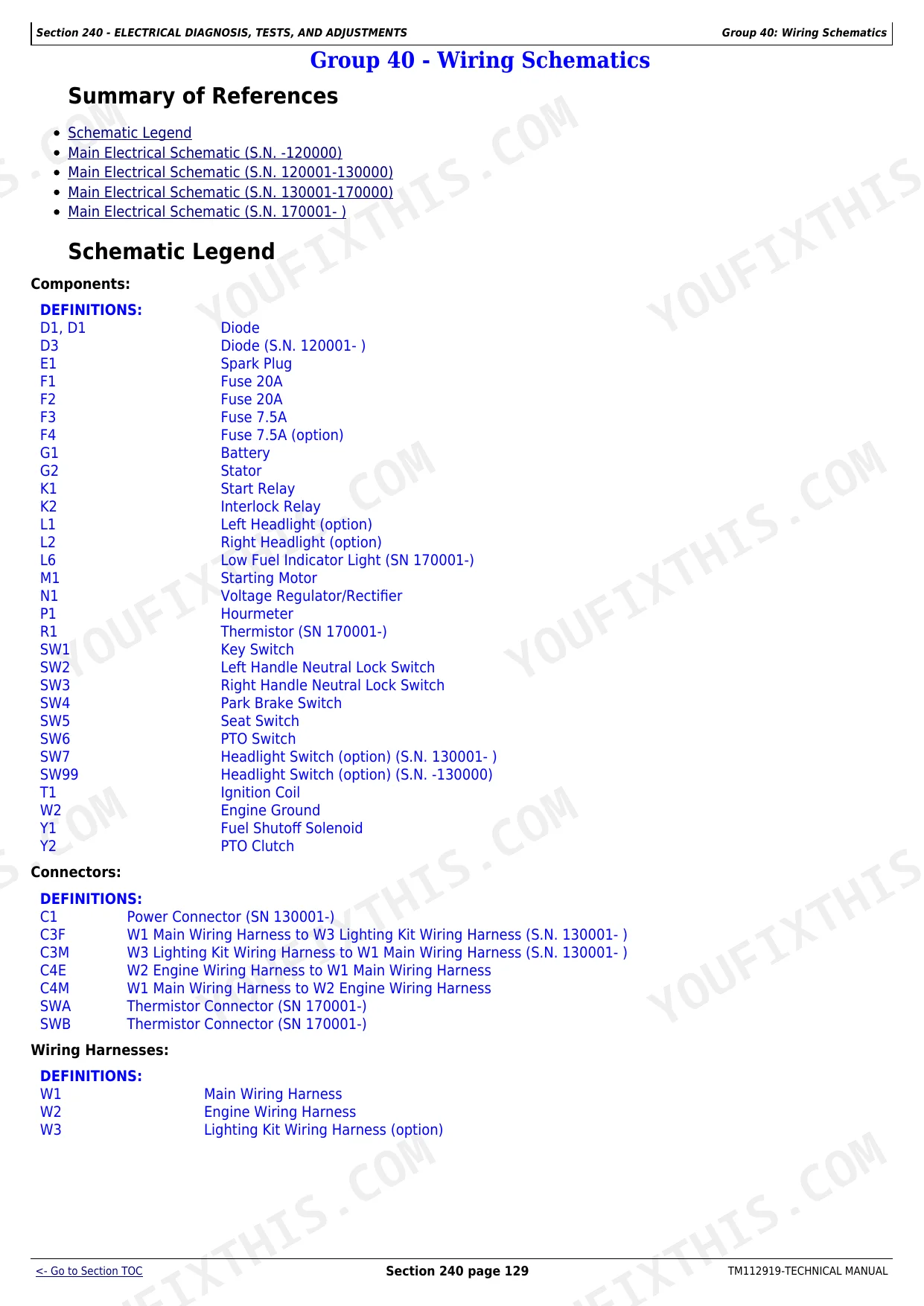

| Electrical Diagnosis, Tests, and Adjustments | 404-561 | Group 10 - Theory of Operation, Group 20 - Diagnosis, Group 30 - Tests and Adjustments, Group 40 - Wiring Schematics, Group 50 - Connector Information |
| Power Train Diagnosis, Tests, and Adjustments | 562-581 | Group 20 - Theory of Operation, Group 30 - Diagnosis, Group 40 - Tests and Adjustments |
| Attachments Diagnosis, Tests, and Adjustments | 582-592 | Group 20 - Diagnosis, Group 30 - Tests and Adjustments |
| Service Tools and Kits | 593-594 | Group 10 - Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Switch Continuity (Released) | A — B | p. 528 |
| Switch Continuity (Pressed) | None | p. 528 |
| Switch Continuity (Off) | A — B | p. 524 |
| Switch Continuity (Run) | C — D | p. 524 |
| Fuse F1 Amperage | 20A | p. 222 |
| Fuse F2 Amperage | 20A | p. 222 |
| Torque | 20 N·m (180 lb.-in.) | p. 42 |
| Gap | 0.76 mm (0.030 in.) | p. 42 |
| Z225, Z245 | ||
| Torque | 5 N·m (44 lb·in) | p. 42 |
| Z235, Z255 | ||
| Torque | 5 N·m (45 lb·in) | p. 113 |
| Z225 | ||

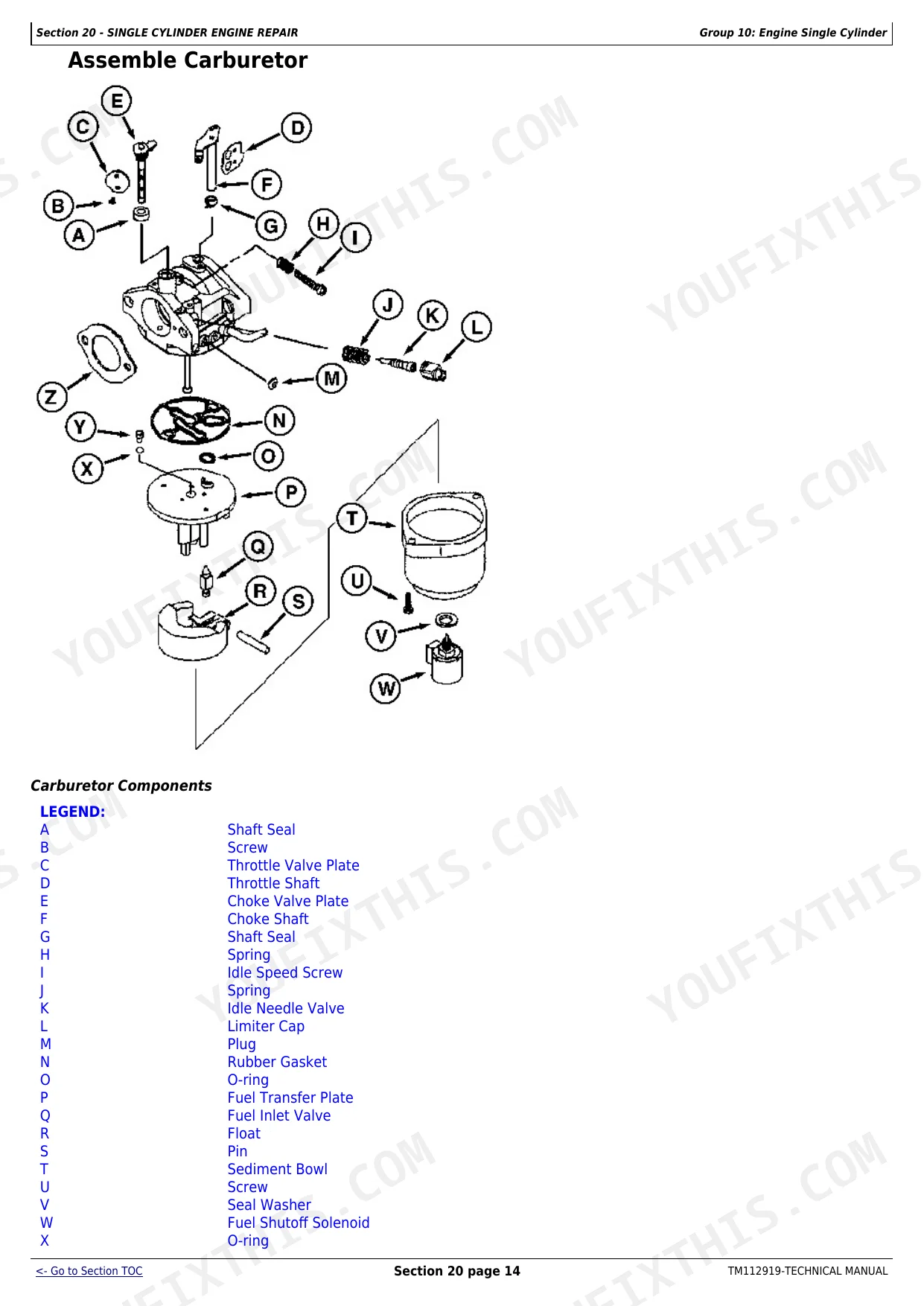

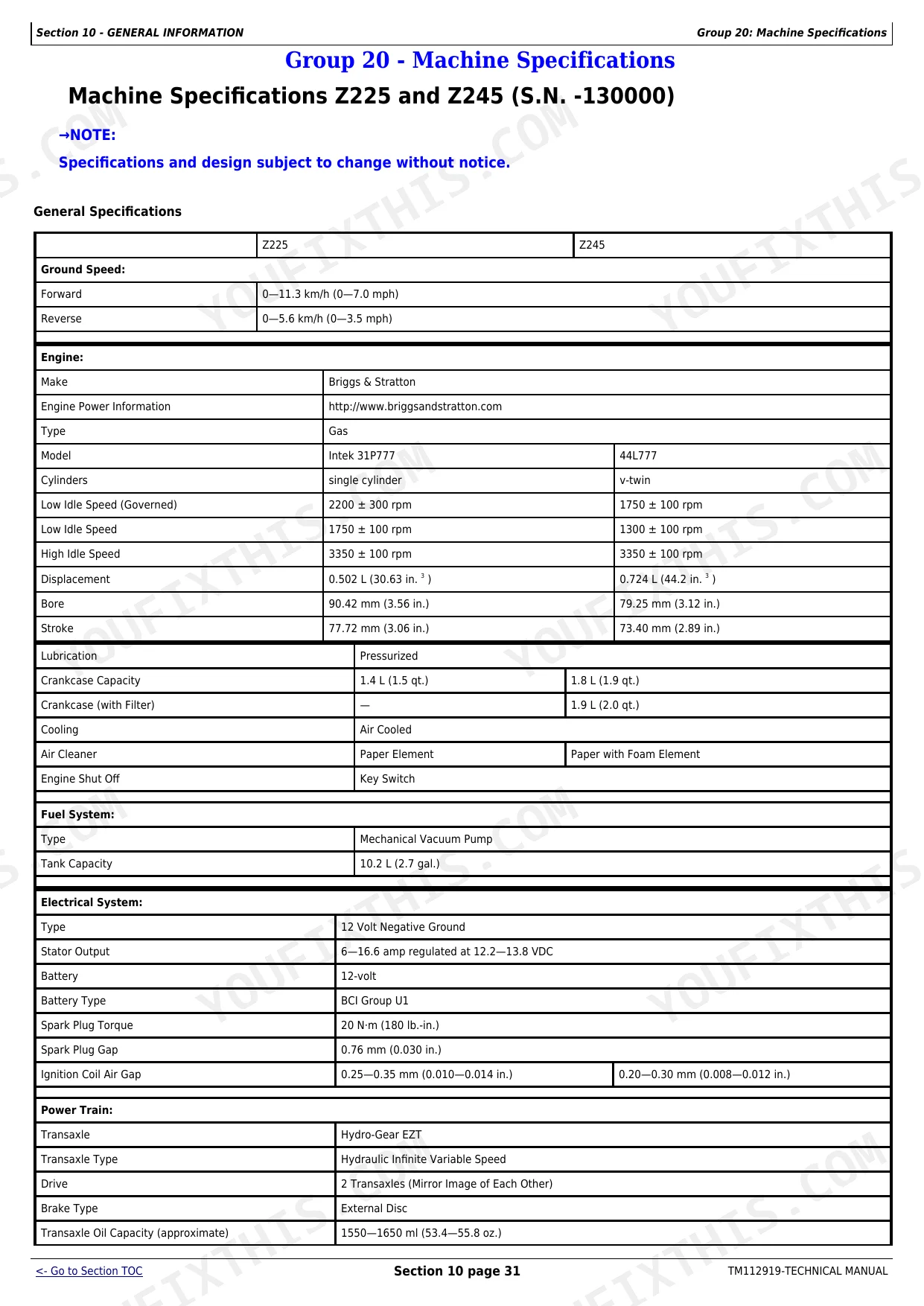

| Engine Oil Capacity | 1.4 L | p. 36 |
| Z245, Z235, Z255 | ||
| Engine Oil Capacity | 1.8 L | p. 36 |
John Deere Z225, Z245, Z235, Z255 Common Problems This Manual Covers
John Deere EZtrak mower shuts off immediately when releasing the brake pedal p. 528
Check the seat switch connector beneath the seat cushion. With the seat unoccupied, verify continuity between terminals A and B; with the seat pressed down, continuity must read open (page 528). Inspect the connector for corrosion or pushed-back terminal pins before replacing the switch; a corroded pin is often the actual fault and costs far less than a new switch.
Manual Section: Diagnose Ignition Interlock CircuitEngine won't crank, no click, or zero electrical power at the key p. 524
Inspect fuses F1 and F2 (20A each, page 222) and fuse F3 (7.5A, page 220) for corrosion or open circuits first. Clean the battery terminals and check voltage under load. Then test key switch continuity: Off position requires A-B, Run requires C-D, Start requires both C-D and E-F (page 524). Replace the switch if any position fails those readings.
Manual Section: Diagnose Power CircuitFuel solenoid plunger refuses to retract after replacement, engine cranks but won't fire p. 527
Measure solenoid coil resistance before condemning the part. Type L spec is 37 ohms plus or minus 15% and Type S is 28 ohms plus or minus 15% (page 527). Apply 12V directly to the solenoid terminals: if the plunger retracts on direct power but not in the circuit, the fault is in the wiring harness or control board, not the solenoid itself.
Manual Section: Electrical Diagnosis, Tests, and AdjustmentsSquealing or grinding from one rear wheel while turning or driving straight p. 562
Inspect the drive belt and idler tensioning spring on the noisy side for glazing or binding. Check for park brake drag and verify the axle shaft turns freely by hand. Transaxle oil capacity is 1550-1650 ml (page 36); low oil often mimics bearing failure. Work through the diagnostic procedure at page 562 before pulling anything apart.
Manual Section: Power Train Diagnosis, Tests, and AdjustmentsMower deck vibrates heavily at blade speed, worse during engagement or at full throttle p. 582
Remove the blades and inspect each for bends by laying them flat; even slight bowing causes deck resonance at speed. Check PTO clutch resistance with the harness disconnected: spec is 3.0 ohm plus or minus 10% (page 506). A clutch reading out of spec causes abnormal engagement vibration. Inspect spindle housings for bearing play and bent blade bolts before reassembly.
Manual Section: Attachments Diagnosis, Tests, and AdjustmentsFrequently Asked Questions
Torque specs for spark plugs on John Deere Z245?
The torque specification for spark plugs on John Deere Z245 is 20 N·m (180 lb.-in.). This specification applies to both Z225, Z245 (SN. -130000) and Z235, Z255 (SN. 130001-) models.
How to reset throttle control on John Deere Z255?
The manual does not describe a "reset" procedure for the throttle control but provides instructions for adjusting the throttle and choke cable. For Z255 (V-Twin engine), this involves loosening the throttle and choke cable housing clamp, pulling slack from the cable, and then tightening the clamp to a specification of 3 N·m (25 lb.-in.).
Torque for engine mount bolts on John Deere Z235?
The torque specification for engine mounting cap screws on John Deere Z235 is 48 N·m (35 lb.-ft.). This applies to V-Twin engine models.
How do you fix john Deere EZtrak mower shuts off immediately when releasing the brake pedal?
Check the seat switch connector beneath the seat cushion. With the seat unoccupied, verify continuity between terminals A and B; with the seat pressed down, continuity must read open (page 528). Inspect the connector for corrosion or pushed-back terminal pins before replacing the switch; a corroded pin is often the actual fault and costs far less than a new switch.
How quickly can I access this manual after buying?
A 594-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find hydraulic circuit diagrams in this John Deere Z225–Z255 Series?
Yes. The manual includes a hydraulic system diagram covering the main circuits.
