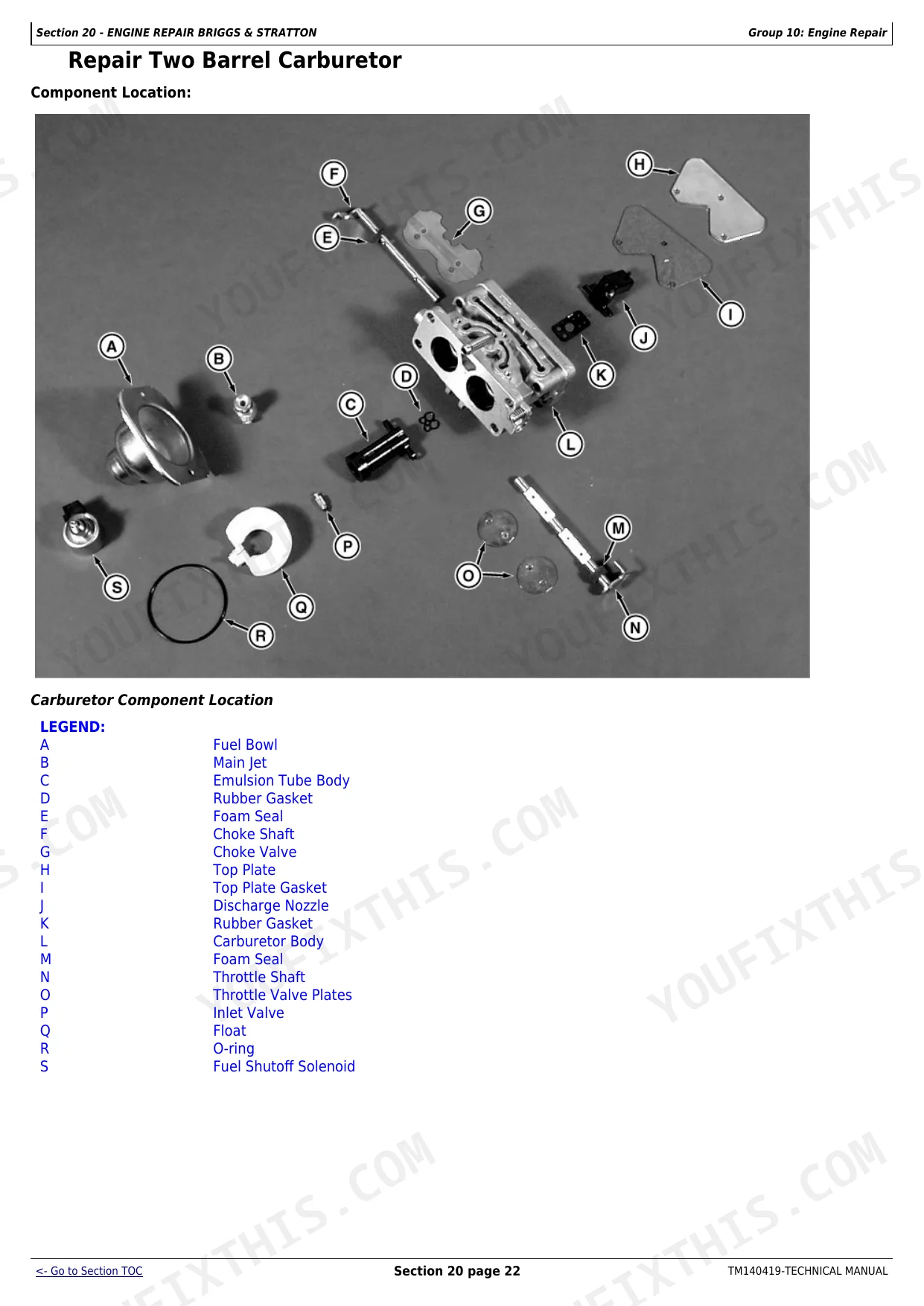

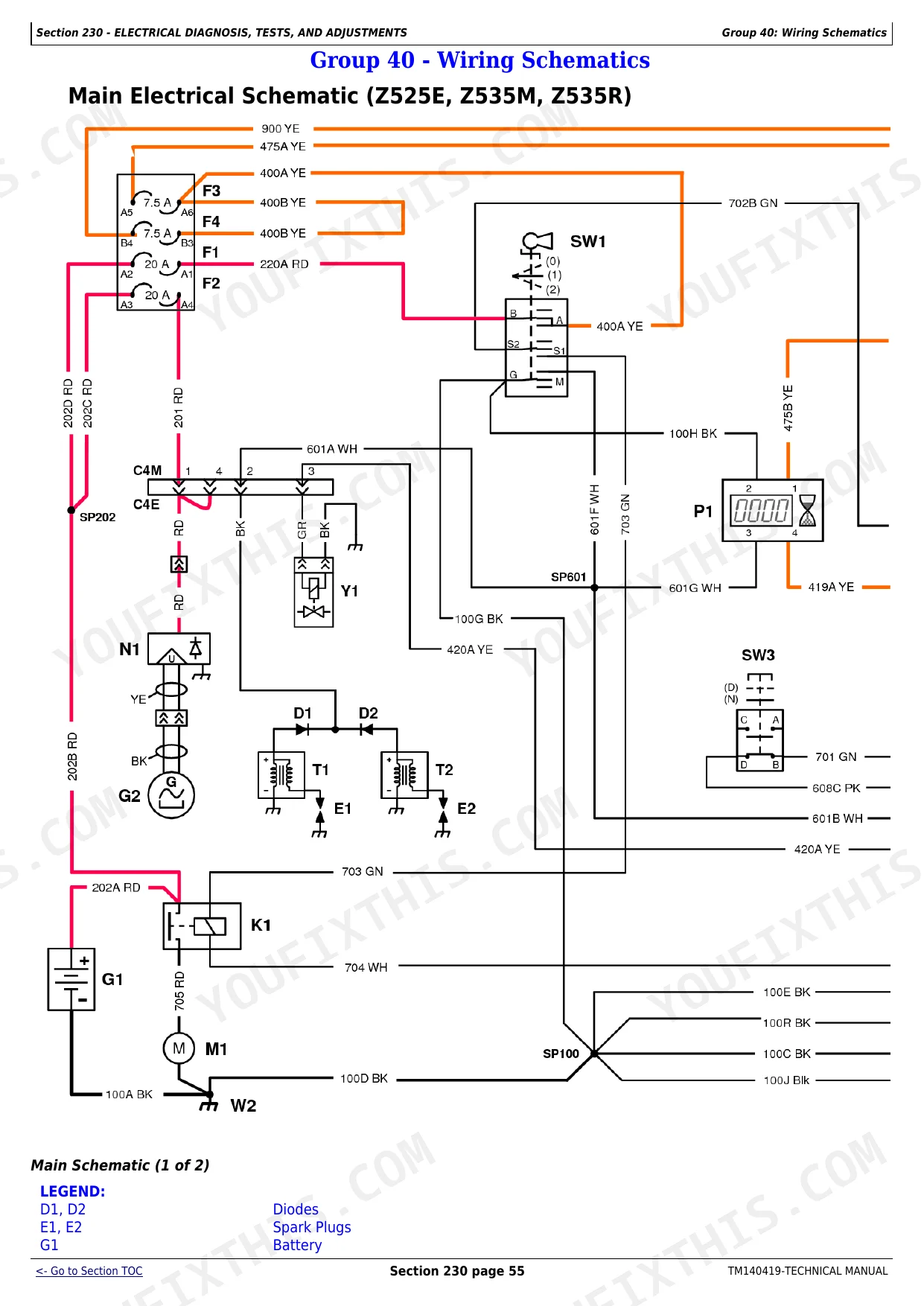

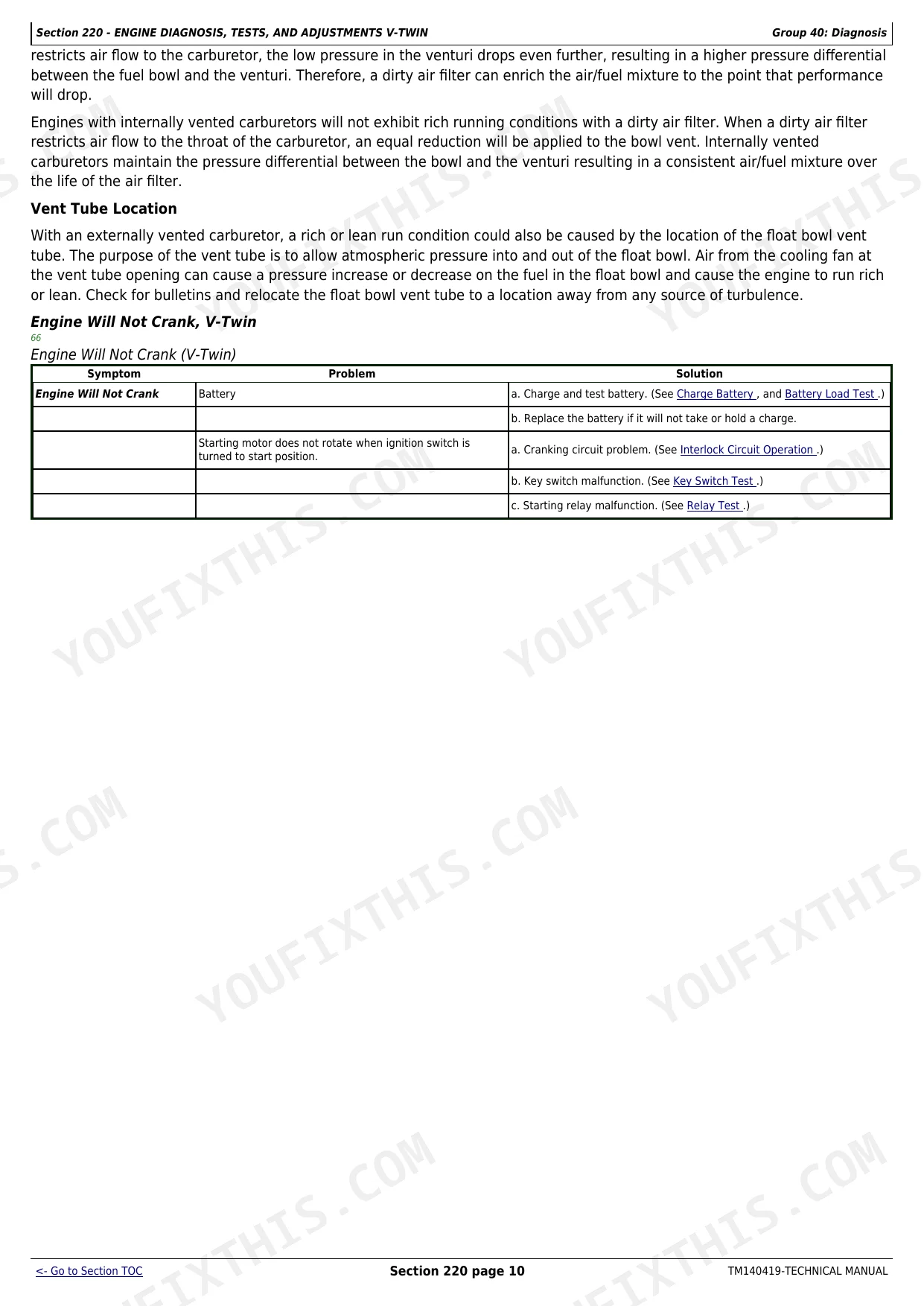

If you've been hunting for a John Deere technical manual PDF, this is it: 504 factory pages (OEM #TM140419) covering the Z525E, Z535M, Z540M, Z535R, and Z540R. Inside: full wiring schematics with pin-level connector maps, hydraulic schematics, page after page of exploded assembly views, torque tables, and a complete troubleshooting section spanning engine diagnosis, power train, and attachment systems. You also get dual engine repair coverage for both Briggs & Stratton V-Twin and Kawasaki, including tests, adjustments, and starting motor procedures. PTO switch continuity reads 1-7, 2-8, and 3-9 in the off position; key switch fuse F1 is rated 20A on the Z525E, Z535M, and Z535R. No more guessing at safety switch specs or chasing an electrical fault with no schematic. Download it, open on any device, and pull it right up at the machine.
What's Inside This John Deere Z510-Z540 / 48A / 54HC Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 6-34 | Group 05 - Safety, Group 10 - General Specifications, Group 15 - Fuel and Lubricants, Group 20 - Machine Specifications |

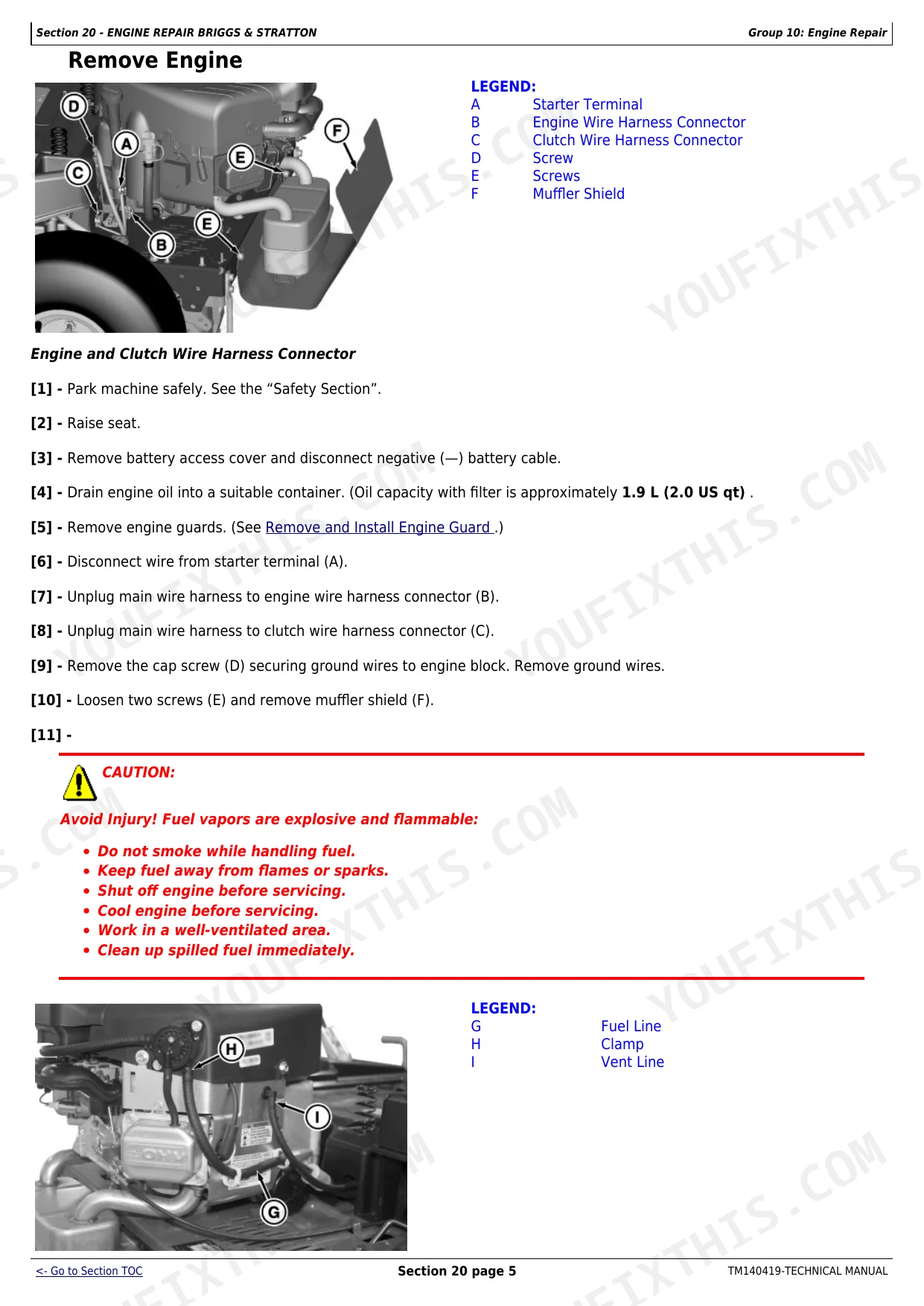

| Engine Repair Briggs & Stratton | 35-122 | Group 10 - Engine Repair |
| Engine Repair Kawasaki | 123-207 | Group 10 - Engine Repair, Group 20 - Starting Motor Repair |
| Electrical Repair | 208-223 | Group 10 - Component Location, Group 20 - Wiring Harnesses |
| Power Train Repair | 224-247 | Group 10 - Hydrostatic Drive Component Location, Group 20 - Transaxle and Drive System Repair |
| Attachments Repair | 248-288 | Group 10 - 48A and 54HC Mower Deck Component Location, Group 20 - Deck and Blade Attachment Repair |
| Miscellaneous Repair | 289-315 | Group 10 - Component Location, Group 20 - Repair |
| Engine Diagnosis, Tests, and Adjustments V-Twin | 316-347 | Group 20 - General Information, Group 40 - Diagnosis, Group 50 - Tests and Adjustments |

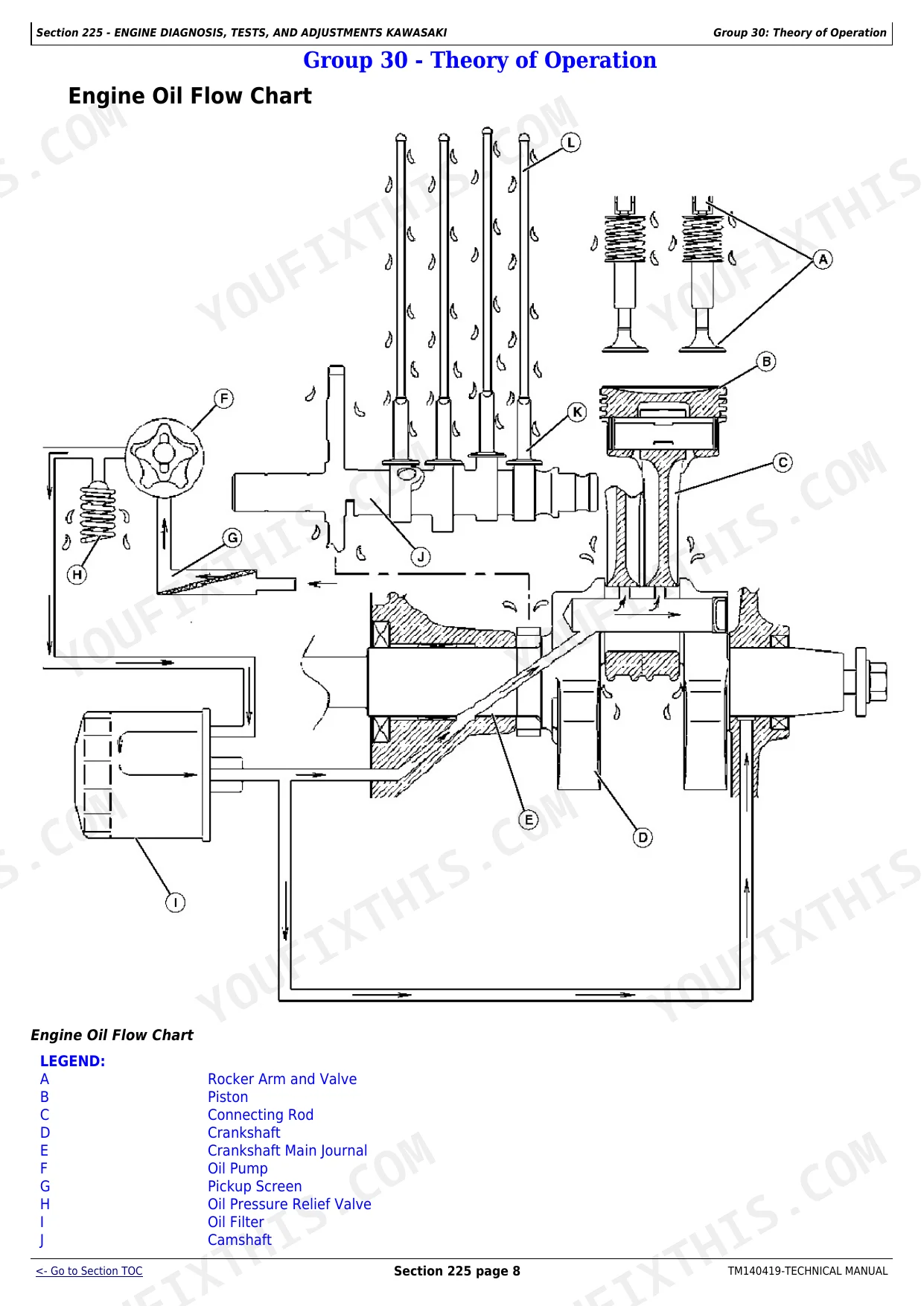

| Engine Diagnosis, Tests, and Adjustments Kawasaki | 348-403 | Group 10 - Component Location, Group 20 - General Information, Group 30 - Theory of Operation, Group 40 - Diagnosis, Group 50 - Tests and Adjustments |

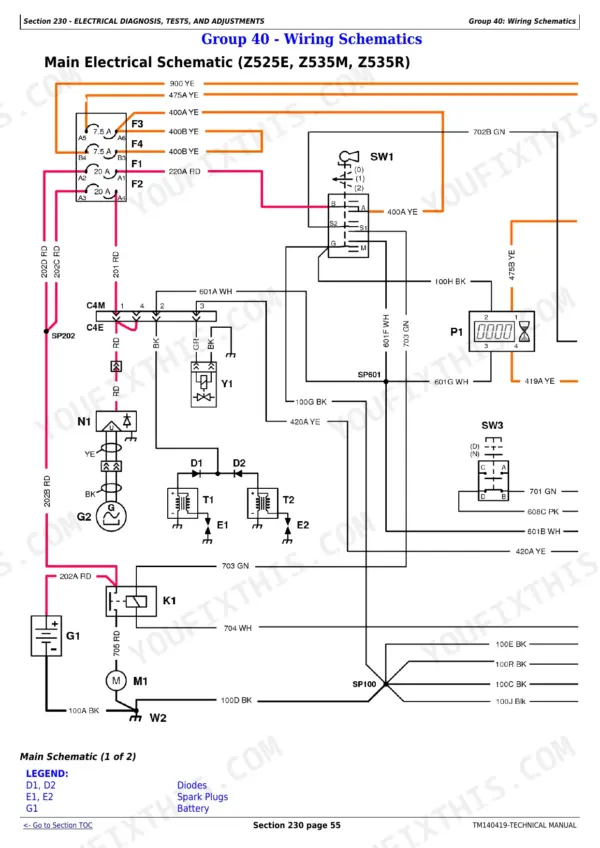

| Electrical Diagnosis, Tests, and Adjustments | 404-478 | Group 10 - Theory of Operation, Group 20 - Diagnosis, Group 30 - Tests and Adjustments, Group 40 - Wiring Schematics, Group 50 - Connectors |
| Power Train Diagnosis, Tests, and Adjustments | 479-491 | Group 10 - Theory of Operation, Group 20 - Diagnosis, Group 30 - Tests and Adjustments |
| Attachments Diagnosis, Tests, and Adjustments | 492-502 | Group 10 - Diagnosis, Group 20 - Tests and Adjustments |
| Service Tools and Kits | 503-504 | Group 10 - Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| PTO Switch Continuity (Off position) | 1-7 and 2-8 and 3-9 | p. 449 |
| PTO Switch Continuity (On position) | 1-4 and 2-5 | p. 449 |
| Key Switch Continuity (Off) | A - B | p. 451 |
| Key Switch Continuity (Run) | C - D | p. 451 |
| Mower Blade Bolt Torque | 68 N·m (50 lb-ft) | p. 264 |
| Mower Blade Cutting Edge Width | 0.40 mm (0.016 in.) | p. 264 |

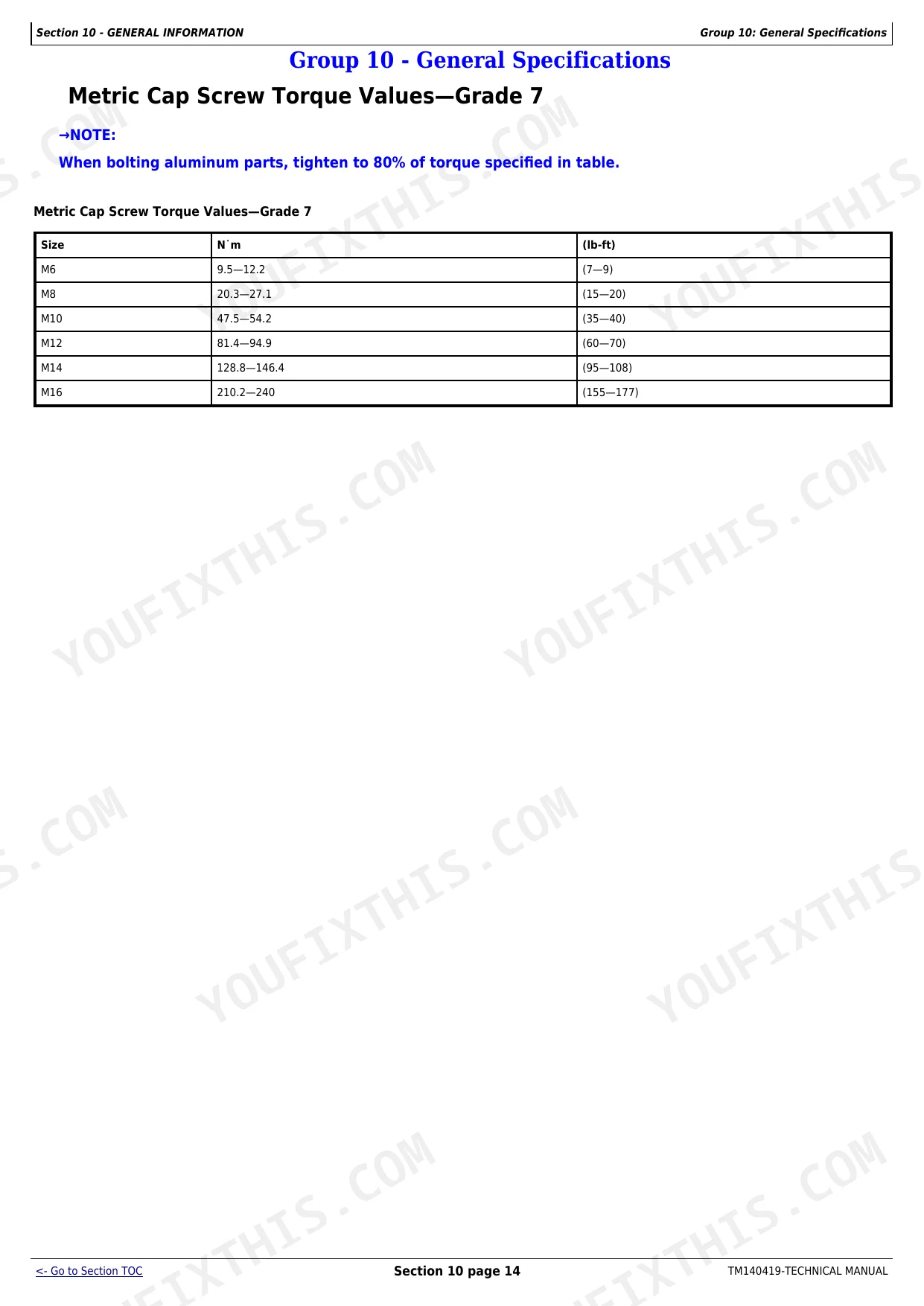

| Metric Cap Screw Torque (M10, Grade 7) | 47.5–54.2 Nm (35–40 lb-ft) | p. 19 |
| Gasoline Octane Rating | 87 AKI or 90 RON | p. 22 |
| Z525E, Z535M, Z535R | ||
| Fuse F1 (Key Switch) | 20 A | p. 466 |
| Fuse F2 (Voltage Regulator) | 20 A | p. 466 |

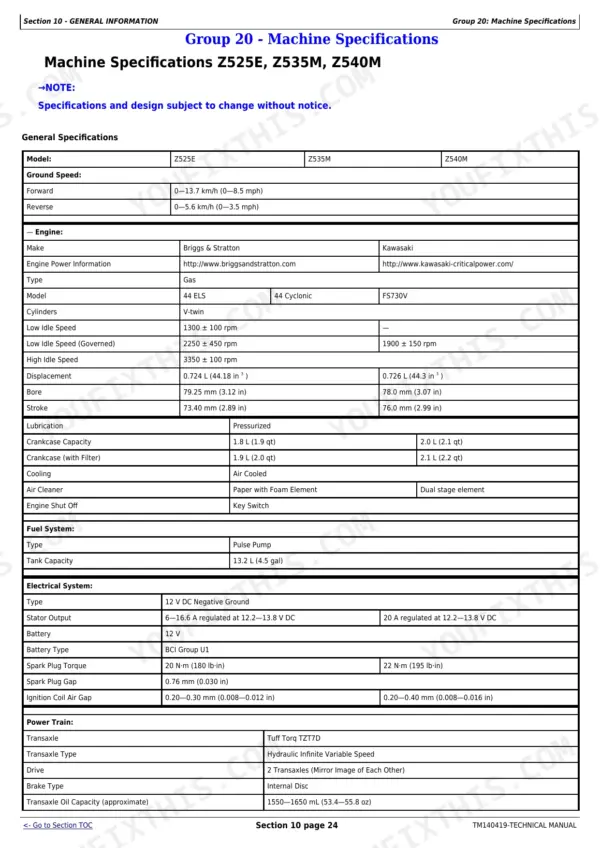

| Z525E, Z535M, Z540M | ||

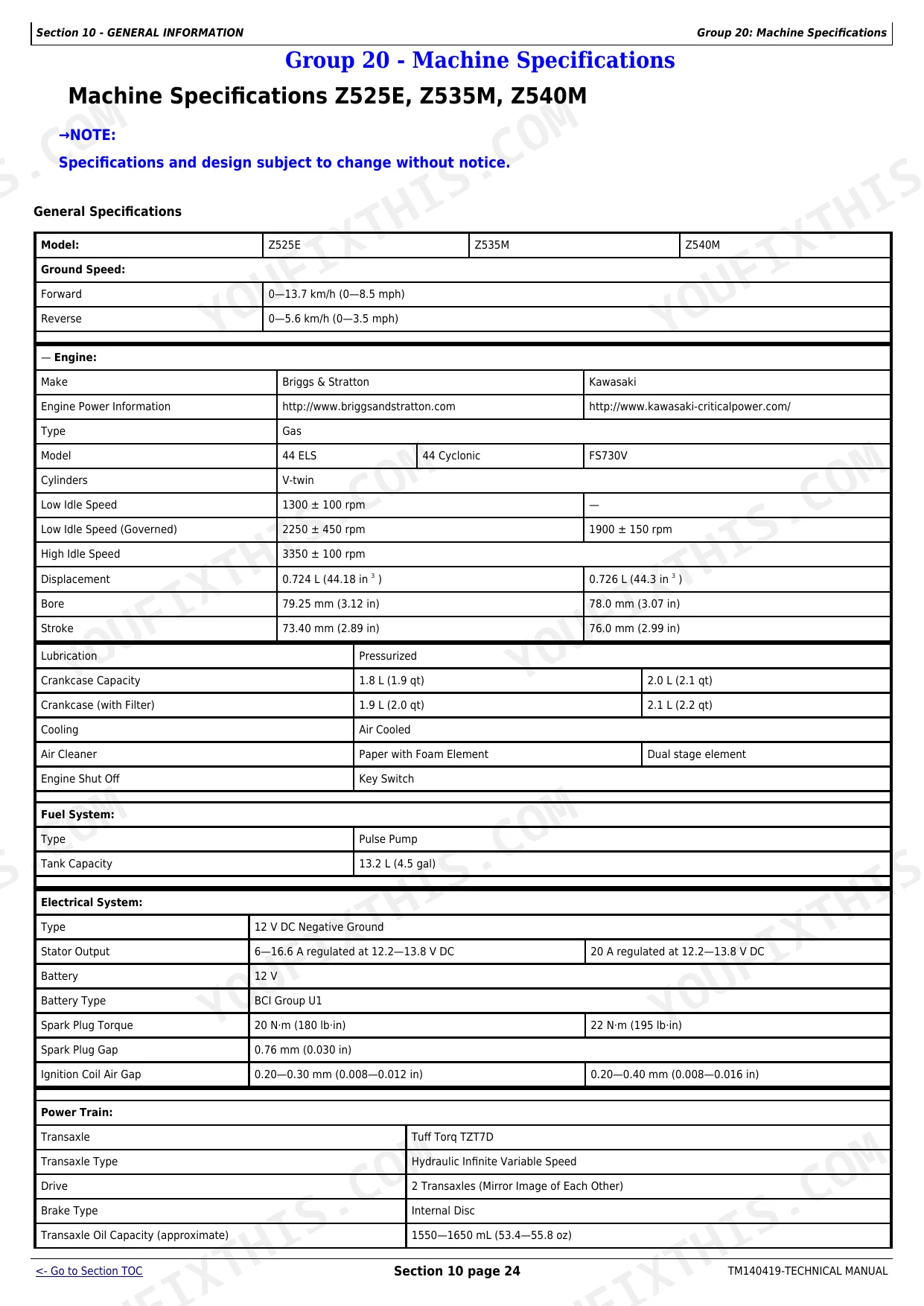

| Transaxle Oil Capacity (approximate) | 1550–1650 mL (53.4–55.8 oz) | p. 29 |
| Z535R, Z540R | ||
| Transaxle Oil Capacity (approximate) | 1550–1650 mL (53.4–55.8 oz) | p. 31 |
John Deere Z510-Z540 / 48A / 54HC Common Problems This Manual Covers
John Deere Z535M hydrostat transaxle whines under load, mower loses drive or won't move p. 479
Drain and refill the transaxle with 10W-30 CD oil to 2.0 ± 0.5 L (2.1 ± 0.5 qt) as shown on page 238. Then inspect the traction drive belt for glazing or breakage. If the unit still won't track, run the transaxle condition and machine movement tests starting on page 479 before condemning the unit.
Manual Section: Power Train Diagnosis, Tests, and AdjustmentsEngine won't crank or start at all, no click from starter solenoid p. 404
Check fuses first: F1 (Key Switch) must be 20 A. Pull each one, clean any corroded terminals, and swap blown fuses. If fuses pass, test key switch continuity at page 451. In Start position, pins C-D and E-F must both show continuity. Work through the full cranking circuit diagnosis at page 404.
Manual Section: Electrical Diagnosis, Tests, and AdjustmentsSeat or park brake safety switch prevents engine from starting or keeps cutting out p. 455
Test seat switch continuity with an ohmmeter: with seat released, pins A-B must show continuity.
Frequently Asked Questions
What are the torque specs for blade bolts on John Deere Z540M?
The torque specification for mower blade bolts on John Deere Z540M is 68 N·m (50 lb-ft). This specification is used when installing mower blades.
How do you fix john Deere Z535M hydrostat transaxle whines under load, mower loses drive or won't move?
Drain and refill the transaxle with 10W-30 CD oil to 2.0 ± 0.5 L (2.1 ± 0.5 qt) as shown on page 238. Then inspect the traction drive belt for glazing or breakage. If the unit still won't track, run the transaxle condition and machine movement tests starting on page 479 before condemning the unit.
How do you fix engine won't crank or start at all, no click from starter solenoid?
Check fuses first: F1 (Key Switch) must be 20 A. Pull each one, clean any corroded terminals, and swap blown fuses. If fuses pass, test key switch continuity at page 451. In Start position, pins C-D and E-F must both show continuity. Work through the full cranking circuit diagnosis at page 404.
How do you fix seat or park brake safety switch prevents engine from starting or keeps cutting out?
Test seat switch continuity with an ohmmeter: with seat released, pins A-B must show continuity per page 455; with seat pressed, continuity should drop to none. Check park brake switch at page 457 the same way. With park brake released, pins A-C must be closed. Replace any switch that fails these tests.
What format is this manual in?
A 504-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this John Deere Z525E & variants Technical Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this John Deere Z525E & variants manual cover the hydraulic system?
Yes, a hydraulic system diagram is included showing the main circuit layout.
