Three tractors, one book: the New Holland T2310, T2320, and T2330 operator manual PDF runs 123 pages under OEM number 87395020, and every section applies across all three models. Factory wiring diagrams map the electrical system circuit by circuit, while lubrication and maintenance fills well over a third of the book, from the service interval chart to fuel and lubricant procedures. Controls, instruments, engine starting, and transmission speeds each get their own coverage, and the delivery report checks close it out. Fill the crankcase with 6.0 liters of oil, filter included, then pull the wheel disc-to-hub hardware to 129 N·m (95 ft-lb). A wrong guess costs you the part and the afternoon. Bookmarked and searchable by keyword, the PDF puts the right number in front of you and your tractor back in the field while the weather holds.
What's Inside This New Holland T2310, T2320, T2330 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 6-17 | Precautionary Statements, Safety Decals |
| General Information | 18-21 | Minimum Hardware Tightening Torques |
| Operation | 22-55 | Controls and Instruments, Starting the Engine |
| Lubrication and Maintenance | 56-103 | Lubrication and Maintenance Chart, Fuel and Lubricant Service Procedures |
| Specifications | 104-117 | Engine Specifications, Transmission Speeds |
| Delivery Report | 120-123 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Hydraulic System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Torque tie rod adjusting nut | 42 - 56 N⋅m (31 - 41 ft-lb) | p. 49 |
| Front Wheel Disc-to-Hub 2WD | 129 N⋅m (95 ft-lb) | p. 110 |
| Front Wheel Disc-to-Hub FWD | 129 N⋅m (95 ft-lb) | p. 110 |
| Rear Wheel & Disc-to Axle | 129 N⋅m (95 ft-lb) | p. 110 |
| Engine Crankcase Oil Capacity (with filter) | 6.0 liters | p. 104 |
| Fuel Tank Capacity | 49.2 liters | p. 104 |
| Rear Axle & Transmission Oil Capacity | 36 liters | p. 104 |
| Front Axle Final Reduction/Differential Gear Case Oil Capacity | 5.3 liters | p. 104 |
| Front Wheel Bolt Torque | 129 N⋅m | p. 110 |
| Rear Wheel & Disc-to-Axle Bolt Torque | 129 N⋅m | p. 110 |
| T2310 | ||
| Cooling System Capacity | 7.9 liters | p. 104 |
| T2320, T2330 | ||
| Cooling System Capacity | 8.0 liters | p. 104 |
New Holland T2310, T2320, T2330 Common Problems This Manual Covers
New Holland T2310 engine dies when the operator shifts weight or rises off the seat
Check the operating instructions starting on page 25 for the safe-start conditions: transmission in neutral, PTO disengaged, clutch pedal fully depressed. Tip the seat forward and inspect the safety switch plunger and wiring connector for corrosion or a loose plug. While the seat is up, confirm the seat belt mounting bolts are torqued to 47.4 N⋅m per page 110.
Manual Section: Operation p. 25Hydraulic oil weeping from lines under the seat, film of oil on transmission housing
Wipe the lines clean, then cycle the three-point hitch to find the source. Check the rear axle and transmission oil level against the 36 liter capacity on page 104; a steady weep drains the shared reservoir fast. The system relief valve is set at 172 bar per page 106, so replace a damaged line, never tape or clamp it.
Manual Section: Specifications p. 104Engine cranks slowly and refuses to fire on cold mornings before chores
Verify battery connections are clean and tight, then follow the cold weather starting steps in the Operation section beginning on page 22. Keep the fuel tank full overnight; the 49.2 liter tank draws condensation when parked half empty, and water in the diesel means hard starts. Switch to winter grade engine oil before the first freeze.
Manual Section: Operation p. 22Front end shimmy and loose steering feel at road speed with a loader on
Check tire pressures side to side first; a soft front tire mimics worn steering parts. Retorque the front wheel bolts to 129 N⋅m as listed on page 110, then check toe-in. If you adjust the tie rod, torque the adjusting nut to 42 - 56 N⋅m per page 49 before road testing.
Manual Section: Operation p. 49Oil pressure warning light flickers at low idle once the engine warms up
Shut the engine down and check the oil level on the dipstick before restarting. Top up or change the oil and filter; the crankcase takes 6.0 liters with a filter change, per the specifications on page 104. If the light still flickers at hot idle, stop and call your dealer before the next field pass.
Manual Section: Specifications p. 104Frequently Asked Questions

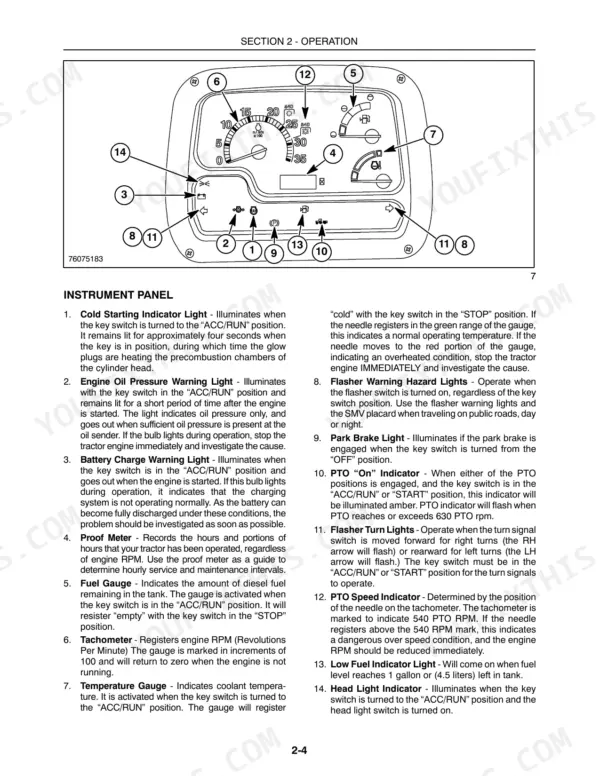

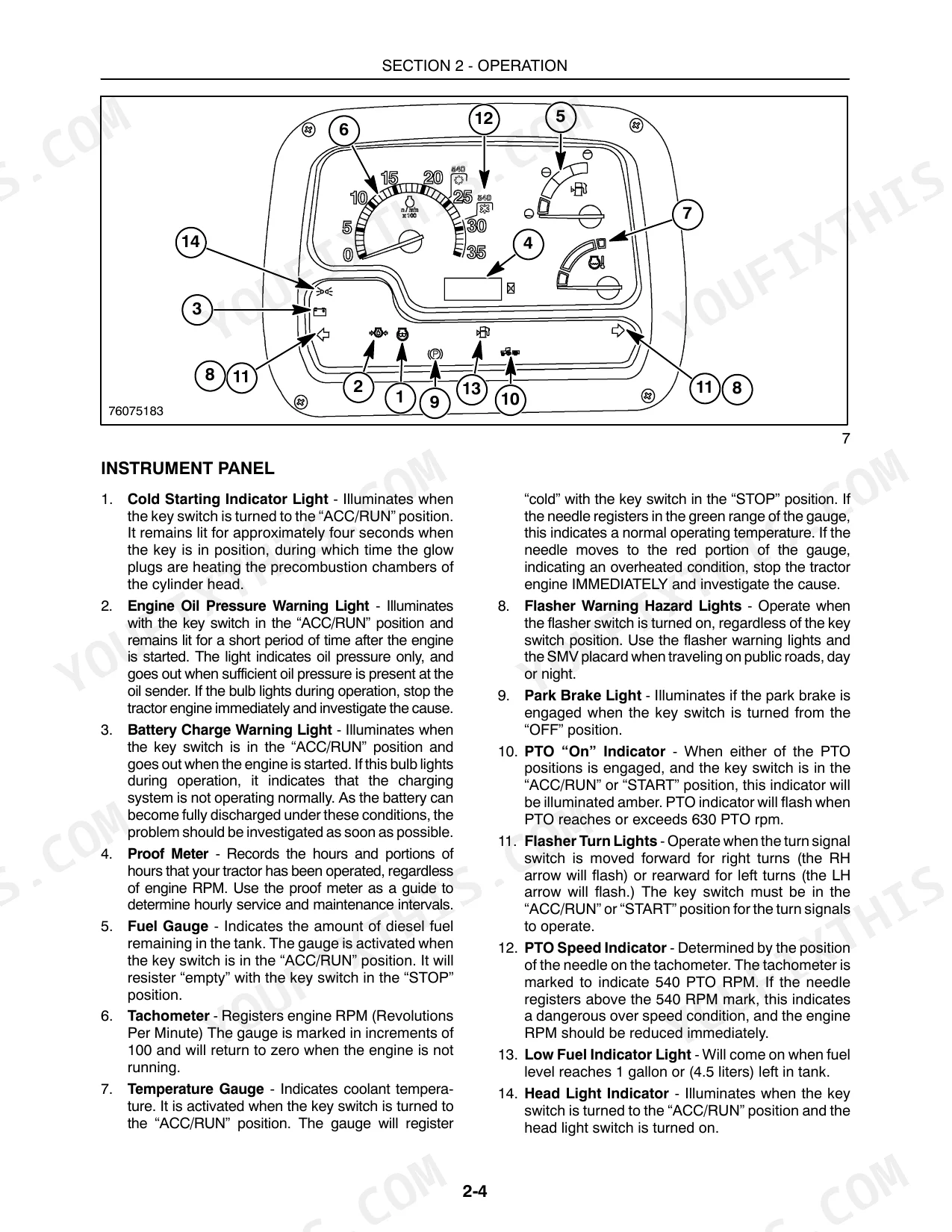

What does it mean if the PTO indicator light flashes on my New Holland T2310?
The PTO indicator light will flash amber if the PTO speed reaches or exceeds 630 PTO rpm. If the needle on the tachometer registers above the 540 RPM mark, this indicates a dangerous overspeed condition, and the engine RPM should be reduced immediately. p. 25
What is the correct engine oil and filter change interval for the T2310, T2320, and T2330?
Change the engine oil and filter after the first 50 hours of operation, then every 100 hours thereafter. If the tractor is operated under severe conditions, the interval should be shortened to 70 hours. p. 61
What is the required torque for the ROPS mounting bolts on a New Holland T2310, T2320, T2330 tractor?
The ROPS mounting bolts must be tightened to a torque of 74.5 N⋅m (55 ft-lb). p. 72
What is the transmission, rear axle, and hydraulic system capacity on the New Holland T2310, T2320, T2330?
The combined capacity for the rear axle, transmission, and hydraulics is 36 liters (9.2 U.S. gallons), per the Specifications table on page 104. A different figure appears in the oil-change procedure for the 12 x 12 transmission on page 68: it lists 35.2 liters (9.3 gallons) as the fill for that specific service step, not the combined system total. p. 104
What is the correct fan belt tension for these tractors?
When 9 - 11 kg (20 - 25 lb) of thumb pressure is applied midway between the belt pulleys, a correctly tightened belt will deflect 10 - 15 mm (7/16 - 9/16 in). p. 71
Will this New Holland T2310 Operator Manual download right away?
All 123 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print this New Holland T2310 manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
