Draft control on a TD 5030 is the system that gets blamed first when a plough starts porpoising, and the Field Operations section is where the hydraulic lift, the three-point linkage Cat. II and the remote control valves are laid out control by control.
From there the book widens: 226 pages covering the instrument panel and cab controls, range and shuttle transmission, mechanically controlled four wheel drive and differential lock, PTO operation, ballasting and tyre combinations, then the full Lubrication and Maintenance schedule from the 10-hour daily checks out to 1200-hour service.
It is New Holland publication 84425846, the operator manual for the TD 5030 and TD 5040 tractor, delivered as a PDF you can keep on a phone in the cab or print page by page for the bench. A Troubleshooting chapter and a Specifications and Data chapter close it out.
What's Inside This New Holland TD 5030, TD 5040 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| CE Declaration of Conformity Document | 4 | Agricultural Tractor, Trade Name, Model, Type, Serial Number |
| Health and Safety Related Standards Applied to Your Tractor | 5-10 | FOPS, HVAC, Noise Emission Levels, Vibration Levels, ROPS Protection |
| Introduction and Safety Measures | 11-44 | To the Owner, Tractor Identification, Ecology and the Environment, Safety Messages Used in This Manual, Working Safely, Safety Decals, Safety Covers and Guards |

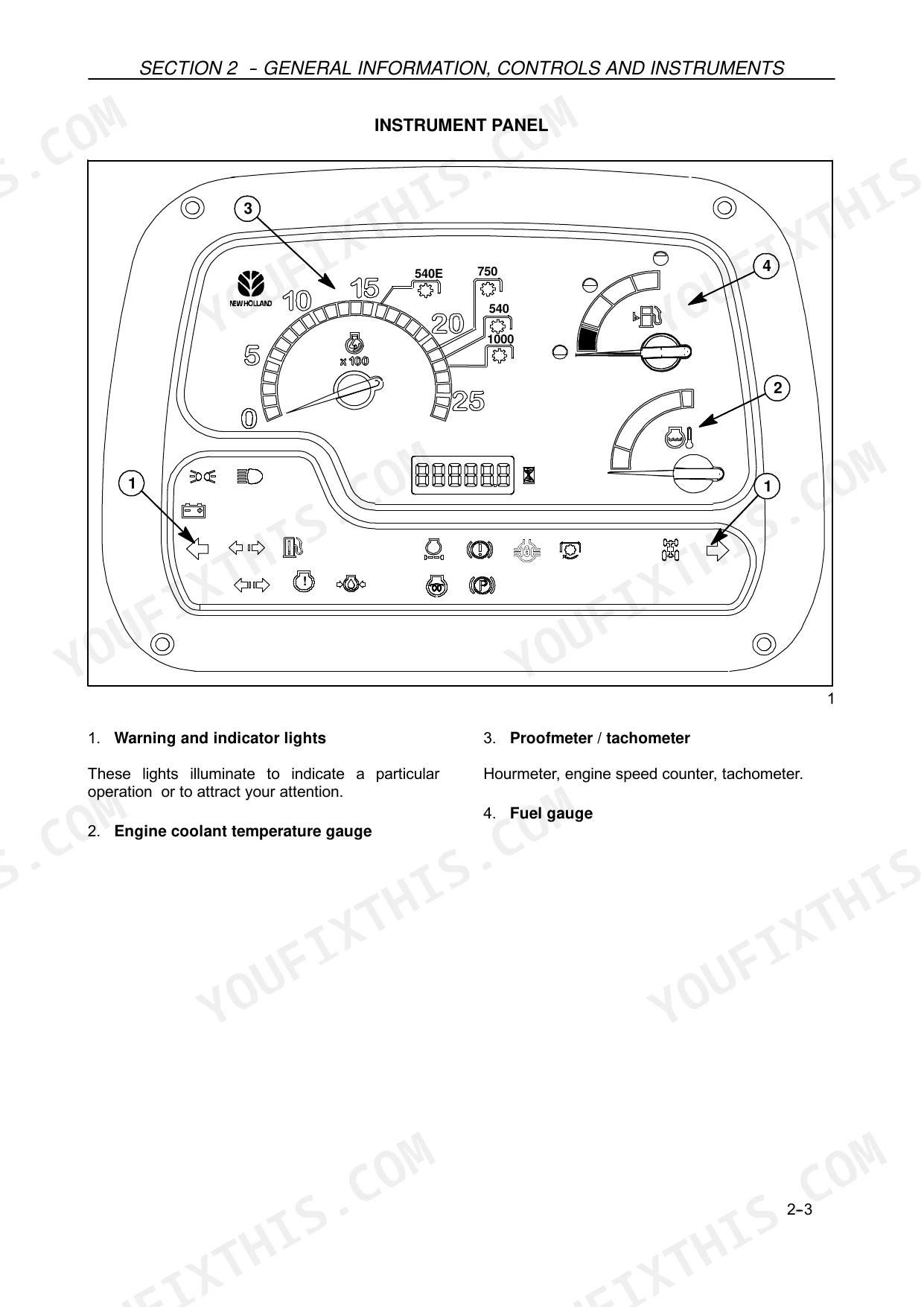

| General Information, Controls and Instruments | 45-84 | Controls and Instruments, Instrument Panel, Instrument Console Controls, Right-Hand Side Operating Controls, Left-Hand Side Operating Controls, Cab Controls, Seats, Cab |

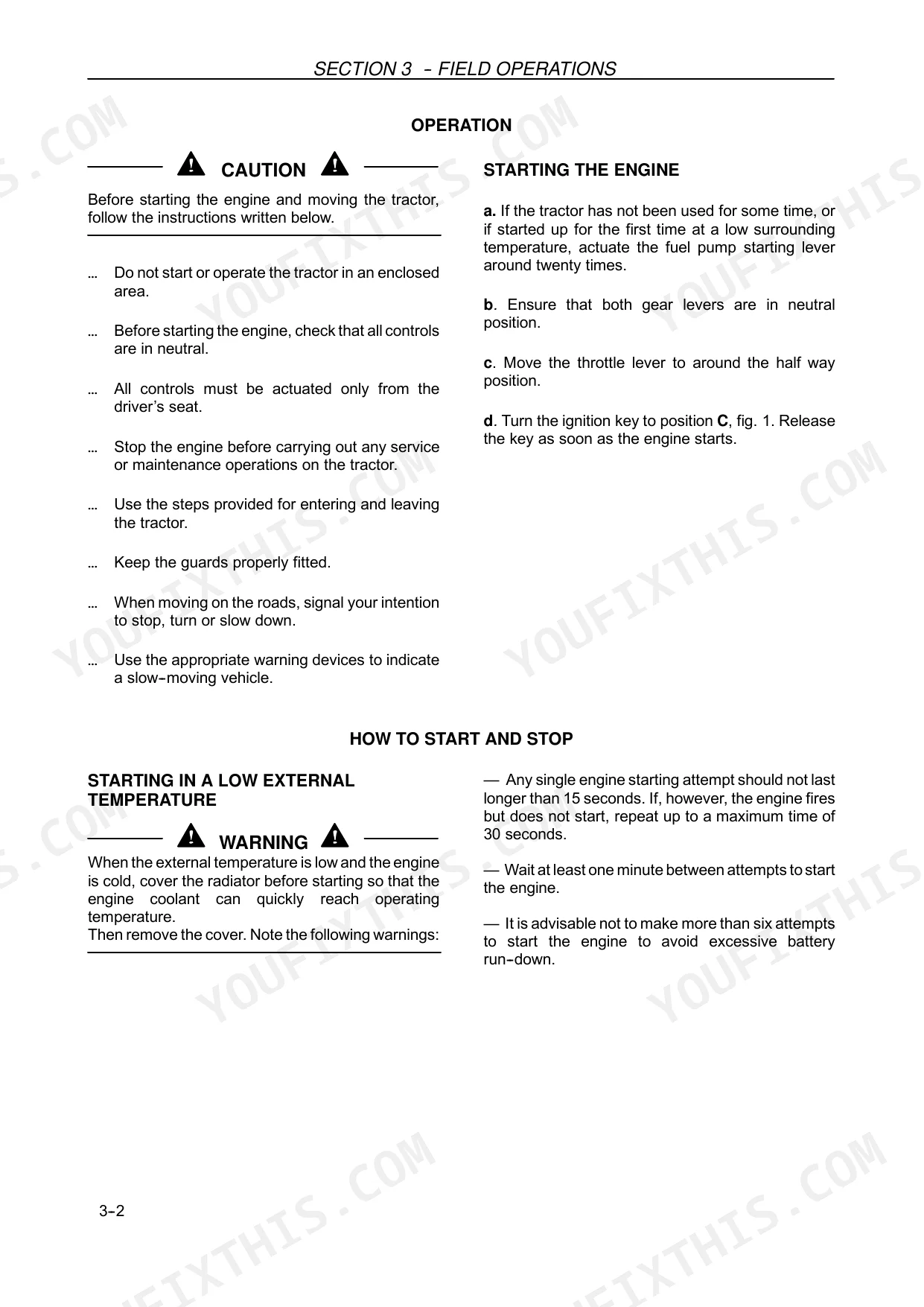

| Field Operations | 85-130 | Starting with Thermostart the Engine, Power Take-Off, Hydraulic Lift, Three-Point Linkage Cat. II, Remote Control Valves, Wheel Track Adjustment, Tyres, Tyre Combinations |

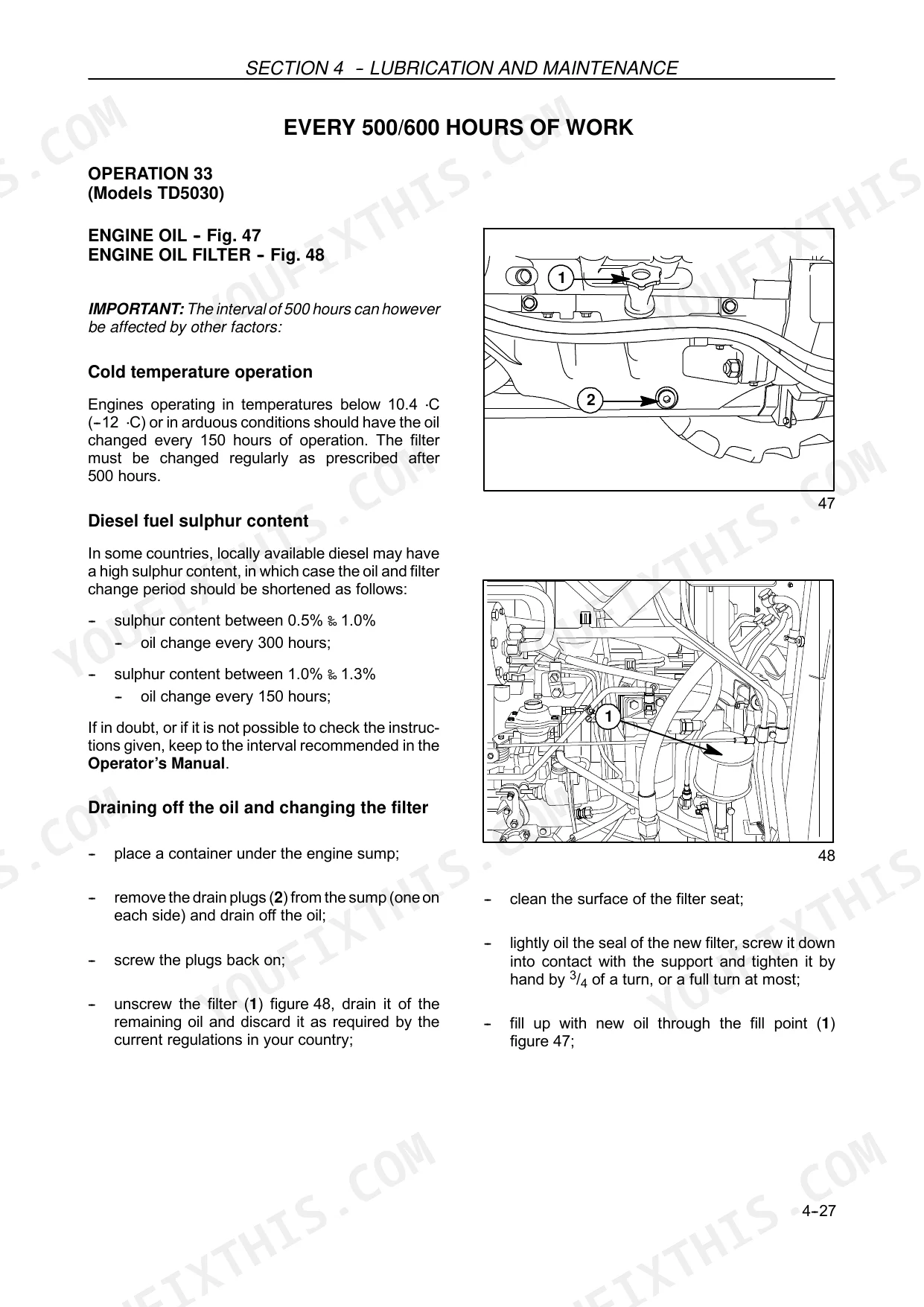

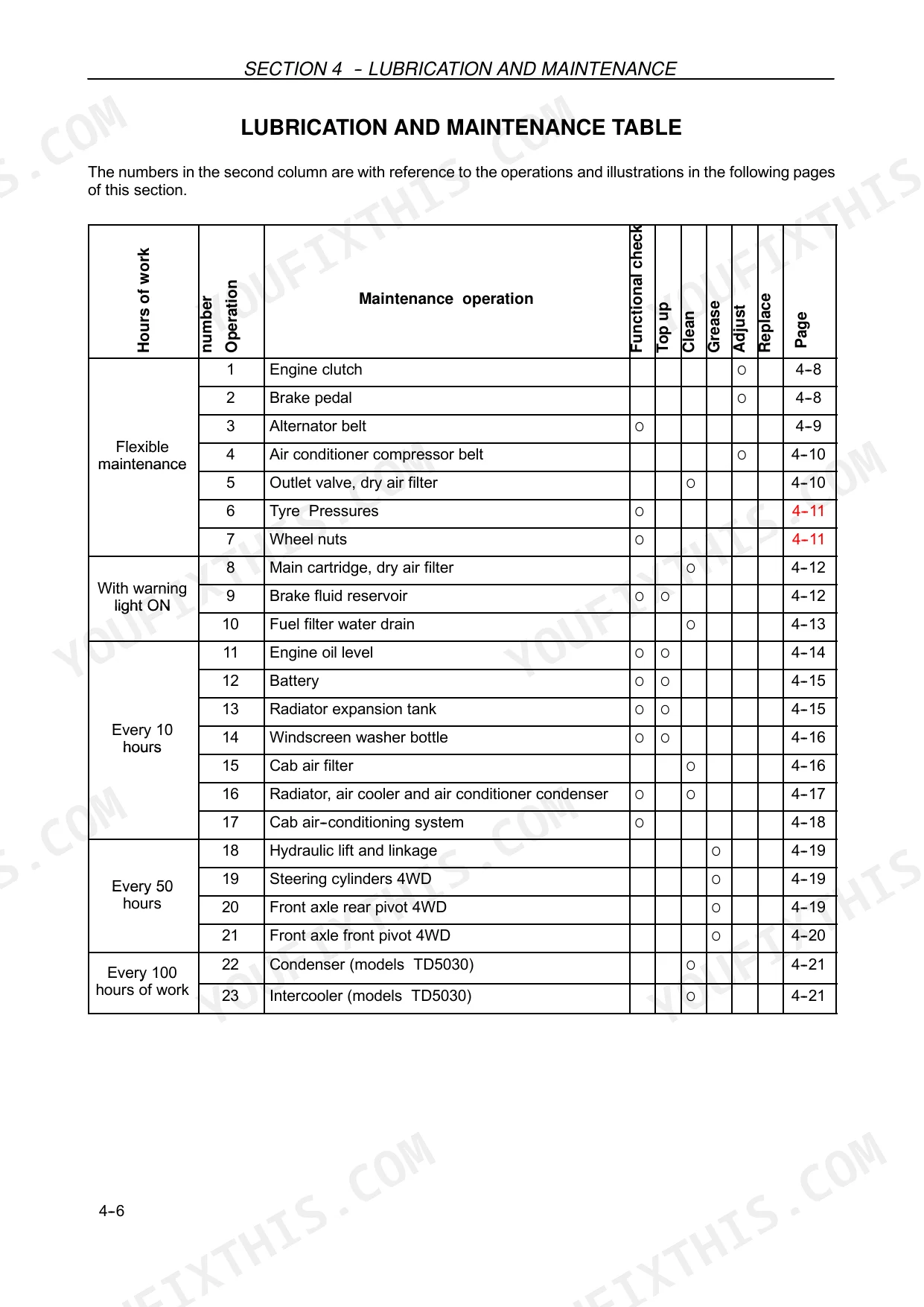

| Lubrication and Maintenance | 131-180 | Access for Inspection and Maintenance, Lubrication and Maintenance Table, Flexible Maintenance, When the Warning Light Is on, 10-Hour / Daily Service, 50-Hour Service |
| Troubleshooting | 181-188 | Introduction, Engine, Electrical System, Hydraulic System, Three-Point Linkage, Brakes, Cab |
| Vehicle Storage | 189-190 | Engine, Fuel Tank, Battery, Operating Cylinder Rods, Tyres |
| Accessories | 191-202 | Beacon Lamp, Drawbars and Towing Attachments |
| Specifications and Data | 203-216 | Weights, Engine Specifications, Timing, Fuel System, Lubrication, Cooling System, Transmission, Power Take-Off |
| First 50-Hour Service Forms | 217-220 | Non Functional Inspections, Operational Inspections, Functional Inspections, Safety Equipment Inspections |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheels 4WD hub disc locknuts torque | 255 Nm - 26 kgm (187.98 lb.ft) | p. 114 |
| Front wheels 4WD rim disc locknuts torque | 216 Nm - 22 kgm (159.06 lb.ft) | p. 114 |
| Clutch pedal distance A | 35-40 mm (1.4-1.6 in) | p. 138 |
| Fuse 1 | 15 A | p. 173 |
| Fuse 2 | 10 A | p. 173 |
| Fuse 14 | 40 A | p. 173 |
| Tightening torque of front axle hub disc locknuts | 255 Nm | p. 114 |
| Tightening torque of front axle rim disc locknuts | 216 Nm | p. 114 |
| Tightening torque of rear axle hub disc locknuts | 255 Nm | p. 114 |
| Tightening torque of rear axle rim disc locknuts | 245 Nm | p. 114 |
| Inlet valve clearance (engine cold) | 0.25 ± 0.05 mm | p. 207 |
| Exhaust valve clearance (engine cold) | 0.50 ± 0.05 mm | p. 207 |
New Holland TD 5030, TD 5040 Common Problems This Manual Covers
Wheel nuts loosen after track adjustment
Shifting wheel track for row spacing means slackening the disc nuts, and they have to go back to the book figure rather than to feel. Page 114 gives 255 Nm for the front and rear hub disc locknuts, 216 Nm for the front rim disc nuts and 245 Nm for the rear rim disc nuts.
Manual Section: Field Operations p. 114Clutch slips pulling a loaded implement
A clutch that lets go under load on a baler or a full trailer is often nothing more than pedal adjustment. The manual has you measure distance A at the clutch pedal, which should be 35-40 mm (1.4-1.6 in), before anyone starts talking about splitting the tractor.
Manual Section: Lubrication and Maintenance p. 138Valve clearance closed up, engine noisy
Tapping on cold start, a reluctant first fire and a loss of pull at the drawbar all trace back to valve clearances that have drifted. The Specifications and Data chapter gives 0.25 ± 0.05 mm inlet and 0.50 ± 0.05 mm exhaust, both with the engine cold.
Manual Section: Specifications and Data p. 207Lights or beacon dead, fuse blown
When the beacon lamp, the work lights or a cab function quits all at once, it is usually a fuse rather than the component itself. The Electrical System pages inside Lubrication and Maintenance identify each fuse and its rating, including fuse 4 at 7.5 A and fuse 12 at 30 A.
Manual Section: Lubrication and Maintenance p. 173Hitch will not hold depth
An implement that creeps down while parked, or that wanders in depth as the soil changes, sends you to the Hydraulic Lift and Three-Point Linkage Cat. II pages. Lift control, draft control and the remote control valves are described there with the lever positions each one expects.
Manual Section: Field Operations p. 85Engine cranks slow on cold mornings

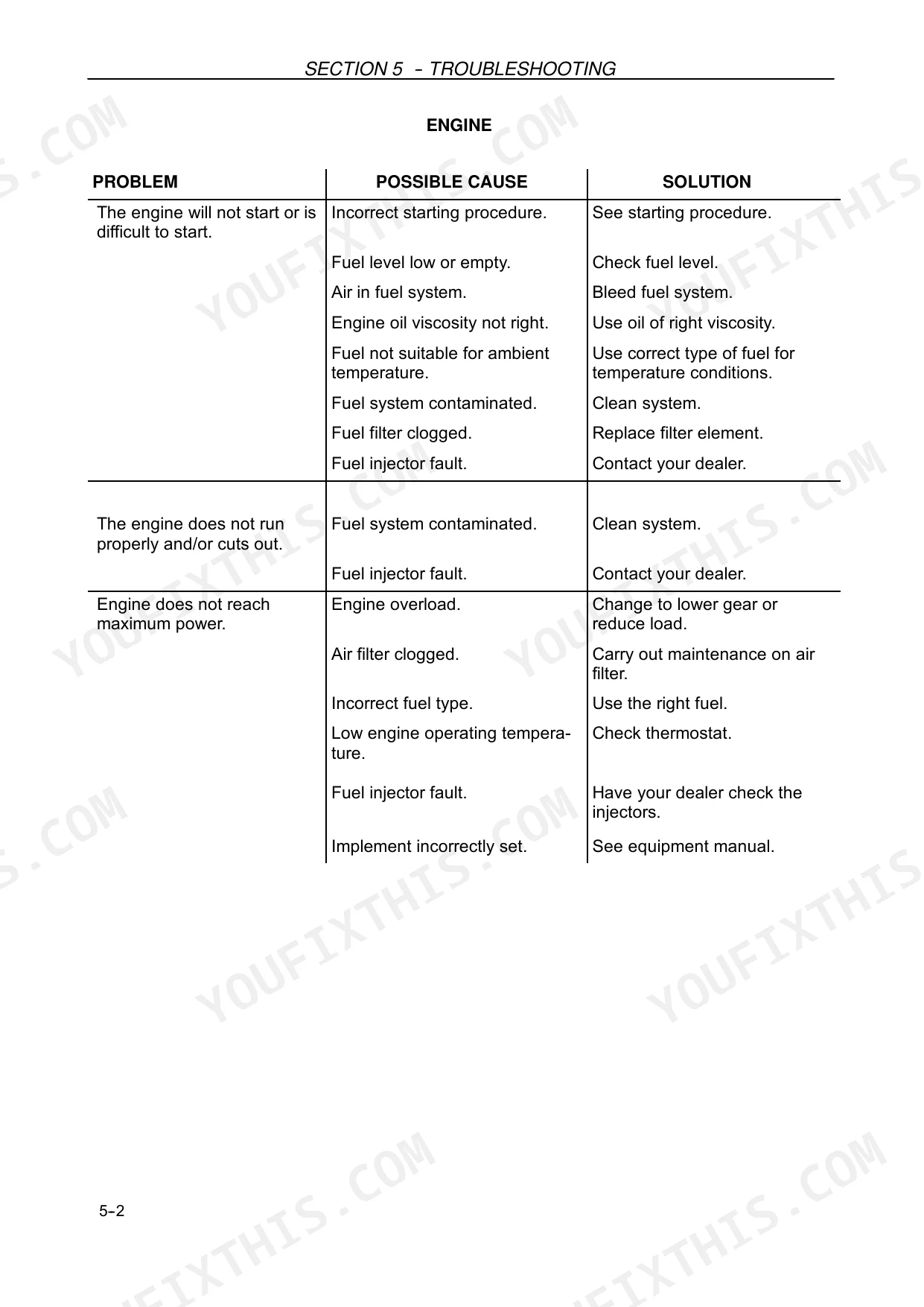

Spring mornings are when a lazy crank and a long plume of white smoke turn up. The Troubleshooting chapter covers it in two tables: the Electrical System table lists loose or corroded connections and a weak battery for low starter motor speed, and the Engine table adds air in the fuel system and a clogged fuel filter.
Manual Section: Troubleshooting p. 184Differential lock will not release
A diff lock that will not drop out when you touch a brake pedal, or four wheel drive that refuses to drop out on the headland, drags the front axle and scrubs tyres on hard ground. The controls chapter covers the mechanically controlled four wheel drive and differential lock and how each is meant to engage and release.
Manual Section: General Information, Controls and Instruments p. 79Frequently Asked Questions
Does this cover both the TD 5030 and the TD 5040?
Yes. Publication 84425846 is the operator manual for the New Holland TD 5030 and TD 5040 tractor, 226 pages covering controls and instruments, field operations, the full lubrication and maintenance schedule, vehicle storage, troubleshooting and specifications.
Does it give wheel nut torque figures?
Yes. Page 141 lists 255 Nm (26 kgm) for the 4WD front and rear hub disc nuts, 216 Nm (22 kgm) for the front rim disc nuts and 245 Nm for the rear rim disc nuts. A guessed figure is how a rim works loose at road speed with a loaded trailer behind you. p. 141
Are engine valve clearances included?
They are. The Specifications and Data chapter gives inlet clearance of 0.25 ± 0.05 mm and exhaust clearance of 0.50 ± 0.05 mm, both measured with the engine cold, alongside engine, timing, fuel system, lubrication, cooling, transmission and power take-off data. p. 207
Will it help me order the right parts?
This is the operator manual rather than a parts catalogue, but the Introduction and Safety Measures chapter shows exactly where the tractor identification plates sit. Quote those numbers at the counter and the part is right the first time, instead of a second trip in the middle of harvest. p. 11
Do I get instant access to this New Holland TD 5030 Operator Manual?
This is a 226-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is printing allowed for this New Holland TD 5030 Operator Manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
