Part of the John Deere Repair Manuals.
This is the John Deere Diagnostic and Tests technical manual (TM901019) for the 5055E, 5065E, and 5075E utility tractors built from 2012 to 2019, all powered by the PowerTech 2.9L diesel engine. It is the North America edition, 1178 pages, delivered as a downloadable PDF.The manual is built for diagnosis rather than teardown. It walks you through diagnostic trouble codes, observable symptoms, and system-level tests across the engine, fuel and air, electrical system, control units, PowrReverser and TSS transmissions, drive systems, steering and brakes, hydraulics, and the operator station. You get fuse and relay listings, sensor resistance values, charging specs, and torque figures pulled straight from the factory procedures.Use it to chase a no-start, a weak hydraulic circuit, a charging fault, or a stored code to its root cause before you order parts, whether you run one tractor or service them for a living.
What's Inside This John Deere 5055E-5075E Manual
| System | Pages | Key Topics |
|---|---|---|
| General | Safety, General Specifications, General References | |
| Diagnostic Trouble Codes | CCU Code Diagnostics, ICC Code Diagnostics, PTR Code Diagnostics | |
| Observable Symptoms | Engines, Fuel and Air, Electrical, Control Units, PowrReverser Transmissions, Drive Systems, Steering and Brakes, Hydraulics, Operator Station | |
| System Diagnosis | Starting, Charging and Start Aid, PowrReverser Transmission, Differential Lock, MFWD, PTO, Steering, Rear Brakes, Rear SCV, Mid-Mount Control Valve, Rear Hitch, Air Conditioning | |
| Engines | General Information, Tests and Adjustments, Engine System Theory of Operation | |
| Fuel and Air | General Information, Fuel and Air Theory of Operation | |
| Electrical System | Fuse/Relay Block, Tests and Adjustments, Theory of Operation, Functional Schematics (Cab), Functional Schematics (OOS), Connector Information | |
| Control Units | General References, Tests and Adjustments, CCU, ICC, PTR | |
| PowrReverser Transmission | General Information, Preliminary and Operational Checks, Tests and Adjustments, Theory of Operation, Schematics and Diagrams | |
| TSS Transmission | Tests and Adjustments, Theory of Operation, Schematics and Diagrams | |
| Drive Systems | General Information, Preliminary and Operational Checks, Tests and Adjustments, Theory of Operation, Schematics and Diagrams | |
| Steering and Brakes | General Information, Preliminary and Operational Checks, Test and Adjustments, Theory of Operation | |
| Hydraulics | General Information, Preliminary and Operational Checks, Tests and Adjustments, Theory of Operation | |
| Operator's Station | General Information, Preliminary and Operational Checks, Tests and Adjustments, Theory of Operation | |
| Service Tools | Dealer-Fabricated Tools, Service Tools and Kits |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5055E, 5065E, 5075E | ||

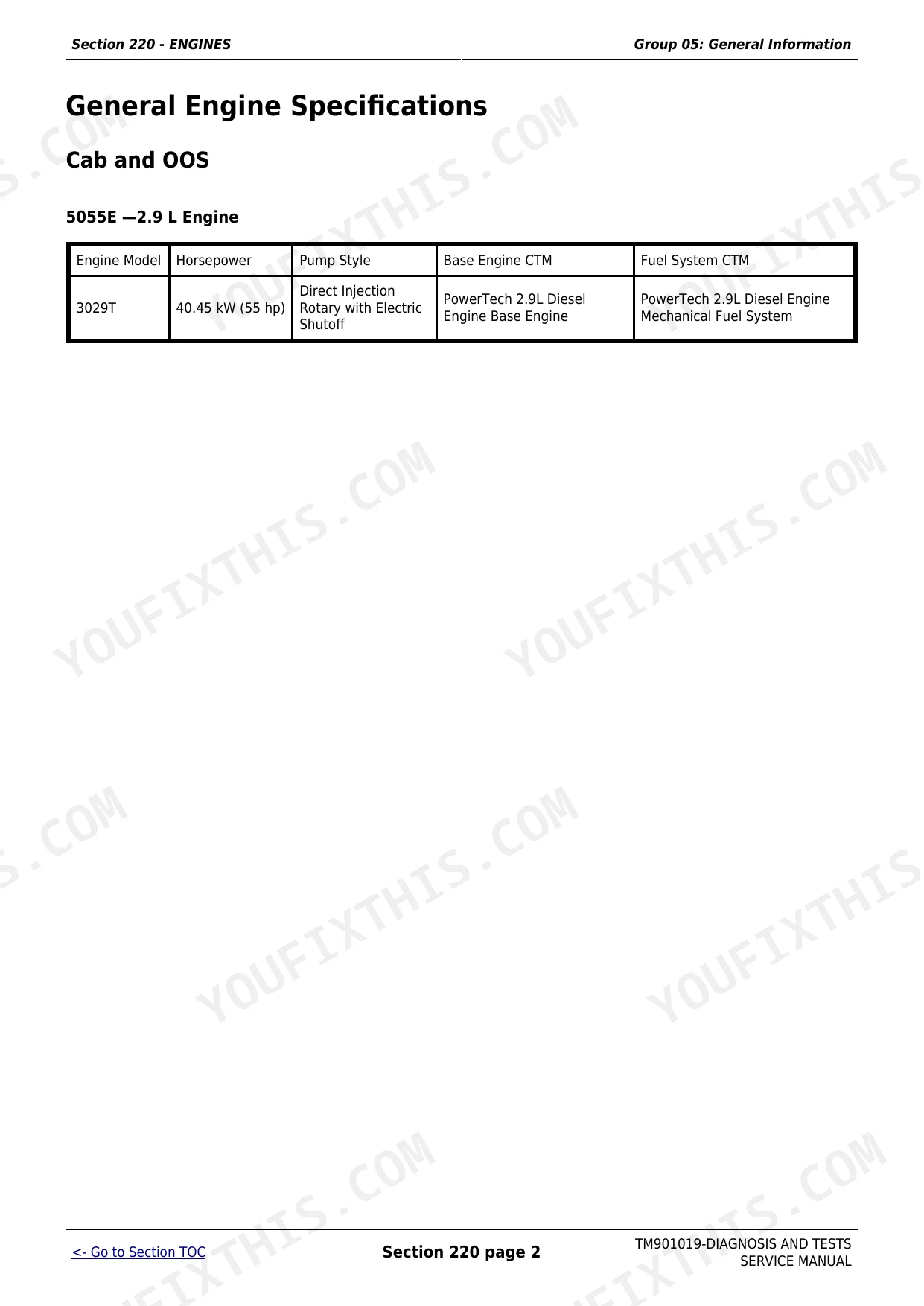

| Engine Model | 3029T (PowerTech 2.9L diesel) | |
| Fuel Injection Type | Direct Injection Rotary with Electric Shutoff | |
| 5055E | ||
| Rated Power - 5055E | 40.45 kW (55 hp) | |
| 5065E | ||
| Rated Power - 5065E | 47.81 kW (65 hp) | |
| 5075E | ||
| Rated Power - 5075E | 55.16 kW (75 hp) | |
| All models | ||
| 16 Gauge Wire Max Amperage | 75 mA per 4 m (16 ft) | |
| 14 Gauge Wire Max Amperage | 50 mA per 4 m (16 ft) | |
John Deere 5055E-5075E Common Problems This Manual Covers
No-start or hard-start after sitting
Owners report cranking with no fire, especially after the tractor sits, usually traced to fuel delivery, air in the fuel system, a weak battery, or a fault in the starting circuit. The starting, charging and start aid diagnosis walks these checks in order.
Manual Section: Section 213 - System Diagnosis p. 219Engine loses power or stalls under load
Power loss, surging, or stalling under load points to a restricted fuel supply, a dirty air intake, or an injection fault. The fuel and air section covers the theory and checks for these symptoms.
Manual Section: Section 230 - FUEL AND AIR p. 262Weak or slow hydraulic and loader response
Loader and hydraulic functions that go slow or weak often follow low oil, a clogged filter, pump wear, or a suction leak. The hydraulics section provides preliminary and operational checks to isolate the cause.
Manual Section: Section 270 - HYDRAULICS p. 994Charging faults and dead gauges
Dead gauges, warning lights, or a battery that will not hold charge usually come down to the alternator, a blown fuse, or wiring. The electrical system section includes fuse and relay block listings plus charging tests.
Manual Section: Section 240 - Electrical System p. 273Stored diagnostic trouble codes

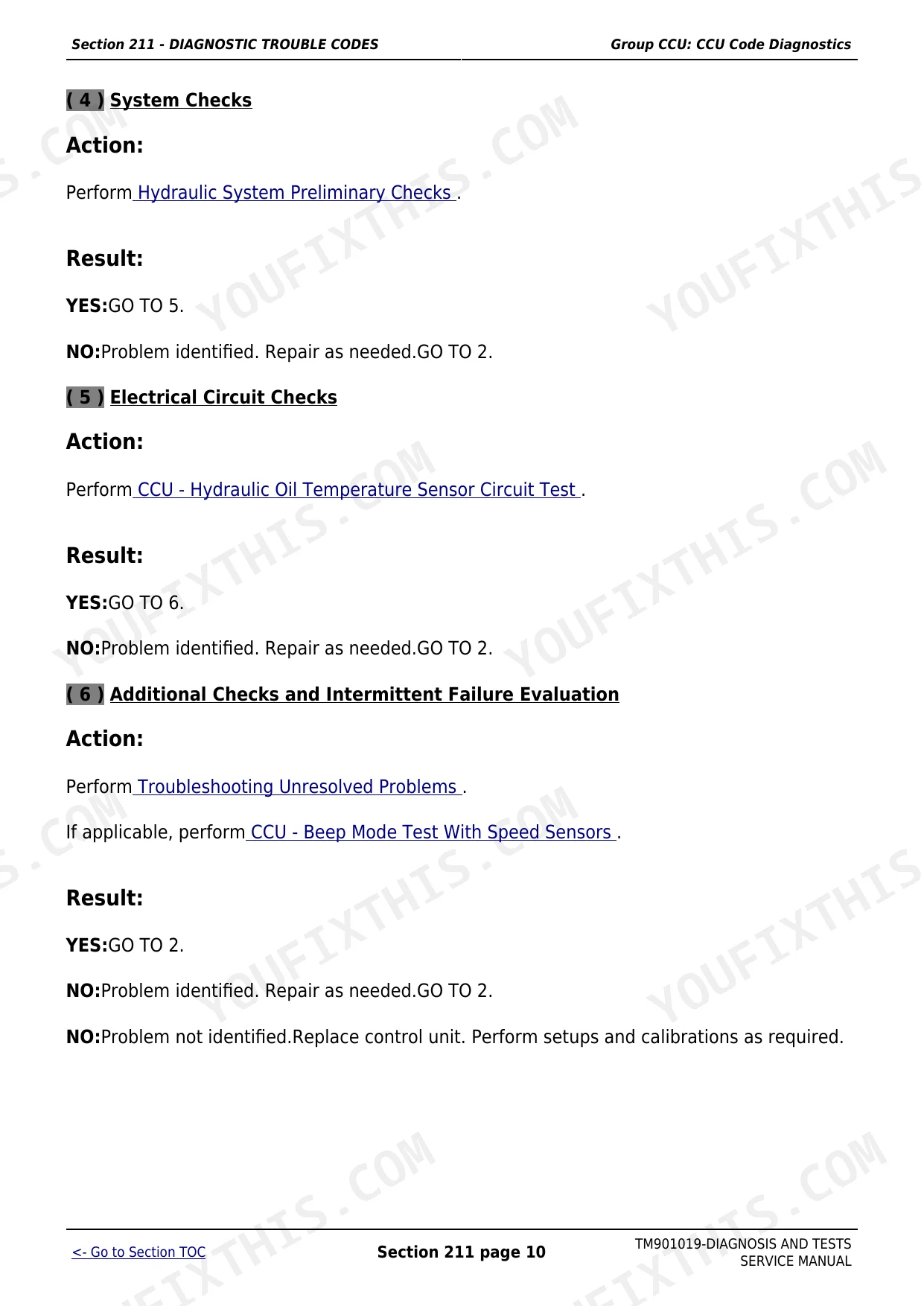

A stored code on the CCU, ICC, or PTR needs a lookup and a diagnosis routine, not a guess. The diagnostic trouble codes section lists codes and the step-by-step diagnosis for each.
Manual Section: Section 211 - Diagnostic Trouble Codes p. 122Transmission will not move or shifts poorly
A PowrReverser tractor that will not move or shifts poorly can have a clutch, linkage, or transmission hydraulic problem. The PowrReverser transmission section covers identification plus preliminary and operational checks.
Manual Section: Section 255A - Powrreverser™ Transmission p. 857Clutch pedal free play out of spec
A clutch that feels weak from a stop is often free play out of adjustment. The TSS transmission section gives the procedure for checking and adjusting clutch pedal free play.
Manual Section: Section 255B - Tss Transmission p. 905Frequently Asked Questions
Which tractors does this manual cover?
It covers the John Deere 5055E, 5065E, and 5075E utility tractors from model years 2012 to 2019, all built around the PowerTech 2.9L diesel engine. It is the North America edition.
Can I diagnose charging and electrical problems with it?
Yes. The electrical system section carries fuse and relay block listings, alternator charging tests, and battery checks, so you can trace dead gauges, blown fuses, or a no-charge condition to the source. p. 273
Does it cover hydraulic and loader troubleshooting?
It does. The hydraulics section provides general information plus preliminary and operational checks for the hydraulic system, which is where weak or slow loader and remote functions are diagnosed. p. 994
Can I look up diagnostic trouble codes?
Yes. The diagnostic trouble codes section lists CCU, ICC, and PTR codes with the diagnosis steps for each, so a stored code becomes a defined test path rather than guesswork. p. 122
What do I get after purchasing this John Deere 5055E, 5065E, 5075E manual?
This is a 1178-page searchable PDF (25 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this John Deere 5055E, 5065E, 5075E manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this John Deere 5055E, 5065E, 5075E manual cover the hydraulic system?

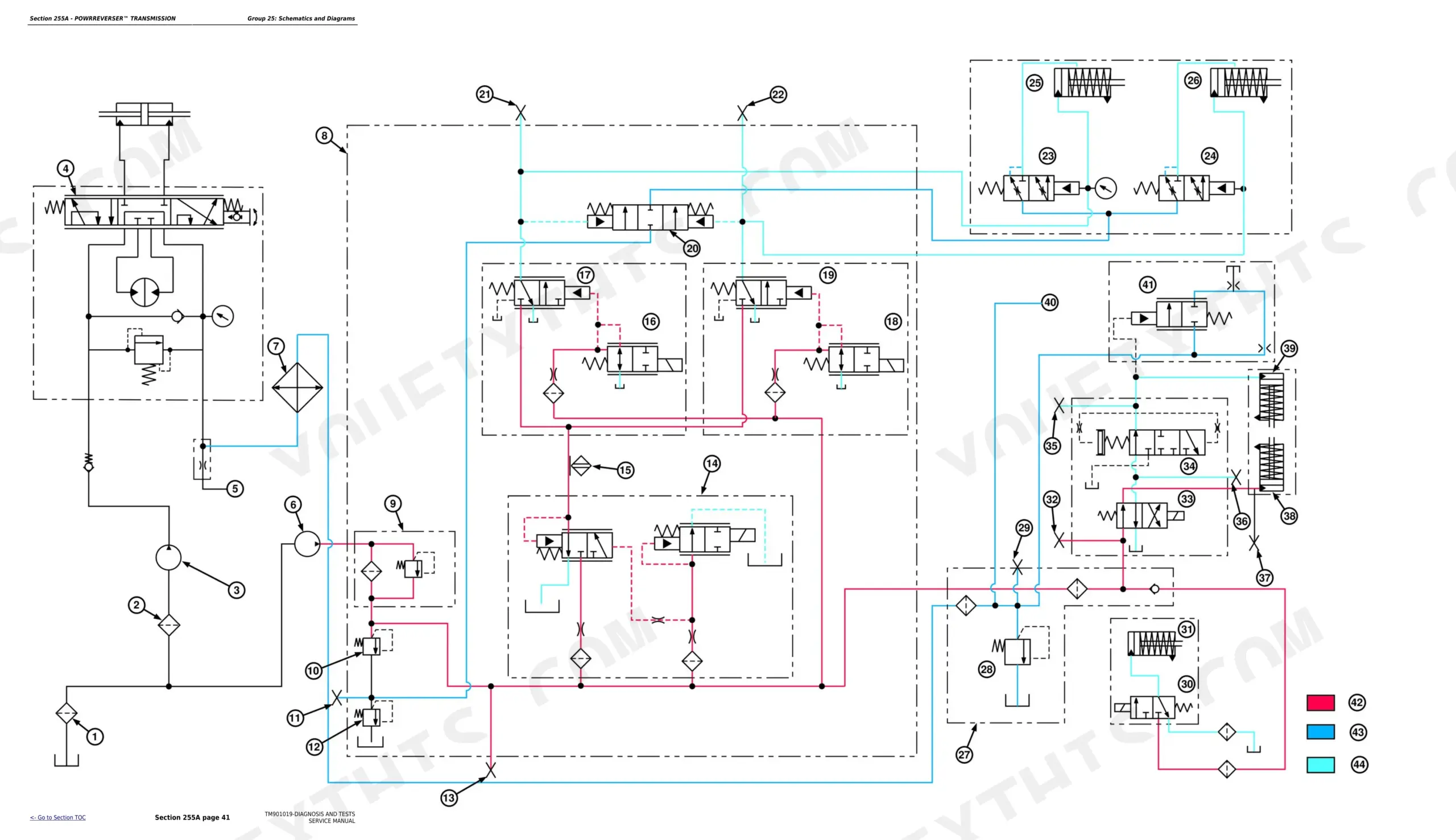

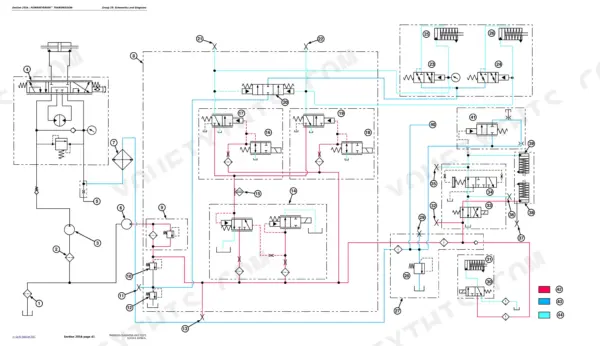

Yes, complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
