Part of the John Deere Repair Manuals.

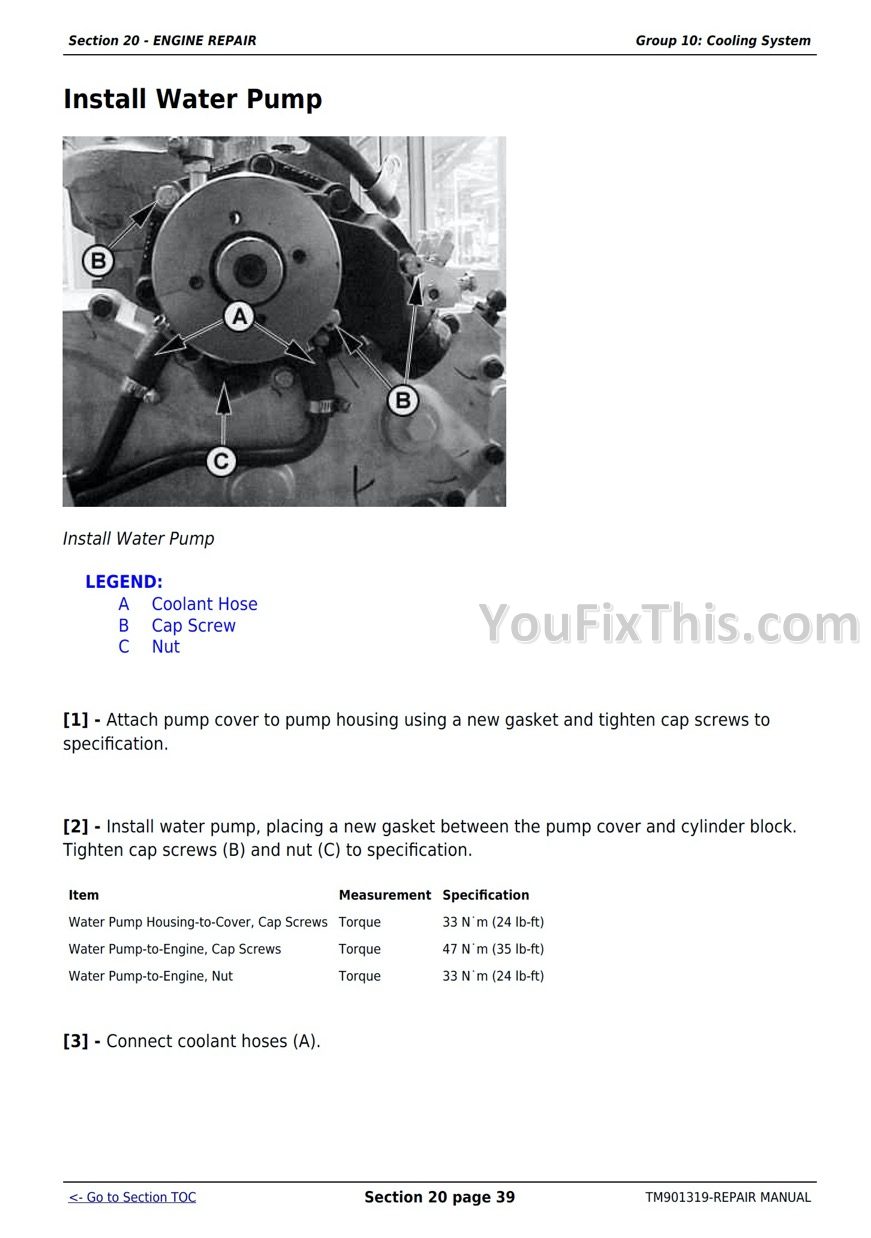

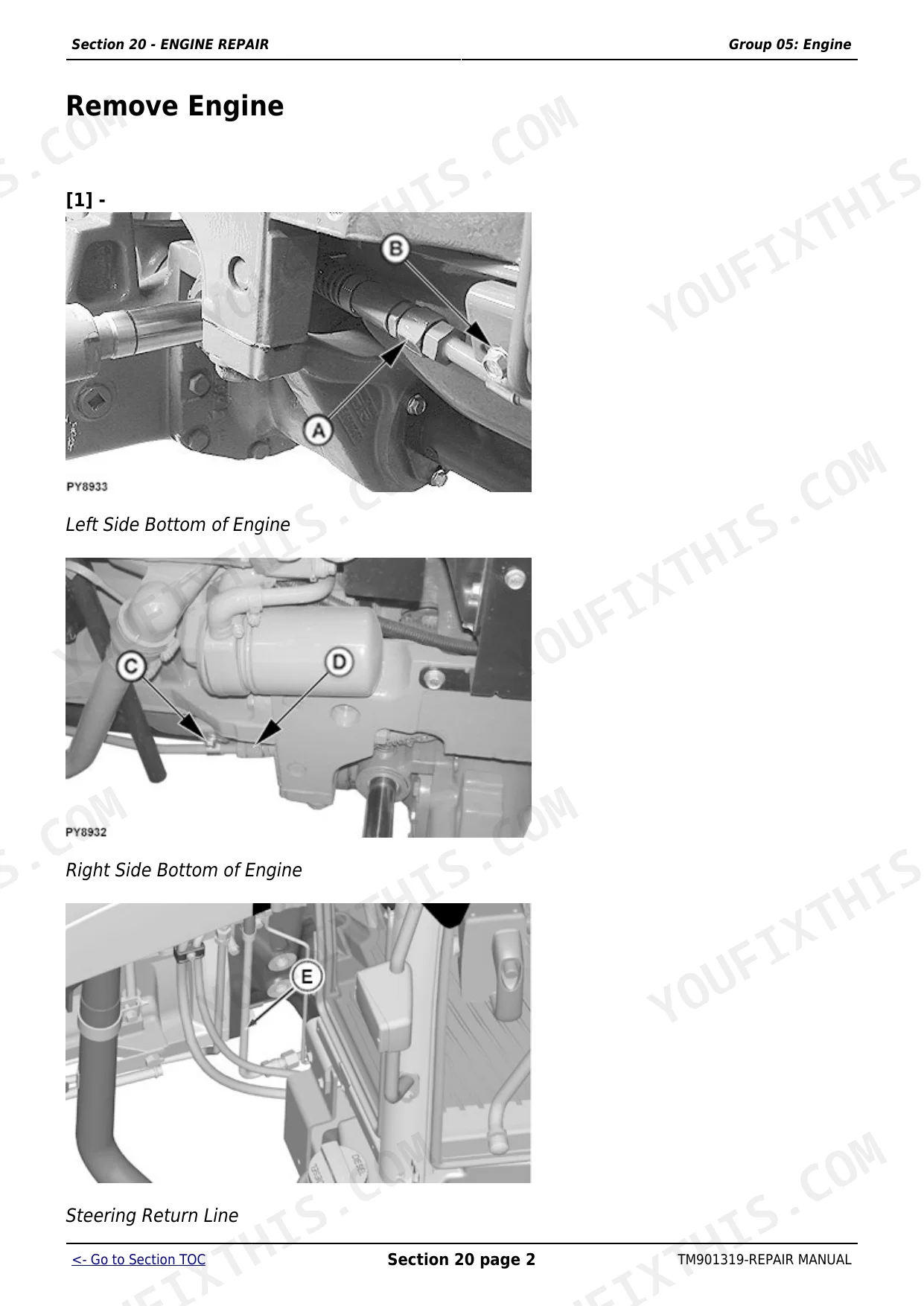

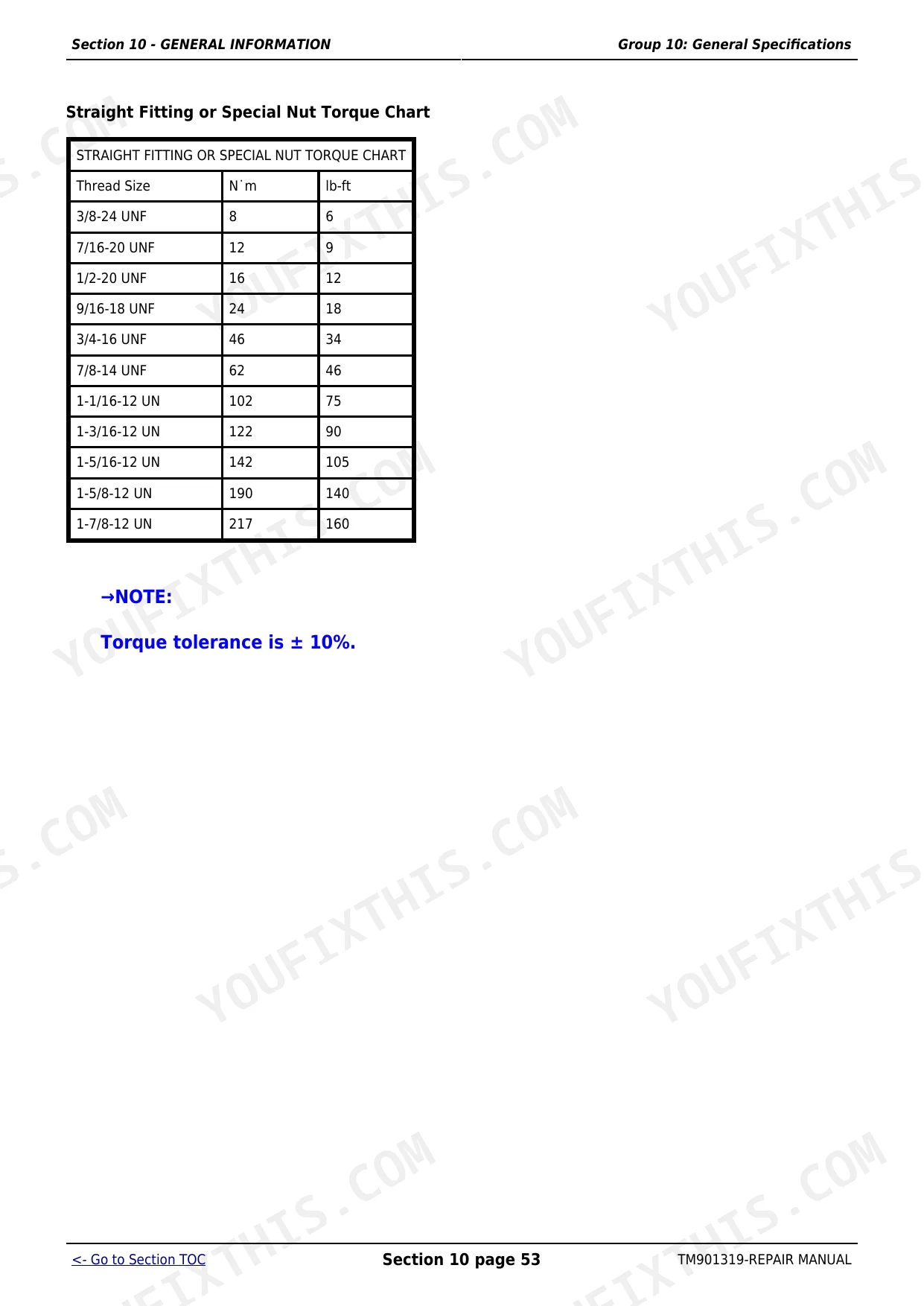

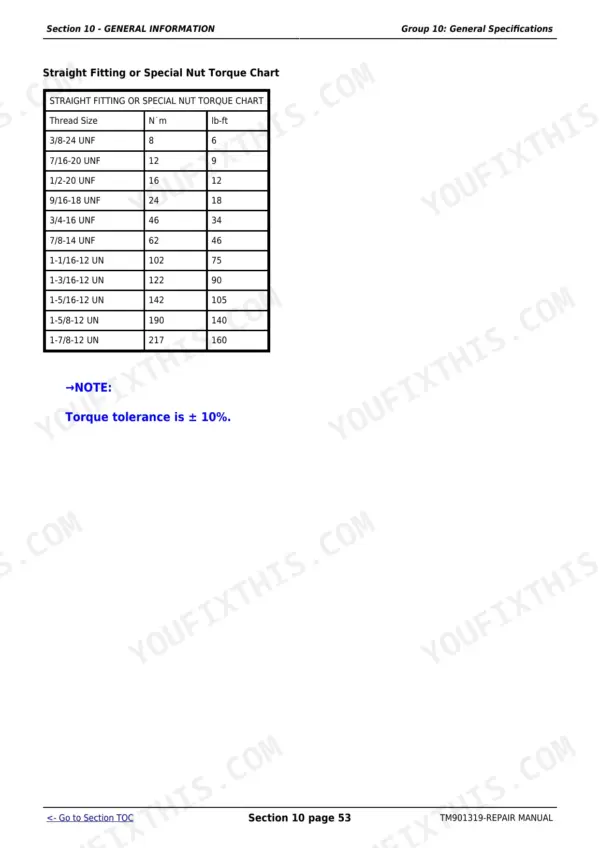

This 682-page John Deere 5055E, 5065E, 5075E Repair Manual (OEM #TM901319) covers every group from Section 10 General Information through Section 90 Operator Station Repair on your compact utility tractor. You get full torque tables for metric and Unified Inch bolts, exploded views of the water pump and steering valve assemblies, and step-by-step procedures for pulling the engine, rebuilding the MFWD drop gearbox, and servicing the Sauer Danfoss steering valve. Torque the water pump-to-cylinder-block cap screws to 35 N-m, then set the thermostat cover to 50 N-m before you button up the cooling system. No more flipping through three different pamphlets trying to find the right spec for your 5065E. Bookmarked by section so you can jump straight from Hydraulic Repair to Electrical without scrolling, this PDF opens on your phone in the shop and gets you back to the field faster.
What's Inside This John Deere 5055E, 5065E, 5075E Repair Manual

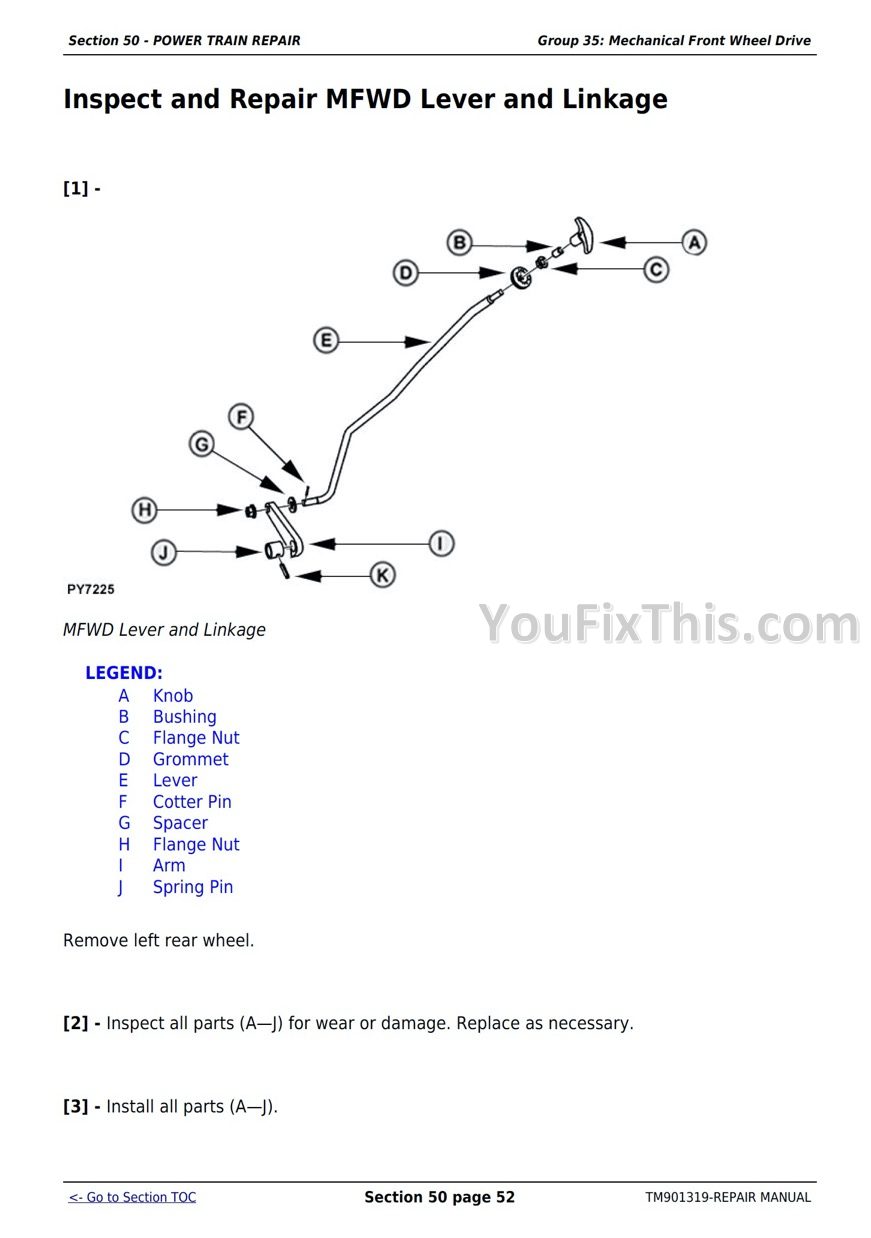

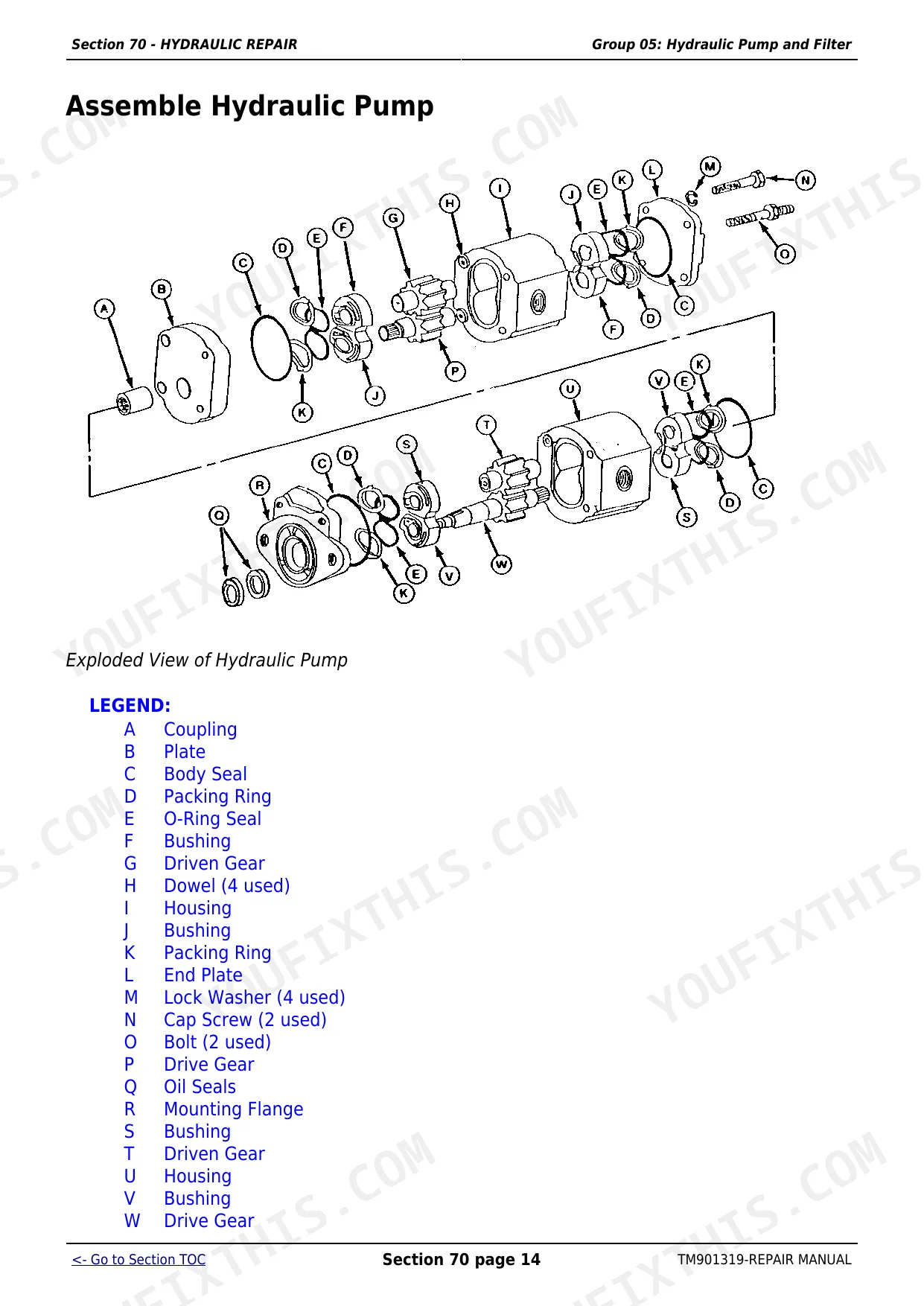

| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-87 | Group 05 - Safety (Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Prepare for Emergencies, Wear Protective Clothing, Protect Against Noise, Handle Fuel Safely, Avoid Fires, Fire Prevention, Use Foldable ROPS and Seat Belt Properly, Stay Clear of Rotating Drivelines, Use Steps and Handholds Correctly, Read Operator Manuals for Isobus Implements, Use Seat Belt Properly, Vibration, Operating the Tractor Safely, Avoid Backover Accidents, Limited Use in Forestry Operation, Operating the Loader Tractor Safely, Keep Riders Off Machine, Passenger Seat, Use Safety Lights and Devices, Towing Trailers/Implements Safely, Use Caution on Slopes and Uneven Terrain, Freeing a Mired Machine, Avoid Contact with Agricultural Chemicals, Handle Agricultural Chemicals Safely, Handling Batteries Safely, Avoid Heating Near Pressurized Fluid Lines, Remove Paint Before Welding or Heating, Handle Electronic Components and Brackets Safely, Practice Safe Maintenance, Avoid Hot Exhaust, Clean Exhaust Filter Safely, Work in Ventilated Area, Support Machine Properly, Prevent Machine Runaway, Park Machine Safely, Transport Tractor Safely, Service Cooling System Safely, Service Accumulator Systems Safely, Service Tires Safely, Service Front-Wheel Drive Tractor Safely, Tightening Wheel Retaining Bolts/Nuts, Avoid High-Pressure Fluids, Do Not Open High-Pressure Fuel System, Store Attachments Safely, Dispose of Waste Properly) |
| Engine Repair | 88-141 | Group 05 - Engine (Service Equipment and Tools, Specifications, John Deere Engine Repair) |
| Fuel and Air Intake System Repair | 142-172 | Group 05 - Fuel System (Special or Essential Tools, Self-Manufactured Tool Template for Front Plate Replacement, Torques for Hardware, Injection Pump, Nozzle and Governor Repair, Remove, Inspect and Install Fuel Tank, Replace Fuel Filter, Remove and Install Fuel Filter/Primer Pump Assembly) |
| Electrical Repair | 173-239 | Group 05 - Battery |
| Power Train Repair | 240-316 | Group 05 - Clutch Housing (John Deere Transmission Repair, Use Ctm, Service Equipment and Tools, Other Material, Essential Tools, Specification, Separate Engine From Clutch Housing, Install Engine to Clutch Housing, Inspect and Repair Clutch Pedal and Linkage) |
| Steering and Brake Repair | 317-378 | Group 05 - Steering Repair (Other Material, Specification, Service Parts Kits, Remove and Install Steering Wheel, Remove and Install Steering Column and Valve, Disassemble and Inspect Steering Valve - Sauer Danfoss, Assemble Steering Valve - Sauer Danfoss, Remove and Install Steering Cylinder, 2WD Axle, Disassemble, Inspect and Assemble Steering Cylinder, Remove, Inspect and Install Tie Rod Assembly, 2WD, Inspect and Replace Steering Hydraulic Lines) |
| Hydraulic Repair | 379-462 | Group 05 - Hydraulic Pump and Filter (Essential Tools, Specification, Service Parts Kits, Remove, Inspect, And Install Hydraulic Oil Pick-Up Screen, Remove and Install Hydraulic Pump, Remove Hydraulic Pump External Components, Disassemble and Inspect Hydraulic Pump, Assemble Hydraulic Pump, Install Hydraulic Pump External Components, Remove and Install Hydraulic Oil Filter/Manifold, Inspect and Replace Hydraulic Supply and Suction/Return Lines) |

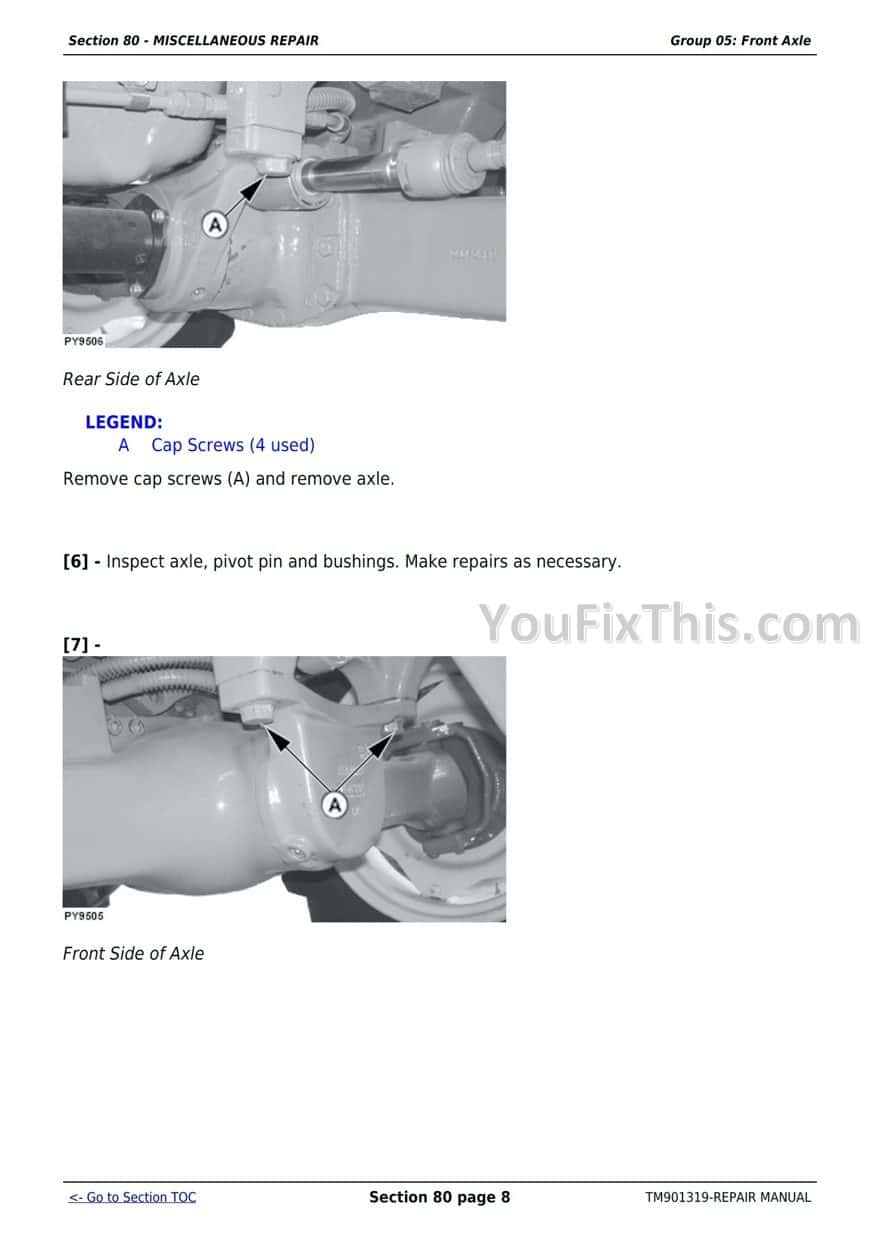

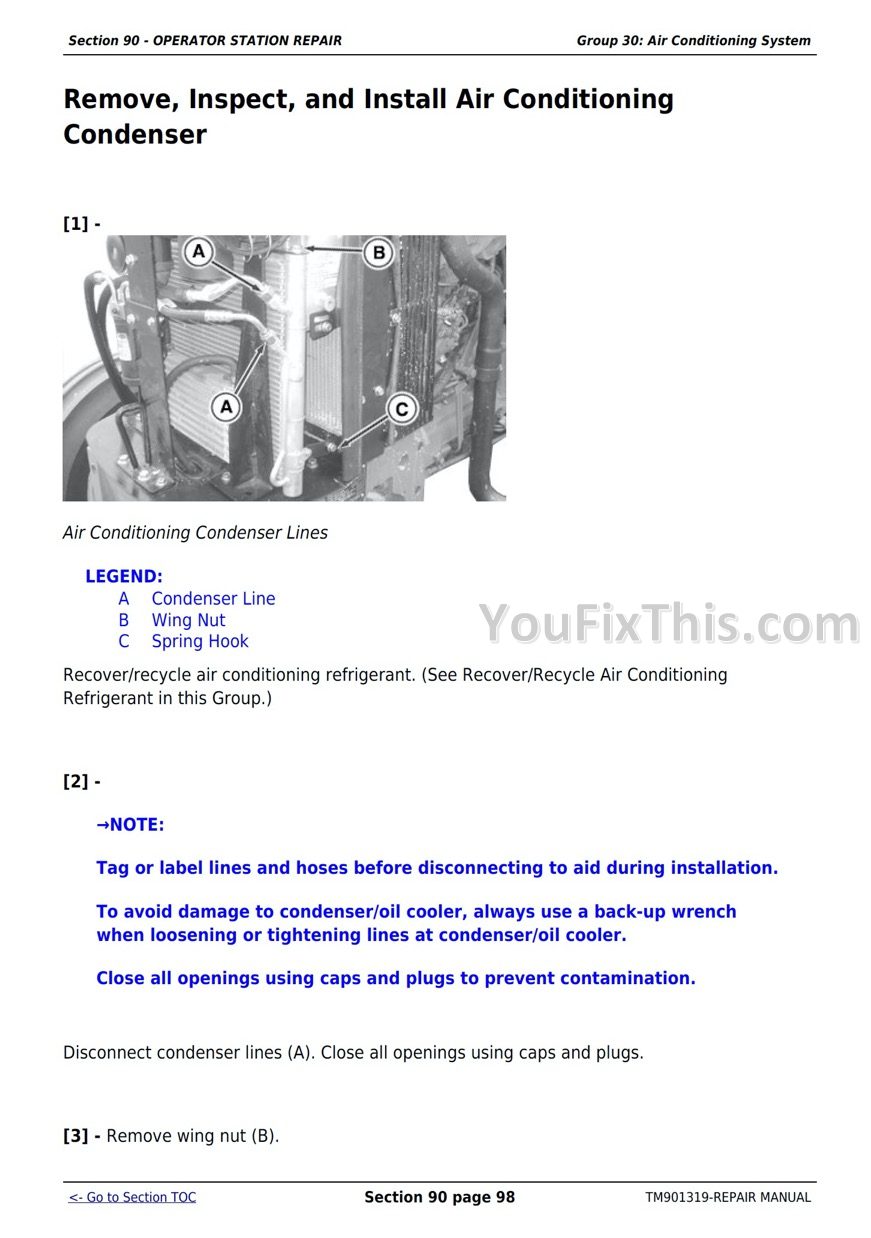

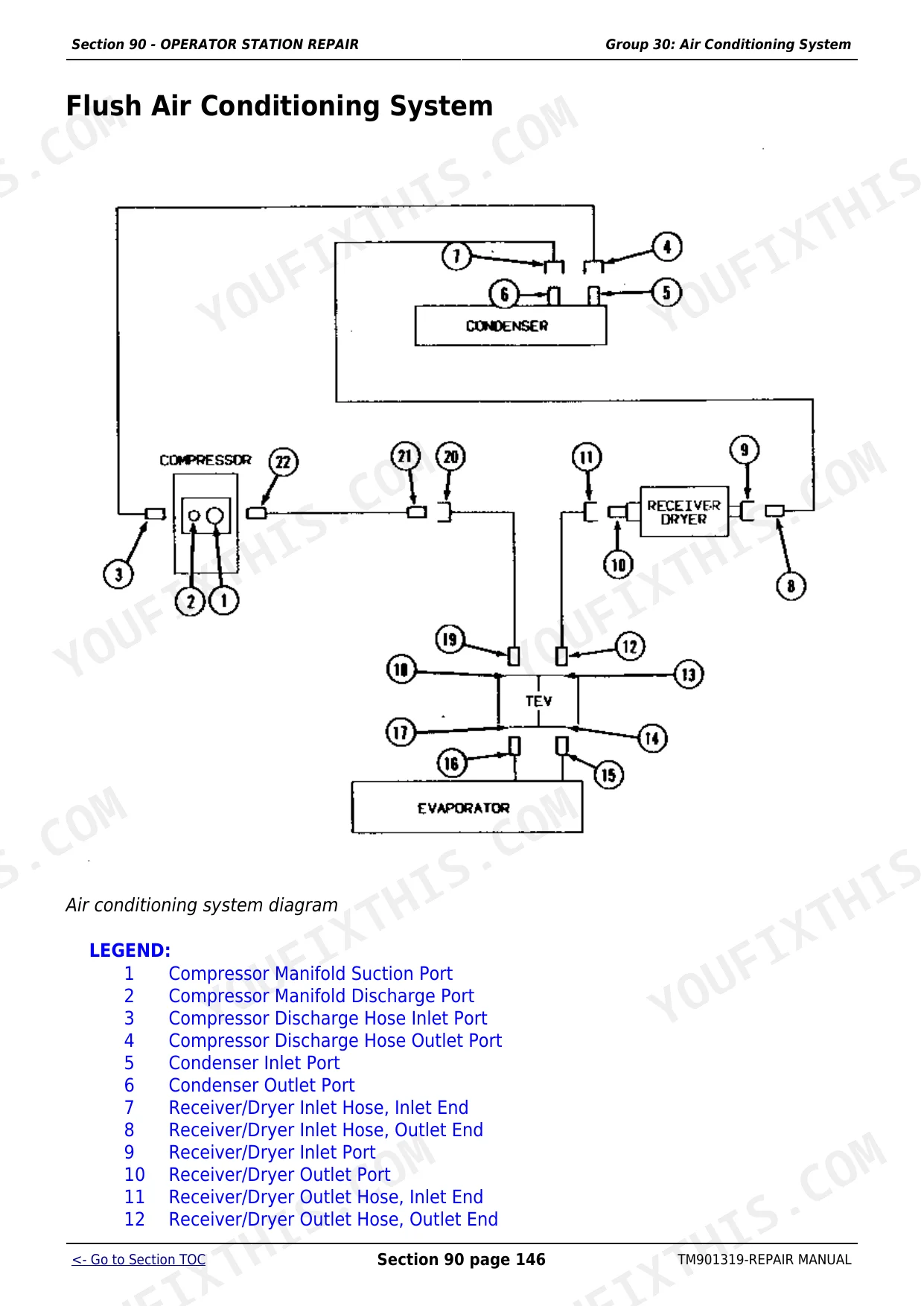

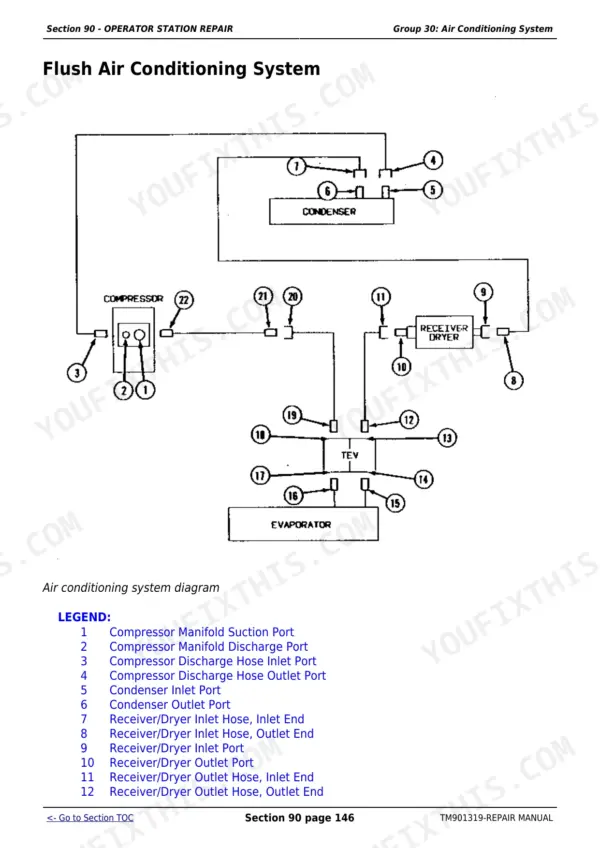

| Miscellaneous Repair | 463-516 | Group 05 - Front Axle (Specification, Remove and Install Front Axle, 2WD, MFWD, Inspect and Replace Pivot Pin and Bushings, 2WD Axle, Remove and Install Spindle Assembly, Inspect and Replace Spindle Shaft Bushings, 2WD Axle) |
| Operator Station Repair | 517-682 | Group 05 - Seat and Support (Remove and Install Seat and Support) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Water pump to cylinder block: Cap screws | 35 N·m (26 lb-ft) | p. 318 |
| Water pump to cylinder block: Nut | 30 N·m (22 lb-ft) | p. 380 |
| Thermostat cover to cylinder head | 50 N·m (35 lb-ft) | p. 380 |
| Rear PTO Drive Shaft Assembly Cap Screw Torque | 88 N·m (65 lb-ft) | p. 318 |
| Hydraulic Oil Filter Cap Screws | 70 N·m (52 lb-ft) | p. 380 |

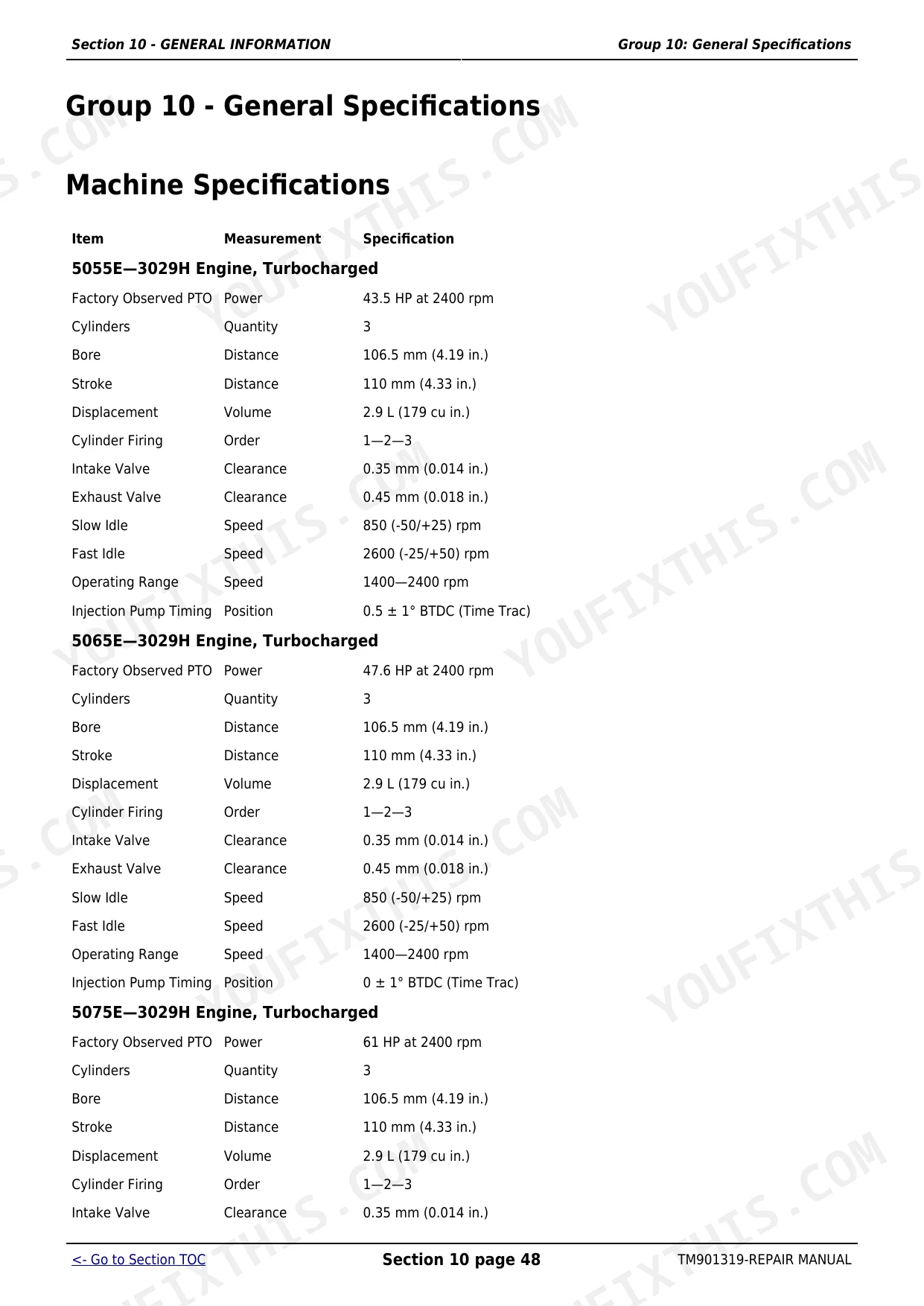

| Engine Intake Valve Clearance | 0.35 mm (0.014 in.) | p. 54 |
| Fuel Tank Capacity | 82±4 L (21.65±1.06 gal) | p. 70 |
| 5055E | ||
| 5055E Engine Factory Observed PTO Power | 43.5 HP at 2400 rpm | p. 54 |
| 5065E | ||
| 5065E Engine Factory Observed PTO Power | 47.6 HP at 2400 rpm | p. 54 |
| 5075E | ||
| 5075E Engine Factory Observed PTO Power | 61 HP at 2400 rpm | p. 54 |
John Deere 5055E, 5065E, 5075E Common Problems This Manual Covers
John Deere 5055E engine fails to start or cranks but never fires
Drain and inspect the fuel filter assembly for water contamination or debris, replace if clogged. Verify the tank isn't empty, capacity is 82±4 L (21.65±1.06 gal) per page 70. Bleed air from the injection pump lines using procedures beginning page 142 before cranking again.
Manual Section: Fuel and Air Intake System Repair p. 142Hard starting in cold weather despite a recently replaced battery and fuel filter
Inspect the battery cable connections and ground strap for corrosion, a fully charged battery should read above 12.4V at rest. Bleed air from the fuel lines at the injection pump per procedures starting page 142. Check the fuel for winter-blend gelling before condemning the electrical system.
Manual Section: Electrical Repair p. 173Hydraulic system loses pressure and loader response goes sluggish after two to three hours of operation
Remove and inspect the hydraulic oil pick-up screen for debris per procedures starting page 379, a restricted screen chokes flow as oil heats and expands. Check fluid level and condition. Maximum implement pressure should read 19000—20000 kPa (190—200 bar), if it falls short, torque the hydraulic oil filter cap screws to 70 N·m (52 lb-ft) on reassembly and retest.
Manual Section: Hydraulic Repair p. 379Transmission slips or grinds when shifting under load, especially in 4WD mode
Check the transmission-hydraulic oil level and condition first, low or contaminated fluid is the most common cause of slip and grinding under load. Inspect the clutch disc and pressure plate for wear using Clutch Housing procedures starting page 240. If slip shows up near PTO engagement, verify the rear PTO drive shaft cap screws are torqued to 88 N·m (65 lb-ft).
Manual Section: Power Train Repair p. 240Engine overheats excessively under normal load despite full coolant and a clean radiator
Check coolant level against the 2.9L engine cooling system capacity of 10 L (2.6 gal) per page 526, top off if low. Test the thermostat for sticking and inspect the water pump for weeping or leakage at the shaft seal. If replacing the pump, torque the mounting nuts to 30 N·m (22 lb-ft) per page 380.
Manual Section: Cooling System Component Repair p. 526Frequently Asked Questions
What are the torque specifications for the John Deere 5055E engine mounting bolts?
The torque specification for the Engine to Front Support Top Cap Screws is 290 N·m, and for the Engine to Front Support Nut, it is 165 N·m. For the Center Control Console Cap Screws, the torque is 70 N·m. For complete engine repair information, refer to the PowerTech 2.9L Diesel Engines component technical manual (CTM). p. 88
What are the replacement specifications for the hydraulic oil filter cap screws?
The hydraulic oil filter cap screws should be tightened to a torque of 70 N·m (52 lb-ft) during installation. Always use new O-rings when replacing the hydraulic filter assembly to prevent leaks. p. 397
What are the recommended engine oil viscosities for different air temperature ranges for John Deere 5055E, 5065E, 5075E tractors?
The manual provides a chart for oil viscosities based on air temperature ranges. For temperatures from -40°C (-40°F) to 50°C (122°F), various SAE viscosities are shown, including SAE 15W-40, SAE 10W-30, SAE 5W-30, SAE 0W-40, SAE 30, and SAE 40. John Deere Plus-50 II oil is preferred, and John Deere Plus-50 is also recommended. p. 71
What is the cooling system capacity for John Deere 5055E, 5065E, 5075E tractors?
The approximate capacity of the cooling system for these tractors is 9.5 L (10 qt). p. 112
What is the specified fan belt tension for John Deere 5055E, 5065E, 5075E tractors?
For a new fan/alternator belt, the tension should result in 8 mm - 10 mm deflection with a 90 N (20 lb-force) applied halfway between the pulleys. For a used belt, the tension should result in 19 mm deflection with the same 90 N (20 lb-force) applied. p. 131
What do I get after purchasing this John Deere 5055E, 5065E, 5075E manual?
This is a 682-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this John Deere 5055E, 5065E, 5075E manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
