Part of the John Deere Repair Manuals.
This is the John Deere repair technical manual for the 5055E, 5065E and 5075E tractors, manual number TM900919, dated July 2013 and written in English. These utility tractors use the turbocharged 3029T diesel engine, and the manual covers both the 9x3 TSS and 12x12 PowrReverser transmissions, in open station and cab forms.
Across 790 pages, technicians can work through engine repair, the fuel, air intake and exhaust systems, electrical repair, both power train options, steering and brake repair, hydraulic repair, and the operator station. It gives specifications, service parts kits, wear tolerances and torque values, with many figures verified against the manual.
Repair sections tell how to fix the components, while the general information covers safety, fuels and lubricants and serial numbers. It is delivered as a downloadable PDF you can read on any device or print the pages you need in the shop.
Other editions of this manual
What's Inside This Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-102 | Safety (Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Handle Fluids Safely, Avoid Fires, Prevent Battery Explosions) |

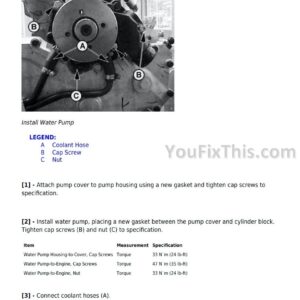

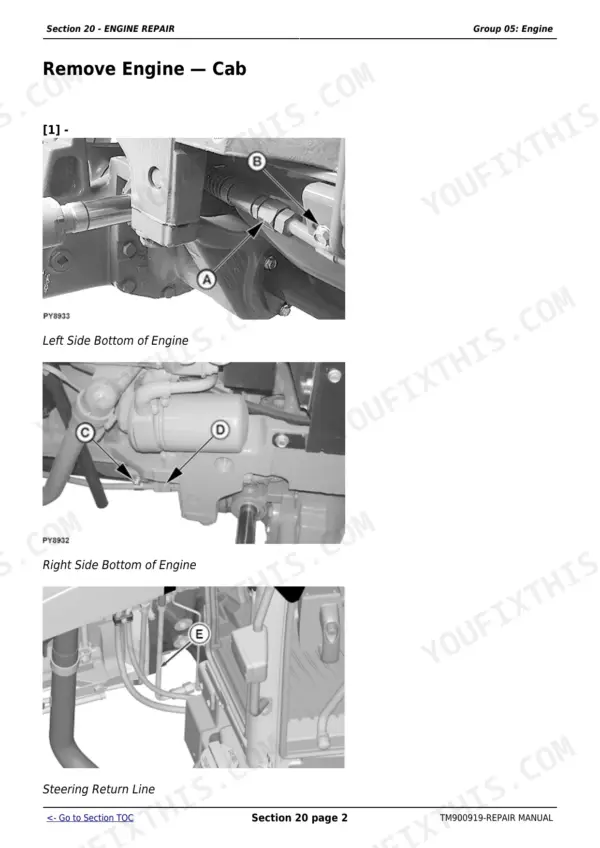

| Engine Repair | 103-164 | Engine (Remove and Install Engine, Cab and Open Station, Service Equipment and Tools, Specifications), Cooling System (Remove and Inspect Radiator, Water Pump Exploded View, Install Radiator, Replace Thermostat, Torques for Hardware) |
| Fuel, Air Intake and Exhaust Systems | 165-193 | Fuel System (Special or Essential Tools, Injection Pump, Nozzle and Governor Repair, Use Ctm, Remove, Inspect and Install Fuel Tank) |

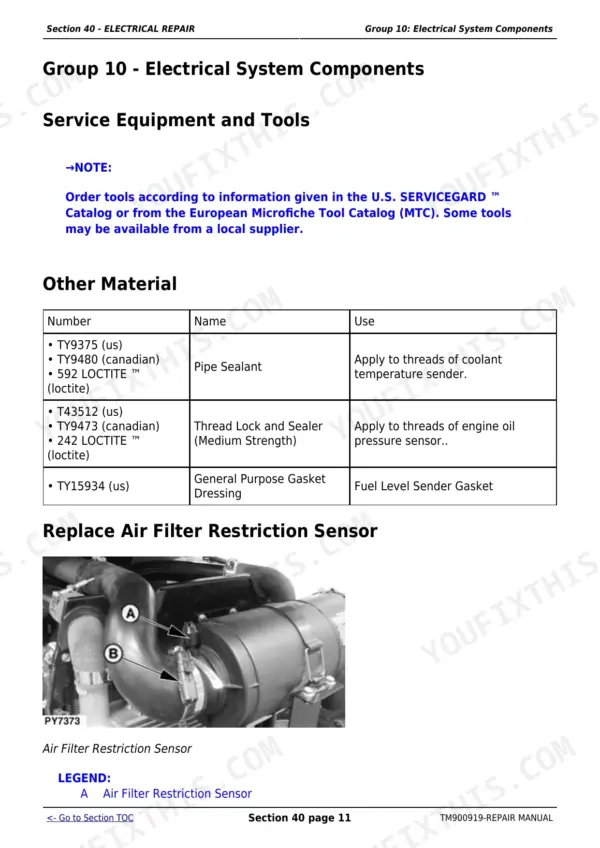

| Electrical Repair | 194-276 | Battery, Starter and Alternator (Starter Repair, Use Ctm, Remove and Install Battery, Remove and Install Starter, Replace Alternator/Regulator) |
| Power Train Repair (12X12 Pr Transmission) | 277-323 | Clutch Housing (John Deere Transmission Repair, Use Ctm, Specifications, Separate Engine From Clutch Housing, Install Engine to Clutch Housing, Remove) |
| Power Train Repair (9X3 Tss Transmission) | 324-400 | Clutch Housing (John Deere Transmission Repair, Use Ctm, Service Equipment and Tools, Other Material, Essential Tools, Specification) |
| Steering and Brake Repair | 401-468 | Steering Repair (Other Material, Specifications, Service Parts Kits, Remove and Install Steering Column and Valve, Disassemble and Inspect Steering Valve - Sauer Danfoss, Assemble Steering Valve - Sauer Danfoss) |
| Hydraulic Repair | 469-564 | Hydraulic Pump and Filter (Essential Tools, Specifications, Service Parts Kits, Remove, Inspect, And Install Hydraulic Oil Pick-Up Screen) |
| Miscellaneous Repair | 565-592 | Front Axle (Specification, Remove and Install Front Axle, MFWD), Wheels (Specifications, Inspect and Replace Front Wheel Bearings, Tighten Bolts, Rear Axle) |
| Operator Station Repair (Open Station) | 593-622 | Seat and Support (Remove and Install Seat and Support, Disassemble, Inspect and Assemble Seat and Seat Switch) |

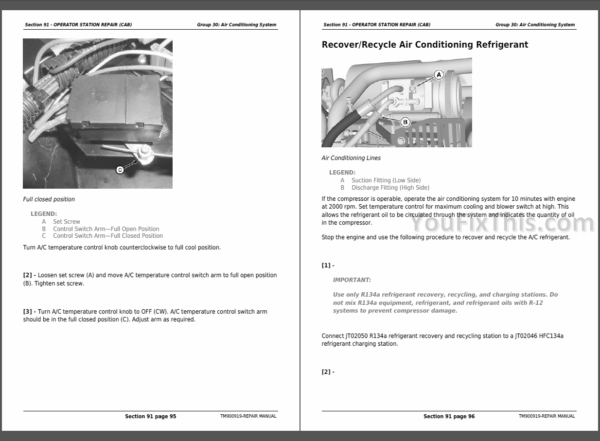

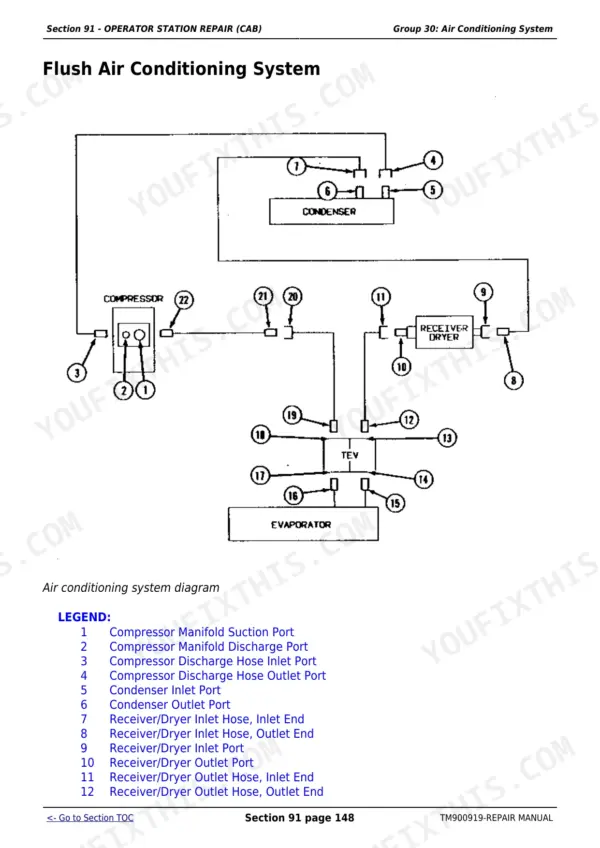

| Operator Station Repair (Cab) | 623-790 | Seat and Support, Control Console and Panel (Right-Side, Left-Side and Center Consoles, Tss and PowrReverser), Cab Components (Recirculating and Exterior Air Filters, Headliner, Upholstery, Windshield and Windows, Cab Doors, Remove and Install Cab), Air Conditioning System (Refrigerant Recovery, Receiver/Dryer, Condenser, Compressor Repair and Clutch, Blower Motors, Evaporator/Heater Core), Heating System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Cap Screws - MFWD Torque | 310 N·m (229 lb-ft) | p. 572 |
| Rear Axle Disk-to-Flange Torque | 550 N·m (406 lb-ft) | p. 575 |
| Rear Axle Rim-to-Disk Torque | 245 N·m (180 lb-ft) | p. 575 |
| Clutch Yoke Cap Screw Torque (9x3 TSS Transmission) | 65 Nm (48 lb-ft) | p. 343 |
| Clutch Housing to Transmission Cap Screw Torque (9x3 TSS Transmission) | 136 Nm (100 lb-ft) | p. 343 |
| Seat Switch Replacement | Replace as necessary | p. 241 |
| Main Wiring Harness Replacement | Replace if necessary | p. 262 |
| Engine Bore | 106.5 mm | p. 27 |
| Engine Displacement | 2.9 L | p. 27 |
| Intake Valve Clearance | 0.35 mm | p. 27 |
