Part of the John Deere Repair Manuals.
Need factory data for your 1998-2000 Sabre? This 416-page John Deere Sabre Lawn Technical Manual PDF (OEM TM1769) covers every model from the 1438GS through the 2046HV, gear and hydro alike. Inside: full electrical schematics with wiring harness legends for standard and RIO systems, hydrostatic power train diagnostics for the K51 and K55 transmissions, and dedicated repair sections for Briggs & Stratton single-cylinder, V-Twin, and Intek V-Twin engines. You also get troubleshooting charts, torque tables, and page after page of exploded views. Gap the Champion RC-12YC plugs at 0.76 mm and check drive belt effective length against the 2686 ± 8 mm spec before you condemn a transmission. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a live text layer; search any spec and jump straight to it.
What's Inside This John Deere Sabre 1438GS-2046HV Series Manual

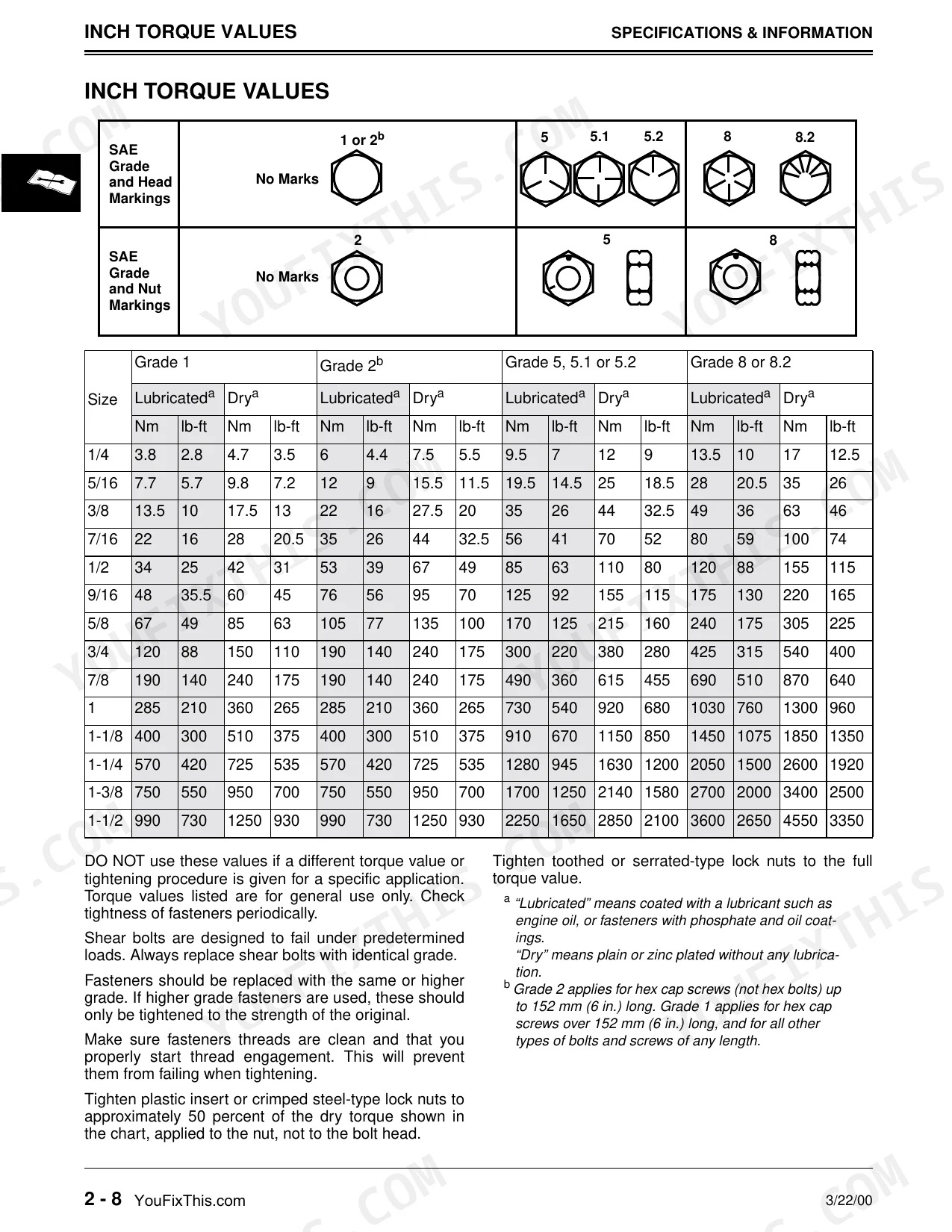

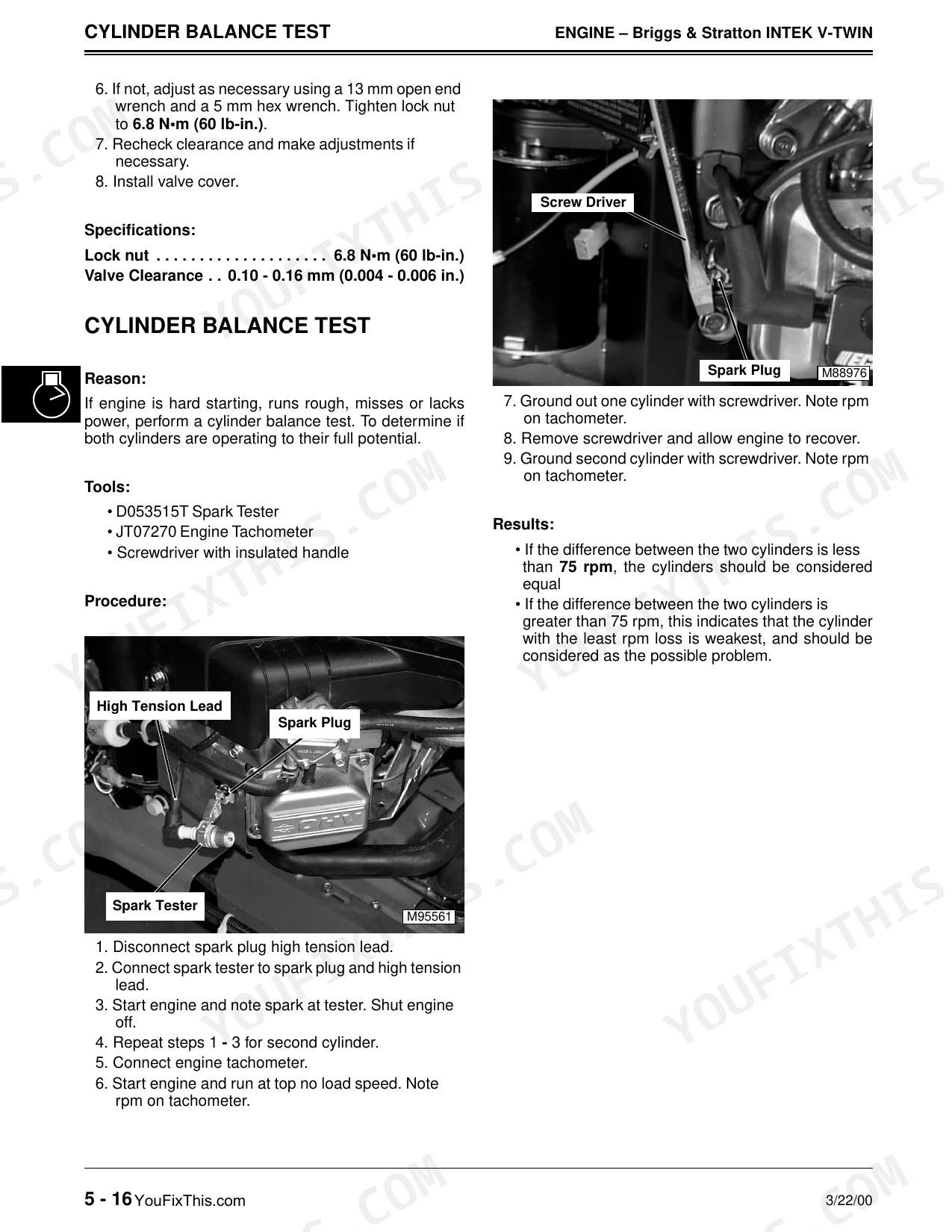

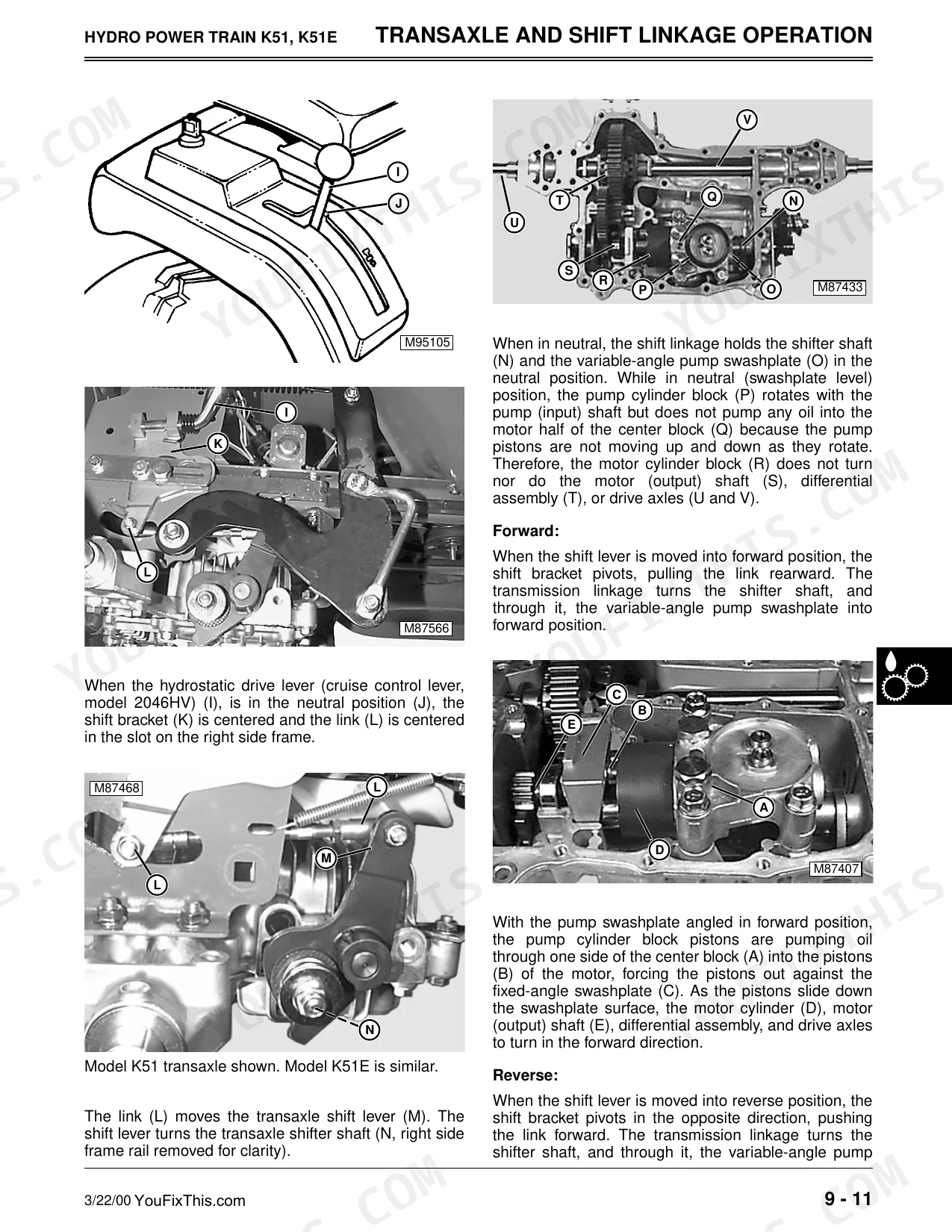

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | How to Use This Manual, Section and Group Layout, Safety Notes |
| Safety | 4-8 | Recognize Safety Information, Replace Safety Signs, Handle Fluids Safely-Avoid Fires, Use Care in Handling and Servicing Batteries, Use Care Around High- Pressure Fluid Lines |
| Specifications & Information | 9-24 | Serial Number Locations, Machine Specifications, Fuel and Lubricants, Torque Values |
| Engines - Single Cylinder | 25-64 | Briggs & Stratton Single-Cylinder 14-16 Hp: Specifications, Troubleshooting, Carburetor and Governor Adjustment, Cylinder Head and Valve Service, Piston, Rod and Crankshaft Repair |
| Engine - Briggs & Stratton V-Twin | 65-110 | Briggs & Stratton V-Twin 16 Hp: Specifications, Troubleshooting, Carburetor and Ignition Tests, Valve Service, Piston and Crankshaft Repair, Cooling and Lubrication |
| Engine - Briggs & Stratton Intek V-Twin | 111-152 | Briggs & Stratton Intek V-Twin: Specifications, Troubleshooting, Overhead-Valve Service, Carburetor and Governor Adjustment, Piston, Rod and Crankshaft Repair |
| Electrical | 153-196 | Theory of Operation and Diagnostics, Reading Electrical Schematics, Battery, Starter and Charging Circuits, Safety Interlock Circuit, Wiring Harness Repair |
| Electrical with Rio System | 197-258 | Reverse Implement Option (Rio) Circuit: Theory of Operation, Schematics and Harness Legends, Interlock and Seat-Switch Diagnosis, Tests and Adjustments |
| Gear Power Train | 259-292 | Gear Transaxle: Troubleshooting, Theory of Operation, Shift Linkage Adjustment, Transaxle Removal, Disassembly and Repair, Drive Belt and Clutch |
| Hydro Power Train K51 | 293-332 | Kanzaki K51/K51E Hydrostatic Transaxle: Specifications, Theory of Operation, Troubleshooting, Neutral Adjustment, Transaxle Removal and Repair |
| Hydrostatic Power Train K55 | 333-380 | Kanzaki K55 Hydrostatic Transaxle (2046HV): Specifications, Theory of Operation, Diagnosis, Charge Pump and Relief Valve Tests, Transaxle Removal and Repair |
| Steering | 381-386 | Steering Wheel and Shaft, Steering Gear and Sector, Front Axle and Spindles, Toe-In Adjustment |
| Attachments | 387-402 | Mower Deck Component Location, Deck Levelling and Height-of-Cut Adjustment, Mower Drive Belt and Spindles, Bagger and Attachment Mounting |
| Miscellaneous | 403-410 | Operator Seat and Fenders, Hood and Body Panels, Wheels and Tires, Decals |
Every system also includes repair.

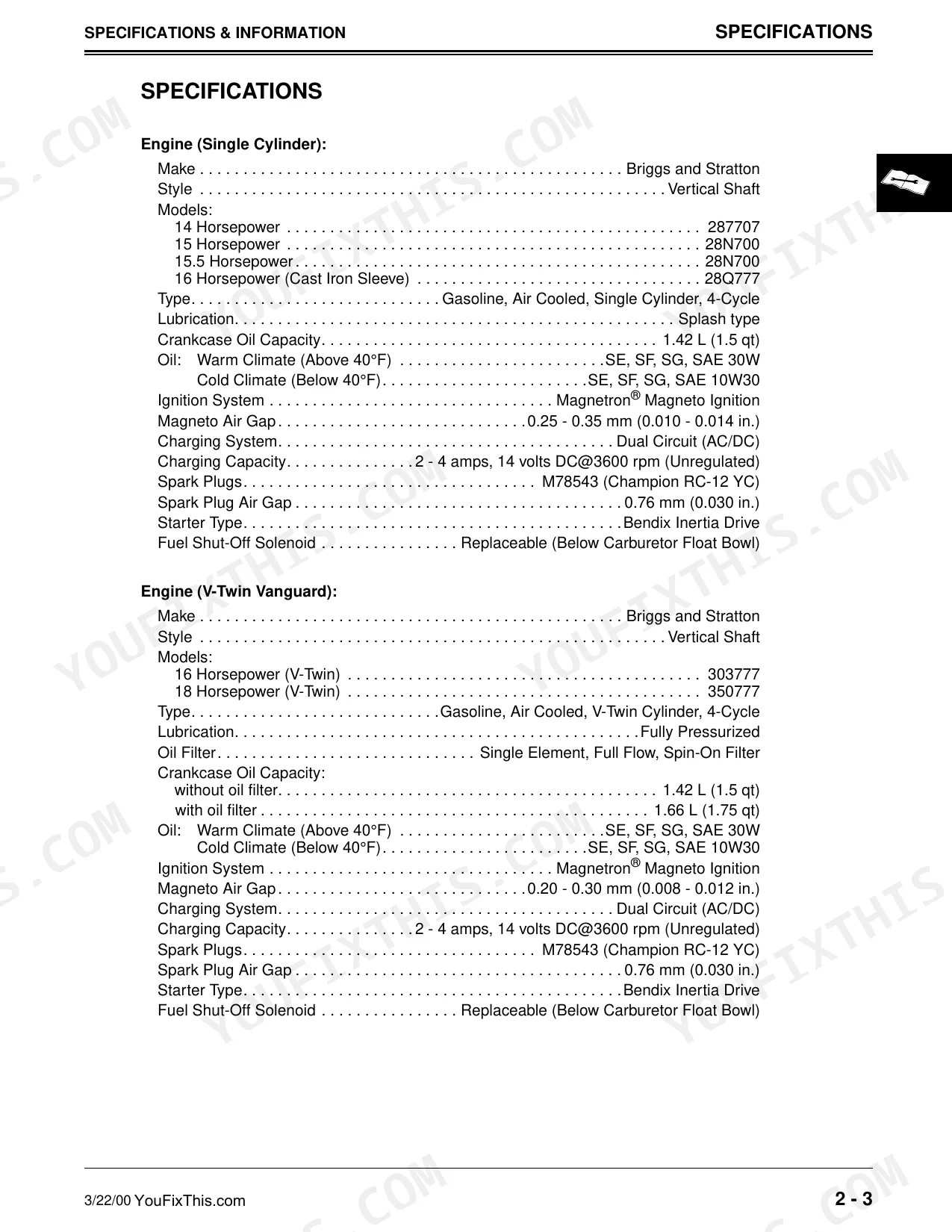

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Carburetor Fuel Shut-Off Solenoid (Optional) | Electric | p. 12 |
| New Belt Length | 2686 ± 8 mm (105.75 ± 0.3 in.) | p. 12 |
| Minimum Effective Length | 2656 mm (104.57 in.) | p. 12 |
| Spark Plugs | M78543 (Champion RC-12 YC) | p. 11 |
| Spark Plug Air Gap | 0.76 mm (0.030 in.) | p. 11 |
| Cutting Blade | Two - 76 x 5 x 496 mm (3 x 0.2 x 19.5 in.) | p. 15 |
| Blade Cutting Edge | 30 ± 5° Angle | p. 15 |
| Fuel Shutoff Solenoid | 5 N•m (45 lb-in.) | p. 5 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 11 |
| Air Cleaner Base to Carburetor | 7 N•m (65 lb-in.) | p. 15 |
| Defective spark plug | A fouled spark plug may indicate that the carburetor is out of adjustment. | p. 120 |
| Maximum starting motor amp draw | 35 amps | p. 183 |
John Deere Sabre 1438GS-2046HV Series Common Problems This Manual Covers
John Deere lawn tractor engine dies when hot and will not restart, no click from fuel solenoid

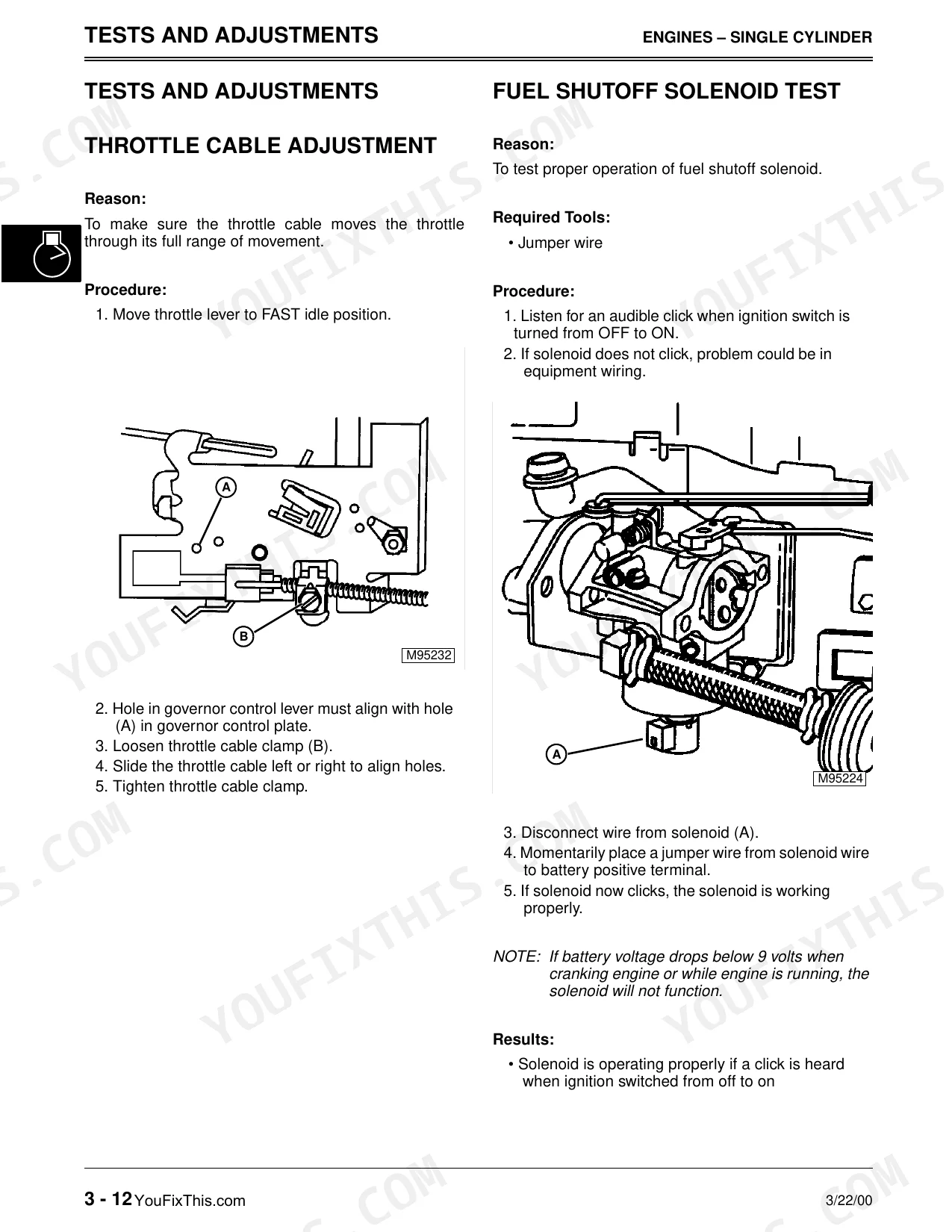

Check for a click at the carburetor fuel shut-off solenoid when you turn the key on. No click means the solenoid or its feed circuit is dead; work through the fuel solenoid tests in the Electrical section starting on page 153. Torque the replacement solenoid to 5 N•m (45 lb-in.) and confirm the click returns.
Manual Section: Electrical p. 153Mower blades will not engage or PTO clutch cuts out randomly during mowing
Check the seat, brake, and PTO interlock switches before condemning the electric clutch. Adjust the brake switch so the plunger sits 3 mm (1/8 in.) from bottoming out, per the procedure on page 185. Clean and tighten the clutch connector at the engine, then test engagement. If the clutch still drops out hot, replace it.
Manual Section: Electrical p. 185Tractor will not move or loses drive when transmission engaged, traction belt slips under load
Verify the shift lever is not sitting in neutral, then inspect the traction drive belt for glazing and stretch. On gear-drive models, replace the belt if its effective length exceeds 2736 mm (107.72 in.); a new belt measures 2686 mm (105.75 in.). Work the lack-of-drive chart in the Gear Power Train section starting on page 259.
Manual Section: Gear Power Train p. 259Engine knocks or runs rough at full throttle with vibration through the mower deck
Check the blade cap screws first, since loose blades mimic engine knock. Torque them to 46 - 65 N•m (34 - 48 lb-ft) as specified on page 401. Then pull the spark plug, inspect it for fouling, and gap the replacement to 0.76 mm (0.030 in.). Drain stale fuel from the tank and refill with fresh gasoline.
Manual Section: Attachments p. 401Engine cranks slowly or will not turn over after sitting, battery drains overnight
Test the battery before anything else; it must deliver 230 cranking amps at 0° C (32° F). Clean and tighten corroded terminals, then measure starting motor draw during cranking. A reading above 35 amps, covered on page 183, points to a dragging starter or a binding engine. Finish with the battery-goes-dead chart in the Electrical section.
Manual Section: Electrical p. 183Frequently Asked Questions

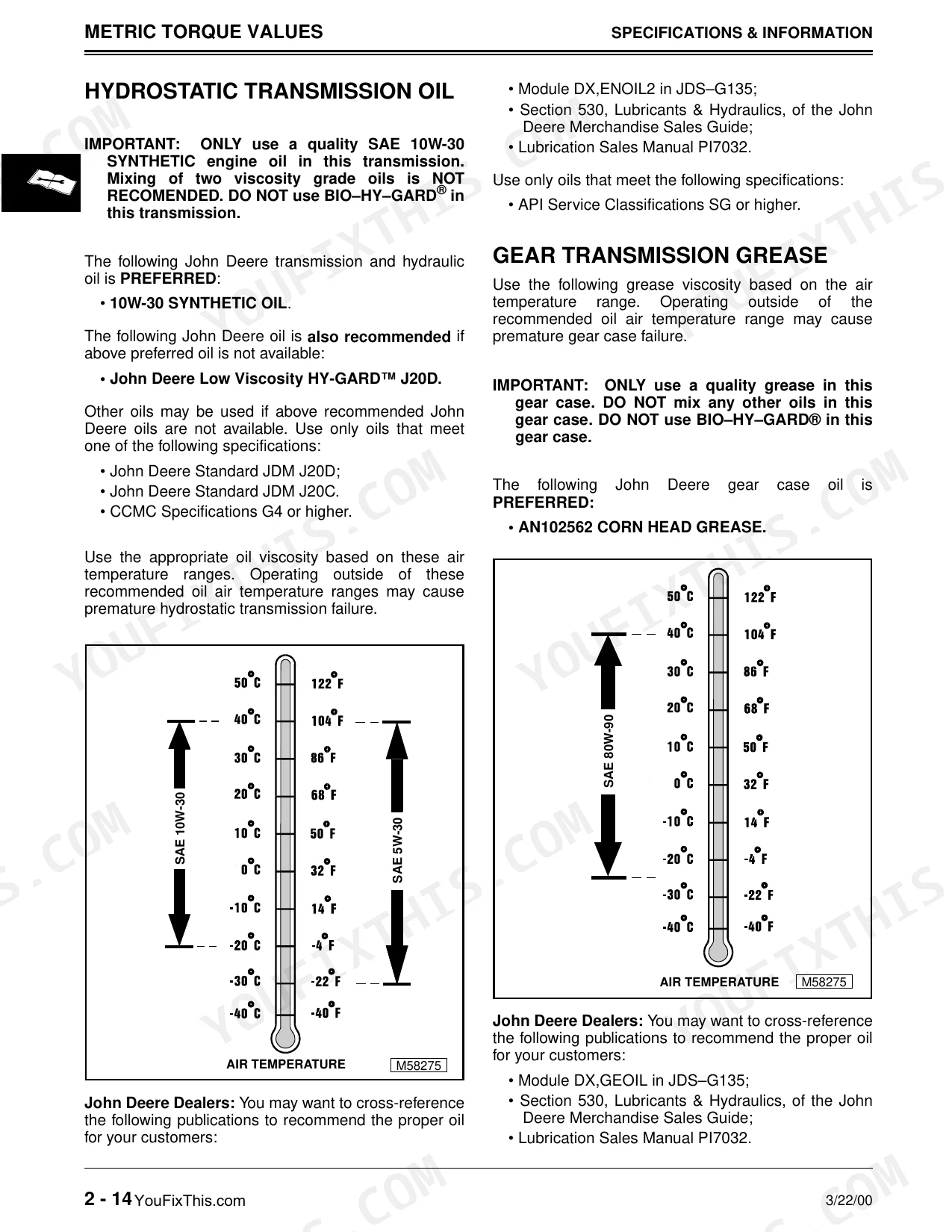

What are the required fluids and their capacities for this machine?
The machine requires unleaded gasoline with a minimum of 87 octane. For single-cylinder engines, the crankcase oil capacity is 1.42 L (1.5 qt) of SAE 30W or 10W30 oil. The Hydrostatic Transmission K51 requires 2.5 L (2.4 qt) of 10W30 Engine Oil, Class CD, while the Gear Transaxle uses 0.64 kg (1.406 lbs) of Shell Darina® D Grease. p. 11

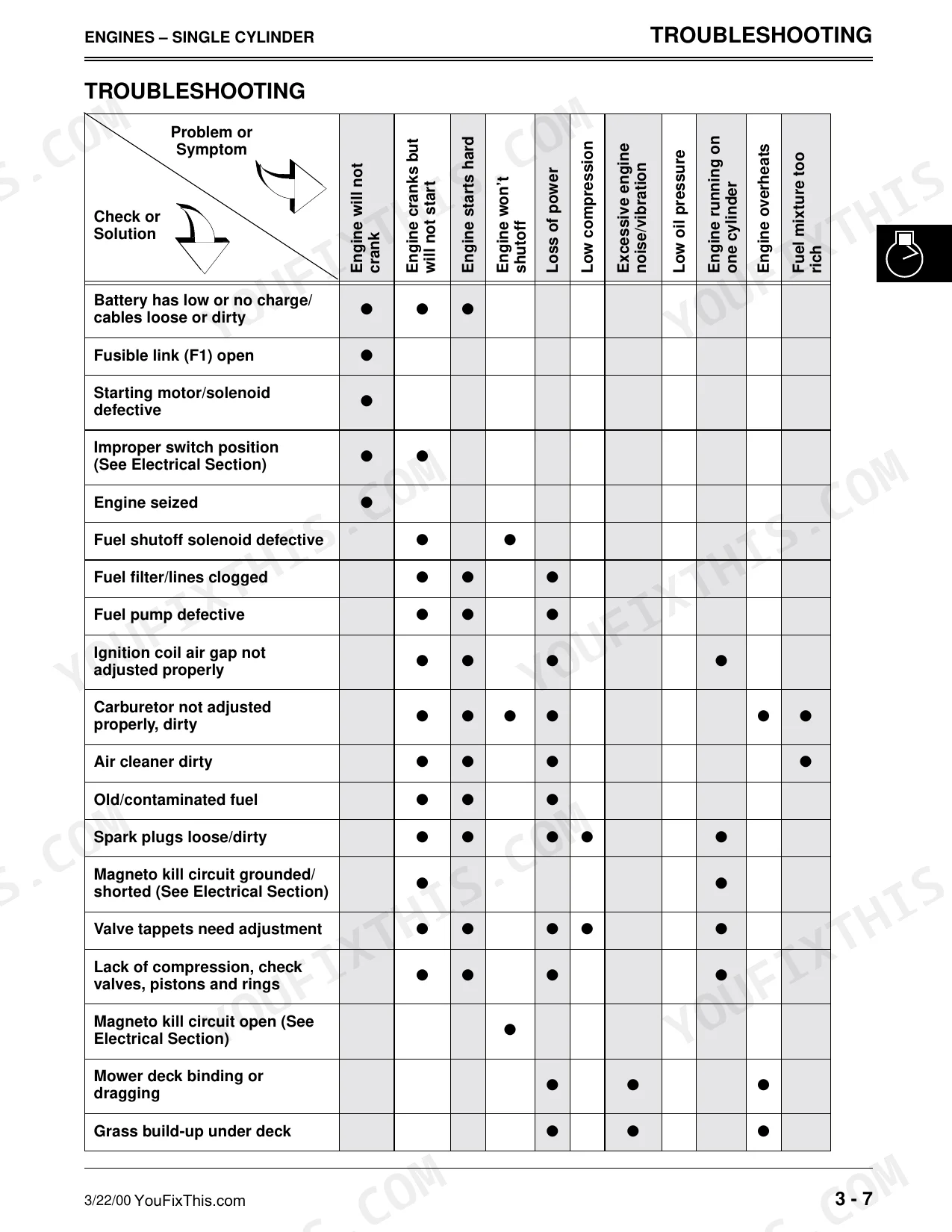

How should I troubleshoot an engine that will not crank?
To troubleshoot an engine that will not crank, first check if the battery voltage is 12.4 volts or higher. If not, charge the battery and perform a no-load test. If the battery voltage is still below 12.4 volts, the battery is defective. If the battery is good, check if the starter solenoid clicks when the ignition switch is turned to START. p. 33
What are the valve clearance specifications for single-cylinder engines?
For 14-16 HP single-cylinder engines, the intake valve clearance should be 0.13-0.18 mm (0.005-0.007 in.) and the exhaust valve clearance should be 0.23-0.28 mm (0.009-0.011 in.). These specifications are critical for proper engine performance. p. 27
What are some key torque specifications for single-cylinder engine components?
For single-cylinder engines, the flywheel nut should be tightened to 115.6 N•m (85 lb-ft), and the cylinder head cap screws (final) to 24.9 N•m (220 lb-in.). The spark plug torque specification is 20 N•m (180 lb-in.), and the connecting rod cap screws (287700/311777) are 20.9 N•m (185 lb-in.). p. 30
What are the common electrical problems listed for troubleshooting?
Common electrical problems include the engine not cranking, the battery going dead or overcharging, and headlights not lighting up. Other issues involve the fuel shut-off solenoid not opening or closing, and the engine dying when the brake or blade lever is released. p. 164
What do I get after purchasing this John Deere 1438GS & variants manual?
This is a 416-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this John Deere 1438GS & variants Technical Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
