All 613 pages of this John Deere Z425 technical manual PDF (OEM #TM113019) are dedicated to one machine family: the EZtrak Z425, Z435, Z445, and Z465 residential mowers. Inside: complete wiring schematics covering every circuit variant from the main harness to the lighting kit, hydraulic system diagrams, full troubleshooting trees for both B&S and Kawasaki engines, and page after page of torque tables and fluid specs. You get exploded component views for the 48-, 54-, and 62-inch deck assemblies, plus step-by-step procedures for carburetor rebuilds, transaxle service, and spindle teardown. Gap the ignition coil to 0.20–0.30 mm and torque each spark plug to 20 N·m (180 lb.-in.) before you button up the B&S twin. Your machine is sitting in the driveway. Get the right spec on the first try: bookmarked and keyword-searchable, opens on any device you carry to the shop.
What's Inside This John Deere Z425–Z465 Series Manual

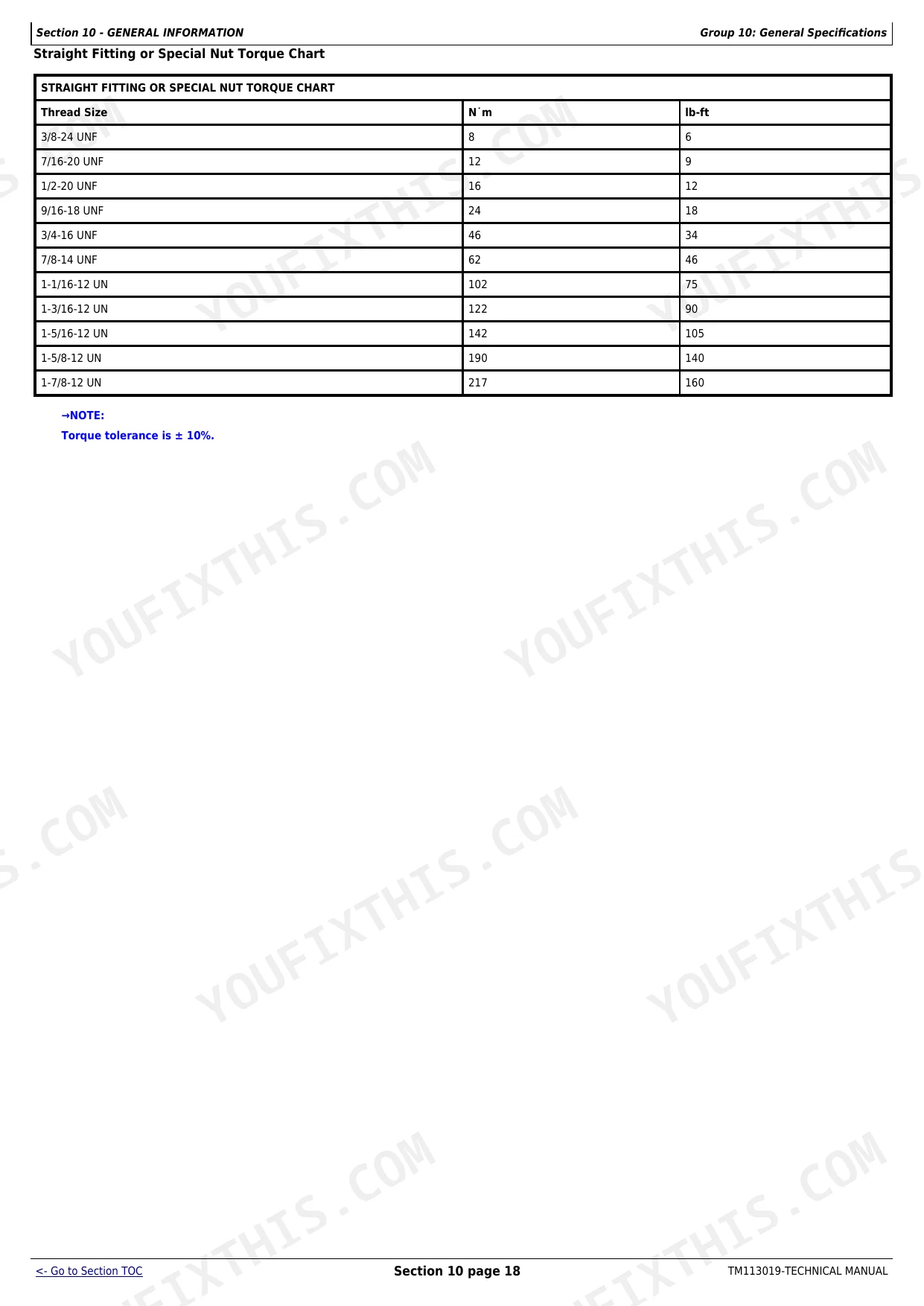

| System | Pages | Key Topics |
|---|---|---|
| General Information | 6-44 | Group 05 - Safety (Recognize Safety Information, Understand Signal Words, Follow Safety Instructions, Practice Safe Maintenance, Use Proper Tools, Handle Fluids Safely, Avoid Fires, Drain Gasoline When Storing Machine, Prevent Acid Burns, Prevent Battery Explosions, Handling Batteries Safely, Prepare for Emergencies, Park Machine Safely, Support Machine Properly, Wear Protective Clothing, Work in Clean Area, Service Machines Safely, Work in Ventilated Area, Illuminate Work Area Safely, Replace Safety Signs, Use Proper Lifting Equipment, Service Tires Safely, Decommissioning: Proper Recycling and Disposal of Fluids and Components, Protect Against High Pressure Spray, Live with Safety) |

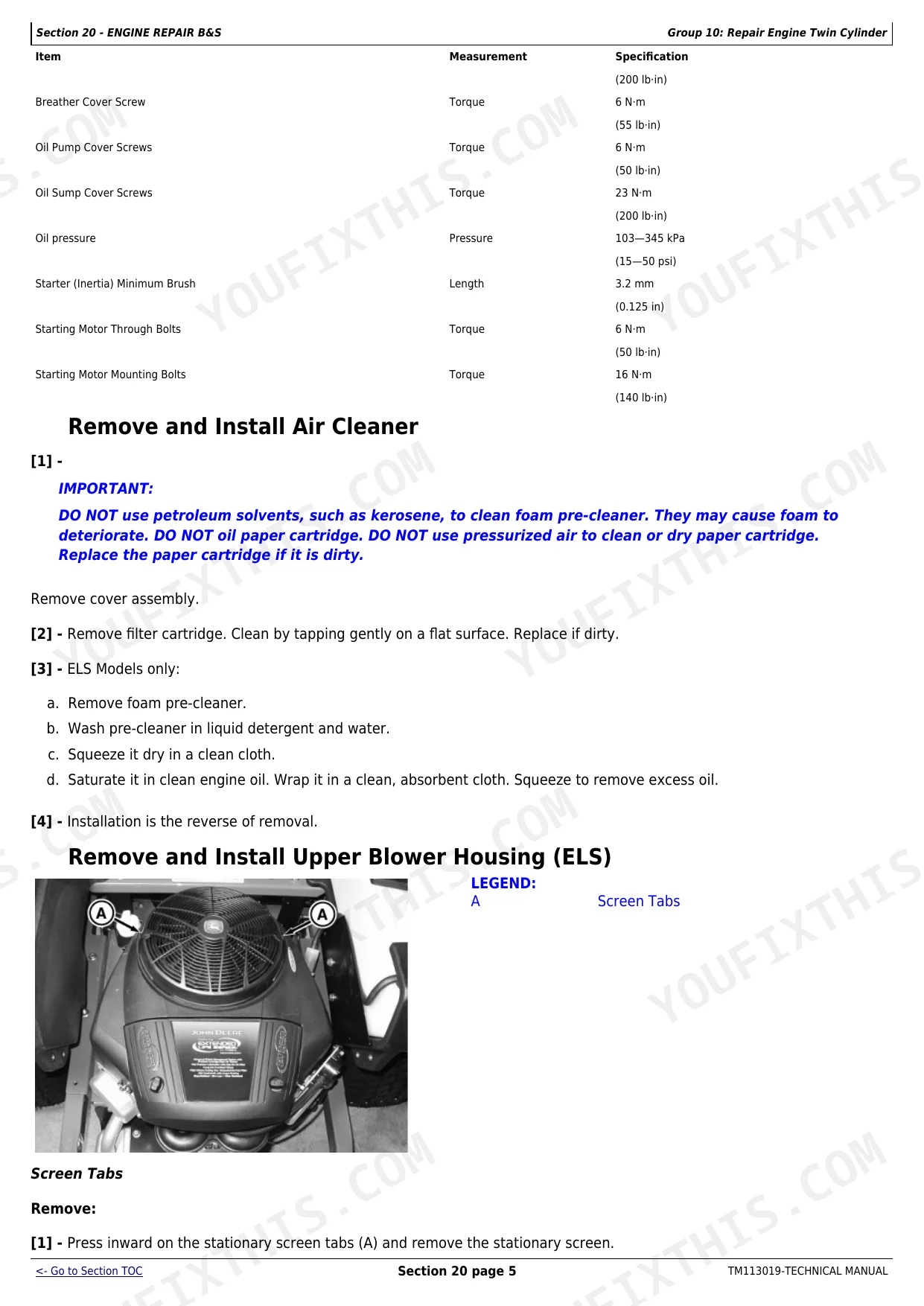

| Engine Repair B&S | 45-141 | Group 10 - Repair Engine Twin Cylinder (Summary of References, Essential or Recommended Tools, Service Equipment and Tools, Specifications, Remove and Install Air Cleaner, Remove and Install Upper Blower Housing, Remove Two Barrel Carburetor, Install Two Barrel Carburetor, Repair Two Barrel Carburetor, Assemble Two Barrel Carburetor, Remove Cylinder Air Guides, Install Cylinder Air Guides, Remove Cylinder Head, Install Cylinder Head, Inspect and Repair Cylinder Head, Remove Valve, Inspect and Repair Valve, Lap Valves, Install Valve, Remove Piston, Rings and Rod, Check Piston Ring End Gap, Inspect Piston and Rod, Assemble Piston and Rod, Install Piston and Rod, Inspect Cylinder Bore, Hone Cylinder Bore, Clean Cylinder Bore, Resize Cylinder Bore, Remove Flywheel, Install Flywheel, Remove and Install Stator, Remove and Inspect Crankshaft and Camshaft, Crankshaft and Camshaft Component Location, Install Crankshaft and Camshaft, Inspect Magneto Bearing, Inspect PTO and Cam Bearing, Service Breather Valve, Remove Oil Pump, Install Oil Pump, Inertia Starting Motor Components, Remove and Install Starting Motor, Disassemble Inertia Starting Motor, Assemble Inertia Starting Motor, Replace Inertia Pinion Gear) |
| Engine Repair Kawasaki | 142-232 | Group 05 - Specifications, Group 10 - Tools and Materials (Other Material, Service Equipment and Tools) |

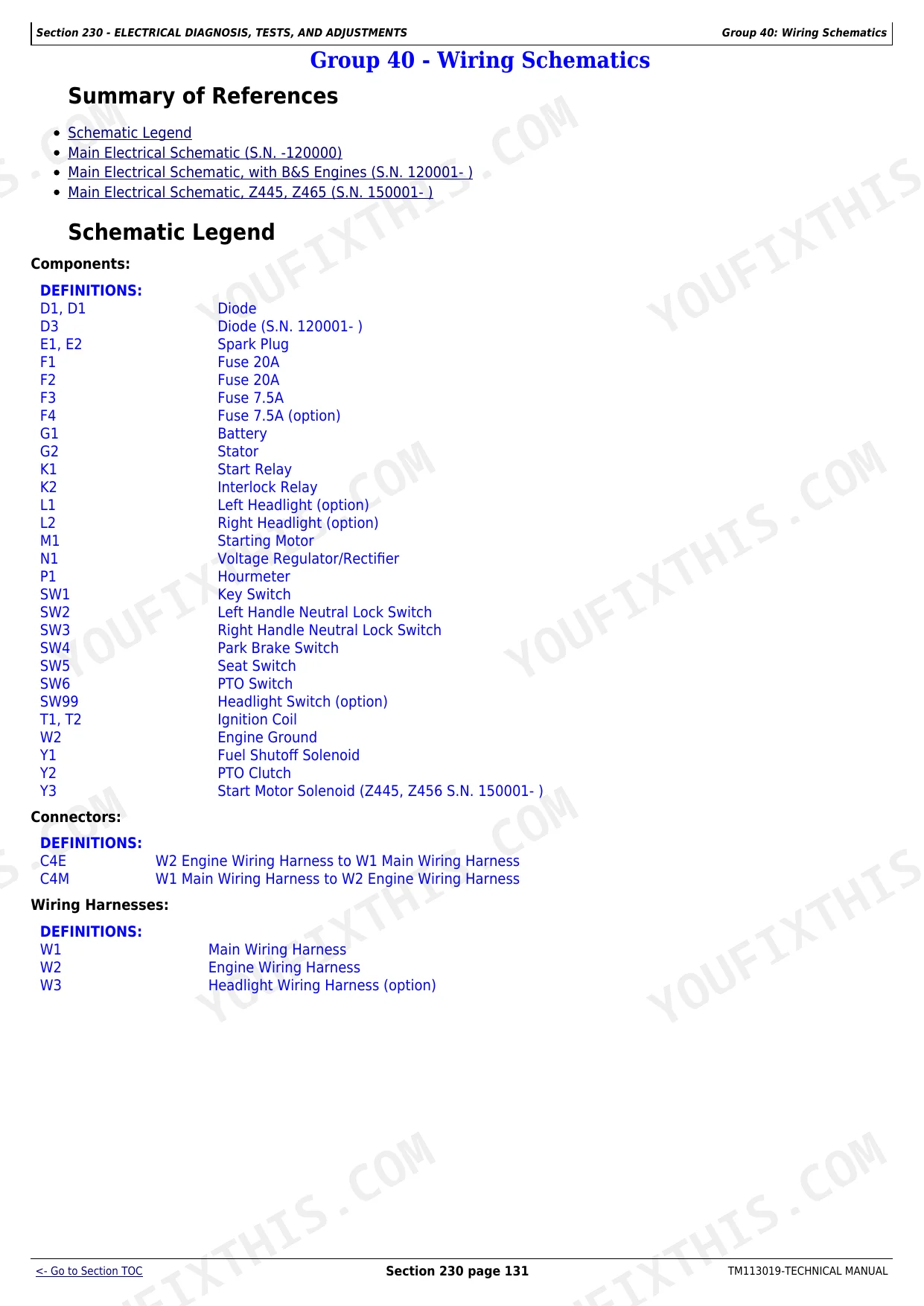

| Electrical Repair | 233-246 | Group 10 - Component Location, Electrical Component Location, Group 20 - Wiring Harness, Summary of References, Wiring Harness Legend, W1 Main Wiring Harness (S.N. -120000), W1 Main Wiring Harness, With B&S Engines (S.N. 120001- ) |

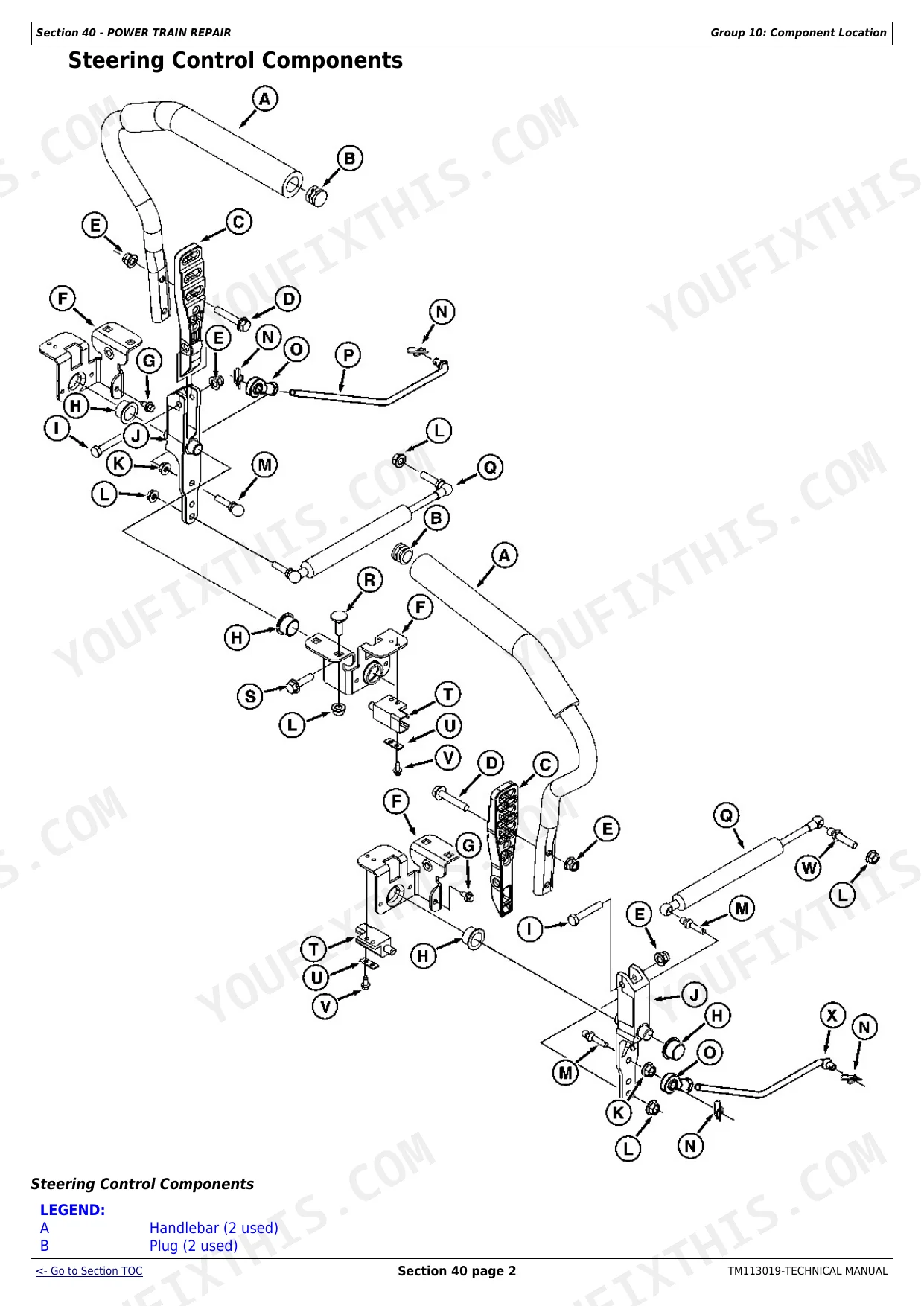

| Power Train Repair | 247-280 | Group 10 - Component Location (Summary of References, Steering Control Components, Transmission Serviceable Components, Transmission Components) |
| Attachments Repair | 281-321 | Group 10 - Component Location (Summary of References, Lift Assembly, 48 and 54 Decks, Lift Components, 62C, Deck Spindles and Sheaves, 48C, Deck Shields, 48 Inch, 54 Inch, 54C, Spindle Section, 54C and 62C) |
| Miscellaneous Repair | 322-344 | Group 10 - Component Location (Summary of References, Fuel System Components, Park Brake Components, Muffler and Heat Shield, Muffler and Heat Shields, Seat and Pan Components) |

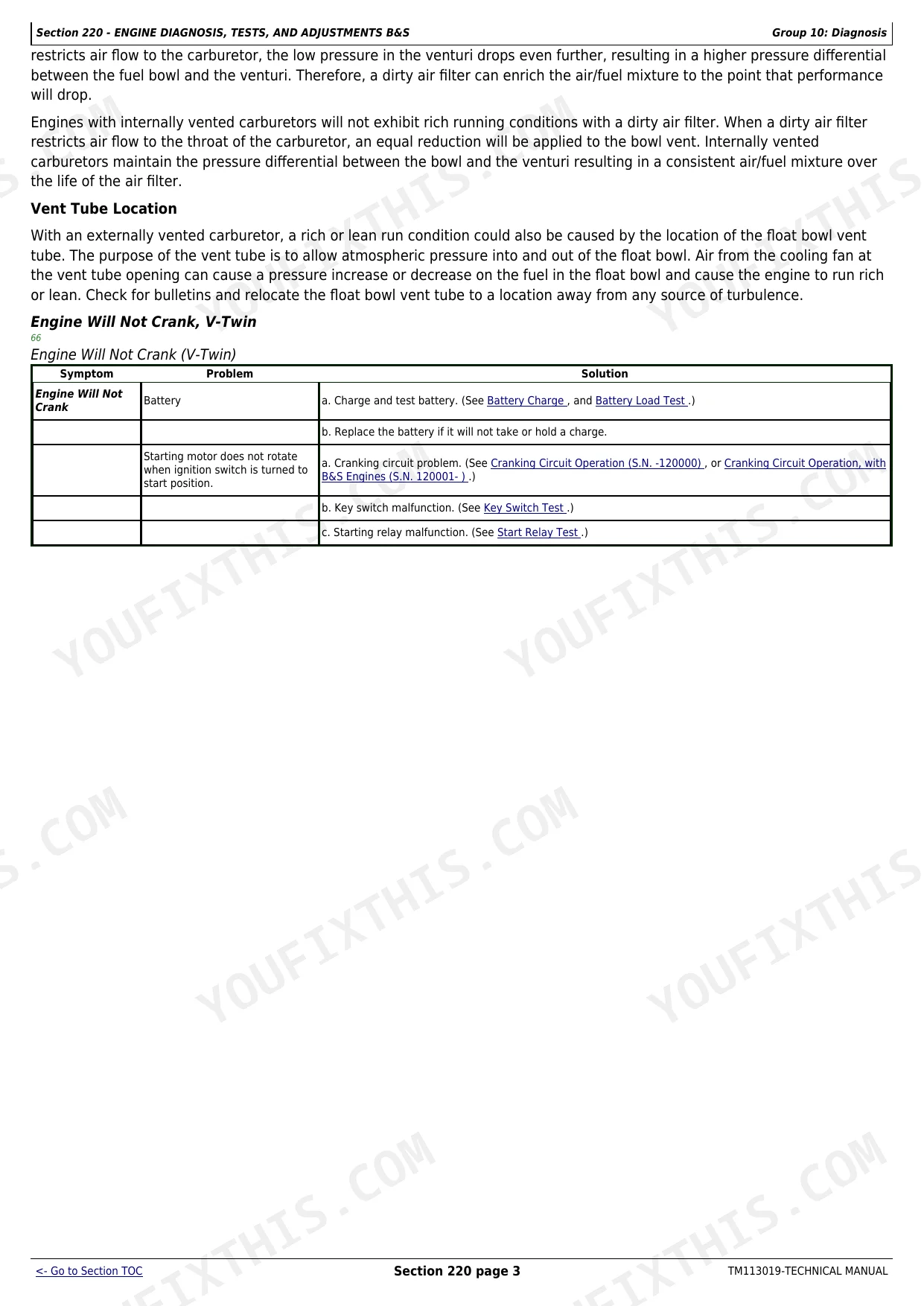

| Engine Diagnosis, Tests, and Adjustments B&S | 345-370 | Group 10 - Diagnosis (Diagnose Engine Starting, V-Twin, Diagnose Carburetor, Air and Fuel, Engine Will Not Crank, Engine Cranks But Will Not Start, Engine Runs Erratically, Engine Runs Then Dies, Engine Backfires or Misses, Engine Overheats, Engine Has Loss of Power, V-Twin) |
| Engine Diagnosis, Tests, and Adjustments Kawasaki | 371-431 | Group 10 - Component Location (Summary of References, Engine Block, Valves and Governor, Intake and Carburetor Components) |
| Electrical Diagnosis, Tests, and Adjustments | 432-588 | Group 10 - Theory of Operation (Summary of References, Power Circuit Operation, Cranking Circuit Operation, Ignition Interlock Circuit Operation, Fuel Shutoff Circuit Operation, PTO Circuit Operation, Charging Circuit Operation, Headlight Circuit Operation, Hour Meter Circuit Operation, With B&S Engines, Z445, Z465, Interlock Circuit Operation, Z465) |
| Power Train Diagnosis, Tests, and Adjustments | 589-602 | Group 10 - Theory of Operation (Summary of References, Drive Operation, Transaxle Operation) |
| Attachments Diagnosis, Tests, and Adjustments | 603-610 | Group 10 - Diagnosis (Procedure), Group 20 - Tests and Adjustments (Summary of References, Adjust Mower Level) |
| Service Tools and Kits | 611-613 | Group 10 - Service Tools, Service Equipment and Tools |
Quick Reference Specifications

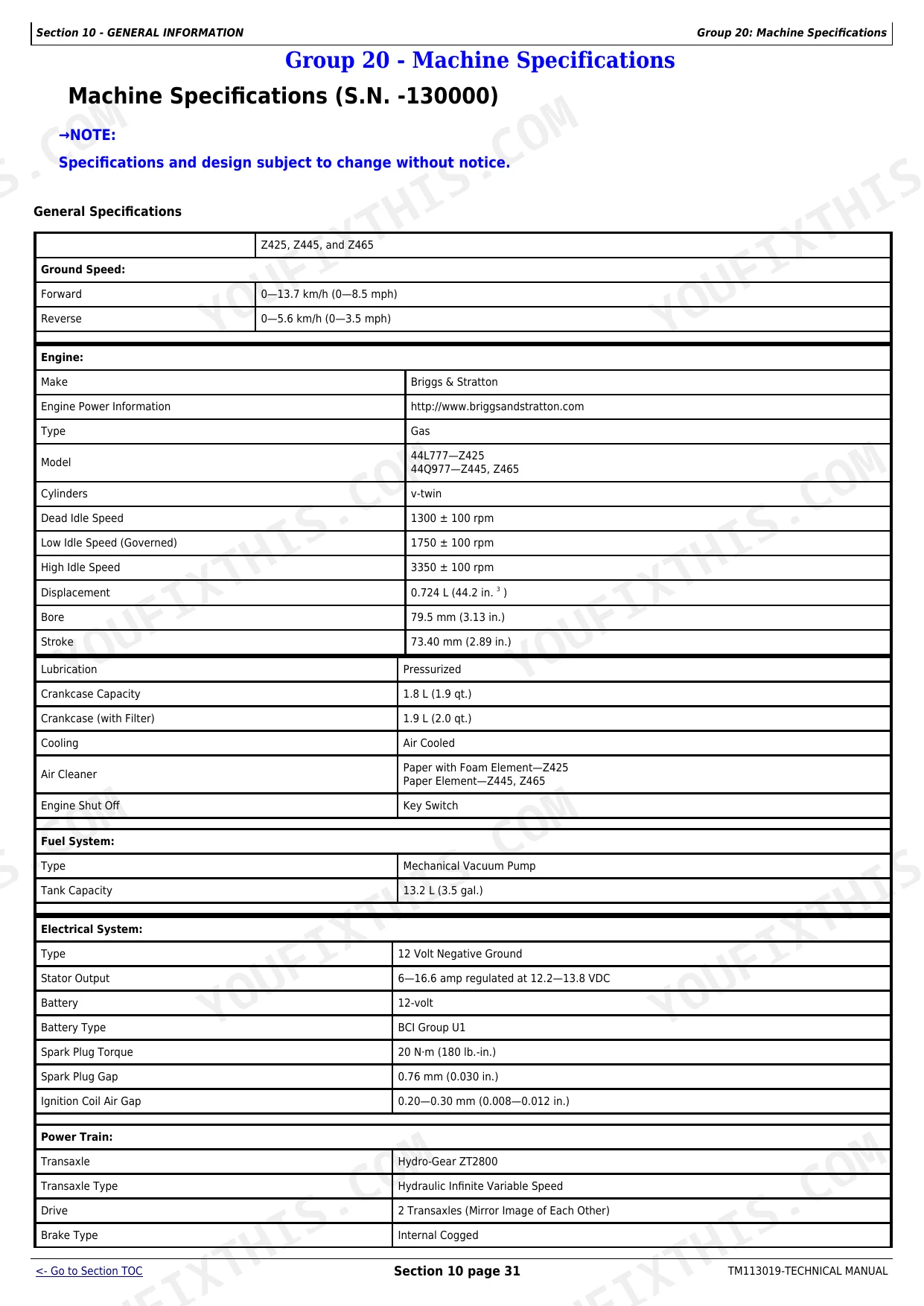

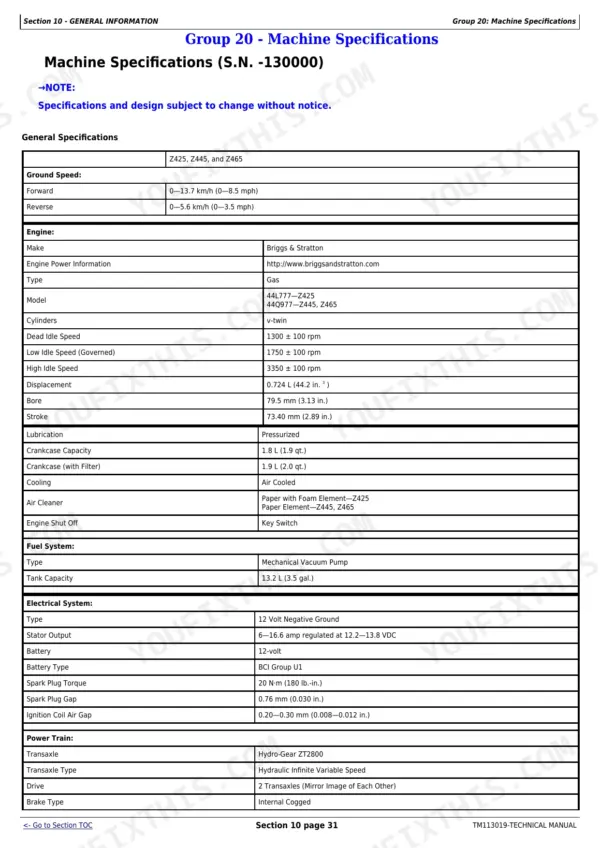

| Specification | Value | Page |
|---|---|---|
| Z425, Z445, Z465 (SN -130000) with Briggs & Stratton engine | ||
| Ignition Coil Air Gap | 0.20–0.30 mm (0.008–0.012 in.) | p. 36 |
| Spark Plug Gap | 0.76 mm (0.030 in.) | p. 36 |
| Spark Plug Torque | 20 N·m (180 lb.-in.) | p. 36 |
| Z425, Z445, Z465 (SN 130001-15000) with Briggs & Stratton engine | ||
| Ignition Coil Air Gap | 0.20–0.30 mm (0.008–0.012 in.) | p. 38 |
| All Models | ||
| Fuel Cap Vent Condition | Clean and open | p. 346 |
| Spindle Housing to Mower Deck Nut Torque | 30 N·m (22 lb.-ft.) | p. 299 |
| Mower Spindle Sheave Nut Torque | 152 N·m (112 lb.-ft.) | p. 299 |
| Blower Housing Condition for Proper Function | Free of debris | p. 385 |
| B&S Engines | ||
| Spark Plug Torque | 20 N·m | p. 36 |
| Engine Oil Capacity (with Filter) | 1.9 L | p. 36 |
| Kawasaki Engines | ||
| Spark Plug Torque | 22 N·m | p. 40 |
| Engine Oil Capacity (with Filter) | 2.1 L | p. 40 |
John Deere Z425–Z465 Series Common Problems This Manual Covers
John Deere Z425 EZtrak bogging down and dying after 15 minutes of operation. p. 345
Check the fuel cap vent condition on page 346 to ensure it is clean and open. Inspect the ignition coil air gap. Set the gap to 0.20 to 0.30 mm for Briggs and Stratton engines using page 365. Replace the coil if it drops spark when hot.
Manual Section: Diagnose Engine Starting, V-TwinEngine surging or stalling erratically under no load during idle or transport operation.
Inspect the fuel lines and filters for restrictions causing starvation. Check the spark plug gap. Adjust to 0.70 to 0.80 mm for Kawasaki FS730V engines per page 423. Torque the plugs to 22 N·m before restarting the engine to test stability.
Manual Section: Engine Troubleshooting (Kawasaki)Blower housing getting extremely hot or failing to function during extended mowing sessions. p. 349
Remove the upper blower housing and inspect for trapped rodent nests. Verify the housing is free of debris on page 385. Torque the Kawasaki ignition coil cap screws to 7.8 N·m according to page 172 if reassembling the top end. Clean all engine cooling fins.
Manual Section: Engine Overheats, V-TwinMower deck cuts grass unevenly or leaves noticeable striping patterns across the lawn. p. 604
Verify the mower blades are sharp and balanced. Torque the mower blade bolts to 68 N·m as specified on page 299. Check the spindle housing to mower deck nuts and tighten them to 30 N·m using page 319 to ensure a level cut.
Manual Section: Mower Deck Cuts Unevenly or with StripingFrequently Asked Questions
Torque specs for John Deere Z425 blade spindle bolt?
For the John Deere Z425, the mower blade bolt torque specification is 68 N·m (50 lb.-ft.). This applies when securing the blade onto the spindle shaft after installation.
Torque specification for Z445 engine flywheel bolt?
The torque specification for the Z445 engine flywheel bolt depends on the engine type. For Briggs & Stratton engines, the flywheel nut torque is 203 N·m (150 lb.-ft.). For Kawasaki engines, the flywheel cap screw torque is 56 N·m (41 lb.-ft.).
What are the replacement specifications for Ignition coil?
The manual provides adjustment specifications for the ignition coil air gap rather than replacement specifications for the coil itself. For Briggs & Stratton engines, the ignition coil air gap is 0.20–0.30 mm (0.008–0.012 in.). For Kawasaki engines, the ignition coil air gap is 0.20–0.40 mm (0.008–0.016 in.).
What are the replacement specifications for Spark plug?
The replacement specifications for spark plugs vary by engine type. For Briggs & Stratton engines, the spark plug gap is 0.76 mm (0.030 in.) and the torque is 20 N·m (180 lb.-in.). For Kawasaki engines, the spark plug type is NGK BPR4ES, with a gap of 0.70–0.80 mm (0.028–0.031 in.) and a torque of 22 N·m (16 lb.-ft.).
What format is this manual in?
A 613-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this John Deere Z425–Z465 Series manual include wiring diagrams?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
